1/72 Fairey Swordfish-MkI Part 3 of the Illustrious Trilogy

I experienced that problem, too! I later realized I had glued in the spar (that supports the wings and provides the dihedral) in reverse so that it now made an anhedral. By then, the wing roots and spar were solidly glued together and impossible to separate, so I had to clip off the spar ends, leaving just enough to glue the wing to, then glue the wings in place supported by blocks to obtain the right amount of dihedral. It complicated the build because the dihedral was never exact, and it left a wider than necessary gap. But it turned out not too bad! :sad_but_relieved_face:


:grinning_face: :canada:

2 Likes

@wunseventytooth Hi Ian, thank you for the head’s up. I hear what you’re saying. It’s so easy to mix the parts from one side to the other leading to a irreparable error as @Biggles50 Leo mentioned.

Fortunately so far, so good with this build and all is going together ok…

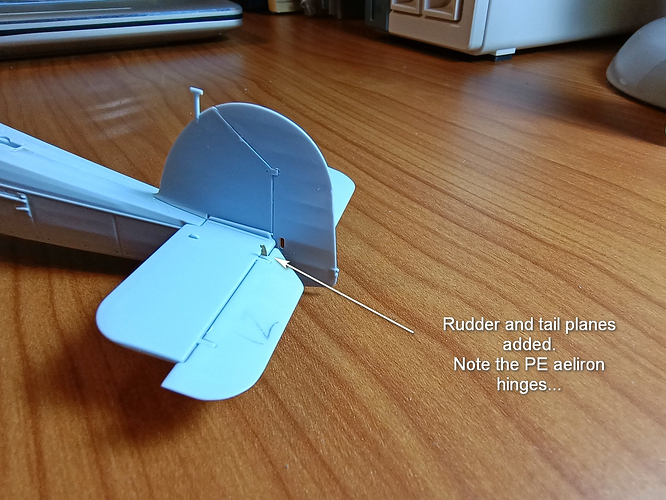

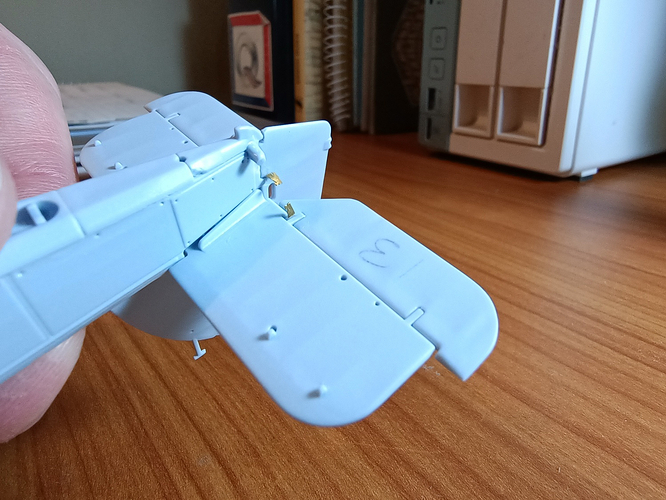

So, a bit of an update to that end…

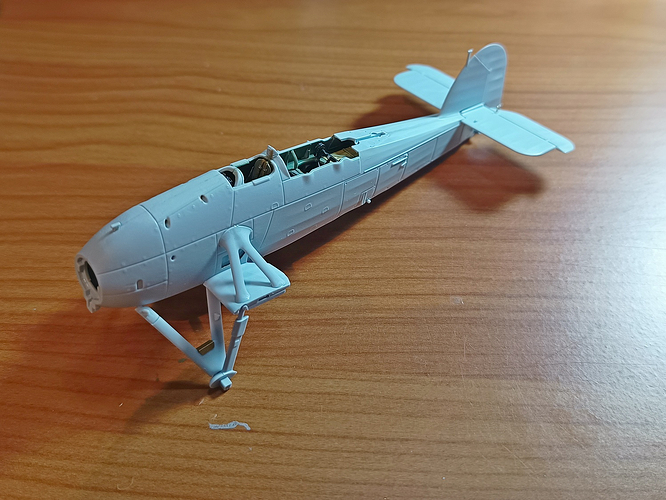

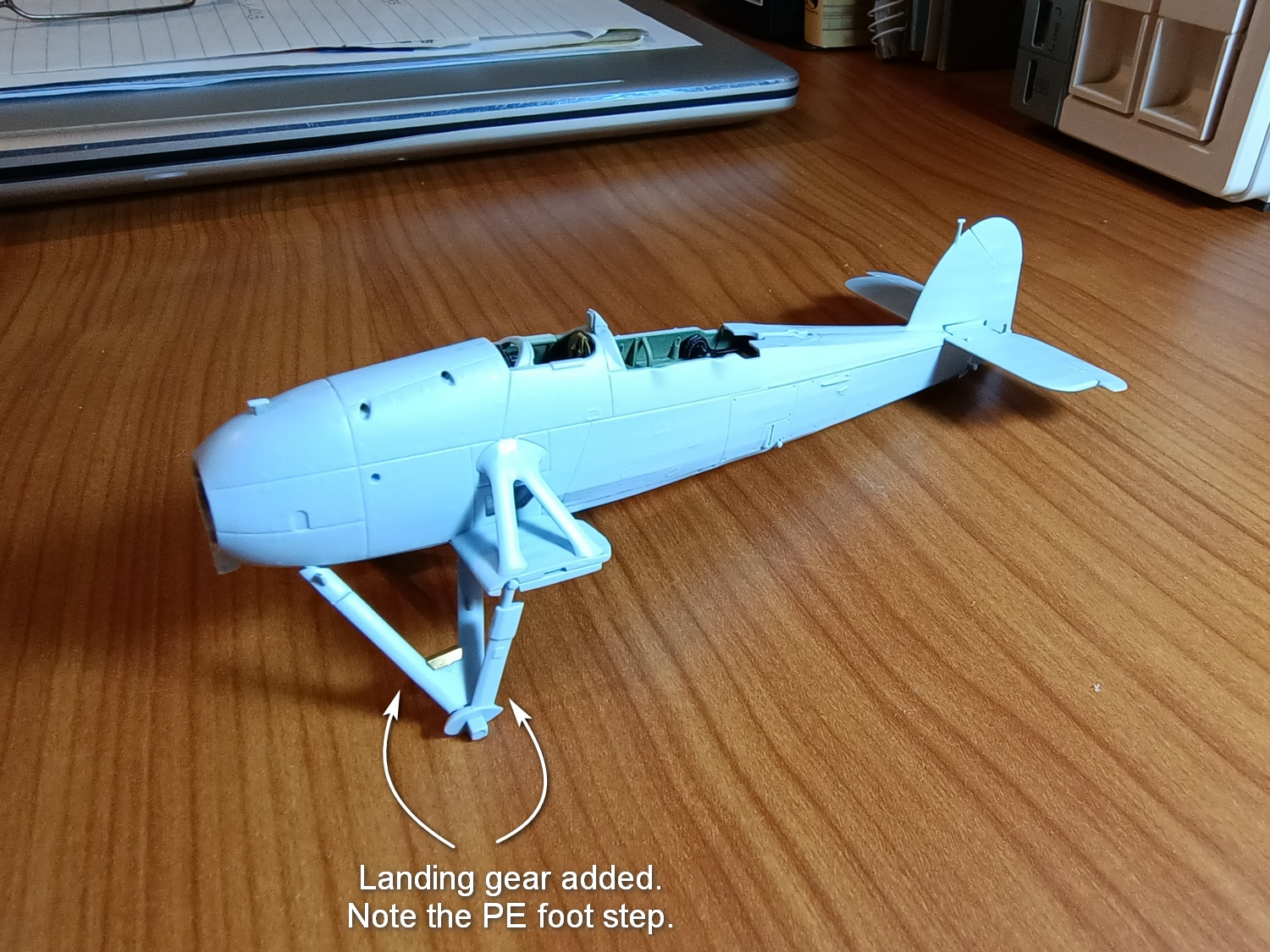

And an overall view…

The main fuselage is nearly ready for paint, along with the other main parts, but I am going to prep all the remaining small parts prior to heading to the paint shop…

Thanks for looking…

More soon :slight_smile:

4 Likes

Airfix made the elevators posable as for take-off, or landing, or neutral position, but moulded the flaps and ailerons solidly with the wings, requiring some surgery if you want to pose them, too. In retrospect, I’m wishing I had gone that extra mile to cut them. In my pic above with the plane taking off, the ailerons are correctly posed, but the wing flaps are in the neutral position! tsk…tsk. :enraged_face:
:grinning_face: :canada:

1 Like

@Biggles50 honestly, Leo, I didn’t notice until you mentioned the wing ailerons and the elevators being at different positions so it’s all good…

Perchance, Leo, you could help me with a bit of info: What colour should I paint the inside of the engine cowling?

I’m thinking interior green but am not sure…

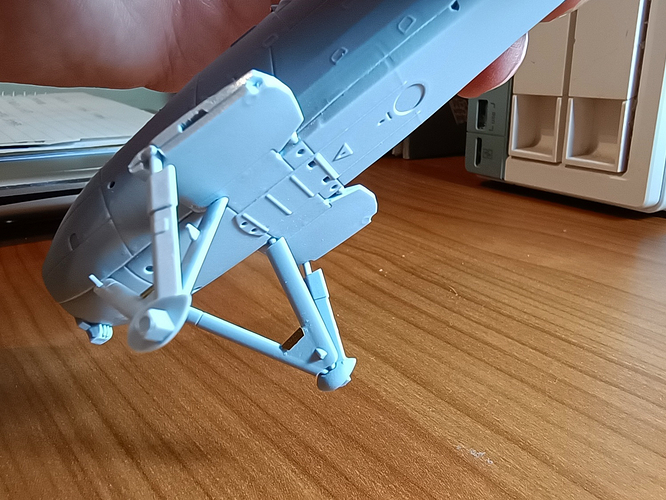

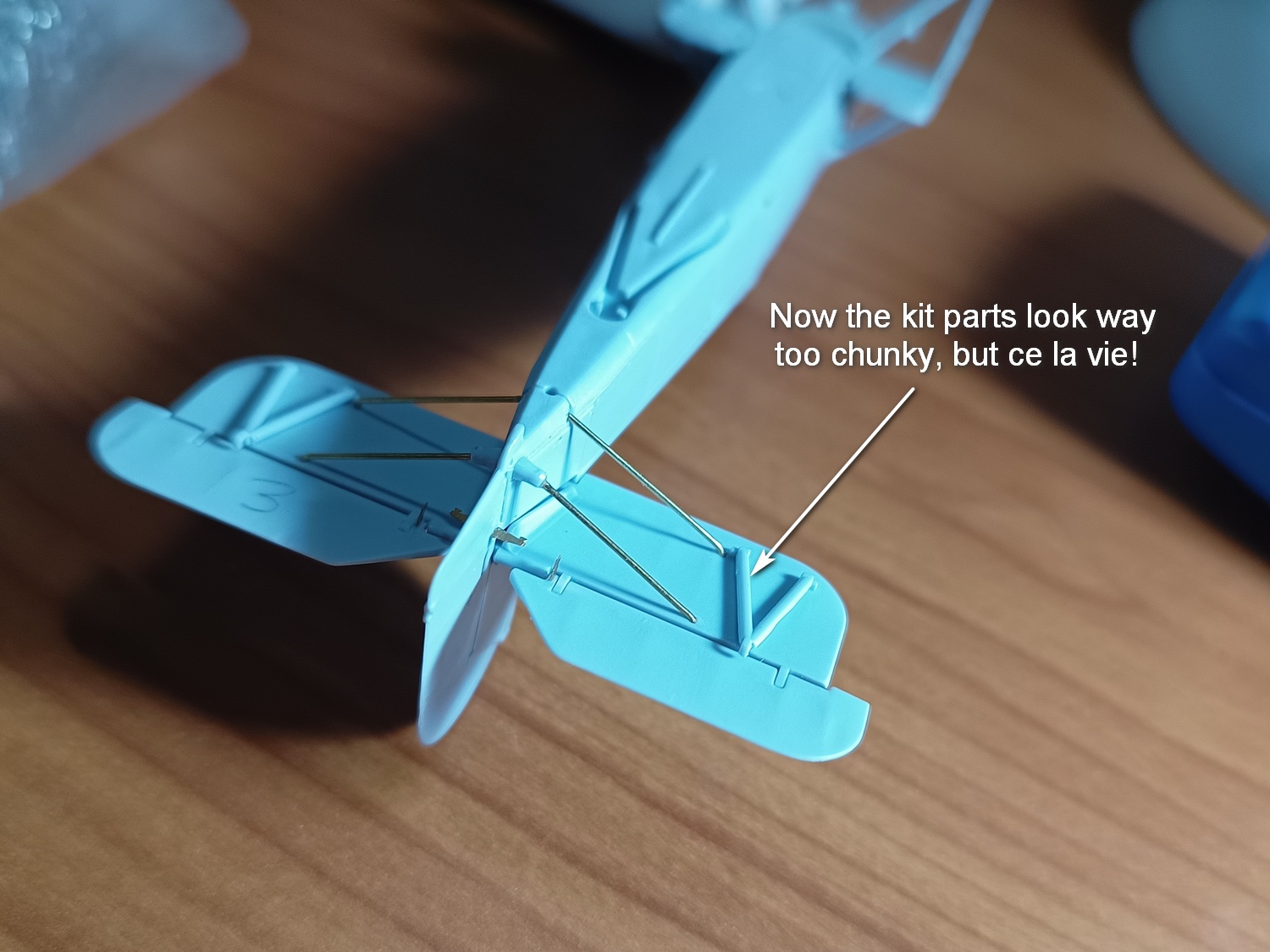

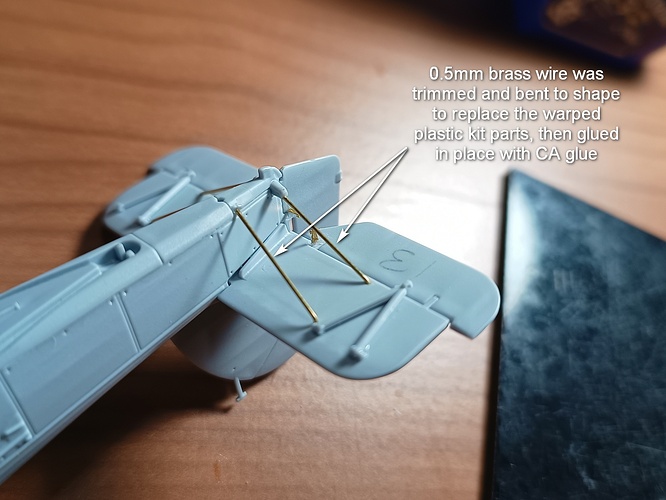

Meanwhile a bit more progress…

More soon… :slight_smile:

4 Likes

I painted both sections of the cowling a metallic/aluminum color with a heavy black oil wash. When you don’t really know you just make it as ambiguous as possible :wink:. I’ve seen museum examples painted metallic, or interior green. Other modeller’s work include weathered copper!
:grinning_face: :canada:

1 Like

A sign of life: Airfix’s Swordfish putters along… Not much to show, just been prepping parts mainly for paint, but this I thought was worth showing… Comparison on the flare? launchers in the kit versus the PE in the WEM set… Big difference in detail and finesse… but I did leave the impossible strap off the top-what is it with AM manufacturers that don’t leave clearance on the fitment holes? SMH!
