A halftrack HETS looks cool. Which parts did you use for the running gear?

1 Like

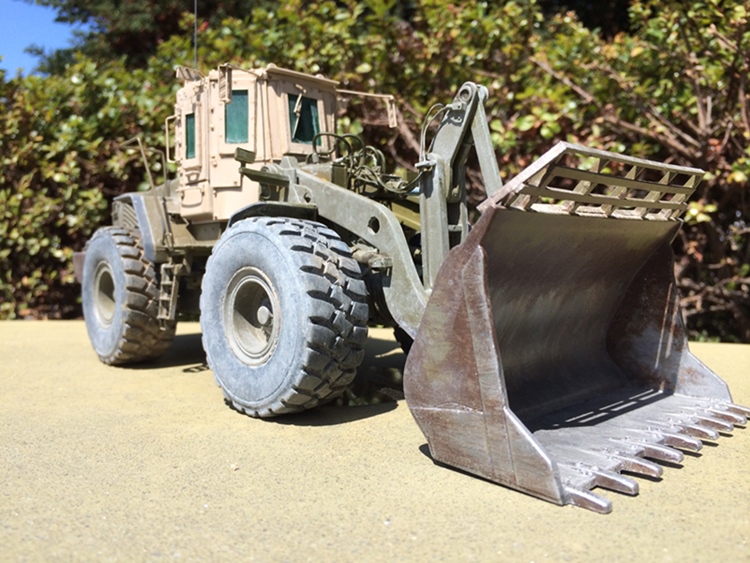

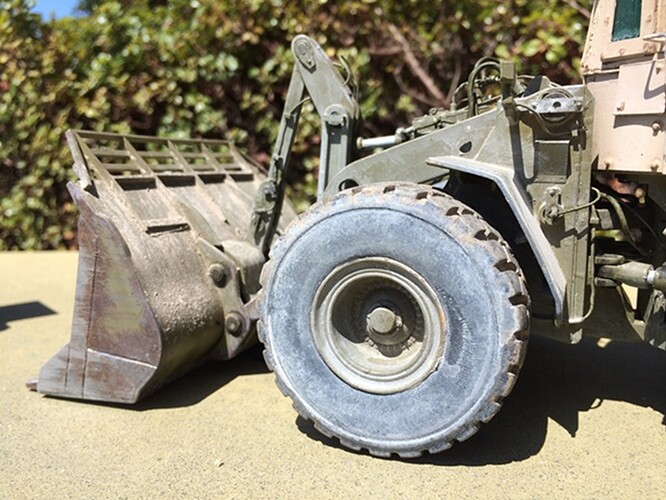

Well shoot - something went wrong - seems to have managed to delete the initial point - that in addition to the M1070, @Clement and @HermannB, you might look for the New Ray, Loader model for your tires and wheels:

These are pretty nice - and for the scraper, I think you could pretty easily modify two wheels to have the planetary gears for the front drive wheels -

Very embarrassing! sorry about the messed up posts! :man_facepalming: :smile:

Cheers
Nick

3 Likes

Nick do have the diameter of the wheels? I made mine out of laminated styrene sheet and the diameter is 58 mm.

1 Like

@HermannB, thanks!

I posted the M1070 to discuss the modified M1070A1 hood configuration, which I got close but not right:

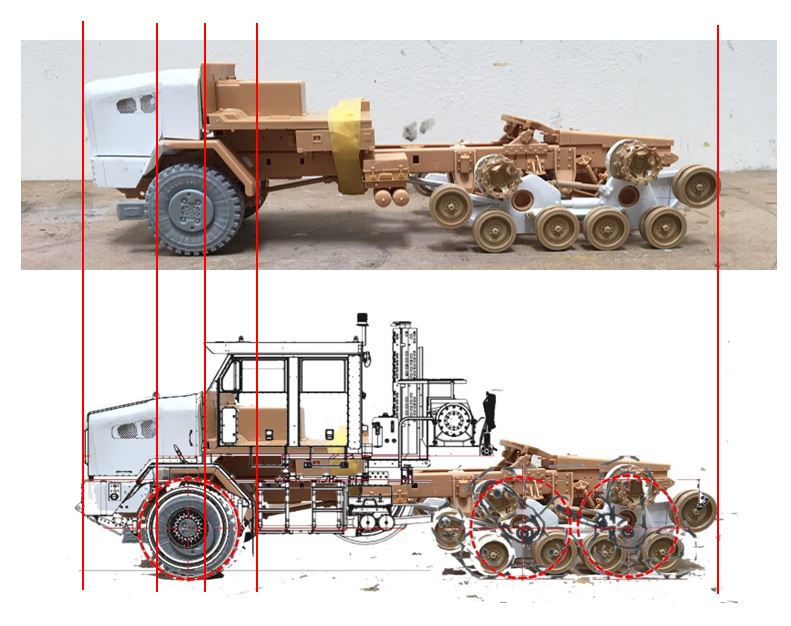

You can see, on the M1070A1, the the front bumper wraps back to the front fender openings, and while close, something above is not correct - And, my “nose” is leaning forward, and should be vertical -

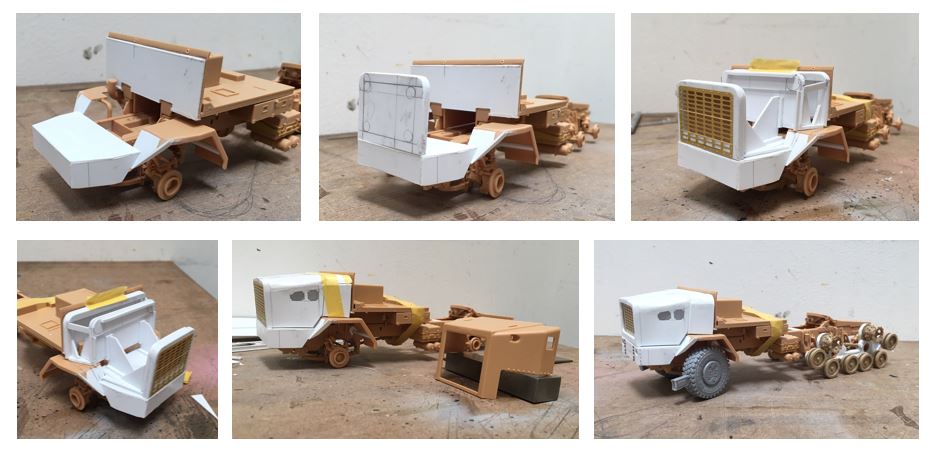

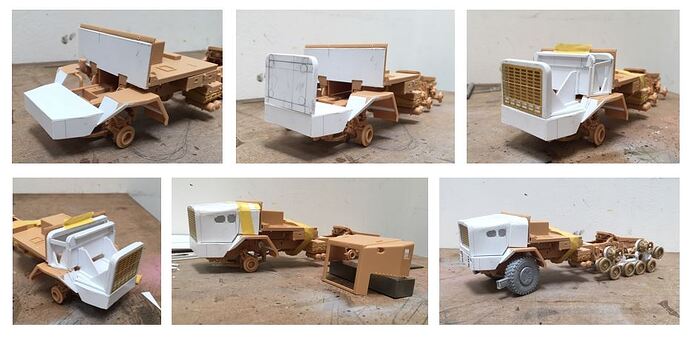

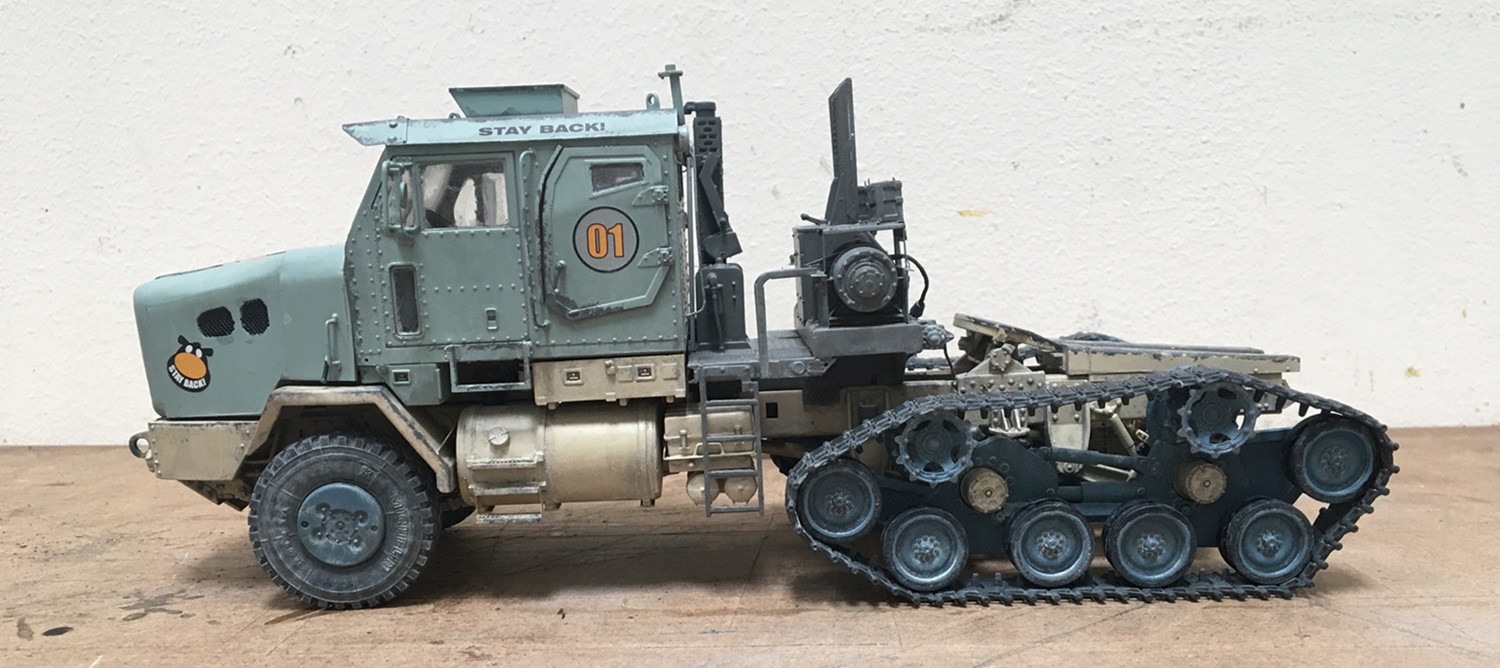

Regarding the running gear, I used the final drives and road wheels from the old Orochi Bradley kits, which came with nice metal tracks:

I looked a the design of some tracked agricultural tractors/dozers for the design, so each axle receives its own bogey, and the two are balanced by a track tensioner -

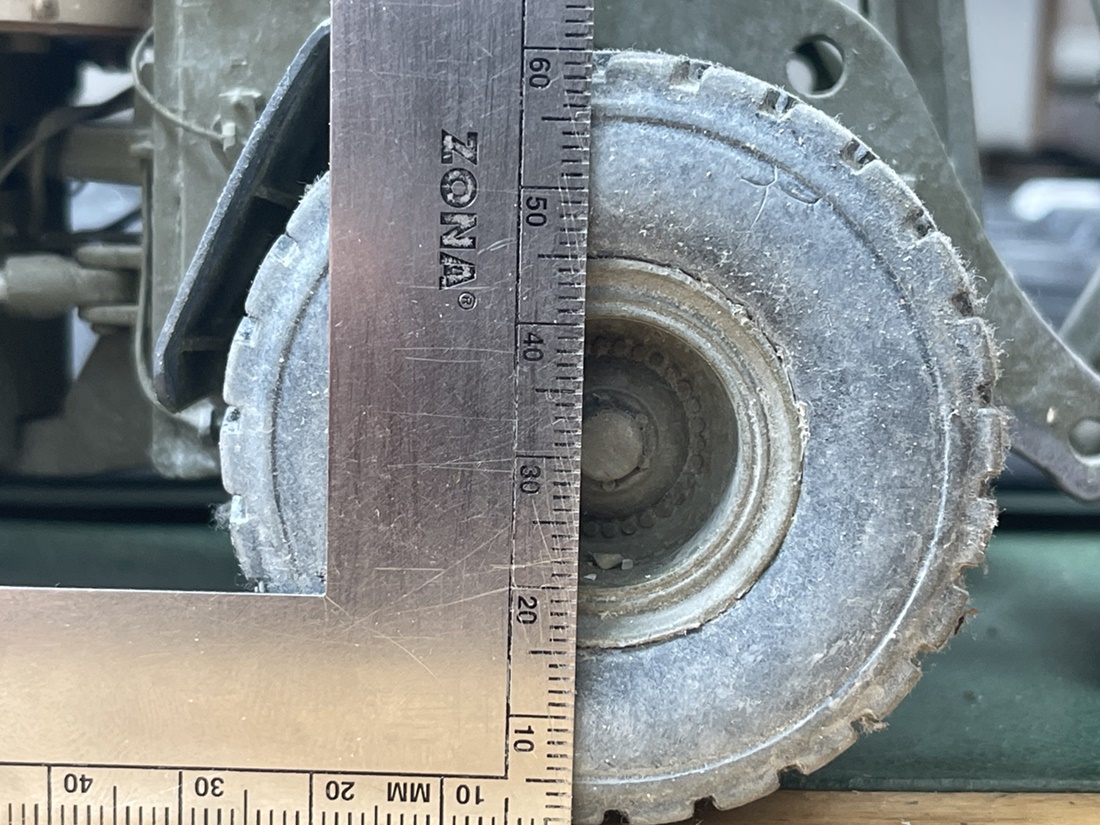

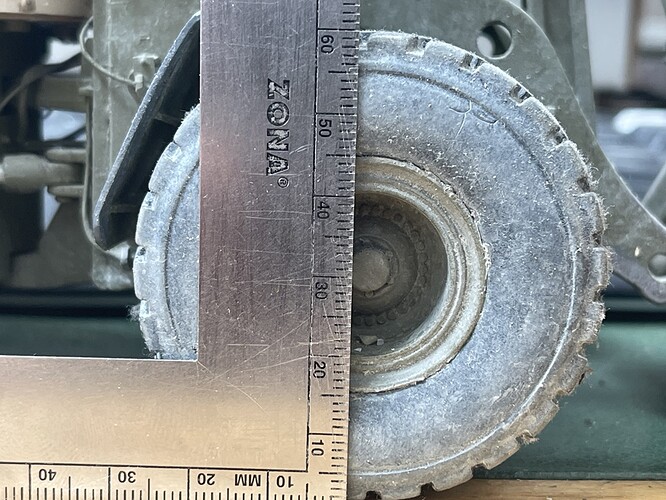

And, I looked at the loader model - the tires are just under 60mm:

So maybe close enough for your purposes?

@HeavyArty, thanks for keeping this sorted out -

Cheers
Nick

3 Likes

That M1070A1 was an amazing build. :+1:

2 Likes

Hi Nick, thanks, that will be close enough. If I hadn´t build the wheels already. :frowning_face:
Is this a kind of Mad Max HETS?
