Following this thread closely b/c I am thinking about [scratch] 3D printing M106A2 or A3 conversion for my personal use. Don’t want to pay $60-70 for Hobbylink’s prints when I can do them on my own. Just gathering reference photos at this point. Thanks for the discussion, John.

Kind regards,
James

2 Likes

Everyone keep watching this post for more updates. I just made contact with someone who is/or has restored one. I will also post links to some of the things I found helpful. Hopefully this can become a nice repository for info for others down the road.

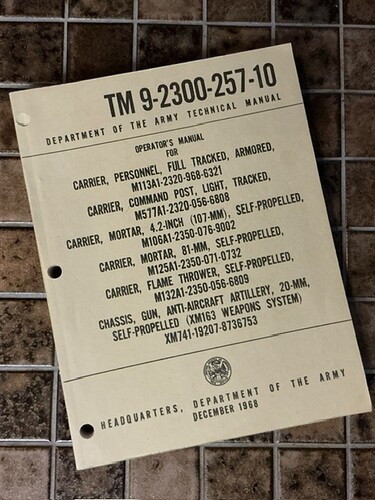

Here is a link to a free version of the Technical Manual that covers the M113 and variants. This is an older 1 which covers more of what I needed. Nice read if you are up for it. :wink:

2 Likes

The M1064 would be a great one as well. If you want to do it and need references hit me up.

1 Like

OpRN, I have already taken great inspiration from your build which is top notch. I am really amazed by your mortar rounds.

Thanks,

John

I personally think the fellow has done a fantastic job building a well used mortar track, and will give him credit when it’s over due. Love to see more of his work!
gary

1 Like

The markings are hand painted. Just yellow “hash” marks following the pattern of my reference pictures. I am not OCD enough to paint actual letters.

1 Like

Sorry to drag up old topics does anybody have access to a close up shot of the driver’s area?

1 Like

The drivers area is the same as on the M113, M577, M901, etc. If you Google for images of those, you’ll get the reference you need. One caveat is that they should be M113/113A1/113A2 type. Not sure if the A3 mods found their way into the M106 mortar tracks.

2 Likes

Not the M106. The A3 mortar version is the 120mm M1064A3 Mortar Carrier.

3 Likes

Thank you

1 Like

Even better, if you can find it, is an earlier edition of that:

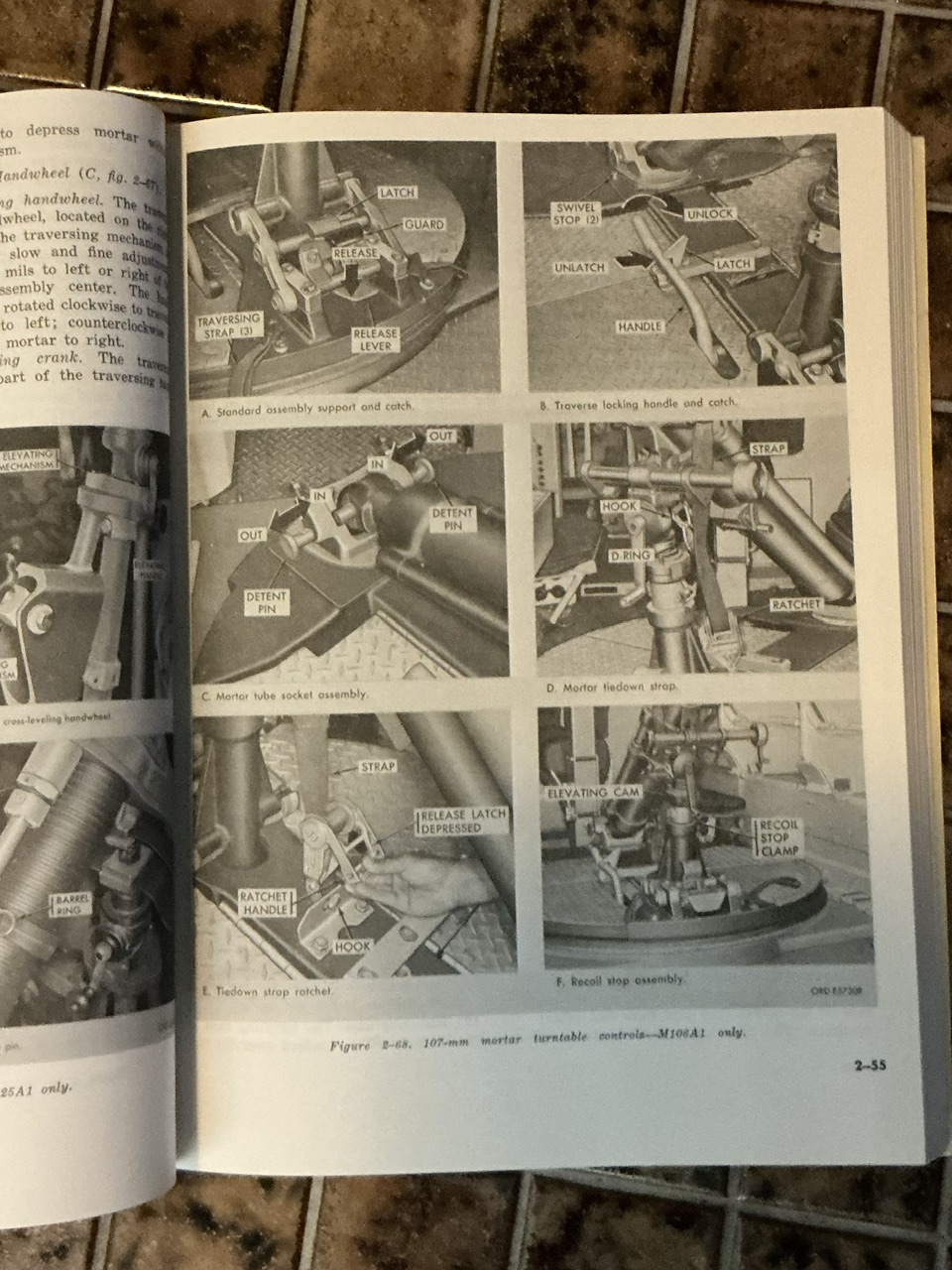

The reason being, most of its illustrations are the ≤1960s style of airbrushed photographs rather than line drawings:

3 Likes

M1064. Northern Iraq, 2008. I’m sure it’ll be useful for someone.

5 Likes

And that track has the A3 steering yoke instead of the steering laterals of the older versions. Otherwise it looks quite similar to the earlier variants.

2 Likes

I’m just trying to get the color layout right. I don’t remember the walls of the 113 I was signed for having the dark green on them.

On an M106 (and M1064A3) mortar carrier, the driver’s area is seafoam green from the step in the floor forward. The open rear mortar compartment is interior green (a darker green color), or sand on overall sand M1064A3.

M106 (or any other M113) driver’s area

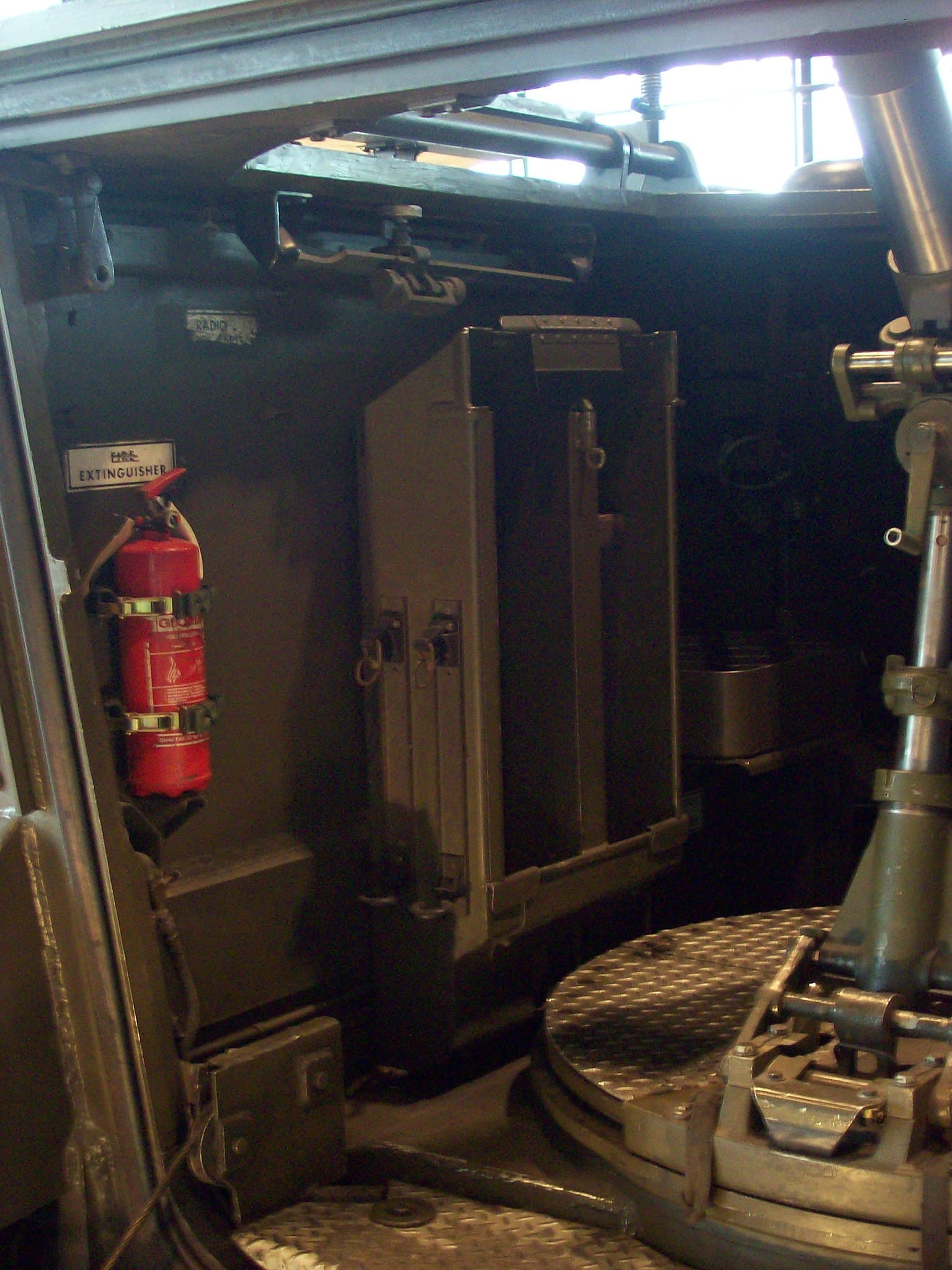

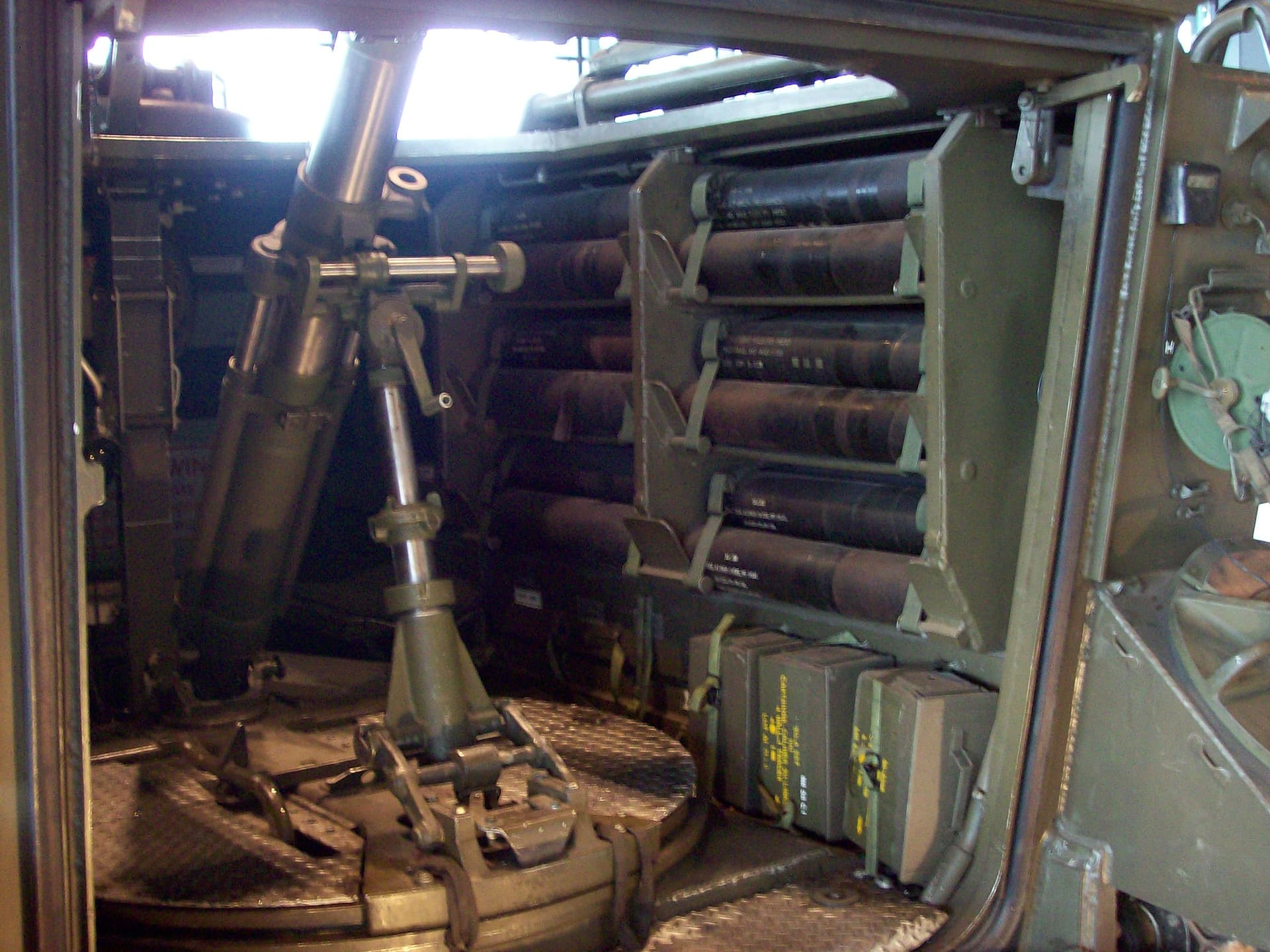

M106 Rear



Sand M1064A3 120mm mortar Carrier

4 Likes

perfect thank you the engine access cover facing the rear is also light green I see.

1 Like

On the above example, yes. It is usually the interior (darker) green color. Looks like this one was swapped out for a standard one. If you look closely, you will see the wall around it is still interior green. Also note it is not a US M106, but the same applies. I guess you can do it either way though.

1 Like

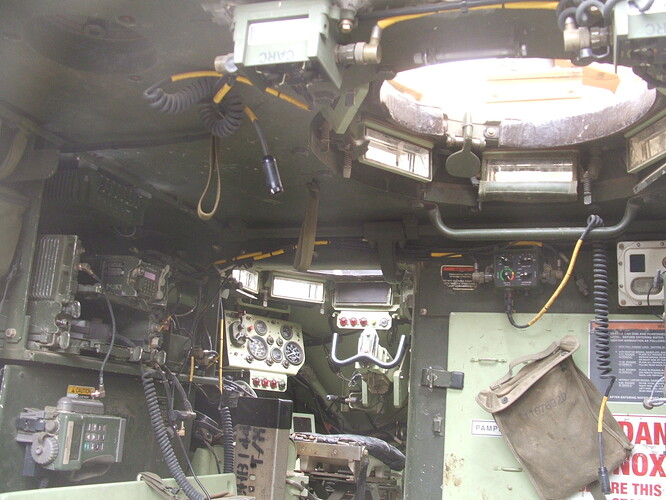

Send me your email address. I’ll send you the interior photos of the M1064. I don’t need to use wetransfer.com as I can just email you a few batches.
