Merkava antenna question

Armor/AFV
1

Do Merkava tanks have rod, or whip antennas, or does it depend on the radio set? And how long are the antenna - they look to be around 2 meters?
:smiley: :canada:

2

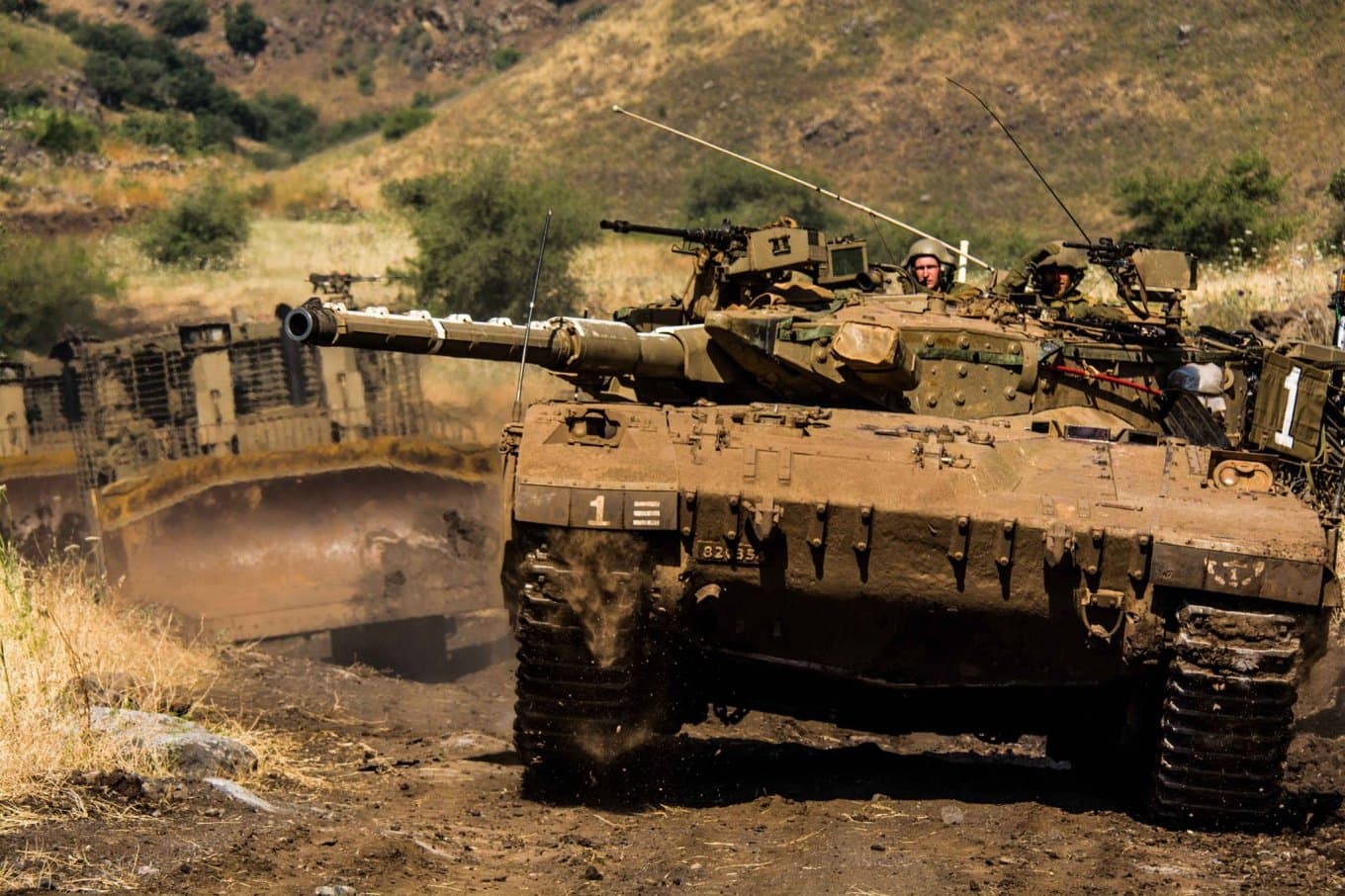

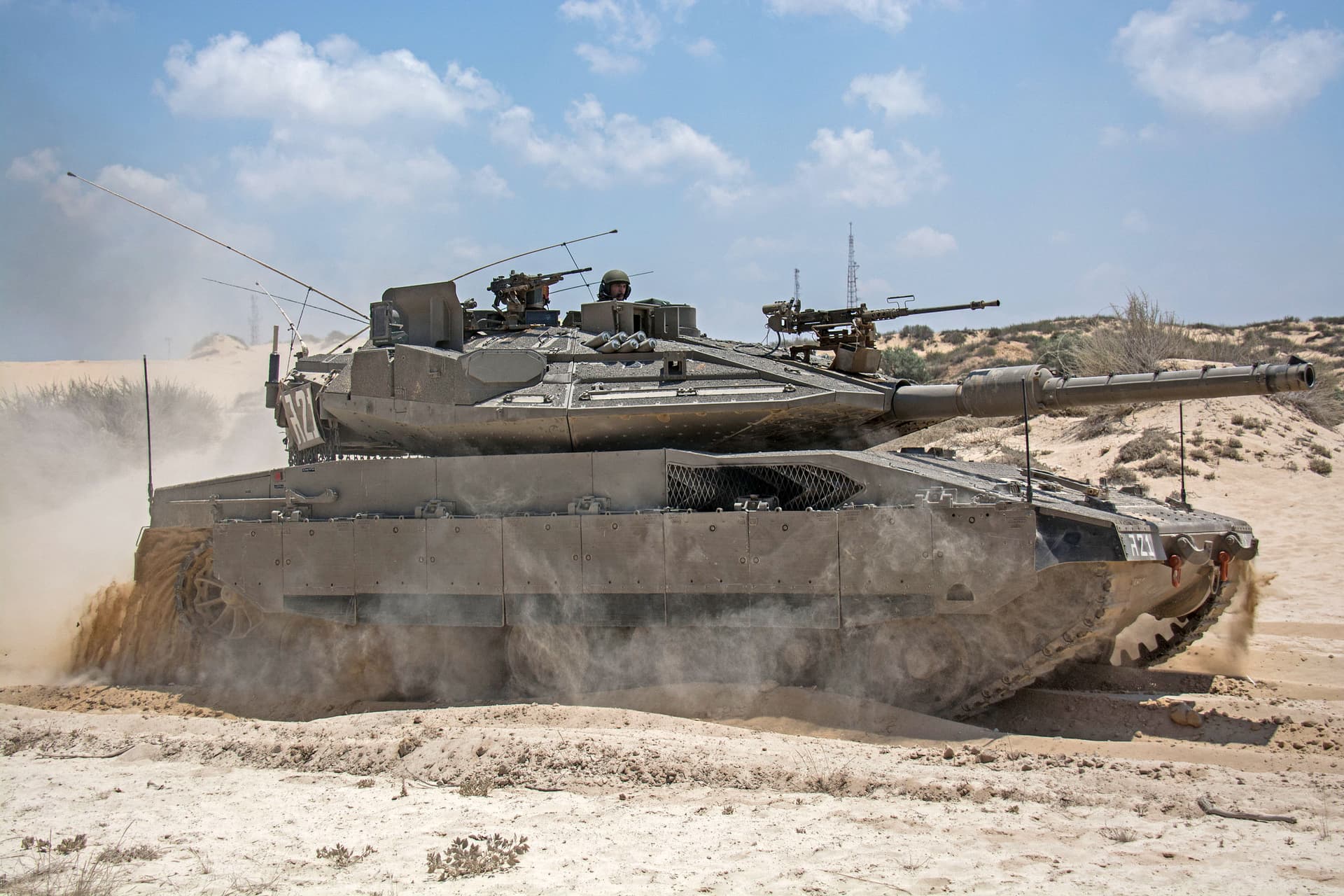

I think they use a combination of both, depending on which comm system they use.

image1920×1280 255 KB

image1360×906 179 KB

2 Likes
3

They use rods but they flex some have whips but mostly rod

1 Like
4

Thanks. What about the length…2 meters?
BTW: I notice shorter rods near the front fenders (and the rear, too). Are these width indicators? I understand the Merkava is a bit wider than most tanks.
:smiley: :canada:

1 Like
5

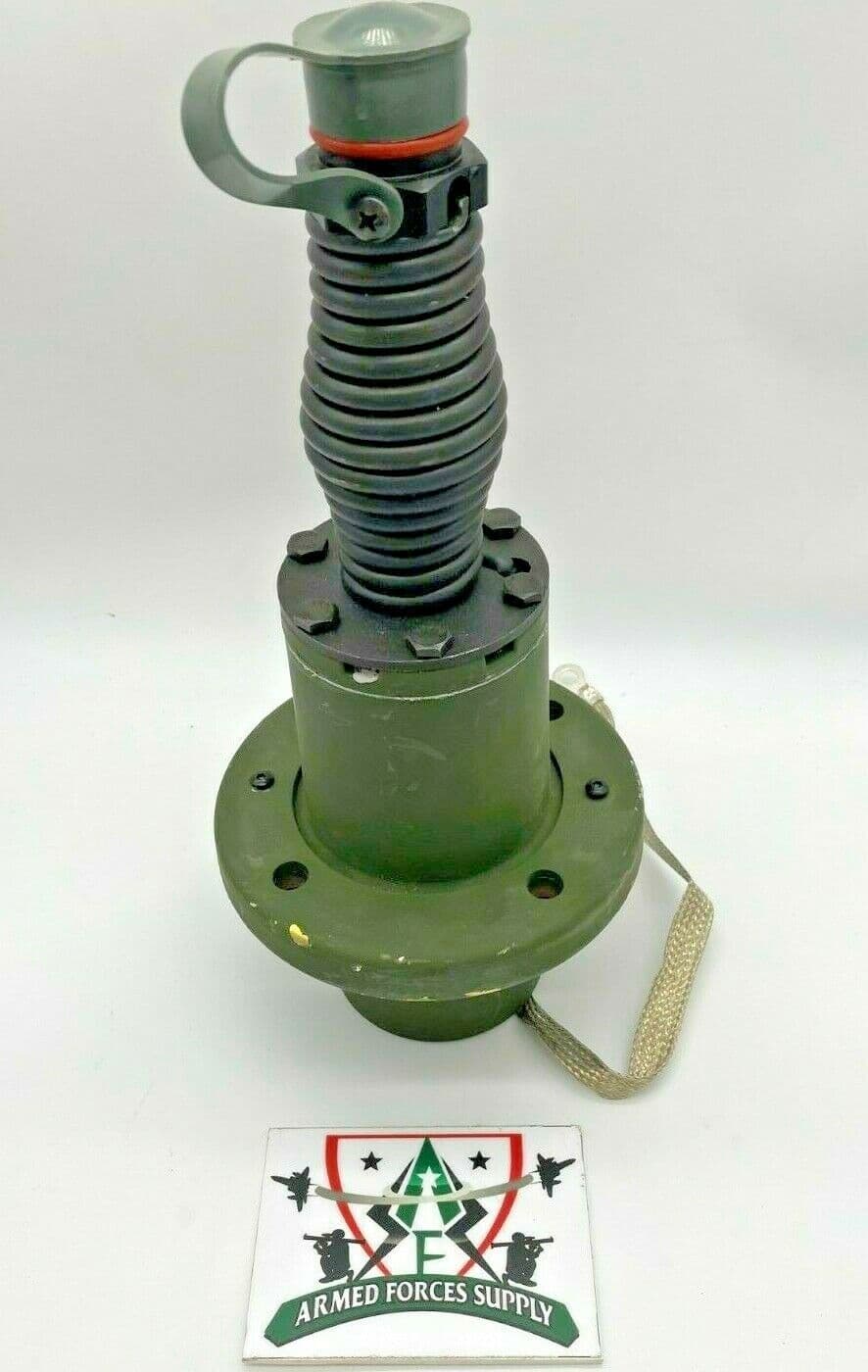

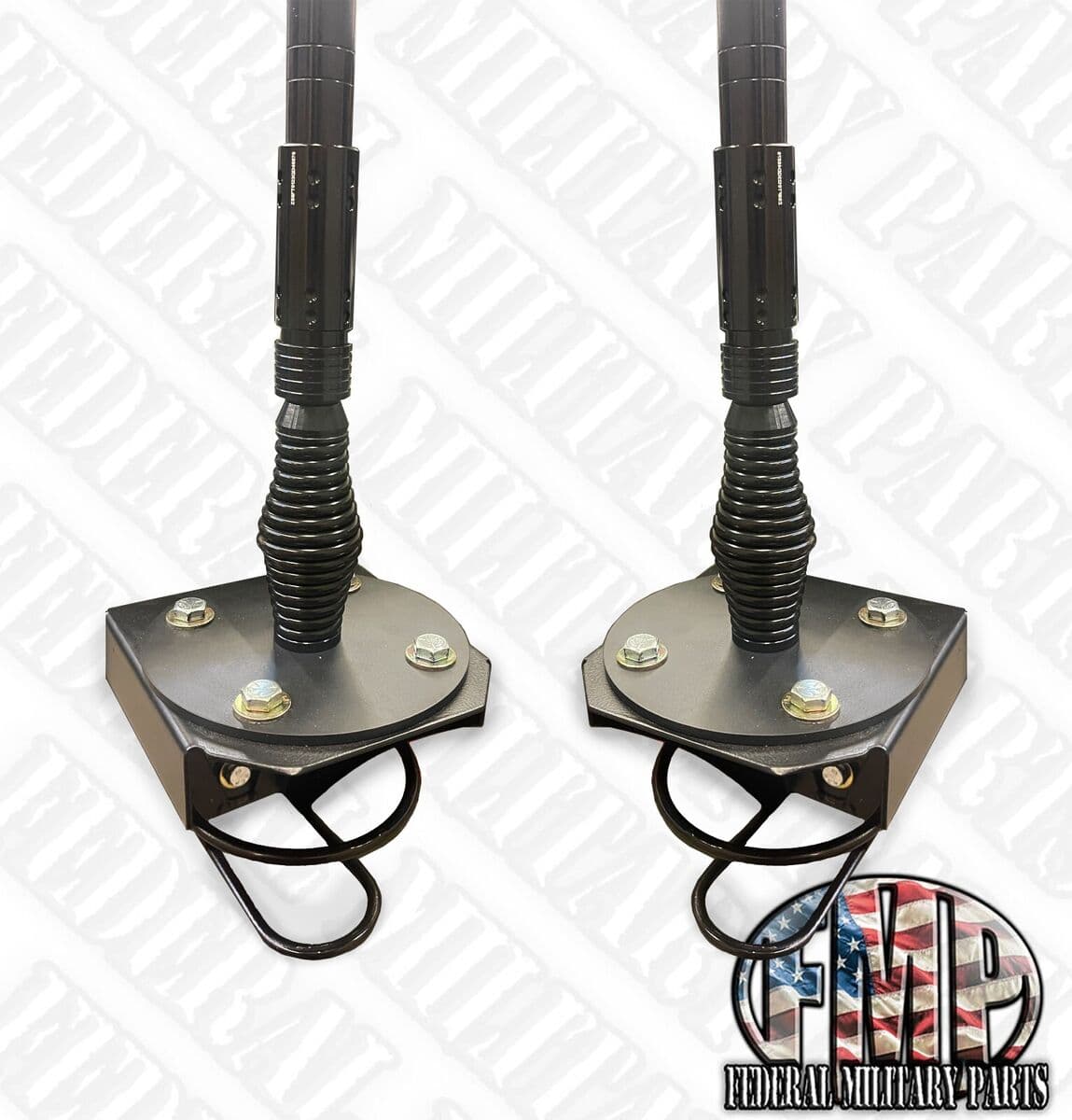

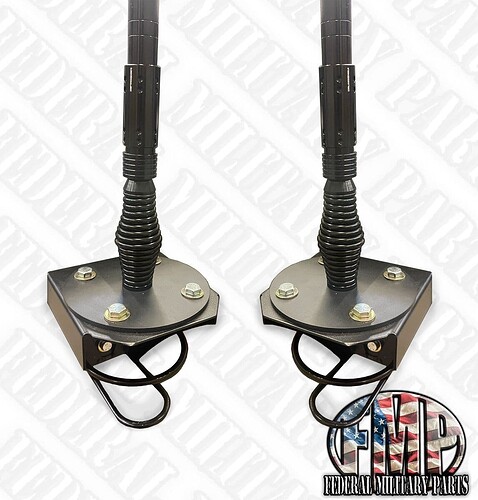

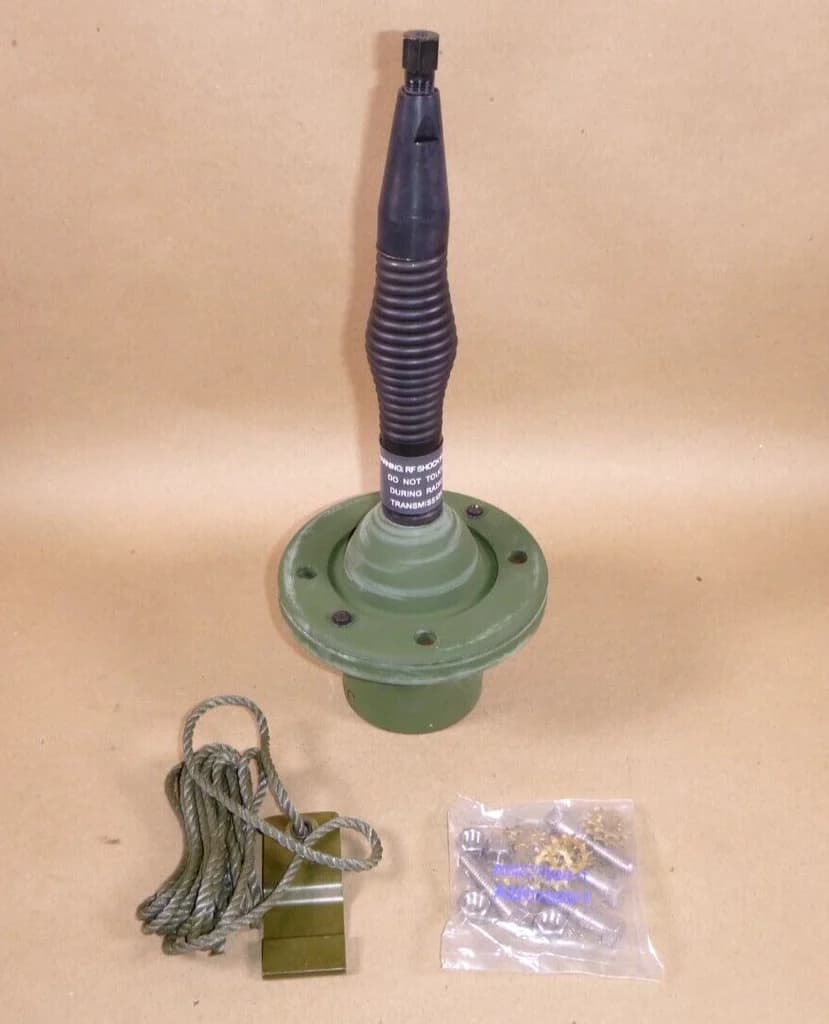

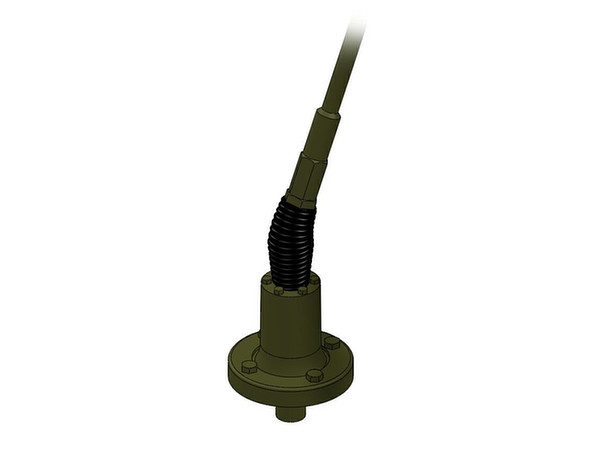

I’m pretty sure they use the same antenna mounts as modern US vehicles, solid base with a spring and a solid antenna. US antennas are in two 4’ pieces for a total of an 8’ antenna: 2.75" in 1/35.

Someexamples:

image886×1400 76 KB

image600×450 39.2 KB

image1149×1200 103 KB

image829×1024 42.8 KB

2 Likes
6

Front fenders are for drivers line of sight.

2 Likes
