Can somebody tell me where the exact location is of the commanders cupola on a Late Tiger I 40mm Turret roof ? And maybe also what the different reference points are to determine that exact location? See picture.

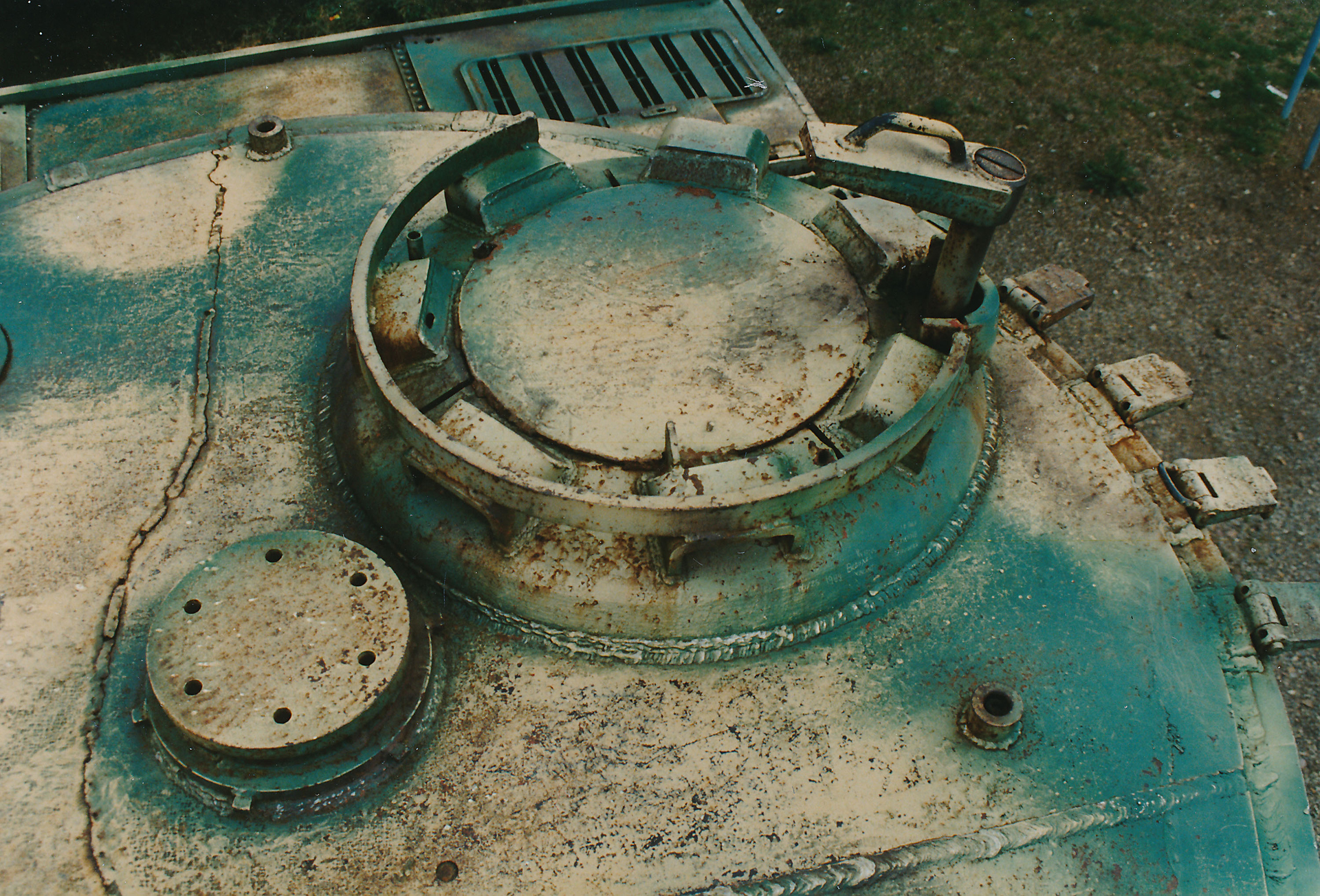

1 Like
David Byrden appearing in 1, 2, 3…
4 Likes
It’s not an easy question to answer! We have no written specifications, the drawings that we have are possibly “off”, and people who survey Tigers have difficulty finding an unambiguous reference point to measure from.
We do know, from the specifications, that the fan is precisely 15mm to the right of the turret’s midpoint.

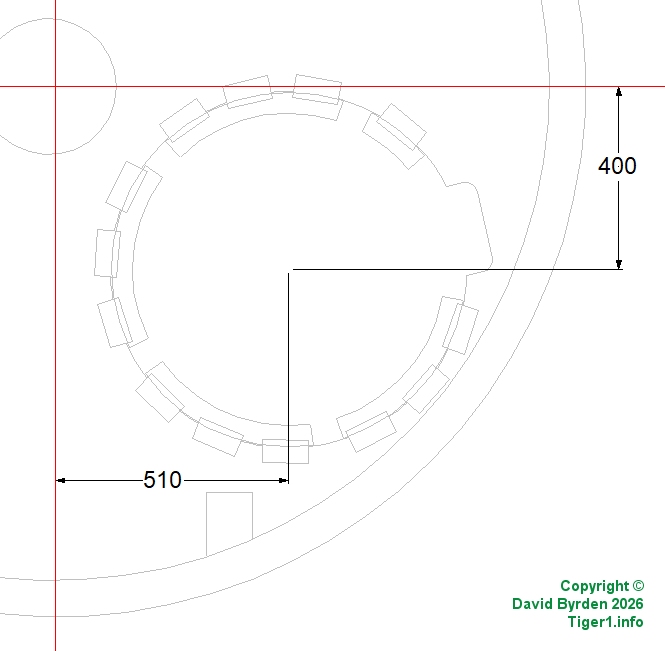

Based on all the evidence that I could gather, I placed the cupola here:

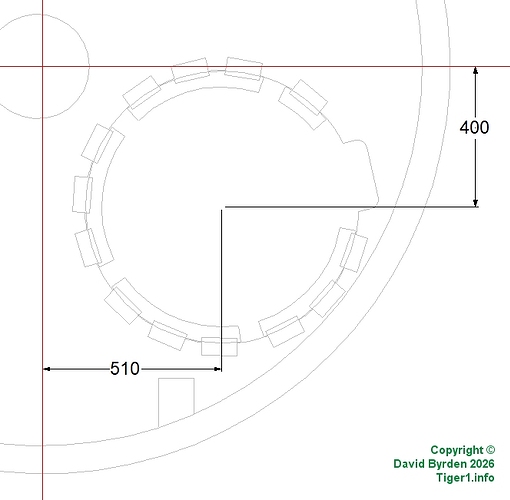

(view from underneath)
David
