A-37B Dragonfly 1:48 Trumpeter

Aircraft Cold War
,
1

Hi,
I decided to proceed with this build, I started it some time ago on the old forum :slight_smile:
I didn’t like the original cockpit, so I made some enhancements with Eduard photoetch and custom made parts with FreeCAD and then printed on my Mars3 printer.
The two consoles under the Instrument panel I replaced with my design, I looked at reference photos. Also the rudder pedals and throttle levers. Some cables in the rear from wire. The “pillows” on the sides I made with MagicSculp.
I will put the resin seats and controls after painting all this. For comparison the basic cockpit.

100_0810
100_08101920×1440 169 KB

100_0812
100_08121920×1440 172 KB

100_6151
100_61511024×768 56.4 KB

Cheers!

8 Likes
2

That is a million times better looking. :+1:

1 Like
3

Thank you, Ryan!

I made also the plates on the both sides of the consoles from foil:

100_0813
100_08131920×1440 125 KB

3 Likes
4

Interestingly I bought that kit some weeks ago. Unfortunately the eduard phototech seems to be sold out now.

5

Hi, the Aires cockpit will be better solution than the Eduard PE set A-37B Dragonfly cockpit set - AIRES, hobby plastic models, it is very nice and more correct. But I already bought the photoetch, and decided to upgrade the cockpit with some 3D printed parts :wink:
The color of the Eduard instrument panel is not very correct, but I will not repaint it :slight_smile:
Also I added Aires seats and control sticks:

100_0817
100_08171920×1440 147 KB

100_0816
100_08161920×1440 146 KB

8 Likes
6

Exhausts painted with Vallejo Steel for base and then with purple and blue ink for effect. Inks are very nice for such effects :wink:

100_0819
100_08191920×1440 105 KB

3 Likes
7

I’ve never seen one of these being built so i shall ve following this with interesting.

8

It is a nice model, but the cockpit needs improvements, because is quite big and visible :wink:

2 Likes
9

Good point with the Aires cockpit, thanks Venko!

1 Like
10

Great looking cockpit :smile:

1 Like
11

they had a wing of them in DaNang, but never came out our way. They were neat little air frames, and seemed to be very loud for what they were. One thing they lacked was a gun! (I know they had gun pods)
Also heard they only flew with a pilot, and the other seat was empty
gary

1 Like
12

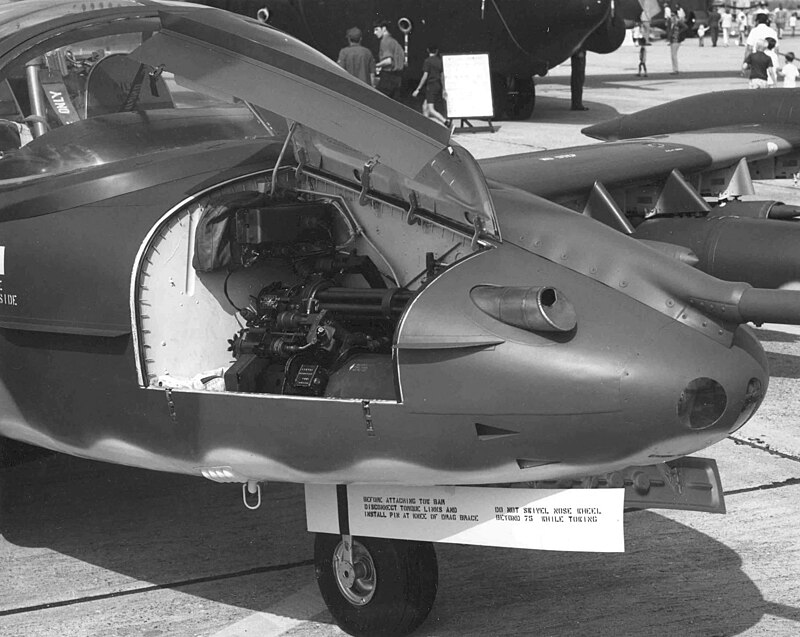

Gary, they had a fixed gun, a 1 × 7,62-mm Minigun.

1 Like
13

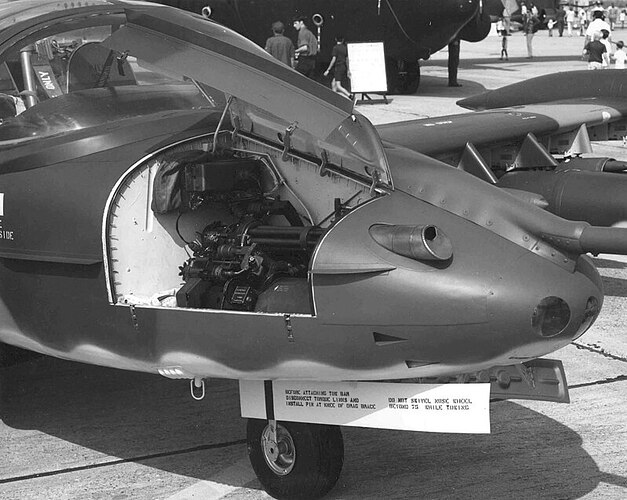

There is a minigun in the nose :wink:

1 Like
14

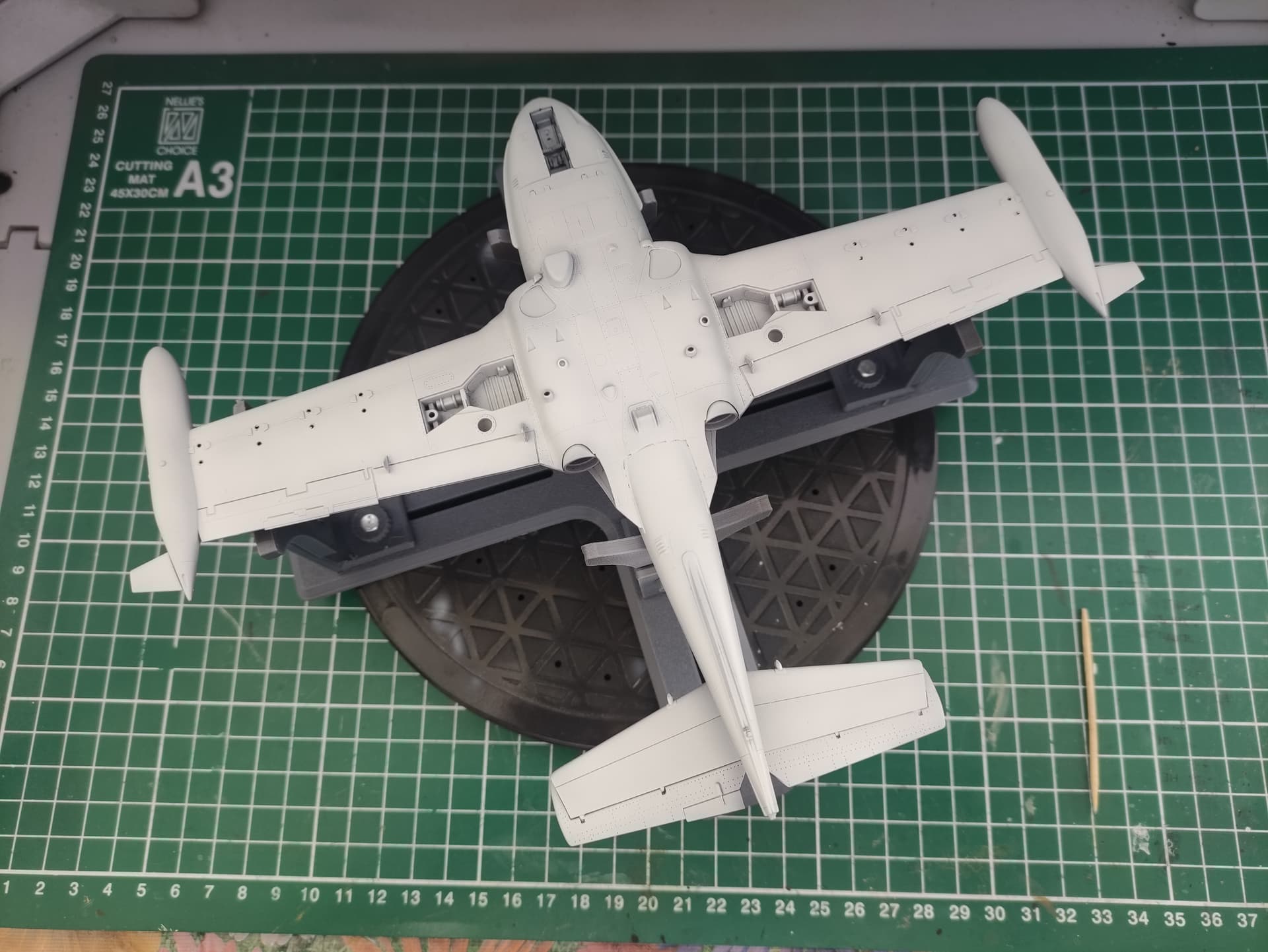

Gluing the fuselage, the air intakes are multipart assembly, so they need some filler and sanding:

100_0820
100_08201920×1440 108 KB

5 Likes
15

I didn’t know that
gary
