Building a 1/16th. Sd.Kfz.251/22D from Trumpeter

I was going to save this build for later but here it is.





Regards
Donald

8 Likes

I have a little more done.

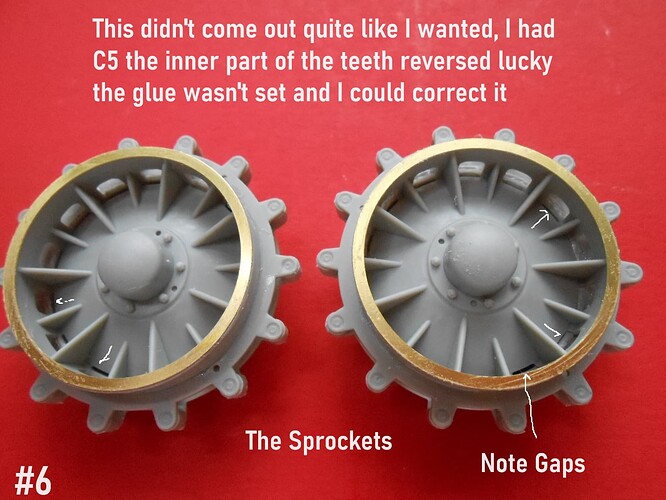

The Sprockets gave me a time, somehow I got the inner part of the Sprocket teeth reversed, luckily I found out before the glue set and I was able to correct this.

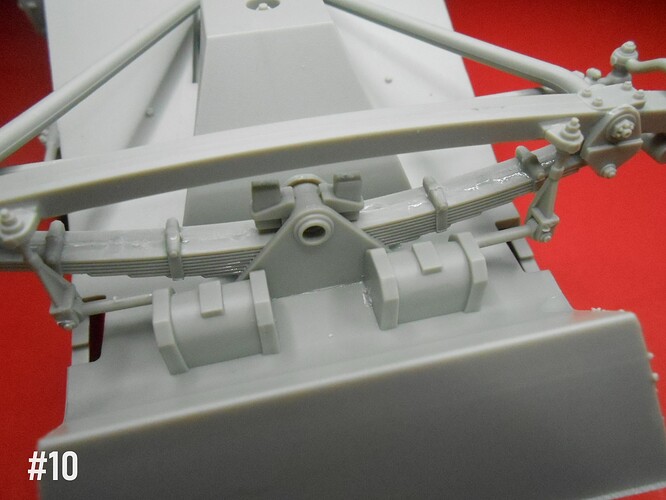

Not so lucky on the front Axle mount I didn’t realize that one mounting tooth was larger than the other. I just made the mounting hole larger.





Finished for now.
Donald

6 Likes

Nice! I want to do one of these, will be following along!

3 Likes

Some more completed, The rear doors and front Wheels.

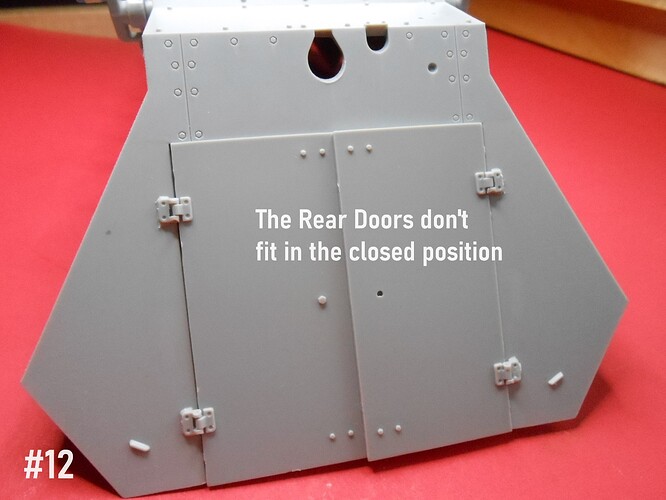

The Rear Doors are about 1/2mm too wide and need trimming if you want them closed.

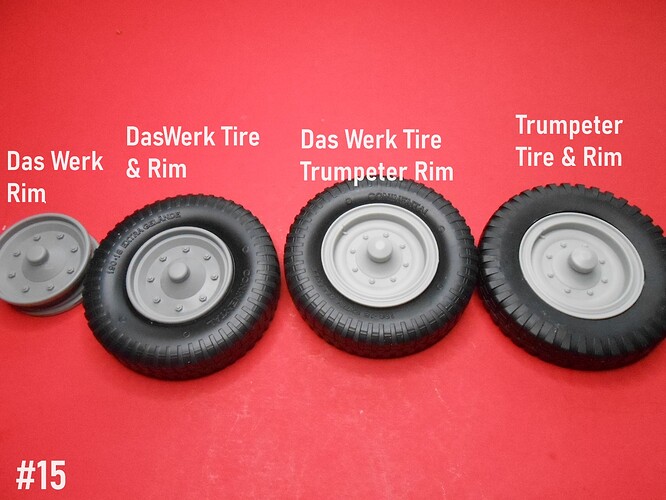

Now the front Wheels, the Wheels are nice and even have a Valve Stem , the Tires leave a lit to be desired. I’m using the leftover tires from the Das-Werk kit they fit great and have the sidewall markings.

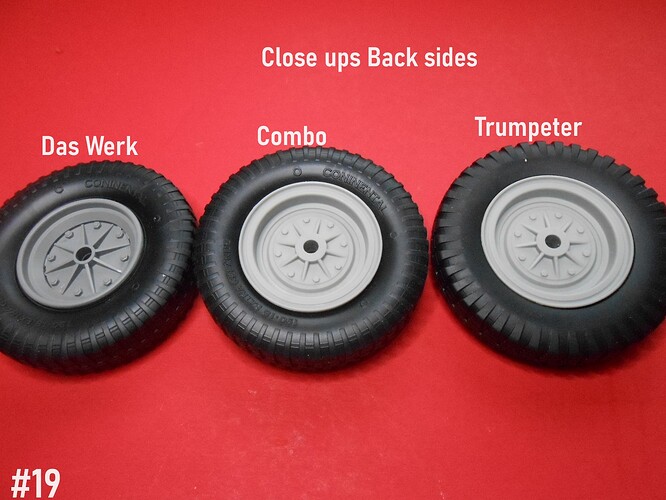

The following Pics. are a comparison.










Finished for now.
Donald

11 Likes

A little more finished.









Finished for now
Donald

6 Likes

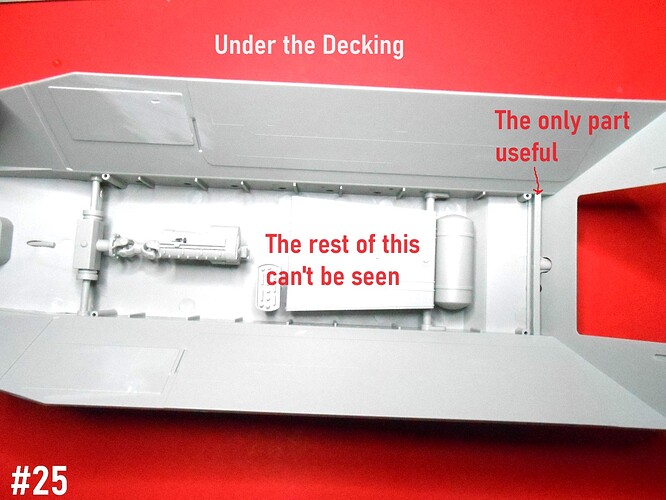

Some more finished, the fit is very good so-far.










Regards
Donald

4 Likes

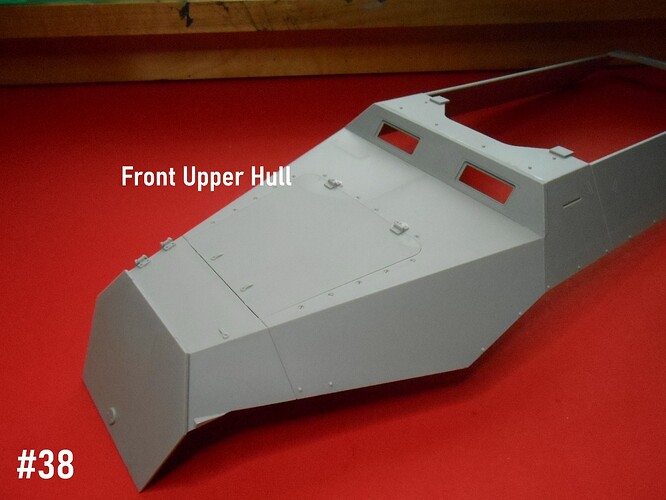

Almost ready for painting.
More stuff finished.






Finished for today
Donald

5 Likes

Very interesting to watch you work on this Kit Donald. I’m waiting to see how the Das Werk one comes out, so will probably go for that rather than Trumpeters. Trouble is so many other kitsets arriving in 1/16th to tempt like the M113.

Hope you are well
Keith

2 Likes

I have that one ordered from Andy, one thing though .
If the front Wheels are the same as the ones in their first 251 kit, they will need replacing.
The tires are good it’s just the Wheel rims suck. I already have a replacement set for it.
Regards
Donald

1 Like

The Wheels are ready to be installed after painting the Hull.




On the Wheels the center pairs have Pe. rings on them.
You can install the rings to the Wheels first being shure to get them centered on the rim so the Tire will fit over them.
Or you can install the Tire first and then fit in the rings.
They fit inside the tire edge.
The only problem with that is how to glue in the rings , and then how to paint everything.
Regards
Donald

3 Likes

Clearly, the Das Werke tires and rims are just showing that they need to be inflated to set the bead properly in the rims; anyone who’s watched new tires being put on their car has likely seen it any number of times. :smiley:

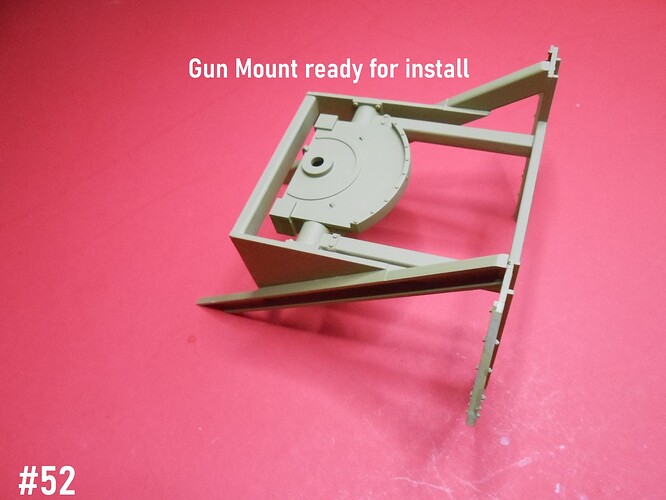

I have some painting finished.





Now to put it all together.
Donald

4 Likes

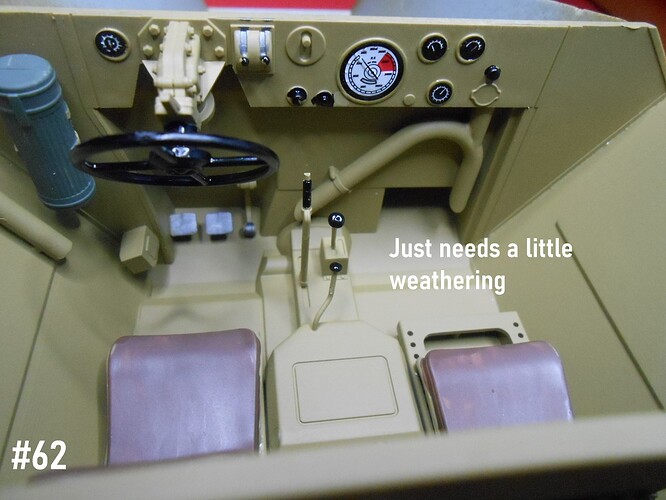

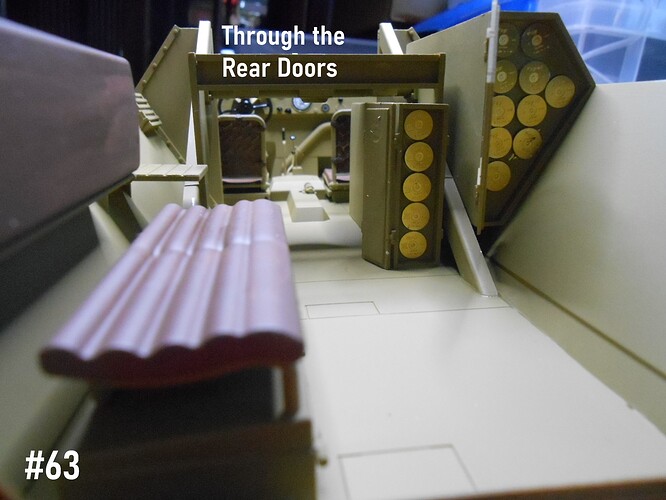

The insides are done.











Now to put the top on.
Regards
Donald

3 Likes

Well I finally have it closed up.



After finish painting it’s on to the Track.
Regards
Donald

2 Likes

The Wheels are installed, You will have to glue them in place as there are no retainers, and they will fall off.



Working on the Track now, a lot of cleanup
Donald

4 Likes

The Track is assembled FINALLY





Now to Paint and weather it.
Regards
Donald

3 Likes

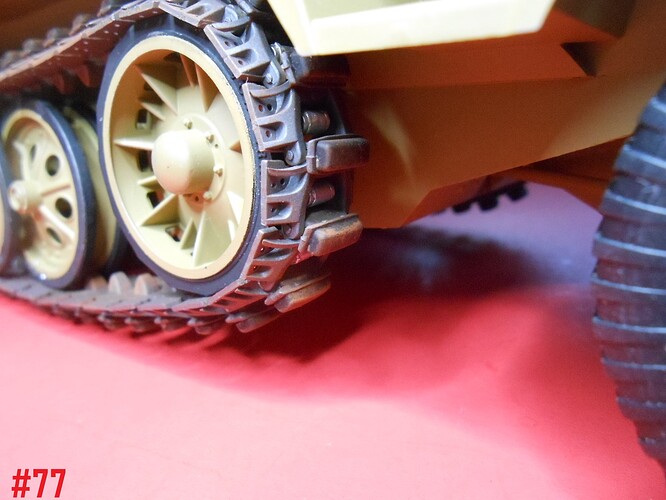

The Track is painted, weathered lightly and installed.




I’ll be working on the Gun next the Camo. will wait until I can do it all at one time.
Regards
Donald

4 Likes

The Gun is assembled it wasn’t too bad, just follow the instructions.









Now to paint it.
Regards
Donald

4 Likes

I have the Camo. finished, now it’s just detailing and weathering to do.


Regards
Donald

5 Likes

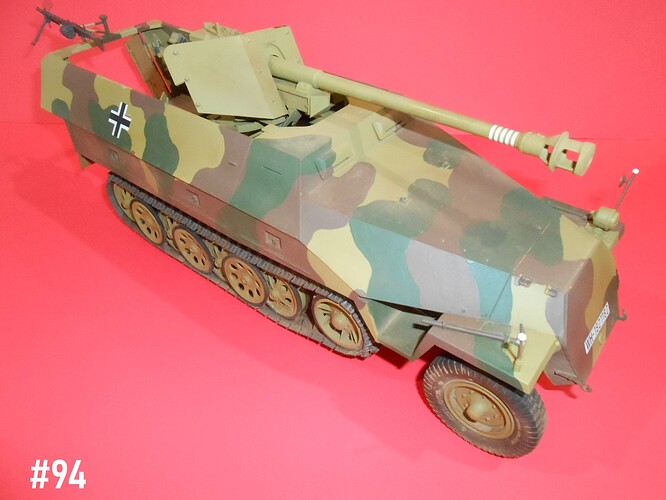

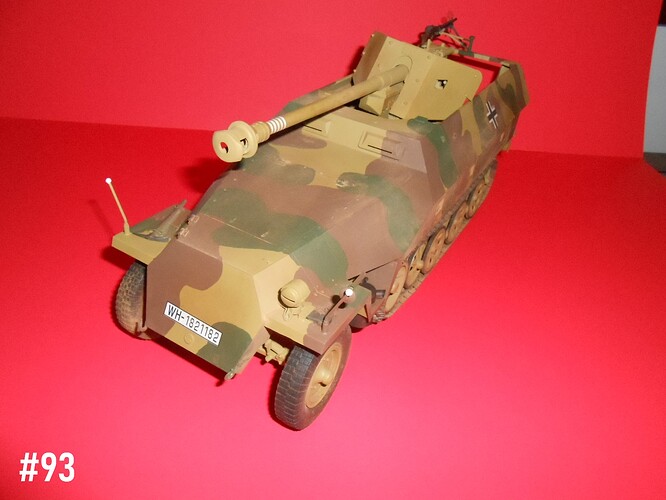

I’m all finished with this kit, It didn’t come out too bad but it’s not one of my best. Hey I’m Trying.




















I hope this helps someone out there.
Regards
Donald

4 Likes
