Bushmaster in the Ukrainian steppes
H.P.
3 Likes

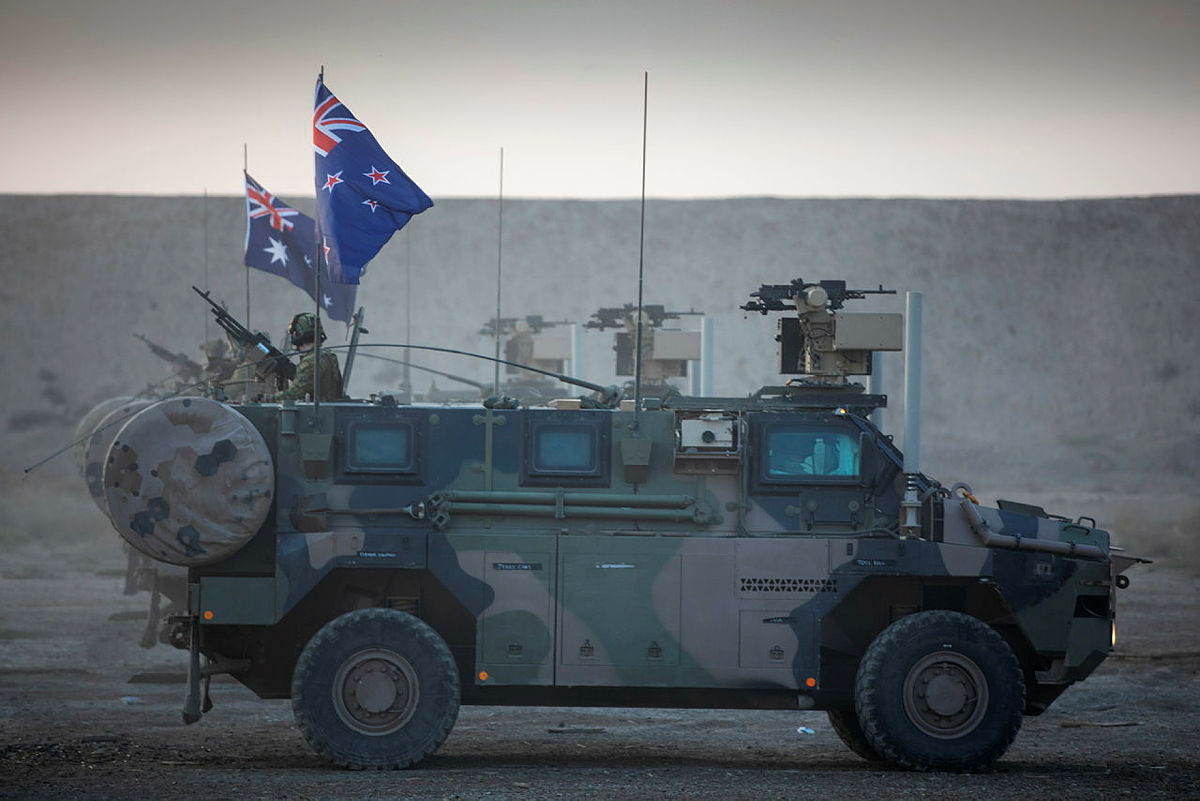

Australian and NZ Bushmasters in Syria (Operation Okra)

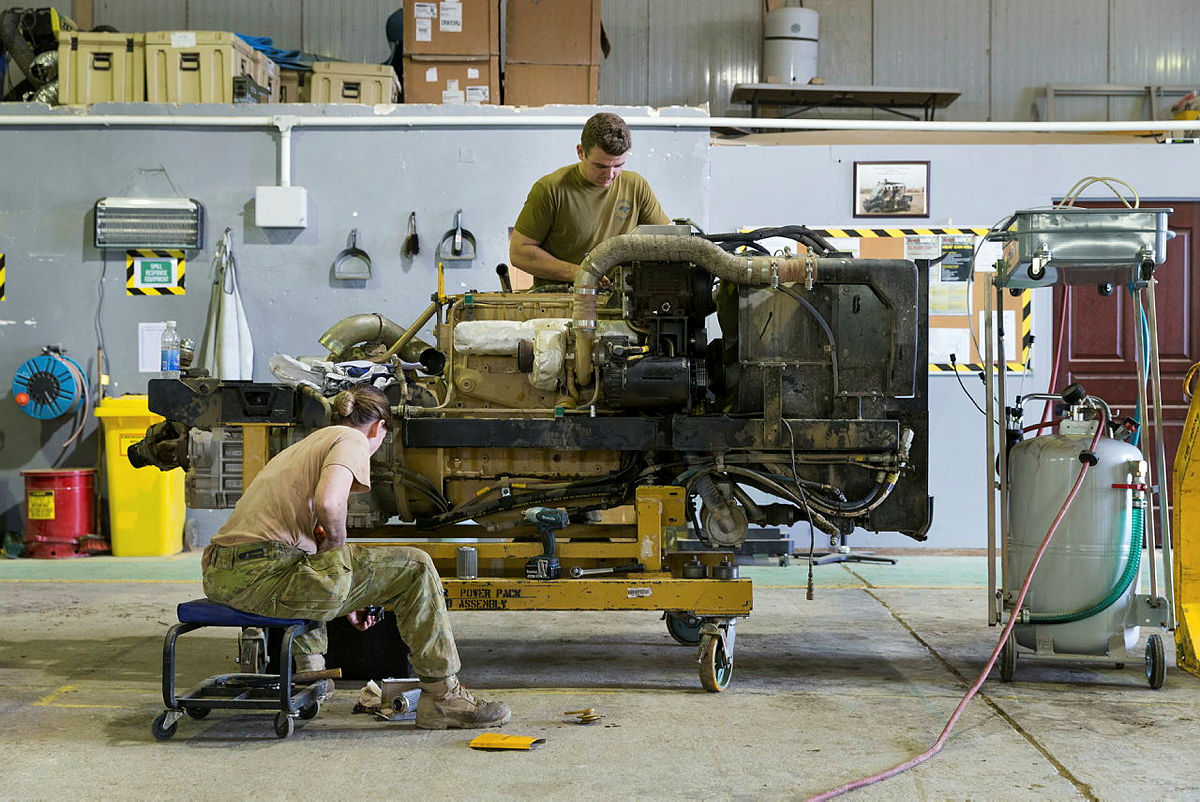

Caterpillar 3126E 7.2L six-cylinder diesel, turbocharged engine
H.P.
3 Likes
Bushmasters in their natural habitat
H.P.
3 Likes
i know a few of them in the Kiwi video, i served with Roma Shearers Husband who is still in the Armoured Corps as a Sgt Mgr.

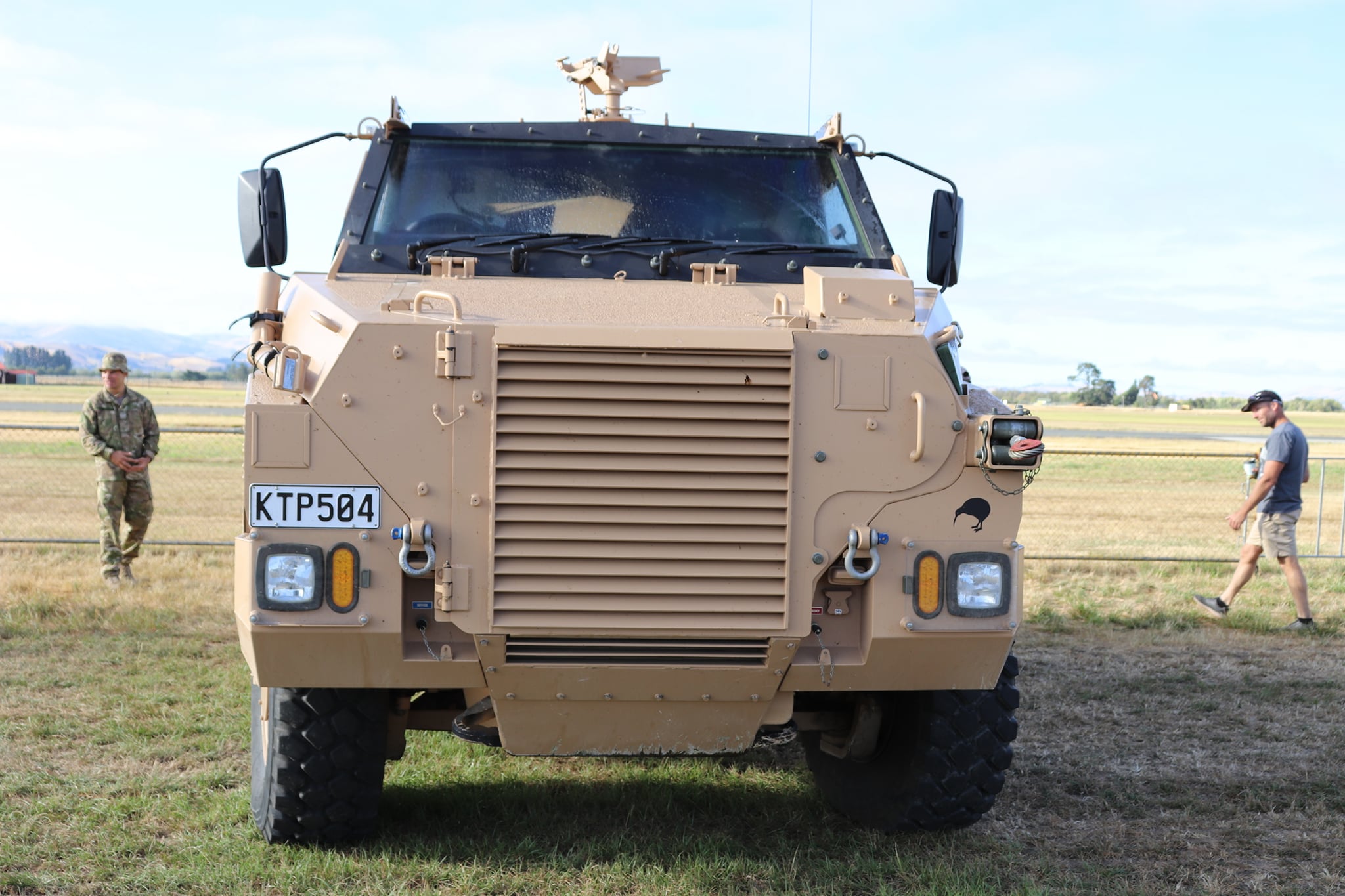

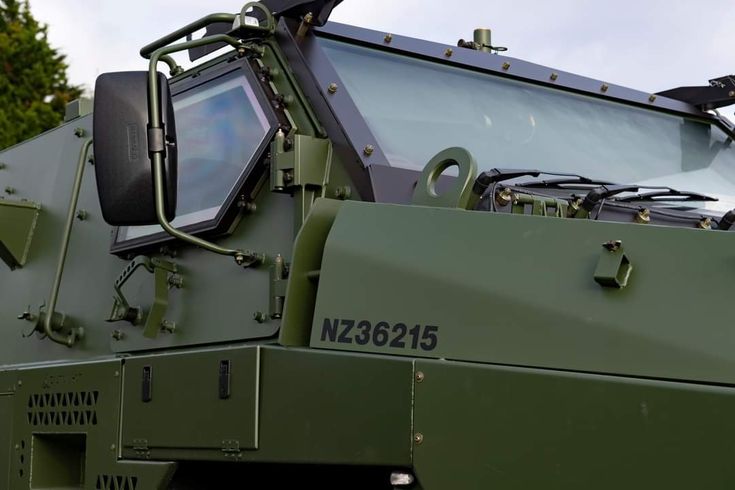

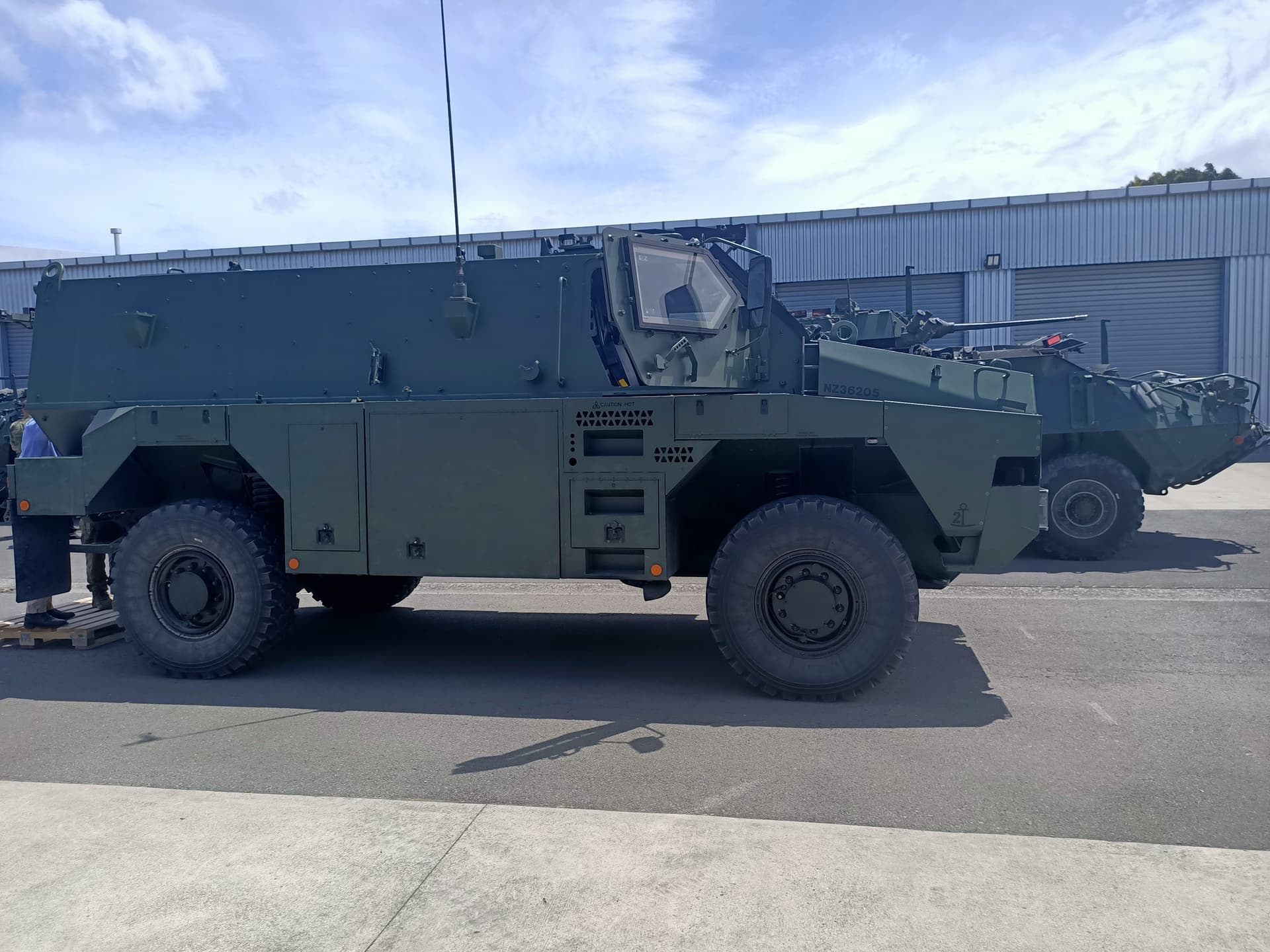

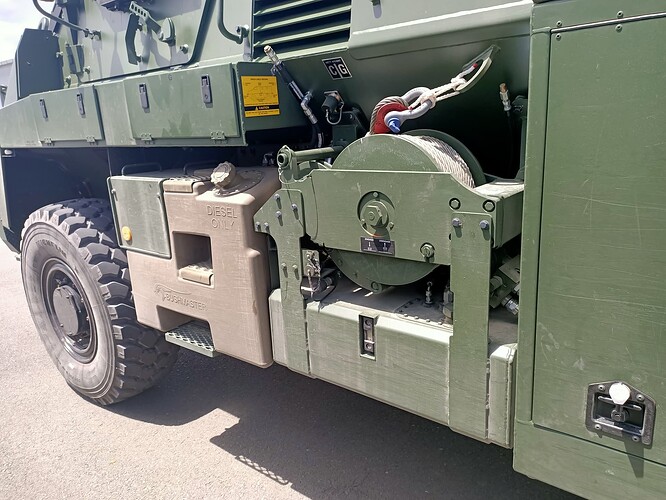

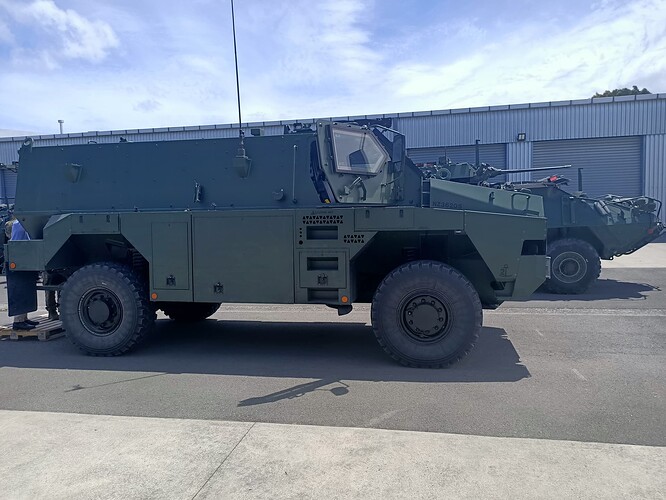

here is a few of my pics i took last time on base of the NZ5.5 Bushmaster and a few of the initial trial versions they got for the SAS
comparing height with the NZLAVIII behind

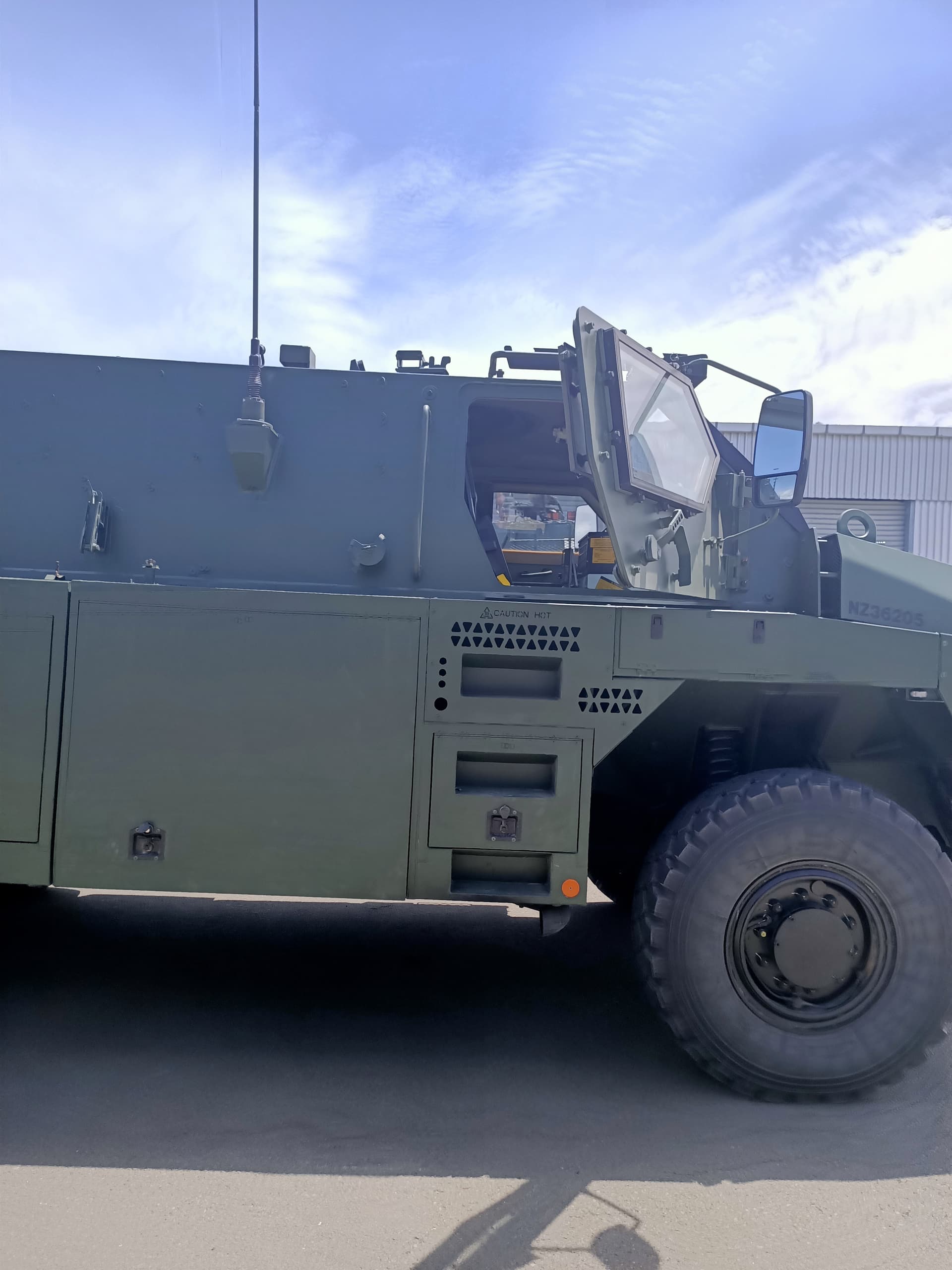

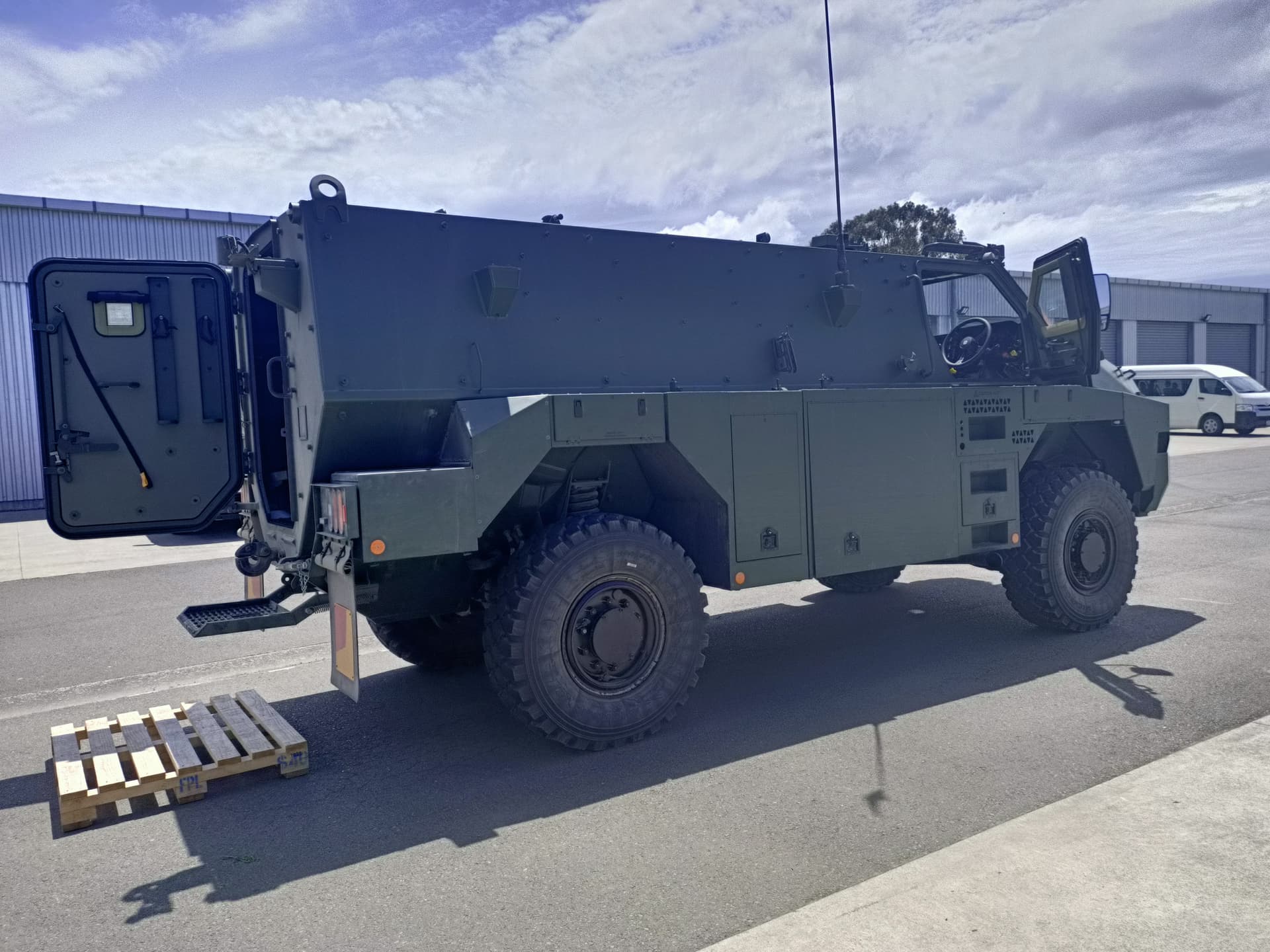

ours had the wider rear door and front doors both sides on the 5.5 version

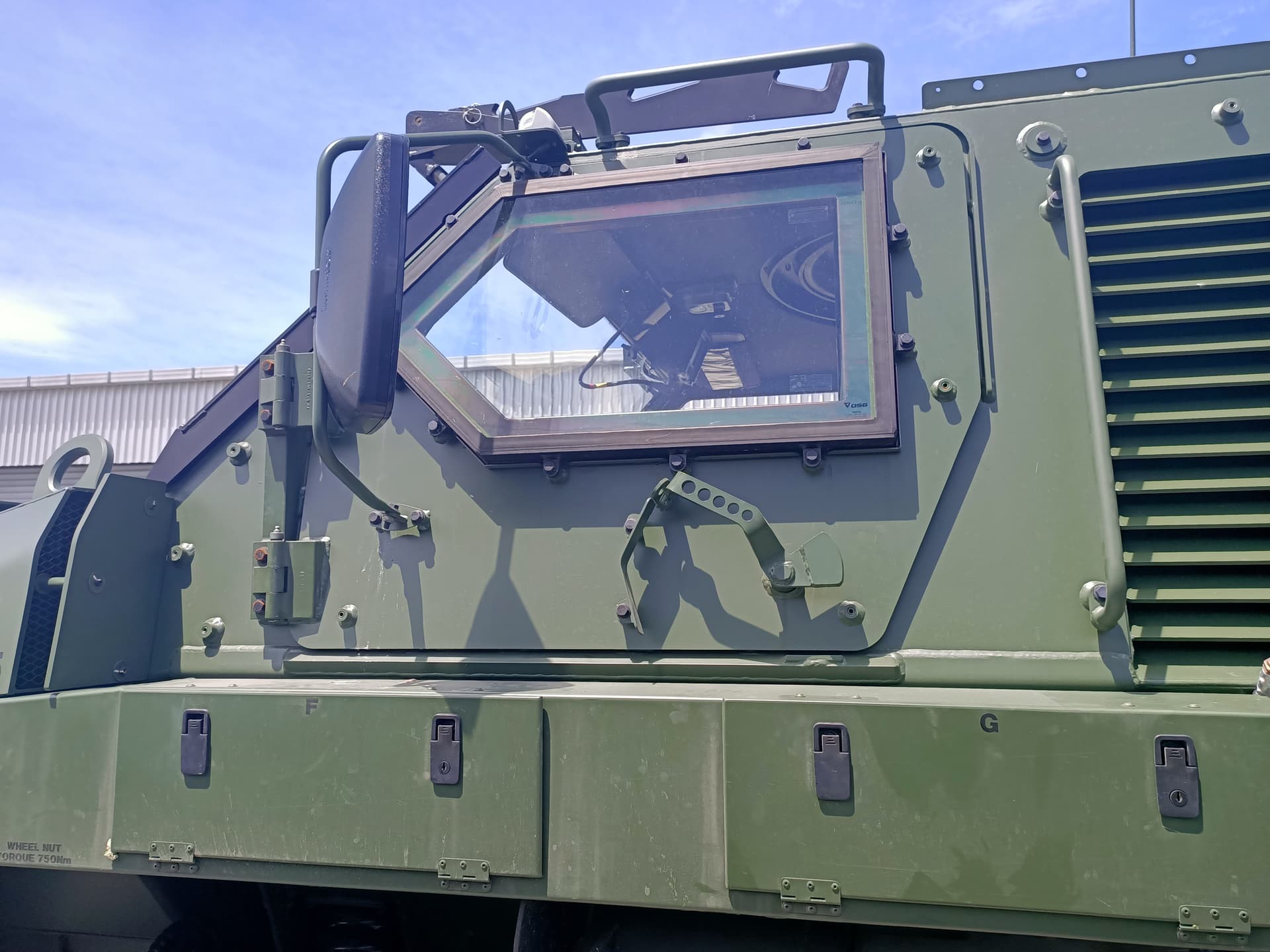

sun was a bit bright that day
the SAS Trial version which was more of a standard Australian one.
standard rear door on these ones
they even left the Aussie cam seat covers on in these ones

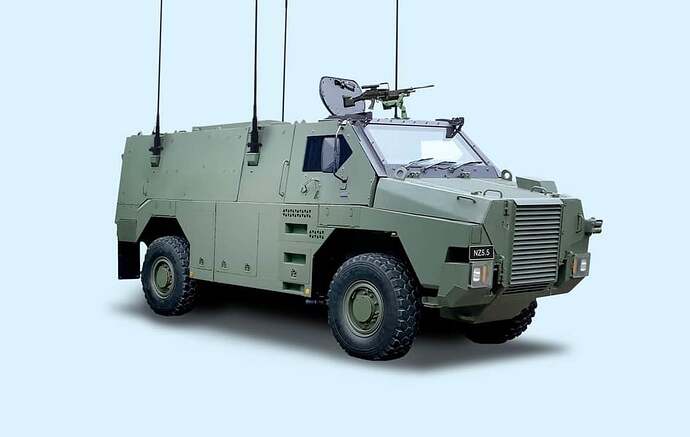

some other shots from online
HQ version
a previous defence minister (trying to take the glory from the previous one that brought them)
the previous defence minister who is ex army and arranged for these to be brought Ron Mark who had a better understanding of what we needed.

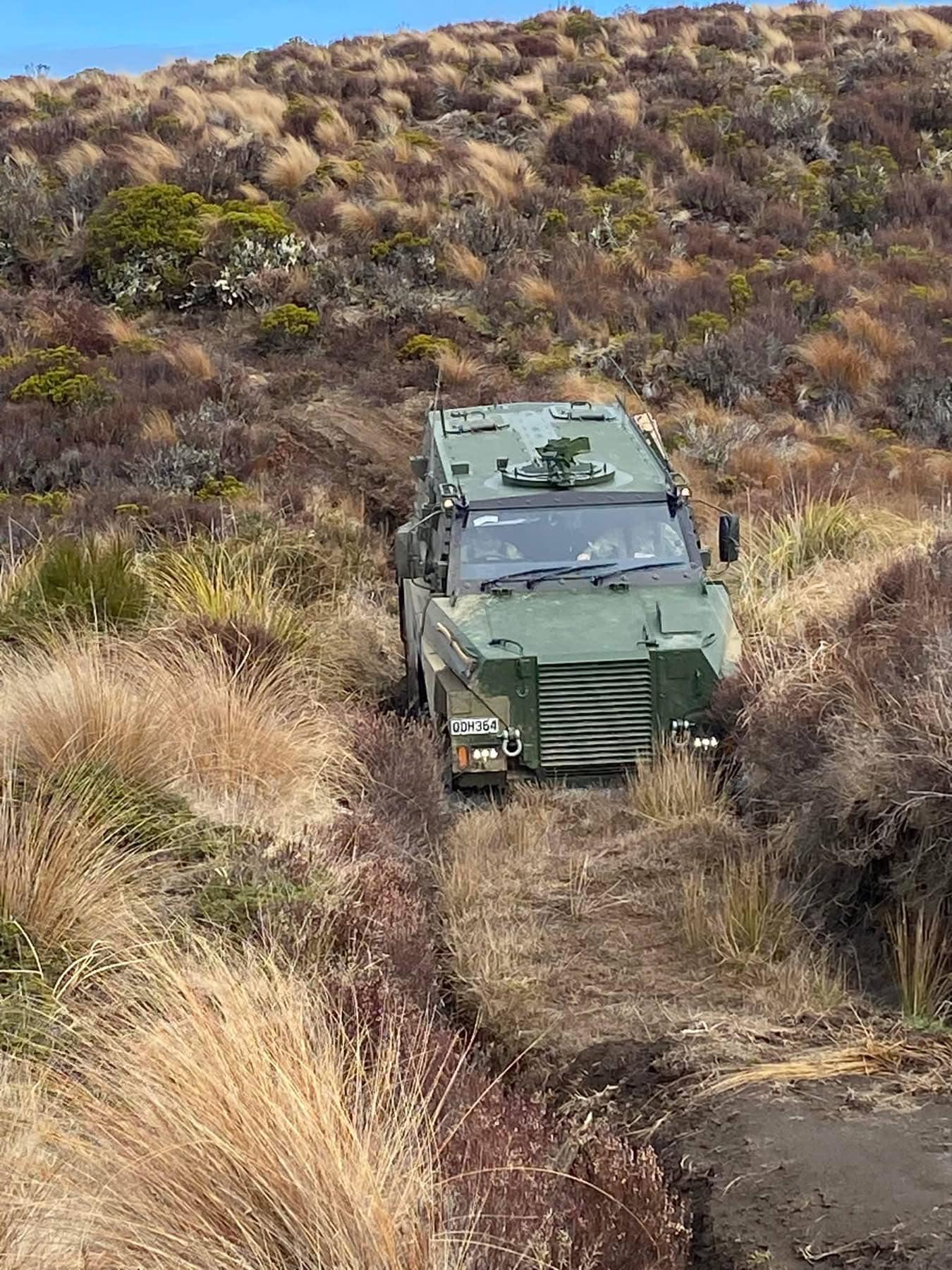

our guys take them some pretty rugged places (as we do with a lot of our vehicles) had a guy get out of the M113 i was driving and walk up the hill as he was packing himself with how steep it was we were going up.
4 Likes

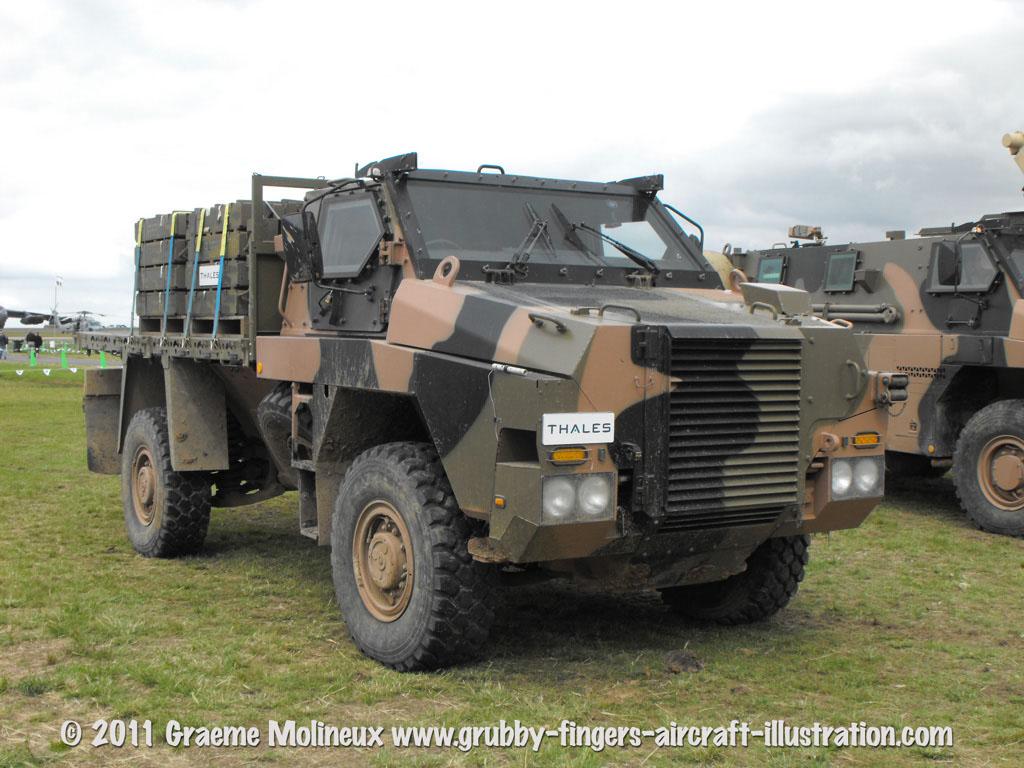

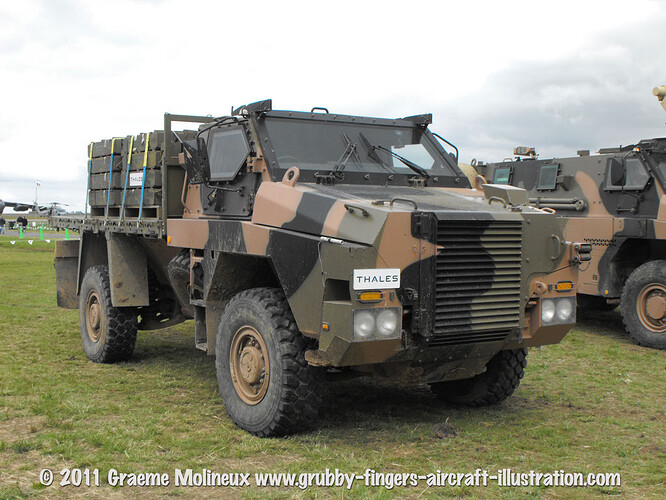

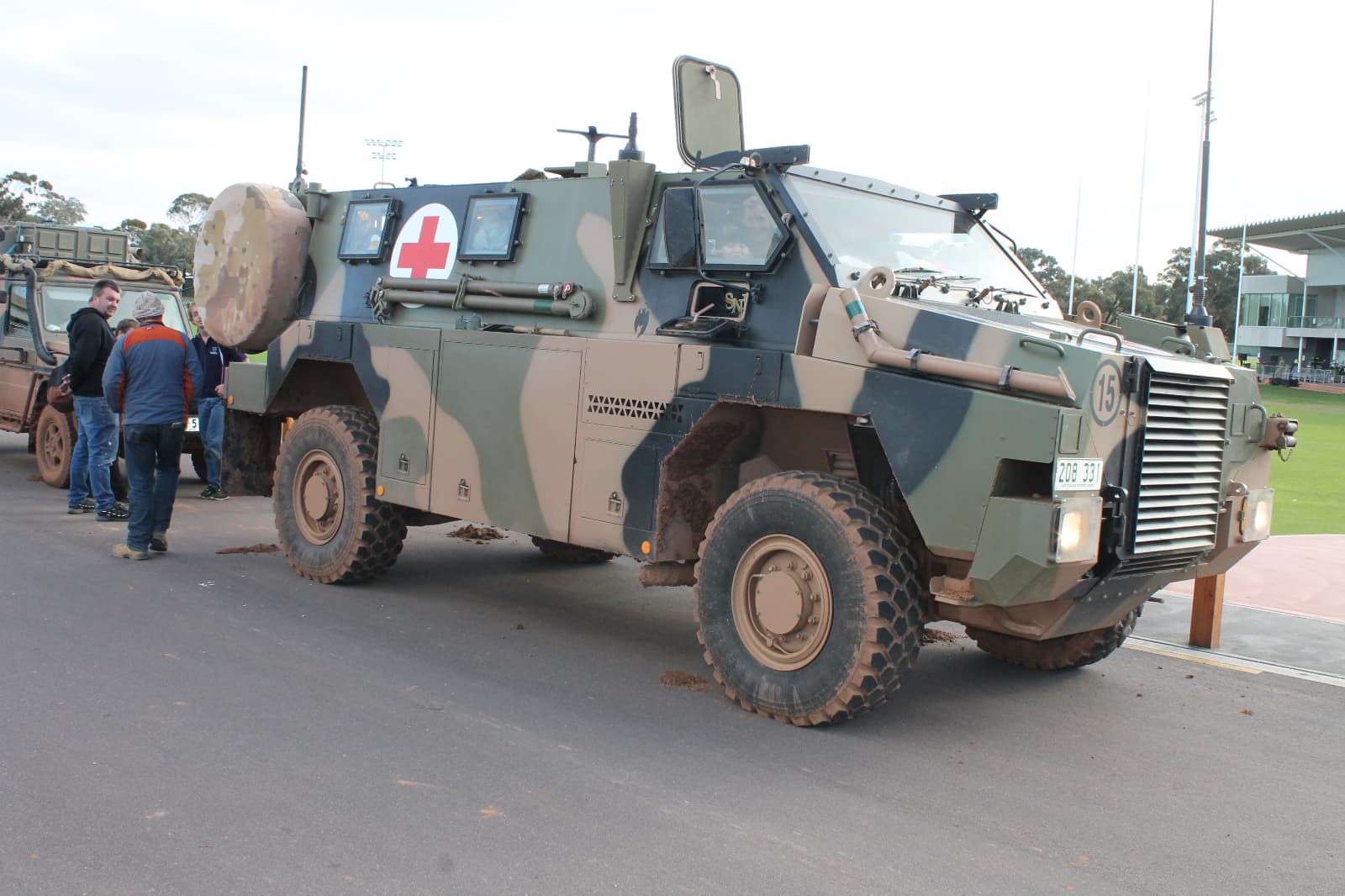

a few other shots i have saved of Aussie ones

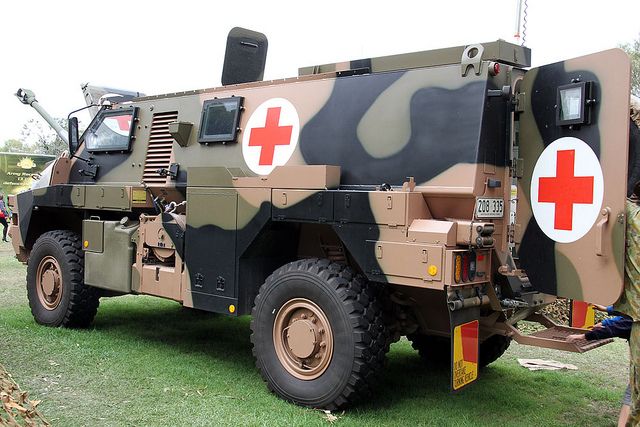

the engineers version have wider rear door (as with the Ambulance version) and a front door drivers side only
2 Likes

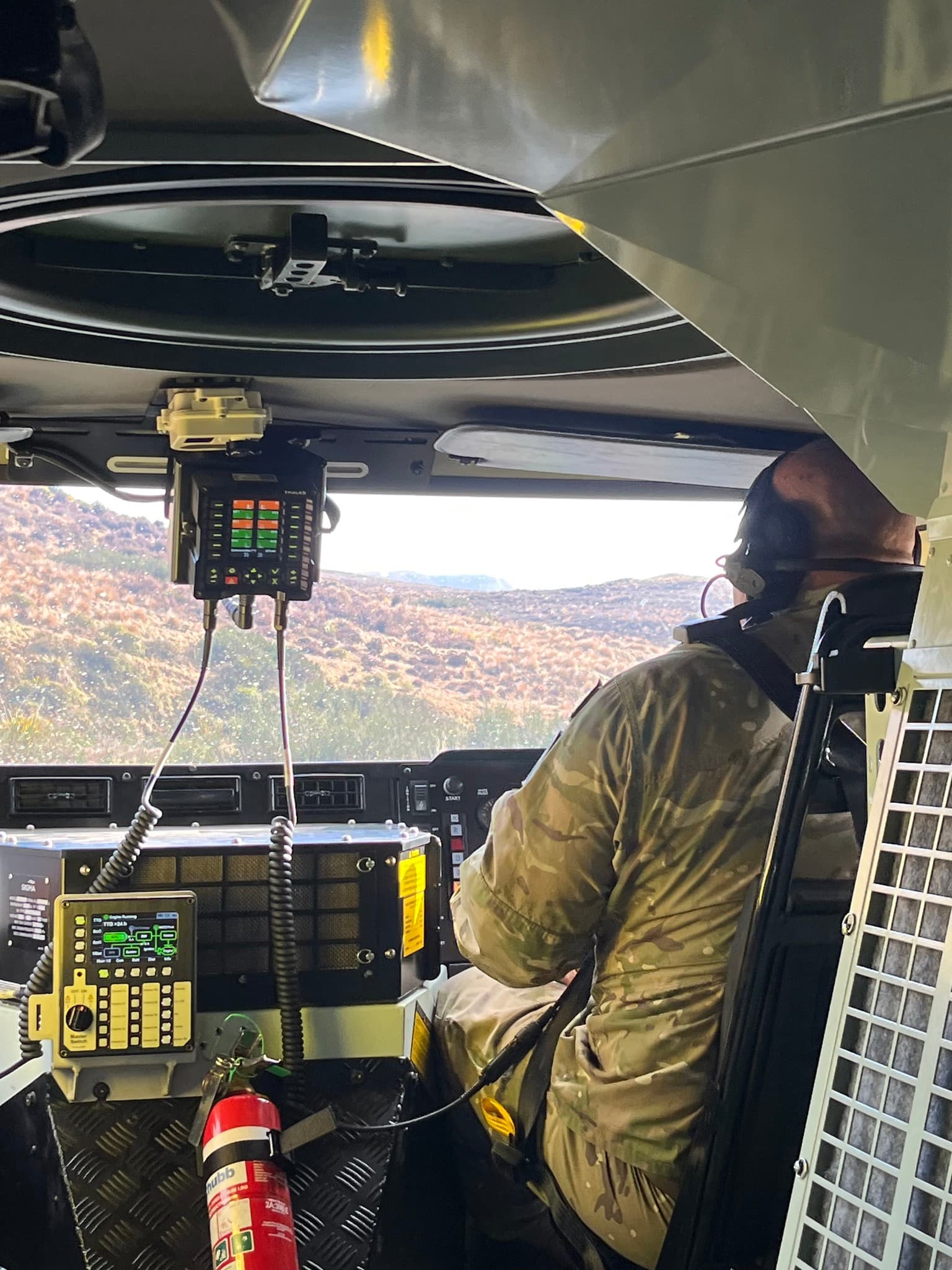

this looks like a good look around one showing the drivers controls etc https://www.youtube.com/watch?v=aBdUaSQE5RU
3 Likes
Just found another Bushmaster thread in this section
https://forums.kitmaker.net/t/bushmaster-pmv/
If anyone wanted to start one for ASLAV/NZLAV variants that would be great. I can’t find any decent interior images of the ASLAV 25 (turret etc.) to upgrade the Trumpeter kit. There is a USMC LAV thread but not much detail there either…
2 Likes
for the NZLAV i have written a guide on converting the Trumpeter LAVIII into the NZLAVIII that i did over 4 years with at present just over 13,300 words and 400 odd pictures so lots of reference pics. if you would like a look you can download from my Google Drive here - NZLAVIII Guide - High Res 9.2024 Secured_Optimized.pdf - Google Drive
3 Likes
H.P.
2 Likes
jpwalker: you are aware of Black Ops Models ?
Perhaps they might entertain your request?
2 Likes

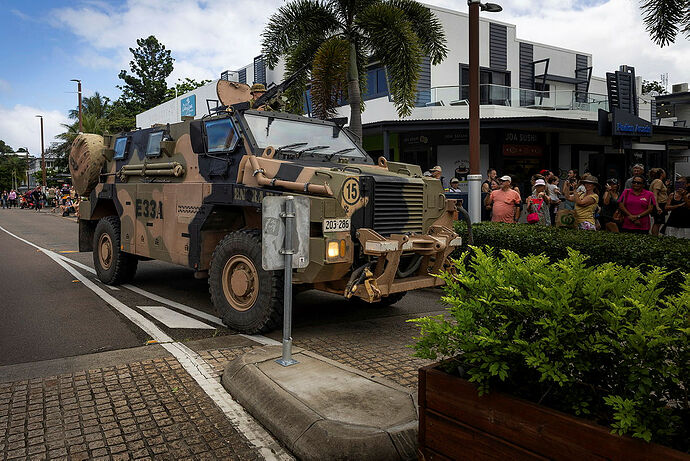

Any idea about the added front “bumper” purpose ?
At first I thought it could be a mine roller attachment but the one used with the SPARK 2 looks to be different…
H.P.
3 Likes
Attachment for mine roller ? I’ve seen similar for US MRAPs.
3 Likes
I was editing my post while you were typing yours
H.P.
3 Likes

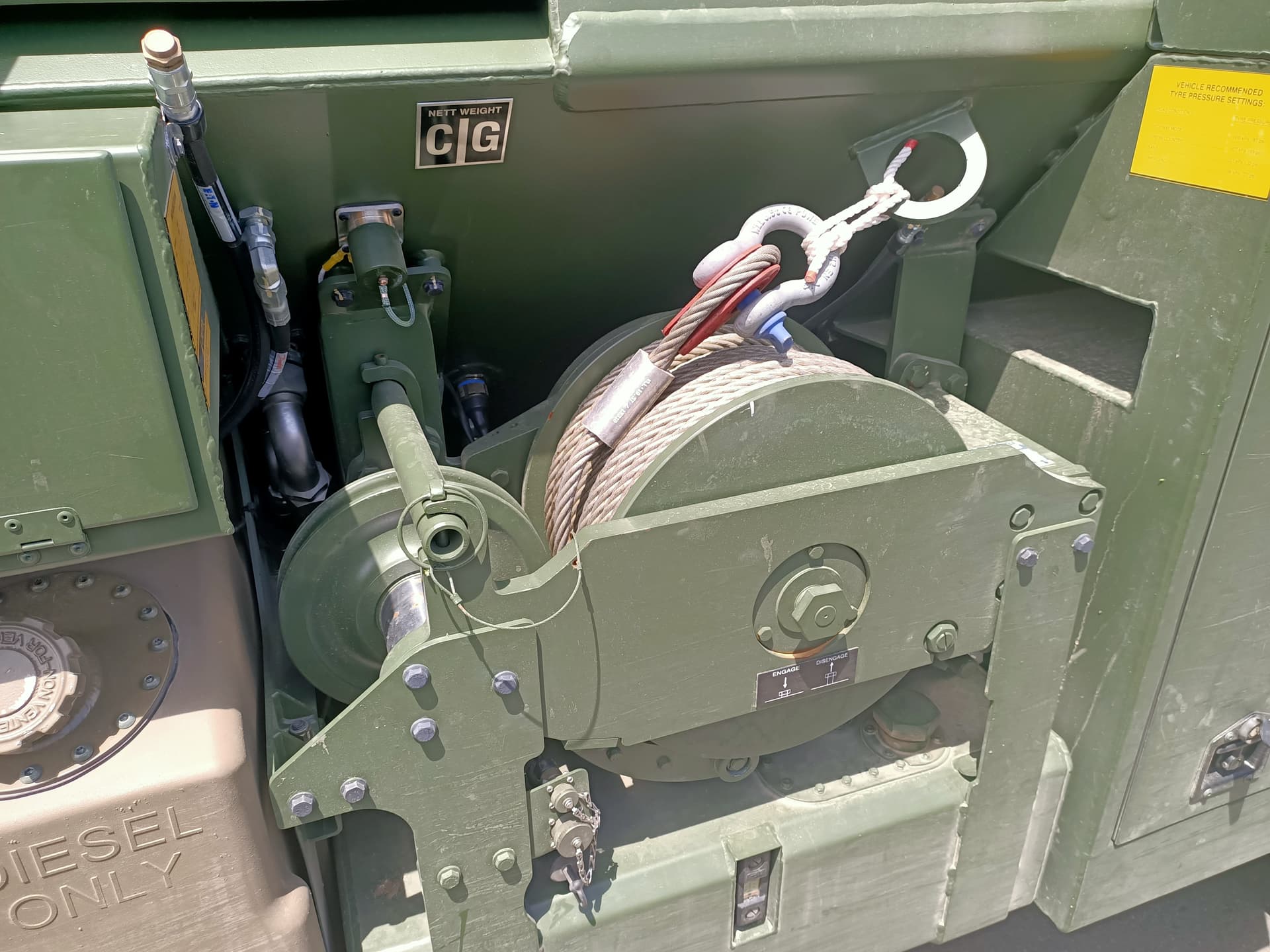

On this one the winch has been replaced with a locker hosting a 8kW DC power generator
https://eniquest.com.au/defence-projects/

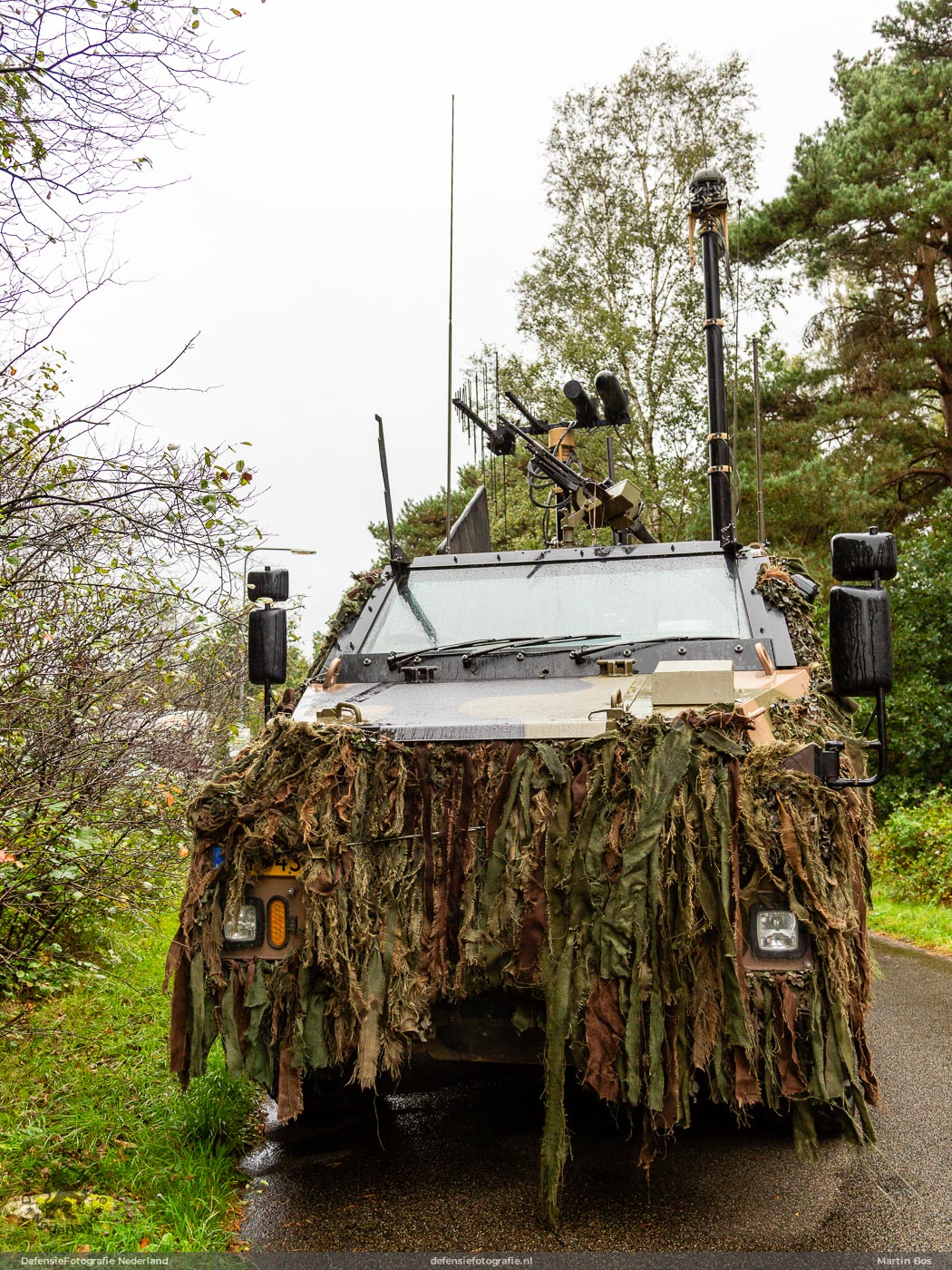

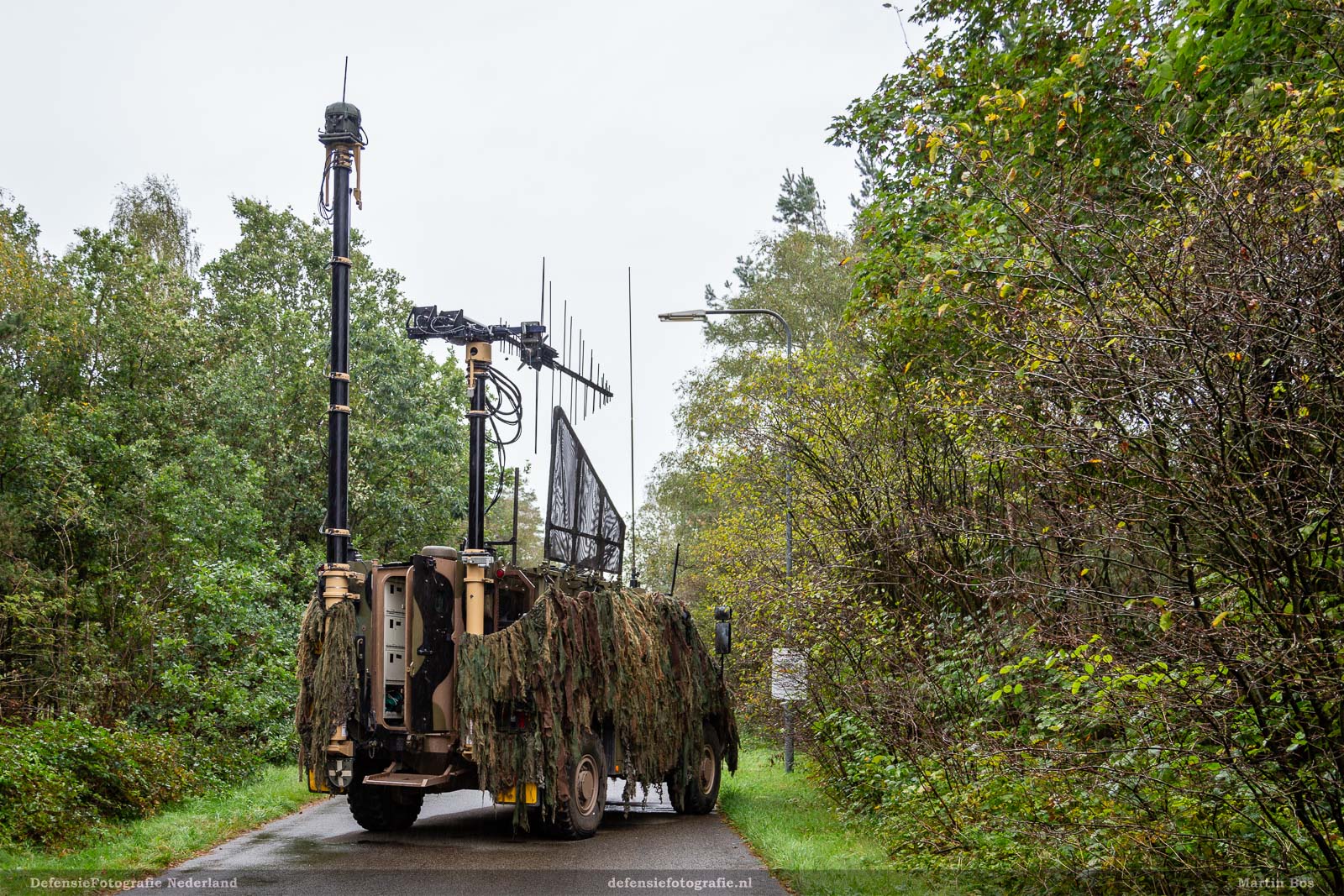

I guess this setup is used with the Electronic Warfare Bushmaster version(s)
H.P.
2 Likes

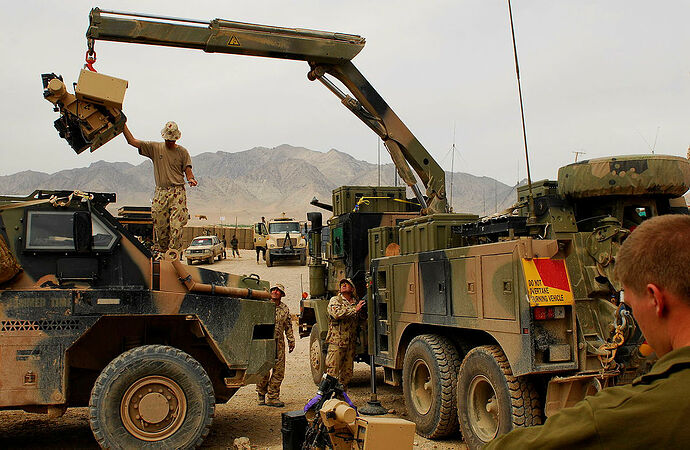

Australian Army Mack MC3 Heavy Wrecker + Bushmaster
from https://www.flickr.com/photos/coghilla/albums/72157630664880588/

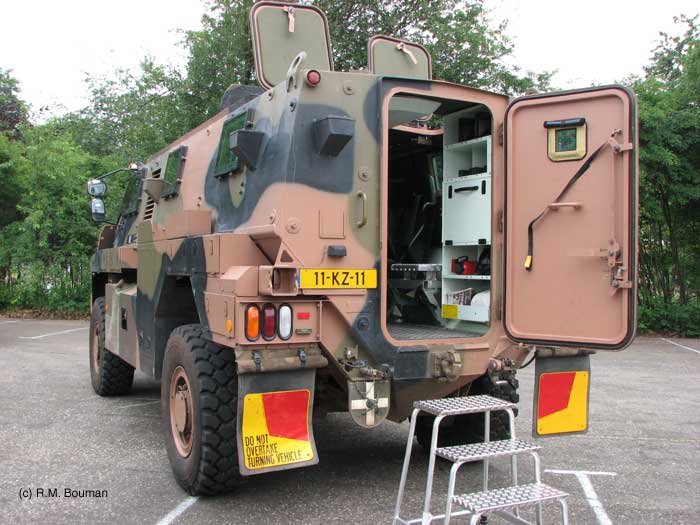

Dutch Bushmaster with RWS

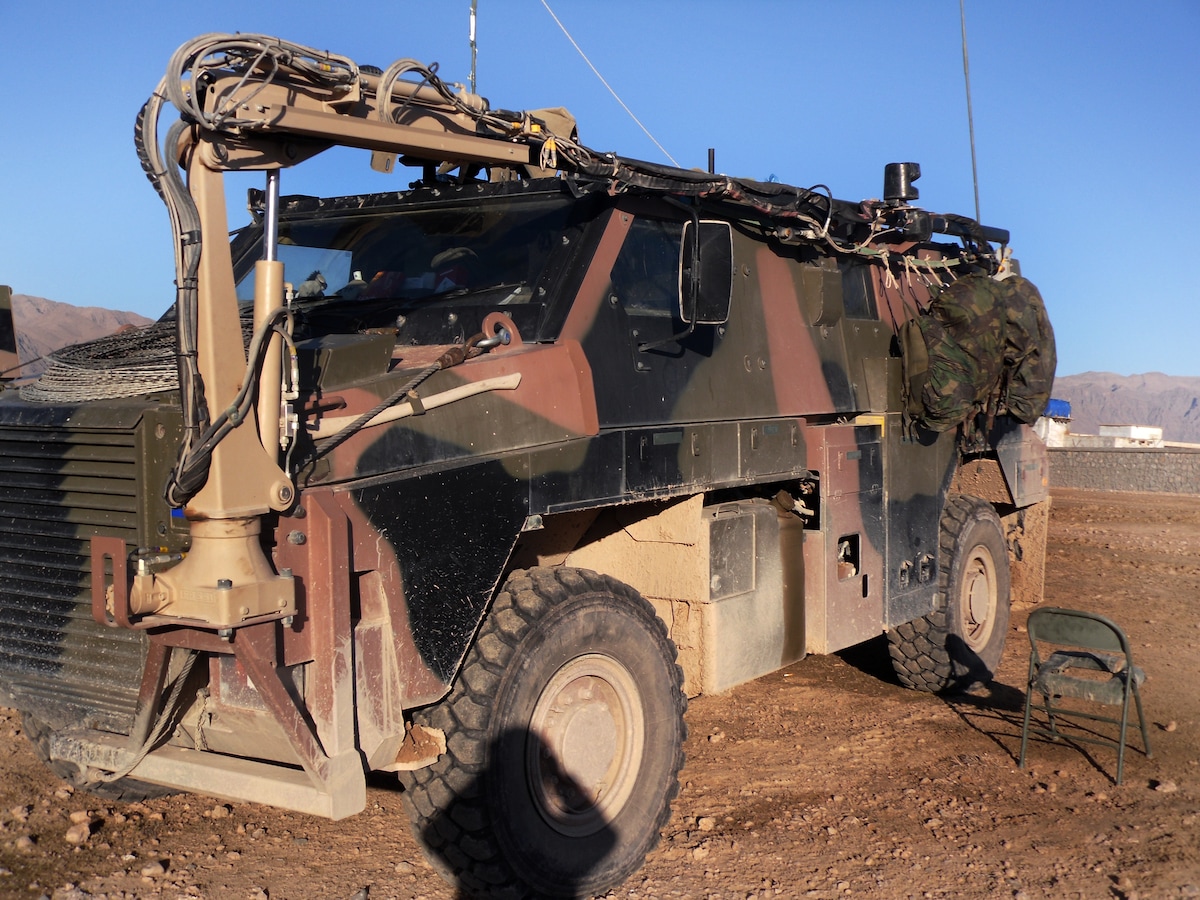

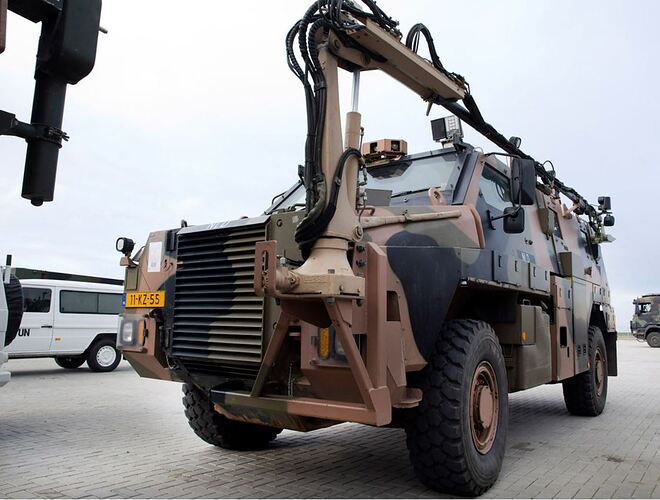

with “IED arm”

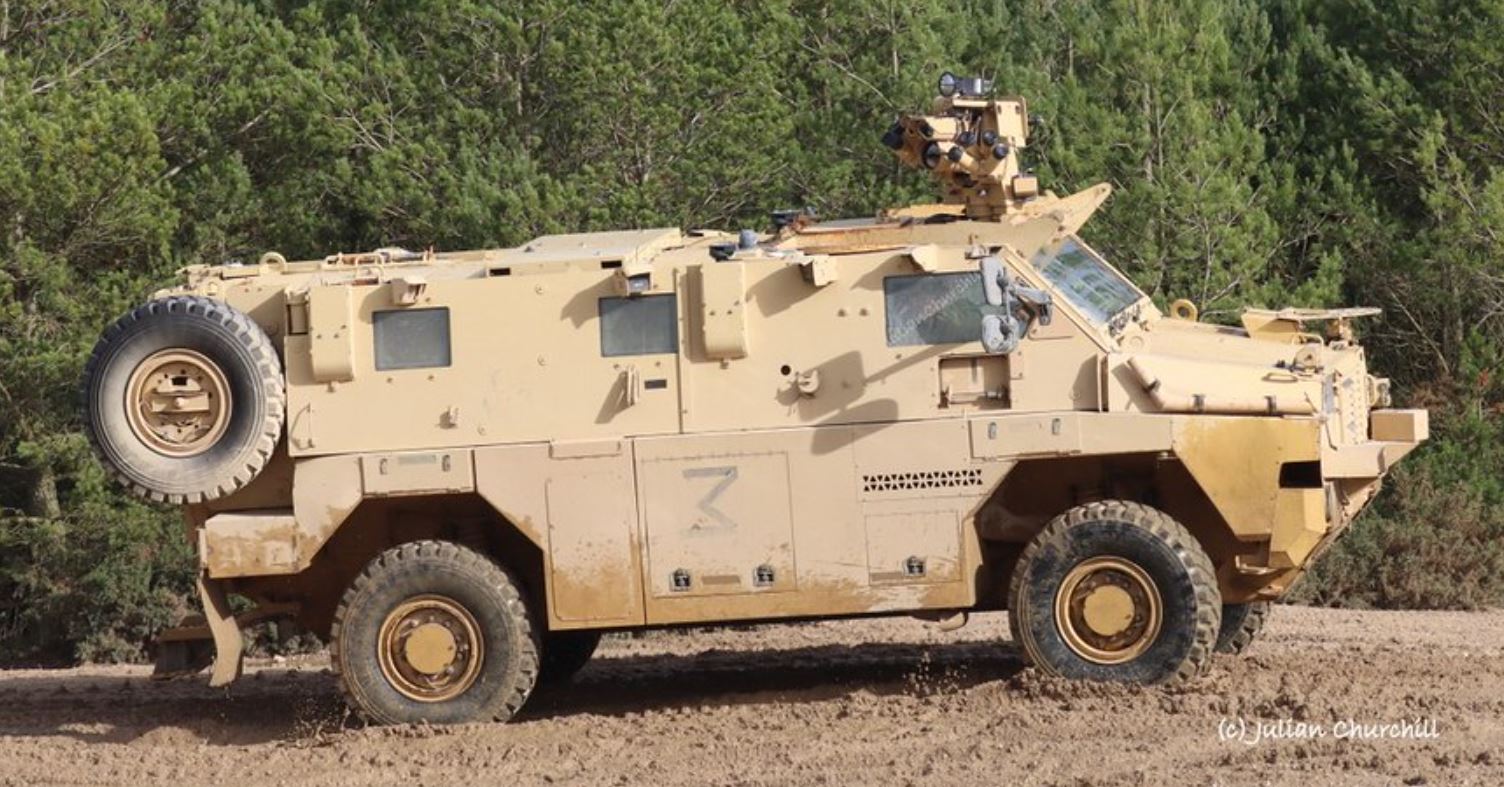

More views of the British Escapades

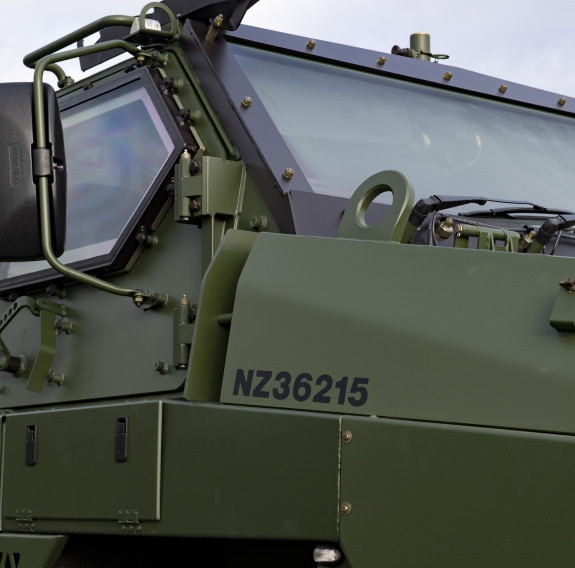

Wire cutters and antenna mount details
H.P.
3 Likes
Thanks heaps Mark, I’ll have a good squizz at your notes and see what is applicable. Great stuff
2 Likes
Thanks William, I am familiar with Black Ops’ excellent range . I was hoping to get enough info to be able to scratch a passable interior as viewed through open rear door.
2 Likes
anyone know how the trial of the Hybrid version went?
i cant see a full EV version working well but a Hybrid Electric Drive could be good in some situations as they are able to switch over to electric and silent run close to enemy, or for an HQ vehicle it meant they could sit for a long period of time running radios etc off the battery and then just start up to recharge rather than having to have a separate generator that would make far more noise.
The Bushmaster hybrid drive is a series hybrid propulsion system that combines a diesel engine with electric motors in the Australian Army’s Bushmaster armoured vehicle. The system allows the vehicle to operate on electricity for a period of time, while the diesel engine extends its range.
How it works
- The Bushmaster hybrid drive has a diesel engine that provides power for the vehicle’s electronics and mission systems.
- The Bushmaster also has electric motors that power each axle.
- The Bushmaster’s batteries can power the vehicle for up to 24–36 hours.
- The diesel engine can extend the vehicle’s range.
Benefits
- The Bushmaster hybrid drive is quieter than the petroleum-fueled version.
- The Bushmaster hybrid drive has smaller motors, which creates more cabin space.
- The Bushmaster hybrid drive can be used to export electrical energy.
Future plans
- The Australian Defence Force is considering electrifying its entire fleet.
- Thales is working on electrically driven, optionally crewed, and systemically protected vehicles.
3 Likes

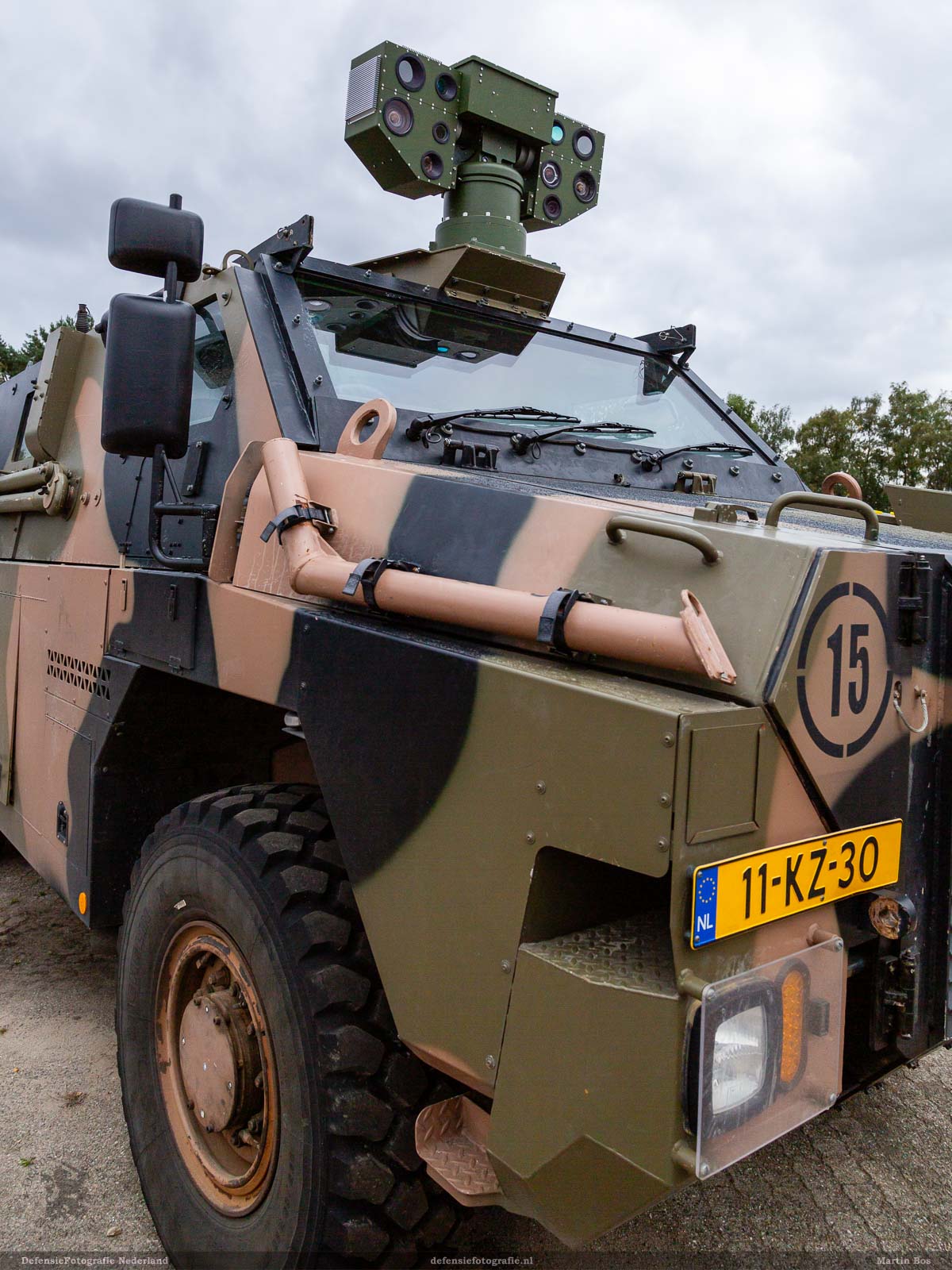

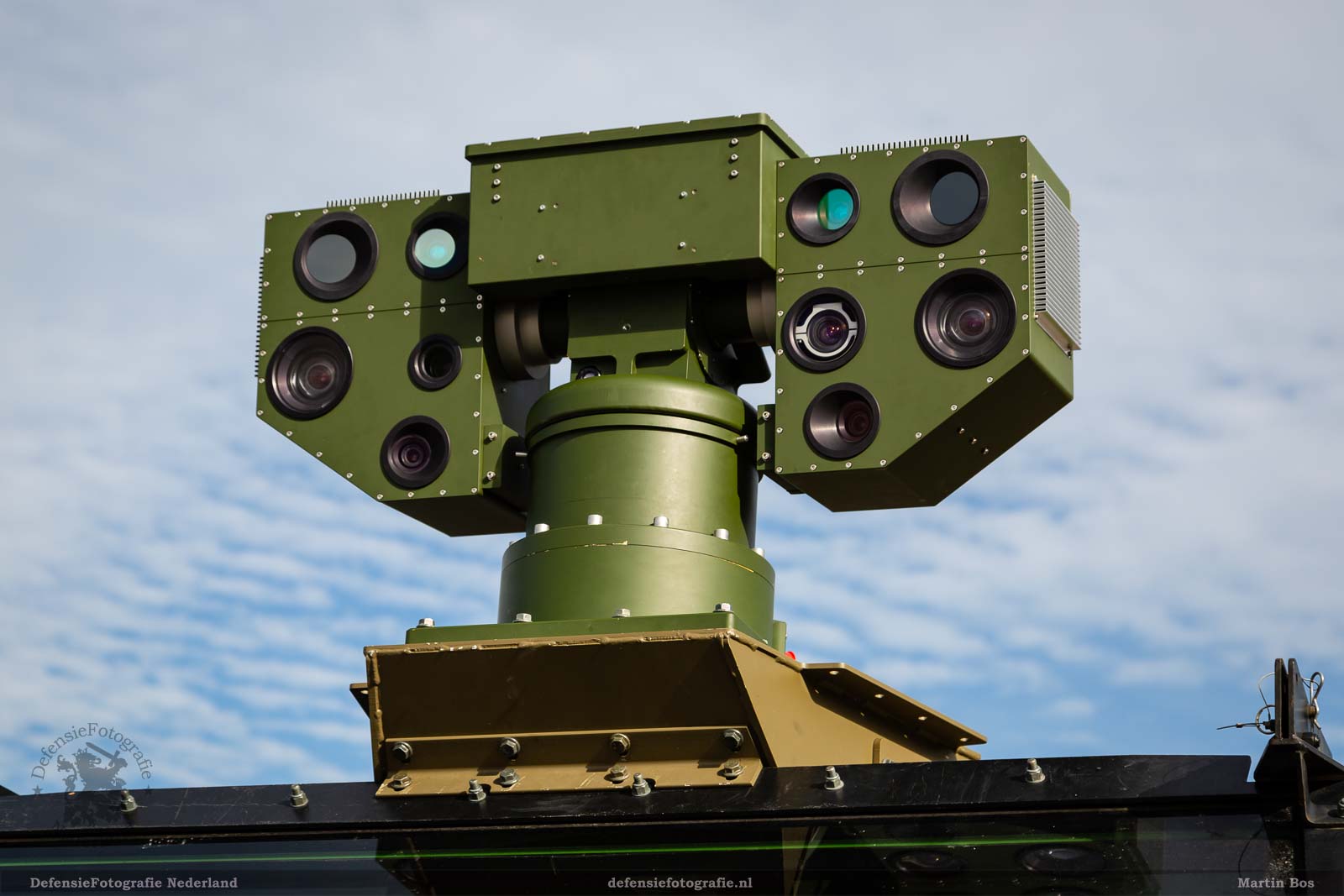

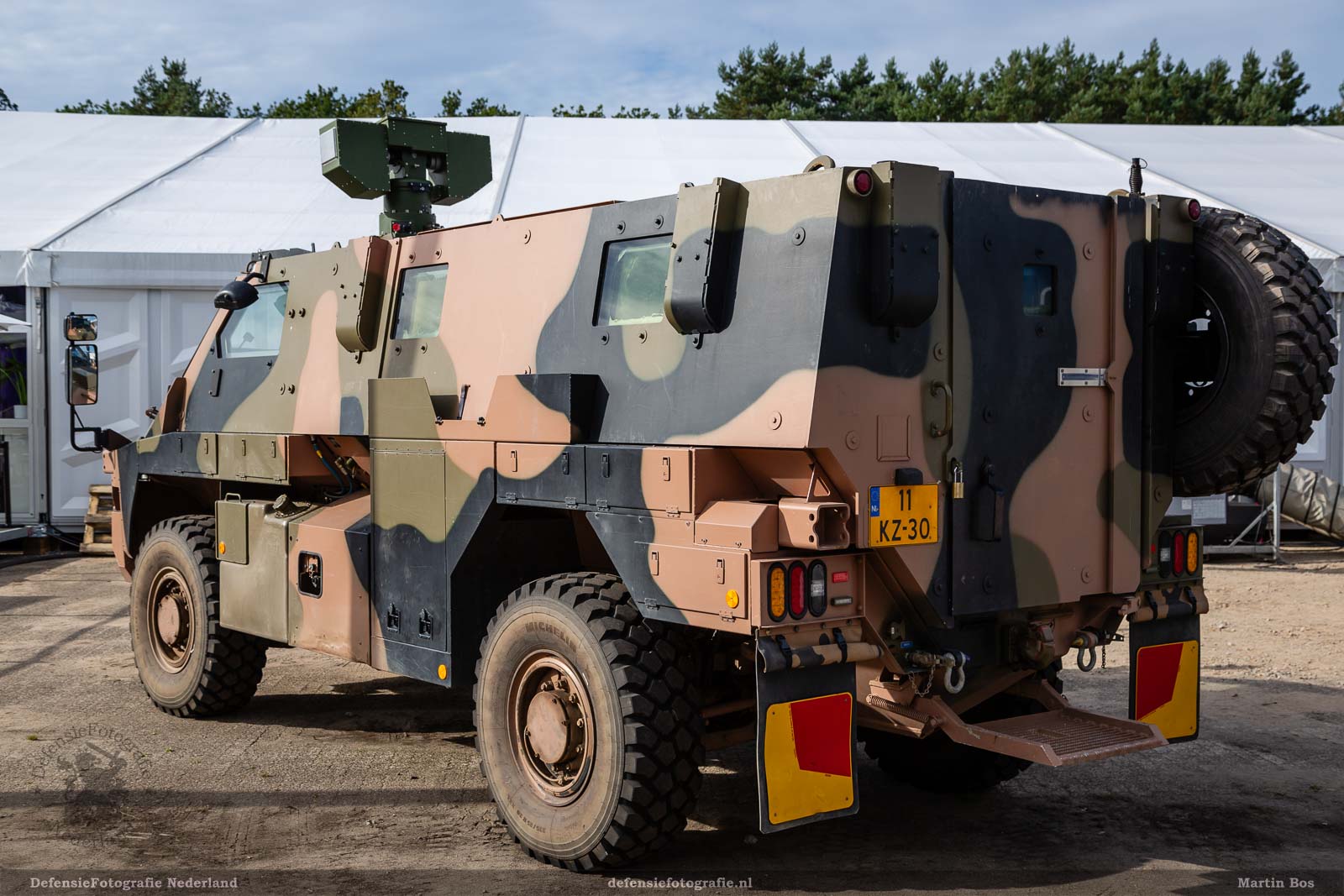

Dutch Bushmaster fitted with the experimental ‘NTP Early Warning System 2.0’ . This is a sensor head and computer for reconnaissance and observation. The system can detect IEDs and mines, for example due to ground disturbances.
H.P.
3 Likes
