Canopy F-86a

Aircraft Cold War
1

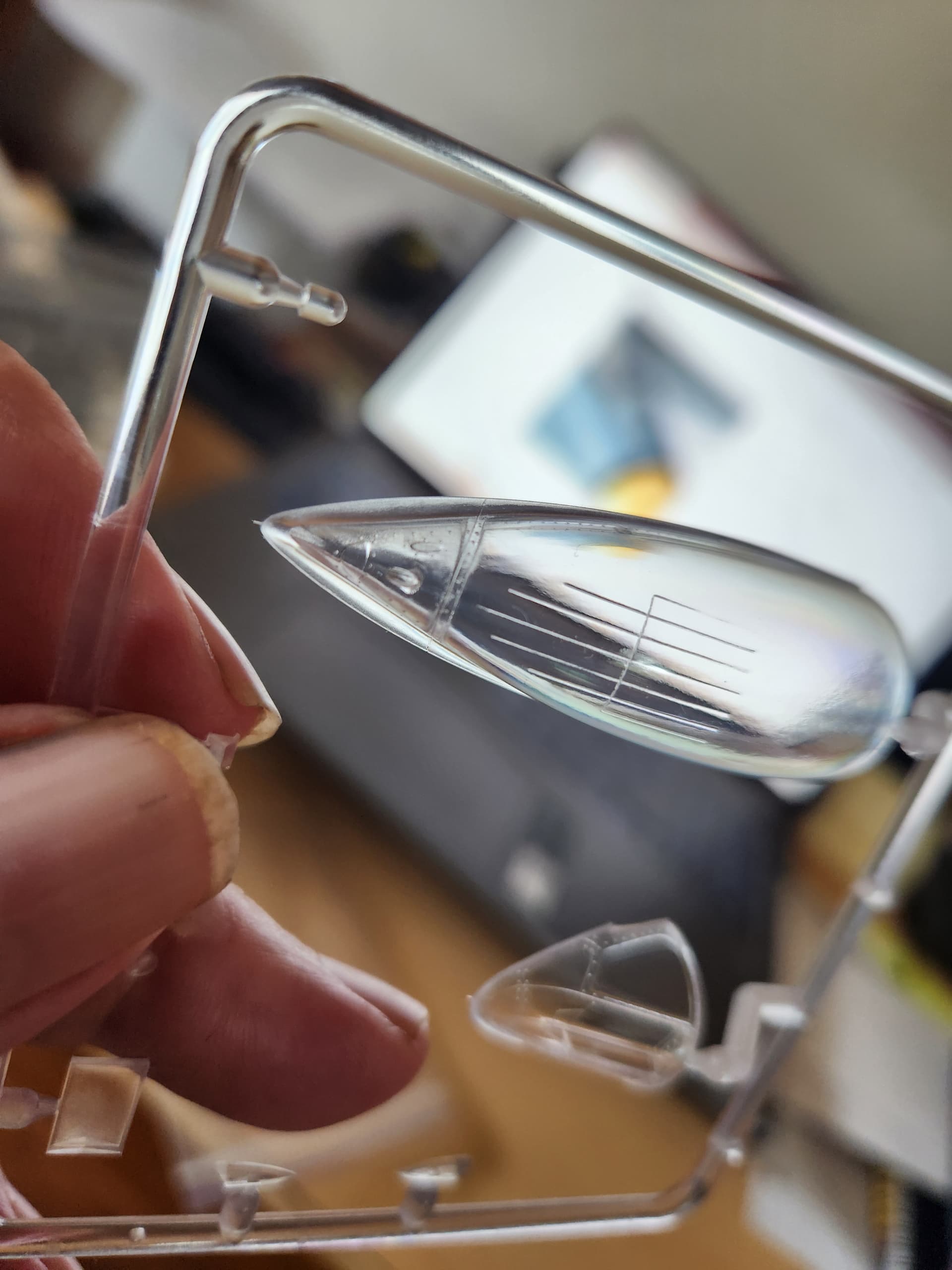

AT the back of a canopy of an F-86a (Hasegawa 1/48) there seem to be 2 transparent small windows and perhaps a kind of light?

Can anybody provide me with some info ,if these are indeed windows and what color that light should have (in case it is indeed a light)

thanks in advance

2 Likes
2

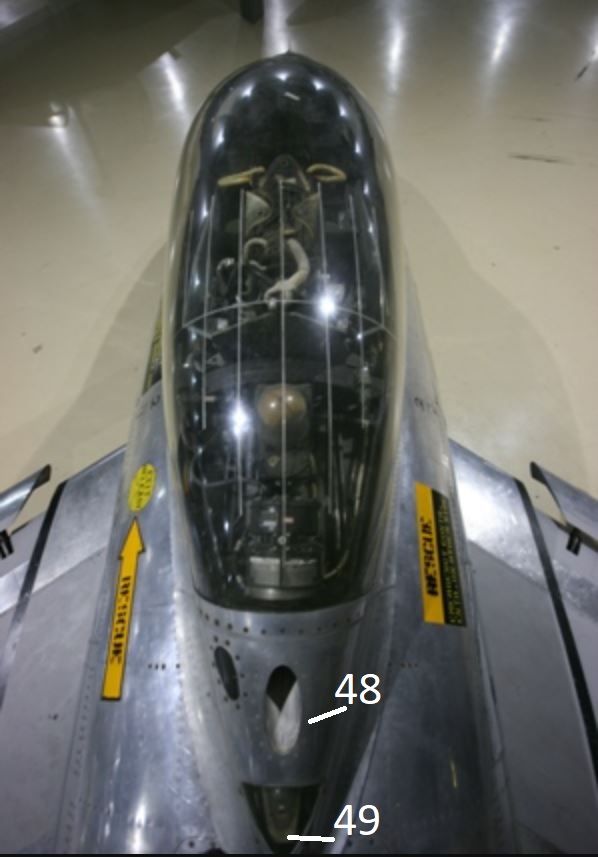

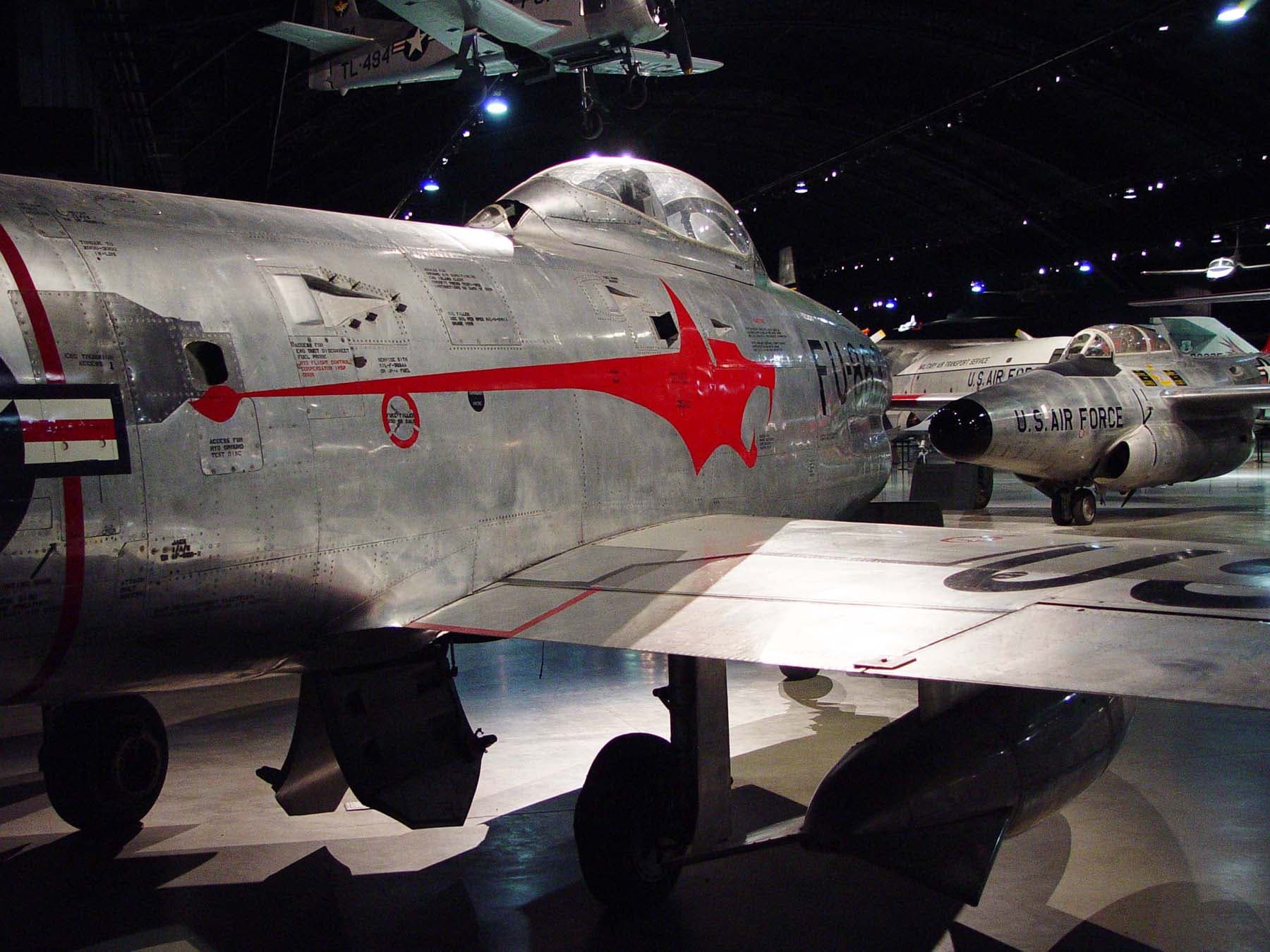

This 1:1 one is a “F” though…

f-86
f-86598×857 64 KB

Guess based on this “E” cutaway

f1
f1190×207 16.8 KB

f2
f2175×150 8.02 KB

Got no clue about the other “hole”…

H.P.

1 Like
3

that’s already very helpful, thanks a lot :slight_smile:

4

Same area on a 3D model

sim
sim494×509 27.5 KB

H.P.

5

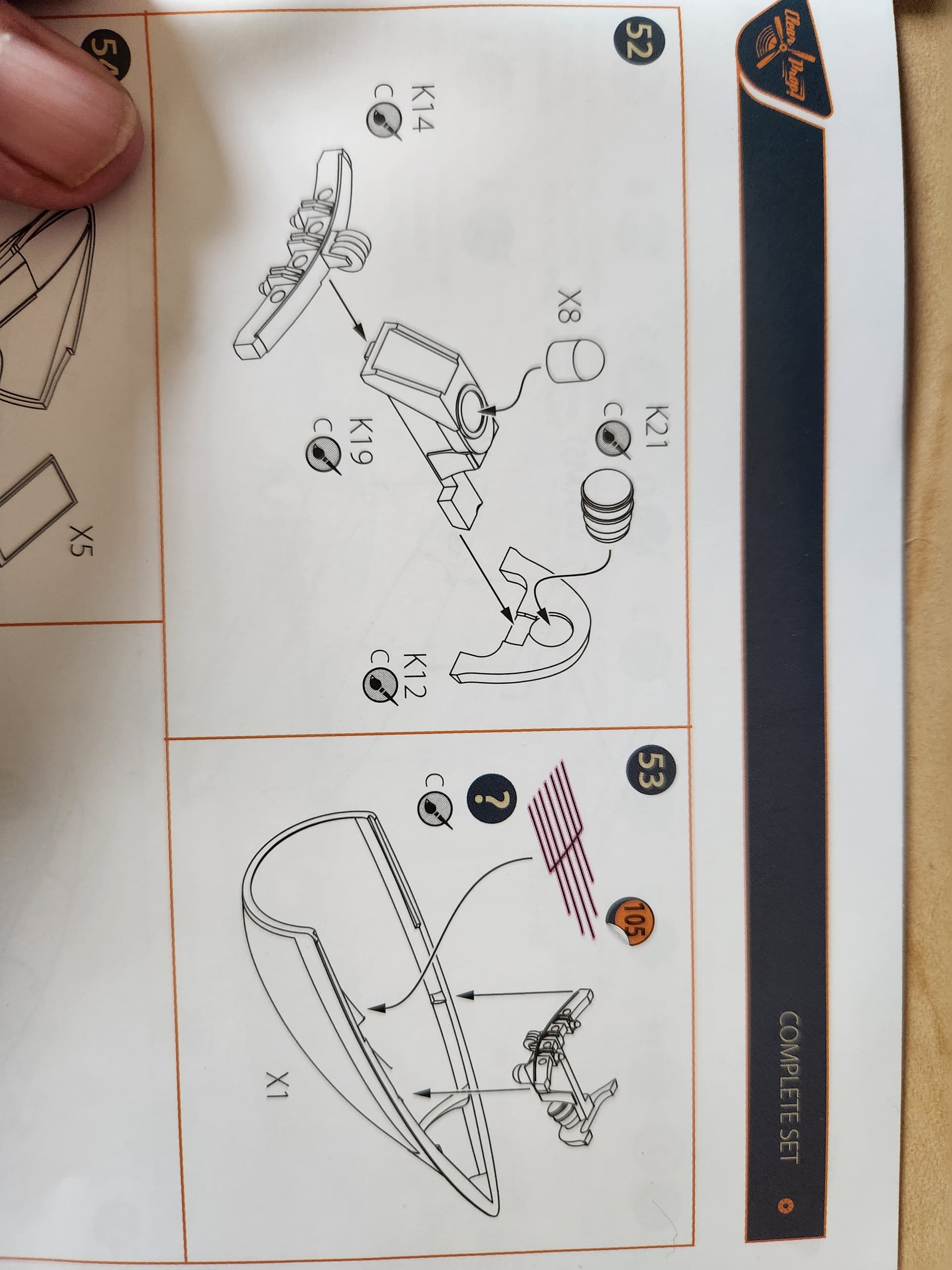

This is from the 1/48th Clear Prop F86 A instructions.

thing
thing1920×2560 243 KB

There is a window looking area at the rear of the canopy but there is no call out for anything other than aluminum, and from the above picture there is nothing that attaches on the inside of the canopy.
thing 2
thing 21920×2560 190 KB

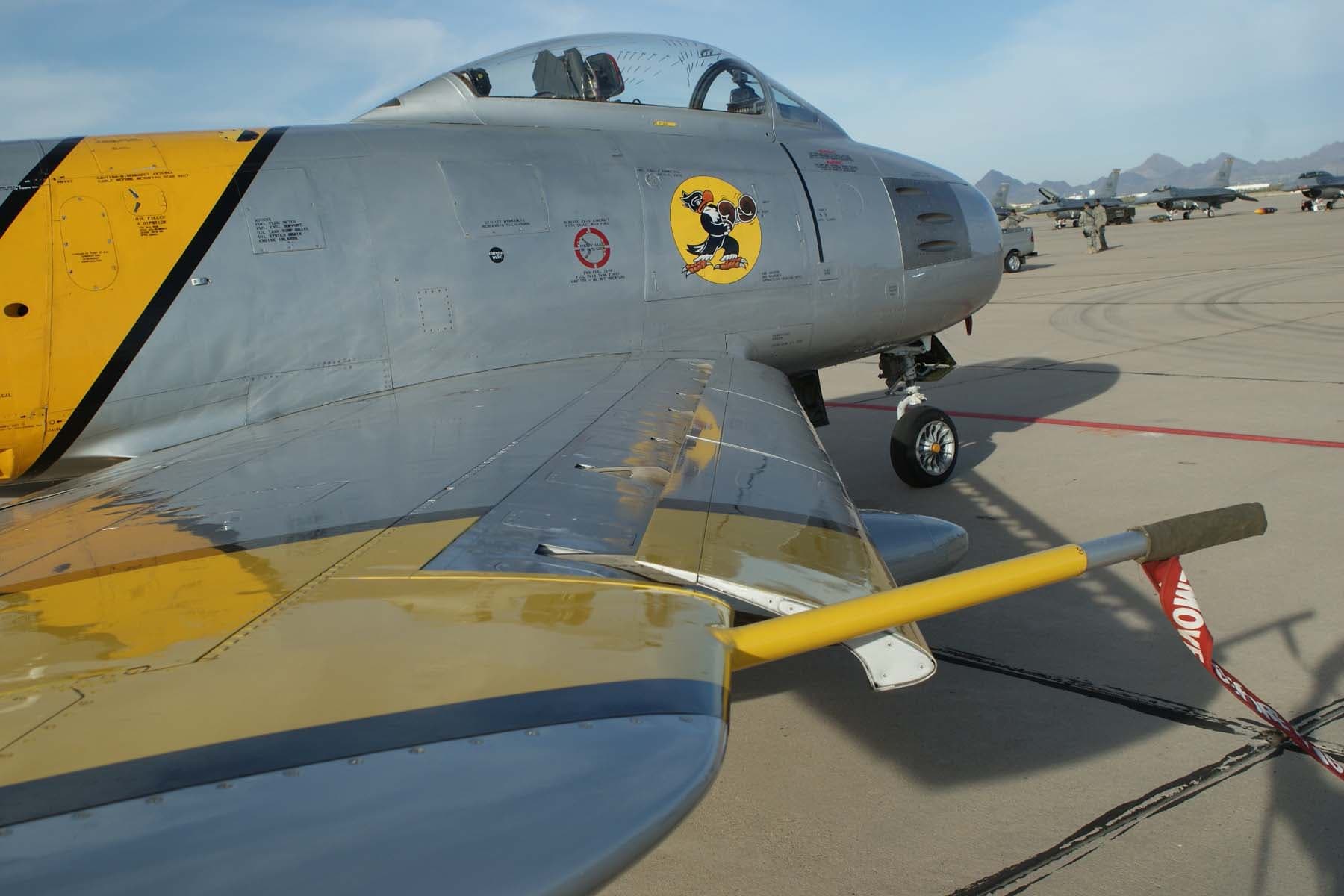

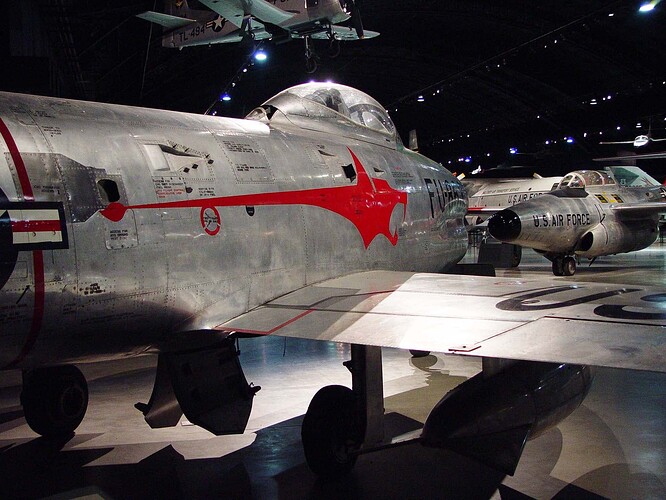

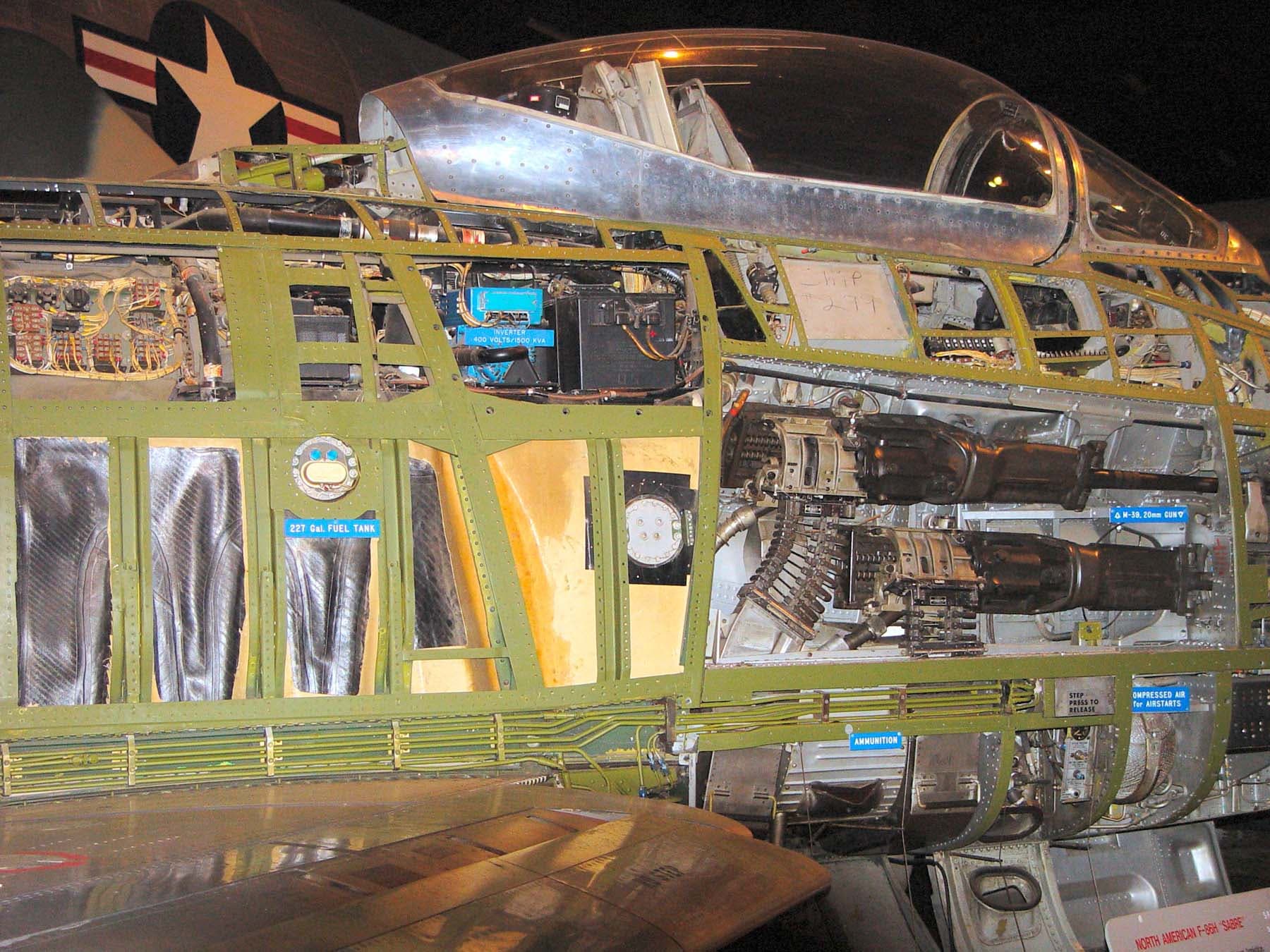

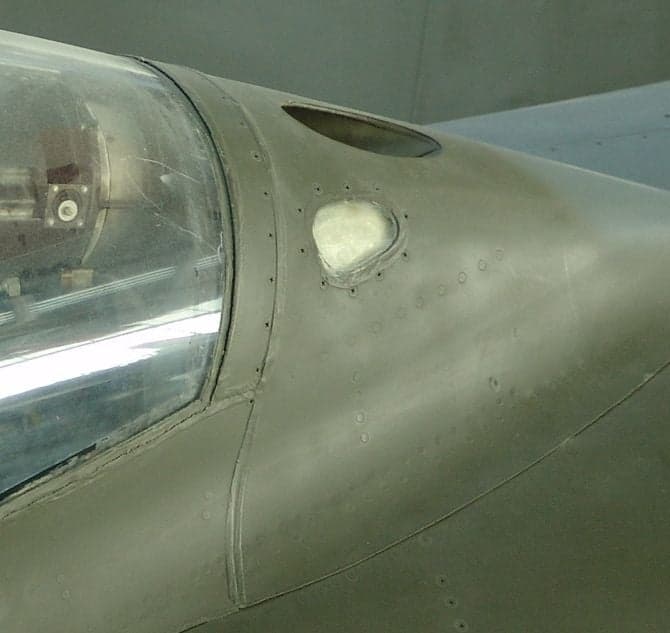

Some other photos.
image670×633 26.8 KB

image1800×1200 119 KB

image1800×1350 343 KB

image1800×1350 220 KB

I think the bulb would be too small to identify a color.

Maybe paint a dot on the underside of the canopy at the point the bulb would be located. Then paint zinc chromate over that. When you paint the outside of the canopy aluminum leave the small window unpainted. You would be able to see the small bulb from the outside of the canopy then.
