Can someone help me with more reference photos (close-ups) and information on how the cover works?
It appears to be some sort of zipper enclosure?? It’s hard to tell from the photos I have…
I am thinking about CADding them for 3D printing. TIA.
2 Likes
Wow, you’re awesome, HP!
These are superb reference photos!! Thank you so much!
2 Likes

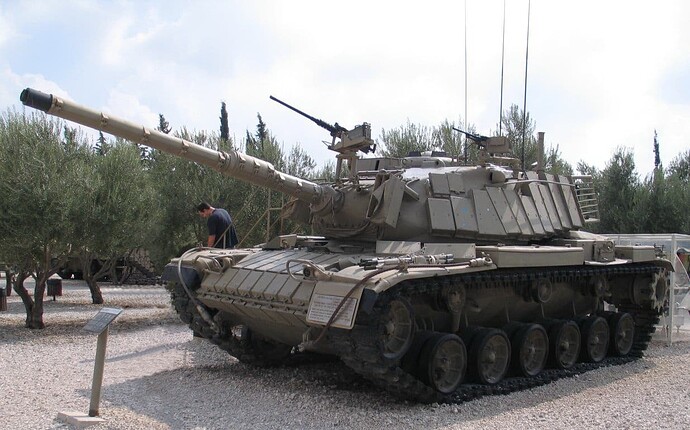

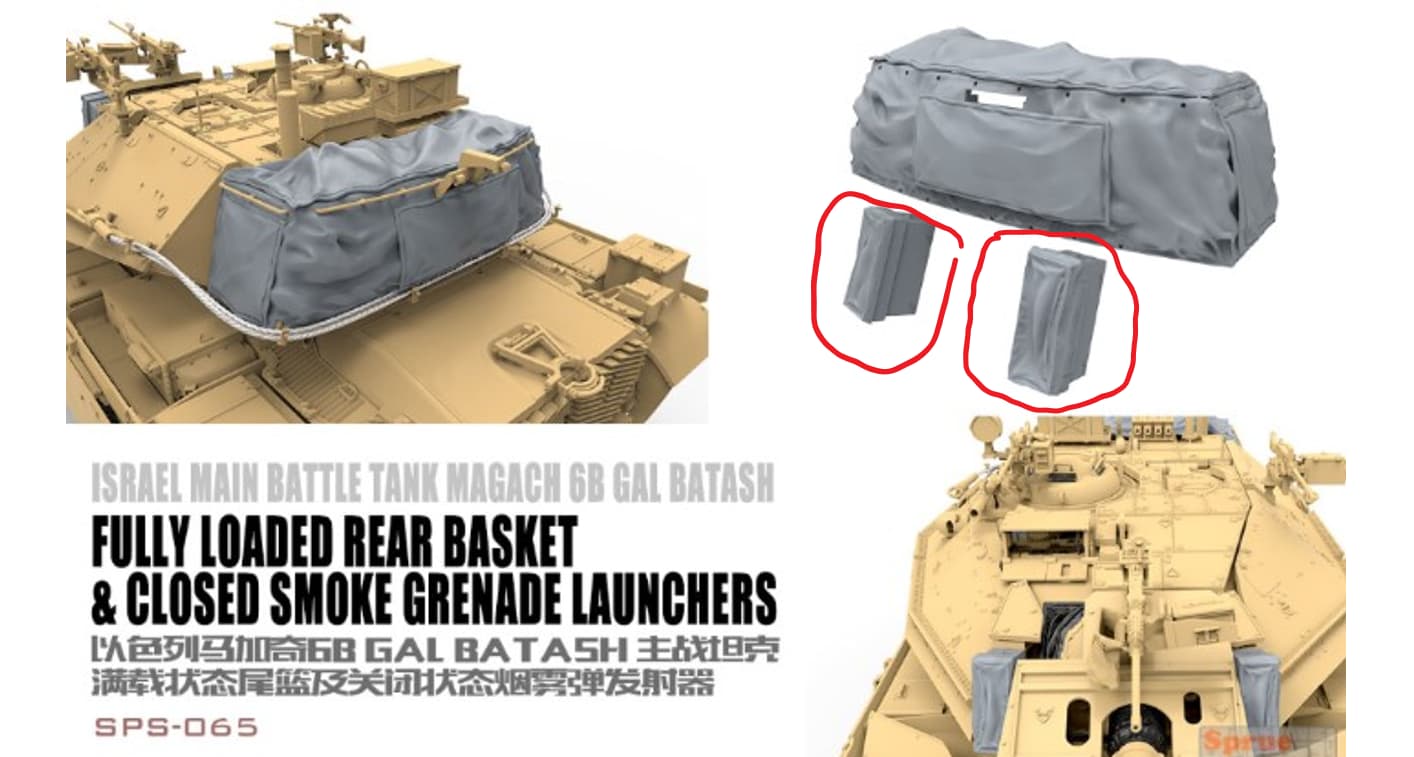

You’re welcome. These pics (except the top one) were taken by Victor Krestinin at the Latrun Armor Museum, Israel.
Here’s another one
Walkaround :

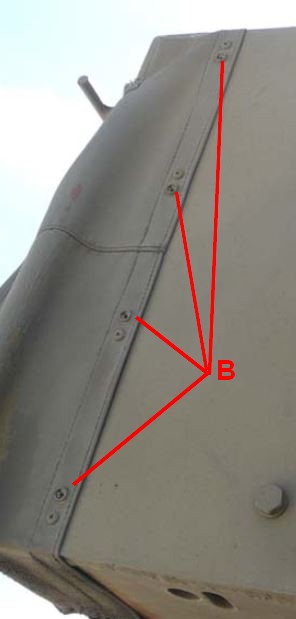

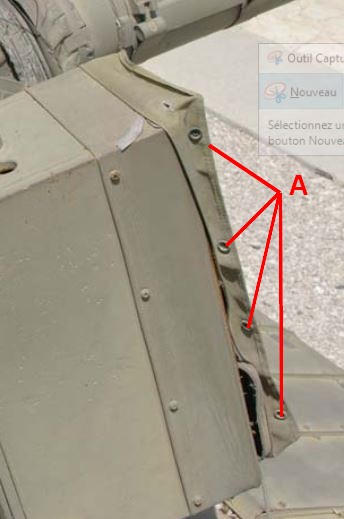

EDIT : looking at them closer, I guess that one of the pictured canvas covers may not be the original one as the snap buttons don’t seem to match…
H.P.
4 Likes
Typical of museum pieces. You need the old Concord books.
1 Like
If you were to print those for commercial sales I’d be interested in a few pairs… I’ve been using thin masking tape to make the covers, but the whole thing, with cover, would be cool.
3 Likes

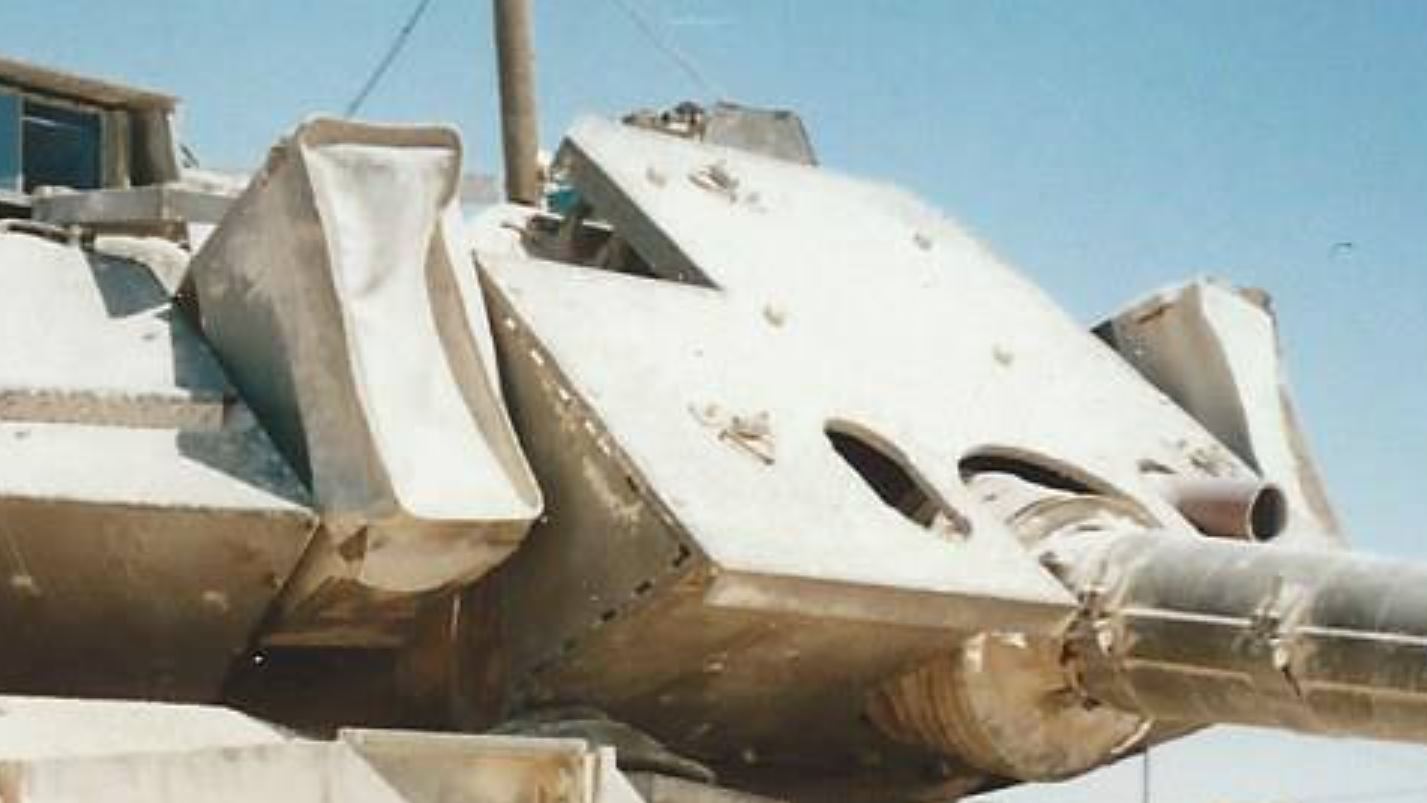

In these Sho’t Kal views, you can notice the zipper. I guess the cover can be opened without the need to unsnap it…
3 Likes
Take in mind that there is no left or right cover, it is the same for both sides of the tank. The cover opens from right to left (of the tank) and folds on the left side of the launcher box.
2 Likes
Thank you everyone who responded. Useful info!
