F106 wheel well color?

Aircraft
,
1

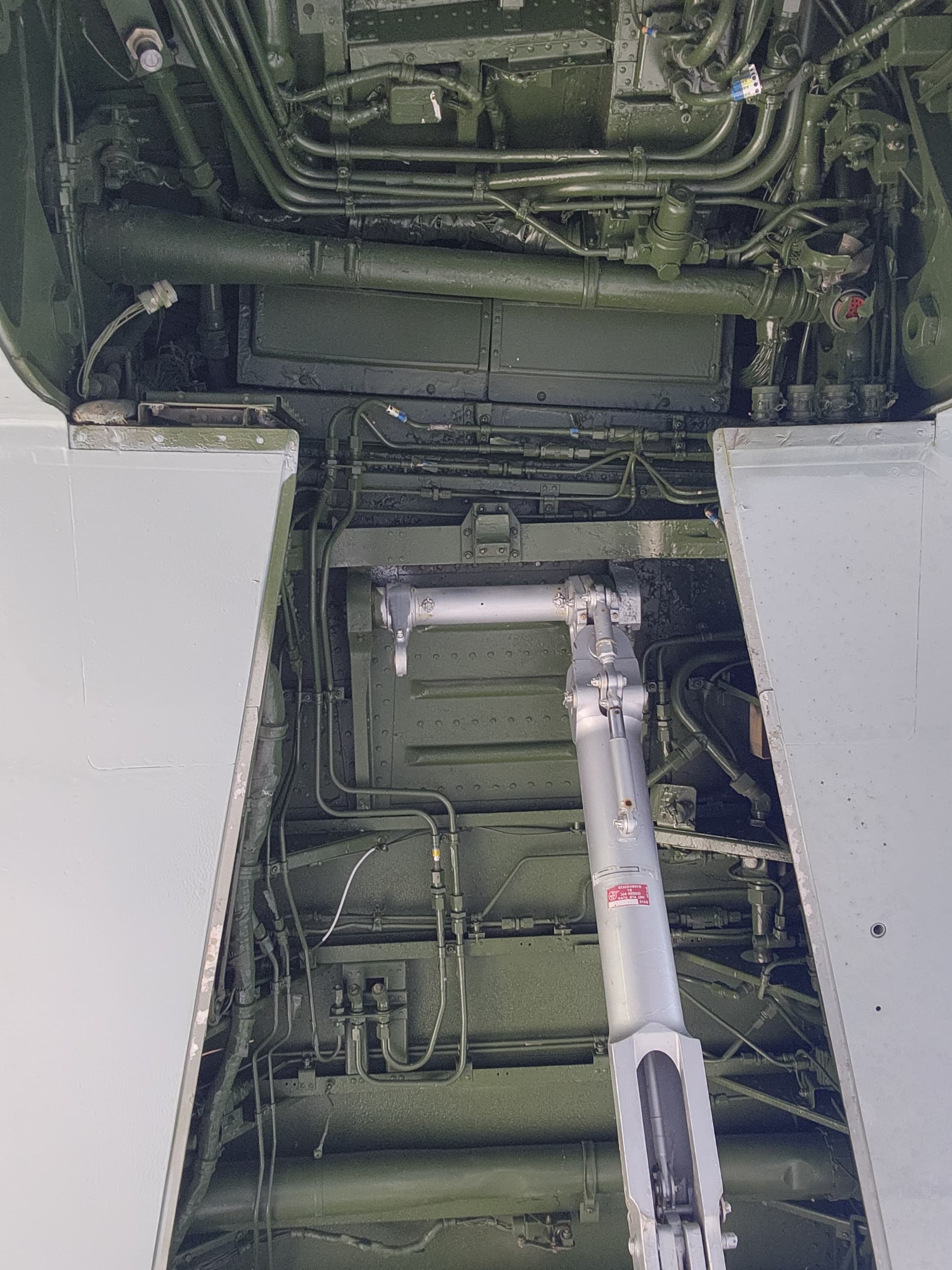

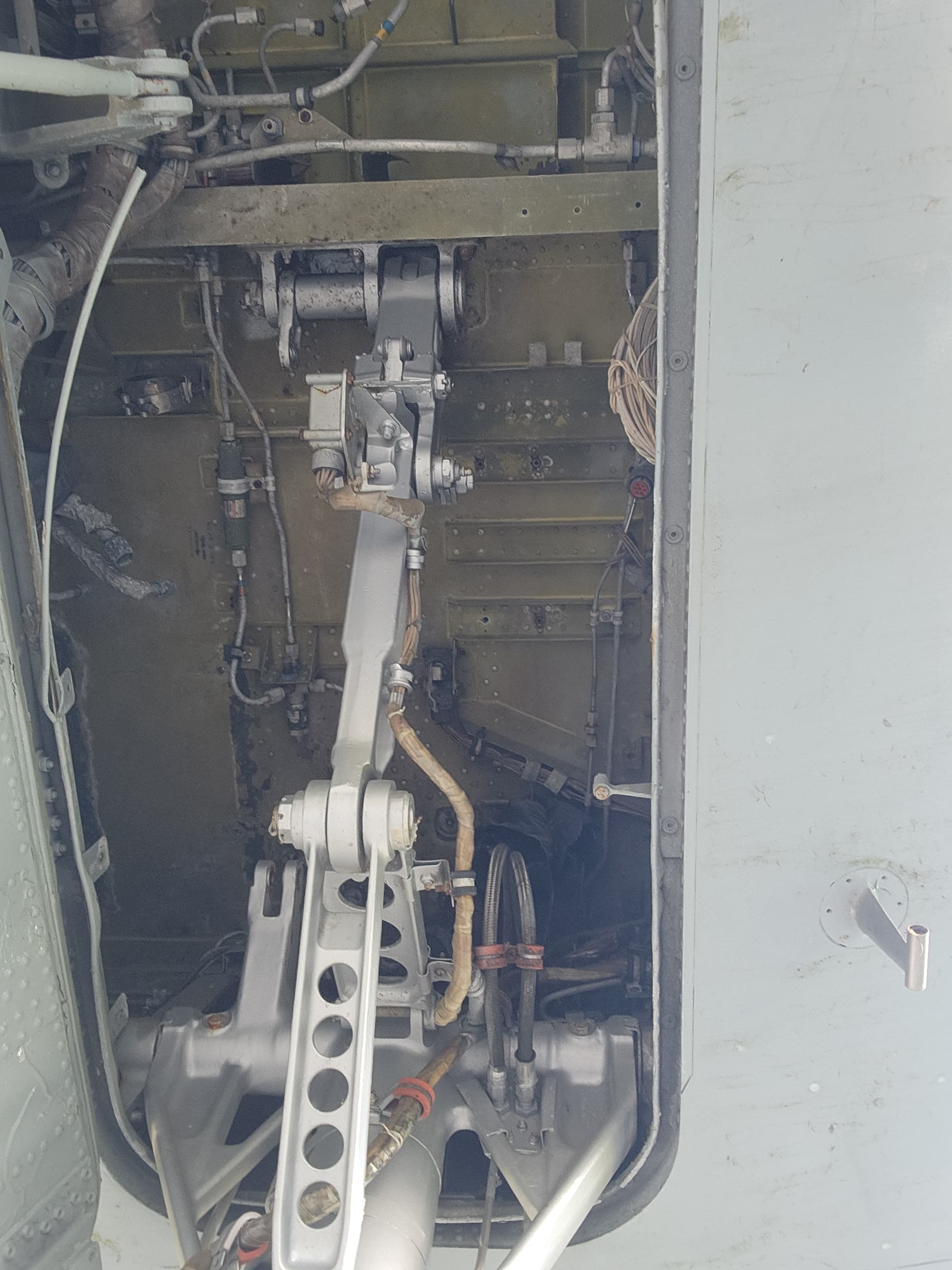

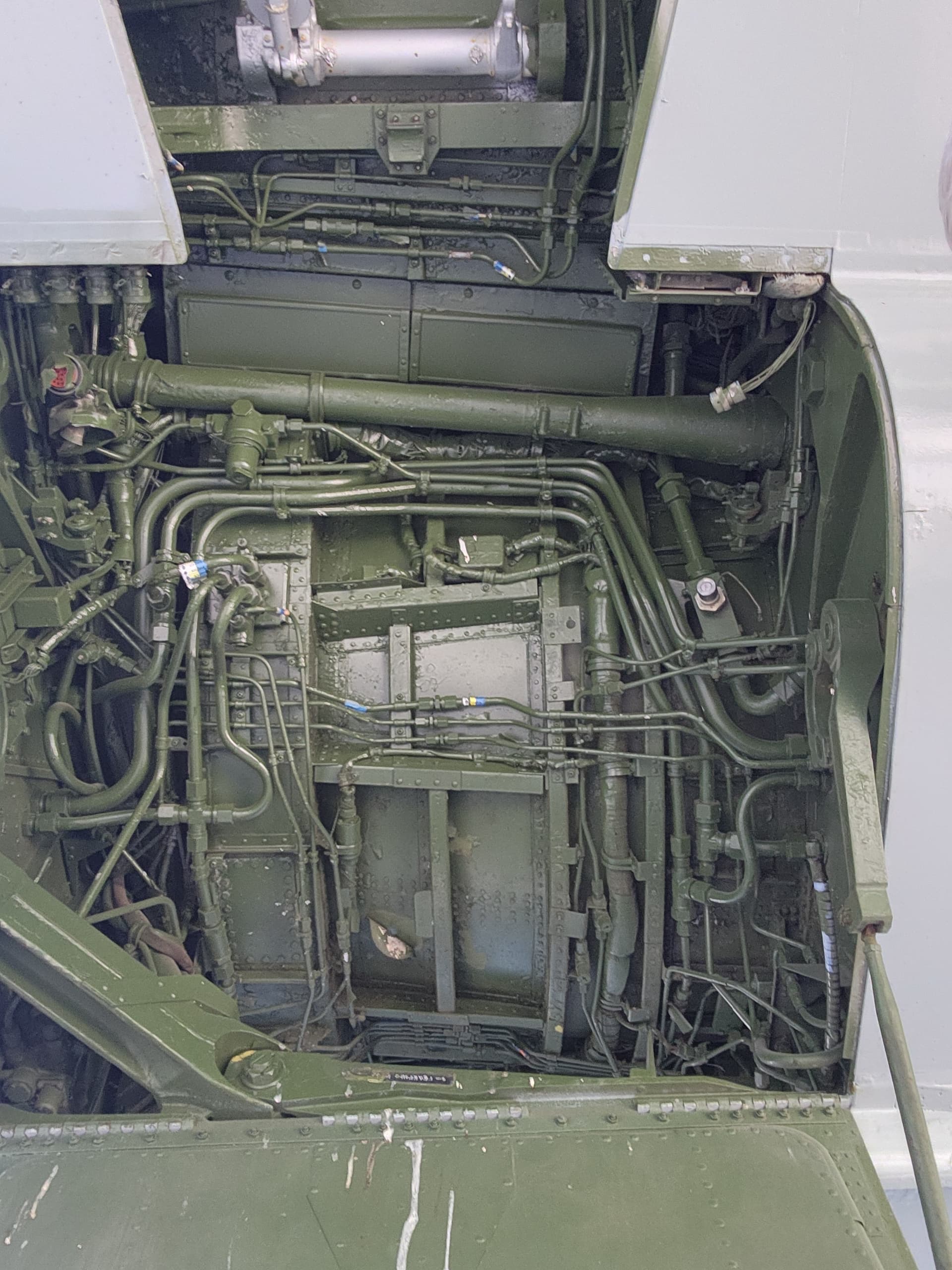

I have the 1/48 Trumpeter kit with resin upgraded wheel wells. I went over to McChord field today and photographed some details of their F106. The wheel wells were a dark olive green. All the hydraulic lines and the well itself. The landing gear was silver. So is this correct? If not, do you have a better set of color photo’s?

1
11920×2560 438 KB

2
21920×2560 449 KB

3
31920×2560 343 KB

2

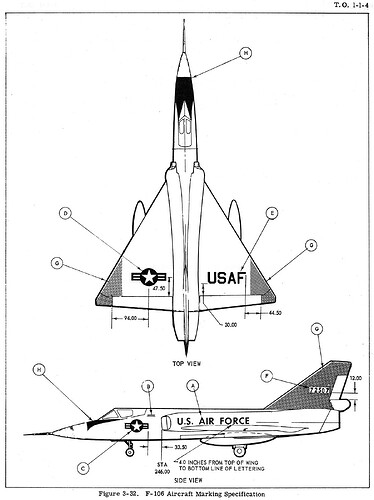

Here are the USAF specs

image1197×1600 145 KB

image1478×1600 340 KB

1 Like
3

When I did mine I used this site for reference pictures…

F-106 Delta Dart Photo site

3 Likes
4

So what color is “Y”?

5

I wondered the same thing. Yellow Zinc Chromate? That is a pretty standard non crew area airframe interior color in that era.

Edit- looking up: MIL-P-8585 is an one stock reference for Zinc Chromate Primer

7

Thanks for the reply, and welcome aboard!
