Who can help?
I’m currently working on a M60A1 with ERA blocks from the first Gulf War, but I really like to mount the Full Width Mine Plough on it, which calls for a donor kit of an M1 Abrams with such a Plough, because the old Quatermaster set, is quite hard to get hold of.
I really need some pictures of the mounting of the plough, because the plough I have, does not fit my M60A1 at all.
Anyone have anything on this?
Thank you in advance.
Jacob
1 Like
I’ll let you know from my experience with grafting the TWMP from the Tamiya M1A1 to the Tamiya M60A1 ERA. the plow arms do not align with the front of the lower hull. It’ is a bit of a tricky process to get it all to align. But don’t let that discourage you…
I made it work as best i could and I’m proud of that.
The tracks are AFV CLub T-142 tracks and not shown is a 3D printed CLAMS Lane Marker from @MikeyBugs
7 Likes
Here’s two auction on ebay for the DML TWMP
DML Quartermaster Series Track Width Mine Plough 1:35 Model Kit Complete Unbuilt | eBay
Dragon - Quartermaster series track width mine plough - 1:35 - 3804 | eBay
3 Likes
Find the Trumpeter 5 in 1 abrams, it goes really cheap on some sites (20$ or less)
Google this order if you want to find it or I can mail it to you
4 Likes
Yes, I know that there are a few on eBay, but they are in the US, which means around 40-50$ in postage+ around another 20$ in custom, and that is simply way too much for me.
But thanks for your help
1 Like
yeah; well? I was not aware you were not in the US… Still, like Nikos mentioned, the Trumpeter 5-in-1 Abrams kit should get you the plow.
2 Likes
Yup; hope your handy with a saw. I just glued mine in place and hoped for the best.
3 Likes

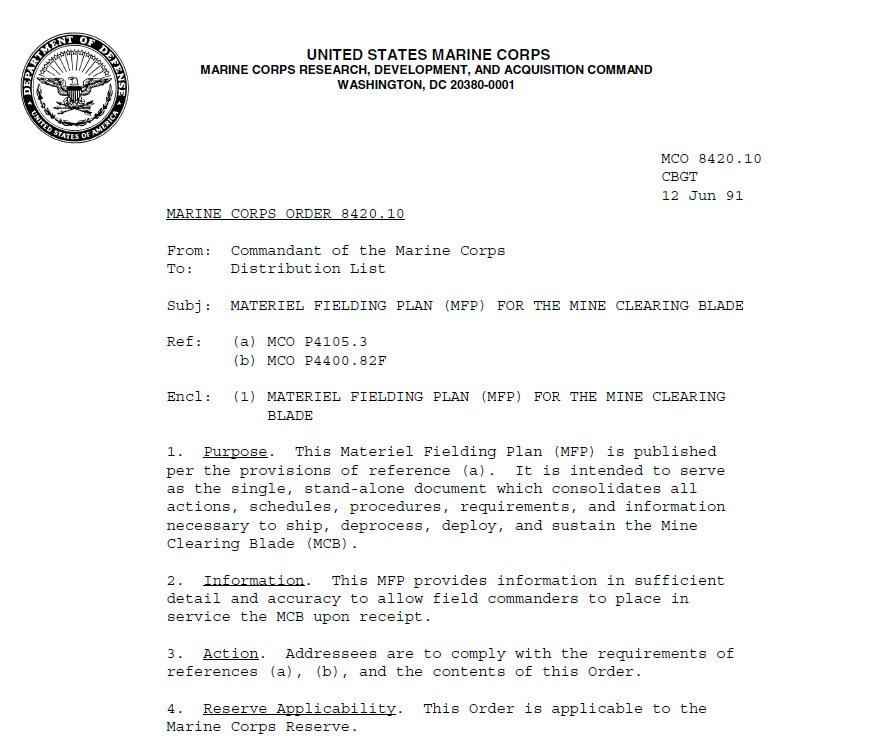

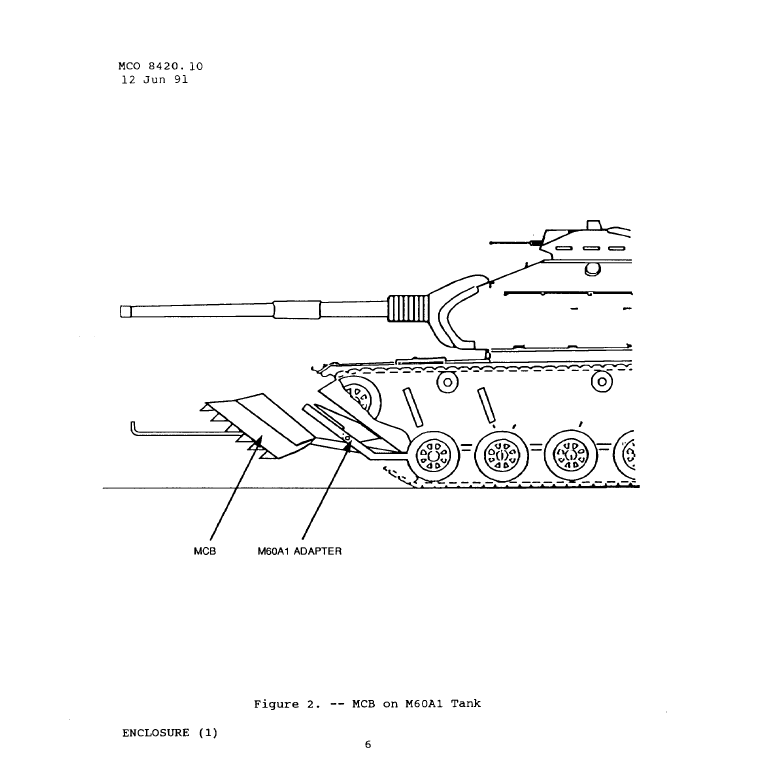

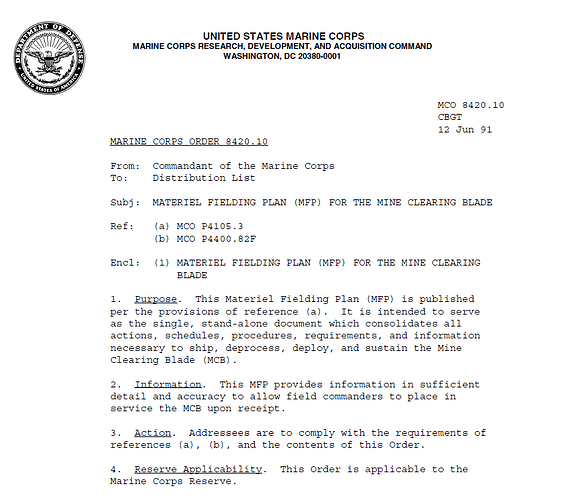

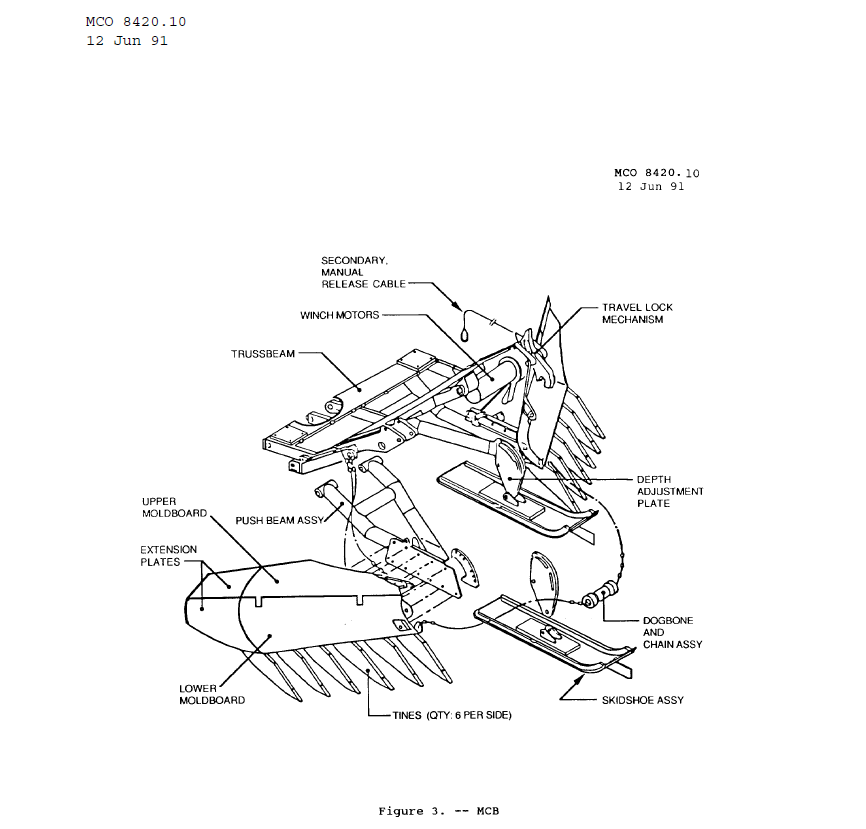

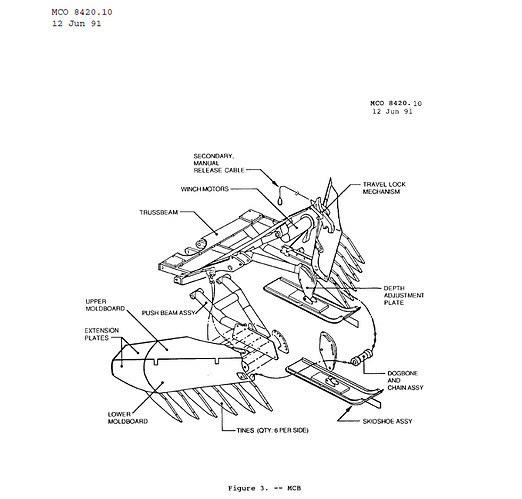

Well, this is really helpful, and it do show, how it was mounted to the hull.
Thank you very much
1 Like

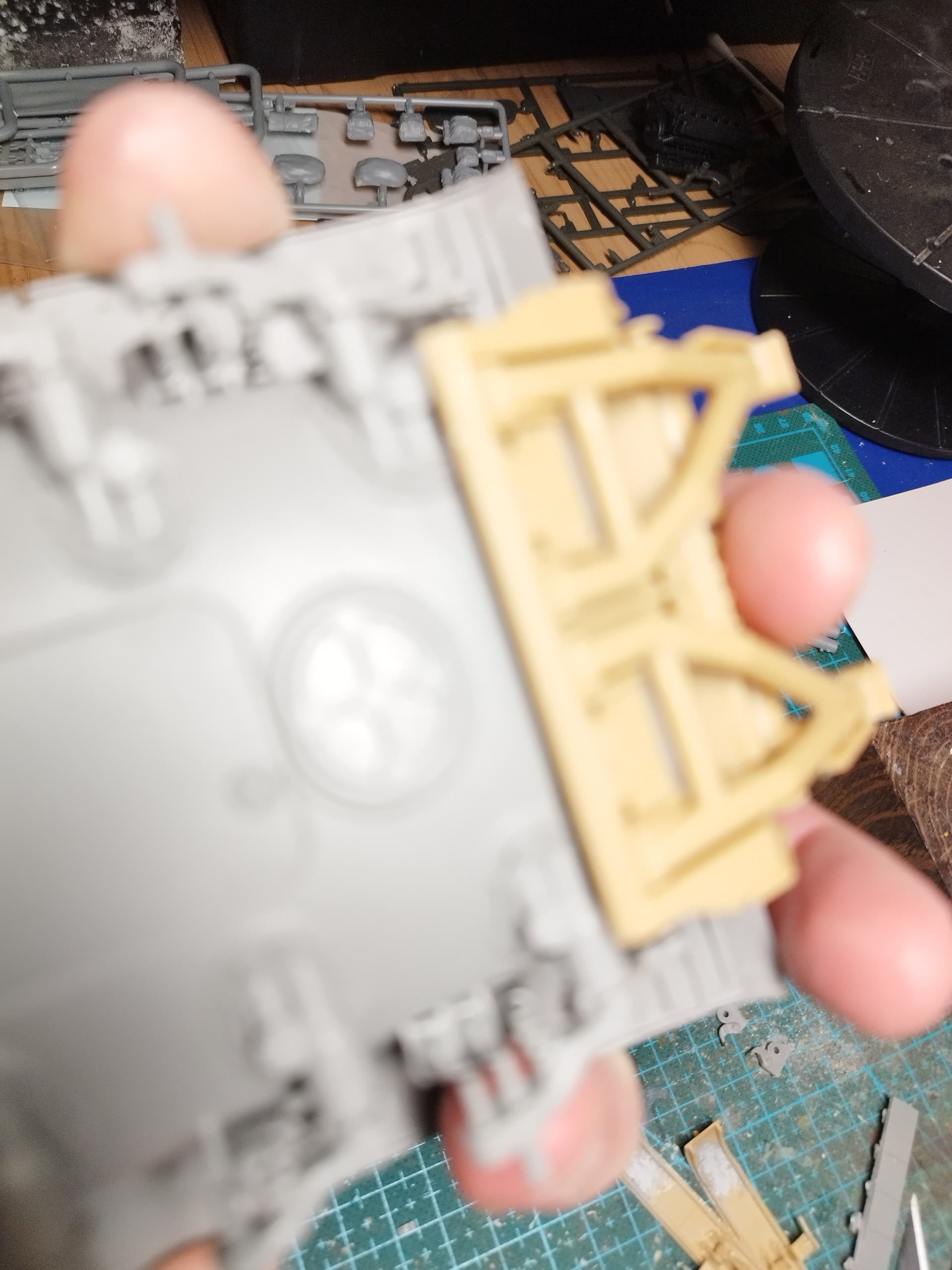

I actually think, that the one I have, is the Trumpeter one
1 Like
The plastic in your photo looks like a Trumpeter
2 Likes
Guess so
1 Like

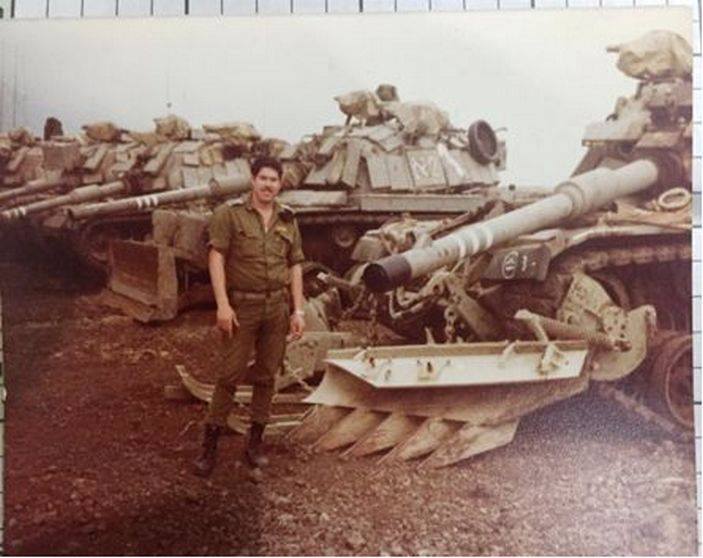

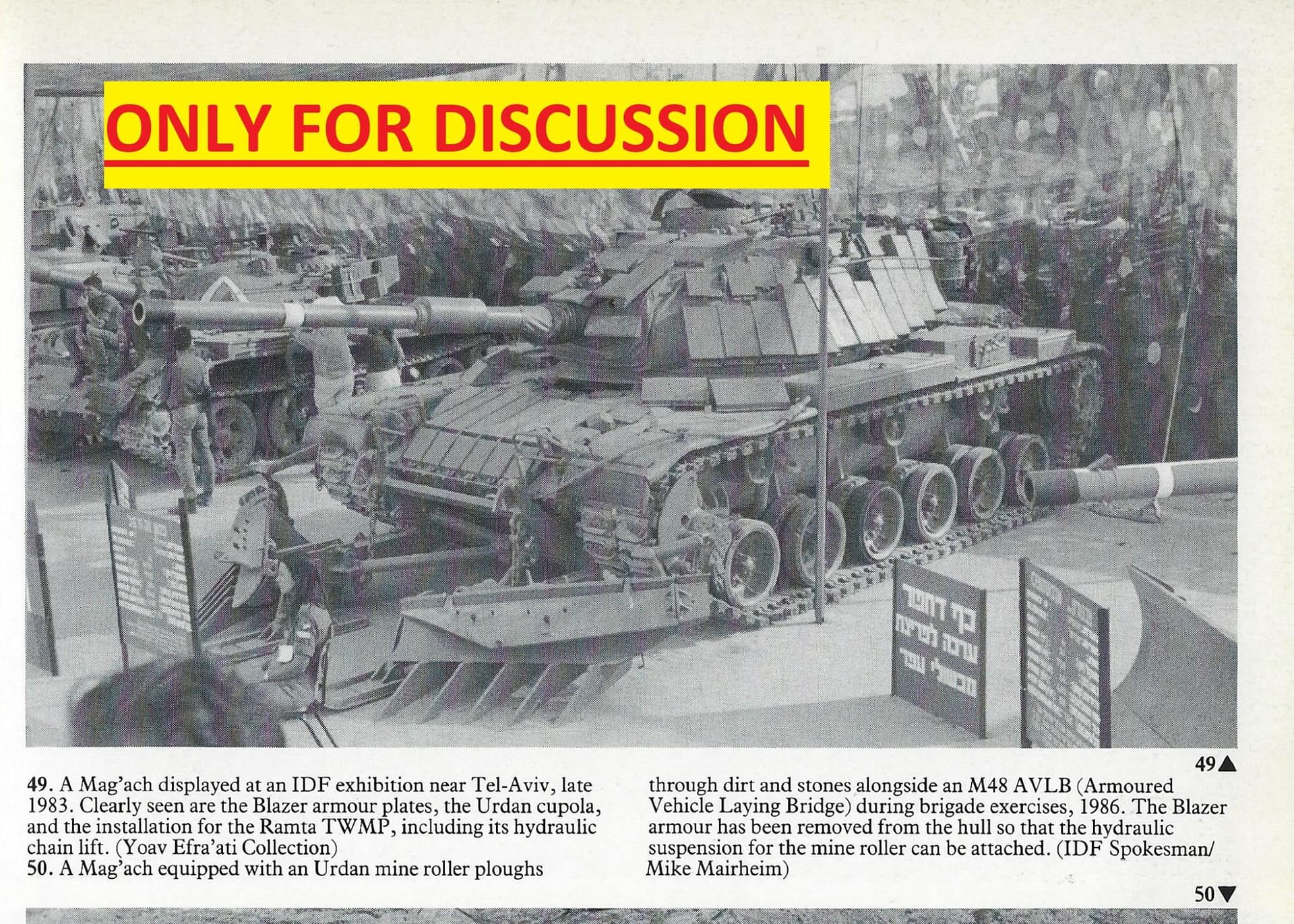

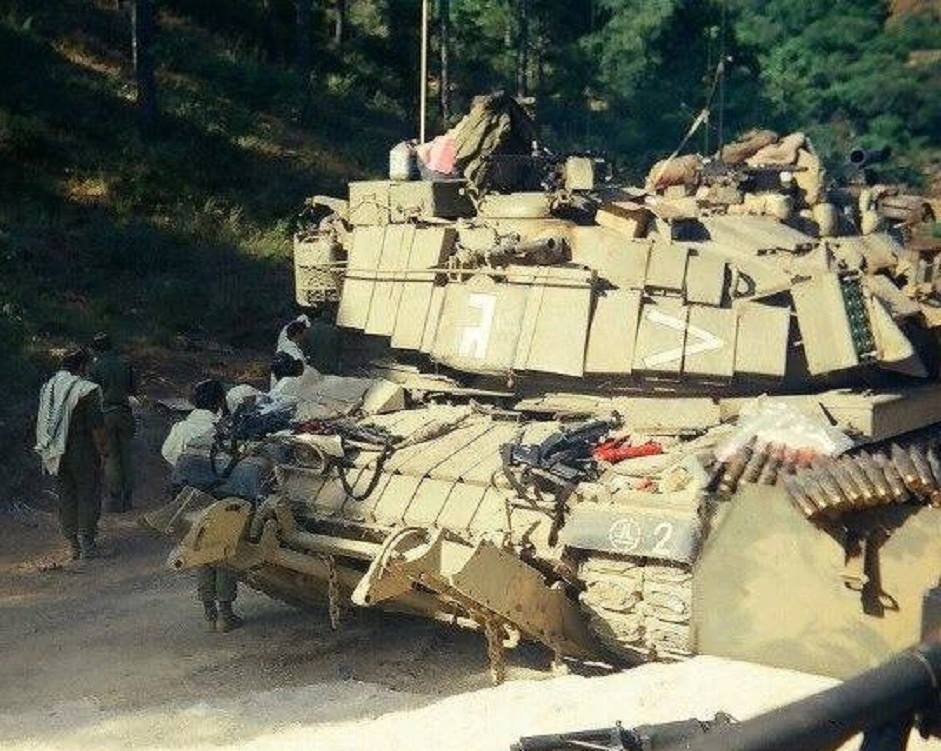

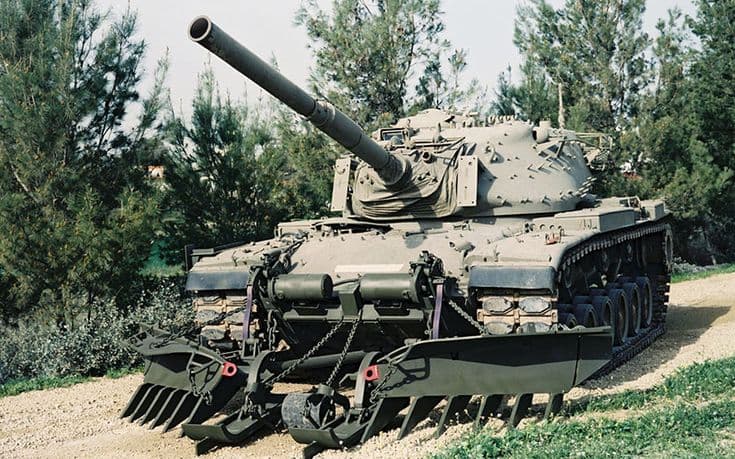

The IDF used a different mount to the US one.
1 Like

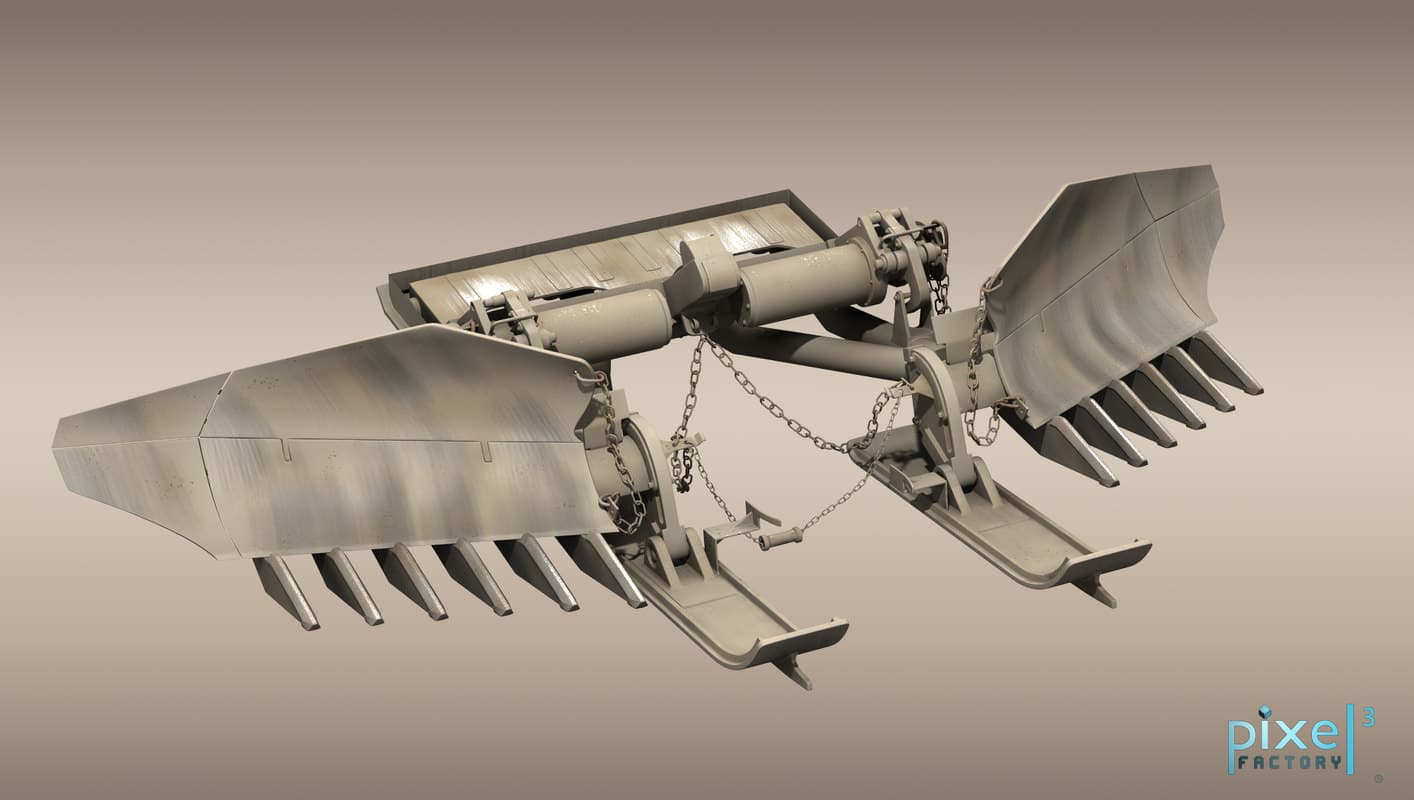

Yeah; well, i mean the frame where the plow mounts into. I know that Elta Systems (israel) makes the TWMP typically used on the M60 and M1, along with other tanks. Thge new-Gen mine plow you see on the M1150 and on the Trojan is made by Pearson Engineering (UK).
1 Like

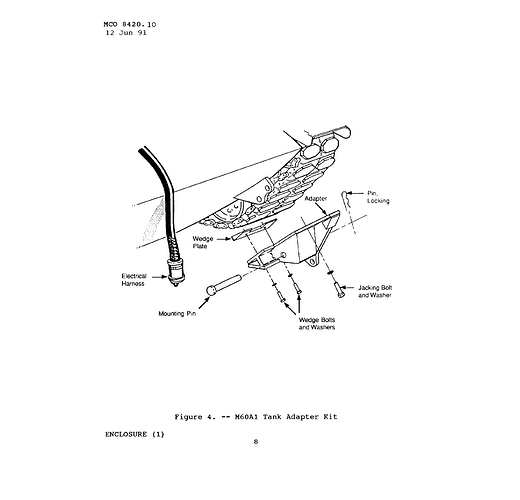

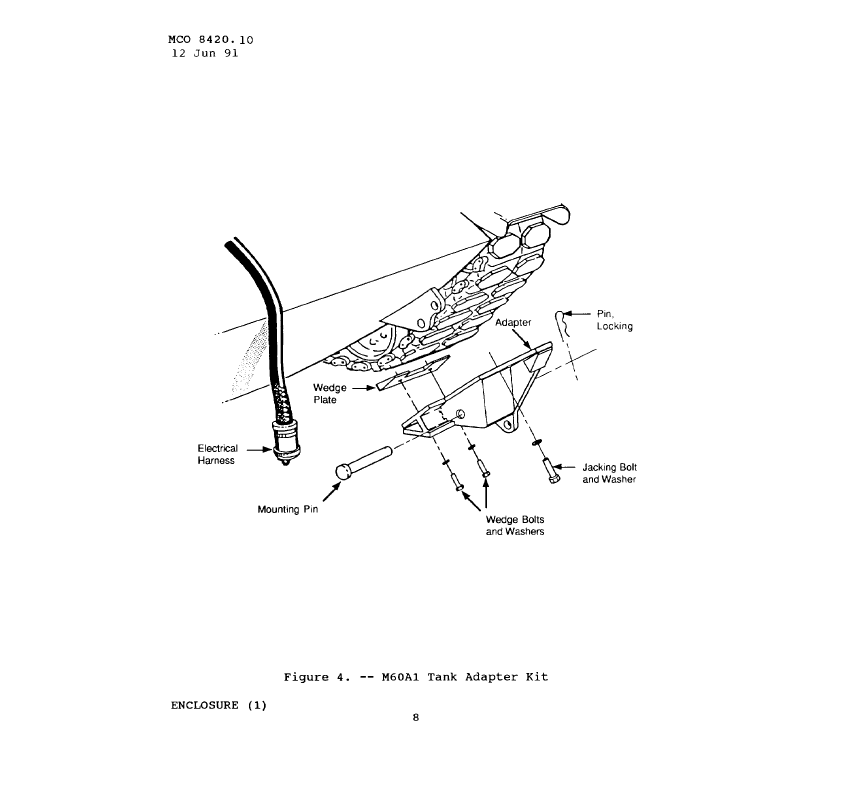

AHA! I think the fitting problem lays in the M60 adaptors between the hull and the mounting plate of the plough, which are shown in the last drawing. I’ll be looking into this tomorrow.
2 Likes

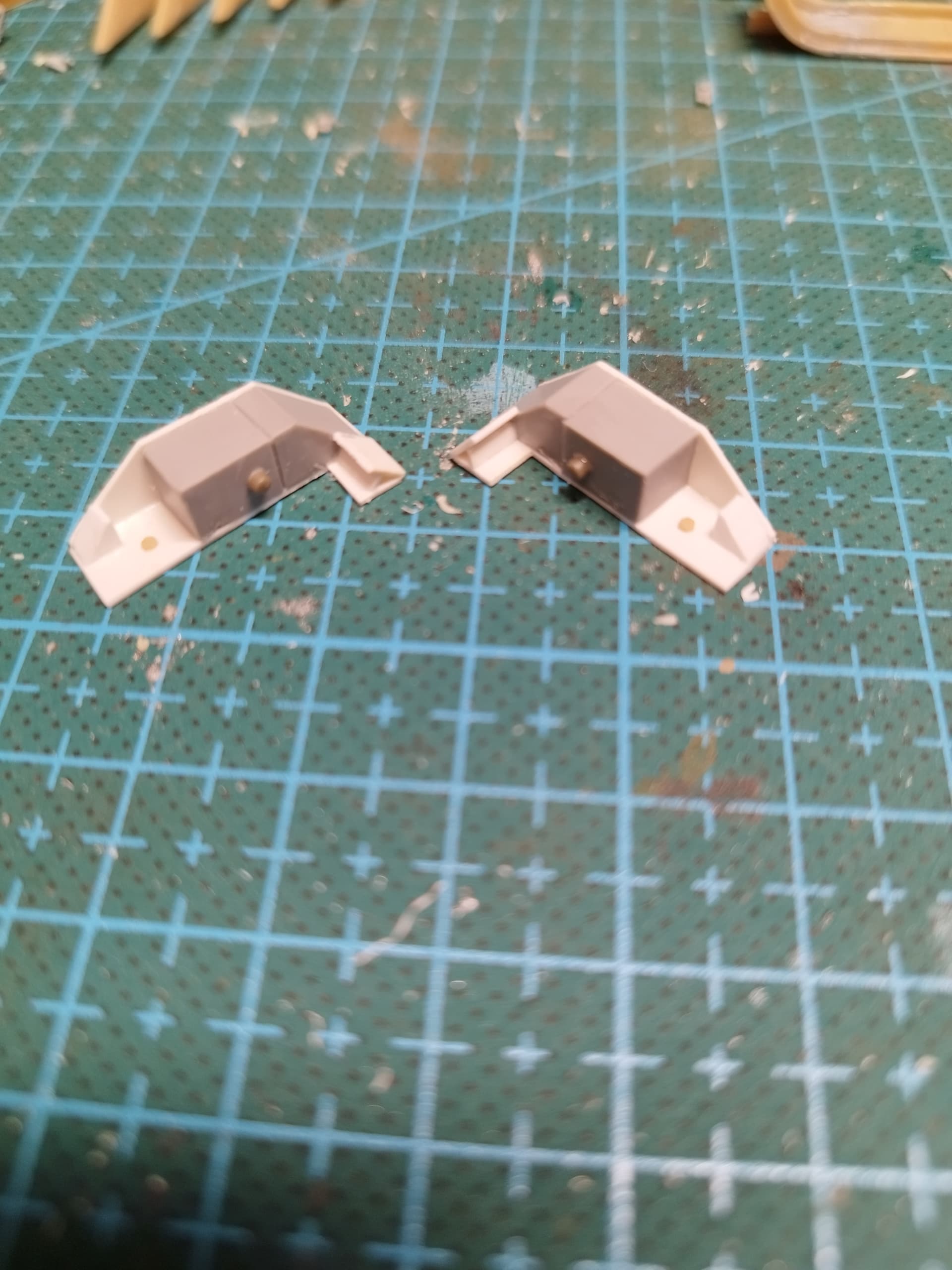

TA-DAA!
Hopefully these will do the trick.
Not a 100% look alike, but close enough, since they’re gonna be tucked away behind the mounting plate.
6 Likes
nice subject…
I just have a spare mine plug from Abrams…
