HMMWV Variants

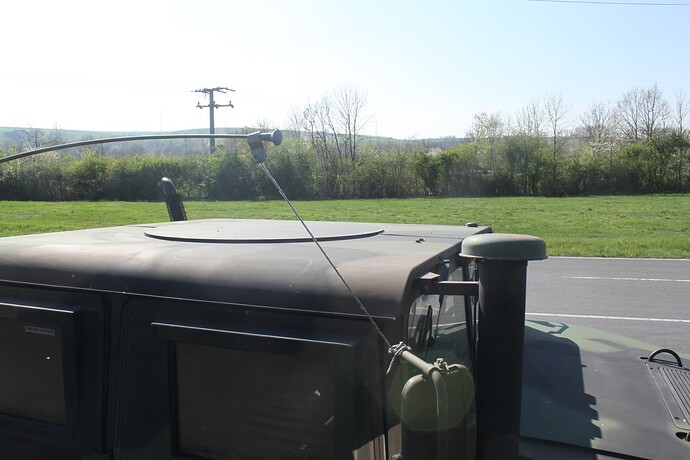

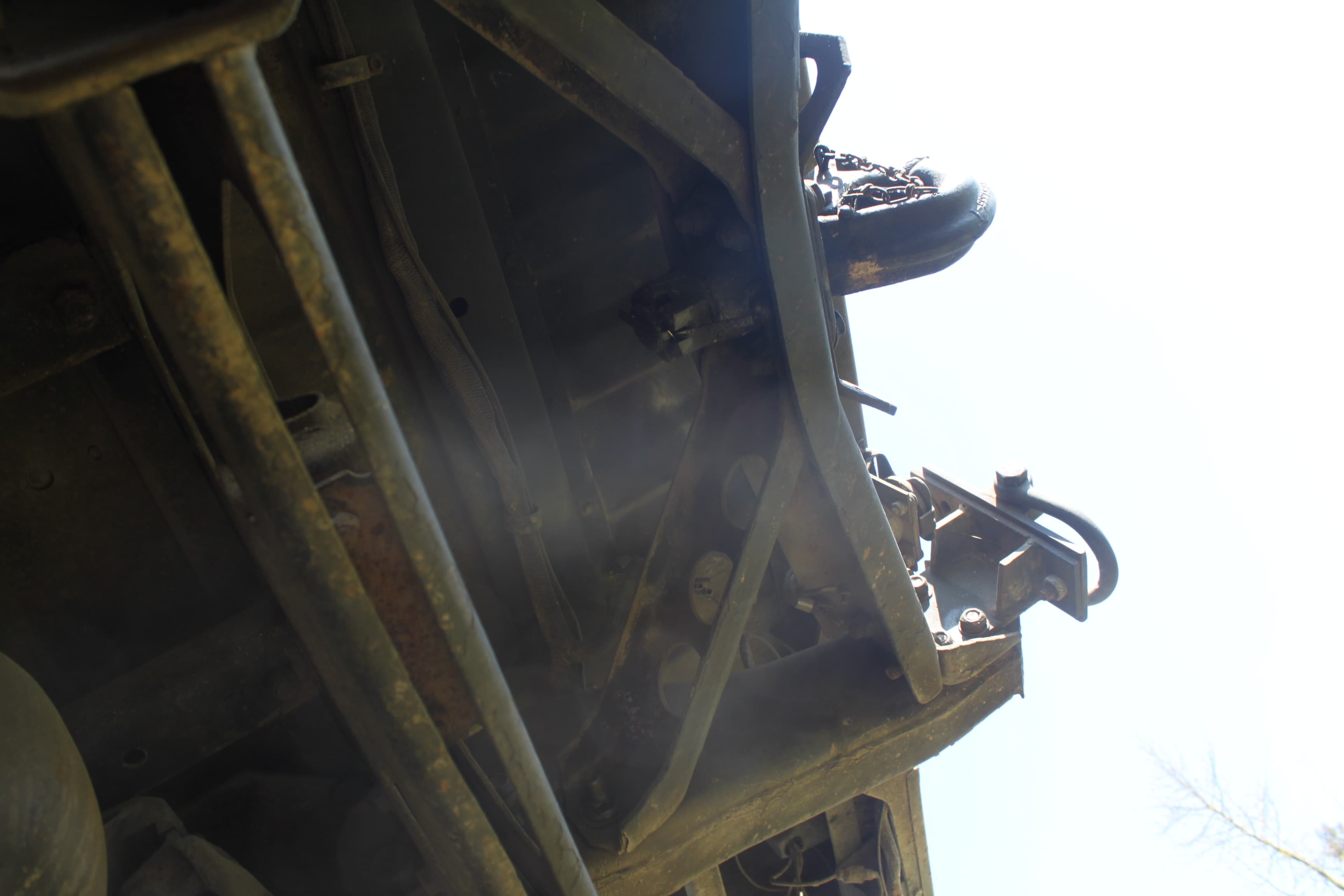

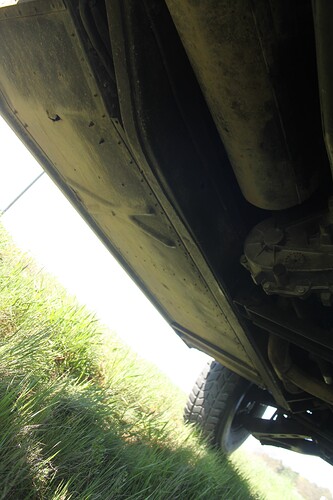

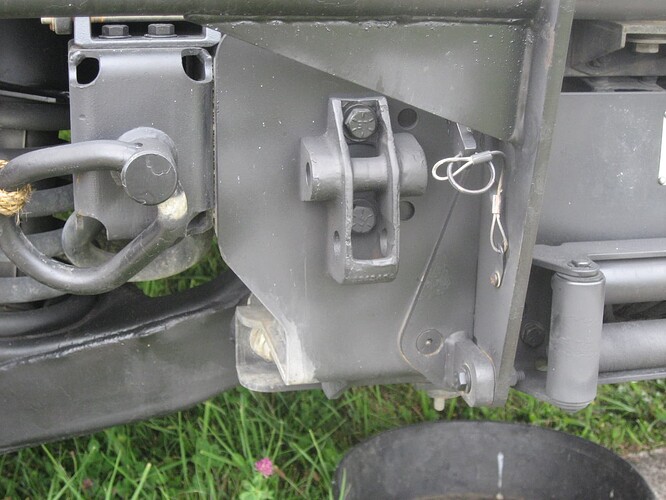

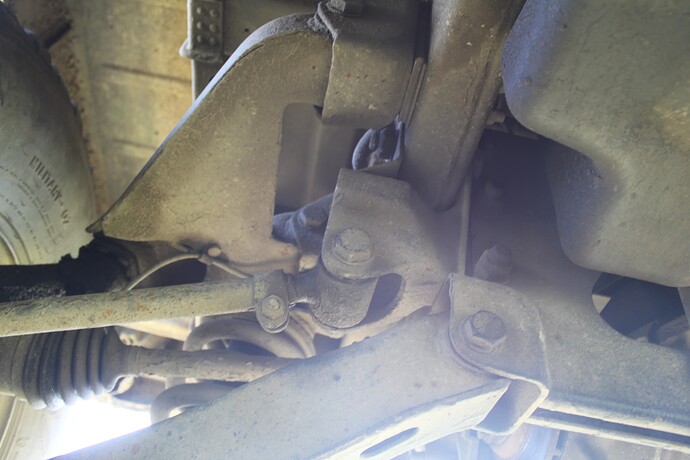

With ICM´s HMMWV kits on the horizon, I like to share some detail images of a collector´s vehicle.





































































12 Likes

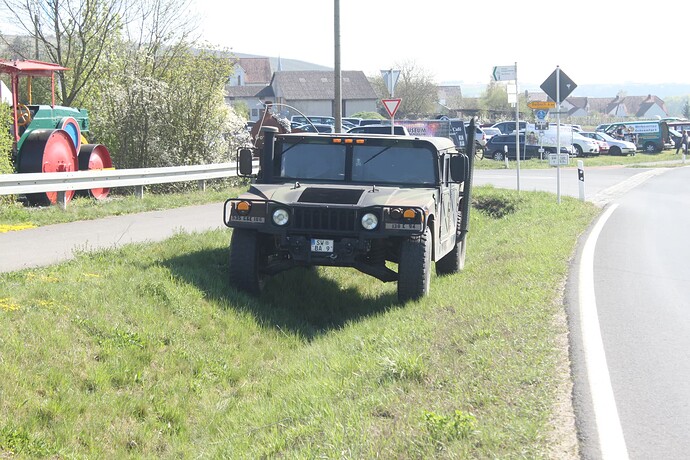

Thanks for your kindness. Whoever parked it that way was a model builder by nature :grin:

2 Likes

Exactly my thought. :grin:

1 Like

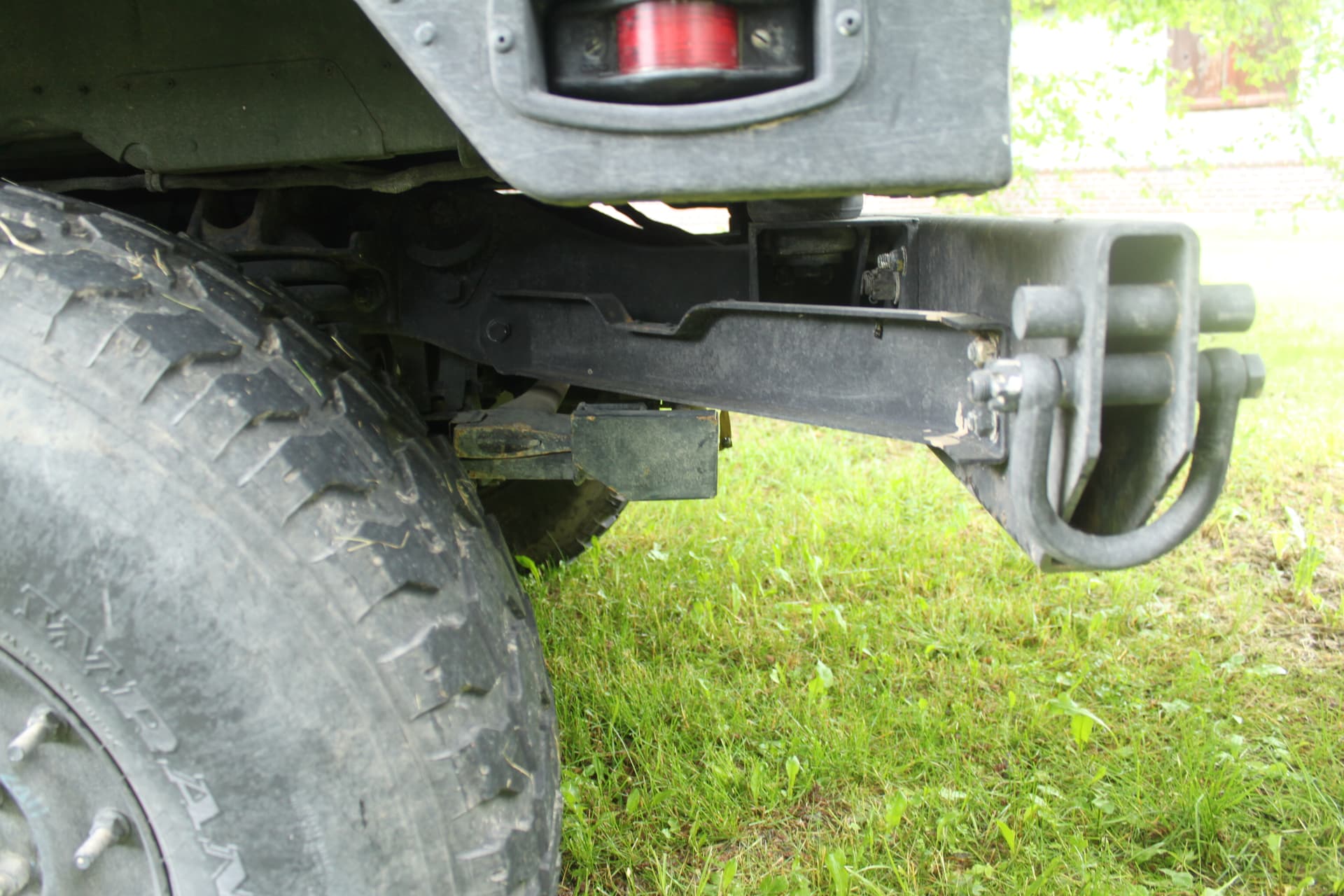

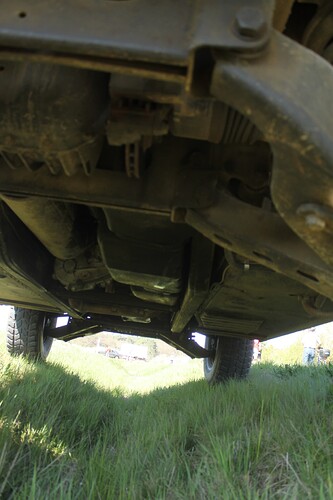

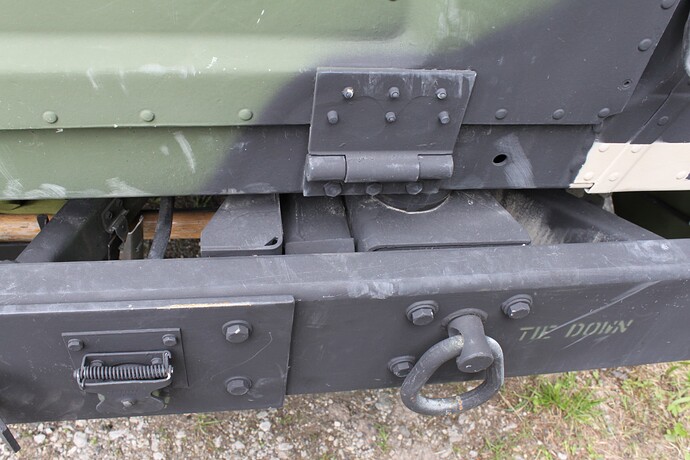

More HMMWV from external HD.

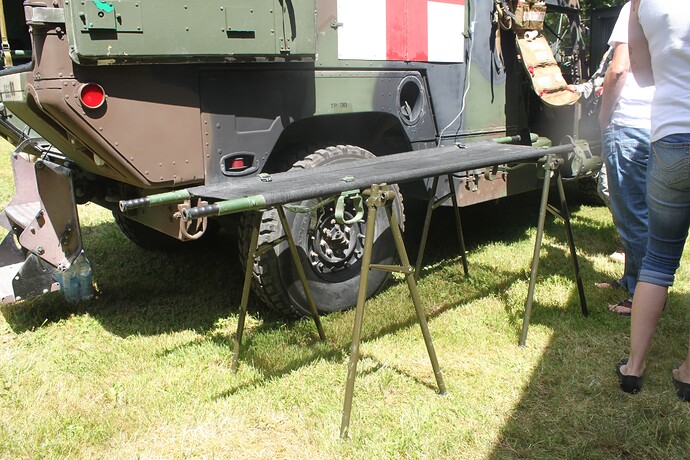

M997 Maxi Ambulance










































2 Likes

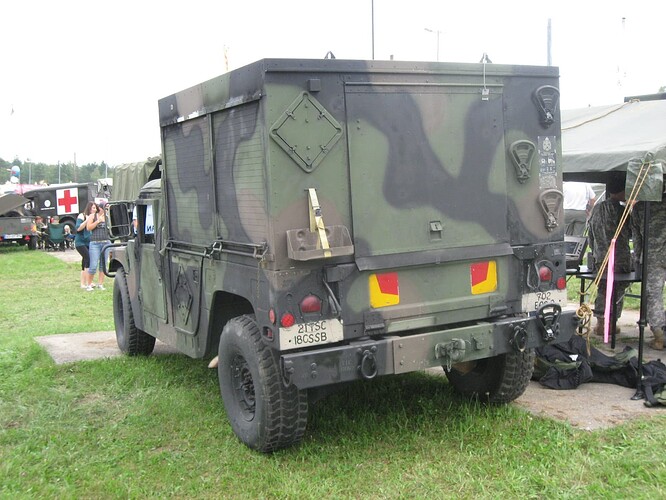

M1097A2 Troop Carrier from 12th CAB









2 Likes

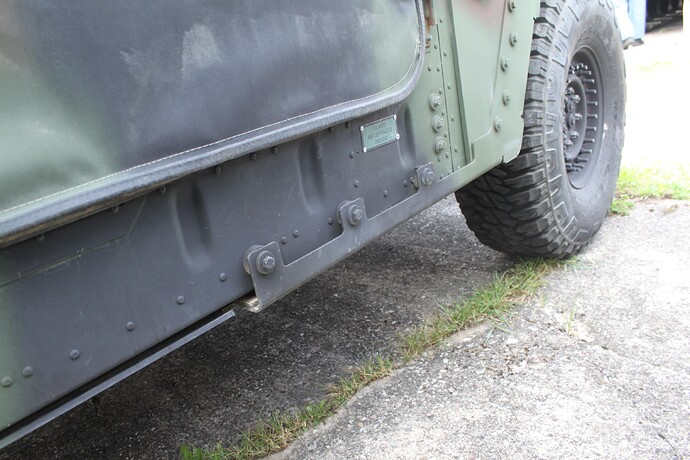

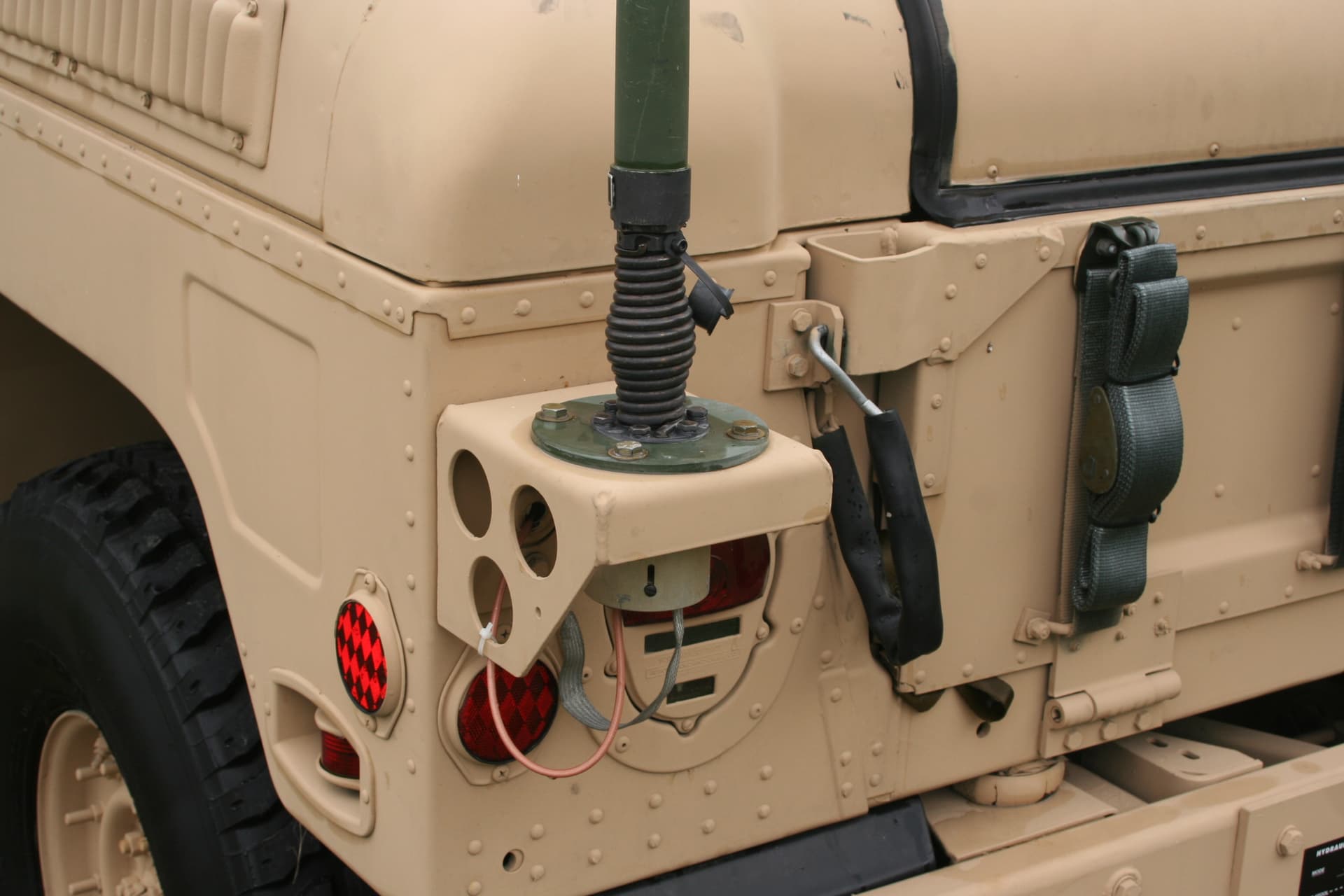

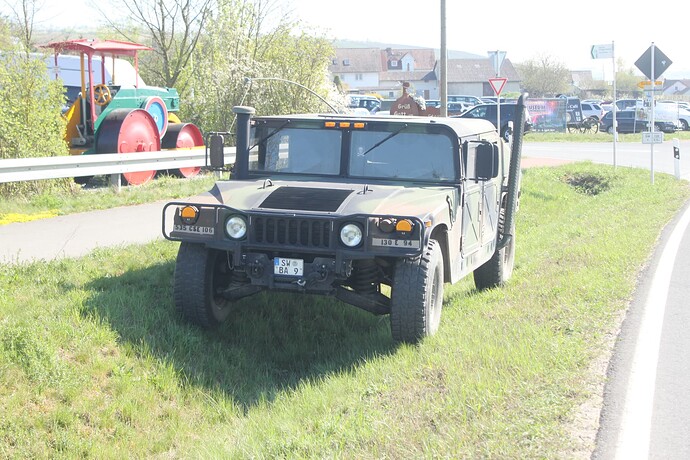

M998 A? Collectors vehicle













3 Likes

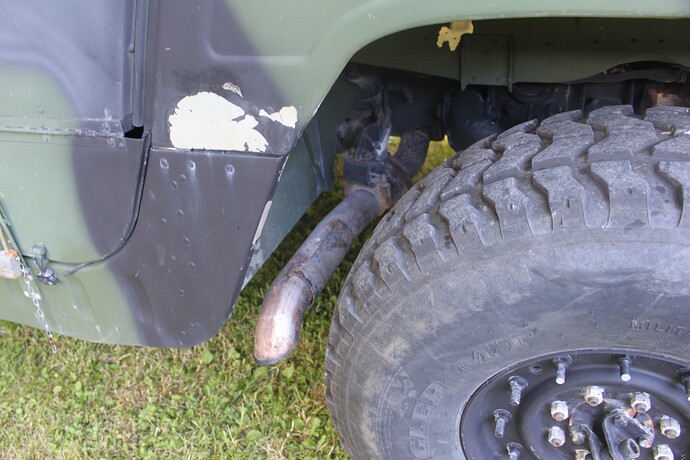

Some HMMWV tire info.

The original tires on them when they were introduced in the early '80s were Wrangler M/T bias-ply tires. The older bias-ply tires were 36" x 12.50" 16.5 tires on an 8-bolt rim.

The newer radials are 37" x 12.50" 16.5 R tires on 12-bolt rims. The radial tires came out in the early '90s.


There is also a newer tire that is used on M1151 and other heavy HMMWVs that came out in the mid-2000s. They are Goodyear Wrangler MT/R, also 37" x 12.50" 16.5 R. They have a new tread patter, reinforced sidewall design, and 24-bolt rim.


You can’t, or at least are not supposed to, put a new style tire on an old-style rim or vice versa.

The older bias-ply 36" tires were still available as of about '07 when I was at the NTC. We had a roving maintenance team that came to you like a pit crew and changed flat tires. There were a lot of tires punctured or cut by the rough terrain there. When you called them on the radio to come fix your tire, you had to tell them which size you had to make sure they had the right one on their truck.

3 Likes

Another M1097A2 from 12 CAB.











































3 Likes

Do we need more of this???

2 Likes

Yes. More references are always better.

1 Like

Understood. will check my HD for more.

1 Like

Yes! and much appreciated my friend

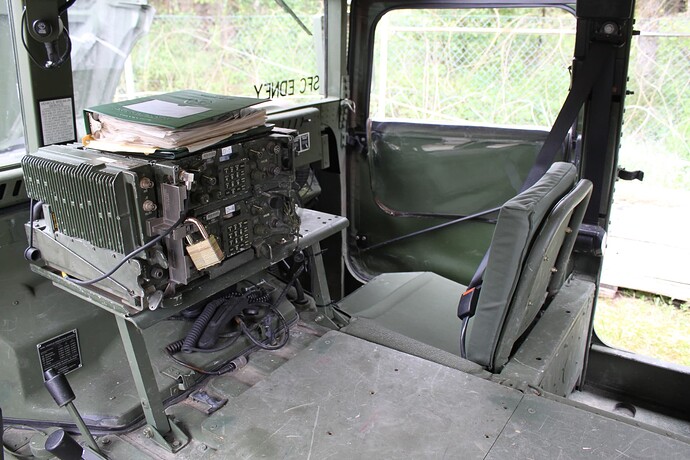

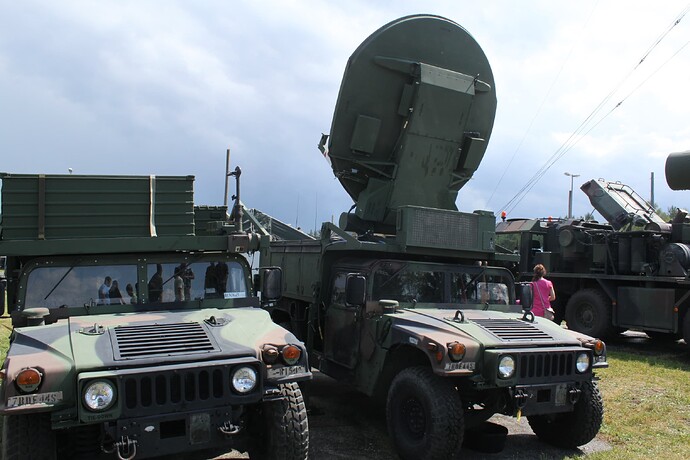

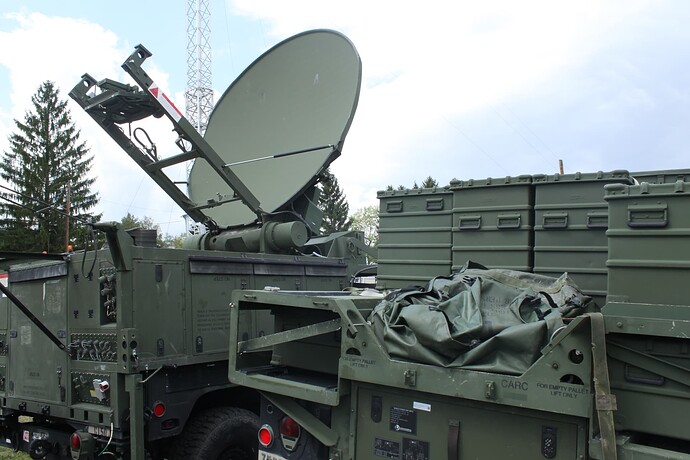

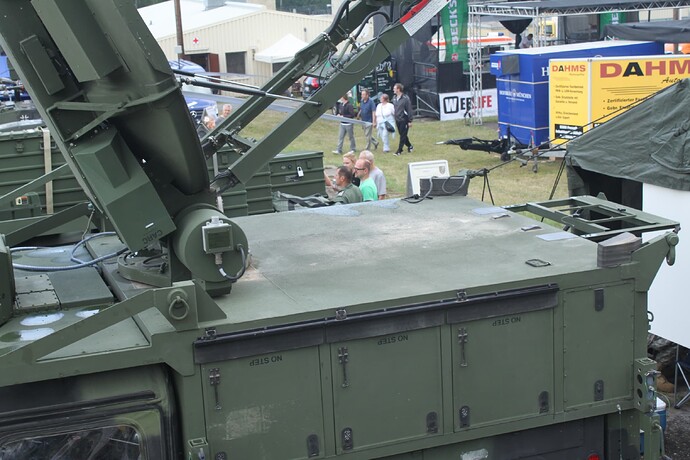

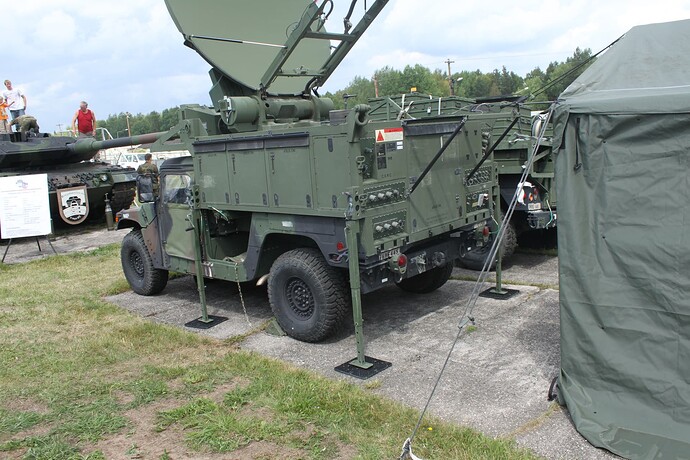

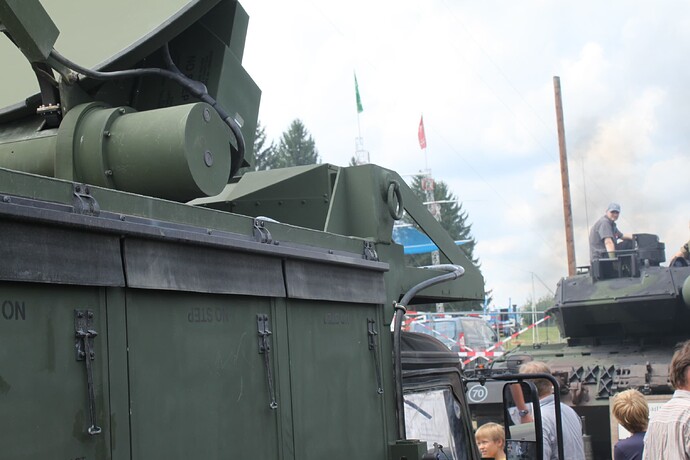

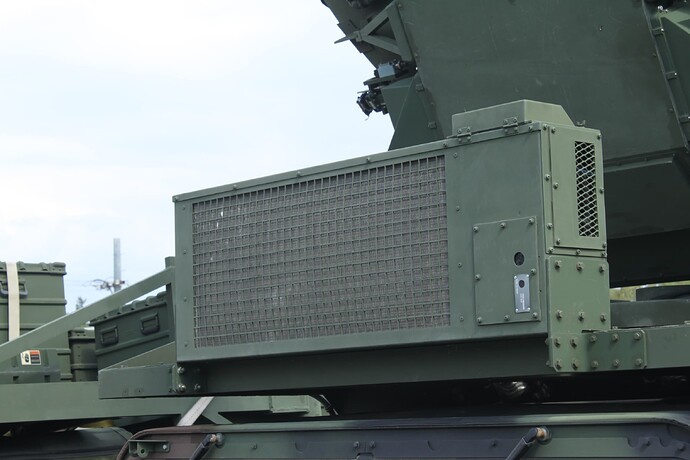

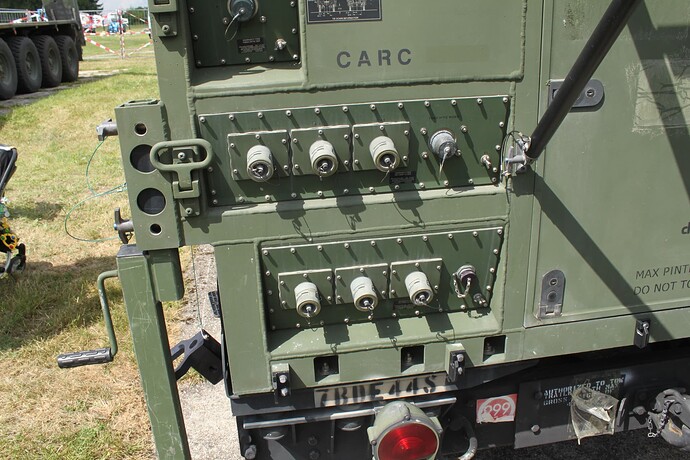

Some more unusual. SATCOM HMMWV:
































































































































2 Likes

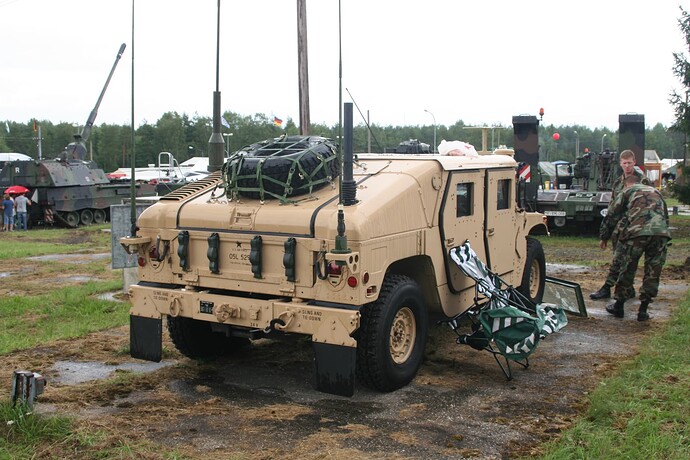

USAF M1145 FAC truck
























2 Likes

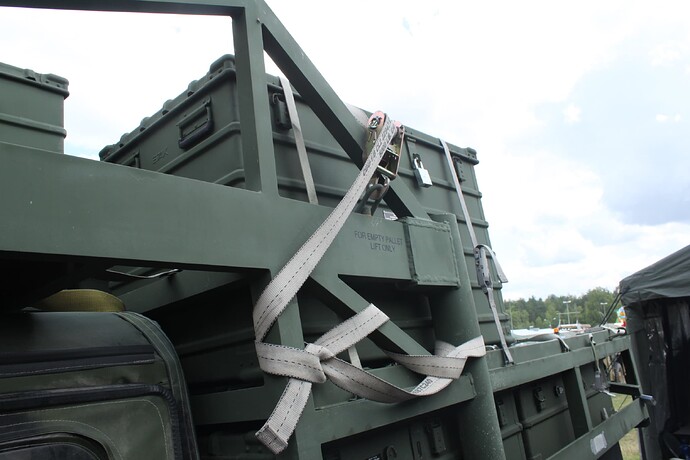

EOD HMMWV.















It´s like Christmas?

3 Likes

Very nice. I wish someone would make the Contact Team shelter on the EOD HMMWV above. It is used by many different units, not just EOD.

The contact truck and this two about i would love to have a add on kit for that.

I contacted ICM and offered assistance. Lets see how it turns out.

1 Like

More for today.

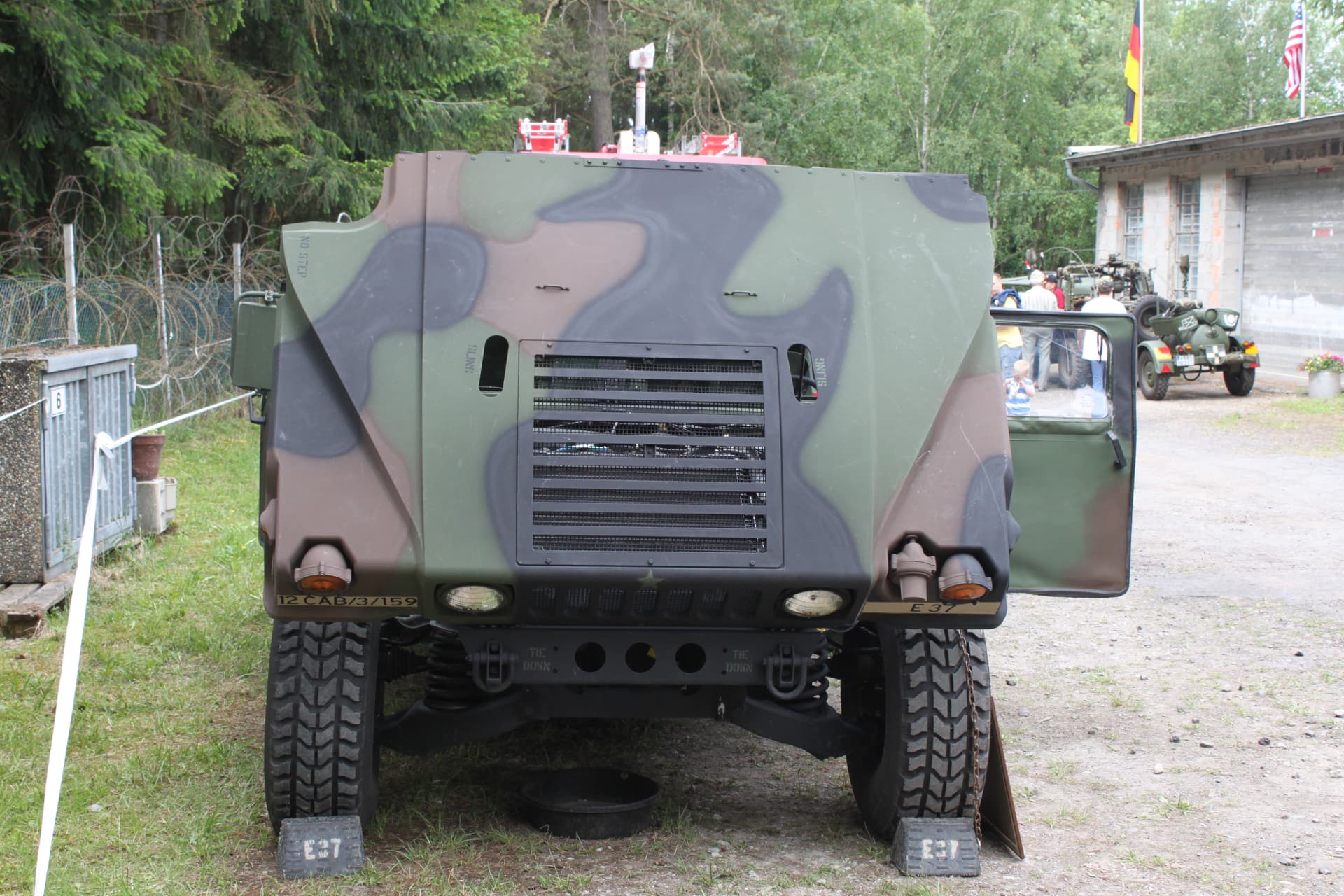

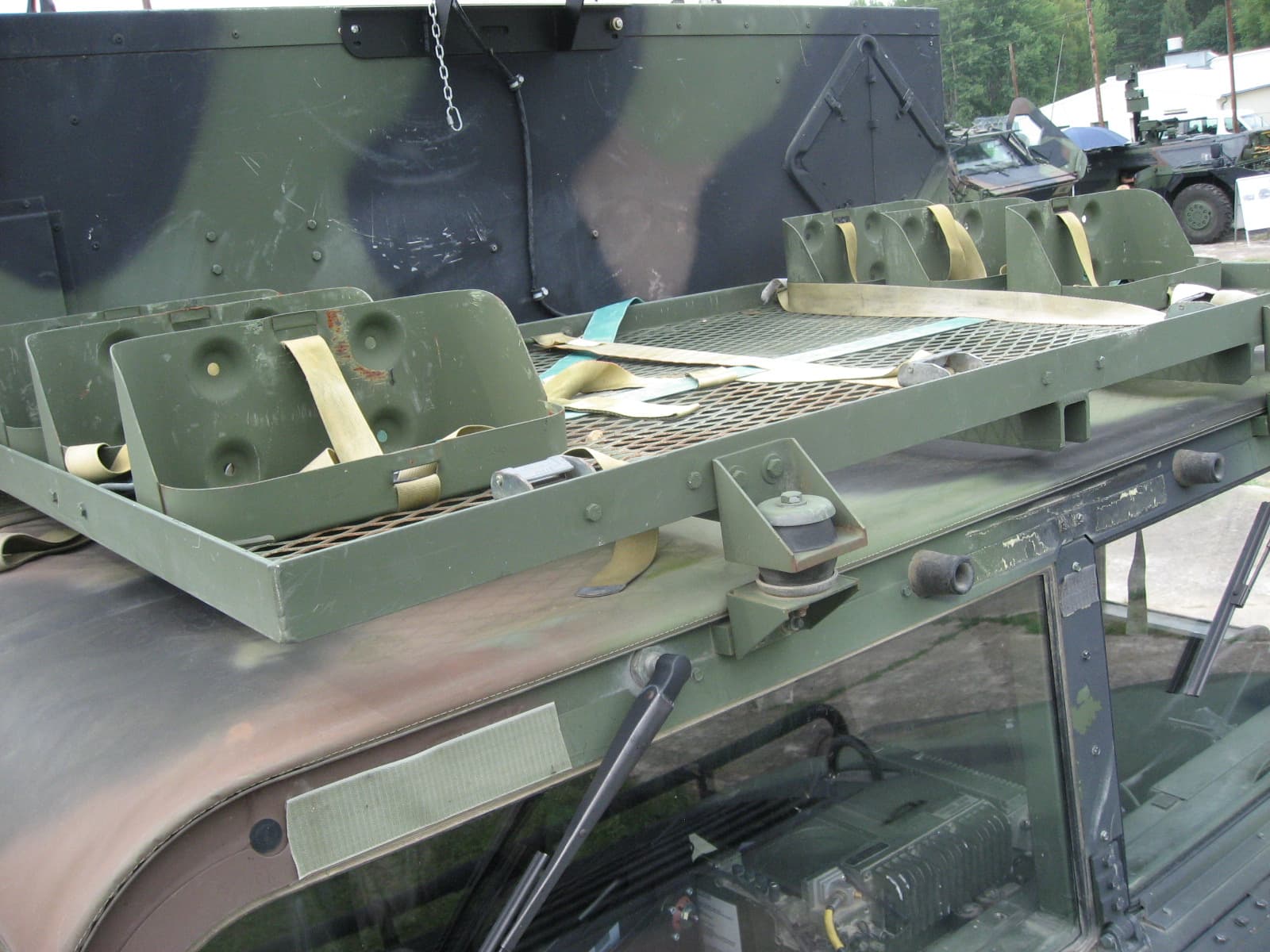

M1097 with Helmet Hardtop.




3 Likes

oooooooooooooooooooooo who will take my money for this.
