M-1129 MC-B Stryker

Armor/AFV Modern
1

Hi all, I have a question, somebody have the dimensions of the 120mm and 81mm mortar round cans to complete my stryker. I will do that in resin or scratch.
Thanks

2

Hi Franck,
not exactly US mortar rounds but a start.
https://kintex.bg/product-4-19
You can take a 4 mm rod and cut it to specific length.
HTH

Edit. MR Models has the tubes in their M1064 kit. These are 22 mm in lenght.

3

I assume you are talking about the fibertubes that contain the rounds?

4

For completeness sake, 81mm tube and box.

IMG_3932
IMG_39321600×1200 227 KB

IMG_3933
IMG_39331600×1200 374 KB

IMG_3934
IMG_39341600×1200 200 KB

Tube measures 98mm in dia and 535mm in lenght.

2 Likes
5

“The 81mm PA162 and 120mm PA167 Fiber Containers are spirally wound fiber tubes with telescoping covers and double crimpled metal ends. The windings of these fiber tubes consist of layers of kraft paper and polyolefin material. The PA167 outer dimensions are 5.43 inch diameter x 30.46 inch length, and the PA162 outer dimensions are 4.0 inch diameter x 27.06 inch length”

from :
https://govtribe.com/opportunity/federal-contract-opportunity/mortar-pa162-pa167-pa175-and-pa189-fiber-containers-w15qkn22b0001

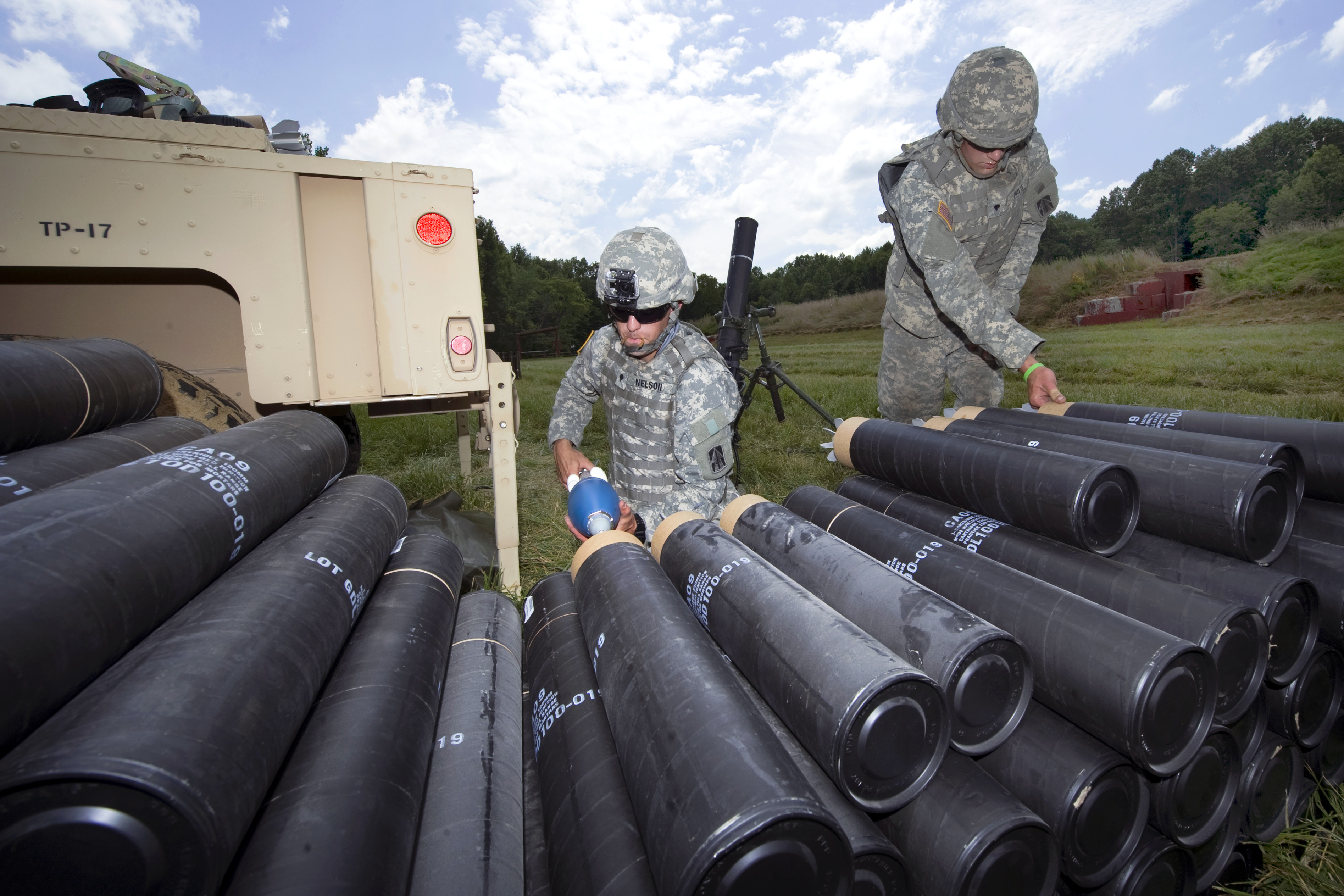

120 mm containers :

H.P.

4 Likes
6

thanks all!

7

yes i’m late

8

Franck you´re welcome, I hope your build will be good.

9

yes, i’m working on US modern vehicles
