I have dimensions taken from a similar looking gun shield I gathered at a militaria show a few years ago if you want to have a go at scratchbuilding it.
2 Likes
Thanks! I will take a look at them but I doubt I would be able to scratch build it. I will send you a PM.
1 Like
The RFM M1A1/A2 TUSK kits have some shields for the commander’s cupola on the parts tree “J” that I am not using. These look like good donors for the loader’s gun shields I was asking about. I can modify them and I will try to scratch build the rest of the shields.
3 Likes
The RFM parts look too square. The actual shields are more rectangular. The Tamiya M1A2 TUSK kit also has those same commander’s cupola shields. I already primed mine as I was going to make my Tamiya kit as a TUSK I but changed it to a different build. It is still a TUSK I but without the commander’s shields so I will use the Tamiya shields instead. They look closer to the ones I want to do.
3 Likes

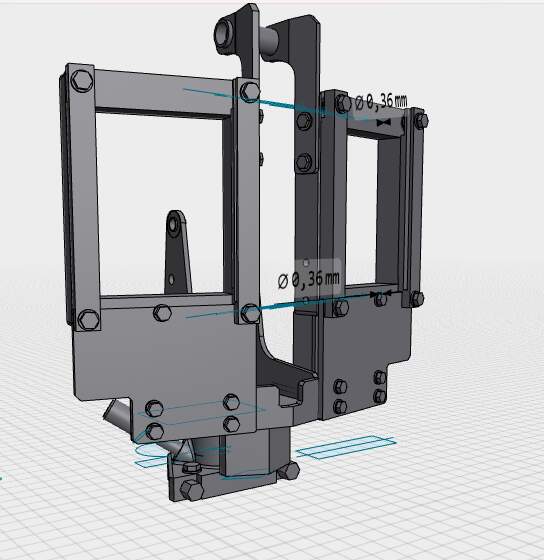

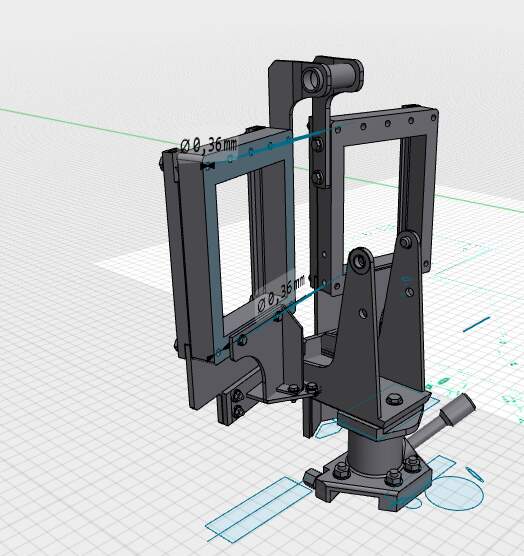

With your help, I designed this gun shield for the M1 Abrams. It fits the RFM Abrams without problems.
Best regards
Lukas
4 Likes
Looks terrific. Can’t wait to see you fit it to your kit.
2 Likes
This tank is a middle production M1A2 SEP with the secondary batteries. These started production sometime around 2005.
Going off of Barrel Band markings, this would be 3ACR during their 2007? or 2008 into 2009 deployment to Iraq. Possibly their 2011 deployment, but by then they had TUSK II on their SEPs.
2 Likes
Thanks for the information!
1 Like
Welcome to the forum.

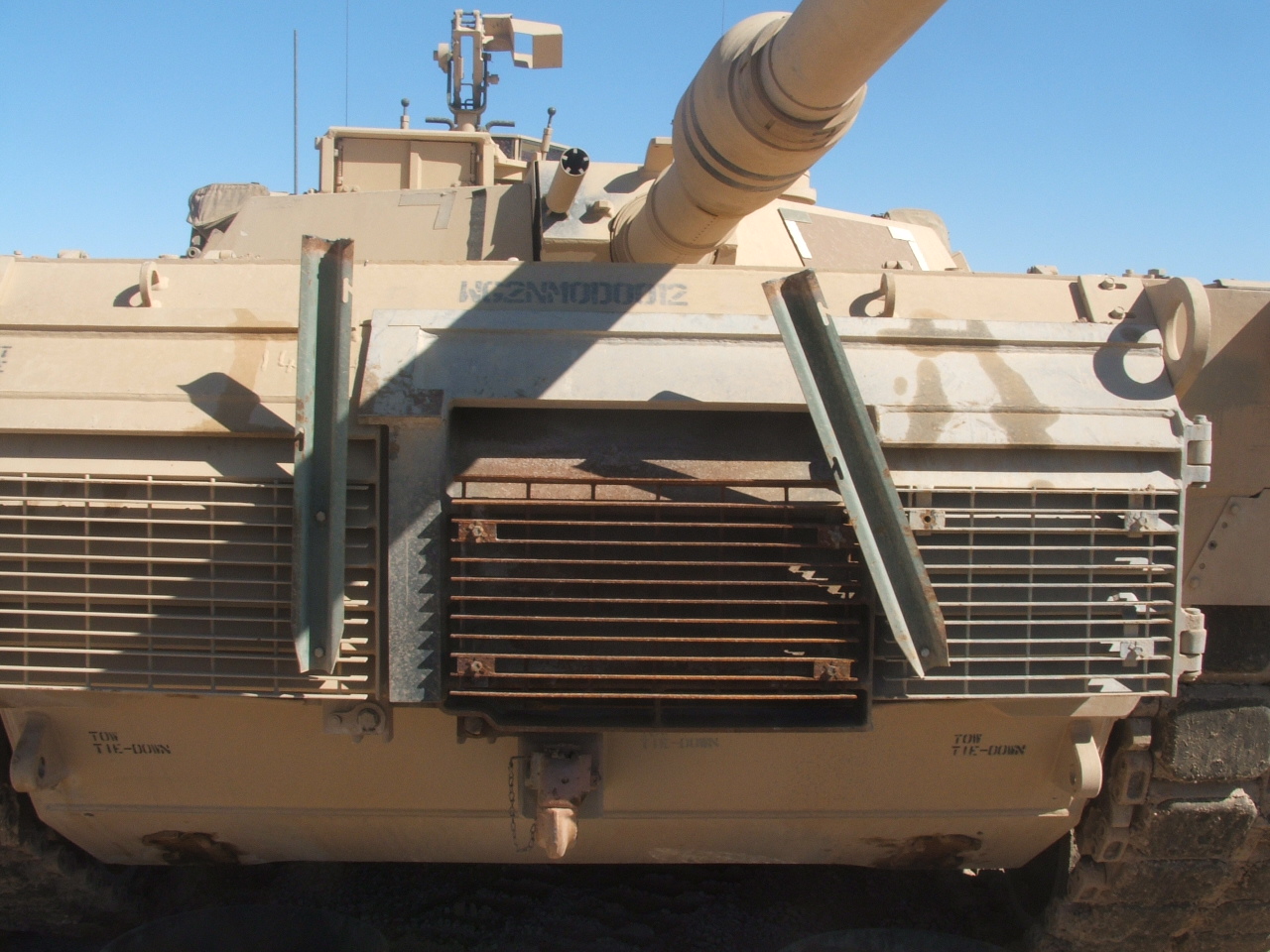

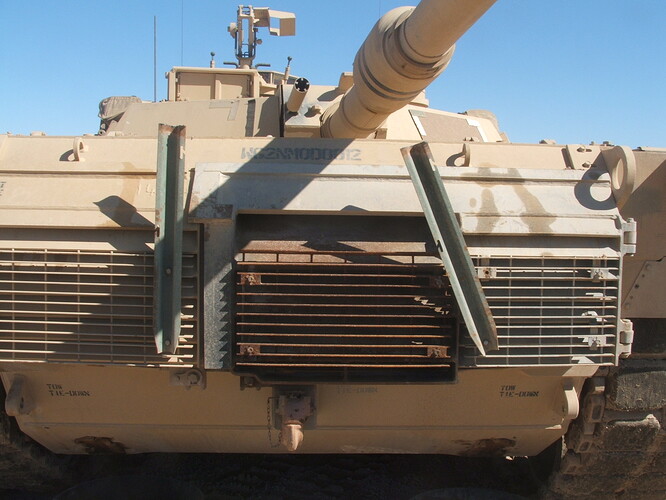

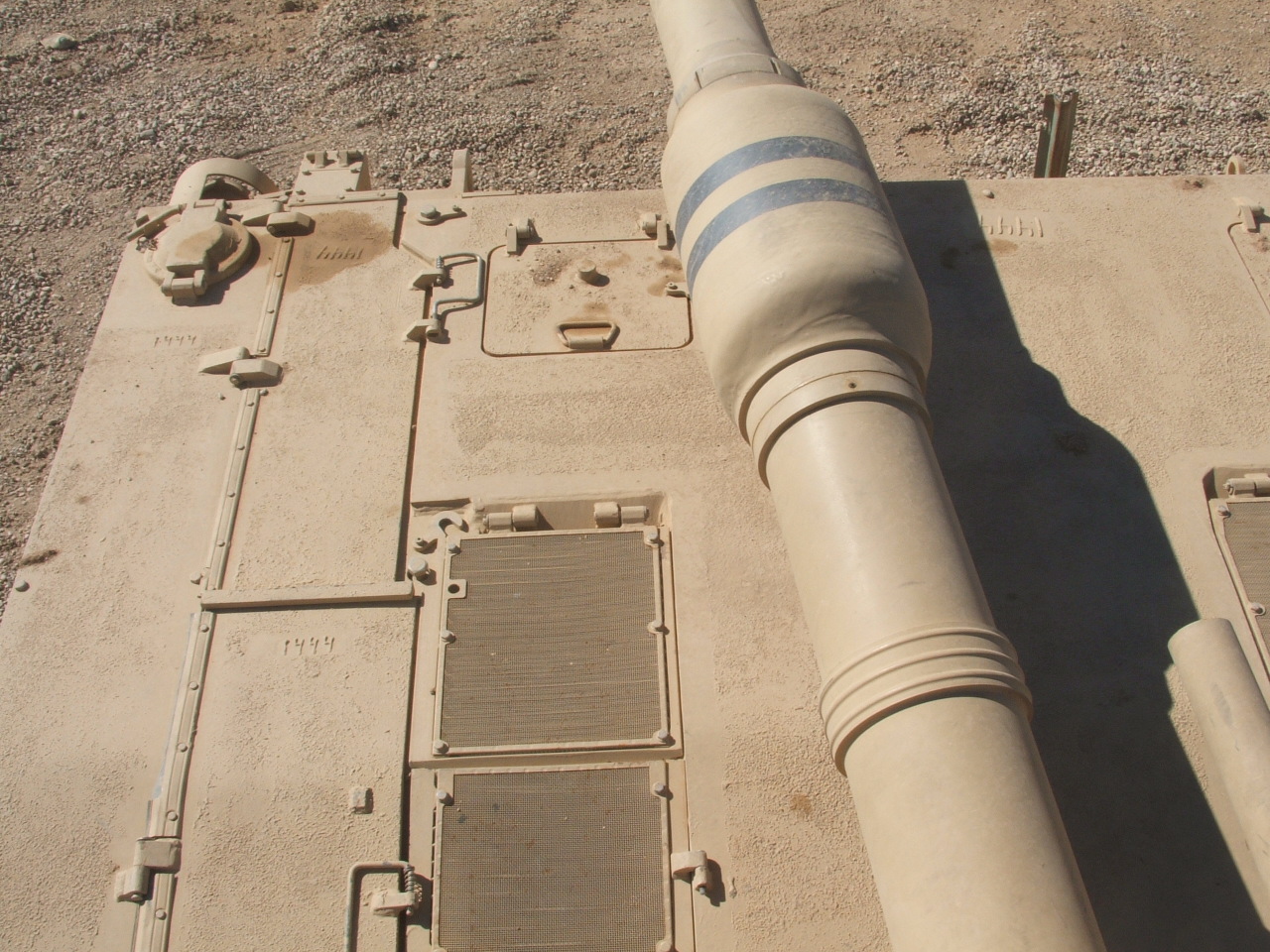

The following photos are also 3 ACR, 2007-2008. Two with barrel bands, one without. All tactical markings painted over except for the roof ID.
My terp, Big Al.

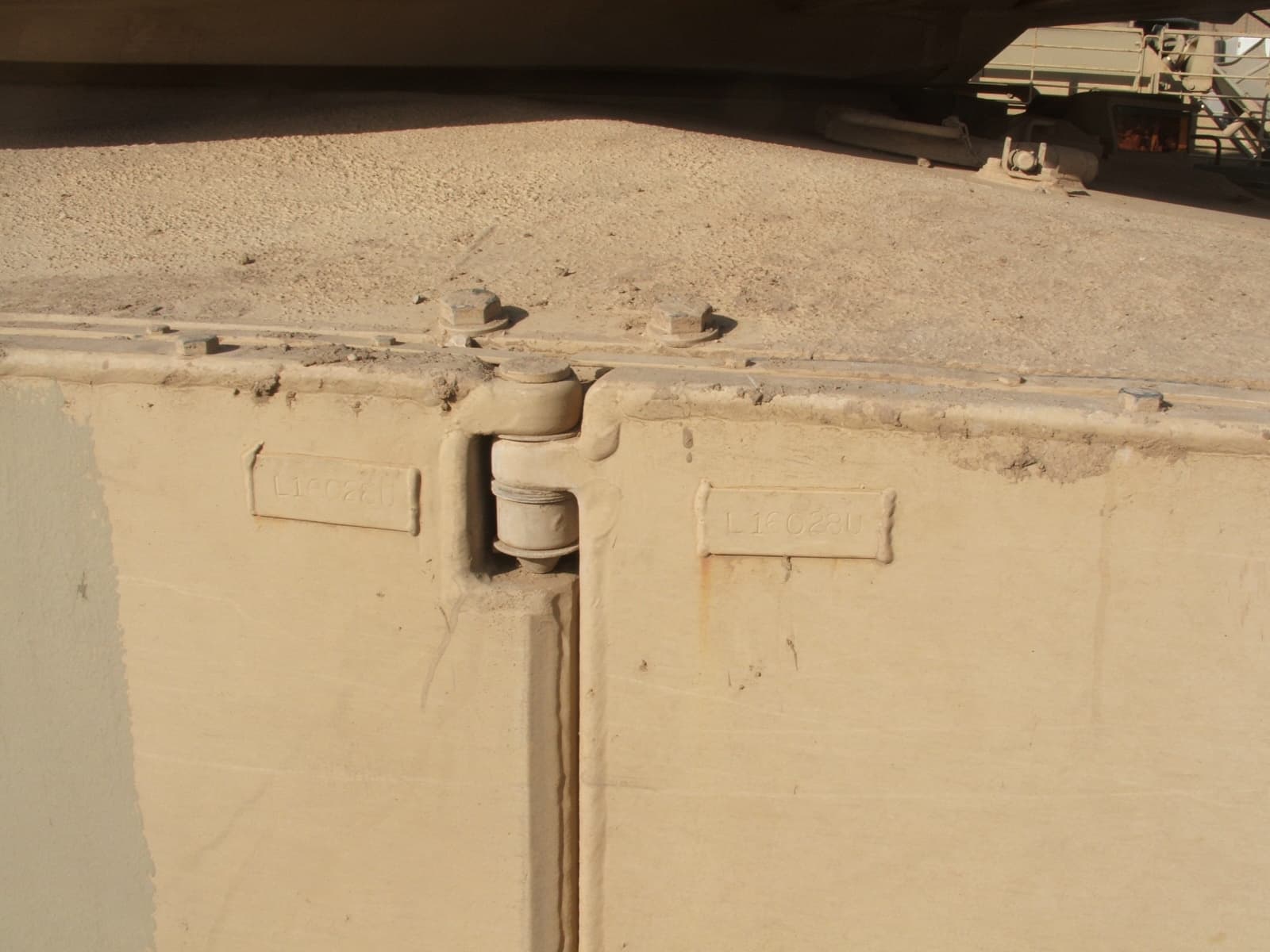

Side markings painted over:
7 Likes

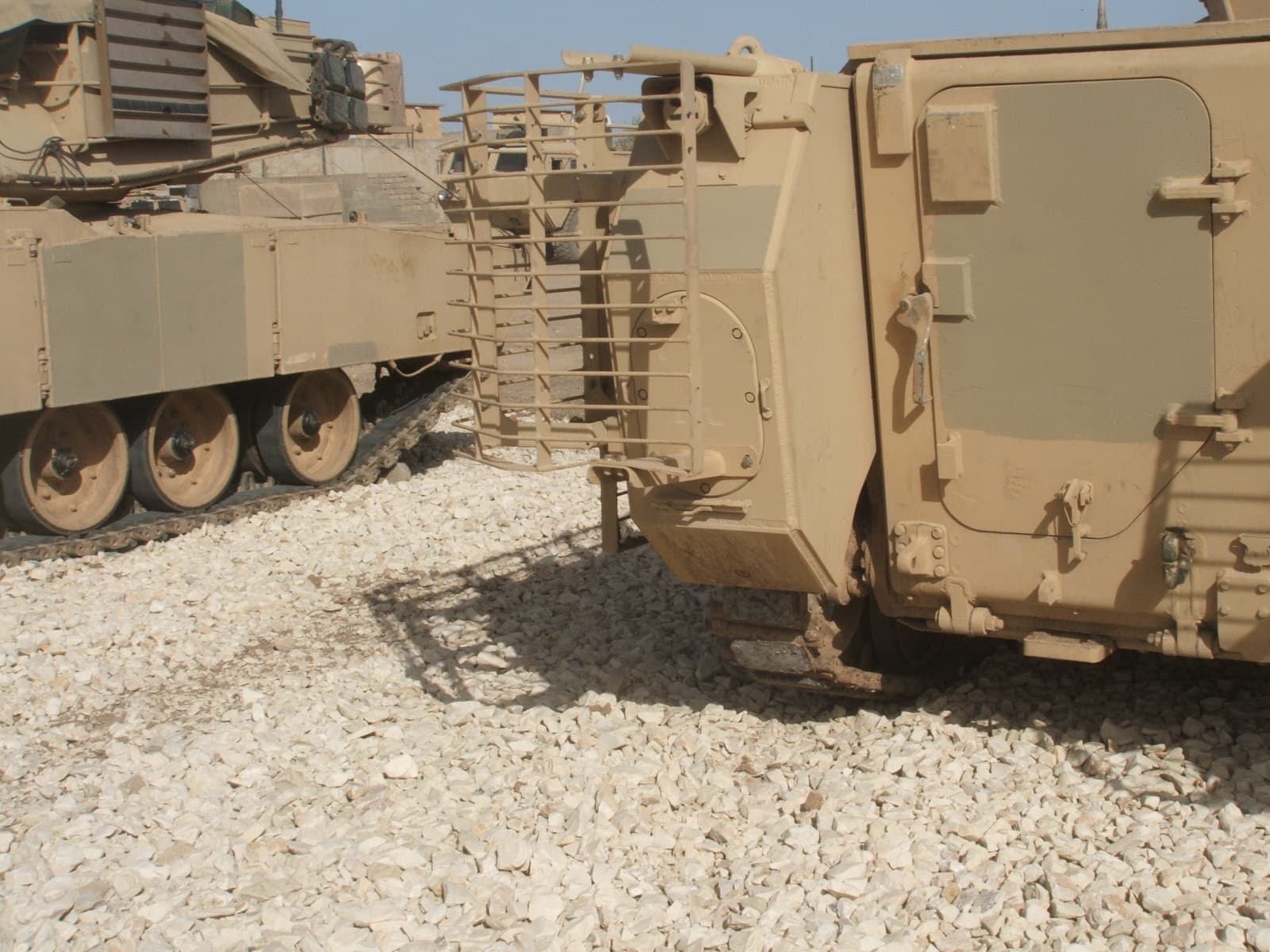

Any more pics of that M113 w/bar armour? That’s very cool!
1 Like
It’s an M1064. I did a whole walk around of it, inside and out, concentrating on how the armor is attached. I’ll send it to you tomorrow,
2 Likes
Great photos, thanks for sharing.
Would the one in my original post have the CIP panels on the front of the turret? There are no other CIP panels on the sides or rear of the turret so would it still have the ones on the front?

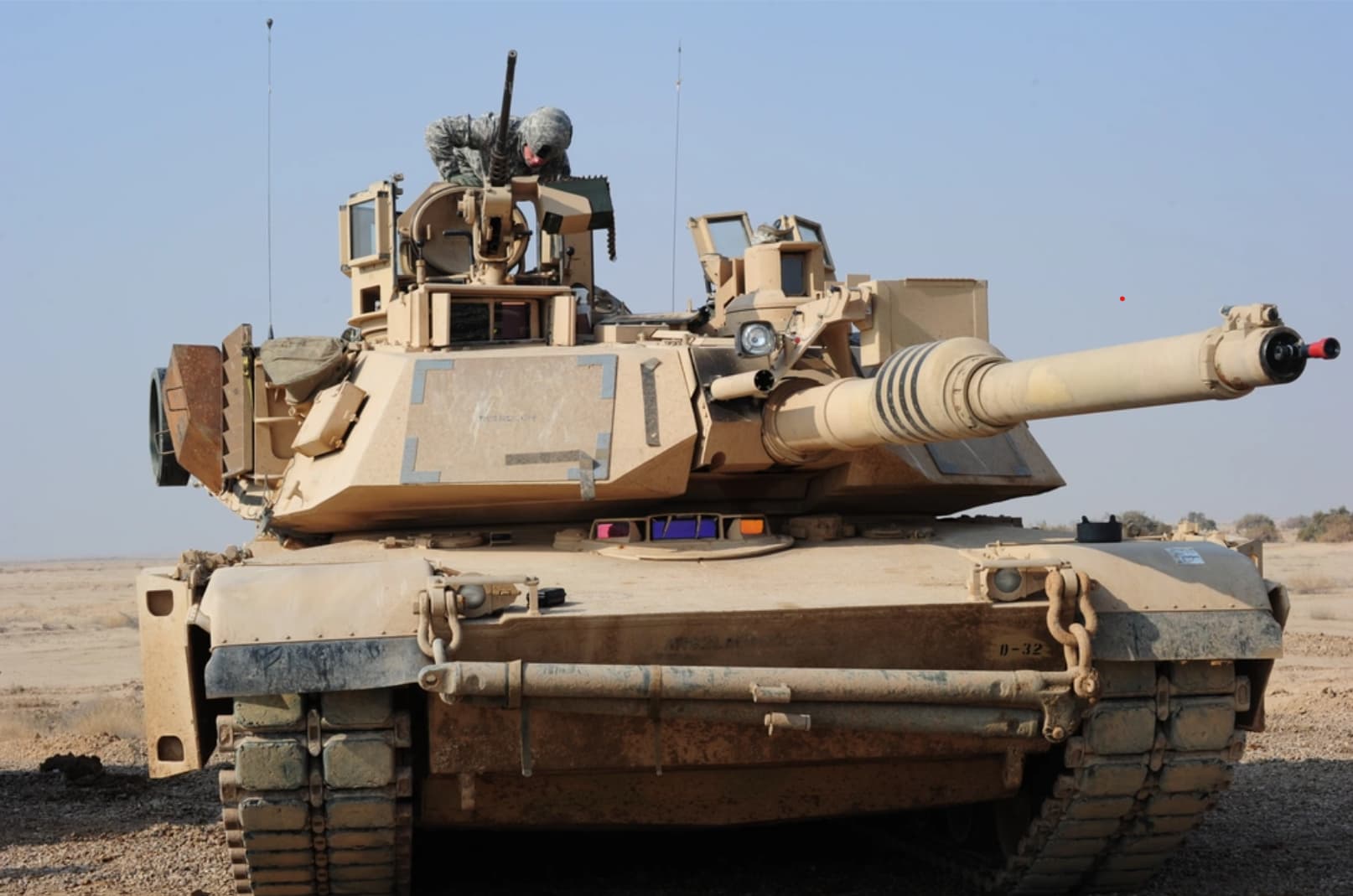

Kreyton opines it might be 3 ACR in 2011. He seems to know what he’s talking about. This is 3 ACR from 10 January, 2011:
But note panel on turret side.
2 Likes
One more question on the M1A2 from my original post. Are the EPLRS and high power broadband antennas in black or green?
1 Like

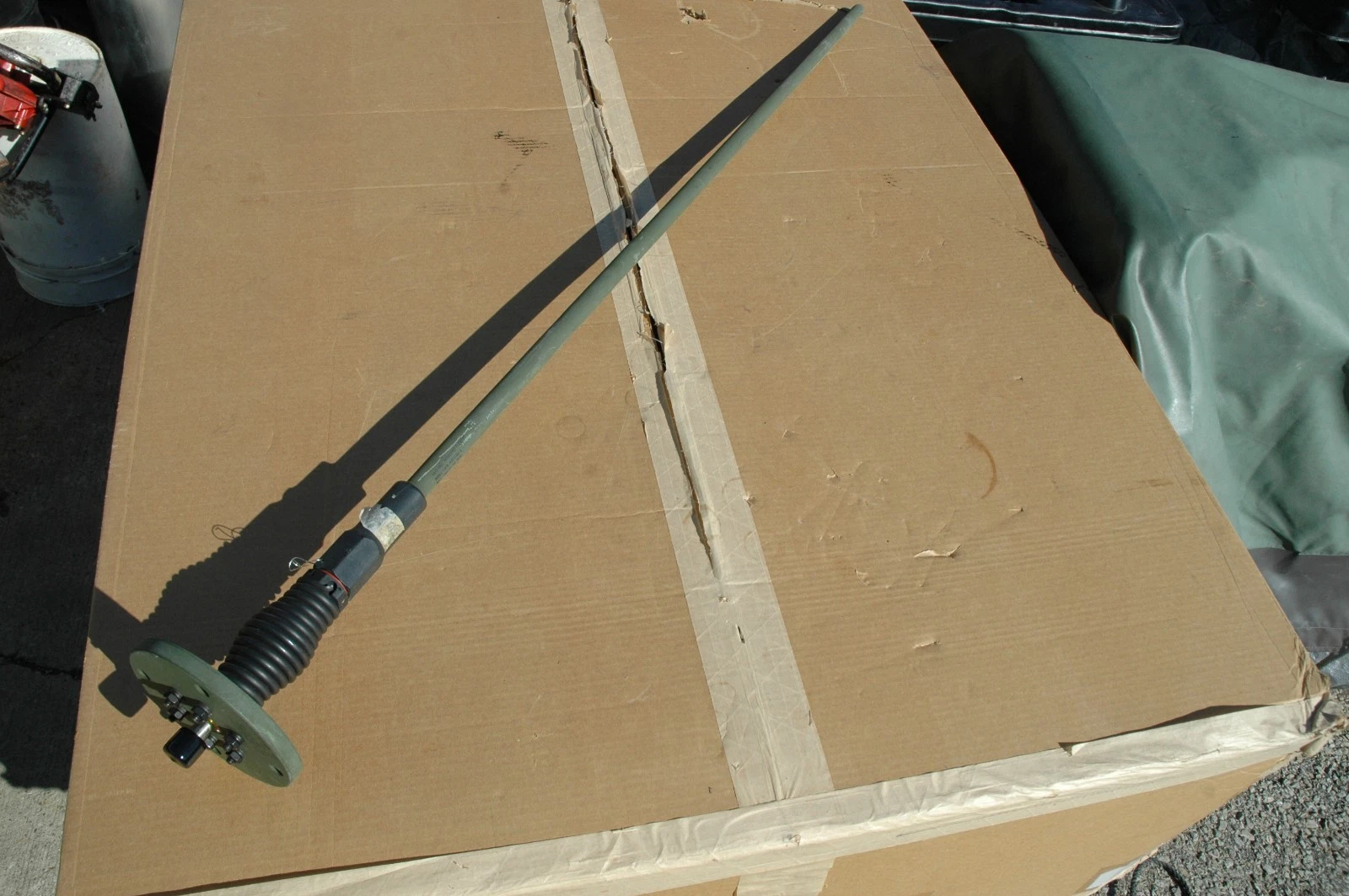

H.P.
3 Likes
Thanks again Frenchy, greatly appreciated! I will also do the high power broadband antennas in green.
2 Likes
Got the Tamiya M1A2 TUSK I painted. I put the antennas on and I also added the iridescent sticker paper on the CITV and gunner’s primary sight. I forgot to paint the outside of the CITV clear lens the CARC tan so I have to go back and do that some other time. I also lost the grab handle on the front, left side of the upper hull so need to scratch build one. Still a lot more to do as you can see.

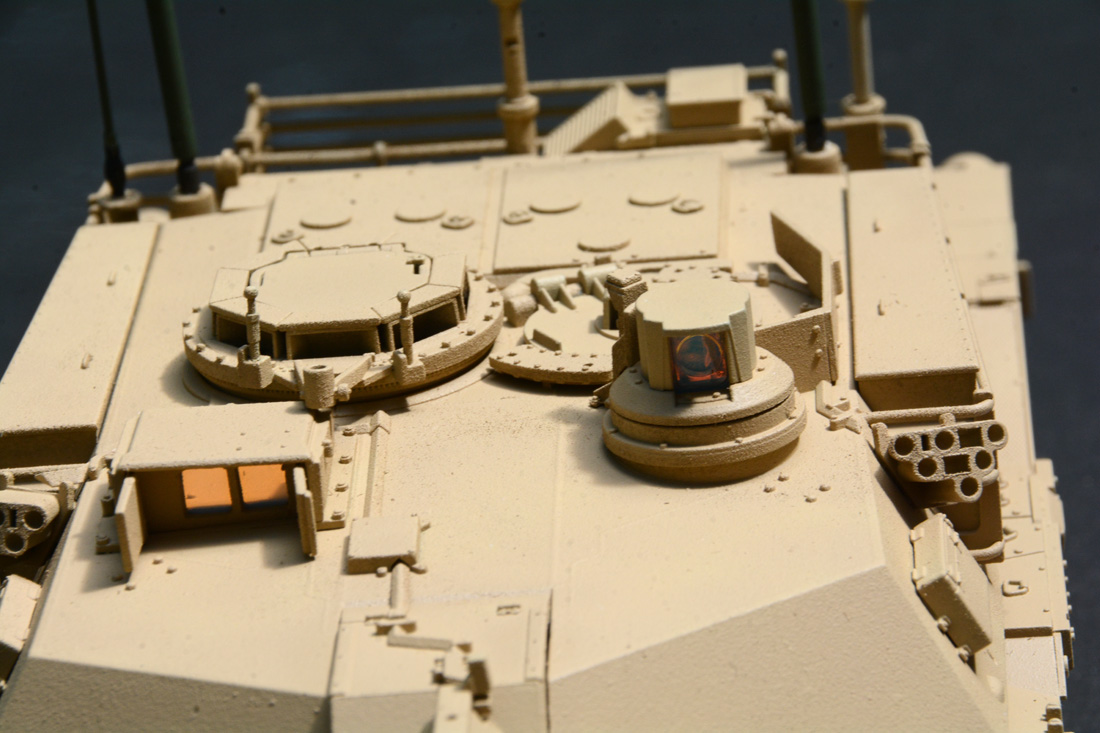

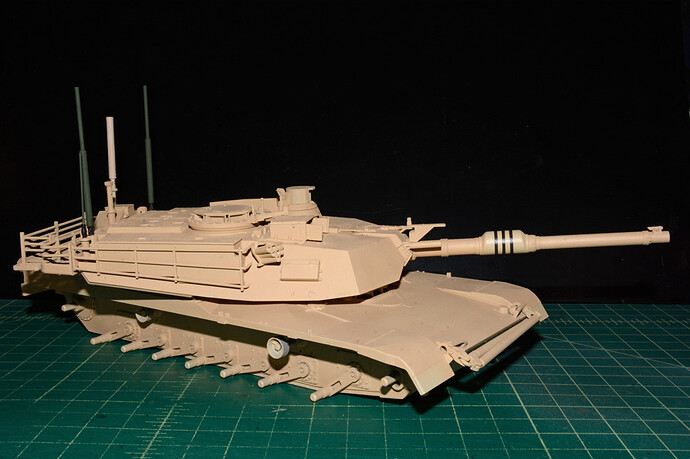

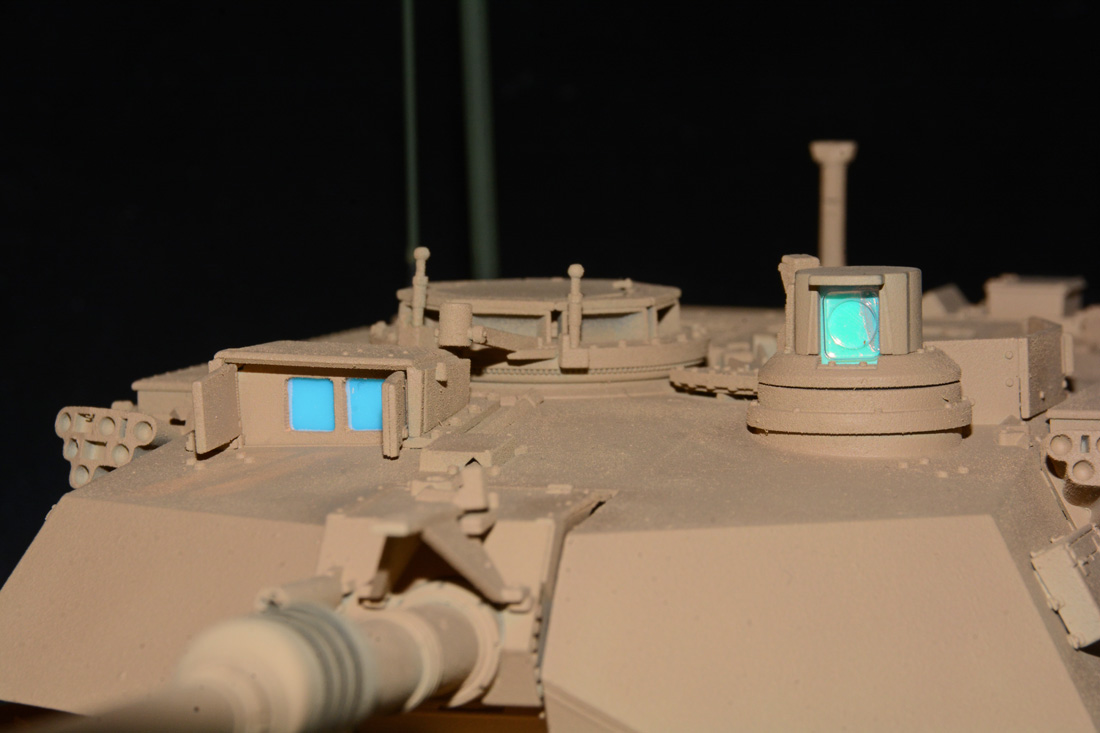

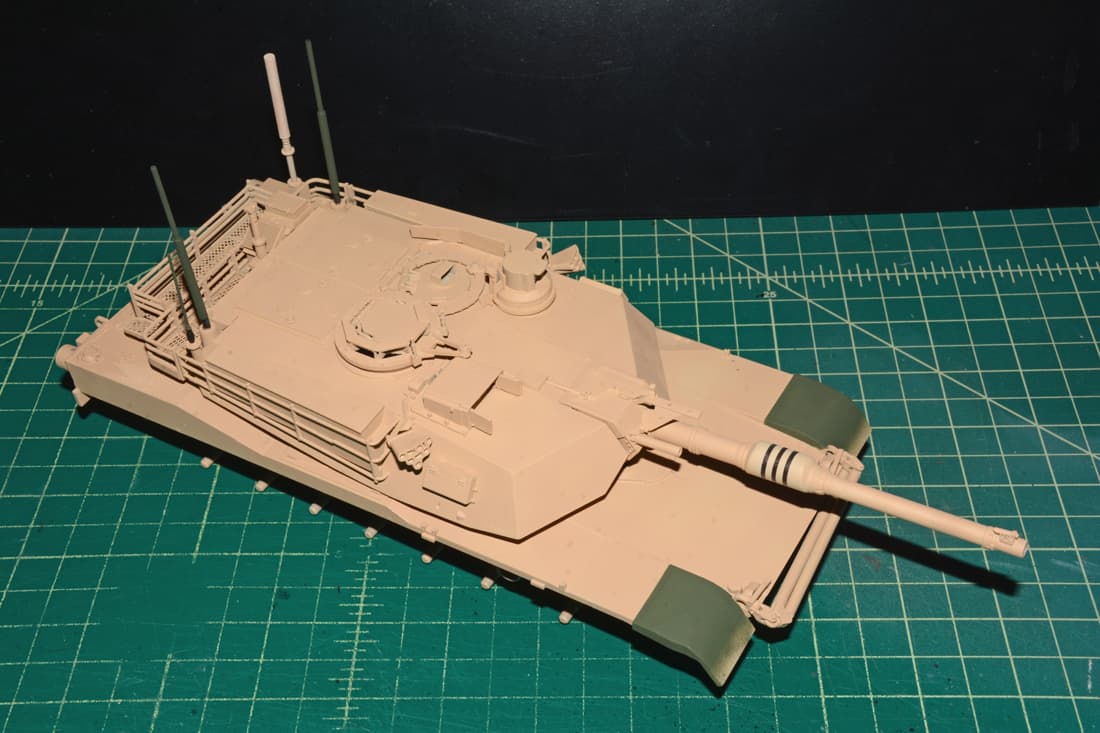

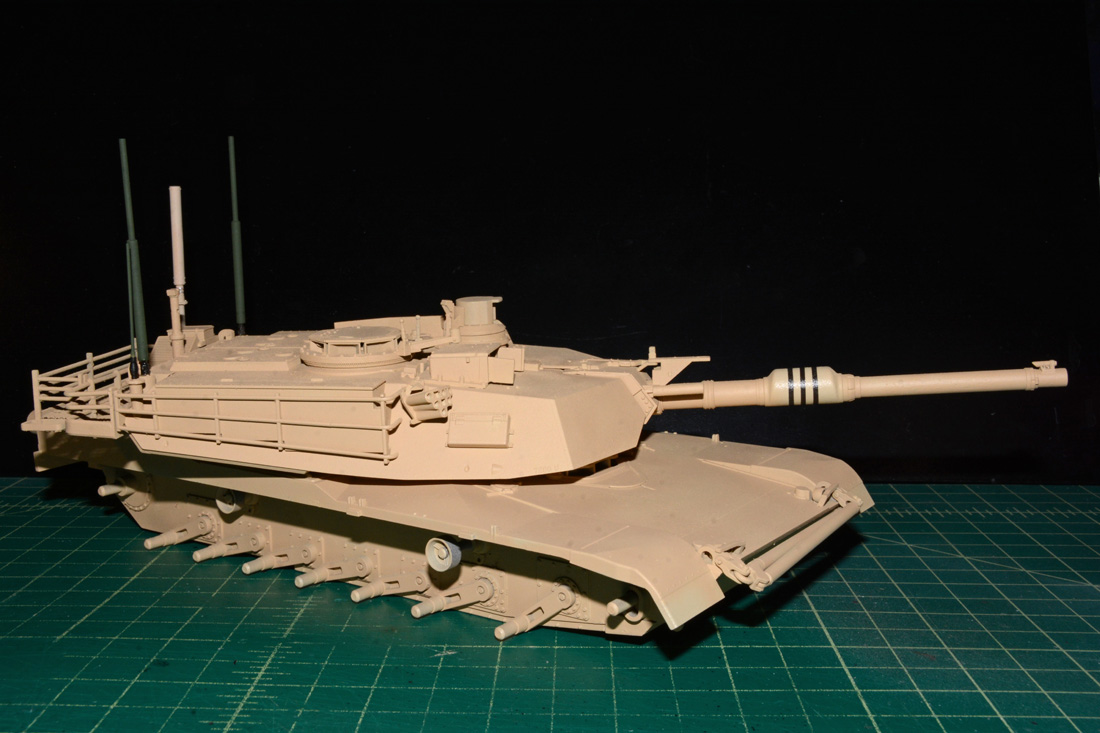

I used AK Real Colors CARC Tan 686A FS33446. These photos were taken inside with a lamp and camera flash. Even with the lamp and camera flash, the AK CARC tan looks a little darker.

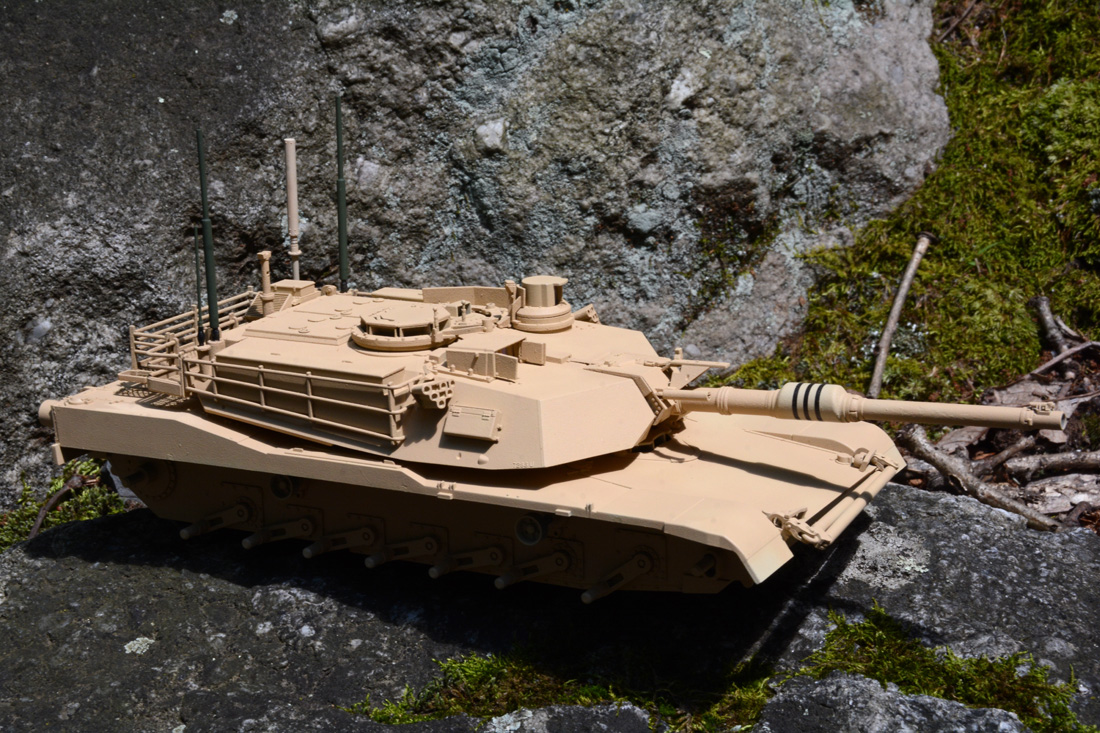

These were taken outside in the sun with no flash. In the natural sunlight, the AK CARC tan looks lighter. You can also see how the iridescent paper looks in different lighting conditions.

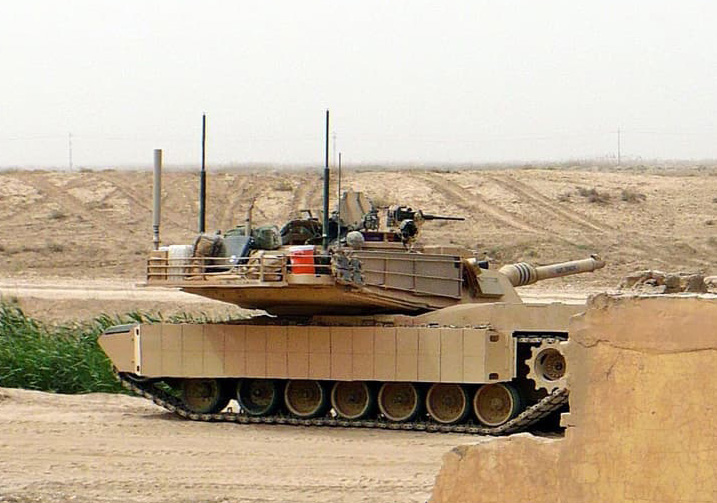

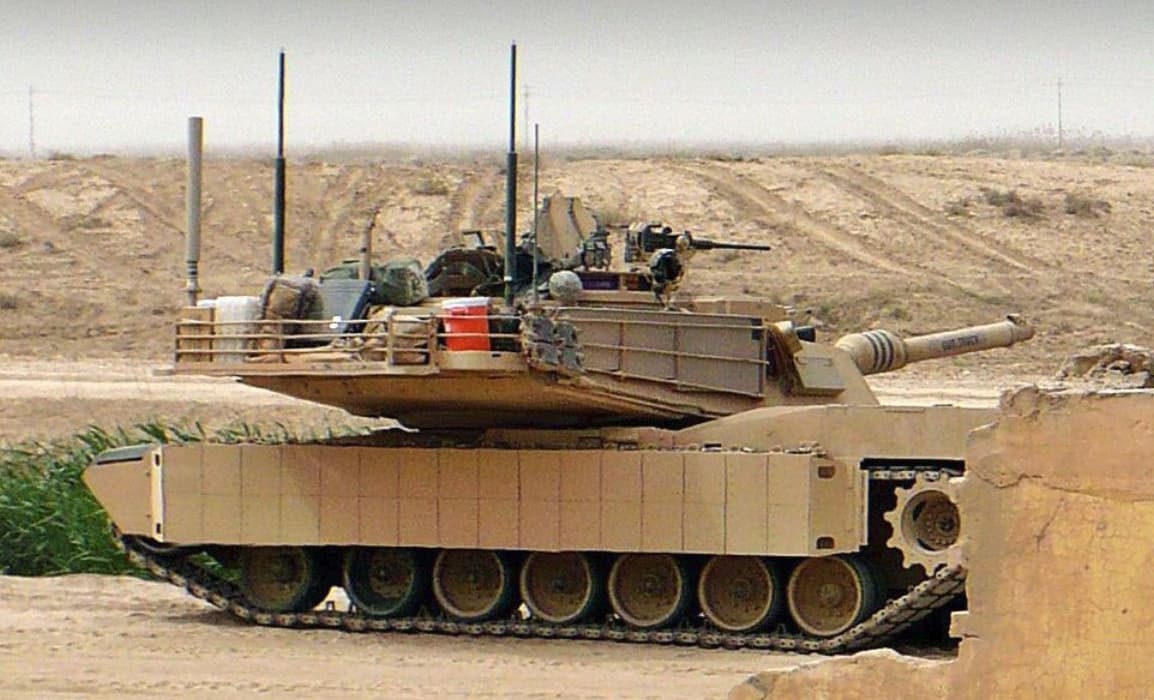

This is the one I am going for. I think the barrel name is GUT STRUCK.
