M1A2 SEP V2 with Trophy?

Armor/AFV Modern
1

Hi All,

This topic/question has probably been discussed many times previously, but I’ve not found the answer I’m hoping for. I’ve been away, mentally, from AFVs in favor of aircraft for a while now, and I’m feeling like I want to get back to armor again, at least for a bit. I just got the Rye Field (RFM) M1A2 SEP V3 kit, and I know that the M1A2 SEP V3 tank is set up for easy addition of the Trophy system, but this configuration has yet to be fielded, as far as I know. I have seen a very few photos of the M1A2 SEP V2 tank with the Trophy system mounted, and at least the TUSK ‘base plates’ on the skirts. I was wondering if anyone knows exactly what would be needed to add to the RFM M1A2 SEP V2 kit in order to install the Trophy system. I’m pretty sure the modified bustle racks would need to be installed (as included the RFM M1A2 SEP V3 kit), and of course, the Trophy system packages themselves, one on each side of the turret. Of course, the connections (power and instrumentation cables) and their protection conduits, would also be needed, as well as any other external antennas (if any). Does anyone know exactly what cables and conduit would be need to be added to the RFM M1A2 SEP V2 turret? Thanks in advance for any thoughts. :blush:

2 Likes
2

This should get you started:

M1A2 SEP V3 Abrams - Armor/AFV / Modern - KitMaker Network

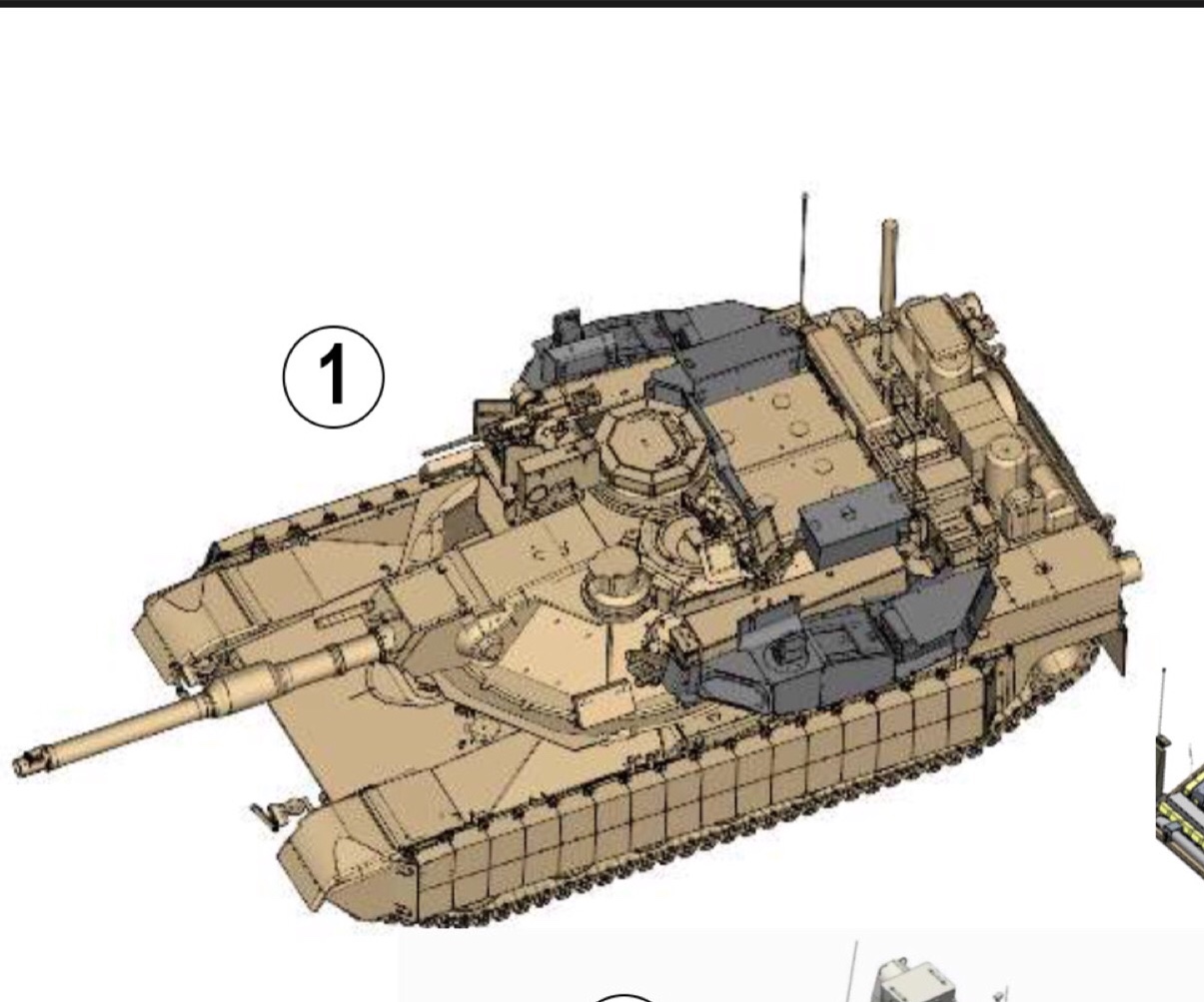

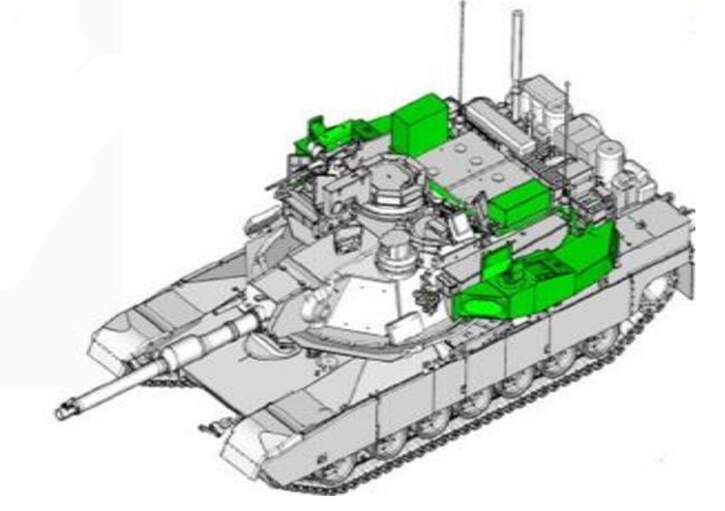

And a photo of a 1/72 conversion set:

326049484_1899900063689362_4401454377169471287_n
326049484_1899900063689362_4401454377169471287_n705×552 35.8 KB

2 Likes
3

That is because it was not intended to be mounted on the M1A2 SEP v2. It was only tested on a few modified M1A2 SEP v2s to test the system and concept.

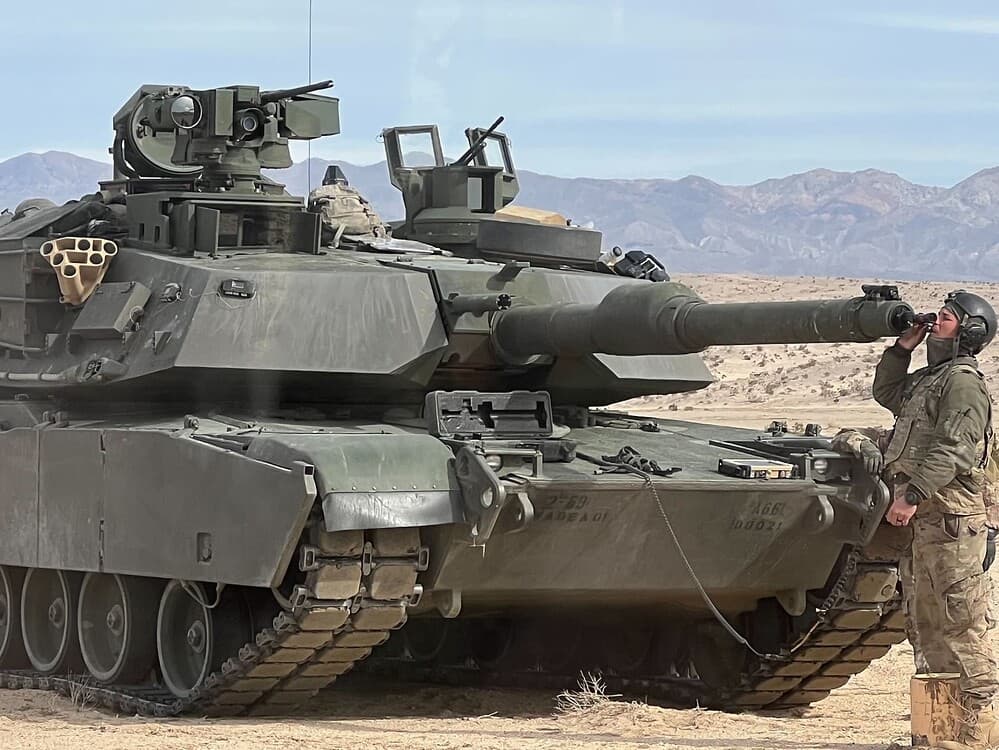

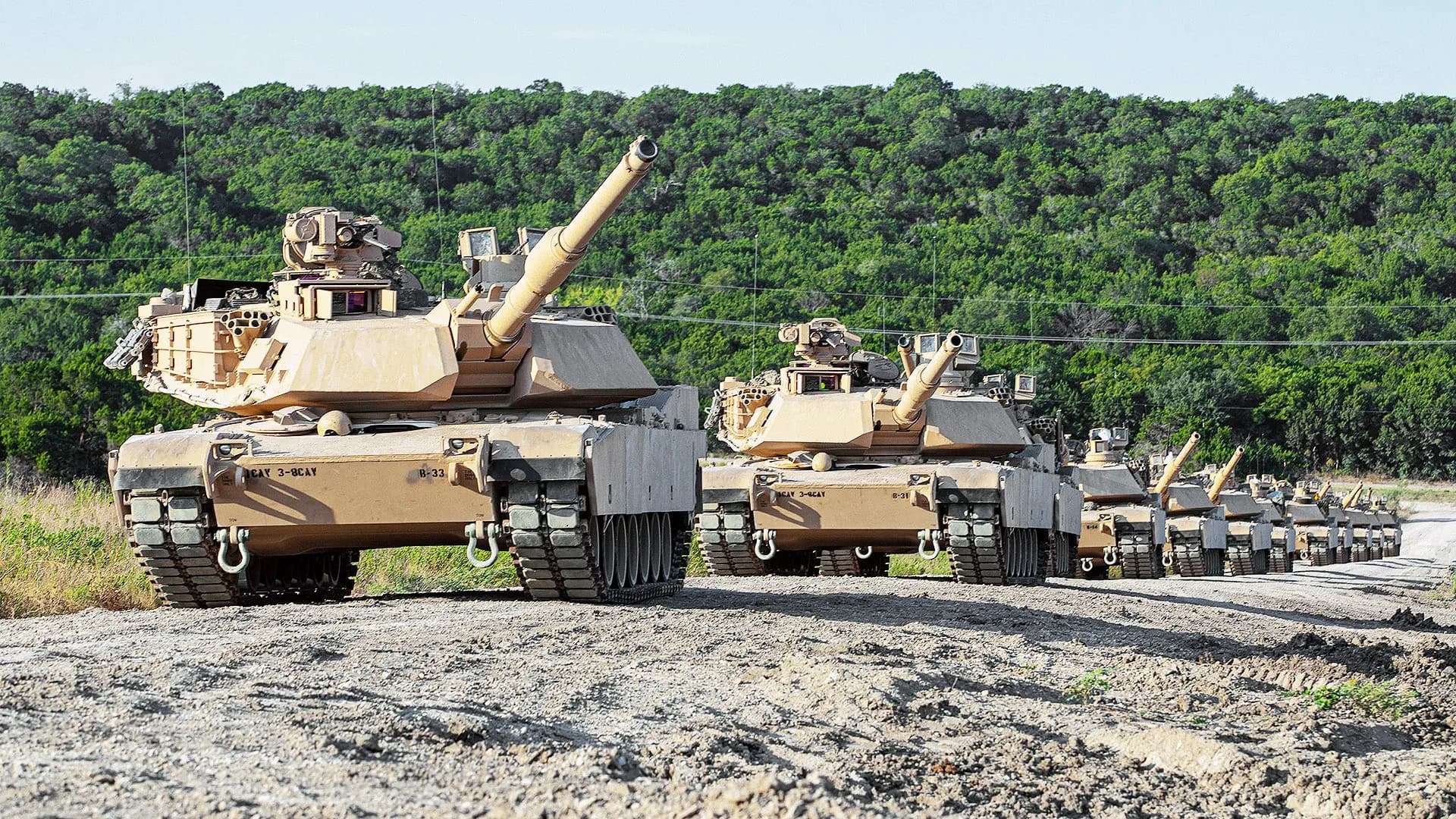

The M1A2 SEP v3 has been fielded at many units. A couple examples.

image1920×1080 503 KB

image999×750 95.6 KB

You probably won’t find many (if any) pics of Trophy mounted since it is only used in active combat. The crew may train on it in simulators and a couple times a year, but that is about it.

2 Likes
4

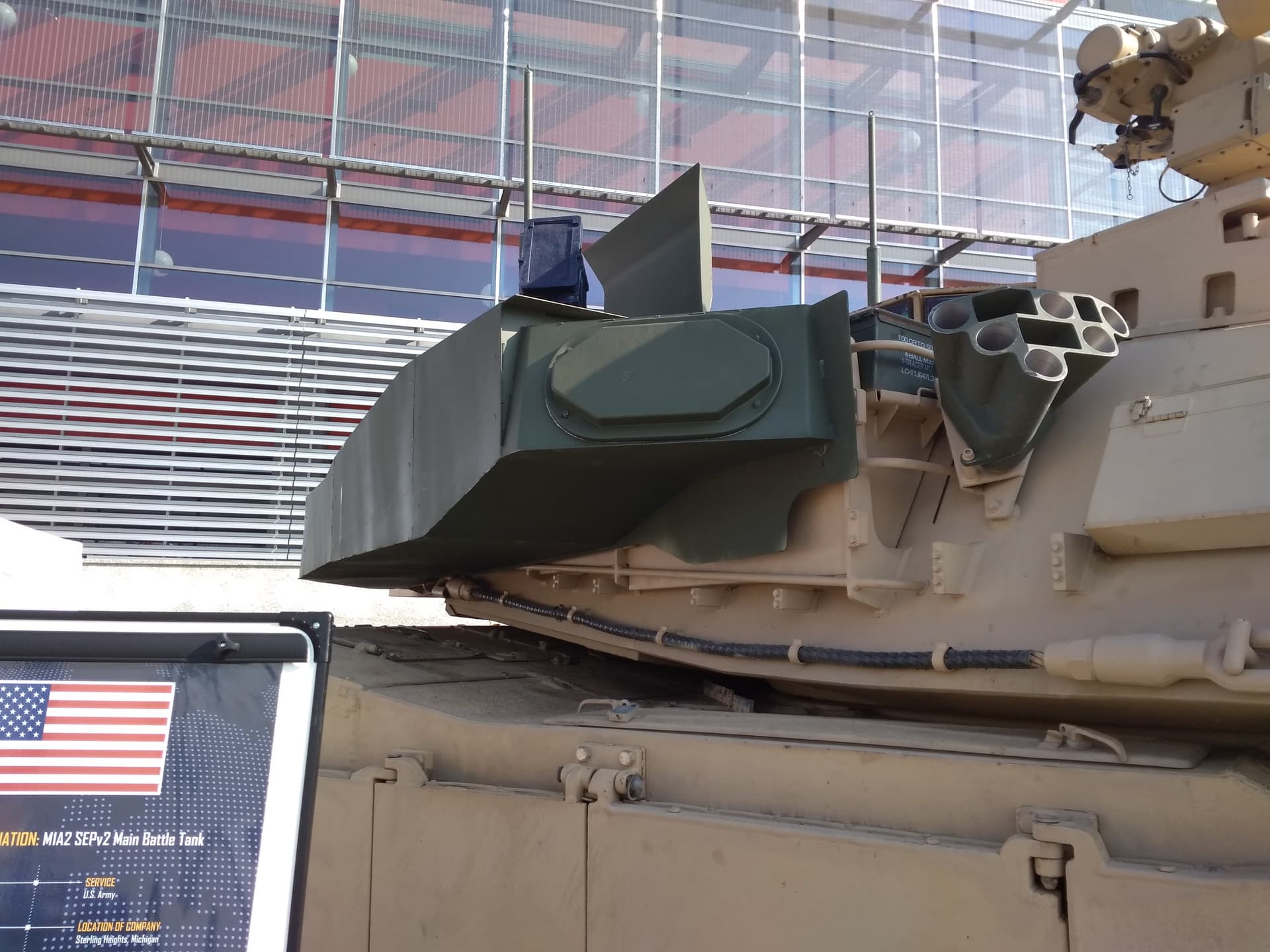

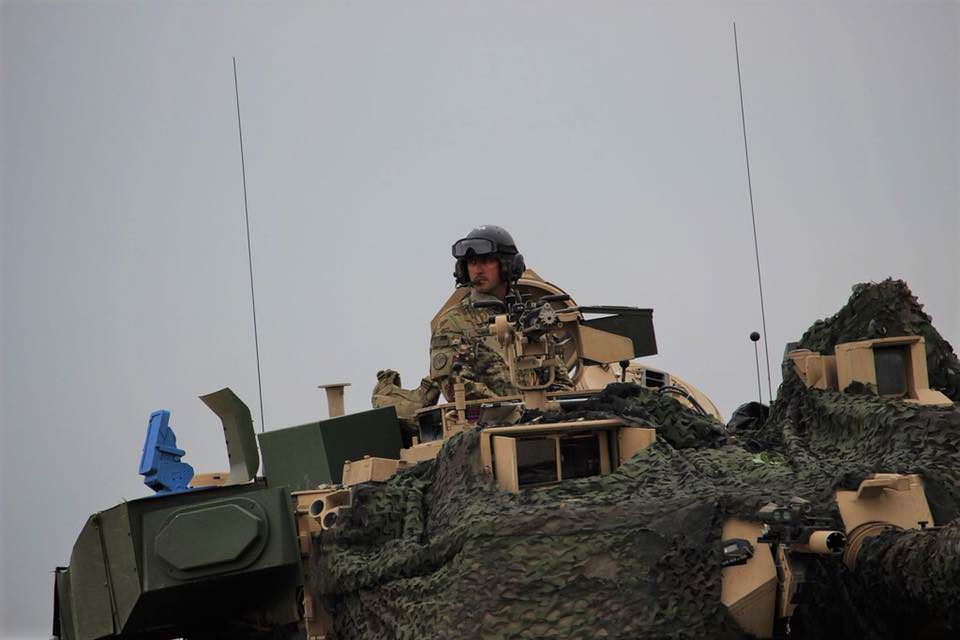

Gino mentions simulators - these are standalone pods that can be lifted by two people, unlike the real things.

Here are the simulator units.

IMG_6156
IMG_61561768×1203 134 KB

IMG_5576
IMG_55761920×1440 233 KB

The easiest way to tell is the presence of the cable runs & ancillary boxes on the turret roof.

IMG_0550
IMG_0550725×511 31.6 KB

IMG_0546
IMG_05461205×1003 202 KB

IMG_0082
IMG_0082960×640 46.2 KB

1 Like
5

Excellent point…I wasn’t aware of that! Thank you!

Understood, Gino. I was meaning the SEP V3 with Trophy mounted.

I appreciate all the help everyone has provided to me here. Thanks a bunch!
