Some of you may remember a few years ago (Damn, it’s been 7 years!!) I converted the Dragon M48 AVLB into an M60 AVLB.

After doing it, I kept getting the following comment:

"Okay, now do the AVLM. "

So now I am.

This is the M60 AVLM. It is an M60A2 AVLB chassis that has the bridge section removed and replaced with two MICLIC (MIne Clearing LIne Charge) launchers.

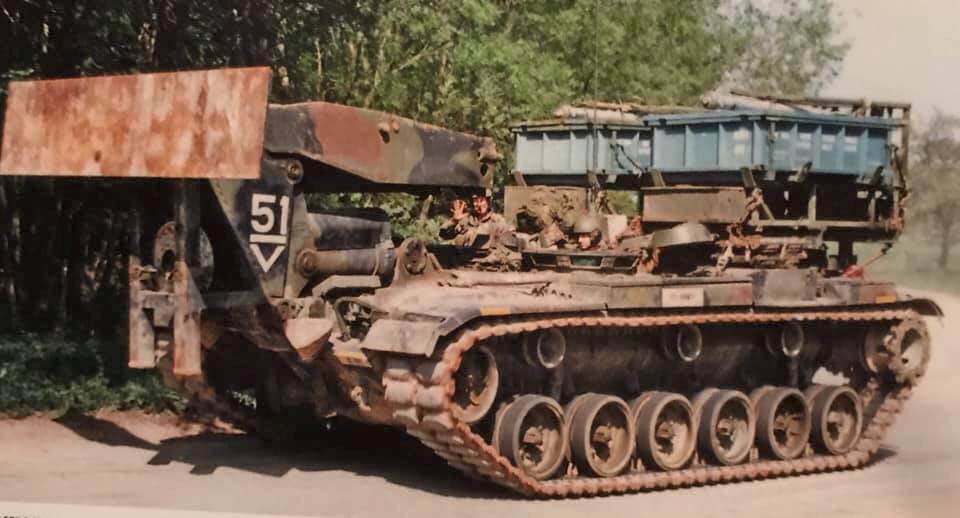

4270199721362831464021452674515378335383552n
4270199721362831464021452674515378335383552n960×518 59.6 KB

I started with the Dragon M60A1/A2 AVLB kit, which wasn’t out yet when I did the AVLB. I am building it as a later model on an M60A2 chassis.

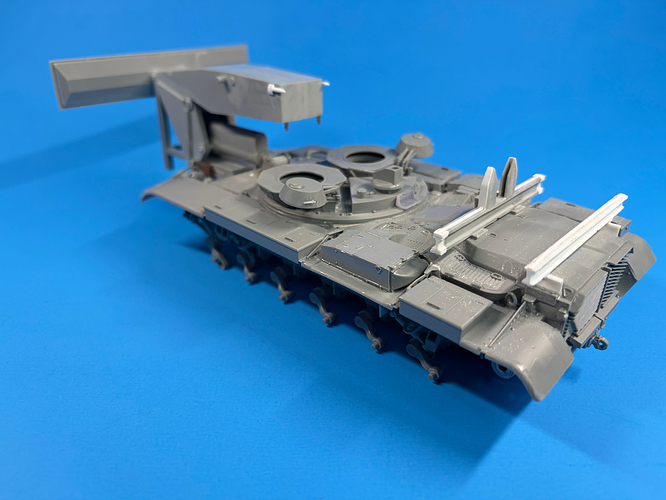

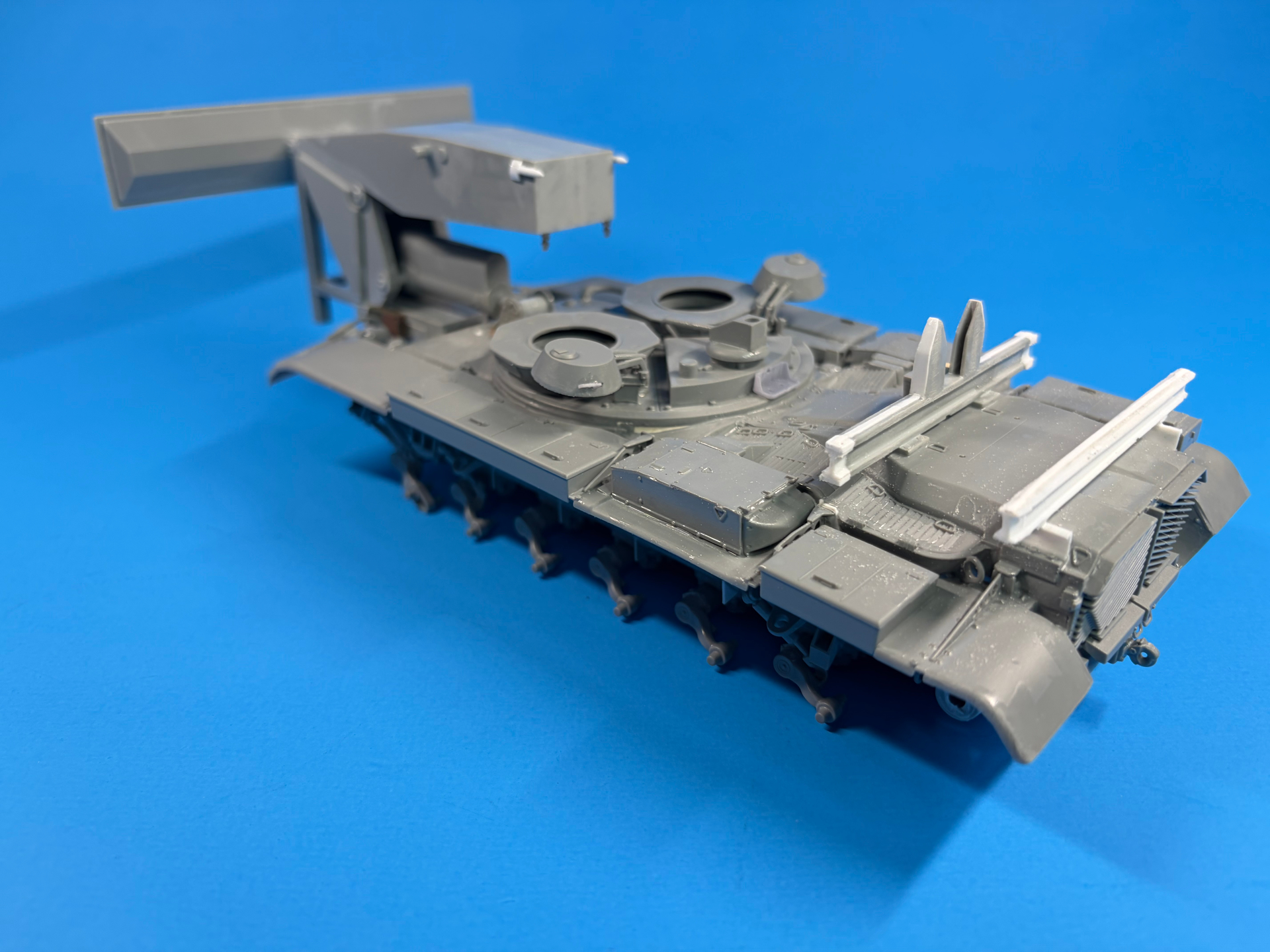

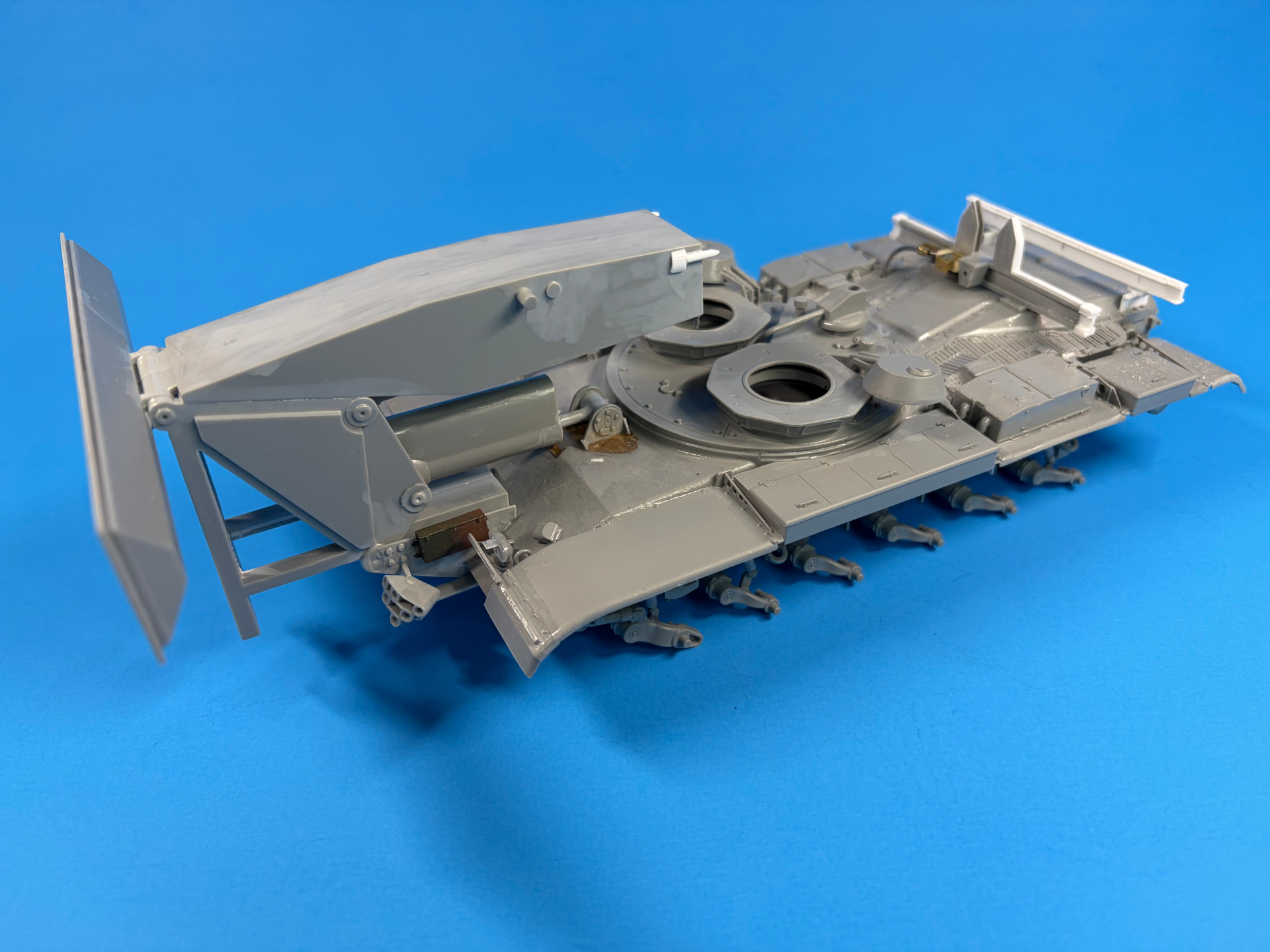

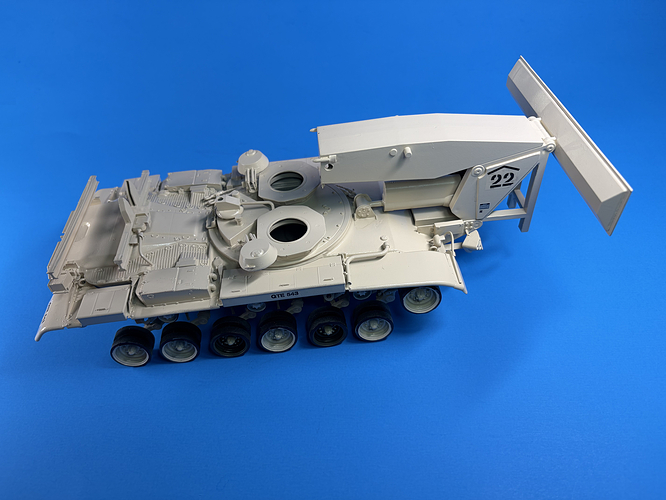

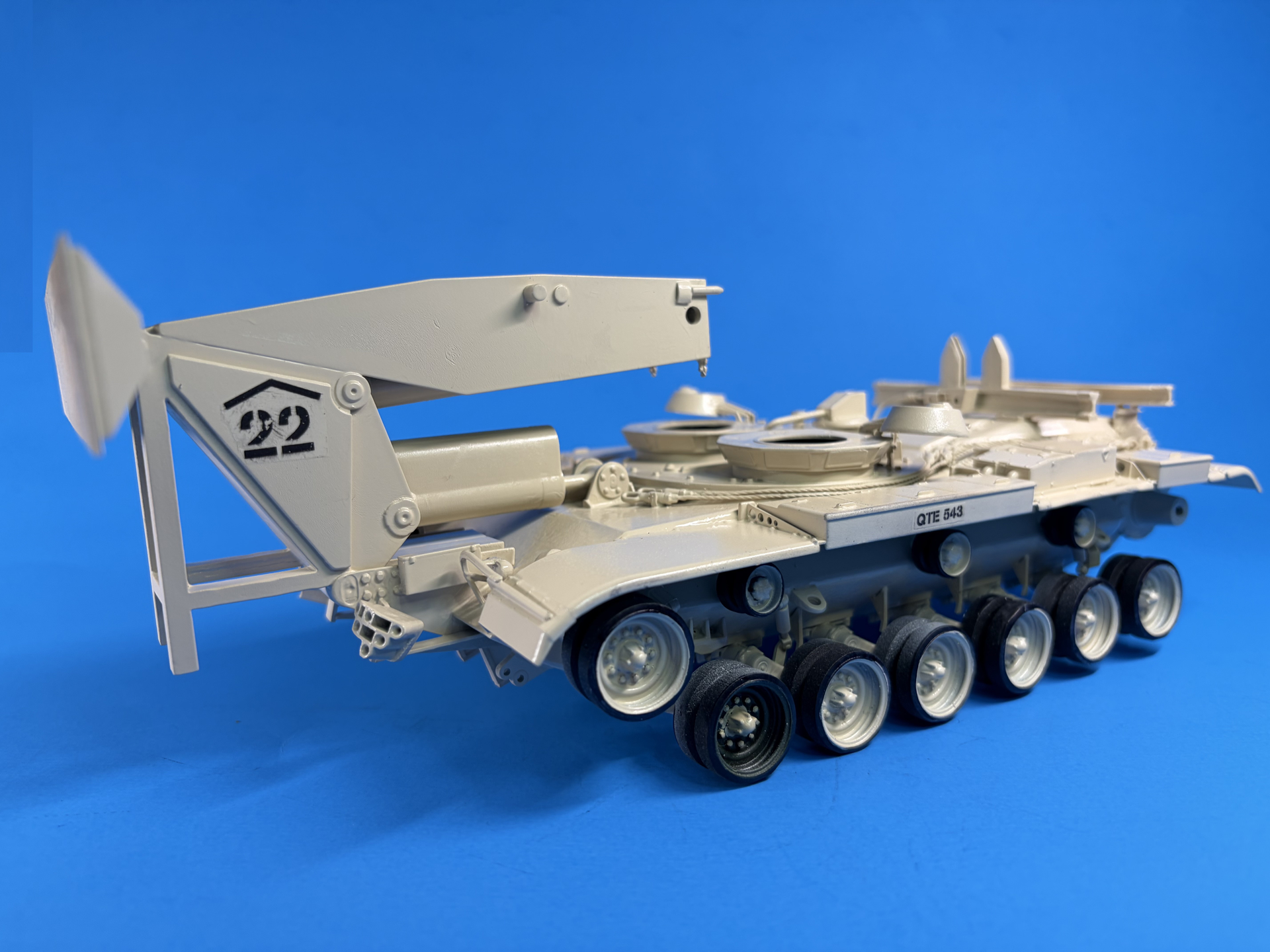

I built the bridge raising equipment up front and added a few missing details to it such as pins that hold the bridge and a couple connectors for the hydraulics.

IMG02531920×1440 1.31 MB

IMG02521920×1440 1.32 MB

I also added grenade storage boxes for the smoke launchers.

IMG02561920×1440 1.16 MB

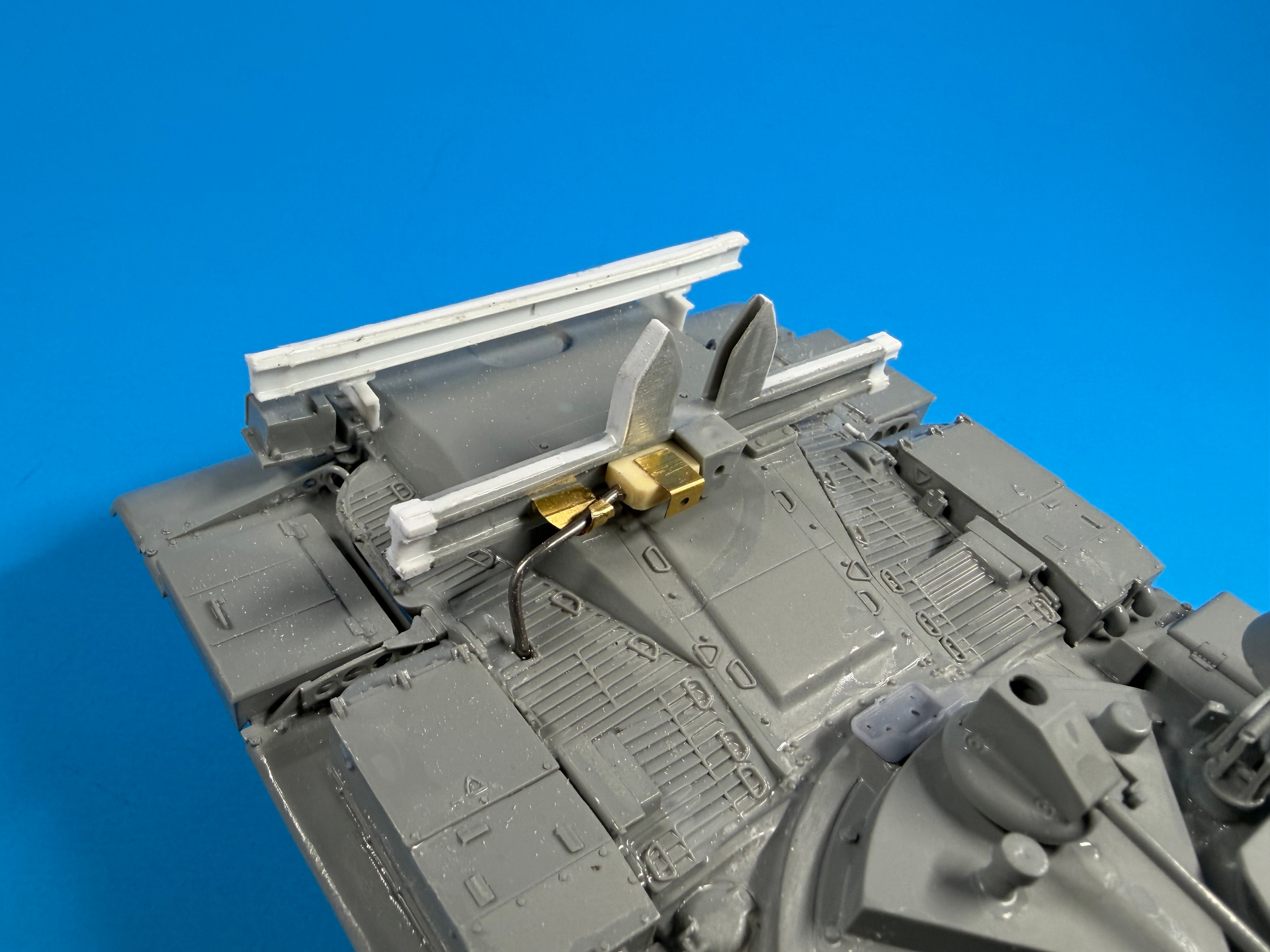

In the back, I added details to the bridge/AVLM support and added a second I beam to support the rear of the MICLIC launchers.

IMG02541920×1440 1.25 MB

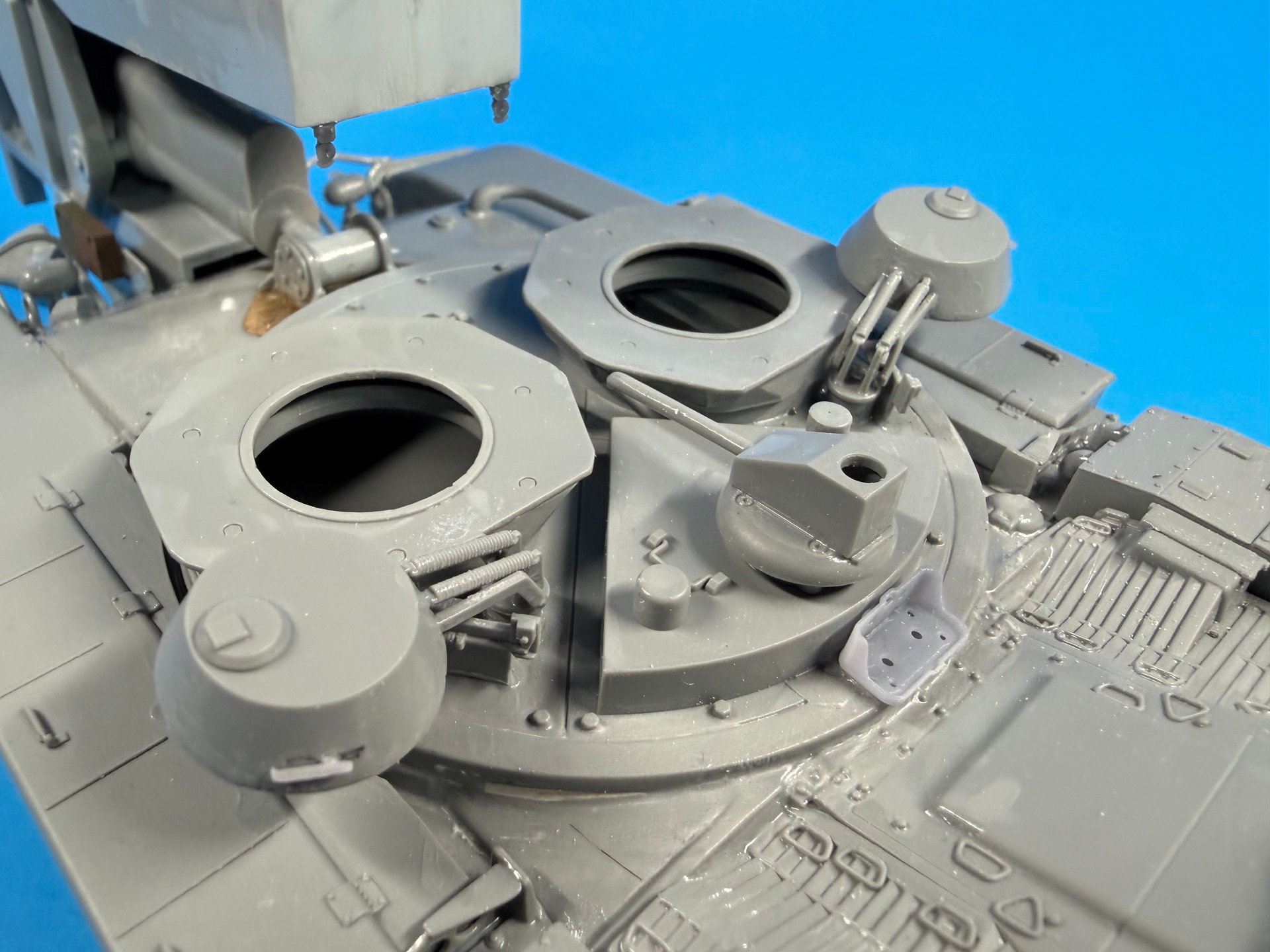

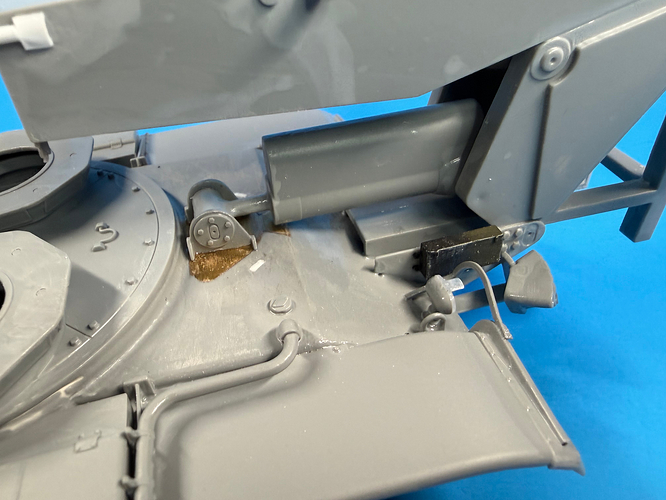

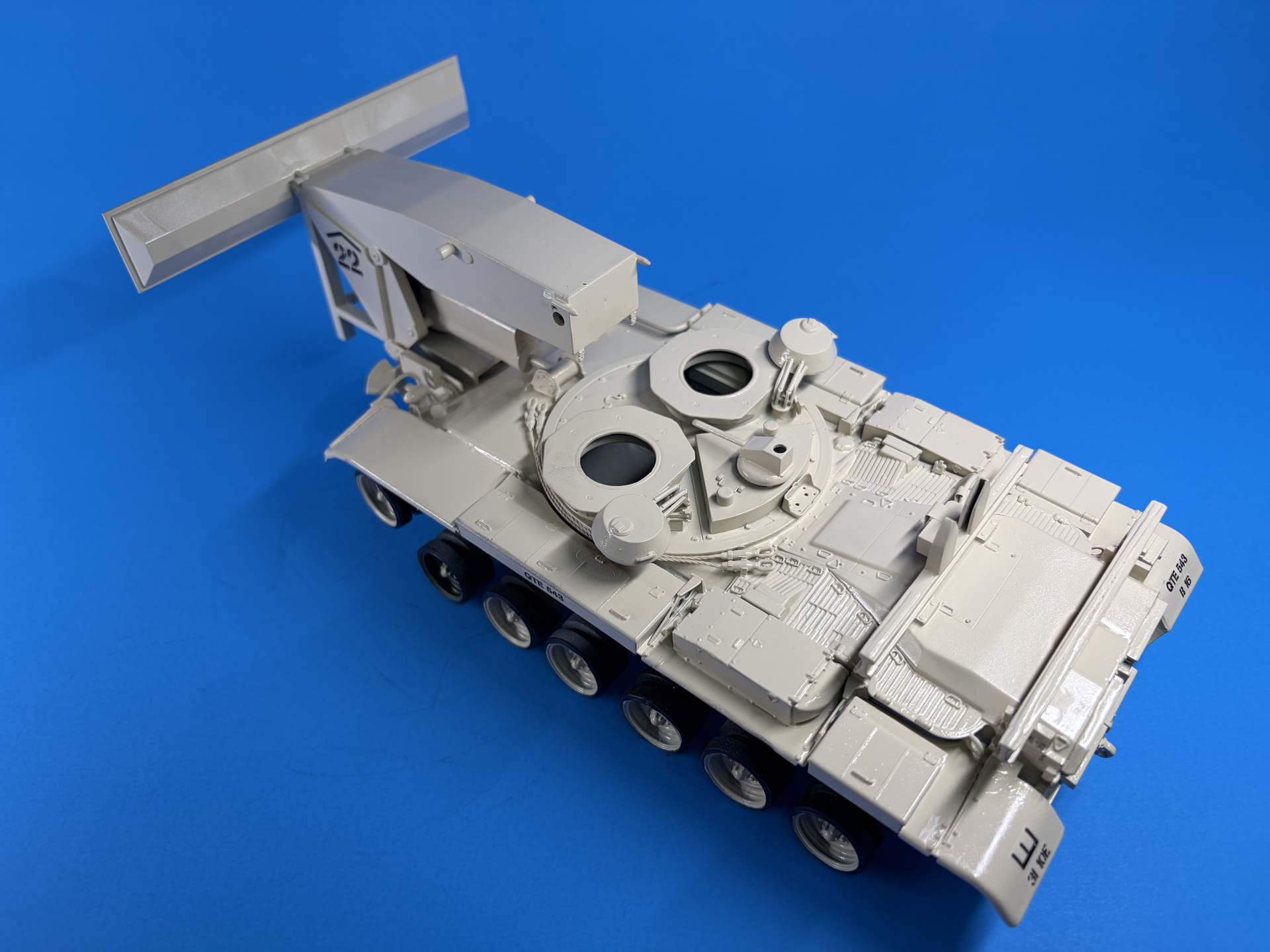

I opened the hatches and detailed them with 3D printed handles. I am not sure why Dragon molded them shut, but they were easy to cut from the cupola and reposition open. I replaced the undersized jerry can holder with a 3D printed one as well.

IMG02571920×1440 1.3 MB

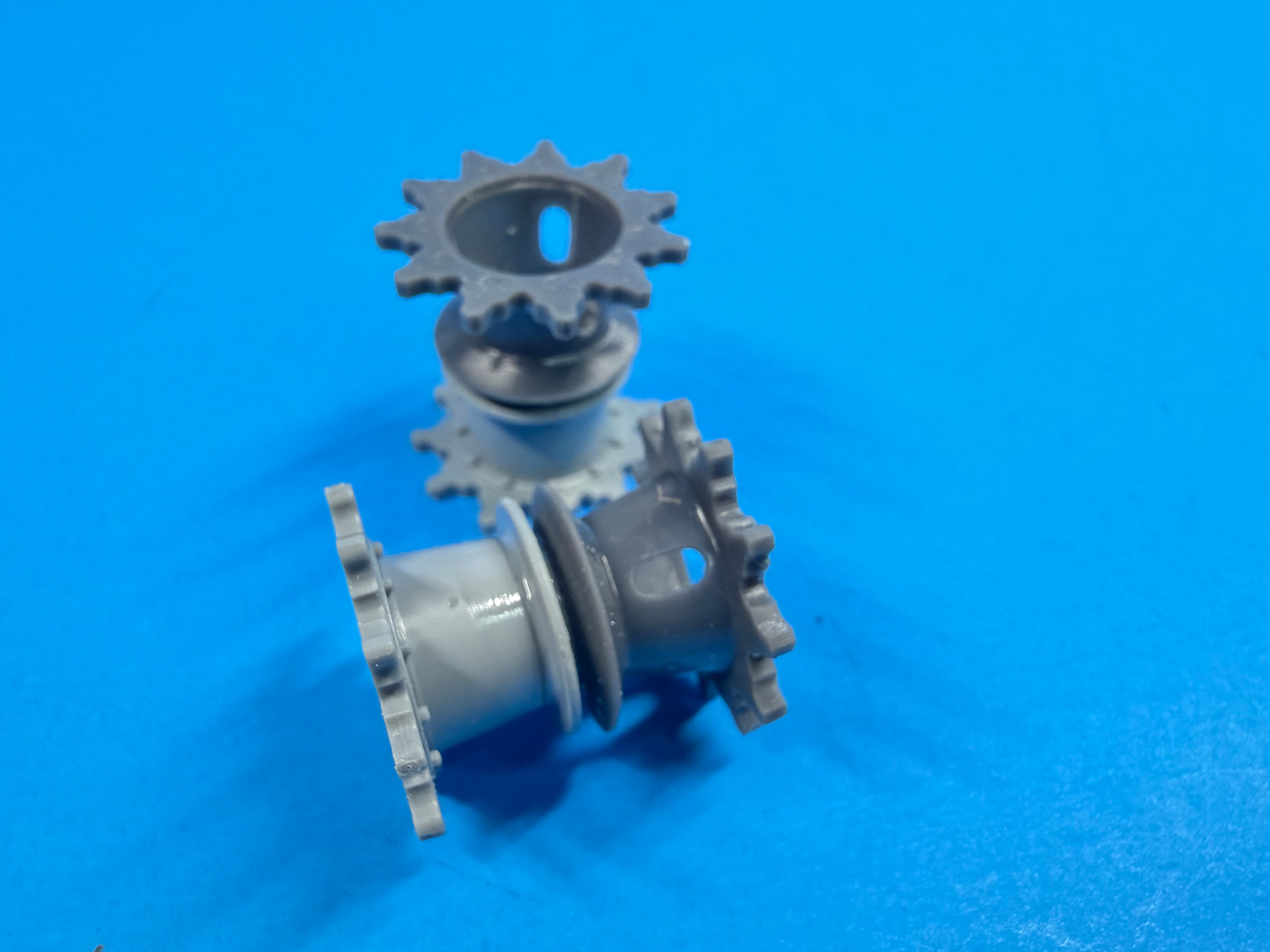

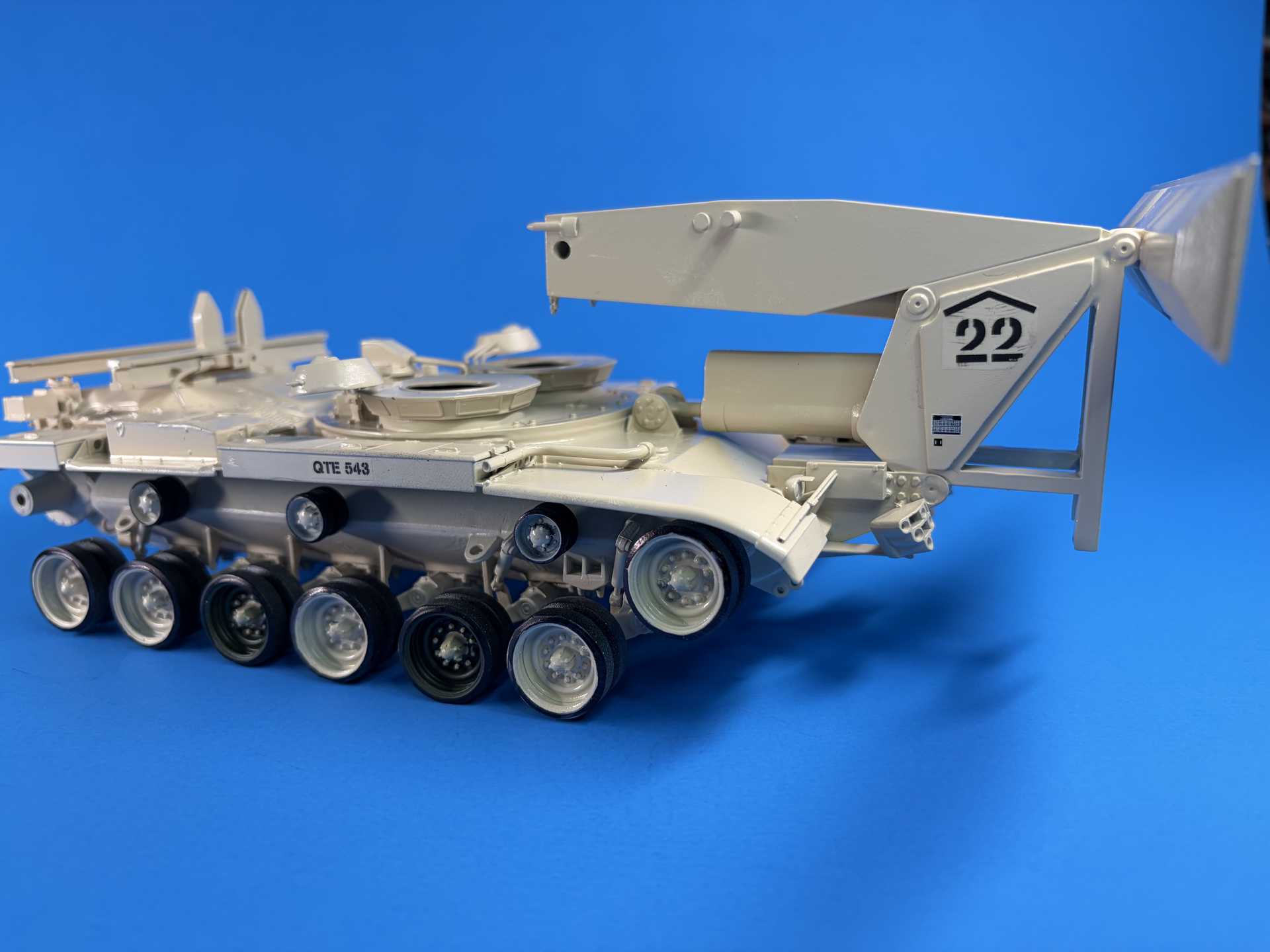

I also used a 3D printed outer sprockets with mud release holes on the Dragon inner sprockets.

IMG02591920×1440 895 KB

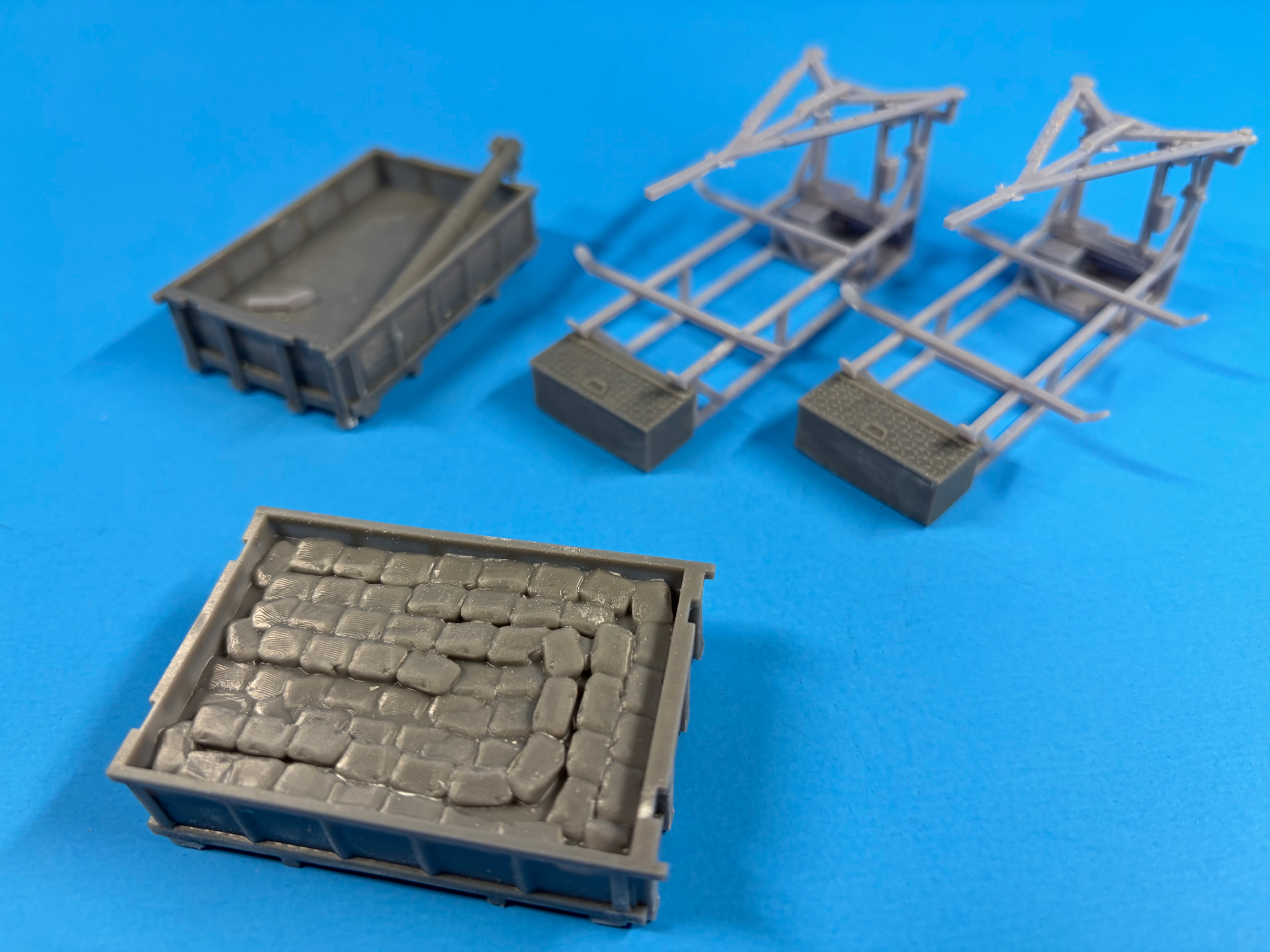

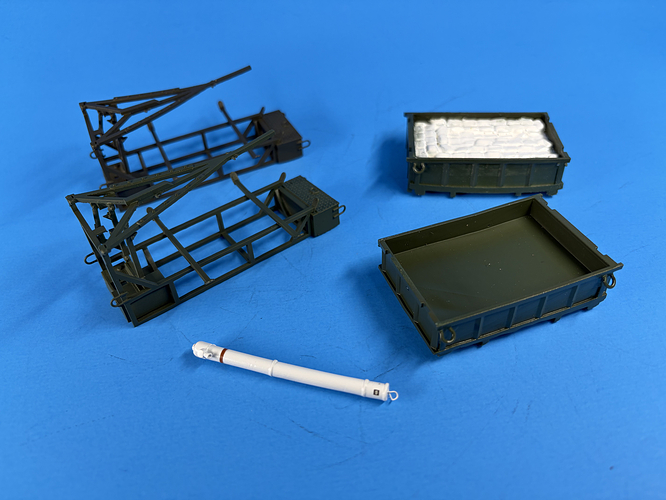

Here are the MICLIC Launcher parts. They are all 3D printed and the same ones I used on my M200 MICLIC trailer a while ago. One launcher will be empty and the other with a live load and rocket.

IMG02581920×1440 1.68 MB

More to come later.

25 Likes
2

oh Heck yeah.

4 Likes
3

Thanks Patron. I am enjoying it so far.

2 Likes
4

Looks awesome, Gino!

:beer_mug: :cowboy_hat_face:

1 Like
5

Thanks Richard.

1 Like
6

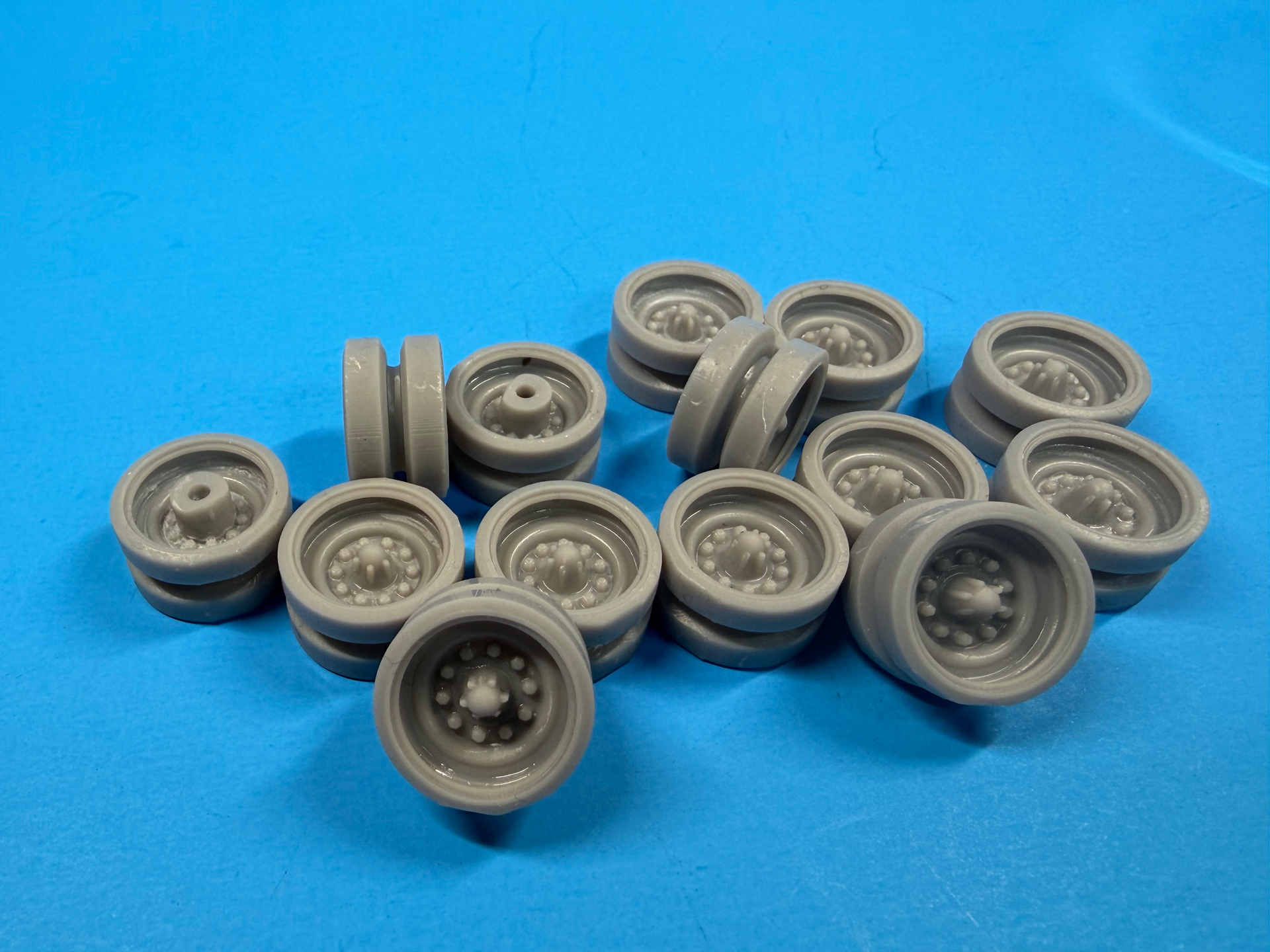

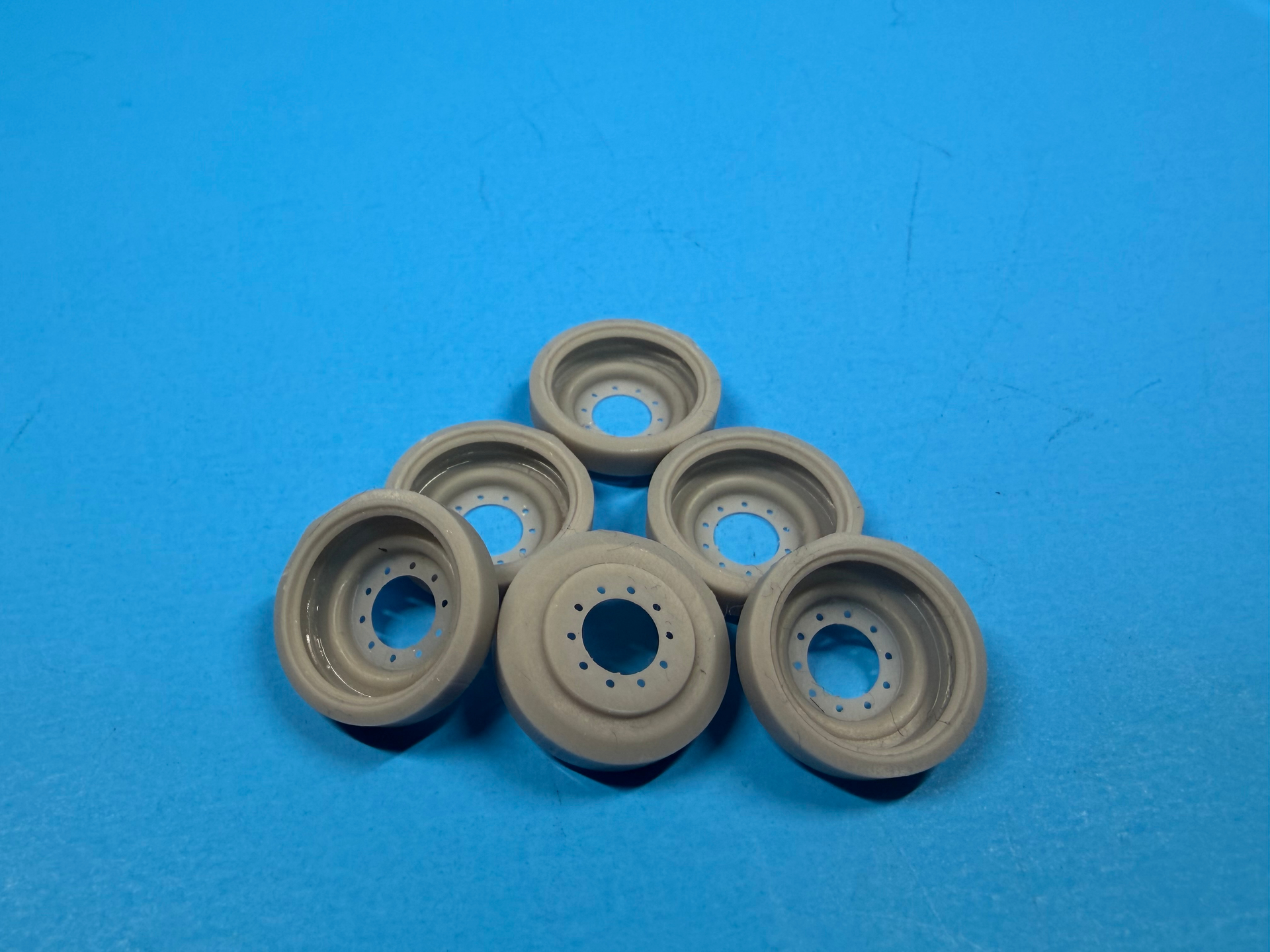

A small update today. The kit comes with the older aluminum wheels. These later AVLMs had steel wheels. To achieve this, I 3D printed 14 wheel sets for it.
