Russian ERA dimensions

Armor/AFV Modern
,
1

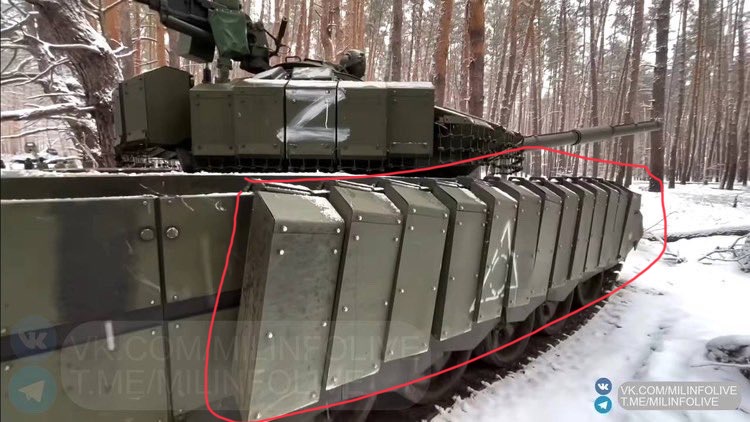

Anyone have dimensions for the side ERA used on Russian tanks specifically this one

IMG_9720
IMG_9720750×422 90.9 KB

I know it comes in 3 heights so I’m looking for width and depth. I have managed to scratch built the turret boxes but I had a drawing for those, the side skirt ones are a different depth visually maybe also in width and definitely in height.
Cheers

P.S
I know there are aftermarket versions but the only ones I can find come from Russia (talking 1/72 not 1/35)

2 Likes
2

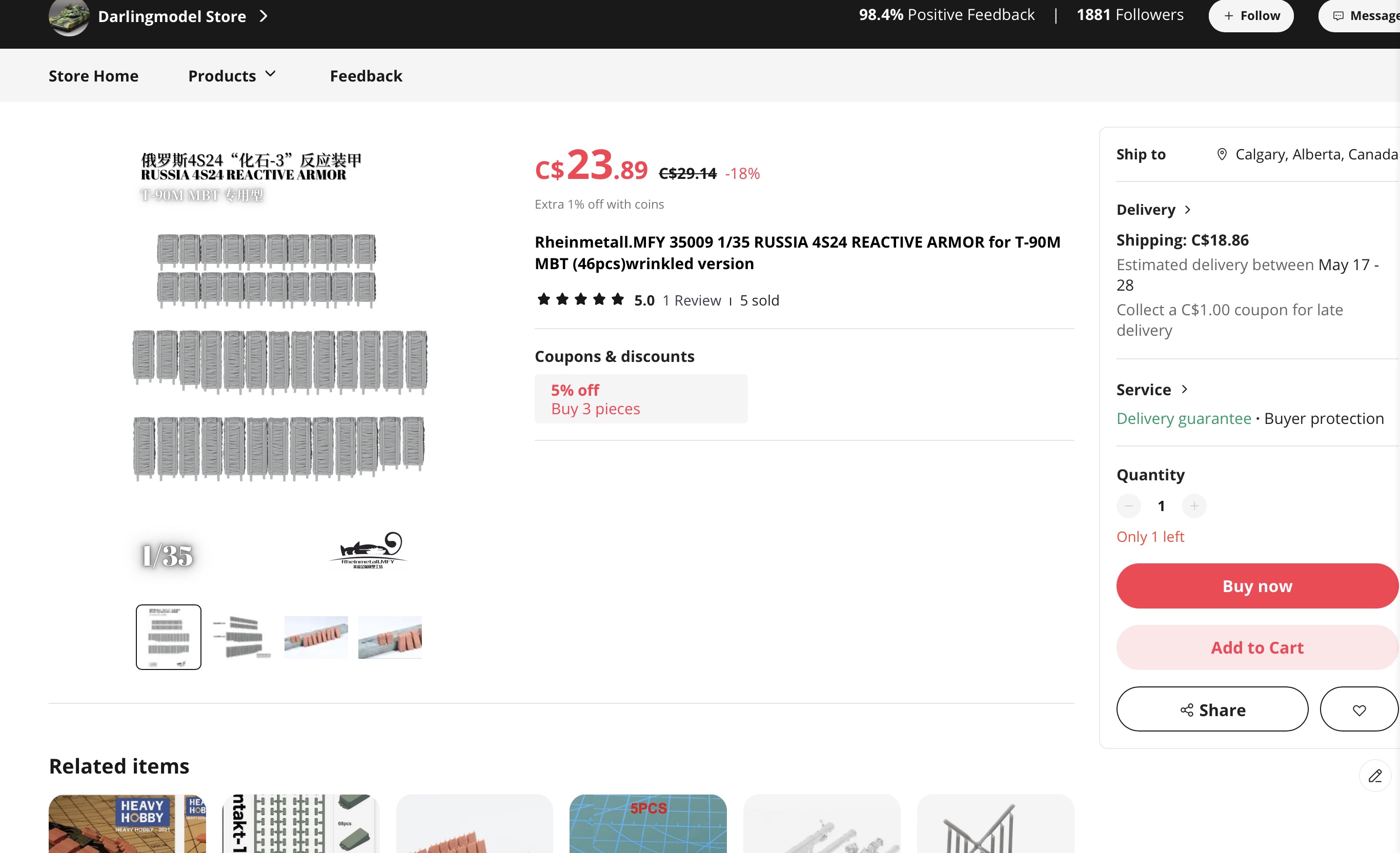

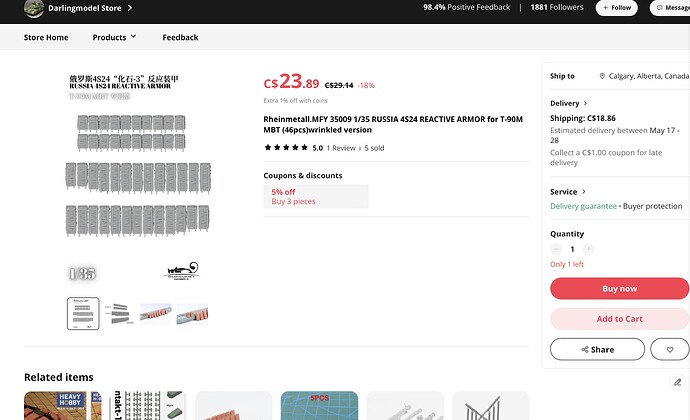

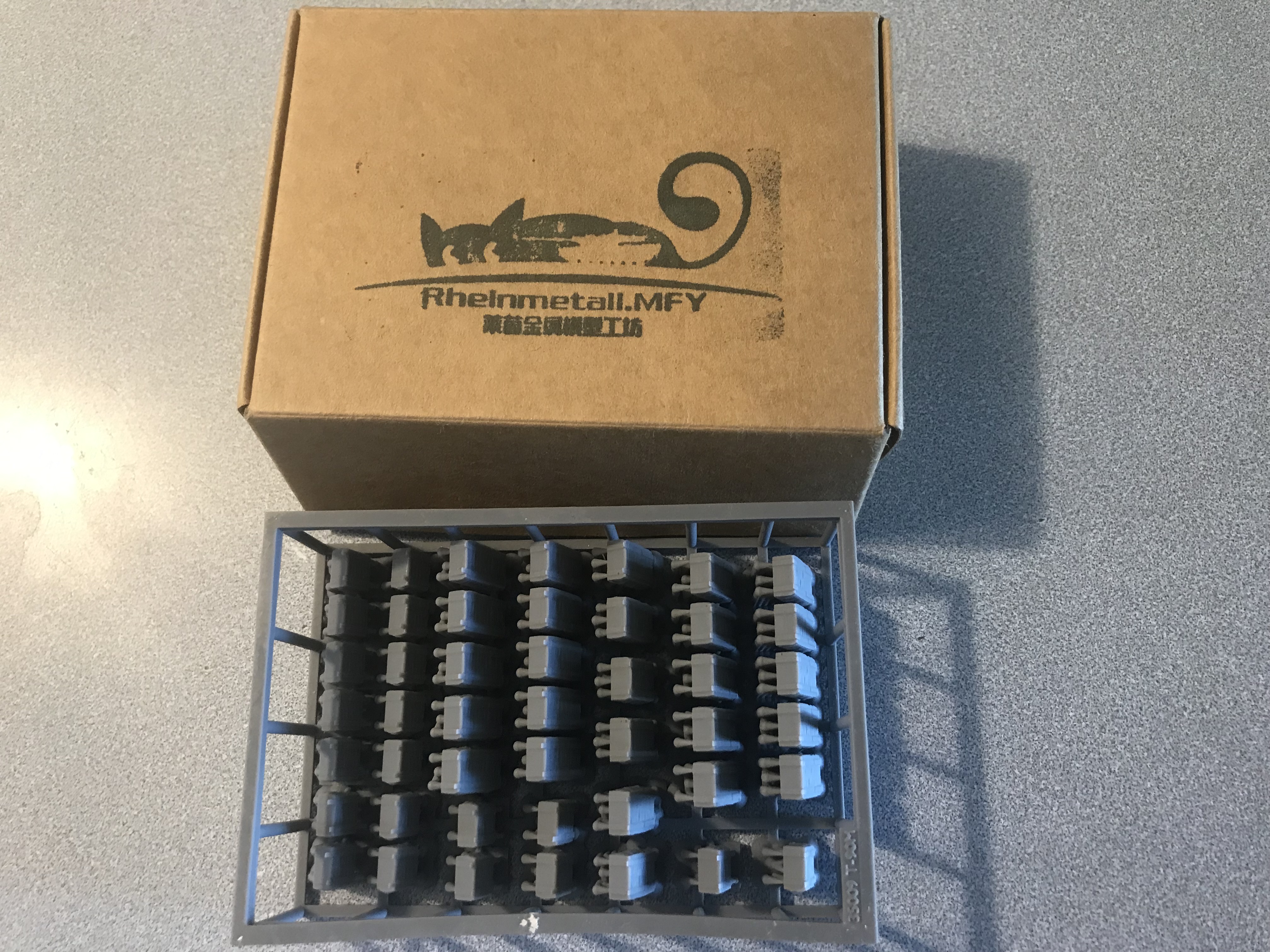

I got this from AliExpress. It’s 1/35

IMG_4519
IMG_45194032×3024 2.55 MB

IMG_4520
IMG_45202731×1664 431 KB

3

Will this help?
Kontakt V

1 Like
4

Thanks but that’s the size for Kontakt 1 bricks seen on early (and recently over everything) vehicles.
I suppose I can roughly work it out from photos.

1 Like
5

That’s the soft bag version, I’m after the metal containers, although both seem to use the 4S24 designation I am unsure if both are the same size.

1 Like
