I do so many M4 based vehicles that I have a plexiglass jig for drilling those holes.
4 Likes
Did you build or purchase the jig. Thanks
1 Like
I have one that is made by a 3D company, and I think there is also a PE set that has a jig.
3 Likes
Much like RFM’s, then. I think I prefer the way Takom did their M3 medium idler wheels, with separate rings to glue into the rim (like MiniArt, except Takom does the rings in plastic instead of etched brass).
To mould the bolt heads on the inside, by the looks of it. But they missed the hole in the top of the bogie that serves to take tension off the springs for replacing the arms.
1 Like
HI guys. New poster here. I have just started on this kit as well but will turn it into an M-1. The Asuka road wheels will have a little slop in them if you want to replace the Takom roadwheels but that’s the only way to get the 6-spoke stamped. The bogie housing does have the volute tensioning points on top. However, they are proud and stick up a bit.
2 Likes
One does get a choice of wheels in the kit, so there is a option.
1 Like
A club buddy built my bogie jig.
1 Like
Do you have a photo of the jig that you can share?
1 Like
I have a version similar to this one.
1 Like

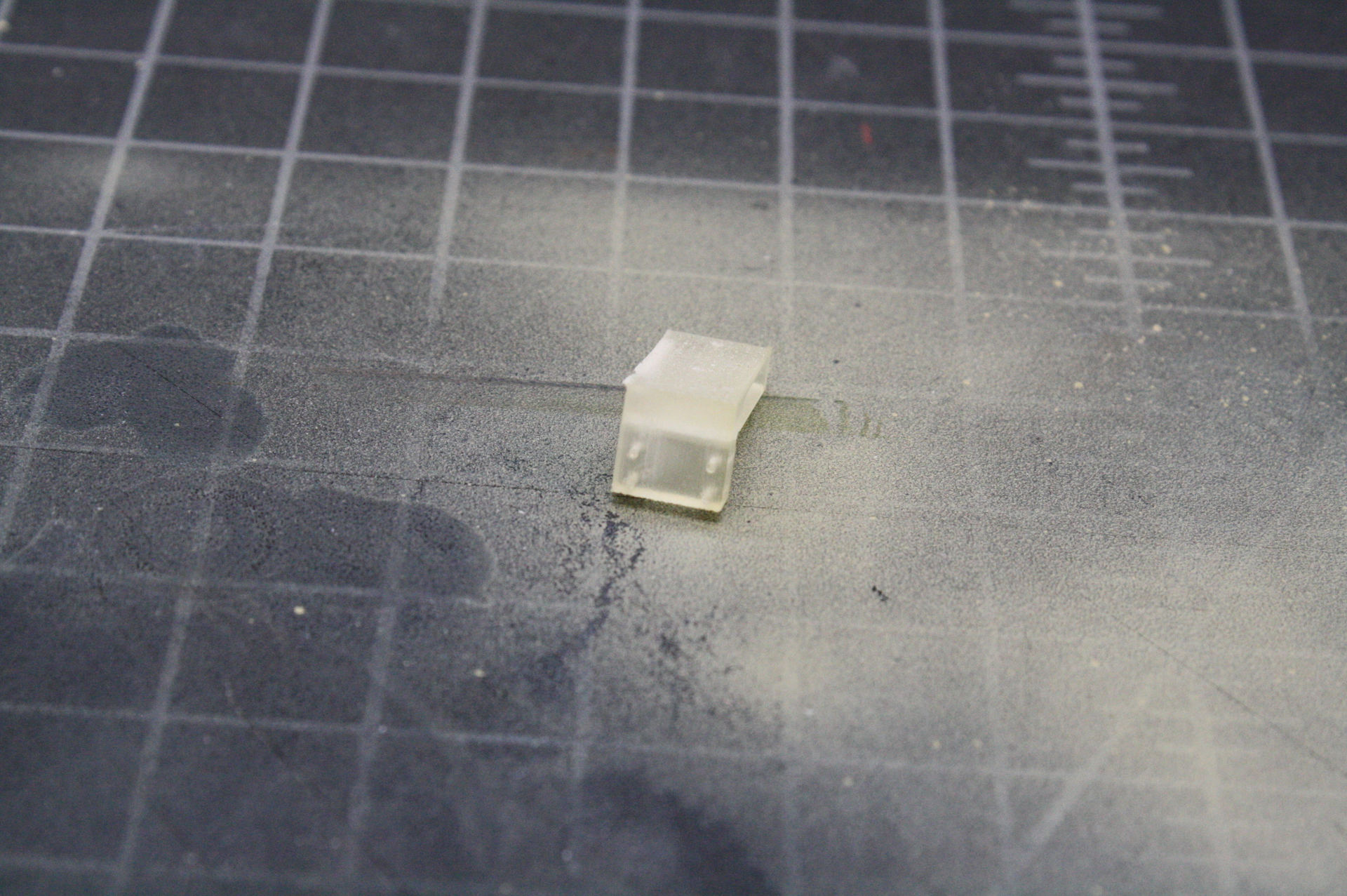

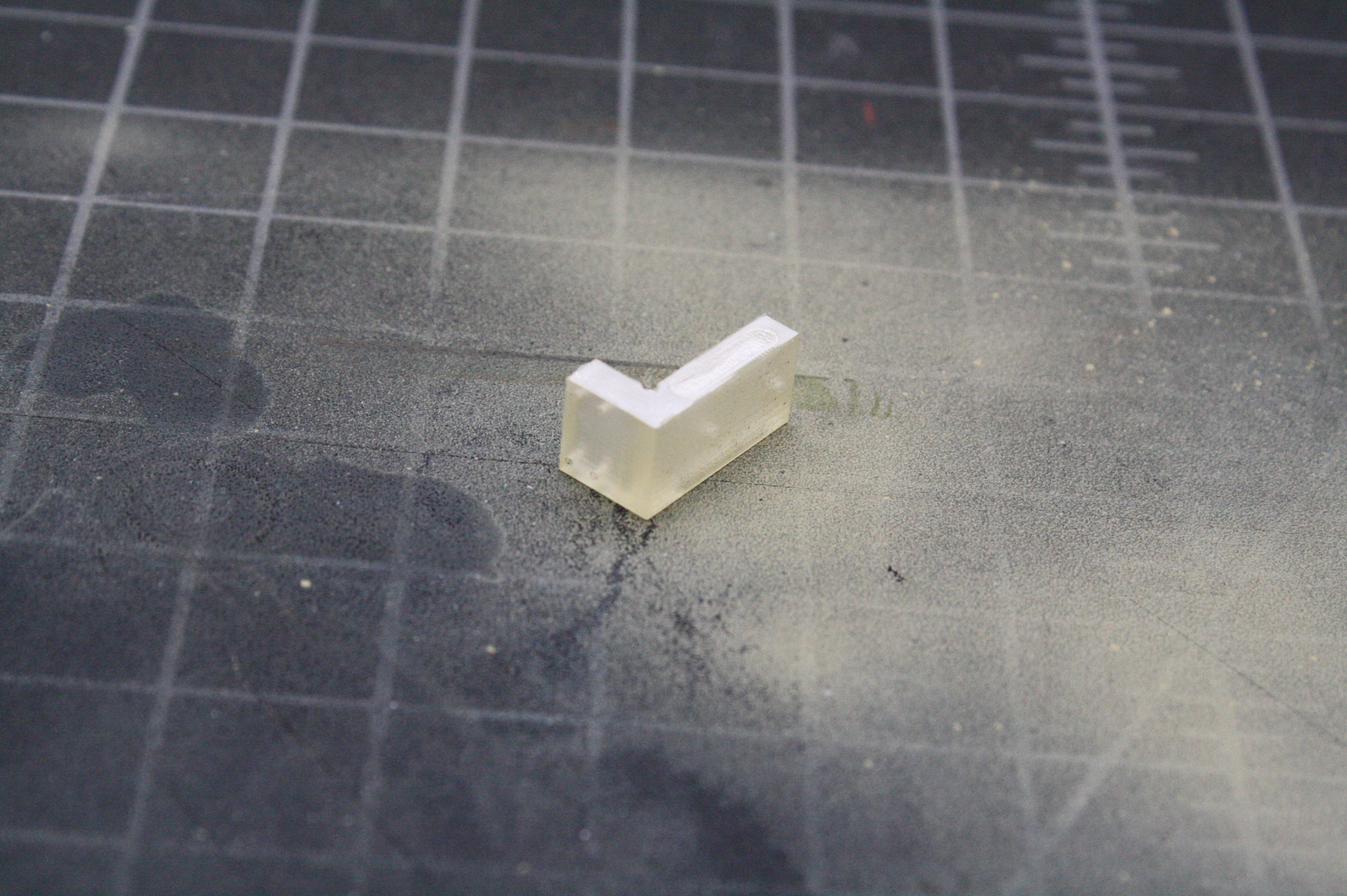

Here it is. You put it on top of the bogie truck (before you put the track skid on) and drill the two holes in the top and the four holes on the front side. The two holes in the top are for releasing spring tension, and the four holes on the side are for reversing the bogie. Handmade by Clay Caras of the Northeast Military Modelers Association.
3 Likes
Thats the same one that I have, but its from the older 3D company that went out of business.
3 Likes
Nice. I have been eyeballing it for decades, with varying degrees of “success.” Might have to get one.
5 Likes
I offered a set of skids and a drilling jig on Shapeways back in the day - maybe I need to dust it off and put it on Cults?
3 Likes
All I build is Shermans so ages ago I bought a jig, then I hated it and then I built my own and then I hated that one too😂…now I just eyeball the holes and never think twice about it😉

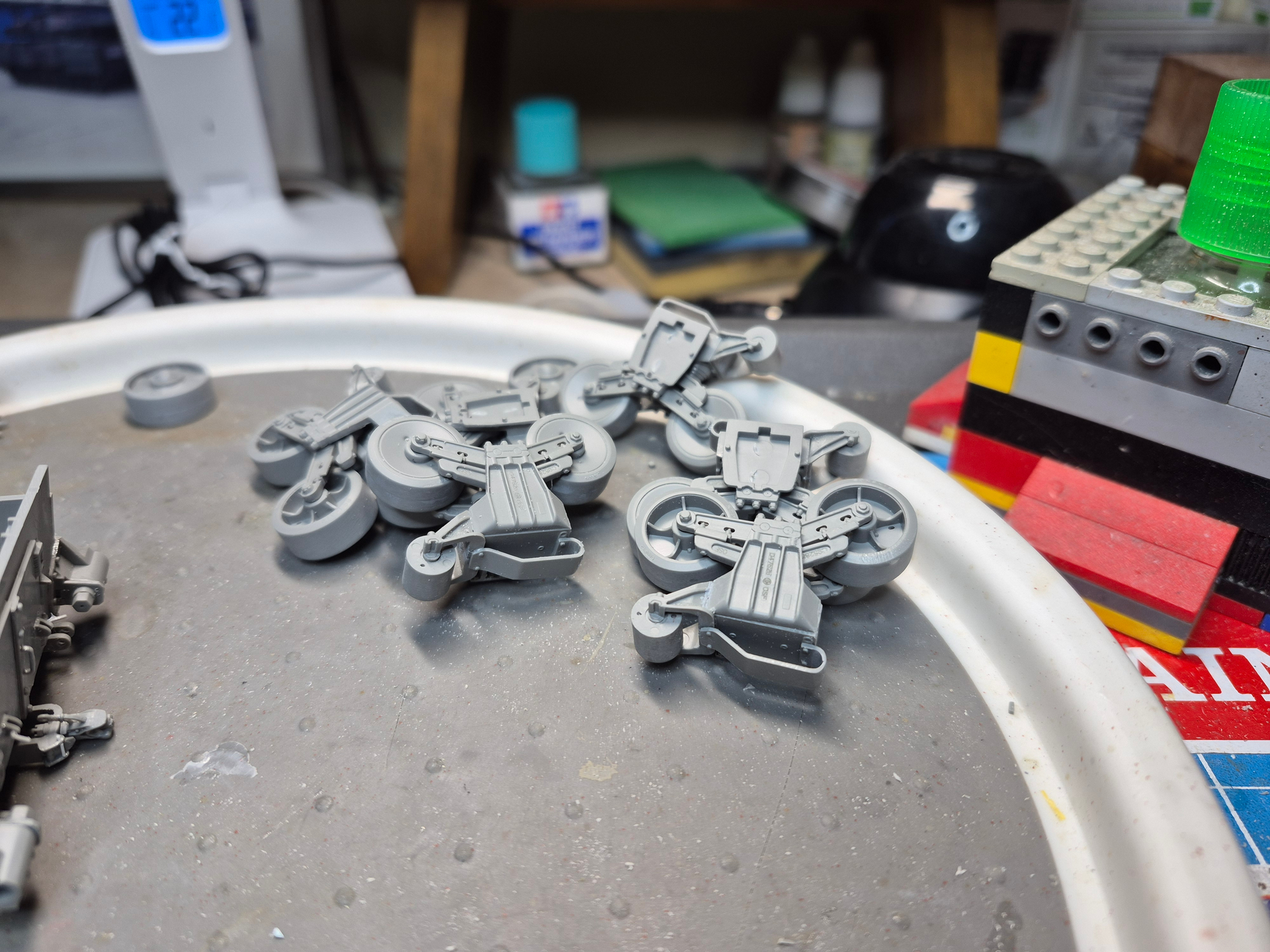

I did this suspension yesterday, all the holes free hand…if you zoom in you can see the holes.
7 Likes
I picked up one of those. Did you also have the skids or was that someone else?
1 Like
I just bought and downloaded it. Thanks for the link!
2 Likes

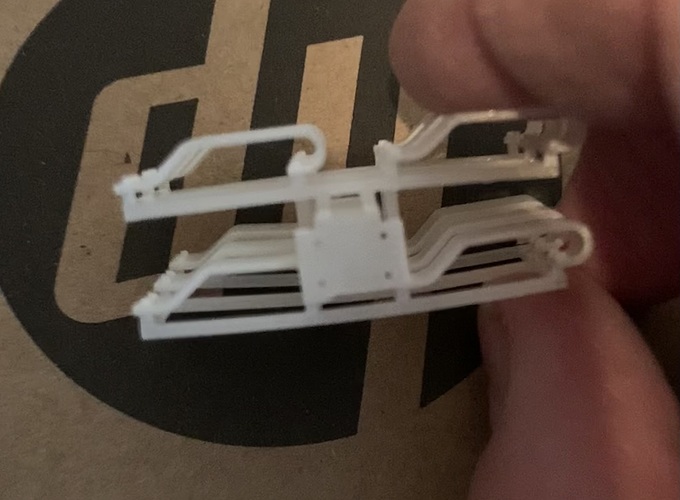

There were several sets on SW - mine was a sprued box with six skids and the jig all attached.
2 Likes
Perfect!
2 Likes
