Takom 1/35 M4A1 VVSS build

Armor/AFV WWII Allied
,
41

If Tom could load that print to his print page and/or 3Dp Train folks might like that. I ran across three or so old Sherman kits from Italeri and Tamiya that could use them.

1 Like
42

There are a bunch of skid and other Sherman suspension-related files on Cults 3D.

2 Likes
43

There are plenty options out there!

1 Like
44

I made my own jig for drilling those holes: a piece of plastic card with four holes drilled in the right locations, then an L-shape of 2 mm square rod glued on both sides so I can position it against the bogie correctly.

3 Likes
45

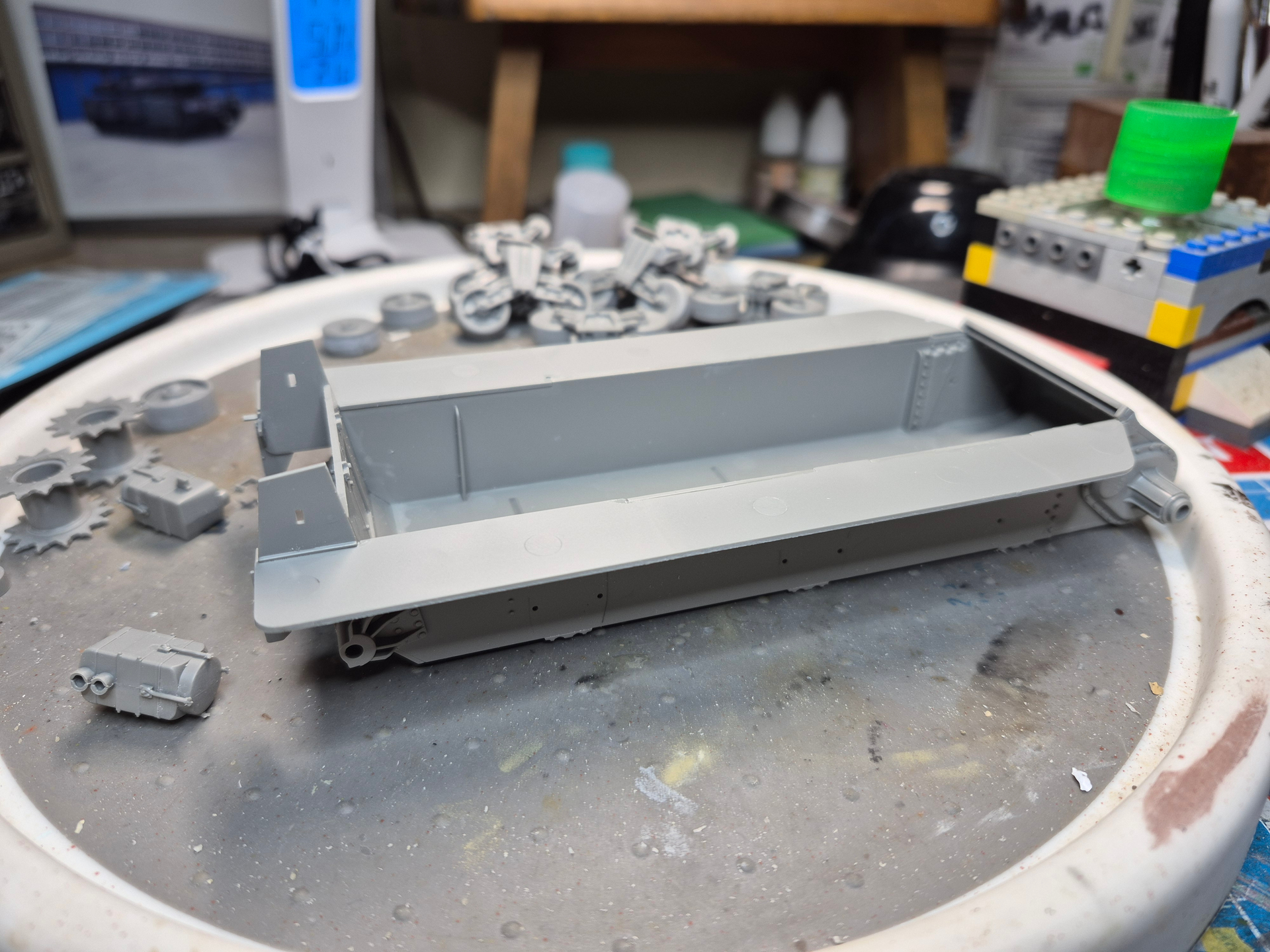

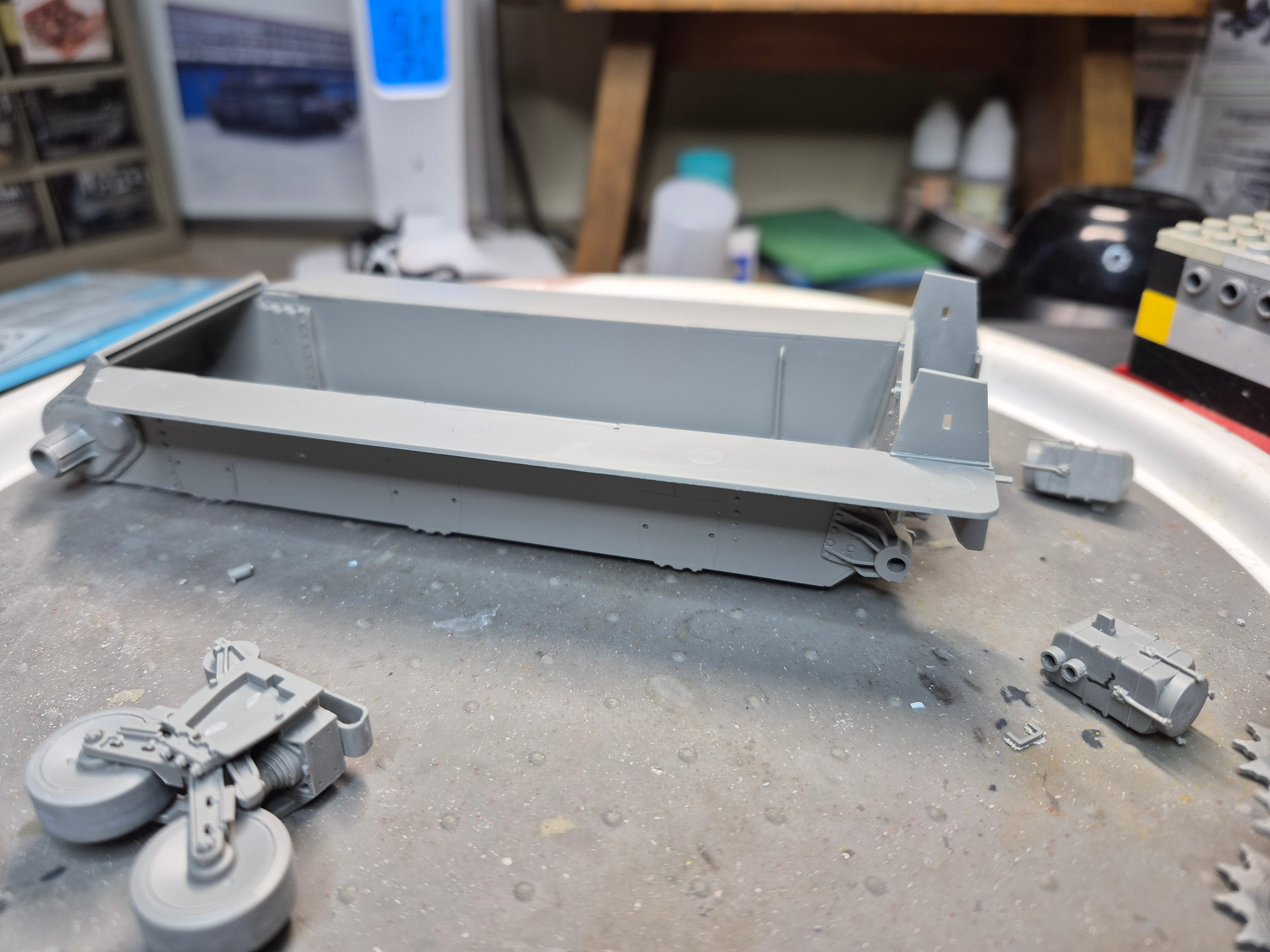

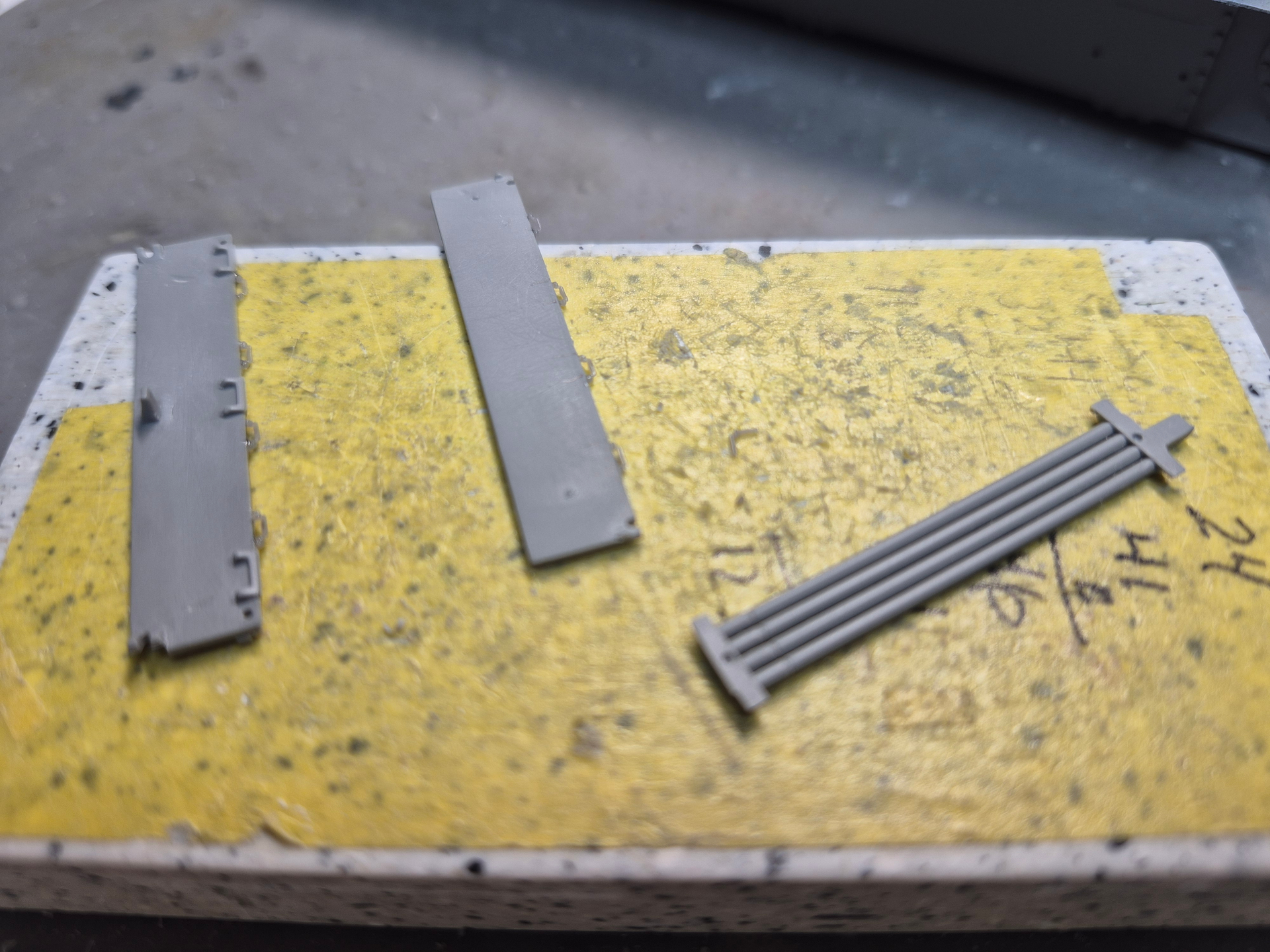

Sponson bottoms on, with square air cleaners done as well.

1000008813
10000088131920×1440 1.7 MB

1000008812
10000088121920×1440 1.7 MB

5 Likes
46

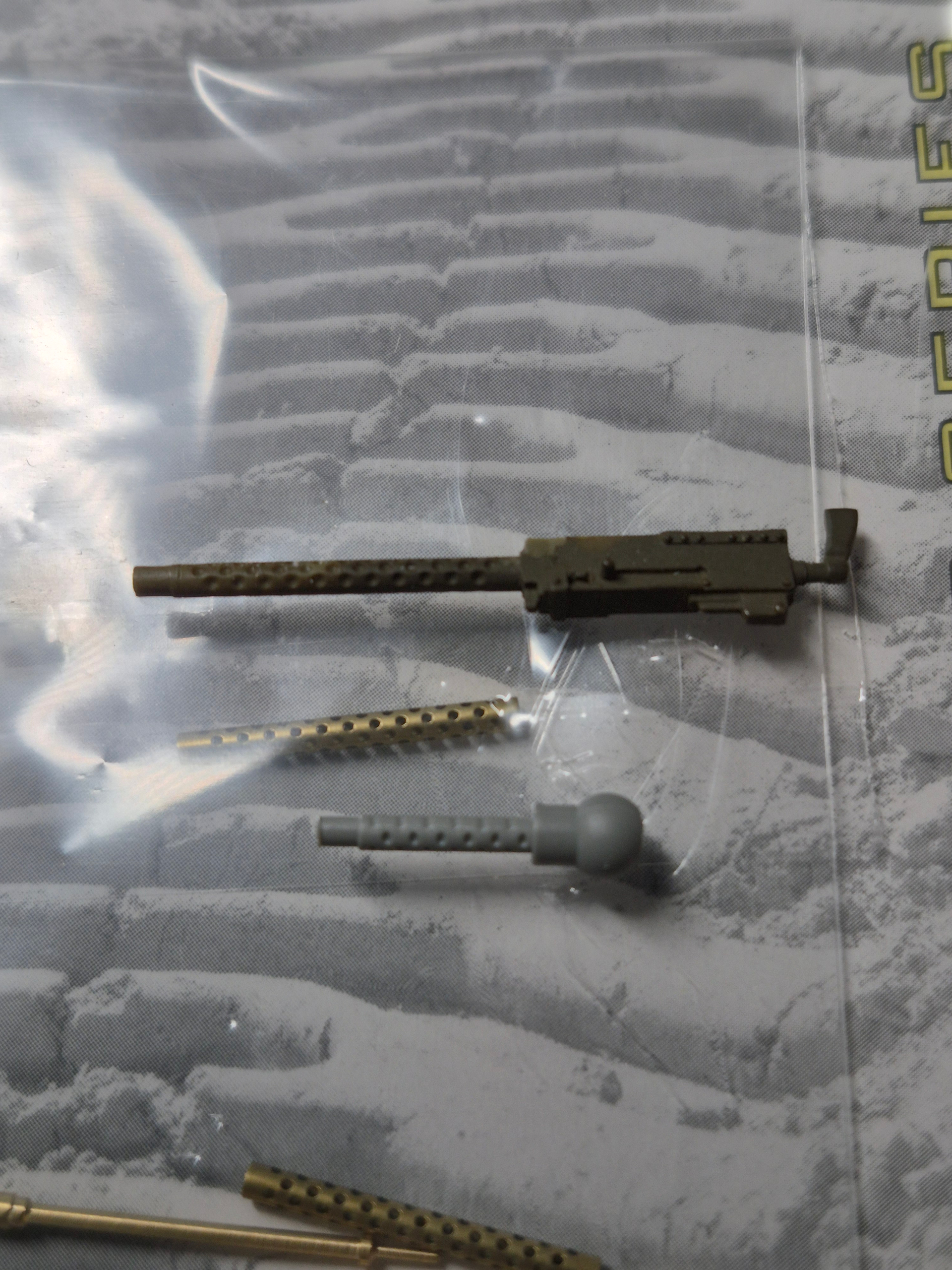

Takom’s .30 cal is a bit thick to me and I found some Master barrels that I’ll use instead.

1000008815
10000088151920×2560 3.07 MB

4 Likes
47

Hey Dan, looks like I my mold box can serve double duty for my Tamiya liquid cement.

image1080×1024 200 KB

3 Likes
48

Yes it can! You can glue it and paint it too!

1 Like
49

I’ll look at it over the weekend - first I have to find where the CAD file went.

2 Likes
50

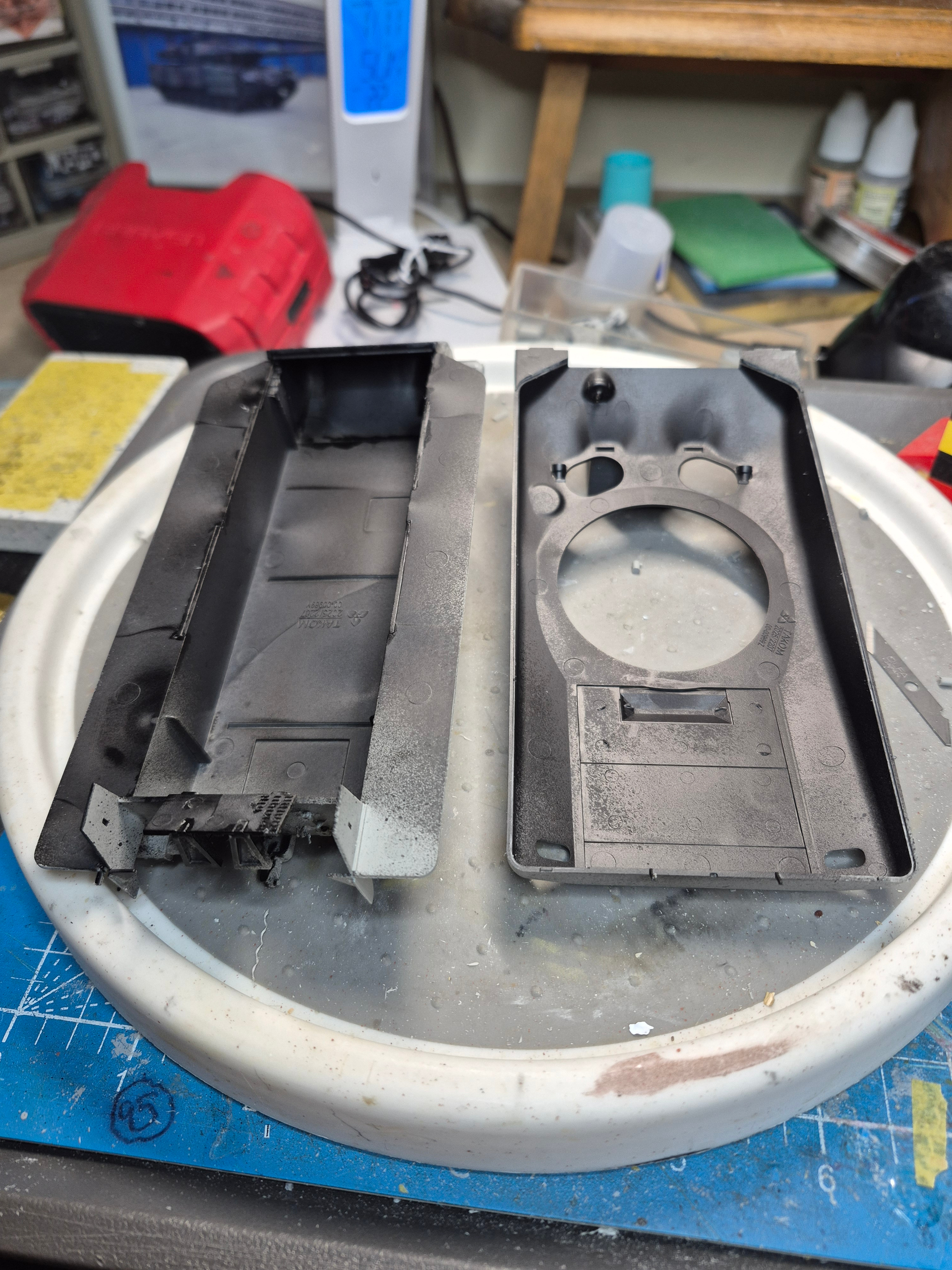

Spray painted the interior black. So exciting.

1000008816
10000088161920×2560 3.57 MB

6 Likes
51

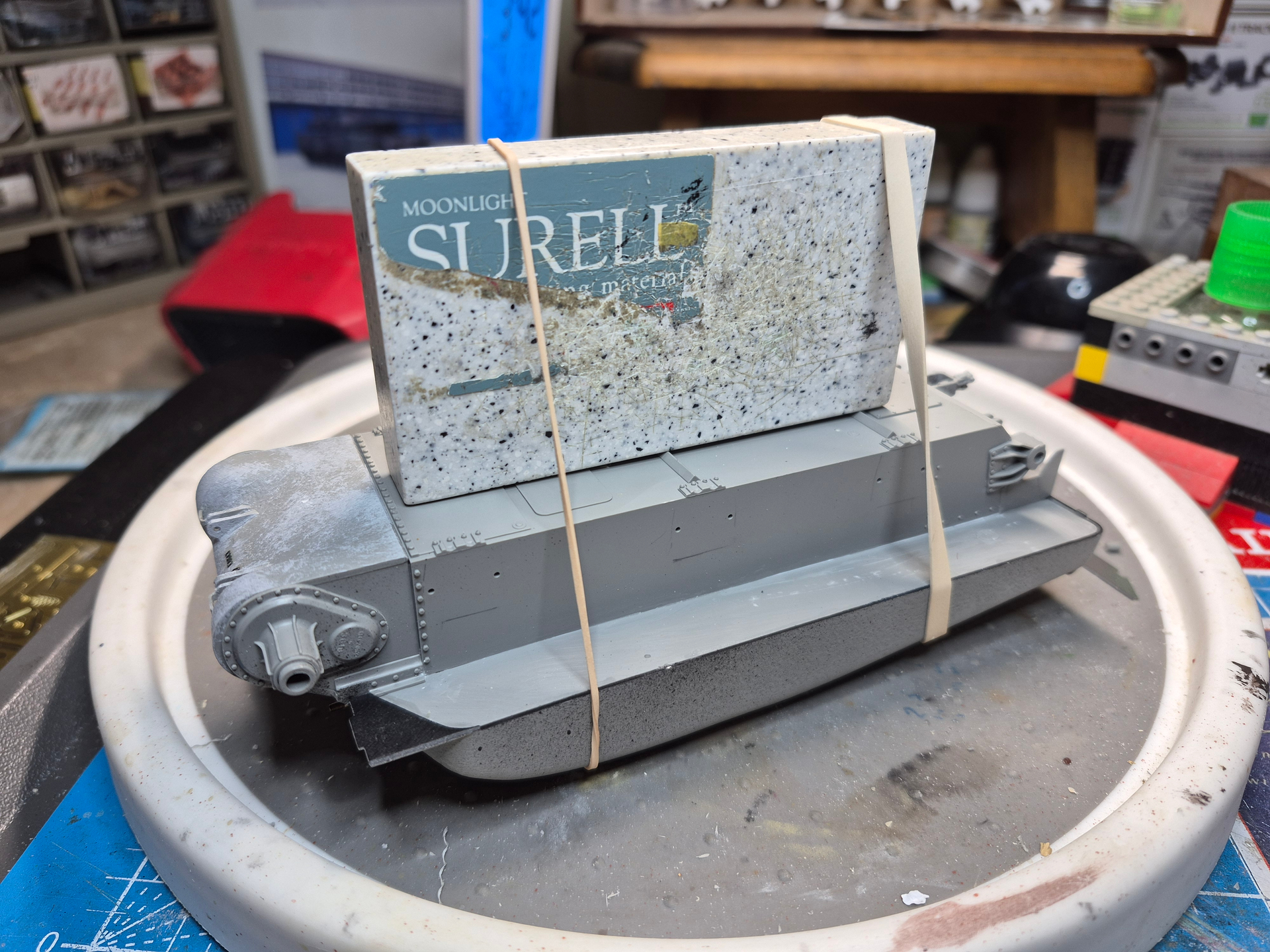

The hulls snapped together with no problems. :ok_hand:

1000008817
10000088171920×1440 2.02 MB

1000008818
10000088181920×1440 2.09 MB

7 Likes
52

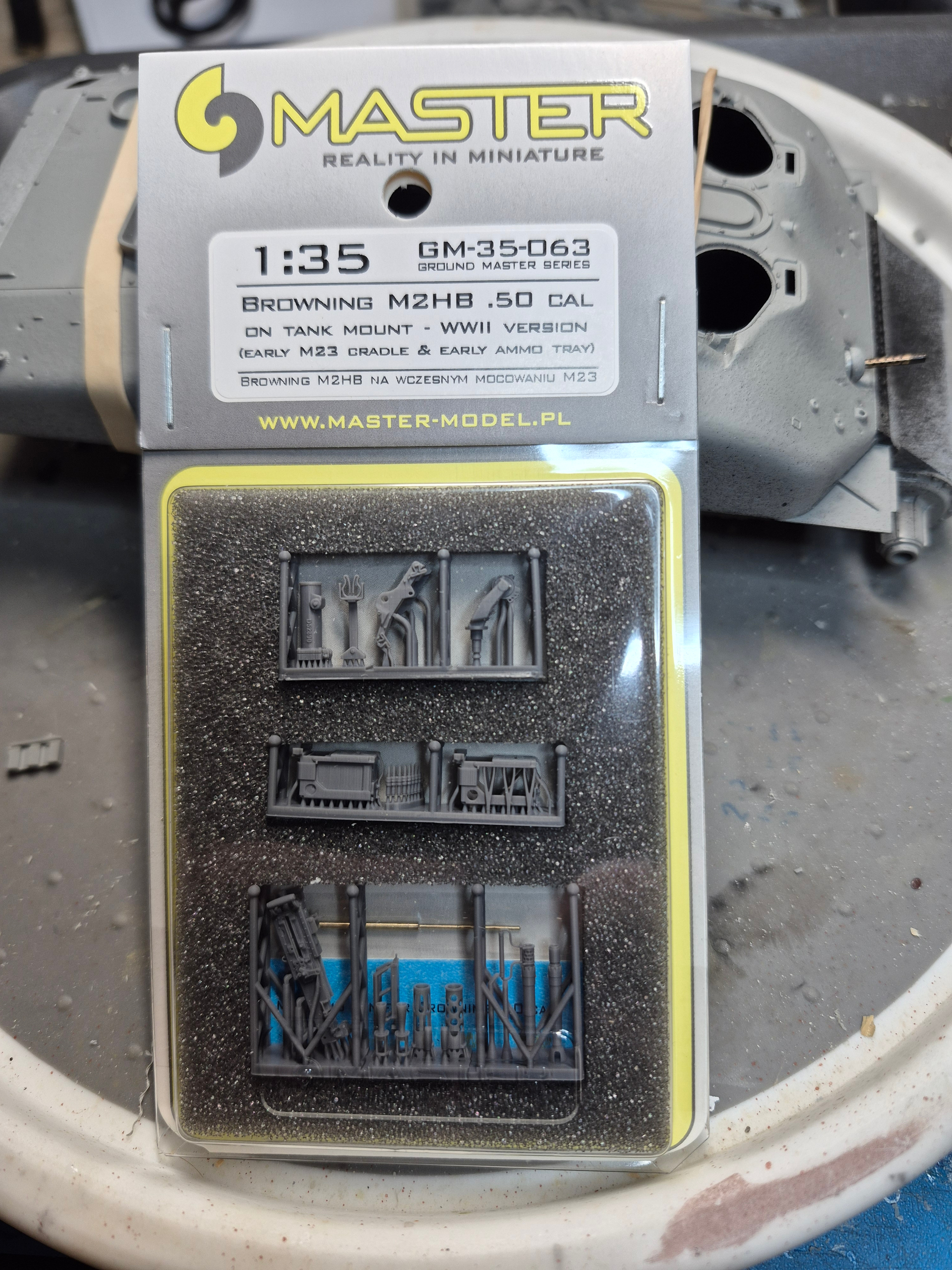

Goodies have arrived.

1000008828
10000088281920×2560 3.59 MB

9 Likes
53

@Dan

It’s looking really good :+1:. I’ve heard Takom kits react funny to Tamiya extra thin. What kind of cement are you using?

1 Like
54

Thank you. Im using that glue and am having good luck with it and have not noticed any problems.

5 Likes
55

Yeah, the handful of Takom kits I’ve built were all fine with Tamiya, both the light-green and dark green caps.

2 Likes
56

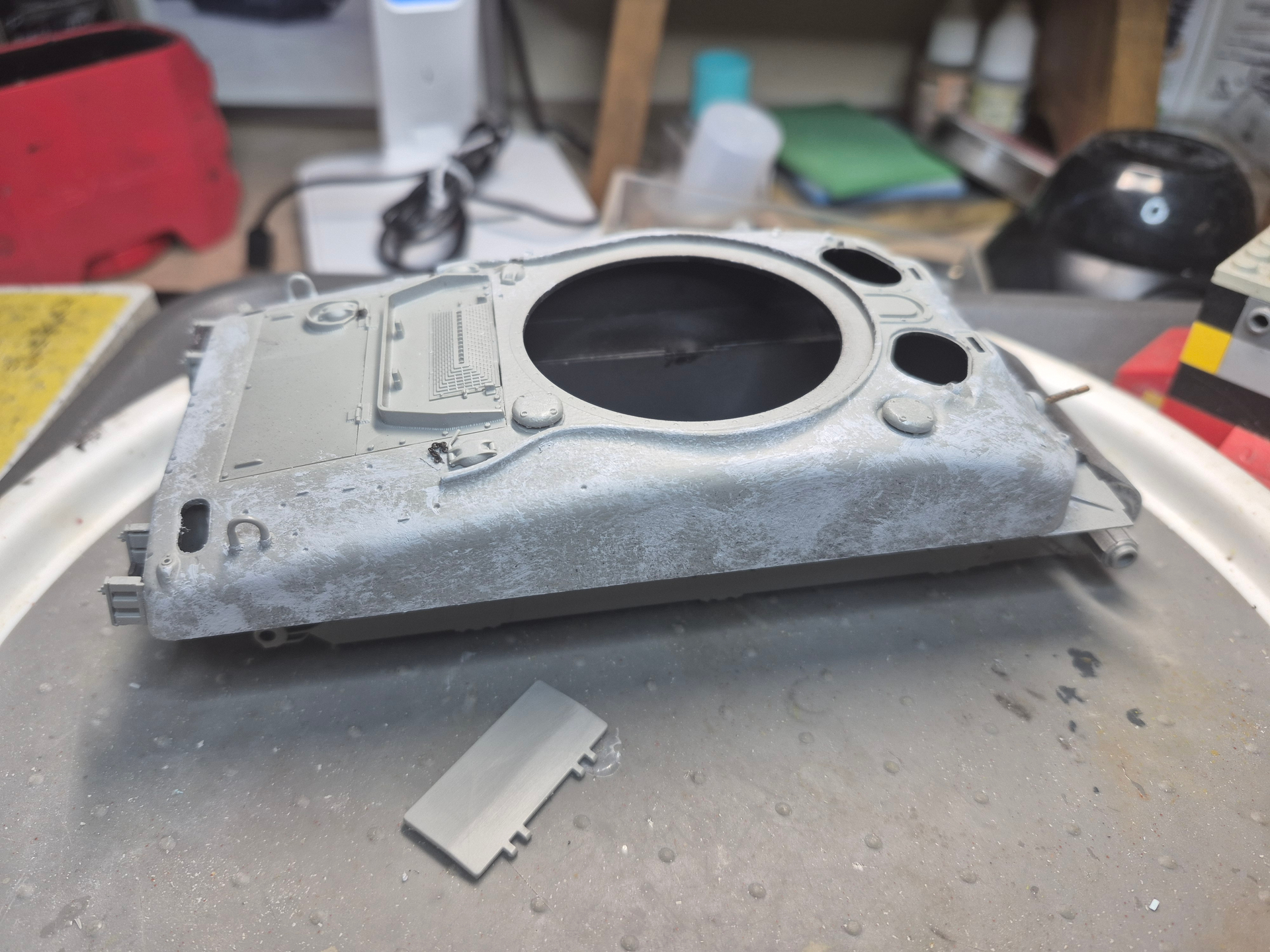

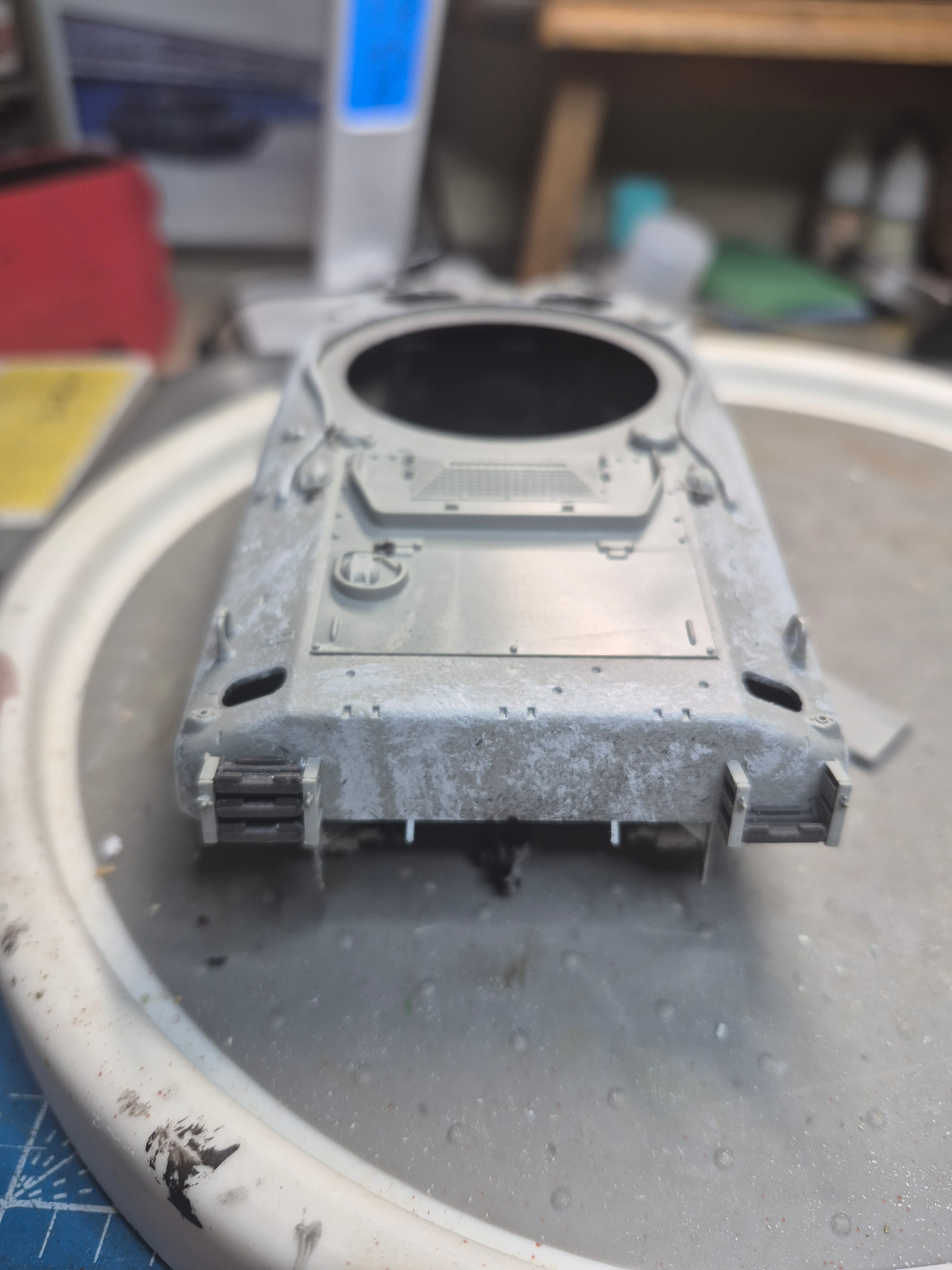

Some more hull detail added. More to be added next.

1000008831
10000088311920×2560 2.69 MB

1000008829
10000088291920×1440 1.68 MB

1000008830
10000088301920×1440 1.73 MB

7 Likes
57

You are building the WW2 tank in the black and white image? The one with the T-49 tracks and the sandbag armor with the muzzle brake?

1 Like
58

I hope to.

2 Likes
59

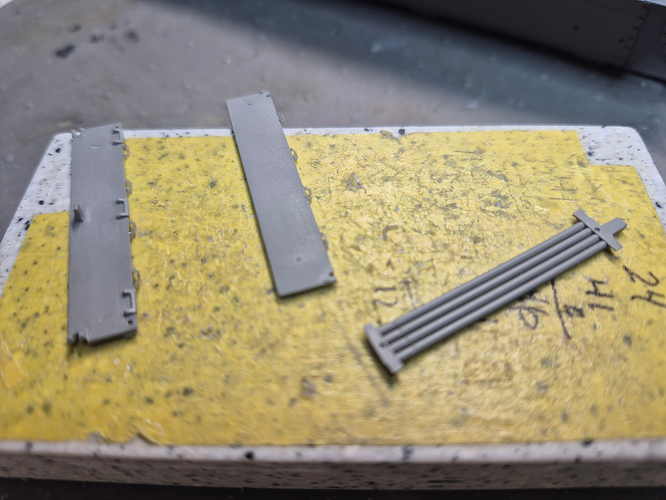

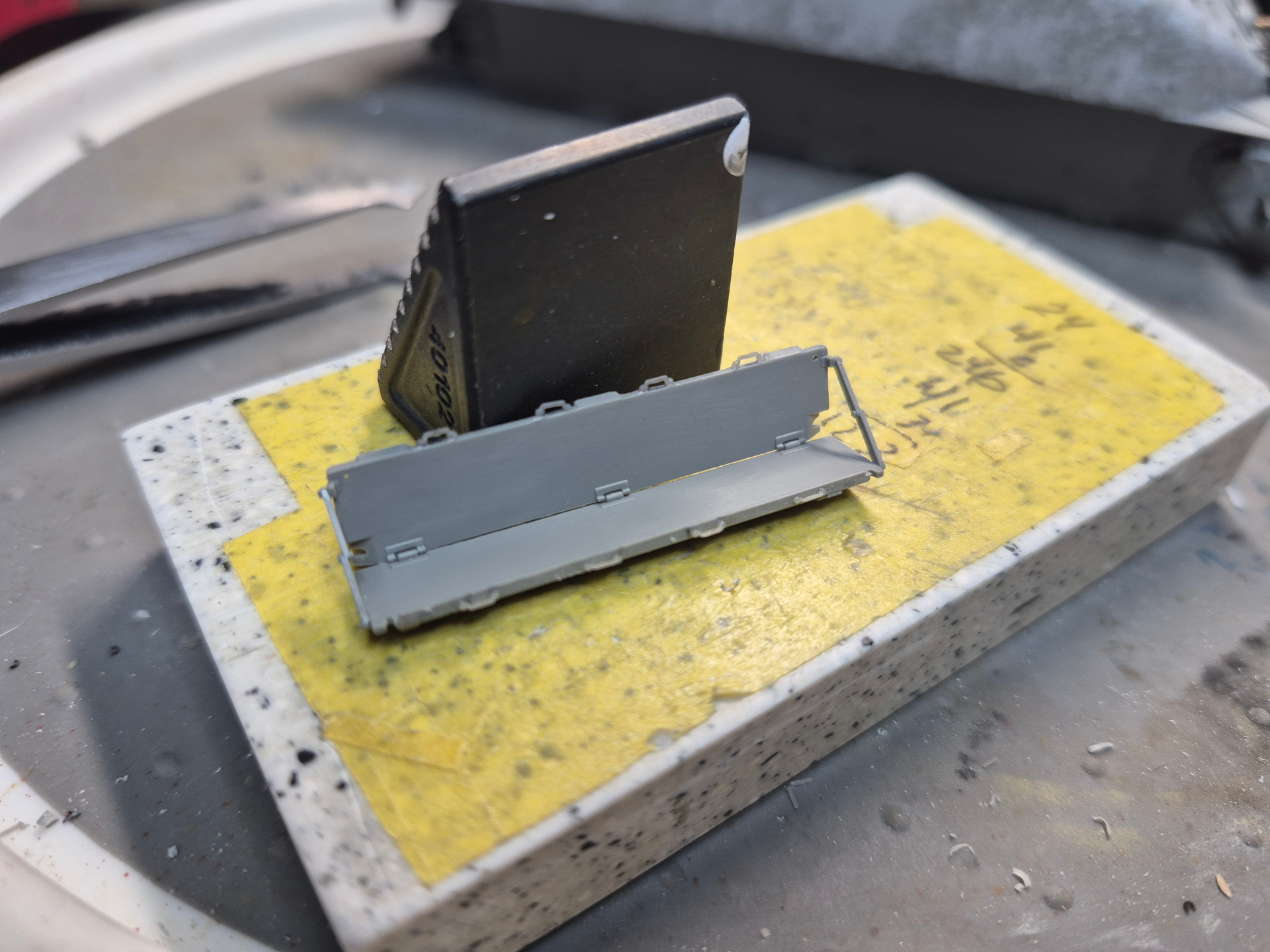

Blanket rack done with some fragile 3D footmen loops added.

1000008850
10000088501920×1440 1.7 MB

1000008848
10000088481920×1440 1.83 MB

6 Likes
60

@Dan

I could get behind using some 3D printed detail stuff, are you able to glue those with extra thin or do you have to use CA for those loops?

Those look really good and they add a lot to that stowage rack.

1 Like
