As we reported in a previous message, it will not be possible to develop the Mirage IV in 2026 for reasons beyond our control.

We intend to develop a 1/32 scale MIG-25 instead.

What is in development, and in this case finally in the process of completion, are the J-58 engines in 1/23 scale for the Black Bird SR-71. This limited series, sold out in its entirety, required a year of work to achieve the cleanliness and results we were looking for.

We provide the latest photograph taken this Tuesday with the seventh and final support system, hand-made by us, which this time has succeeded, save for a few minor correctable details, in printing this enormous 17-centimeter-long compressor, intact with all the pipes in a single piece and with a unique cleanliness. As has been extracted from the printer after removing the supports and WITHOUT SANDING ANYTHING.

It’s important to note that we never send our pieces to customers with supports. It’s normal, even though we know our models well, to break some exceptionally fine details when removing these supports. That’s why we prefer to cover this possibility ourselves and deliver the model to our customers 100% breakage-free.

Of course, this requires exceptional work time on models like this. But we’ve always worked this way.

Once we ship these engines, including the 1/32 scale version orders that have also been sold, we will move on to the other engine held back by orders for this project.

The J79 GE3 for the F-104A, F-104B, and which could be used for the NF-104A. Although technically the NASA F-104A used the 3B, the 3 is certainly almost identical to the 3B.

Development of this engine was halted a year ago due to a lack of detailed documentation.

It’s possible we’ll do some detailing for some of the aircraft we’ve already worked on.

But what’s certain is that we’re turning our attention to new super-detailed 1/32 scale F-8E Crusader projects from Trumpeter. This aircraft has always been a beauty due to its strange, ramshackle shape. And we’re convinced it will be another great success for the quality achieved, just as the exterior details of the Mirage III E were.

This is the route outline. This doesn’t preclude other developments.

Thank you for your support !!

Javier Povedano

Tecnikit

[Tecnikit]

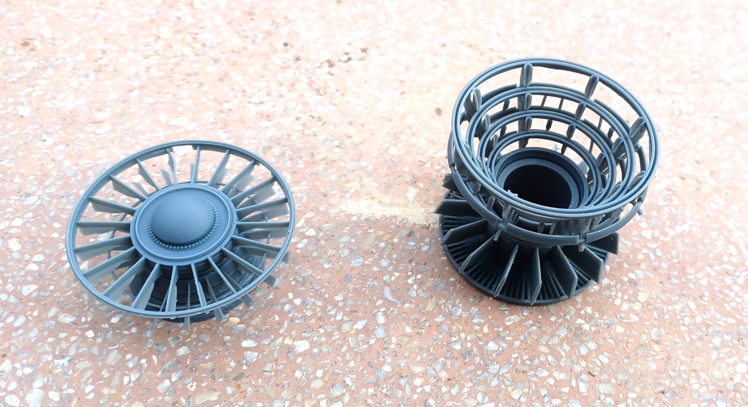

Finally can be seen the end of the road. The printing problems of the injectors, deflector and final part of the turbine inside the afterburner have been printed and corrected ( right of the photograph with a few printing supports and in orange in the 3D design ).

The afterburner body has been divided into 2 parts so the noozle feathers can be painted. Since these are hidden by a final cover.

The final stage of the afterburner assembled. Ten details remain to be addressed after examining it with a magnifying glass. Some of them are painted white to indicate their position. As always, without sanding anything ruining details. The photo shows as is extracted from the printer.

For many, this would go be right to shipping. Not for us. And thank you again to the customers for your patience. It will be rewarded. For us, every day is another day of financial loss. That’s okay. It’s about making the best possible parts, and that takes time.

Javier Povedano

Home

[Tecnikit]

We are showing the final version of the J-58 engine, which is now ready for printing without any further modifications.

As you can see in the bottom image, the 1/23 scale the afterburner has had to be divided into 3 parts, not 2 as shown in a previous image in this thread. This was done to achieve the best possible quality in each section by minimizing the number of contact points for the print columns.

In total, the engine will consist of 10 parts, 7 of which are shown in this image. This is in addition to the 4 hydraulic piston shafts for the nozzle panels, which are made of brass.

The 1/32 scale version will not require as many parts.

From here, the final printing for shipping begins. We remind you that with the new changes, each 1/23 scale engine requires approximately 40 hours of printing time. And due to their size, they cannot be printed in batches.

Once again, a huge thank you to all the customers who have ordered this motor. First, for supporting us with your orders. And second, for your immense and exemplary patience.

Javier Povedano

Home

[Tecnikit]

Here are the first parts already printed in series.

You can see the quality of each part fresh from the printer. With surfaces free of skipping layers. All clean of supports but most still need to be thoroughly cleaned and fitted into their counterparts to ensure a perfect fit.

The design system of building our own printing columns is a complete success. Printing the parts almost in mid-air with minimal pressure on the weakest parts. We continue printing. Take it easy. We are in the final step but the minimum print cycles are 15 hours to obtain 4 parts.

Meanwhile… designing the first F-8 parts.

Javier Povedano
