1/144 Fletcher Class Destroyer: USS Hoel (DD-533) 1944

Hey Everyone,

Long time no visits or posts - Apologies, between life, a new job that had me on the road a lot my time has been limited. That and the fact that my building mojo has significantly slowed. The 1/350 Hasegawa IJN Submarine Deport Ship Heian Maru is still in dry dock - but something struck my fancy about a month ago - something that I have had in the stack for a while but just didn’t have the opportunity or the drive to build - that has now changed - so I give you the opening rounds to my build log for the Revell 1/144 Fletcher Class Destroyer kit.

It is the basic kit, not lucky enough o have gotten the premium, but that is ok.

As indicated in the title for the log, I am building her as the USS Hoel DD-533 at the time she was sunk during the Battle of Samar, October 1944.

Since latching onto this idea and cracking open the box I have received a significant number of upgrades and 3d printed items. I will provide a more detailed list and pictures in a follow on post. But suffice it to say that it will take a bit of engineering and patience to build this kit to accurately reflect the USS Hoel.

I have order and am using plans from The Floating Drydock - specifically those plans for the USS Johnston, USS Sullivans and the USS McCord. The only drawback to the USS Sullivans and the USS McCord plans is that they are based on the 1945 refit. That is fine really as I am jus trying to get the hull and the deck squared up at this point.

Well I figured I would finally return to the fold and with what I hope is an exciting build.

Off for now but will update as soon as I can - the next post will highlight the history of the USS Hoel and then after that the parts and detail sets .

thanks for stopping in.

9 Likes

Looking forward to watching your progress.

Looking forward to the build as well. I have the kit and want to build one of the Fletcher class destroyers at Samar as well.

Hey Everyone,

USS HOEL DD-533

USS Hoel (DD-533) was a Fletcher-class destroyer built for the United States Navy during World War II. She was named after Lieutenant Commander William R. Hoel. Commissioned in 1943, she was sunk in the Battle off Samar during the Battle of Leyte Gulf on 25 October 1944.

Design and characteristics

[edit]

The Fletcher-class destroyers were designed, beginning in October 1939, to be large enough to adequately carry the armament of the preceding Gleaves-class destroyers.[1][2] From January 1940 to the end of World War II, 175 Fletcher-class destroyers were built.[3]

As a Fletcher-class, Hoel displaced 2,100 long tons (2,134 t) under her standard load and 2,544 long tons (2,585 t) at full load.[4] She had an overall length of 376 feet 6 inches (114.76 m), with a draft of 13 feet 6 inches (4.11 m) and beam of 39 feet 4 inches (11.99 m).[5] She was powered by two General Electric steam turbines and four Babcock & Wilcox boilers, which produced 60,000 shaft horsepower (45,000 kW) and a top speed of 38 knots (70 km/h; 44 mph). With a fuel capacity of 492 short tons (446 t) of fuel oil, Hoel had a range of 6,500 nautical miles (12,000 km; 7,500 mi) at 15 knots (28 km/h; 17 mph). She was crewed by 273 enlisted men and officers.[6]

Hoel 's armor measured 0.75 inches (19 mm) thick on its sides and 0.5 inches (13 mm) on the deck over its machinery. Her primary armament consisted of a main battery of five dual-purpose 5 in (127 mm)/38 cal. guns, guided by a Mark 37 Gun Fire Control System, ten 21 in (530 mm) torpedo tubes guided by a Mark 27 Torpedo Fire Control System, and six depth charge projectors with two tracks guided by a Mark 27 Depth Charge Fire Control System. Her anti-aircraft battery was made up by ten 40 mm (1.6 in) Bofors guns and seven 20 mm (0.79 in) Oerlikon cannons, each guided by a Mark 51 Fire Control System. She was equipped with a QC series sonar.[7]

Construction and service history

[edit]

Hoel was launched on 19 December 1942 by the Bethlehem Steel Co., San Francisco, California, sponsored by Mrs. Charles Bunker Crane, Jr., granddaughter of the namesake; and commissioned on 29 July 1943.

Hoel sailed from San Francisco Bay 16 August 1943 for shakedown training in operating areas out of San Diego during which she made seven depth charge runs on an underwater sound contact with unknown results. After returning to Mare Island Naval Shipyard 17 September 1943 for final alterations, she cleared San Francisco 26 October 1943 as a part of the screen for a convoy which reached Pearl Harbor 31 October 1943 where Hoel reported to Captain Albert George (A. G.) Cook, Commander of Destroyer Squadron 47 (DesRon 47), who then shifted his flag to her from Heermann.

Fifth Fleet, which was then preparing to take the Gilbert Islands in Operation Galvanic, assigned Hoel to Rear Admiral Kelly Turner’s Northern attack force Task Force 52 (TF 52). She joined Morris, Franks, and Hughes and Revenge in guarding Air Support Group 52.3 composed of the escort carriers Liscome Bay, Coral Sea, and Corregidor.

Hoel sortied from Pearl Harbor with her group 10 November 1943 and guarded her “baby flattops” as their aircraft pounded Makin in a dawn preinvasion attack 20 November 1943. For the next three days, torpedo bombers and fighters from Air Support Group 52.3 supported Major General Ralph C. Smith’s 27th Infantry Division as it struggled to take Makin. Thousands of bombs and countless rounds from the guns on these aircraft smashed Japanese troop concentrations, gun emplacements, and shore installations on the island. Before dawn 24 November 1943, a torpedo fired by Japanese submarine I-175 struck Liscome Bay amidships and lookouts on the fantail of Coral Sea spotted the wake of a second torpedo which barely missed their ship. Bluejackets on board Hoel saw smoke and flame rise at least a 1,000 feet (300 m) when the torpedo ripped into Liscome Bay and detonated her bomb magazine. Rear Admiral Henry M. Mullinnix, commander of the Air Support Group, Captain Irving D. Wiltsie and 642 officers and men died with the carrier that sank some 23 minutes later after spewing smoke, flame and redhot aircraft parts for miles around. The groups destroyers rescued 272 survivors. At dusk the following day, 25 November 1943, Japanese aircraft spotted Rear Admiral Turner’s task force steaming a few miles off Butaritari Island and dropped both float and parachute flares on each side of his ships to light them up as targets for 13 torpedo bombers which swooped in to attack. Spirited gunnery and well-timed radical simultaneous turns, however, enabled the American vessels to escape without suffering a single hit.

When the escort carriers cleared the area at night 27 November 1943, Hoel joined the screen protecting Abemama Group l which was unloading on Abemama Island. The next morning, Hoel joined Rear Admiral Turner’s task force and arrived off Tarawa 1 December 1943 for antisubmarine patrol five miles (8 km) off the lagoon entrance. Two days later she joined the escort for Tennessee and a group of transports sailing for Pearl Harbor where they arrived 11 December 1943. Captain A. G. Cook, commander of Destroyer Squadron 47 shifted his flag from Hoel to McCord 14 December 1943.

Hoel with fleet units of the 5th Amphibious Force, began intensive training for the invasion of the Marshall Islands. Departed Pearl Harbor 21 January 1944 with the transport screen of Reserve Force, Task Group 51.1 (TG 51.1) which steamed east of Kwajalein while Rear Admiral Turner’s Joint Expeditionary Force landed on that atoll 31 January 1944. Hoel escorted the group’s transports into Kwajalein Lagoon 2 February 1944, and the following day took station as a radar picket patrol ship south of Kwajalein where she was on call for gunfire support. On 6 February 1944, she accompanied Miller on a tour of inspection in the Roi-Namur area for Admiral Chester Nimitz.

When Task Forces 51 and 53 dissolved and their ships reverted to Task Force 51, Hoel was assigned to Fire Support Section 3, Task Unit 51.17.3 (TU 51.17.3) of the Eniwetok Expeditionary Group. In the early morning darkness of 17 February 1944, Hoel reentered Eniwetok Lagoon with Portland to bombard Parry and Japtan Islands. Hoel picked up several aviators from a wrecked scout aircraft from Indianapolis and returned them to their ship. That afternoon Hoel 's guns destroyed several small craft on the beach of Parry Island and fired on pillboxes and troop concentrations inland. She then anchored in standby position while the rest of the force bombarded the two islands. The next day, Hoel took her turn at providing harassing fire and at night illuminated the beaches and the reef to prevent enemy troop movements. Just before daybreak 19 February 1944, she took station off Eniwetok for close fire support of the initial landings. When relieved by Phelps on 21 February 1944, Hoel steamed to a position off the deep entrance to Eniwetok Lagoon for patrol duty which continued until 26 February 1944, when she embarked a fighter director team from Hazelwood and assumed duties of standby fighter director for the Eniwetok area. On 4 March 1944, 2 days later after the attack and occupation phase of Eniwetok was completed, the fighter-director team was transferred to Cambria, freeing Hoel to depart for Majuro for repairs.

Hoel, in company with three other destroyers of DesRon 47 reported to Commander 3d Fleet at Purvis Bay, Florida Island, 18 March 1944. The next day she cleared that port to join Task Force 39, but 20 March 1944 she was ordered to change course for Emirau Island which was then being occupied by marines. On 25 March 1944, Trathen and Johnston joined Hoel and the rest of DesRon 47 uniting the squadron for the first time.

Hoel then patrolled south and east of Cape Botiangen, New Hanover Island, where her guns destroyed an enemy warehouse 26 March 1944, and, the next day, captured documents which contained valuable information from a 4-foot (1.2 m) outrigger canoe. That night she made four depth charge runs on an underwater sound contact with unknown results. She returned to Purvis Bay on 8 April 1944 to screen a convoy carrying troops and supplies to Emirau Island.

Upon her return to Purvis Bay 14 April 1944, Hoel reported for duty to Rear Admiral Robert W. Hayler, the commander of Cruiser Division 12 who kept her busy with training exercises and convoy duty until 14 August 1944, when she was assigned to the 3d Amphibious Force then preparing for the invasion of the Palaus. She joined Kitkun Bay at Espiritu Santo 24 August 1944, for passage to Purvis Bay. On 8 September 1944 they put to sea for the Palau Islands with Rear Admiral W. D. Sample’s escort carrier task force unit to provide air support during the invasion of Peleliu. While continuing to screen the escort carriers, she rescued a pilot and passenger from an aircraft that had gone into the sea on attempting to take off from Ommaney Bay and transferred them to Marcus Island. On 1 October 1944, Hoel made three depth charge runs on an underwater sound contact with unknown results.

Taffy 3

[edit]

After replenishing at Seeadler Harbor of Manus, Admiralty Islands, Hoel cleared that base with a fire support group 12 October 1944 to join Rear Admiral Thomas L. Sprague’s escort carrier group (Task Group 77.4) in invading the Philippines. Sprague’s force was composed of three units, each comprising a group of escort carriers and a screen of destroyers and destroyer escorts. These units, known by their radio calls as the “Three Taffys”, began operating off Samar 18 October 1944 to cover the landings on Leyte. Hoel was attached to “Taffy 3” (Escort Carrier Task Unit 77.4.3) commanded by Rear Admiral Clifton A. F. Sprague and comprising four escort carriers guarded by destroyers Hoel, Heermann, and Johnston. Before the Battle off Samar, “Taffy 3” was reinforced by the arrival of Admiral Ralph A. Ofstie with two more escort carriers and Dennis, John C. Butler, Raymond, and Samuel B. Roberts.

Main article: Battle off Samar

Dawn of 25 October 1944 found “Taffy 3” steaming northeast of Samar operating as the Northern Air Support Group. “Taffy 2” was in the central position patrolling off the entrance to Leyte Gulf, and “Taffy 1” covered the southern approaches to the Gulf some 150 miles (240 km) to the southeast of Hoel 's “Taffy 3”. Rear Admiral Clifton A. F. Sprague was under the erroneous impression that Admiral William Halsey’s 3d Fleet was providing protection to the north and so was taken by surprise when at 06:45 “Taffy 3”'s lookouts observed anti-aircraft fire to the northward and within three minutes were under heavy fire from Vice Admiral Takeo Kurita’s powerful Center Force of 4 battleships, 6 heavy cruisers, 2 light cruisers, and 11 destroyers.

The only chance for survival of the little group of American “Jeep” carriers and “tin cans” lay in running to the east long enough to launch what aircraft could be readied before fleeing to the south hoping that aid would arrive before their complete destruction. While the carriers launched all available aircraft to attack their numerous Japanese adversaries and then formed a rough circle as they turned toward Leyte Gulf, Hoel and her fellow destroyers Johnston and Heermann, worked feverishly to lay down a smoke screen to hide their “baby flattops” from the overwhelmingly superior enemy ships. At 07:06, when a providential rain squall helped to hide his carriers, Admiral Clifton Sprague boldly ordered his destroyers to attack the Japanese with torpedoes. Hoel instantly obeyed this order by heading straight for the nearest enemy battleship, Kongō, then 18,000 yards (16,000 m) away. When she had closed to 14,000 yards (13,000 m) she opened fire as she continued her race toward Kongō 's 14-inch (356 mm) guns. A hit on her bridge which knocked out all voice radio communication did not deflect her from her course toward the enemy until she had launched a half salvo of torpedoes at a range of 9,000 yards (8,200 m). Although Hoel 's torpedoes all failed to strike their target, they caused Kongō to lose ground in her pursuit of the carriers by forcing her to turn sharply left and to continue to move away from her quarry until they had run their course. Minutes later Hoel suffered hits which knocked out three of her guns, stopped her port engine, and deprived her of her Mark-37 fire control director, FD radar, and bridge steering control.

Undaunted, Hoel turned to engage what her crew believed to be a column of enemy heavy cruisers which were actually the battleships Haruna and Yamato. When she had closed to within 6,000 yards (5,500 m) of the leading ship, identified as Haguro but more likely Yamato, or possibly Haruna. As Hoel came closer and closer to the Japanese ships, Yamato fired at Hoel with her 5-inch guns, while Haruna targeted Hoel with her secondary batteries, and Hoel returned fire, getting into a gun duel with the largest and most powerful battleship ever made. Hoel struck Yamato with a 5-inch shell, and it is unclear if Yamato scored any hits, or if Hoel made any hits on Haruna. The destroyer launched a half-salvo of torpedoes which ran “hot, straight and normal.” This time her crew was rewarded by the sight of large columns of water alongside their target, seemingly signifying hits. This observation may have been illusory, as neither Haruna nor Haguro received torpedo damage and explosions may have been near miss bombs from the constant air attacks. Track charts of the battle indicate the most likely target of this attack was actually Kurita’s flagship Yamato, which, alongside torpedoes from the Heerman, was forced to turn north to evade these torpedoes, taking Kurita away from the battle at a critical moment and causing him to lose control of his forces, and forcing the Japanese center force’s most effective warship, Yamato, out of the battle for an extended period of time.

Hoel now found herself crippled and surrounded by enemies. Kongō was only 8,000 yards (7,300 m) off her port beam, and the heavy cruiser column was some 7,000 yards (6,400 m) off her port quarter. To make things worse, battleship Yamato, returning from an evasive maneuver, possibly targeted Hoel with her secondary guns (although it is unclear whether Yamato targeted Hoel or Johnston with her 6.1-inch guns). During the next hour the ship rendered her final service by drawing enemy fire to herself and away from the carriers. In the process of fishtailing and chasing salvos, she peppered them with her two remaining guns. Finally, at 08:30, after withstanding over 40 hits, an 8-inch (203 mm) shell stilled her last working engine. With her engine room under water, her No. 1 magazine ablaze, and the ship listing heavily to port and settling by the stern, Hoel 's captain, Commander Leon S. Kintberger, ordered his crew to “prepare to abandon ship.” The Japanese continued to fire at the doomed ship as her surviving officers and men went over the side and only stopped at 08:55 when Hoel rolled over and sank.

Only 86 of Hoel 's complement survived; 253 officers and men died with their ship, at least 40 of them dying in the water while awaiting rescue. Commander Kintberger described the courageous devotion to duty of the men of the Hoel in a seaman’s epitaph to the action: “Fully cognizant of the inevitable result of engaging such vastly superior forces, these men performed their assigned duties coolly and efficiently until their ship was shot from under them.”

1 Like

Hey all,

So as mentioned in my previous post I am going to list out the references and materials that I will be using for this build.

So for now, the reference:

Not pictured are line plans from the Floating Drydock:

1/48 USS Johnston DD-557 (Profile View) - 1944

1/96 USS Johnston DD-557 (Overhead View) - 1944

1/96 USS Johnston DD-557 (Profile View) - 1944

1/96 USS McCord DD-534 (Overhead View) - 1945

1/96 USS McCord DD-534 (Profile View) - 1945

1/192 USS Sullivans DD-537 (Profile View) - 1945

1/192 USS Sullivans DD-537 (Overhead View) - 1945

With regards to the USS Sullivan and USS McCord, the 1945 outfit does not provide much assistance but it was helpful for the deck and placement of escape scuttles, closed chocks, and other minor details.

Stay tuned, more to come!!

Cool, following along.

I always find that the Hoel tends to be over looked when any body mentions Taffy 3, don’t know why that is as Hoel and her crew put up a tremendous fight just as worthy as the Johnston, Heerman and Samy B.

Here’s my effort from several years ago in 1/350. Trumpeter Sullivans with L’Arsenal resin and PE upgrade set.

2 Likes

I agree, USS Hoel does seem to get forgotten - I am hoping to find another 1/144 Fletcher kit so that I can build the USS Heerman as well - fingers crossed as the kit is not easy to find

Very nice work on your USS Hoel - I tried making the USS Johnston with the Fletcher kit once but it didn’t work out so well…

1 Like

Looks like it will be a cracking build, I will be following along.

Cheers,

Si

Hey all,

First off, it is good to have you all along for the ride -

Second, as mentioned I will begin outlining the additional kits / upgrade items for this build.

I reached out to Black Cat Models and asked if they were able to upscale their items to 1/144. Benjamin, a nice chap, indicated that he could and that after holiday with his family he would print the items and let me know how it worked, well as of today they appear to have all worked and are being shipped tomorrow.

They are:

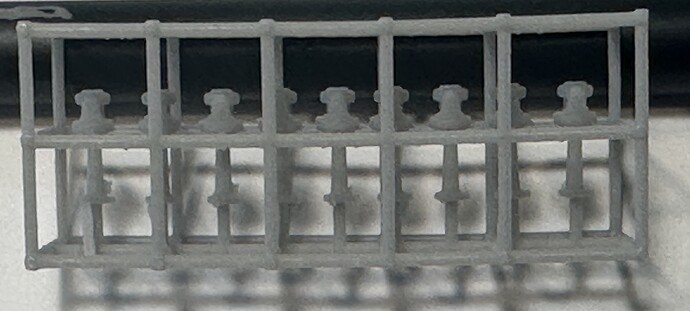

MK 6 Depth Charges and Hand Wheels on pipes and Anchor Chain

36 inch Search Lights for the Searchlight platform located on the forward stack

Deck Hatches. I was just going to use the Eduard Photo Etch but the set doesn’t provide enough round hatch covers for the low profile escape scuttles

Another view of the Hand Wheels and MK6 Depth Charges

Here you can see all the sets and the 5’ MK30 Main guns. I got some open gun platforms so that I could detail the inside and leave the doors open - we will see how that works

Well that is all from Black Cat Models. The next post will have the items from Model Monkey and hopefully soon the part from DiSteffan will arrive.

OK, thanks for stopping in - see you soon.

3 Likes

Hey all,

So here we are again outlining the upgrade / aftermarket items needed for this build.

The below is from Model Monkey, great quality and detail on everything. Apologies for the quality of the photos, not sure what is going on.

Here is the Torpedo Data and Pelorus set

Here is the pilot house and the internal detail of the pilot house.

Square Bridge

Here is the rudder and the forward 40mm Gun Tubs

Deck Boat winch and capstan

Closed Chocks - I broke one of the molded chock but as I was researching the plans I realized that the closed chocks had been adjusted on the square bridge mid 43 Fletchers so I bought these to replace the molded on versions.

And Twin 40mm Bofors from Yao Studios.

I did purchase the midship tubs for the 40mm bofors but realized they were for the 45 refit version so I had to reorder them from Distefano.

Well that is it for now, still have a few more to list but will have to wait until the stuff from Distefano 3d arrives hopefully next week.

Thanks for stopping in

3 Likes

Hey all, I would like to say that this is the final post illustrating all the aftermarket items that will go into this build however, that wish is not to be. I am still awaiting arrival of the 3d printed items from Black Cat and Distefano - once those arrive I will be able to press on.

But for now here we go.

Here are some Oxygen and Acetylene bottles from Model Monkey, forgot about them with the earlier post.

Some Port Hole covers from Tom’s Model Works

Tom’s Model Works Naval Doors

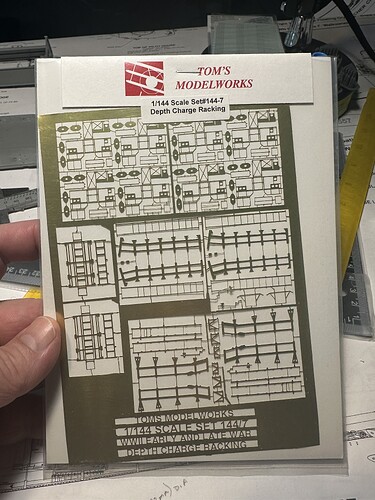

Tom’s Model Works Depth Charge Racks

Eduard’s 1/144 Revell Fletcher Detail set - not sure how much of this I will use but it is good to have on hand.

Some Scale Scenics Micro Mesh - Will come in handy for the vents

Forgot to take a pick but I also have Aber’s Turned Bras Barrels for the 5’inch guns, 20mm and 40mm bofors. Wont use the 40mm as there are only two barrels and I need 10 - haven’t found a supplier for 1/144 scale 40mm barrels by themselves and am not looking to buy 5 sets just for that.

Oh, and it looks like I found a lead on another 144 scale Fletcher, now to decide between the Heerman or the Johnston - decision decisions.

thanks for stopping in - I do promise that I will begin to make progress with the build soon - still working out some approaches.

David

5 Likes

Fantastic build, looking forward to following!

Curious, with all the PE details, how fiddly? The depth charge racks look very fragile to me.

Glad to have you along. The Eduard PE is pretty sturdy, the rest has not been out of the packaging so honestly not sure how fragile. Agree though that it appears pretty thin and fragile

1 Like

As I wait for some additional parts I figure I would add some mystery. So here is a craft project that fingers crossed works out as envisioned.

So far so good, well with the exception of flinging half of the bucket across the room and floor!! Oh the mess to clean!!

ok stay tuned for some more information soon

David

3 Likes

All those extras sure add to the excitement and complexity of the build, this should be an interesting build.

Oh for what it’s worth I vote for the USS Heerman.

1 Like

Luciano, thank you sir. Glad to have you aboard

Appreciate the input regarding USS Heerman!!

Hey all,

Well the first shipment of items from Distefano 3D have arrived. Parts look good.

Here are the MK 6 Depth Charges

The Aft Funnel, unfortunately I wont be able to use this as it is the old version or the round bridge version - the square bridge, specifically the USS Hoel had the updated version that has a pelorus in the center of the platform - need to work this out somehow.

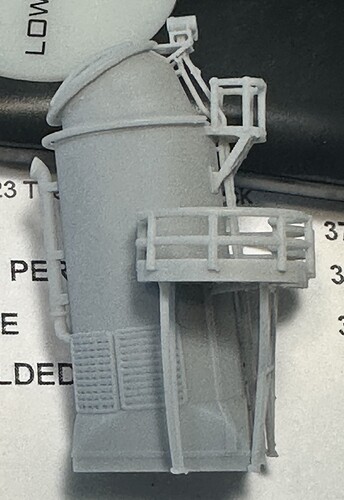

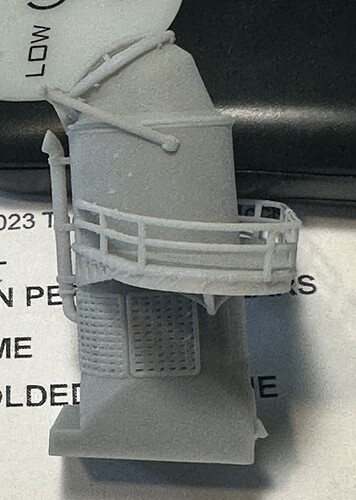

Here is the forward funnel with the searchlight platform - they got it right here but not sure I can interchange the kit parts with the 3d part, might be too obvious so looks like ill be doing some scratch building.

Here are some 12 inch searchlights - a bit wonky but will drill out the front and add clear sprue

Here are some compasses - not sure what i was thinking when I ordered these but oh well

Here we have Sky Lookout chairs - gonna try and remove some of the binoculars but we will see

now here we have the K-Guns, they look great and apparently I bought enough that I can have spare carriers against the bulkhead wall

Last but not least here are the MK51 40mm Gun Directors

Still have another order and then the one from Black Cat - almost there!!

Stay Tuned and thanks for dropping by

3 Likes

Hey all,

Was out of town for work this week so no updates but the good news is that all the 3D printed items have arrived from both Black Cat and Distefano

Also on my way home yesterday I secured another 144 Fletcher but this time it’s the Premium Edition

I’ll get photos of the 3D printed items soon

Stayed tuned and thanks for stopping by

6 Likes

WOW, David, the aftermarket haul on this one is impressive, and all these improvements will add up to an outstanding model, I am sure. I too am building one of the heroic destroyers sunk October 25, 1944 and am looking forward to watching yours progress!

Tim,

Yes sir, I may have gone a bit over board, but I also know my limitations with scratch building, and my skills are very lacking. This might be a good chance to improve those skills - especially since I have secured the second ship so I will be building the USS Heerman 1944 after I finish the USS Hoel. As they were both built at the same shipyard they will be pretty identical.
