3d models of ukranian RCWS\RWS and other stuff

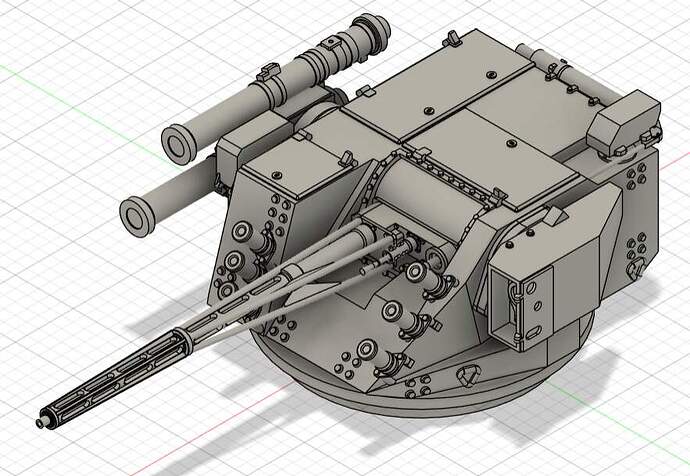

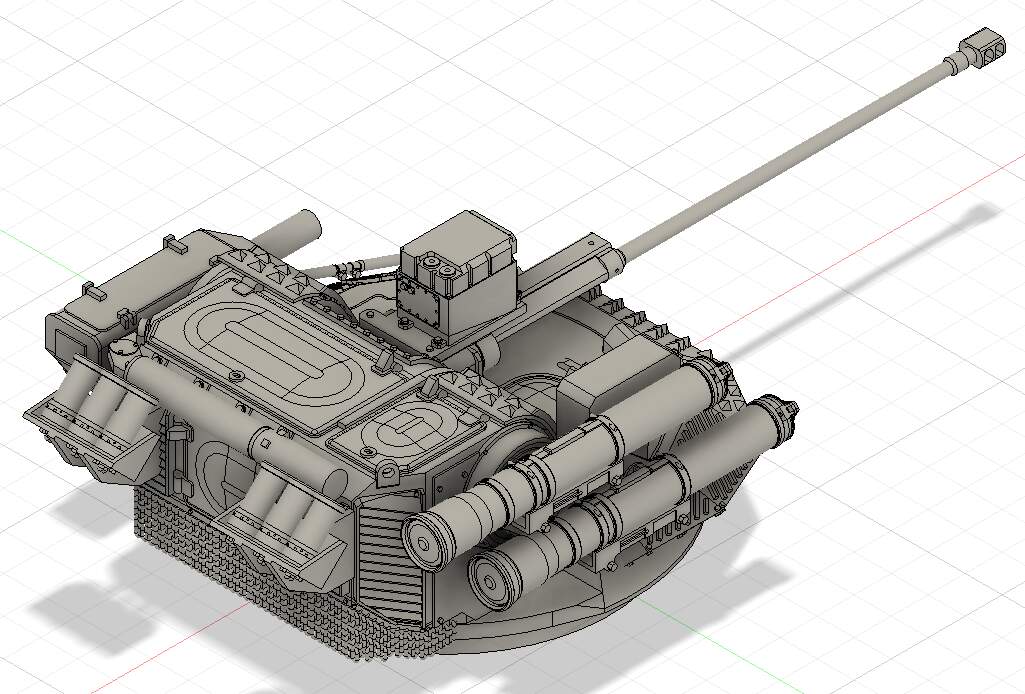

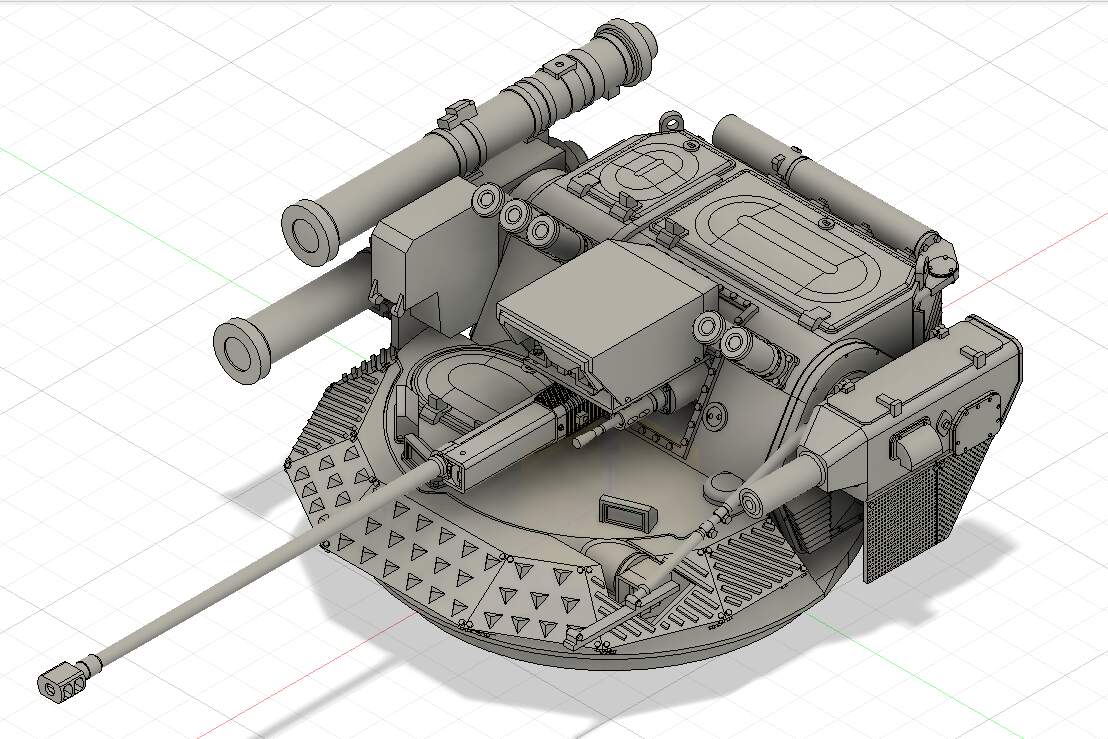

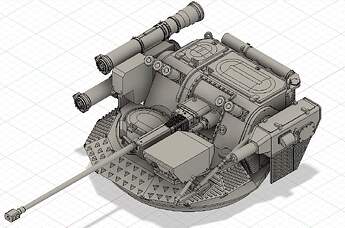

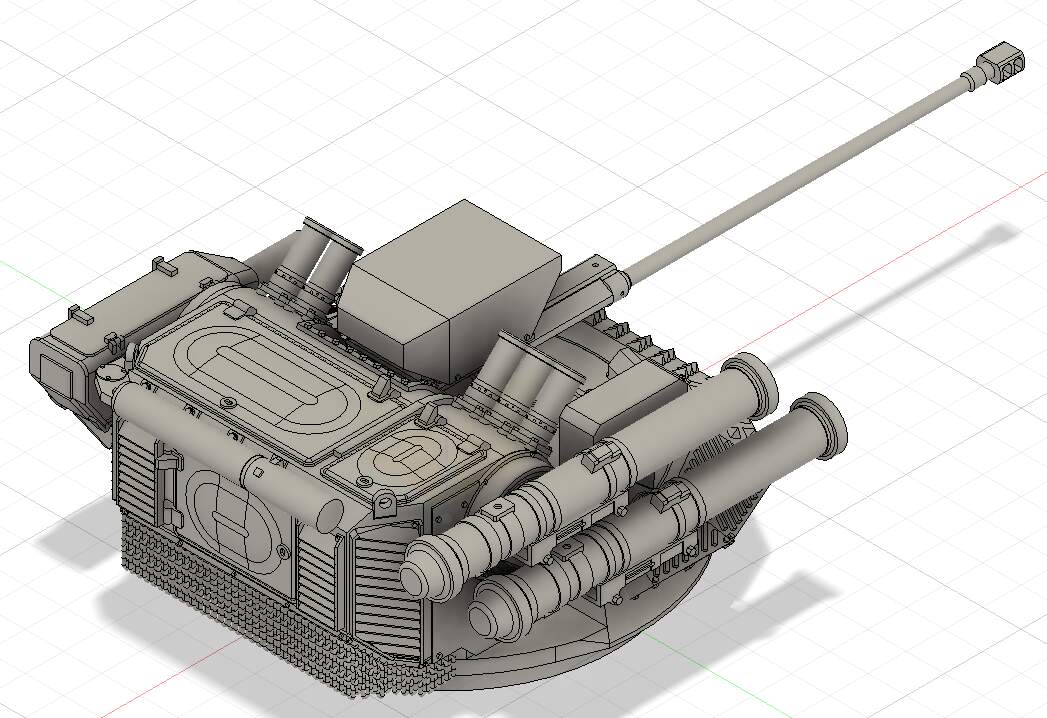

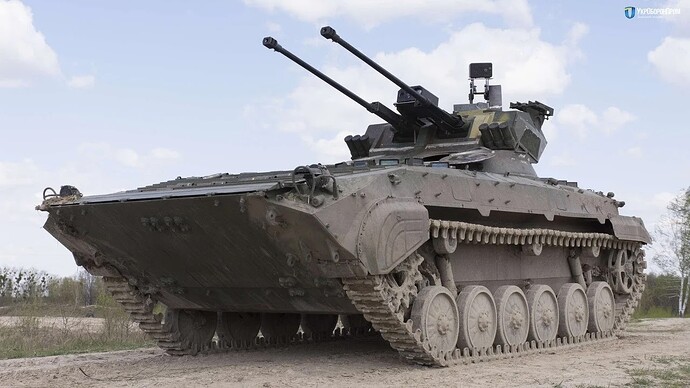

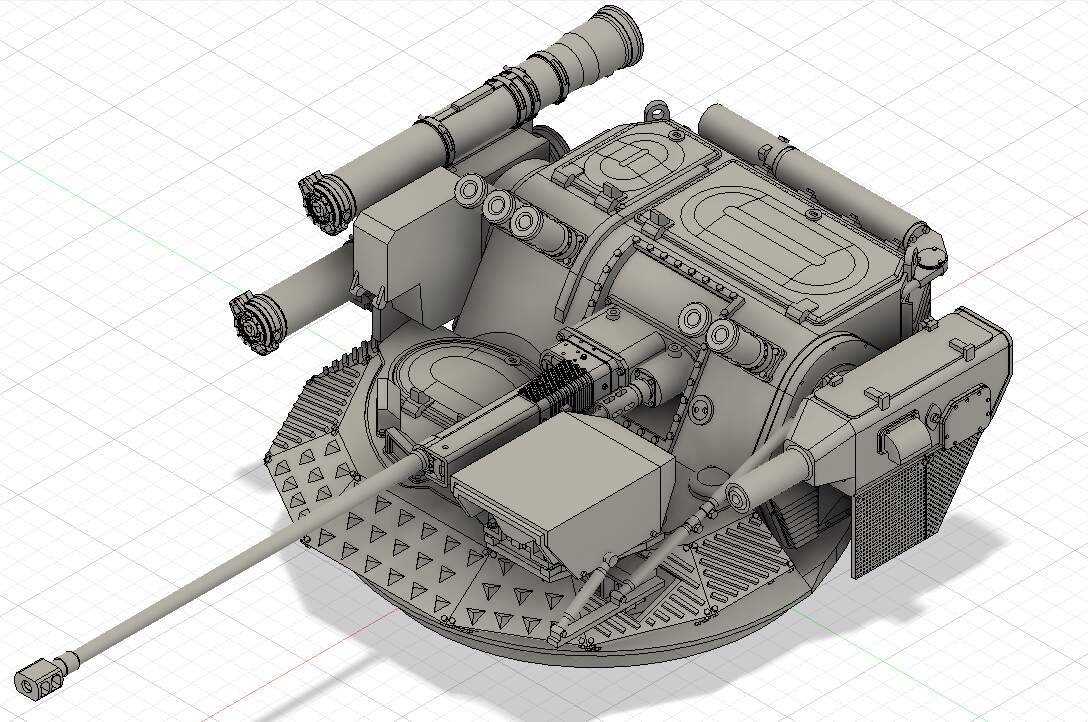

Hello, i`m the beginner on this forum, and i would like to present you my 3D models of RWS\Turrets, first of all for the BMP-1, as well as one for the BMP-2 and T-64BV. I also have plans for ground drones(UGV) and turrets for the M113. Below I will attach several photos of my modules that are already ready - these are BM-3M (BTR-3), BM-7 (BTR-4\60\70 and also BMP-1), “Spys” (BMP-1) and “Sich” (BMP-1, Otaman APC and MRAP Varta-2) and KBA-105 Shkval (BMP-1, BTR-3E, MT-LB). Also currently in work are “Stilet” (BMP-1) and “Duplet” (BMP-2 and T-64BV). They are all presented in several modifications except for “Sich”, since it appeared quite recently.






I will also clarify that all turrets for BMP-1 (and at the moment it is all that are ready except for BM-3M) are made for the trumpeter’s BMP-1 turret’s ring.

11 Likes

I also have plans for conversion kits for the T64BV and maybe the T72M1\A. But after I finish with the ukrainian equipment, I plan to make turret\RWS of NATO countries. I would also like to know if it is possible to attach a link to my profile in Cults here, there are many more 3D and photos for each module and reference photos from which they were made.
I would like to hear your thoughts on my work as well as suggestions on what can be done afterward.

3 Likes

Welcome aboard Nikolay.

1 Like

Welcome! and the look great! :sunglasses:

Cheers Rob.

1 Like

Welcome aboard. You have wonderful skills with CAD. It will be interesting to the photos of the printed parts.

1 Like

Welcome to the site. Your designs look very nice, although I am no expert in modern equipment (to be honest, I’m plainly no expert :smile:)
I think there is no problem linking your cults3D profile here, in case someone wants to get them.

2 Likes

@nik_munt
Welcome Nikolay!

I envy. Your 3D skills and designs. I look forward to seeing these and finding someone to print them here in the US. I’ve recently gotten bitten by the RWS/RCWS bug lately!

2 Likes

Wow, great work!

Do I understand this well… you are willing to sell 3D plans so people can print these themselves?

Cheers,
Mario

2 Likes

Hi, yes there are photos of a couple of my works that were printed, but they were not made by me, as I have not yet got to the point that would print them, although I have already bought BMP-1 and BMP-2 from S-model. I will attach a link to this post.

1 Like

Hi, I’m very pleased to hear that, ok then, I’ll attach the link to this post.

1 Like

Hi, I have been working on my 3d modelling skill for 9 years, started when I was still in high school, very often I would instead of doing my homework make 3d models. So I’ve been working for a long time to achieve this result. And if you want to start in this, I advise you to start with Fusion 360, it is so far the best CAD for beginners. And I have some RCWS in my plans, like the R400 and RS-6 including in a drone-fighting configuration.

2 Likes

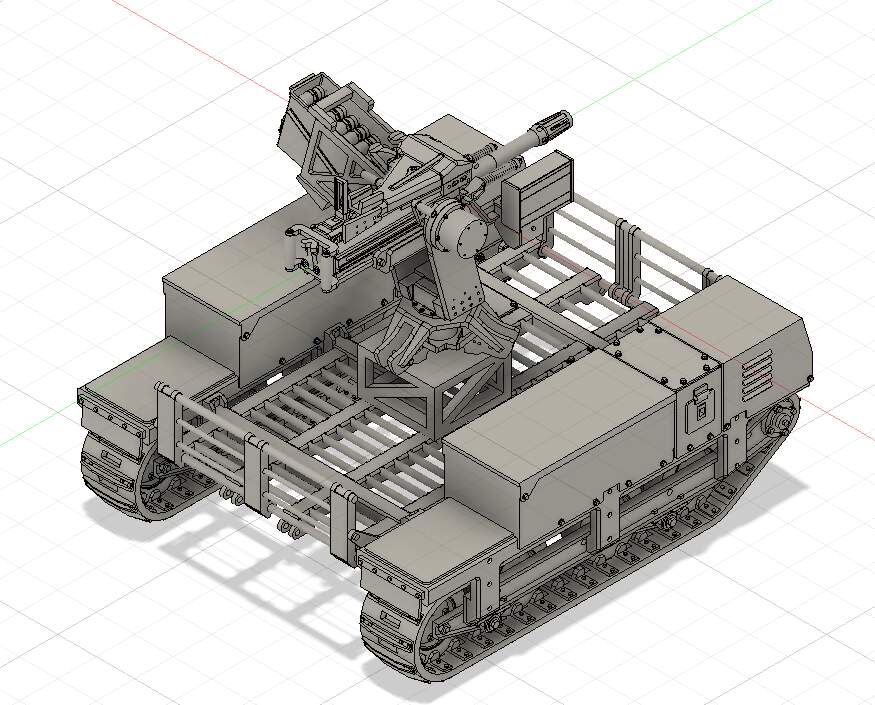

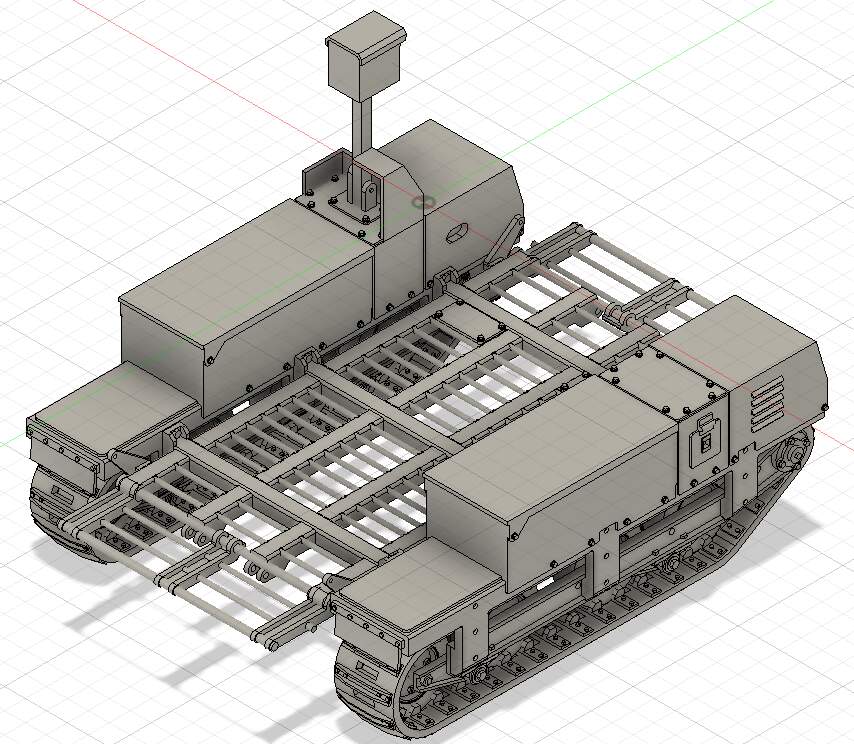

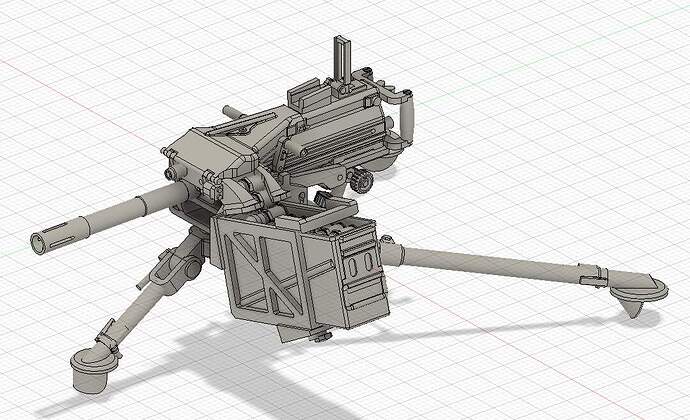

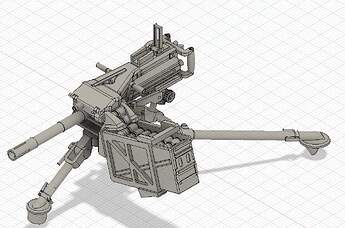

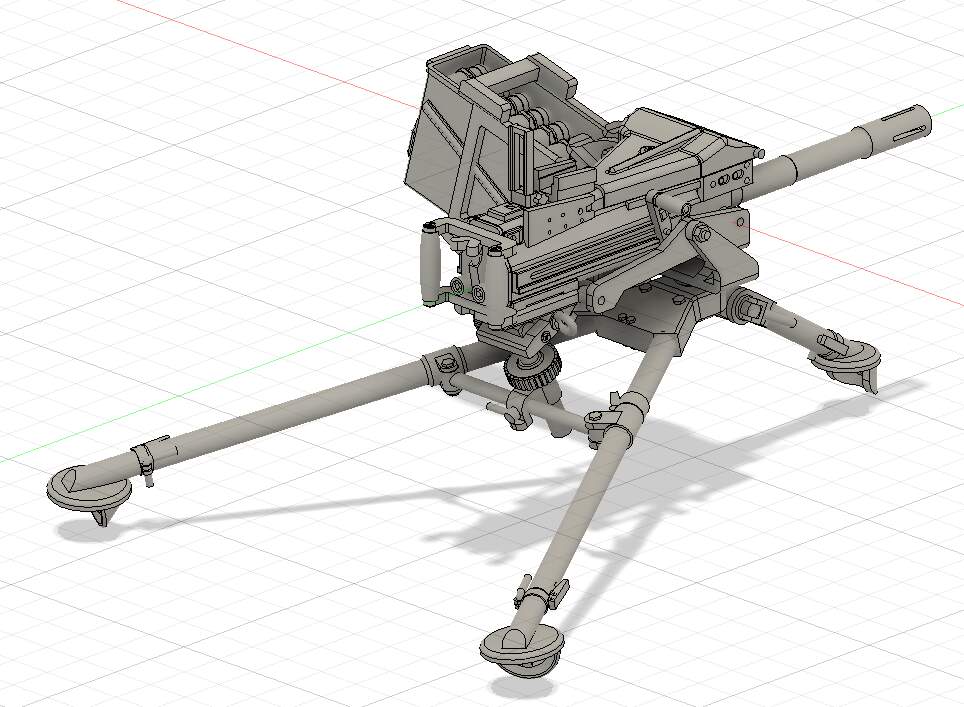

And already in principle it is possible to say that my current projects on which I worked are finished, the first is the MK-19 grenade launcher on the M3 tripod, and on some installation very similar to what is on the HMMWV, then stationary RCWS Burya (Tempest), and the same Tempest, only without legs and installed on the remotely controlled chassis TerMIT (Termite) and Termite without RCWS.



3 Likes




5 Likes





5 Likes

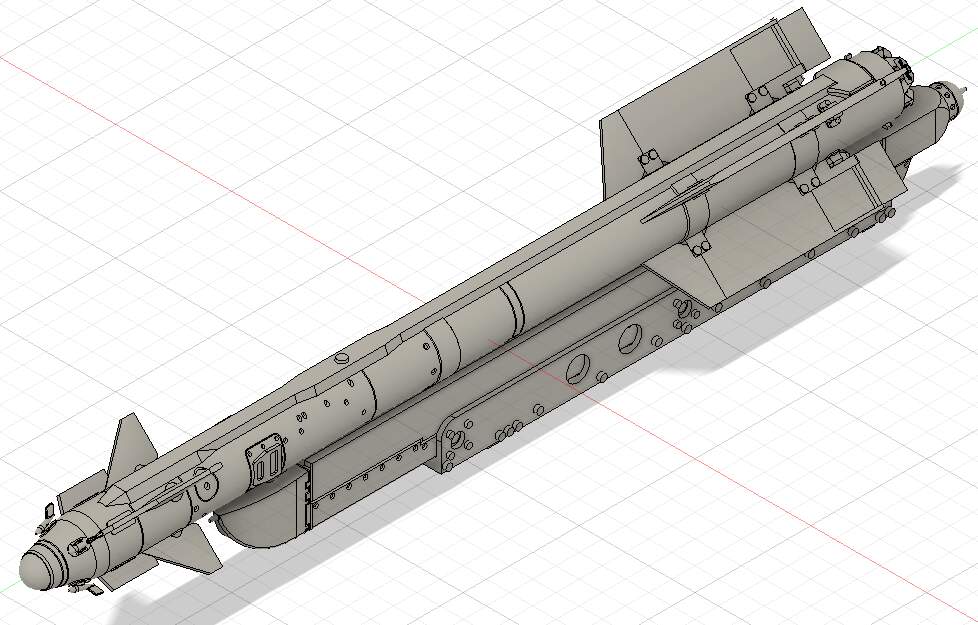

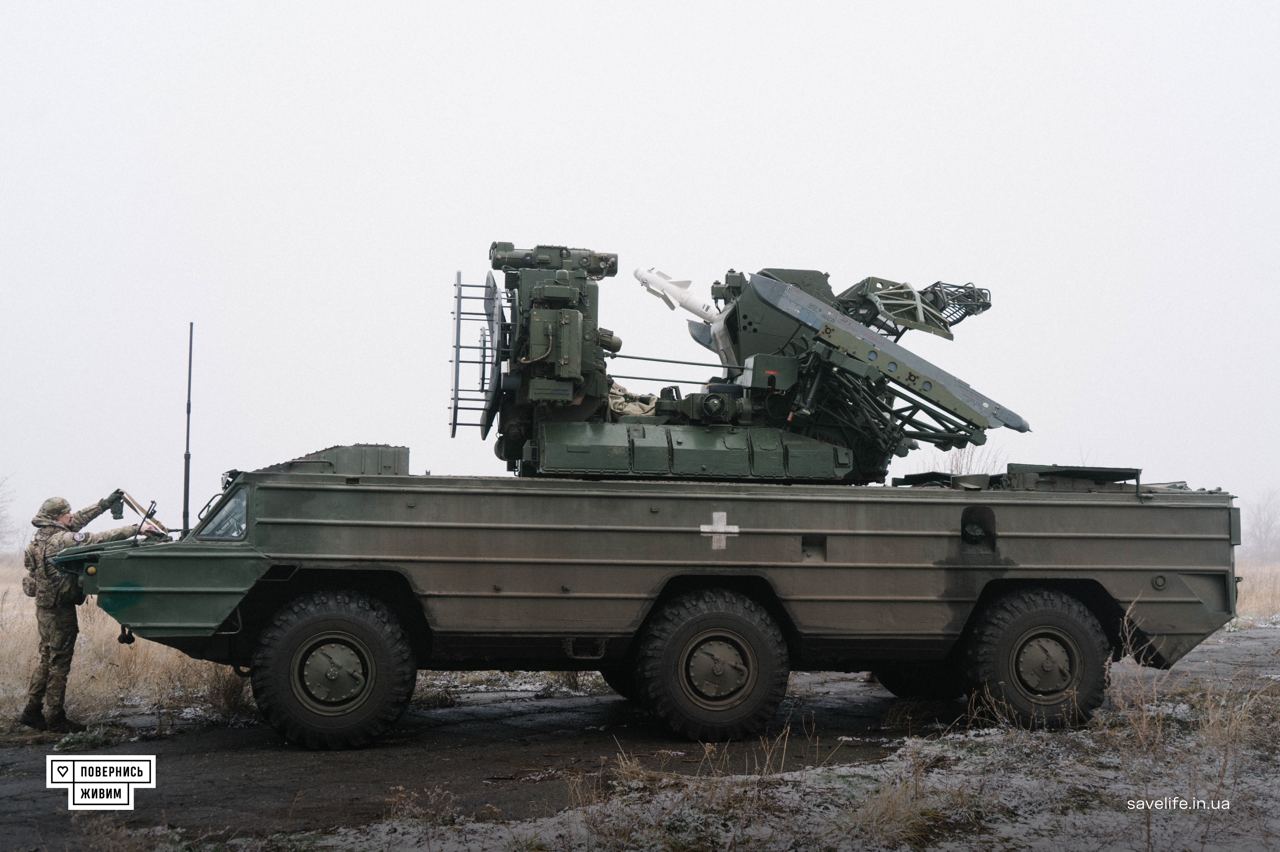

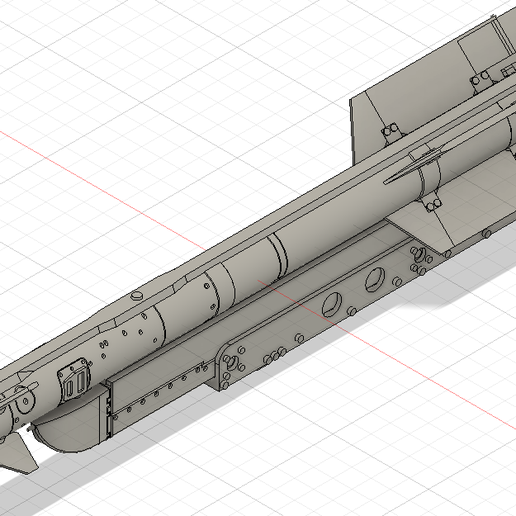

Hi, I’ve finally finished a couple more of my projects. Conversion kit with R-73 missiles for Osa-AKM SAM

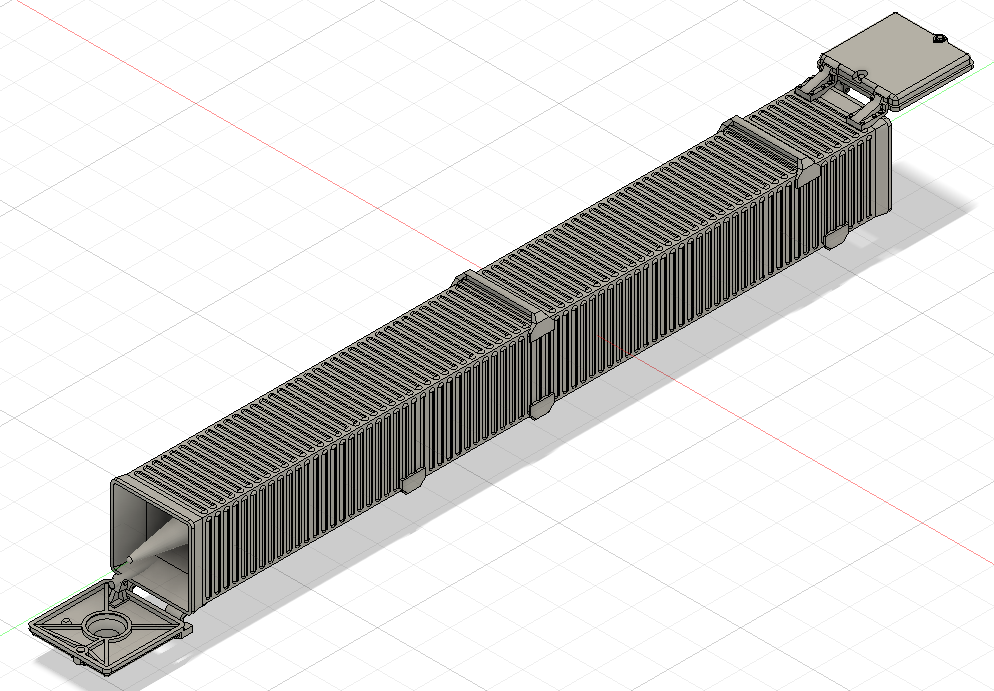

standard 9M33 container in different configurations

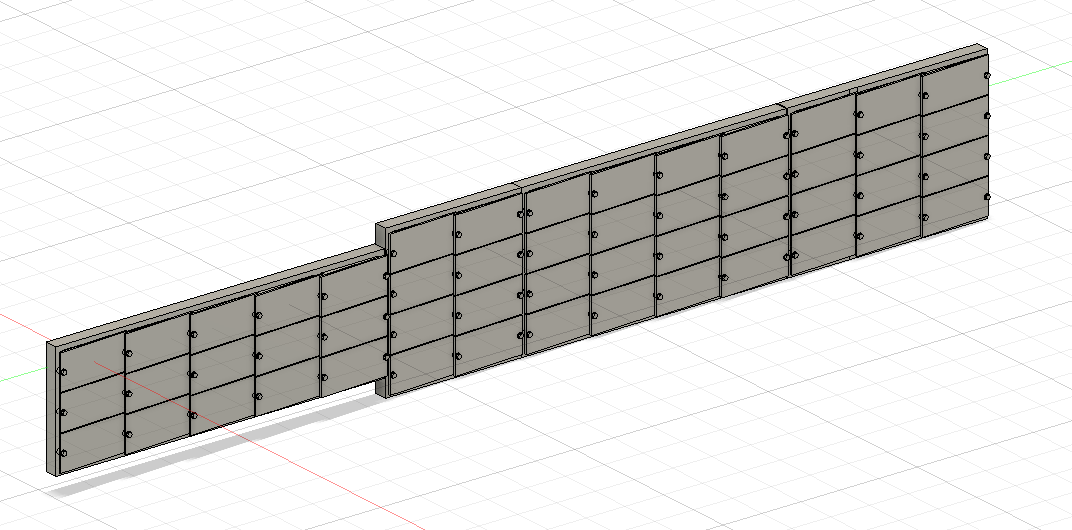

set of on-board screens for T-80BVM ‘Bunny’

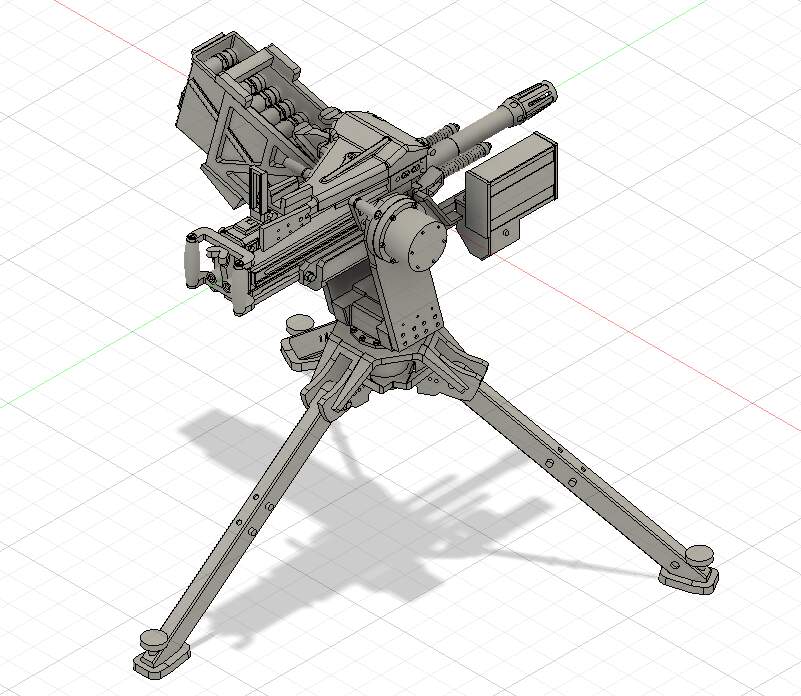

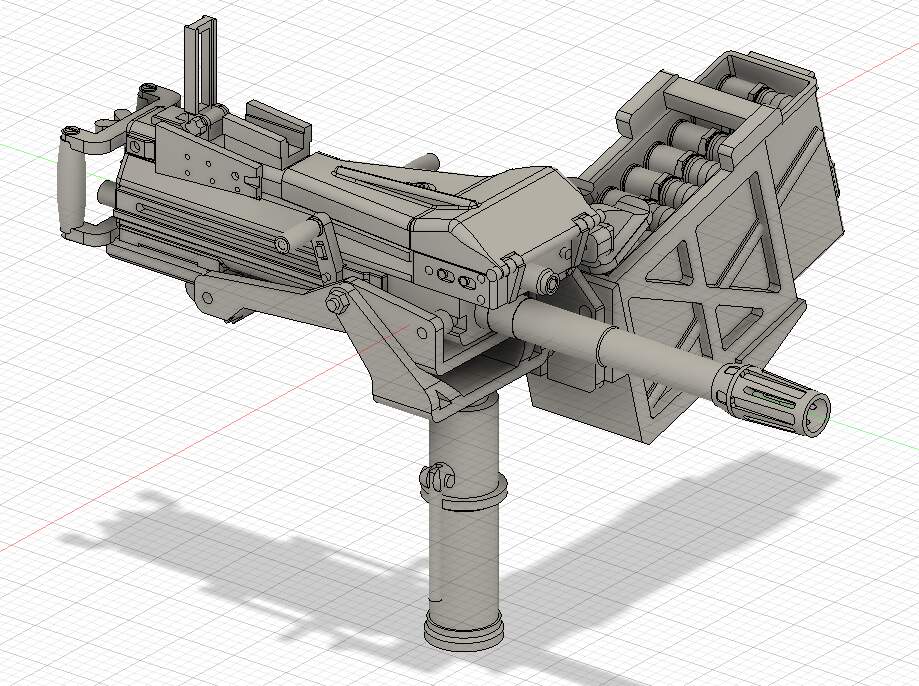

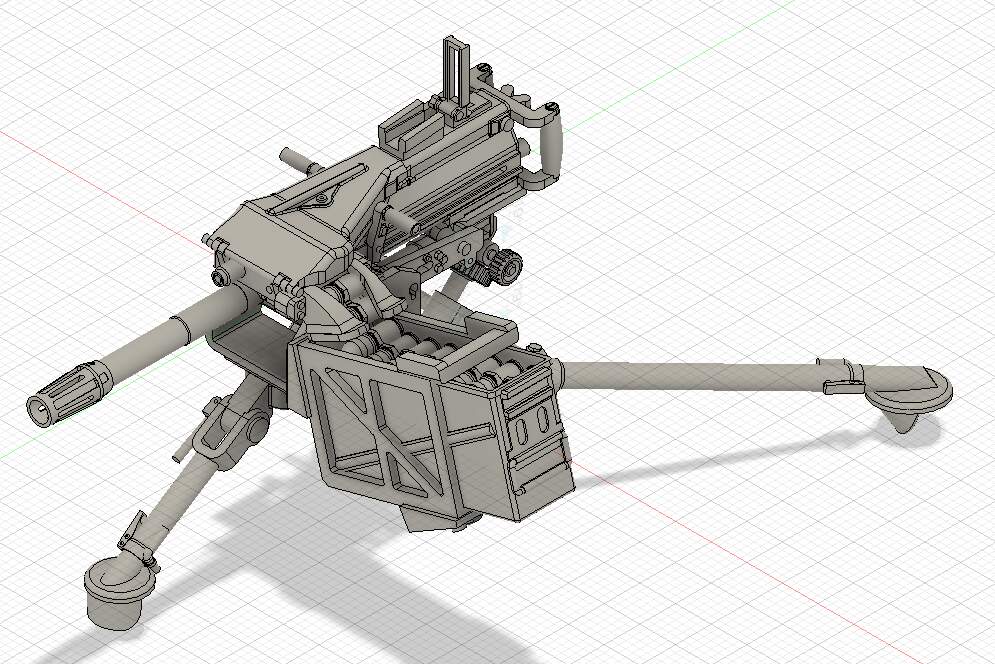

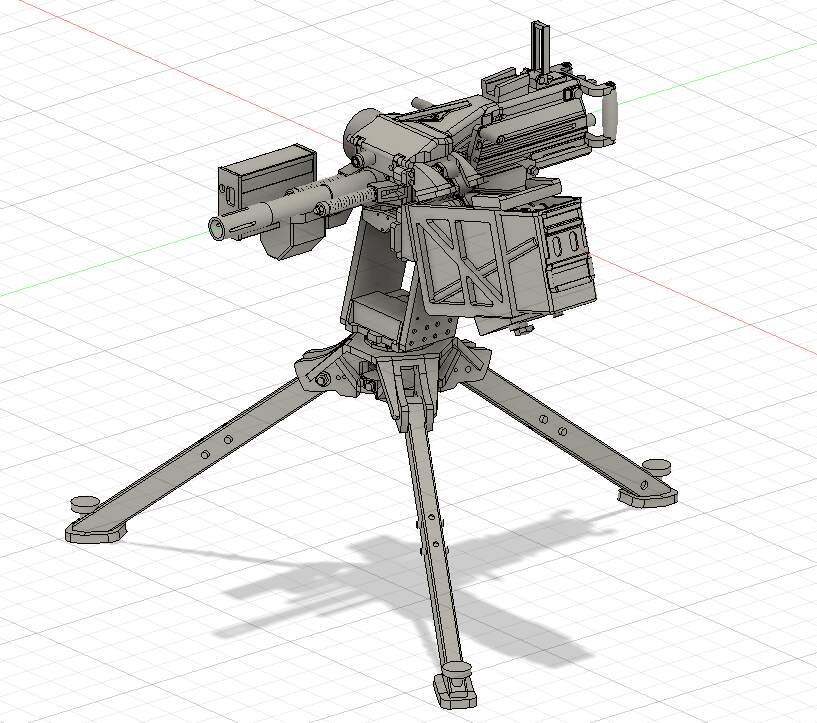

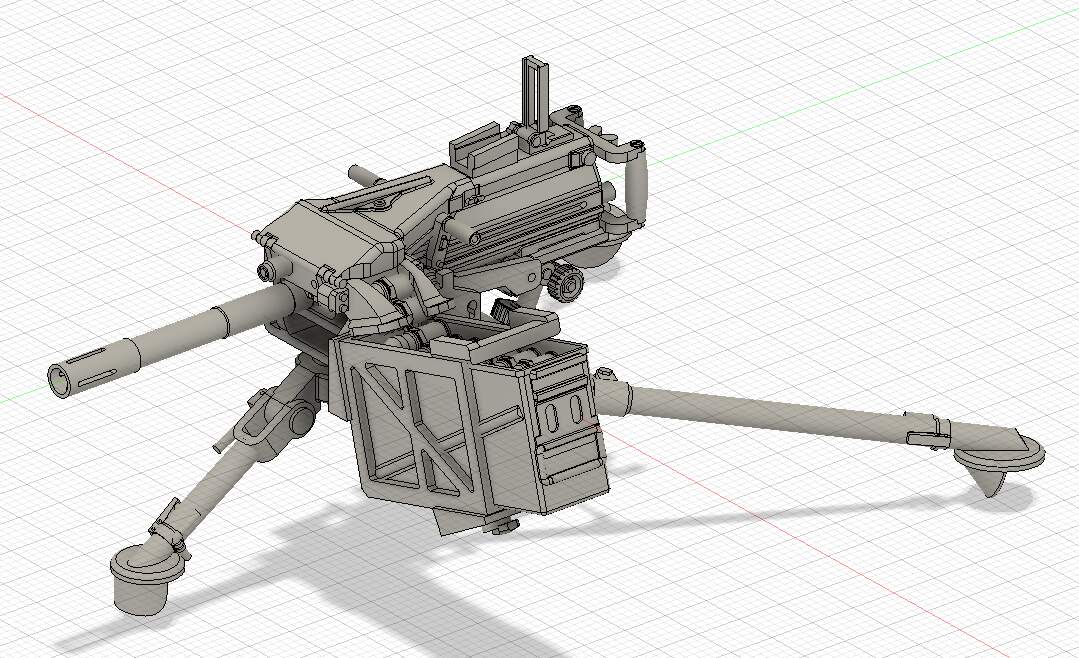

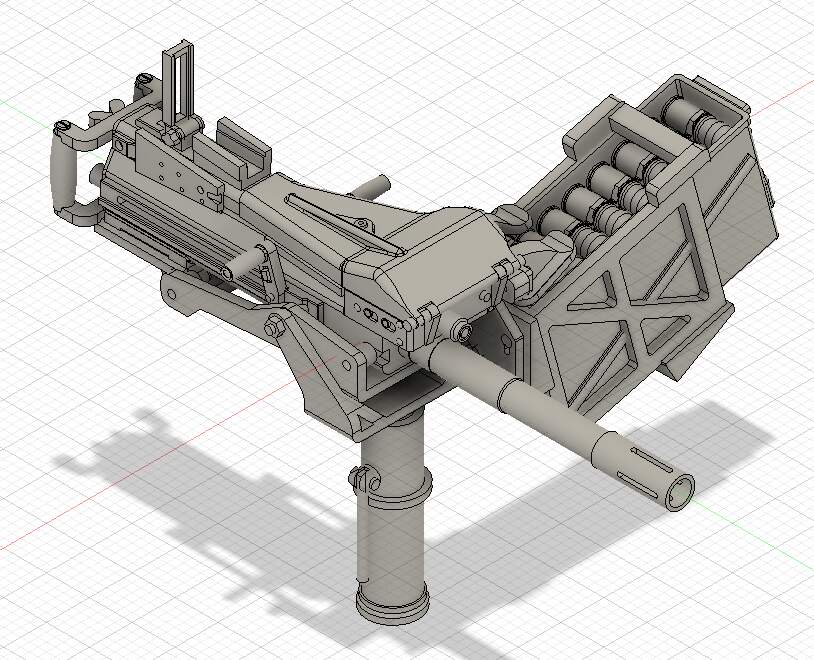

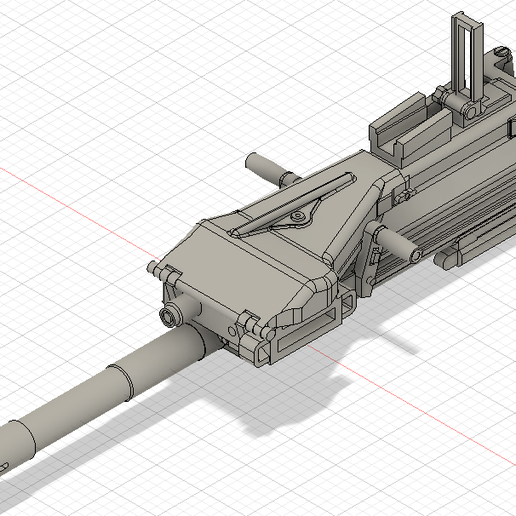

MK-19 AGL


3 Likes

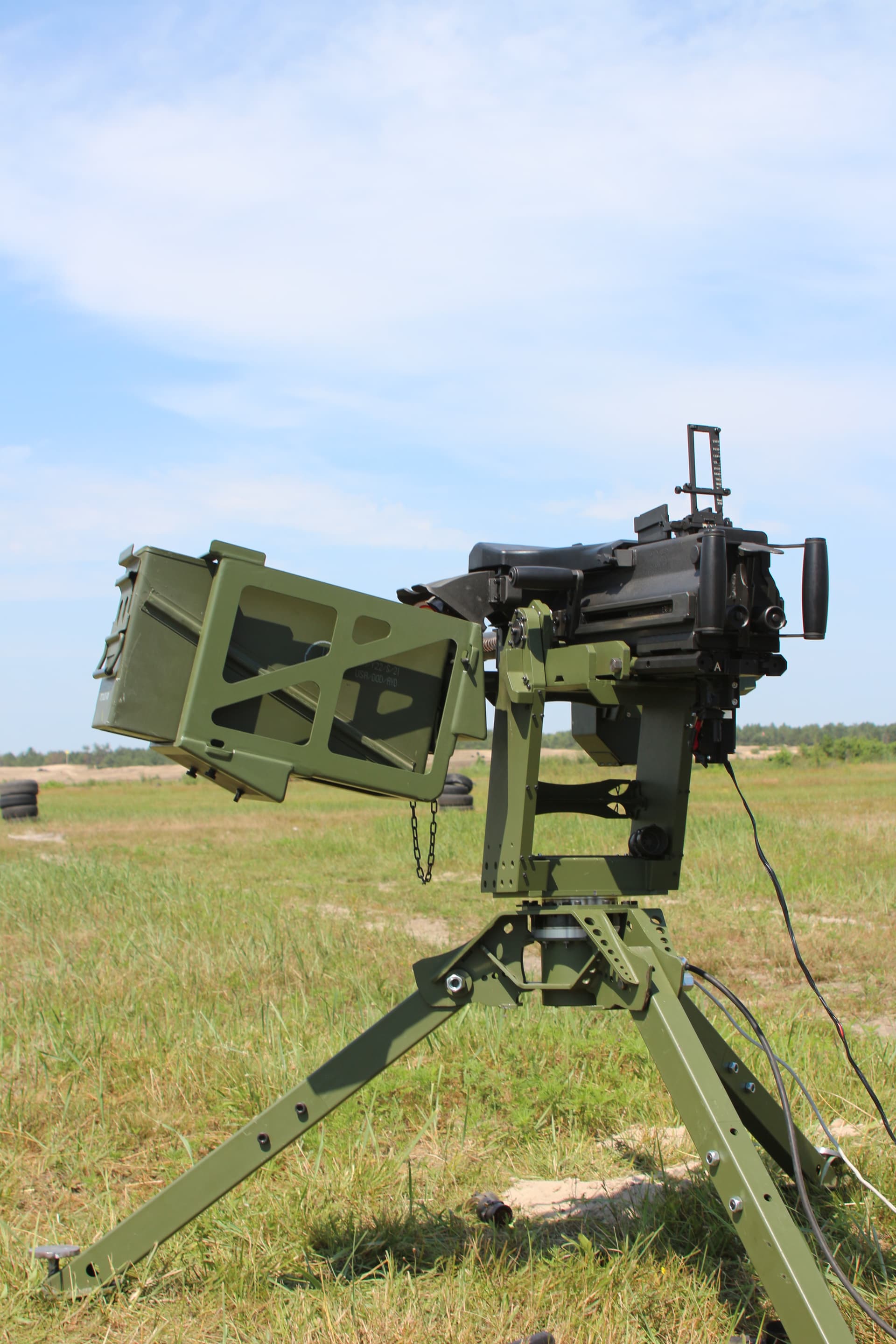

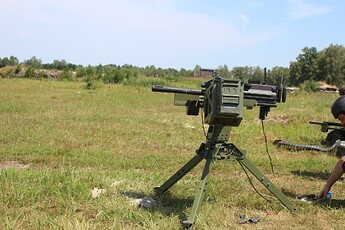

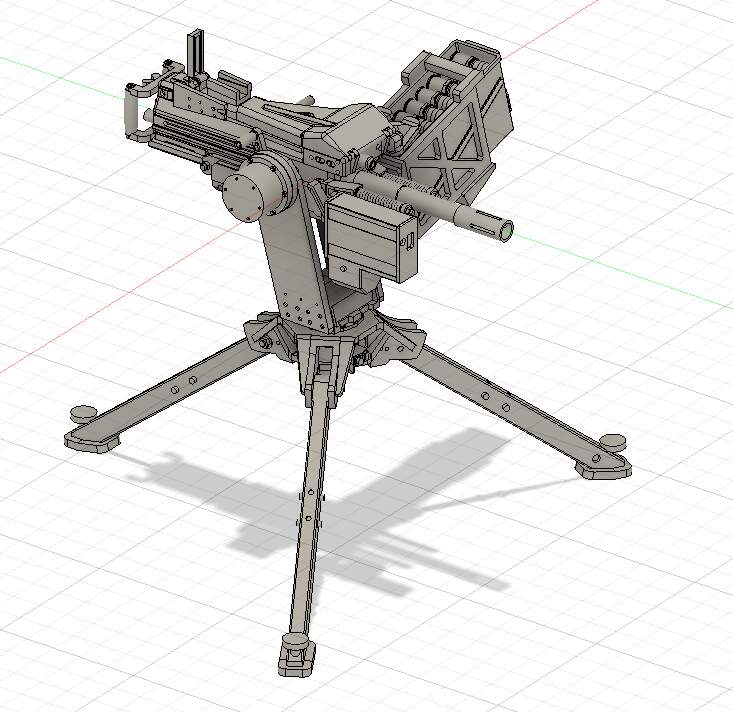

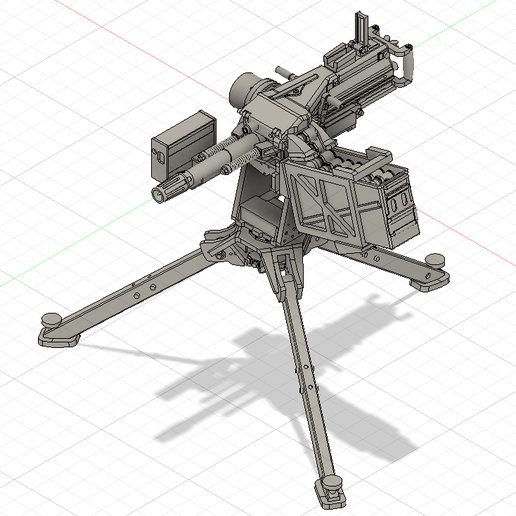

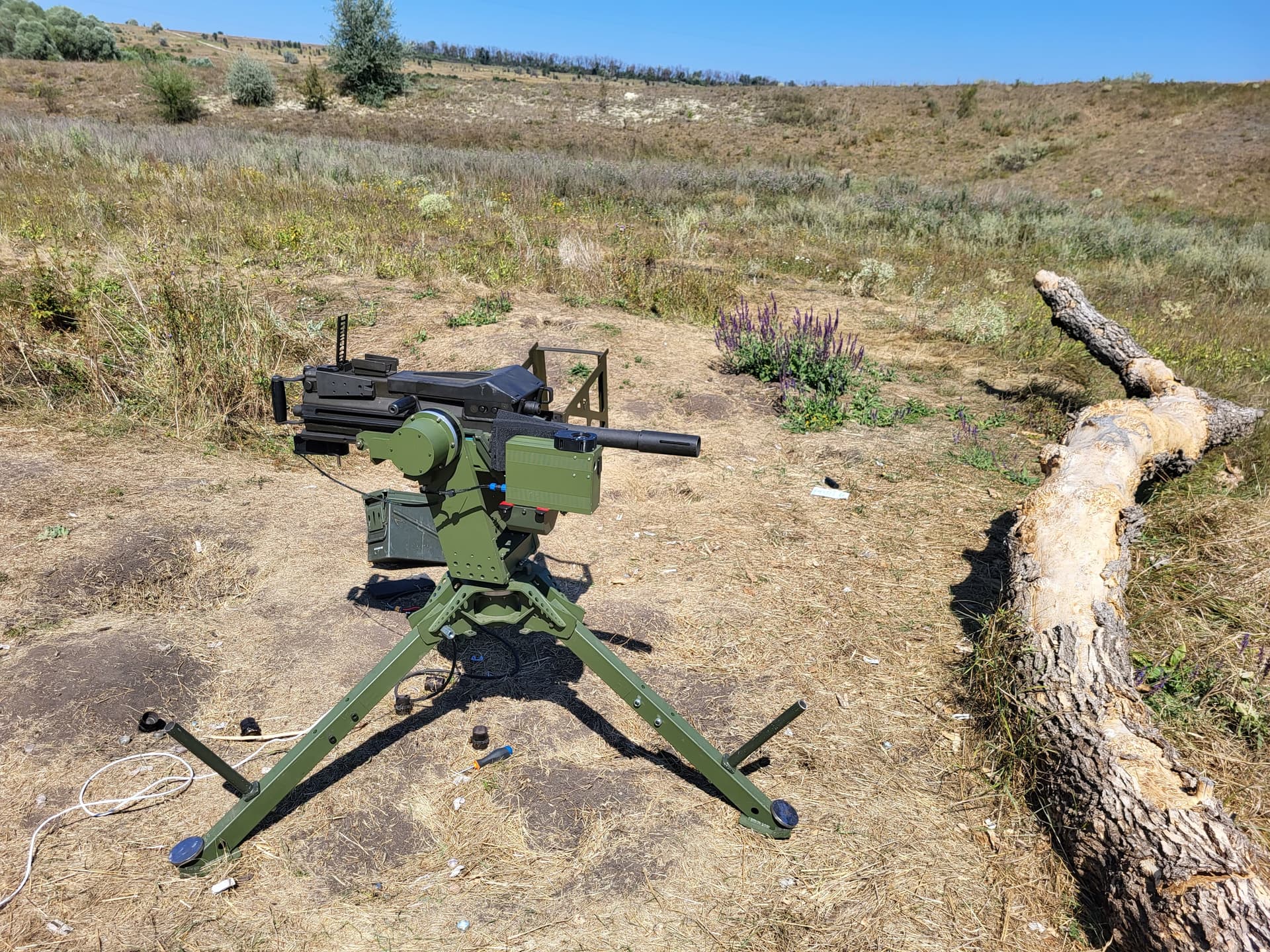

RCWS stationary installation “Storm”

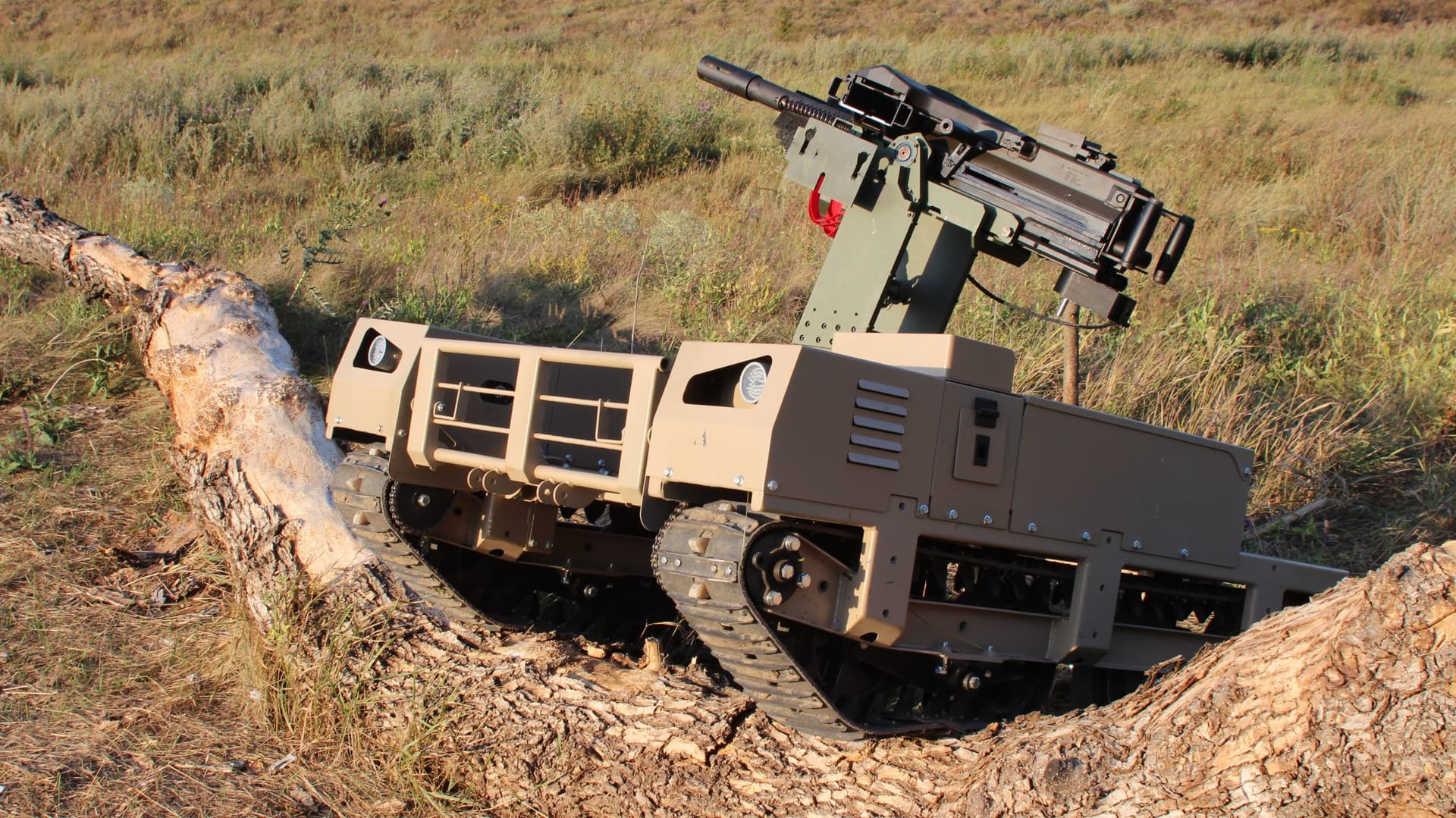

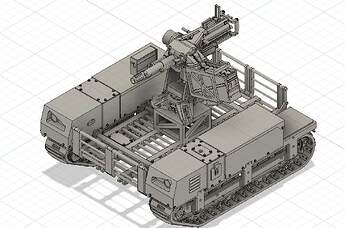

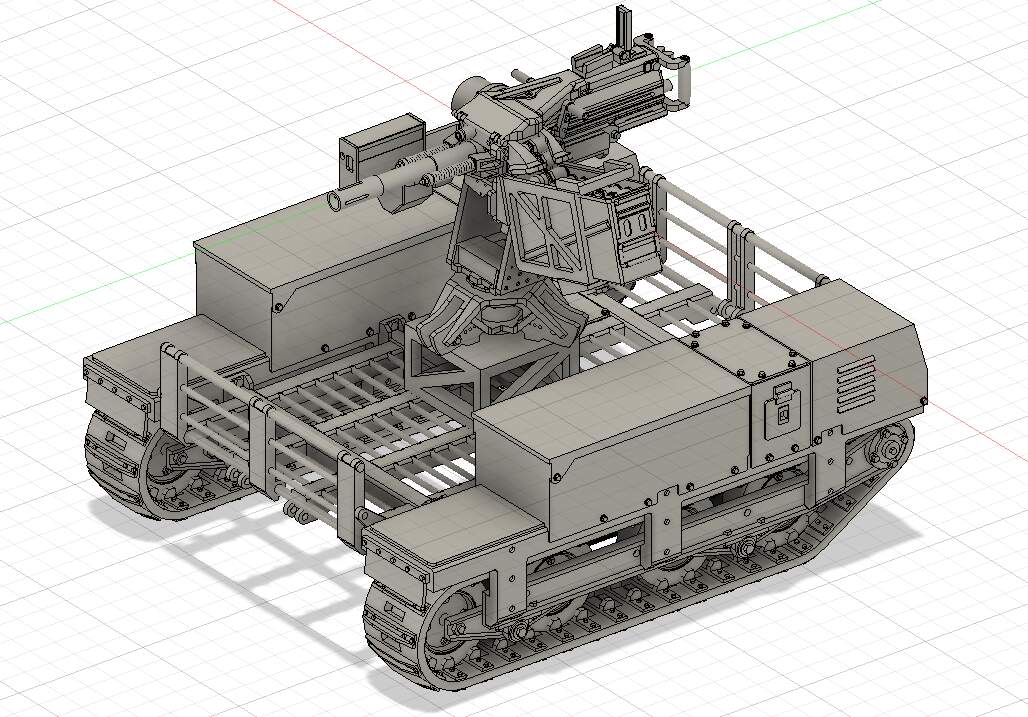

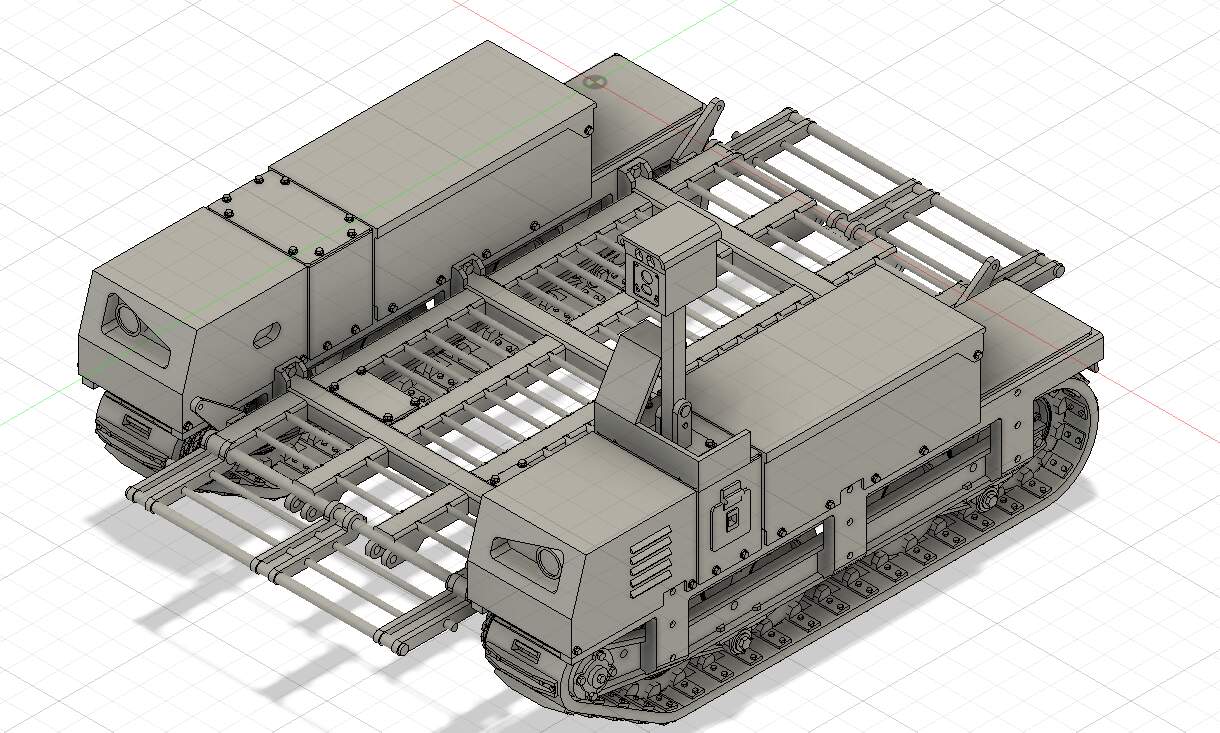

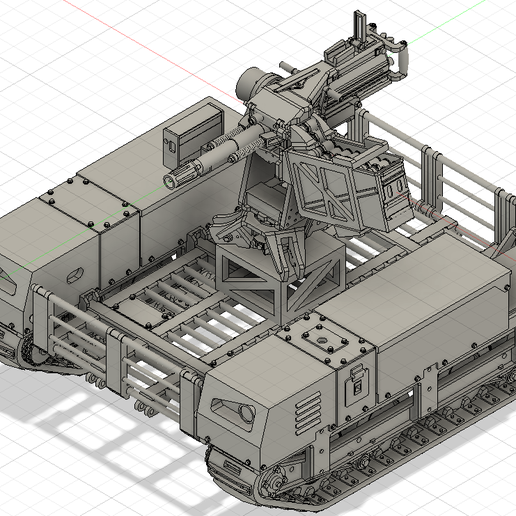

and UGV Termit with this RCWS

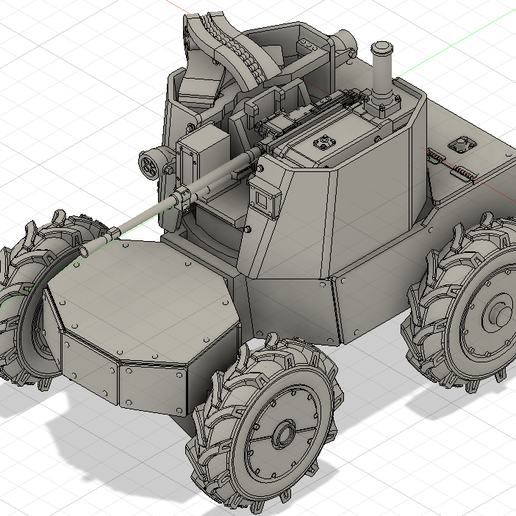

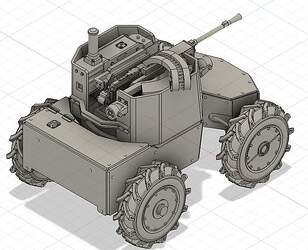

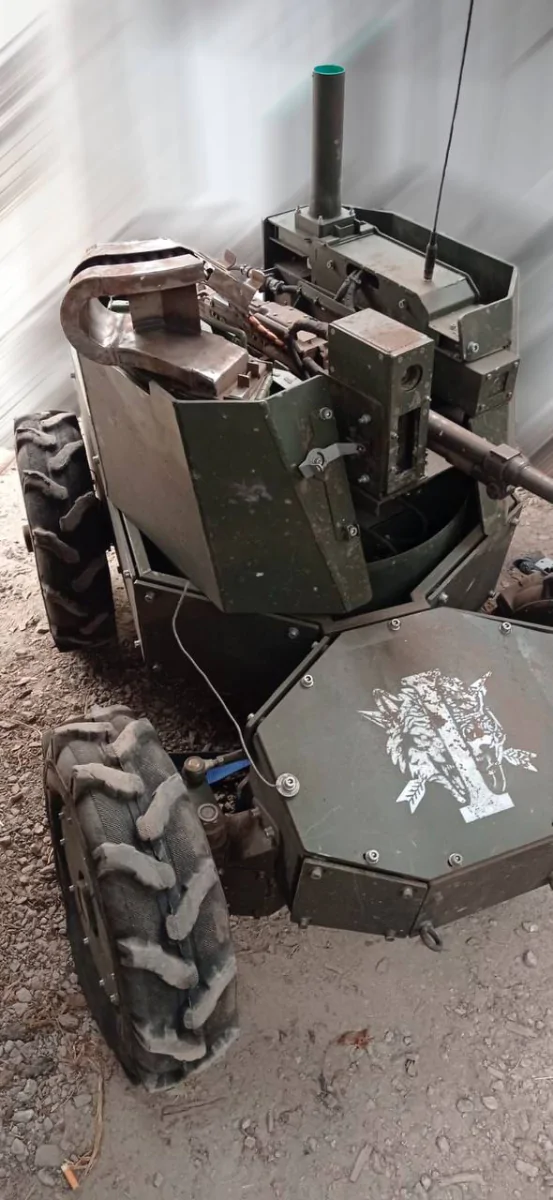

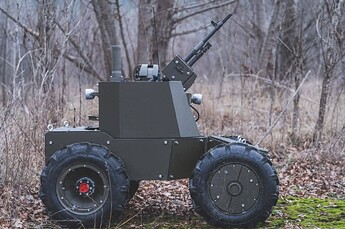

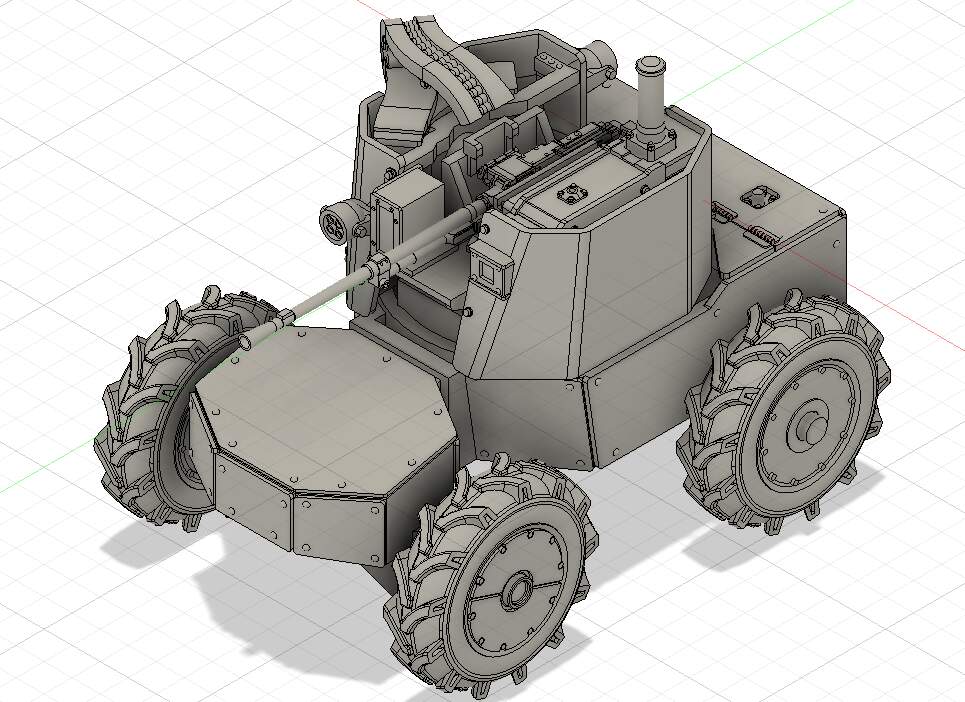

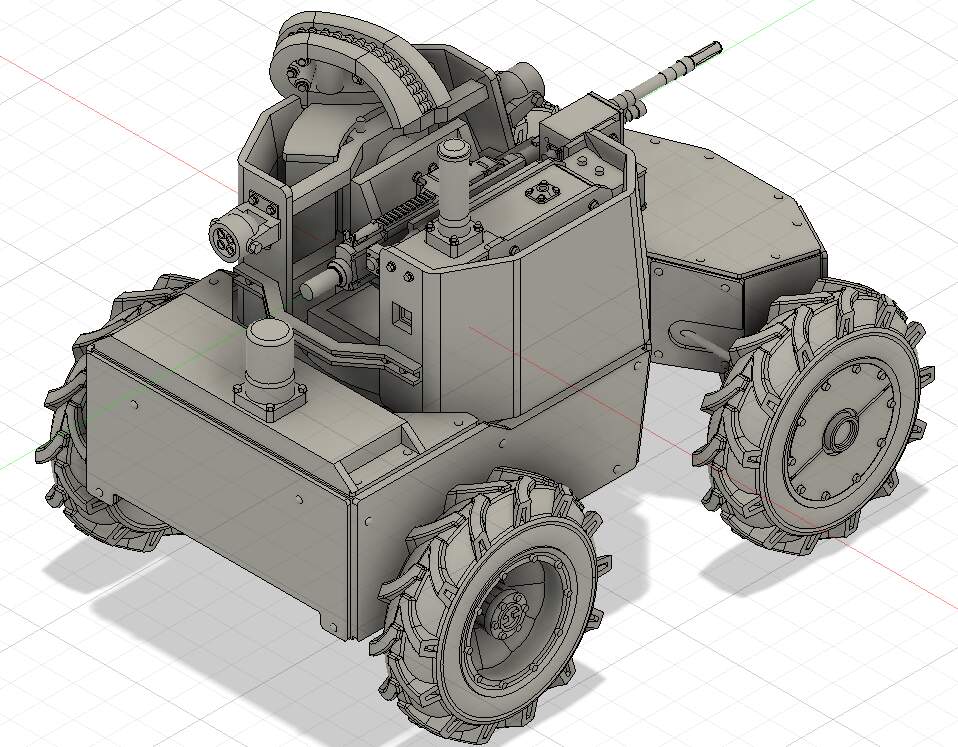

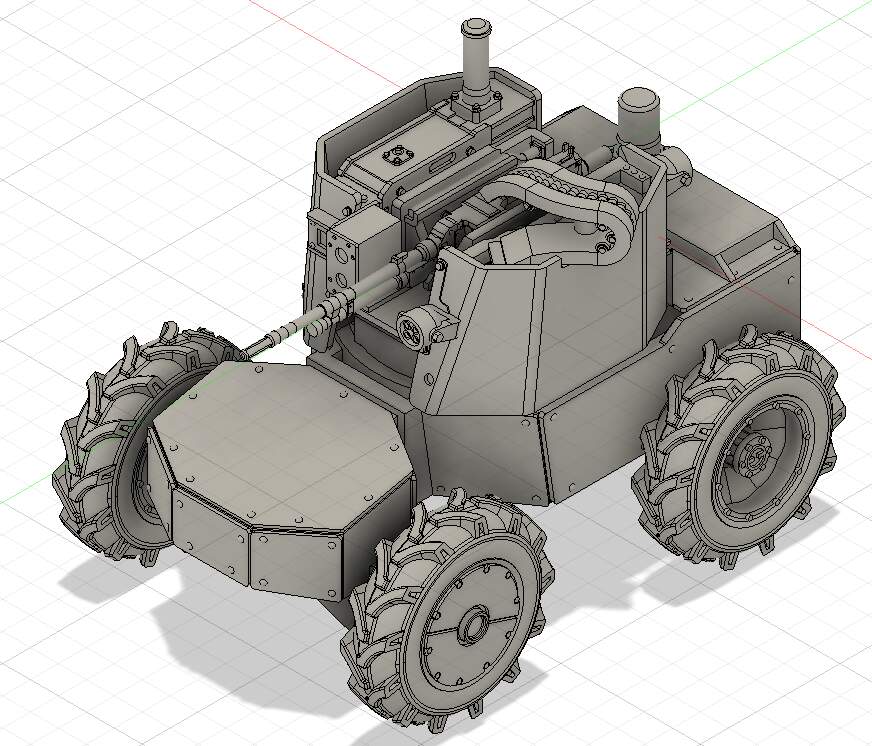

and a combat UGV “Fury”(with PKT and FN MAG machine guns), that the first whose combat application was documented on the video





Here’s a link to a video of it`s combat use
https://x.com/bayraktar_1love/status/1836754248920432901

4 Likes
3 Likes

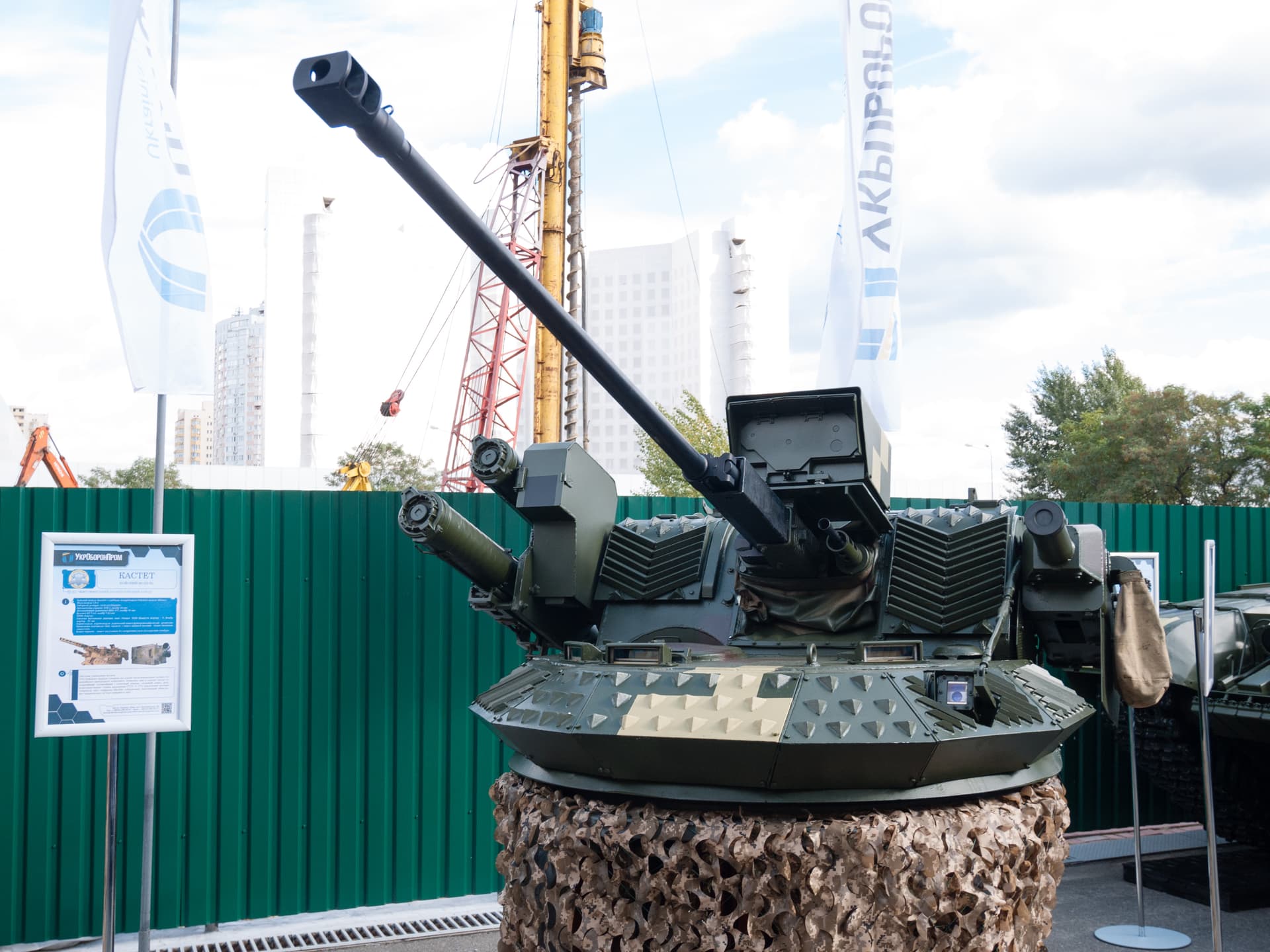

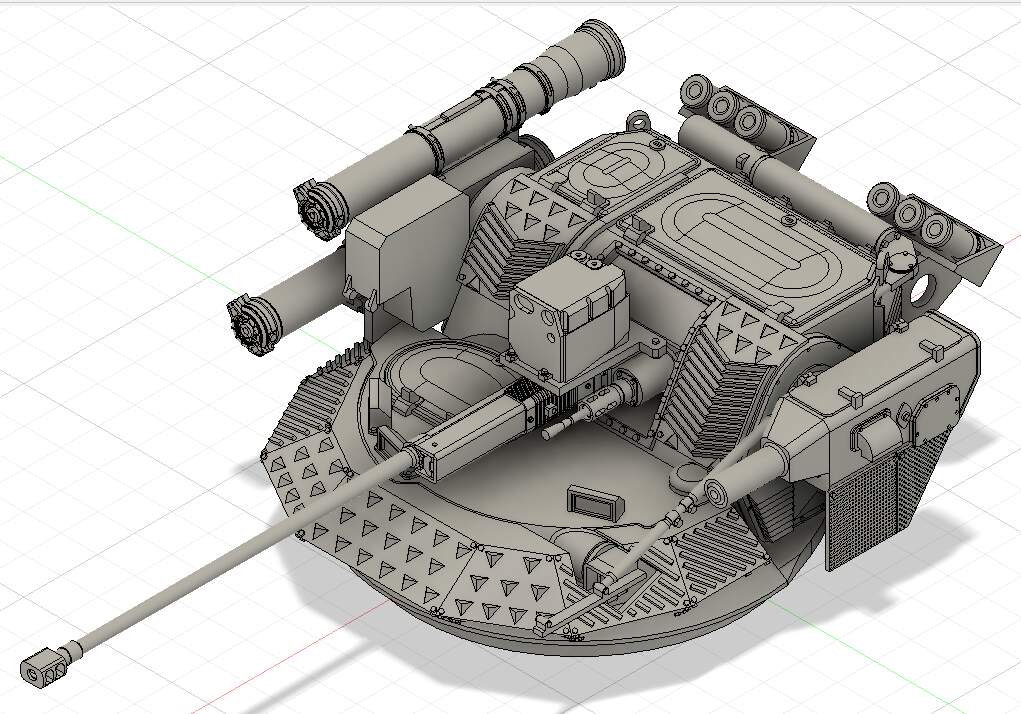

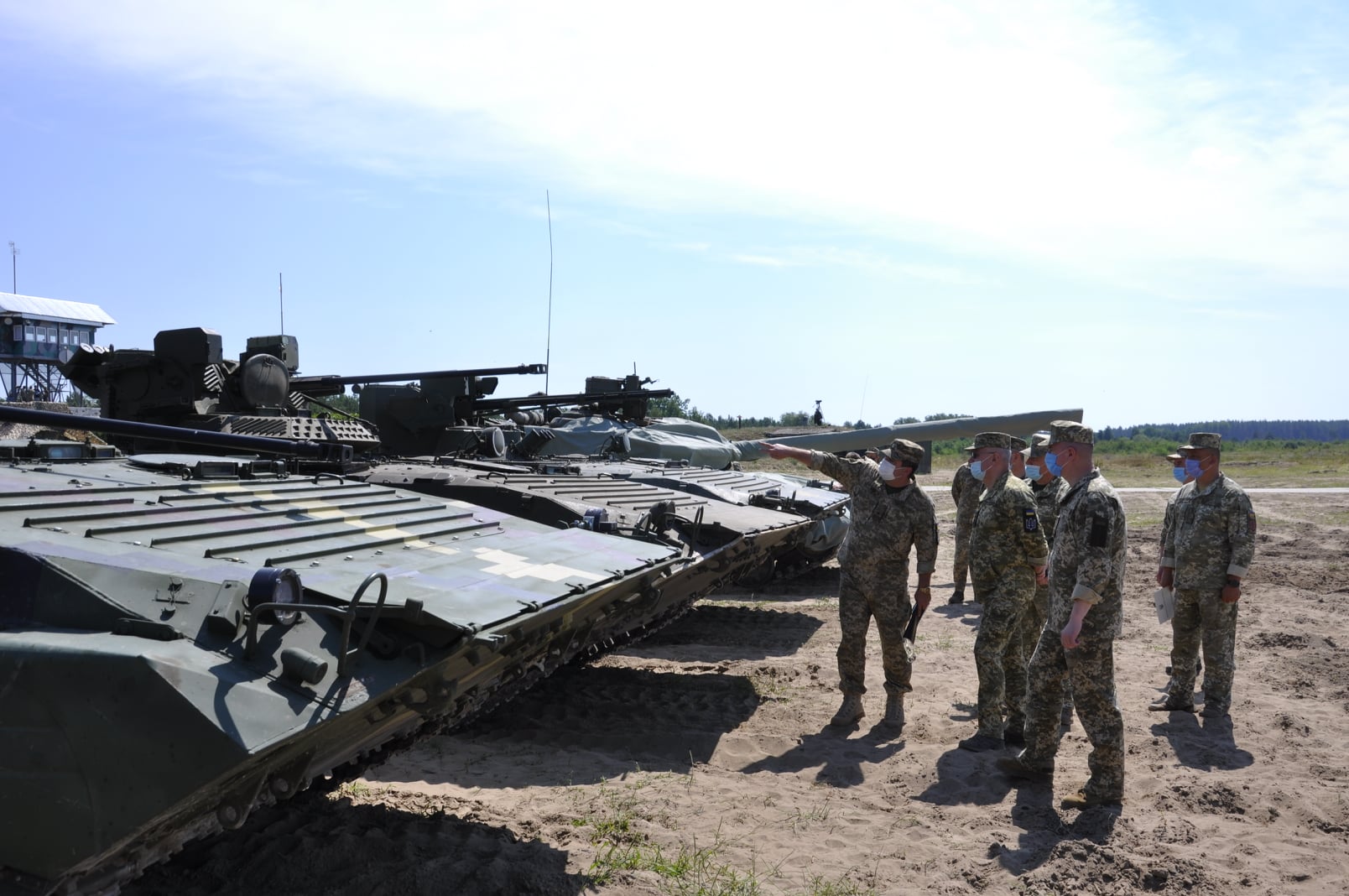

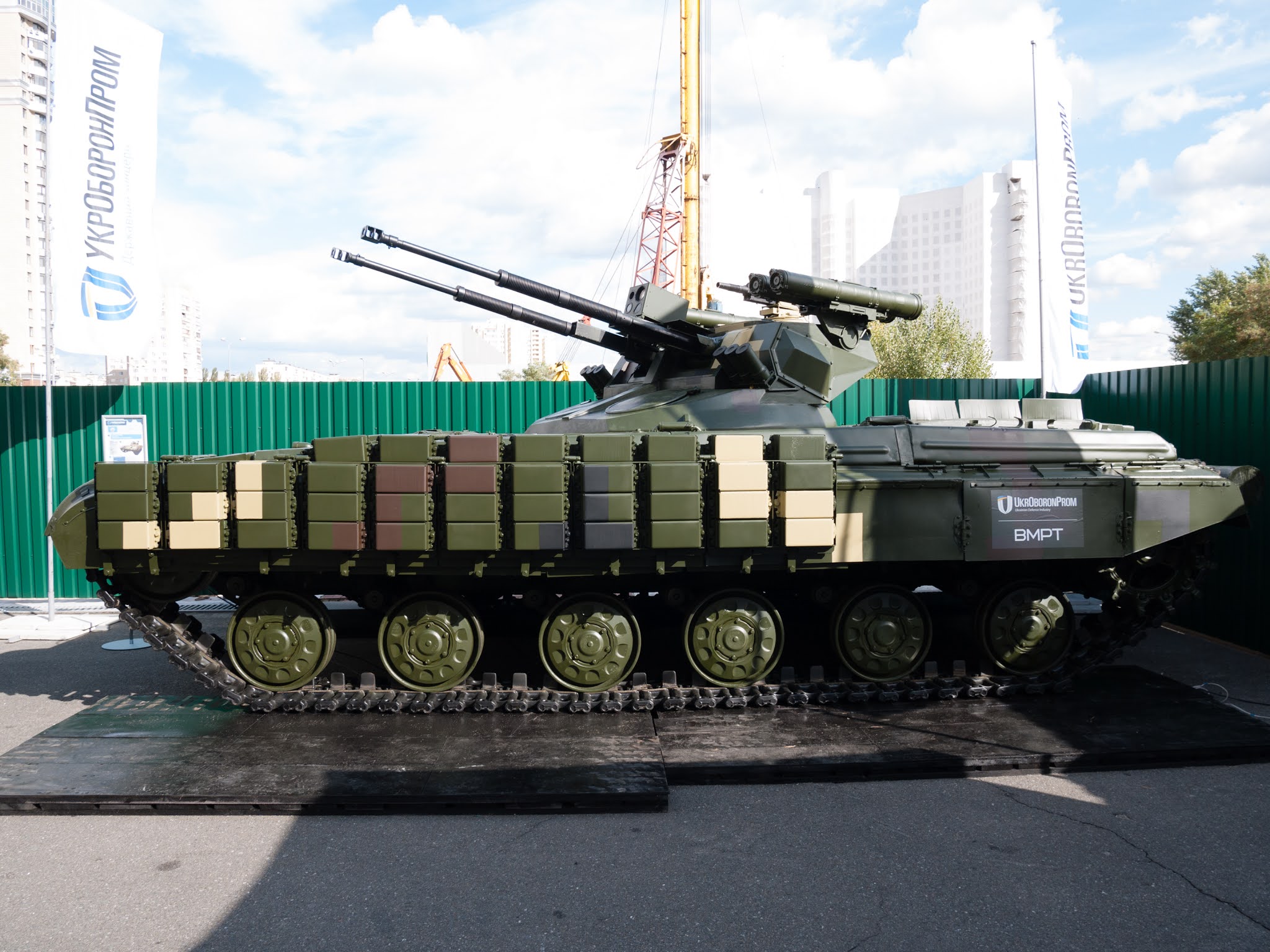

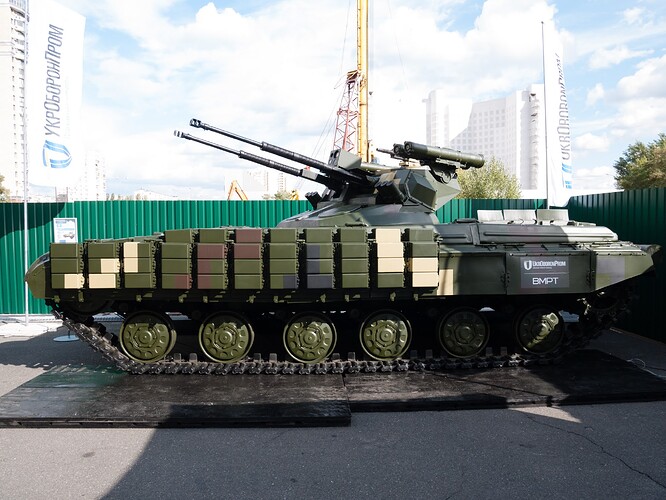

Finally I finished one of my long-built, combat modules Stiletus and Duplet, the first one was installed only on BMP-1, the second one was originally designed for BMP-2 and later it was installed on T-64 chassis with the help of adapter and called BMPT-64, on the photo the turret is shown with adapter.

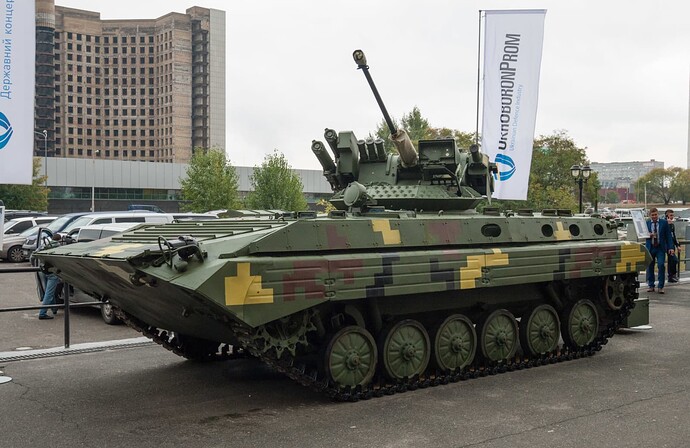

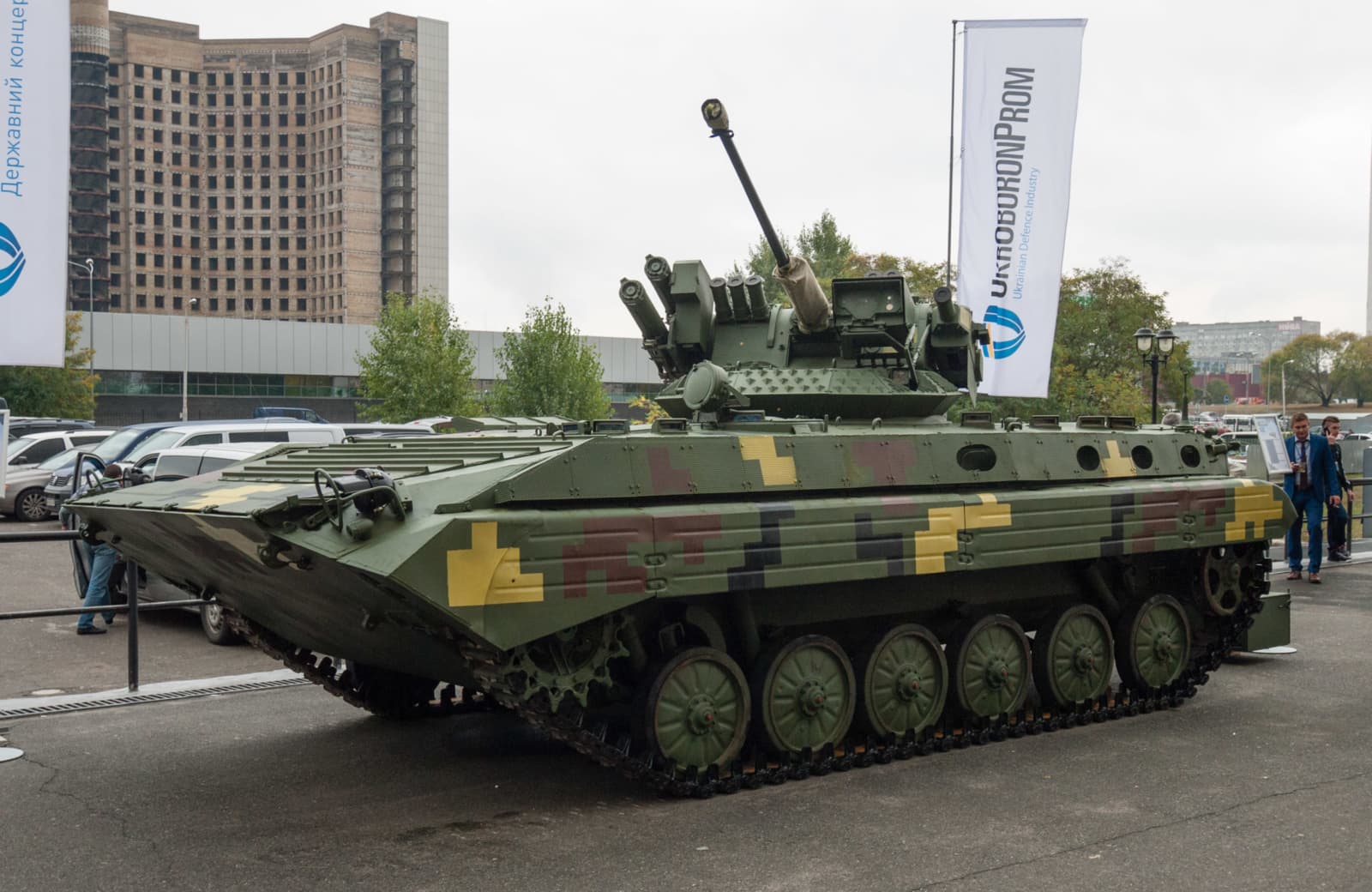

Stilet:






1 Like

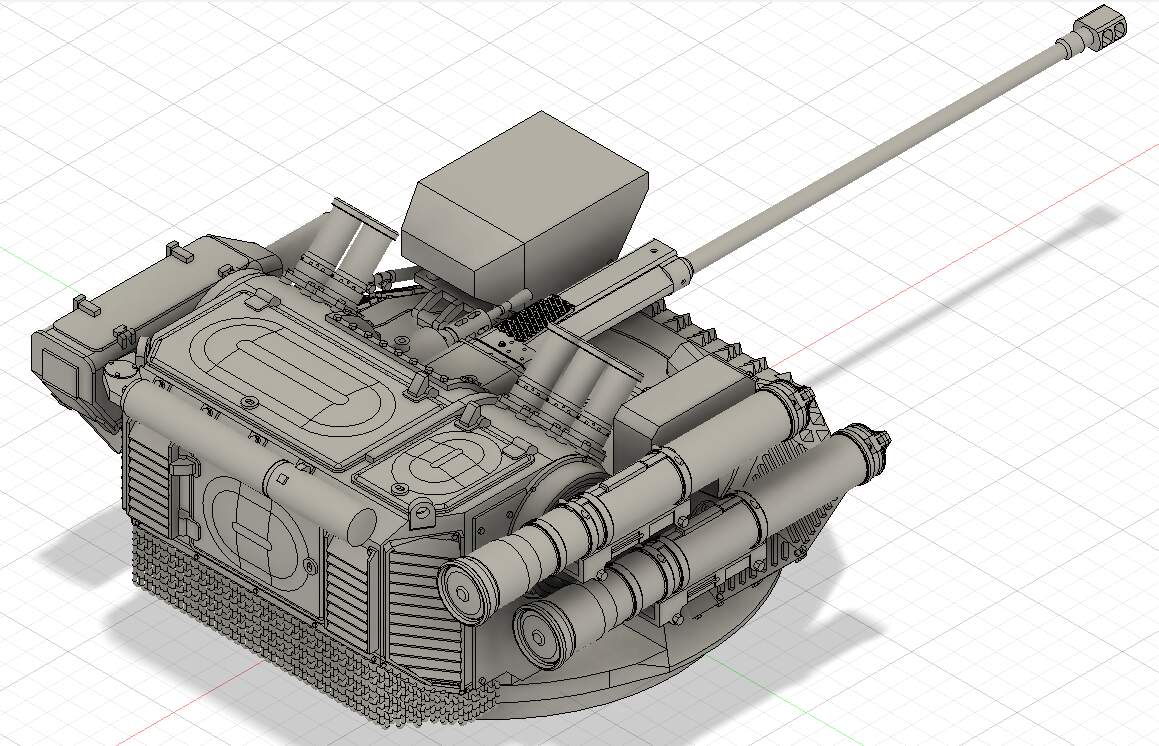

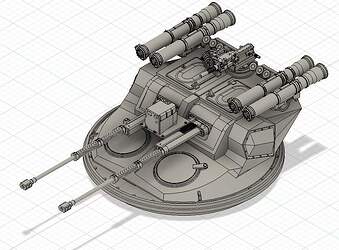

Duplet:




1 Like

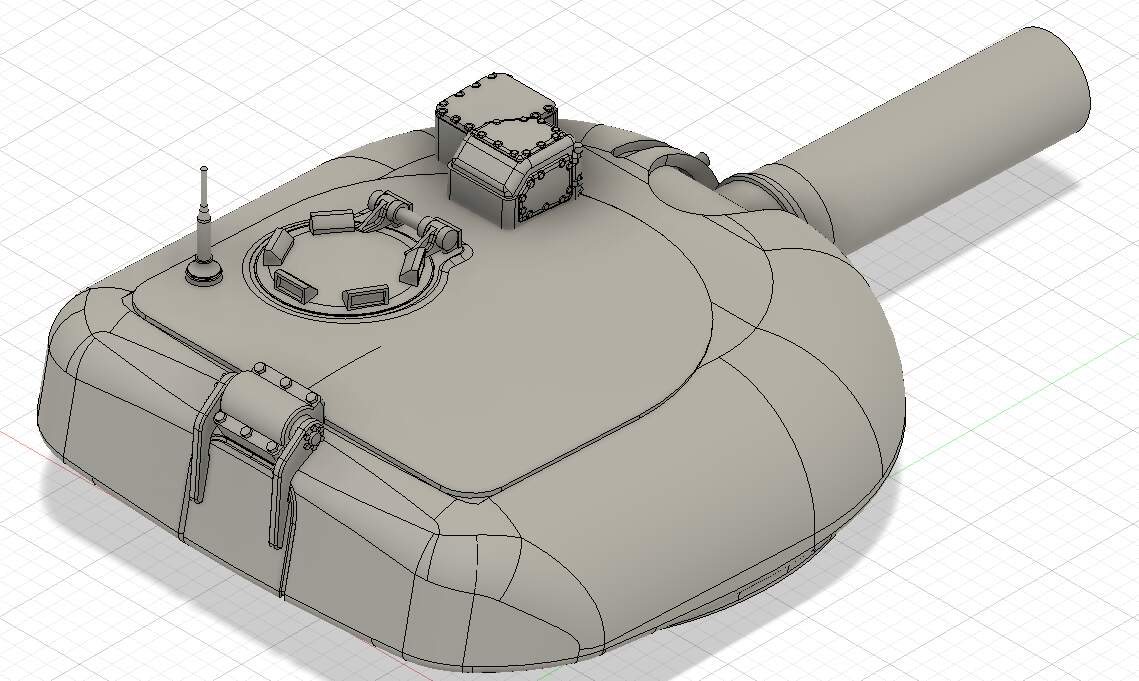

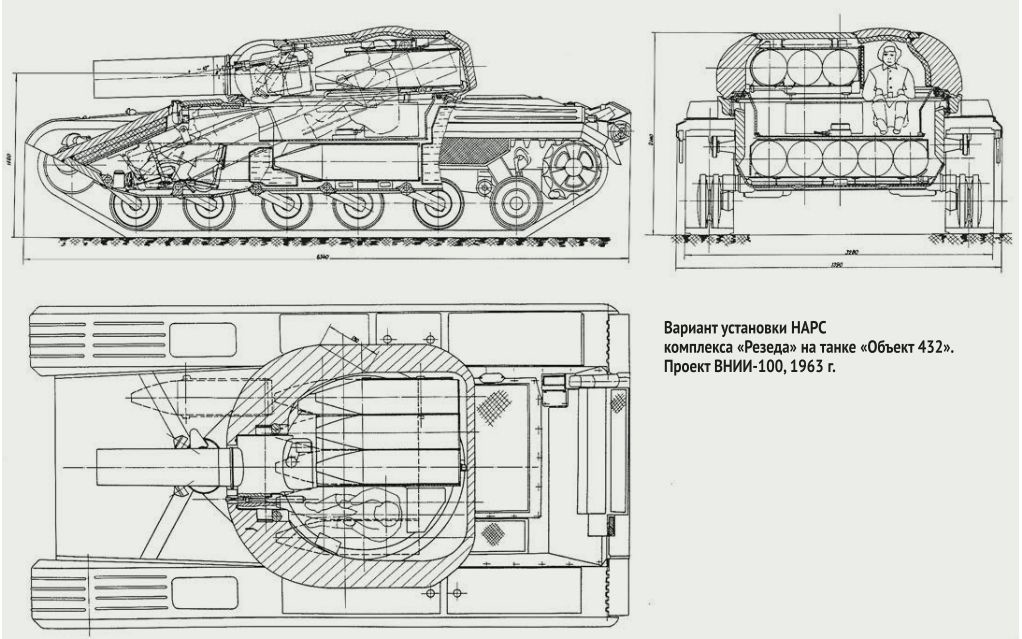

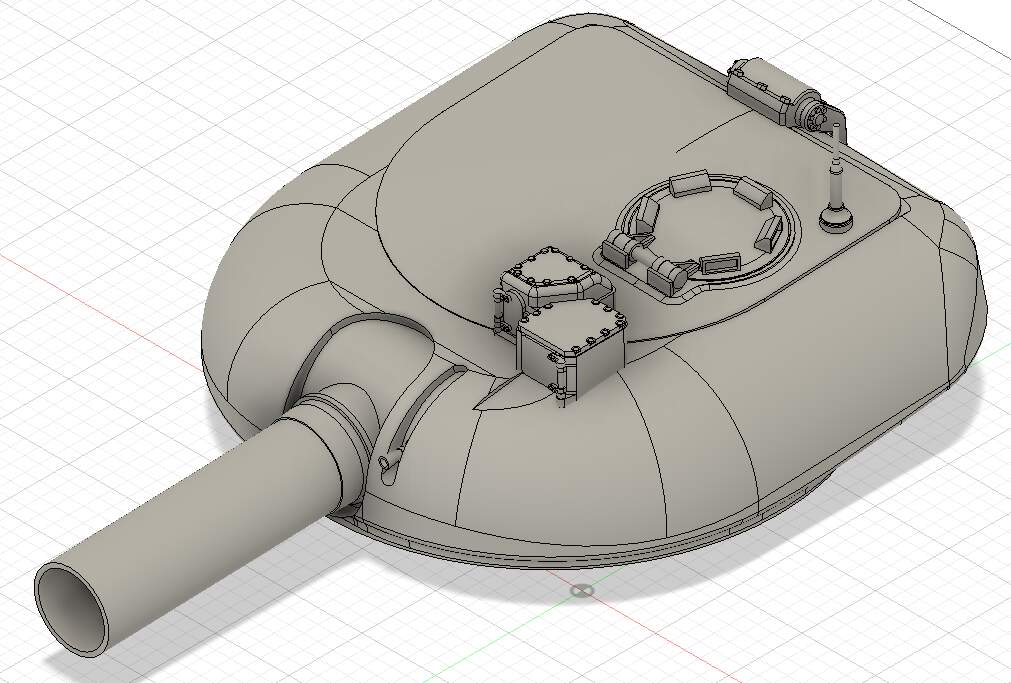

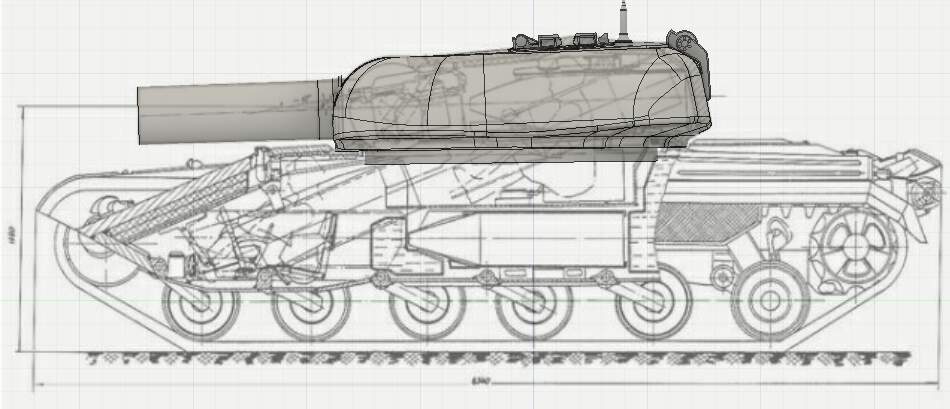

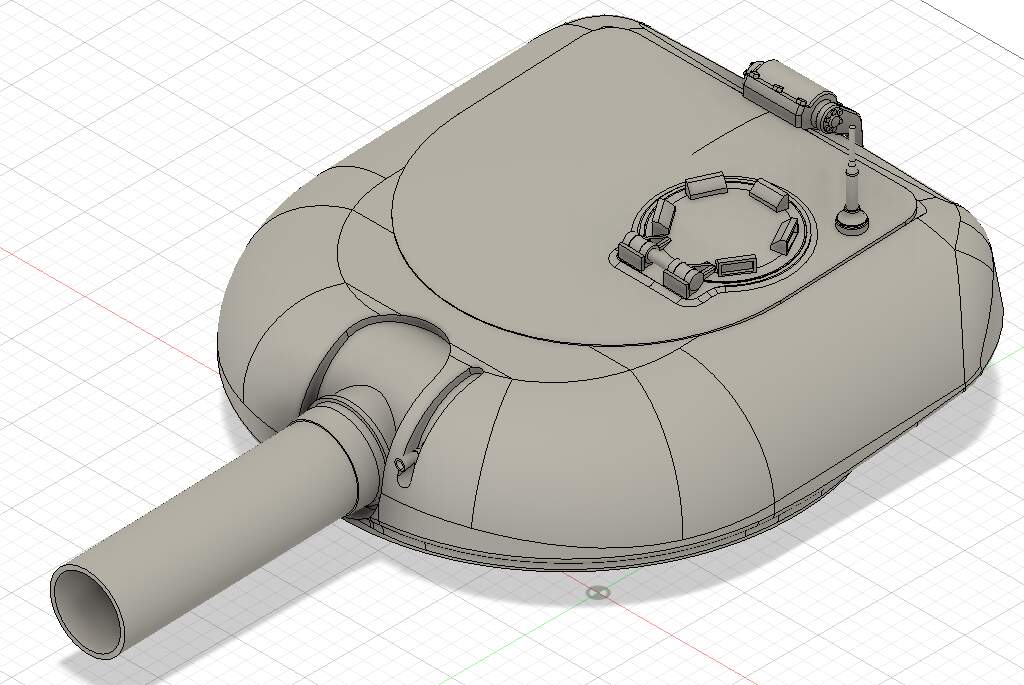

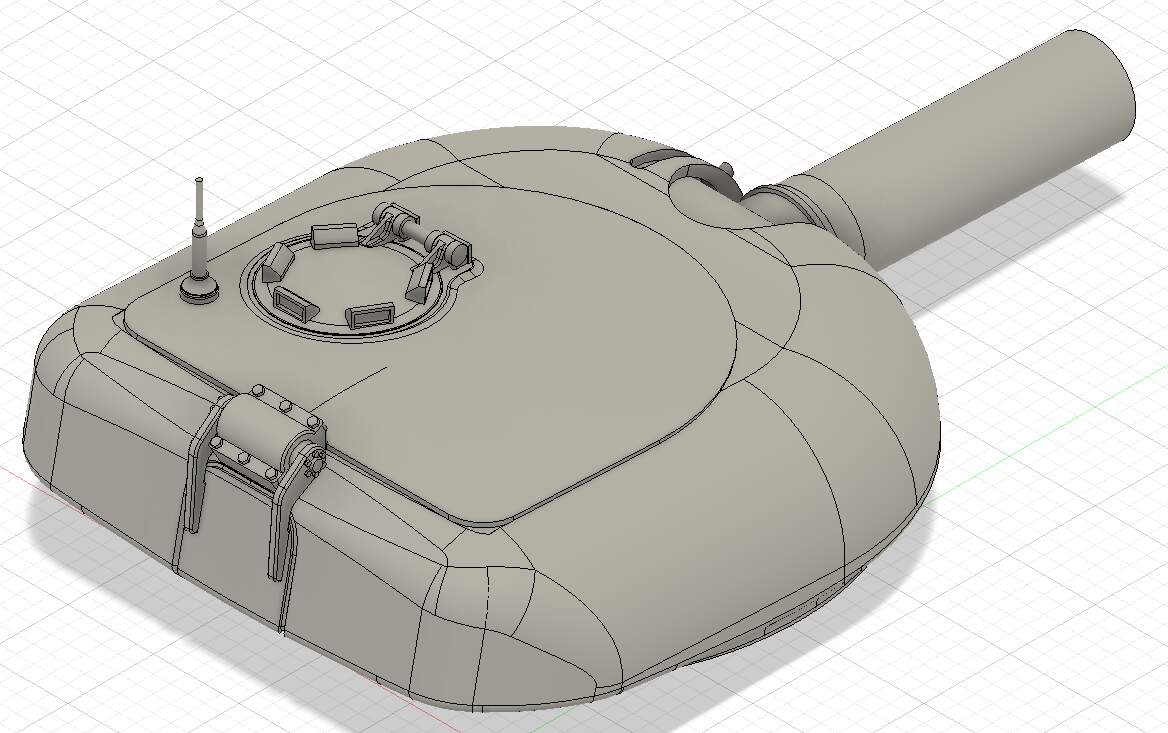

I also decided to have a little fun and made a turret from the Soviet project of tactical missile system 9M24 Reseda, which was to be based on the T-64 chassis, and it was to fire 360mm rockets with nuclear warheads. Something similar was also available in the USA, only on the basis of the T95 medium tank.




1 Like
