Building the Trumpeter Stug. III Late in 1/16th. Scale

Armor/AFV WWII Axis
1

Well I’m starting another Big One , I hope this works out.

Late Stug. #1
Late Stug. #11600×1200 424 KB

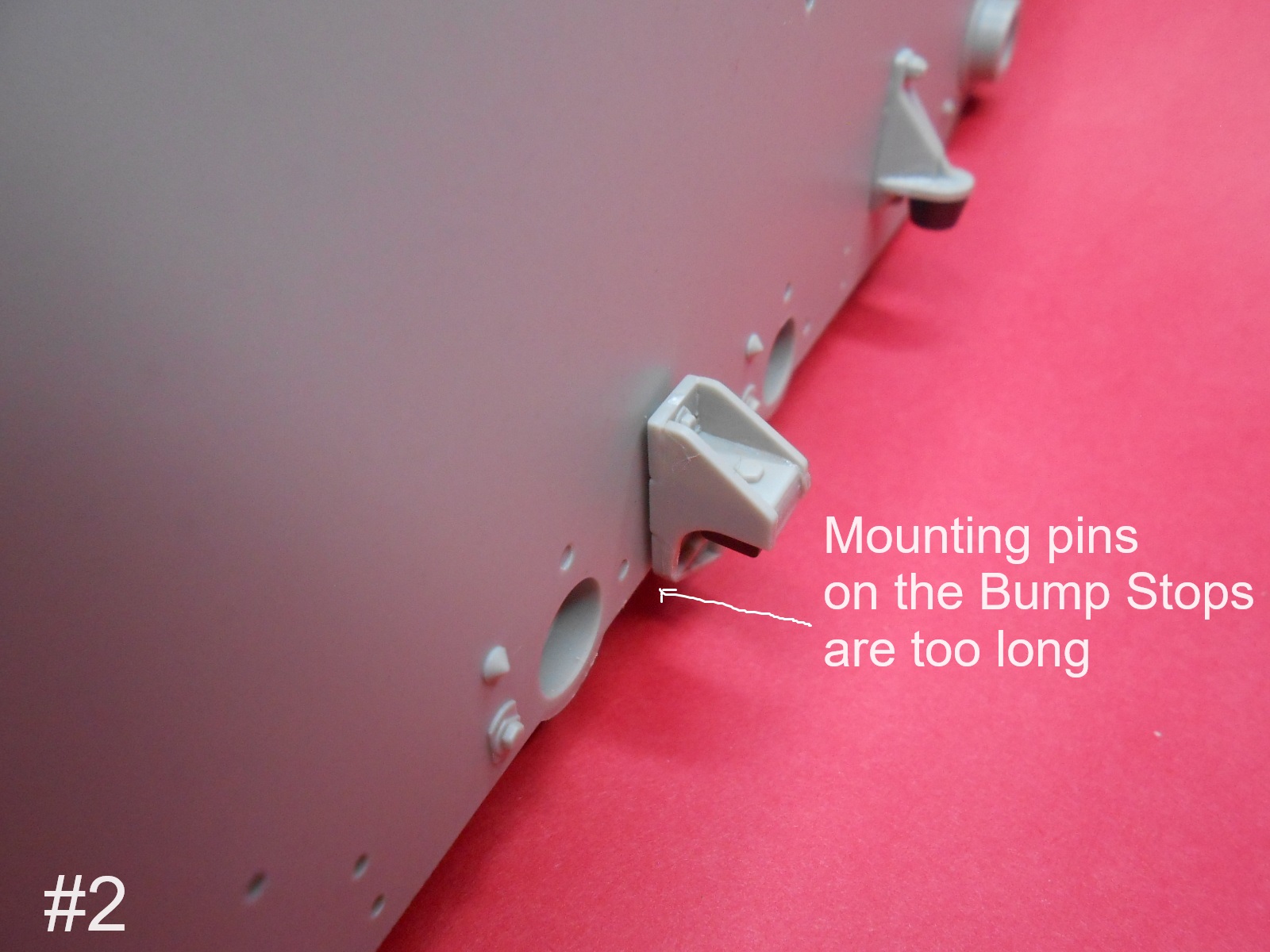

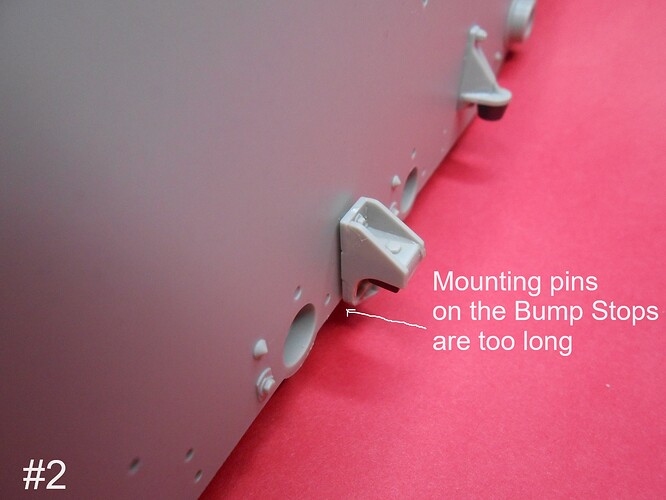

Late Stug. #2
Late Stug. #21600×1200 344 KB

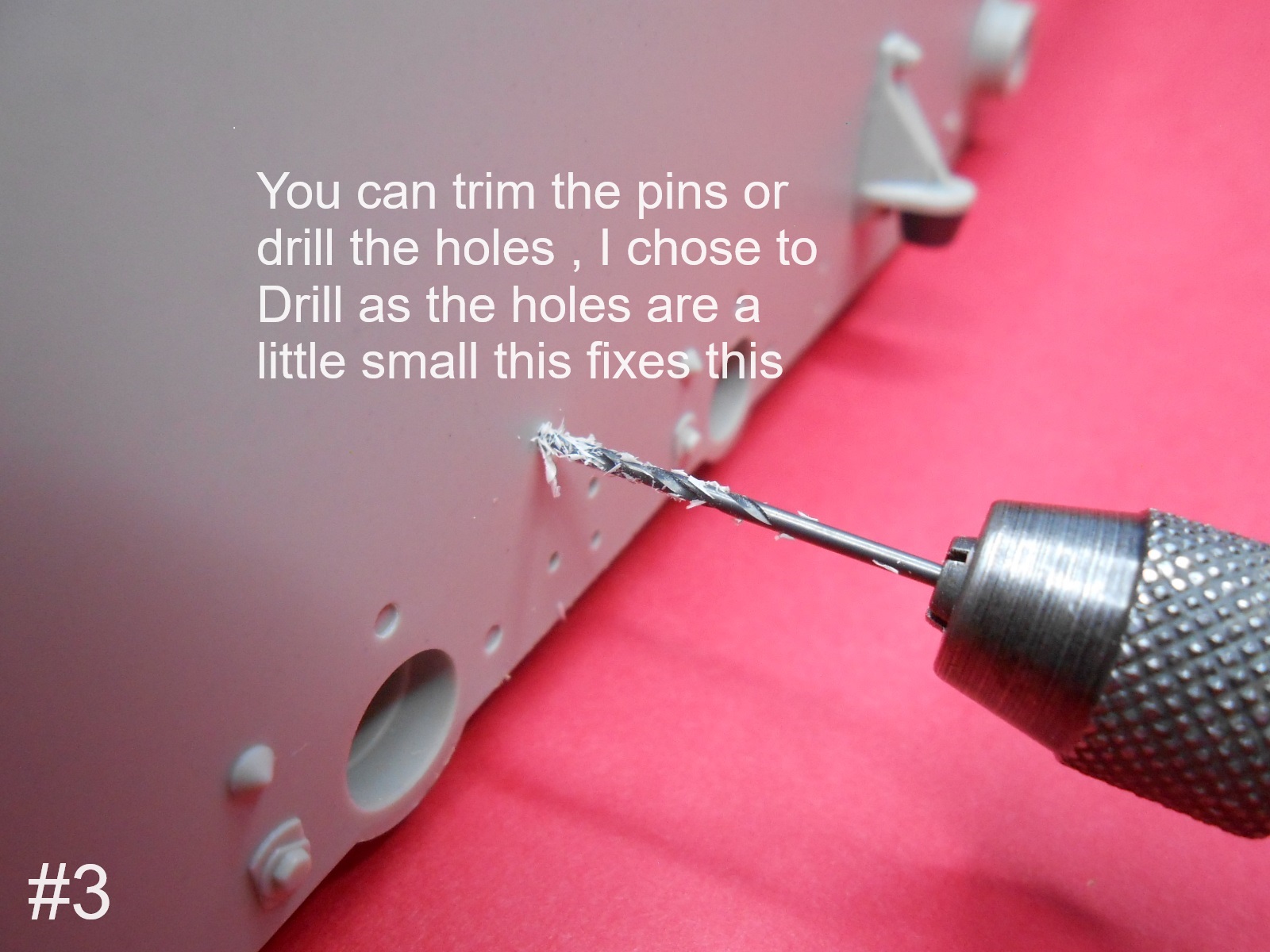

Late Stug. #3
Late Stug. #31600×1200 356 KB

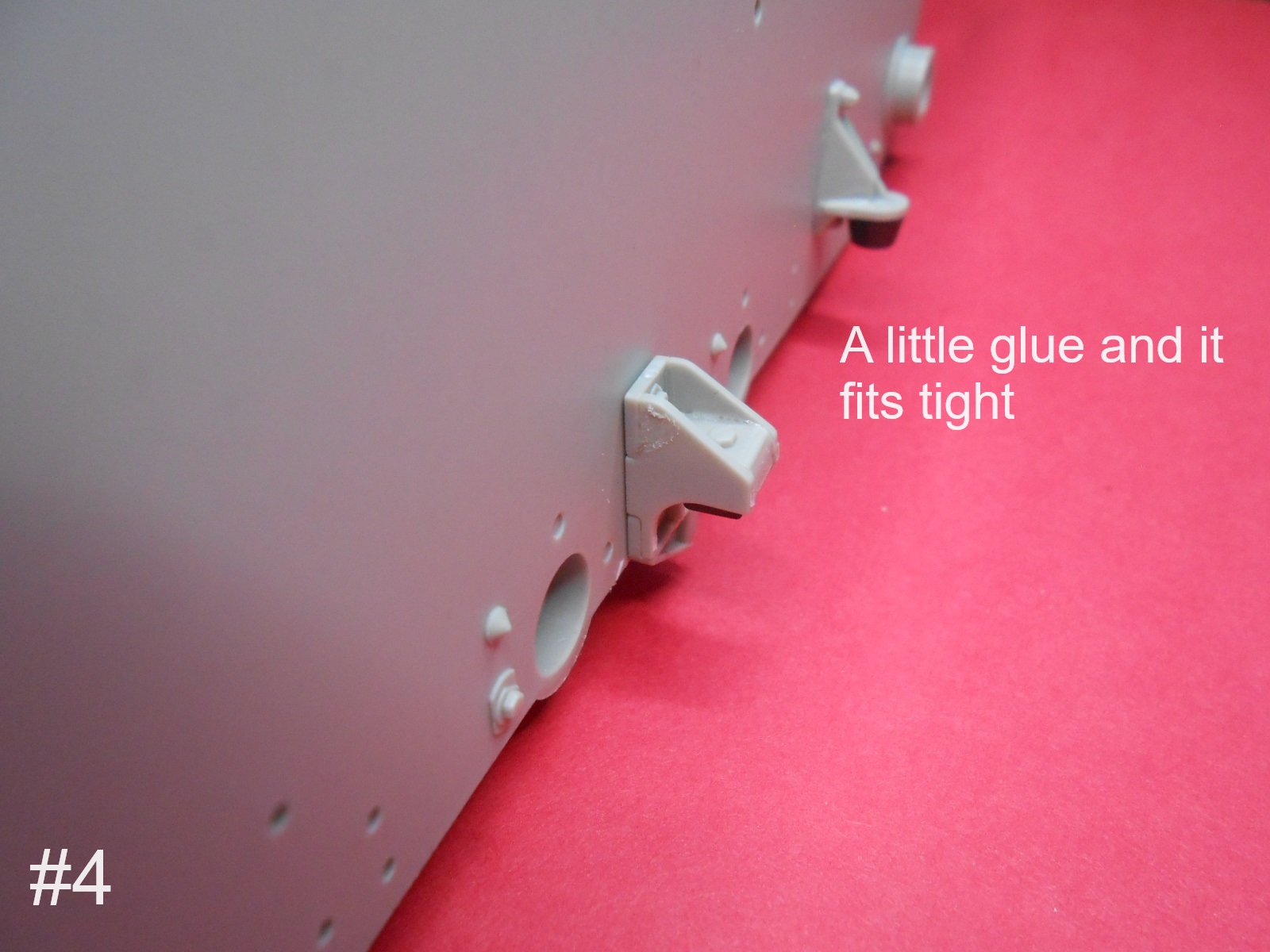

Late Stug. #4
Late Stug. #41600×1200 336 KB

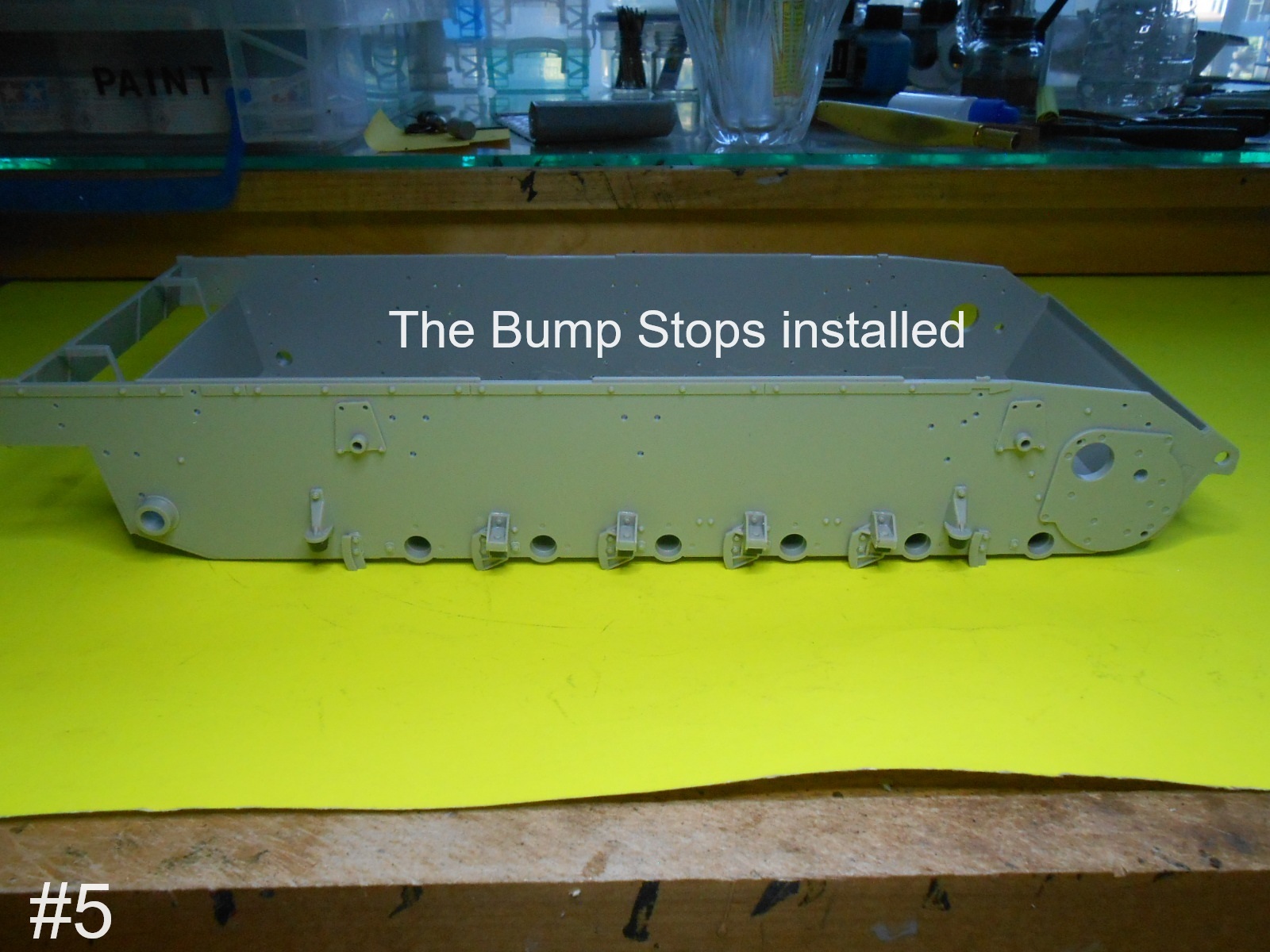

Late stug. #5
Late stug. #51600×1200 385 KB

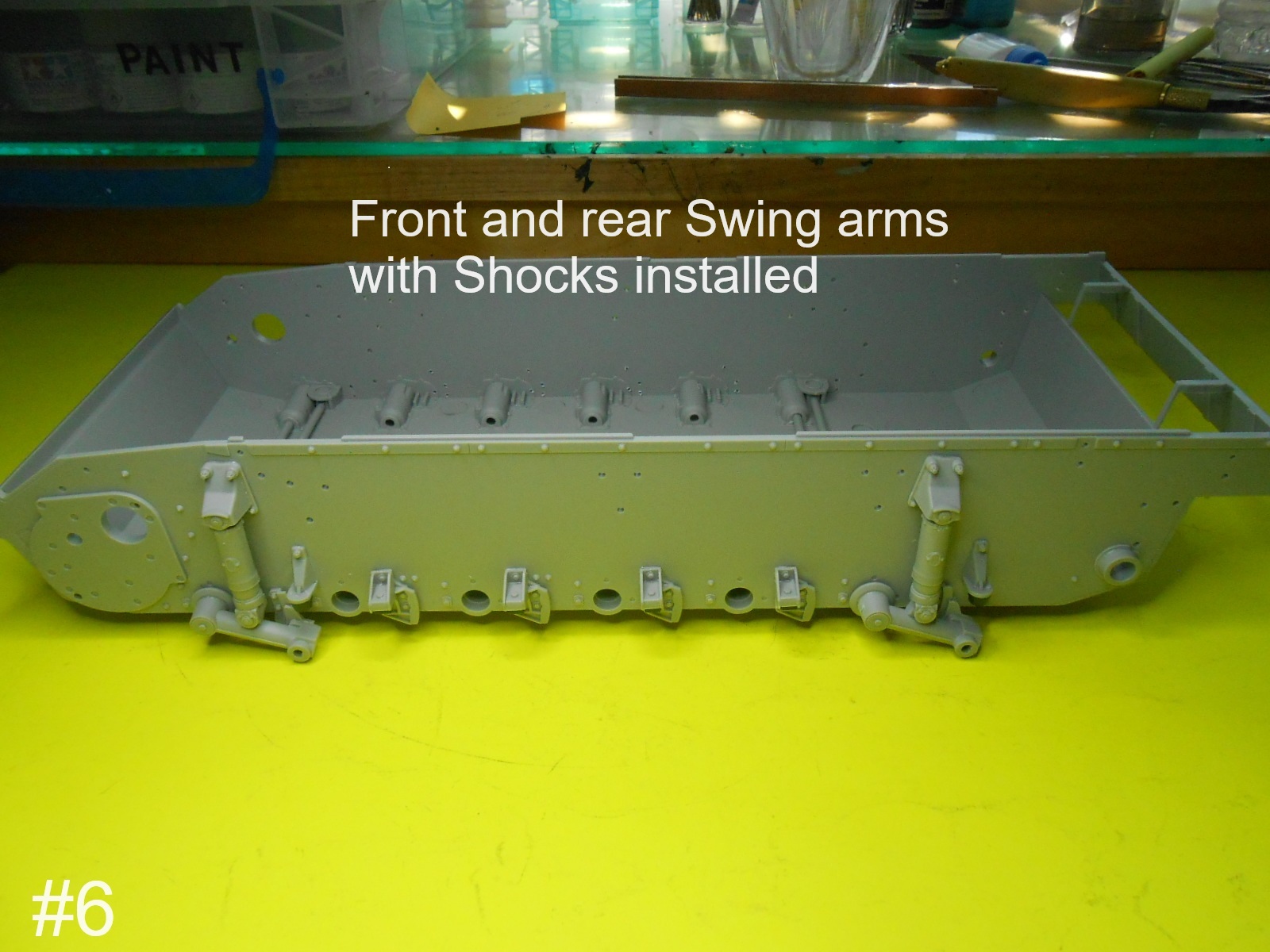

Late Stug. #6
Late Stug. #61600×1200 365 KB

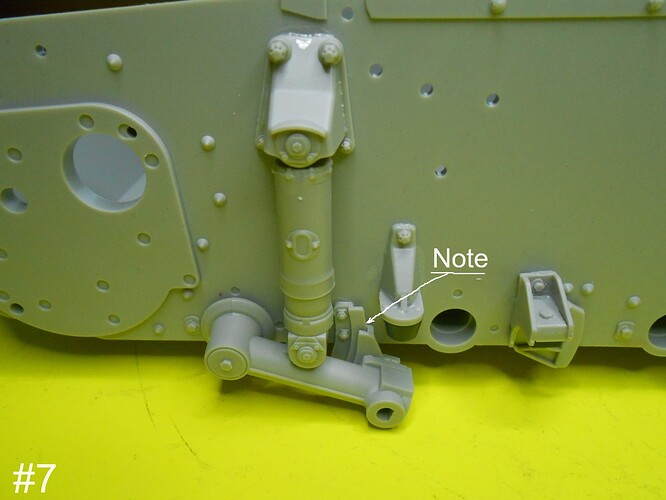

Late Stug. #7
Late Stug. #71600×1200 325 KB

Regards
Donald

11 Likes
2

It’s funny, that detail you pointed out in photo 7. In one of those Aus Armor videos on the Stug. they had to deal with that very same part.
Ken

1 Like
3

That’s why I pointed it out. I’ll be doing the inner 4 on each side next. It will be interesting to see if the parts fit like they are supposed to.
Regards
Donald

1 Like
4

They fit ok on the right side , it’s the left side that was more of a problem.
The solution is to just fit the guides to the ends of the Swing Arms and only glue after they are engaged .
Here are the Pics. that should explain it. If you glue before like in the instructions it might not work too good.

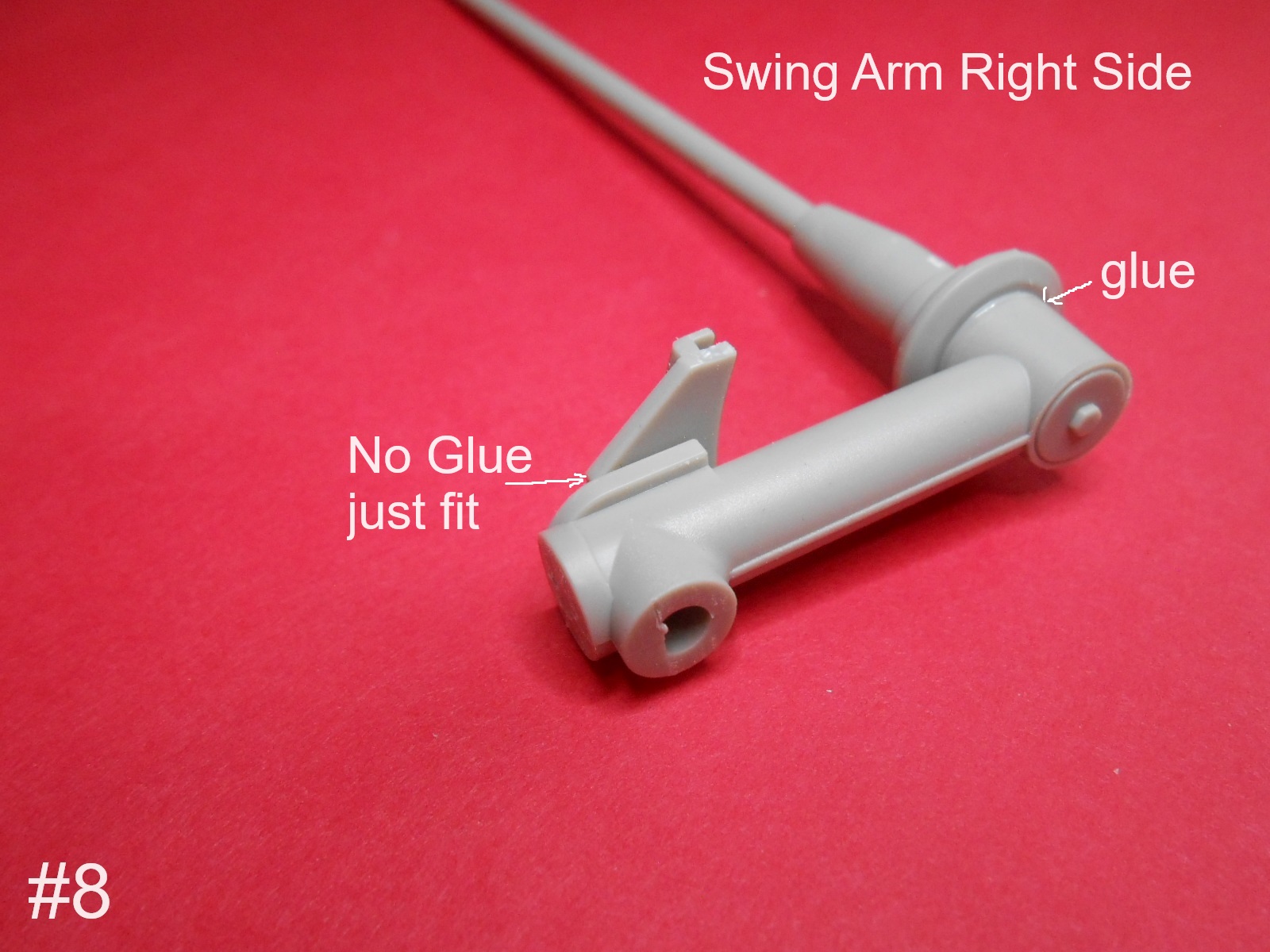

Late Stug. #8
Late Stug. #81600×1200 374 KB

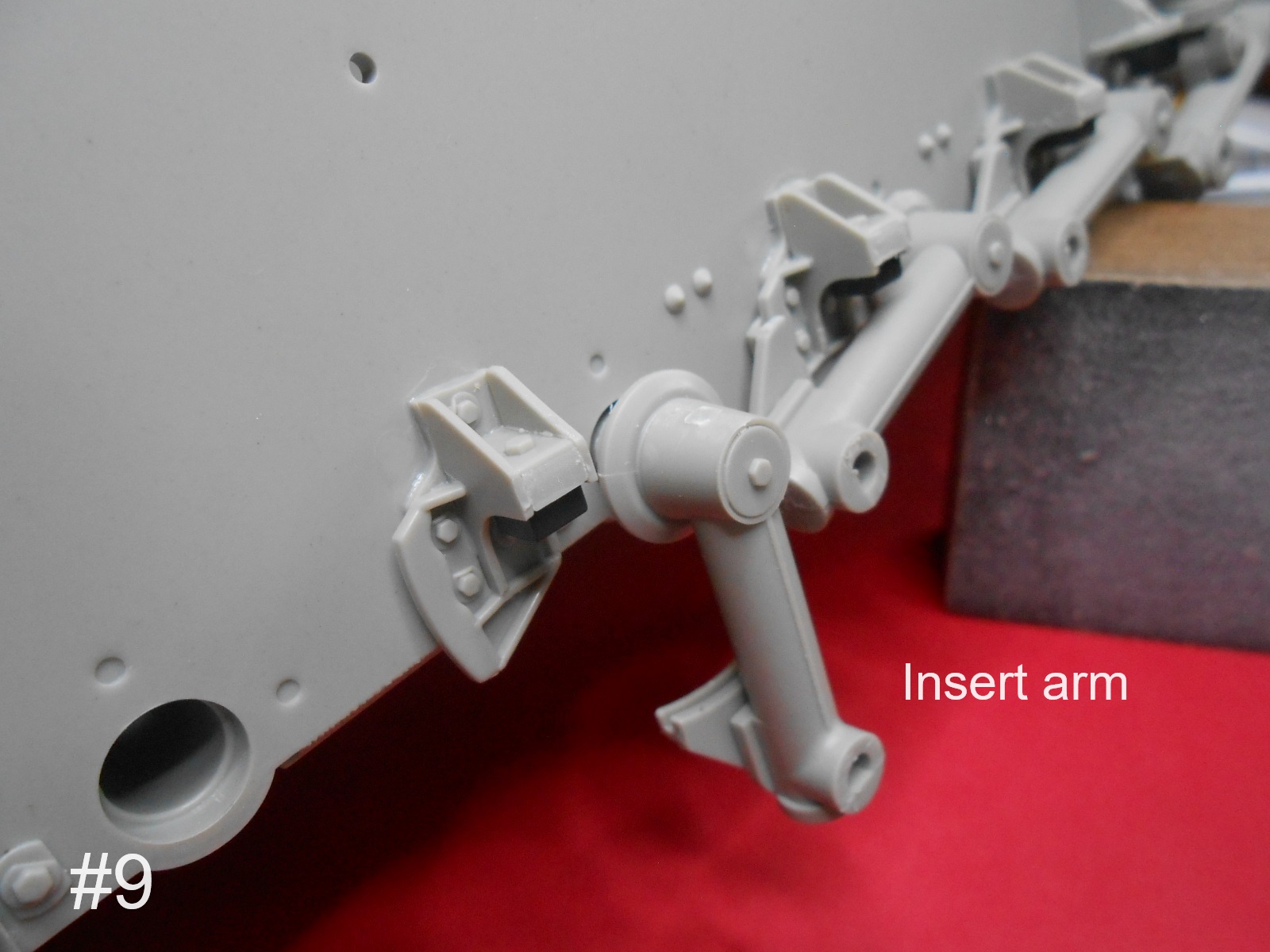

Late Stug. #9
Late Stug. #91600×1200 312 KB

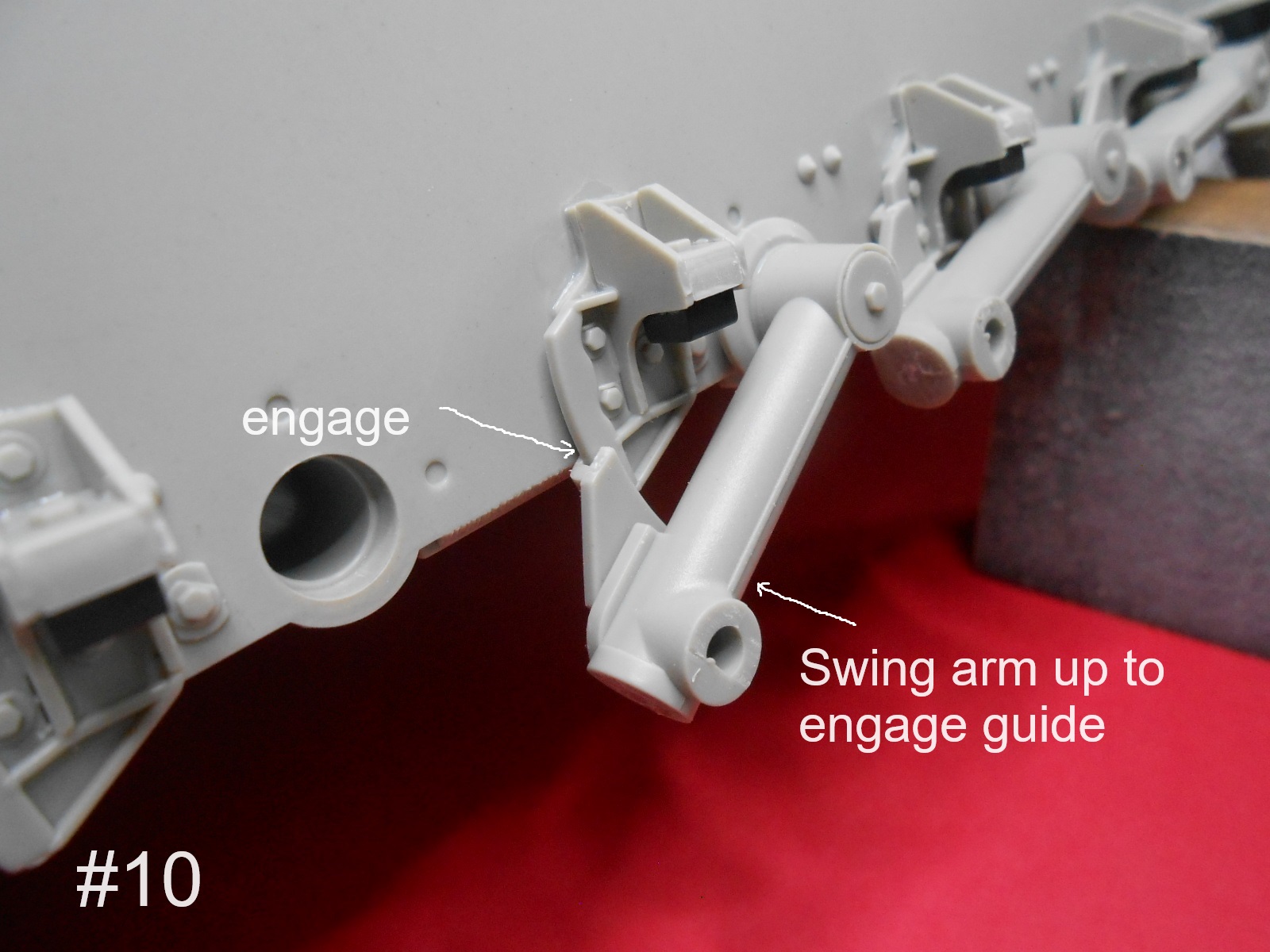

Late Stug. #10
Late Stug. #101600×1200 334 KB

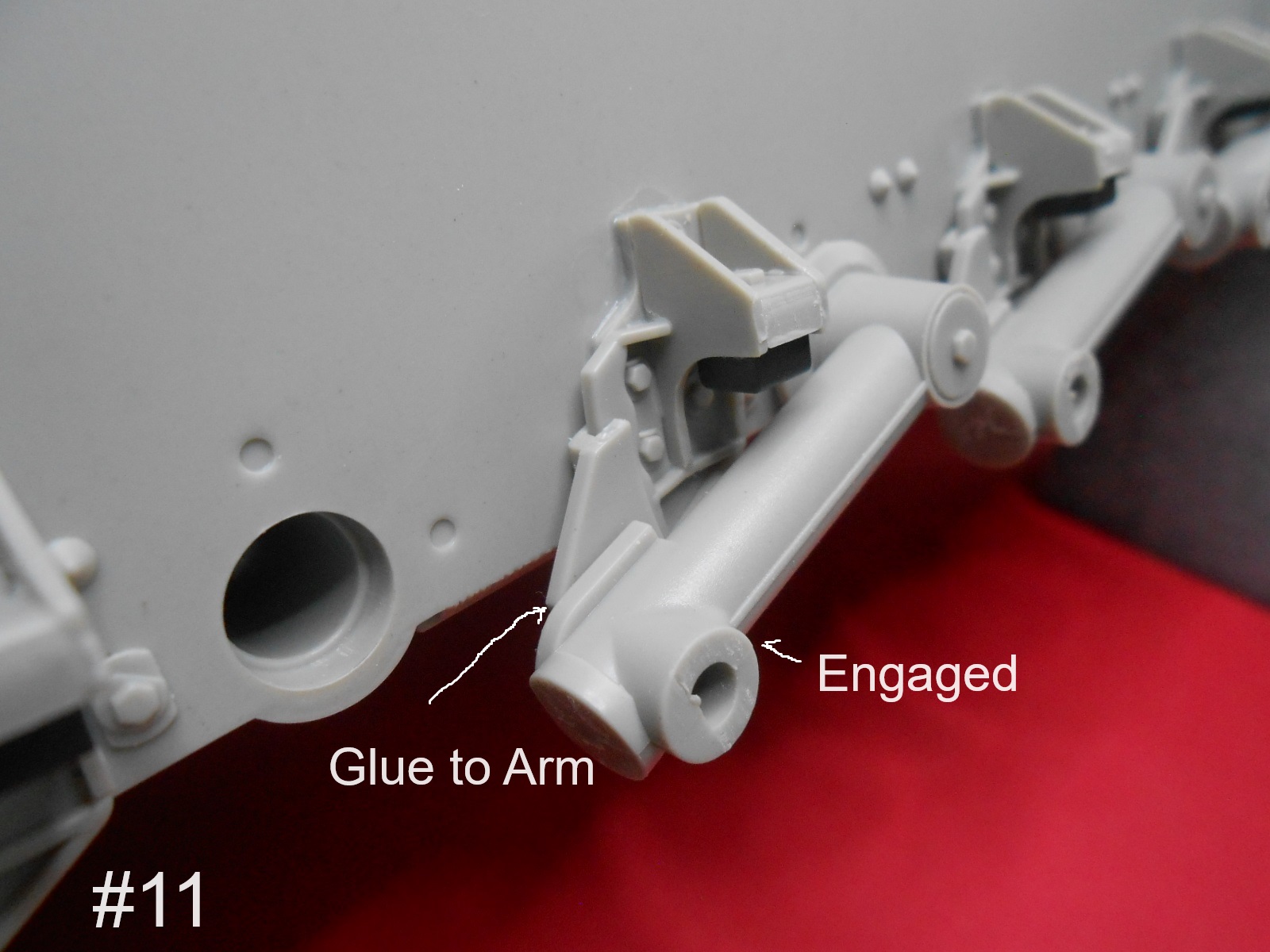

Late Stug. #11
Late Stug. #111600×1200 319 KB

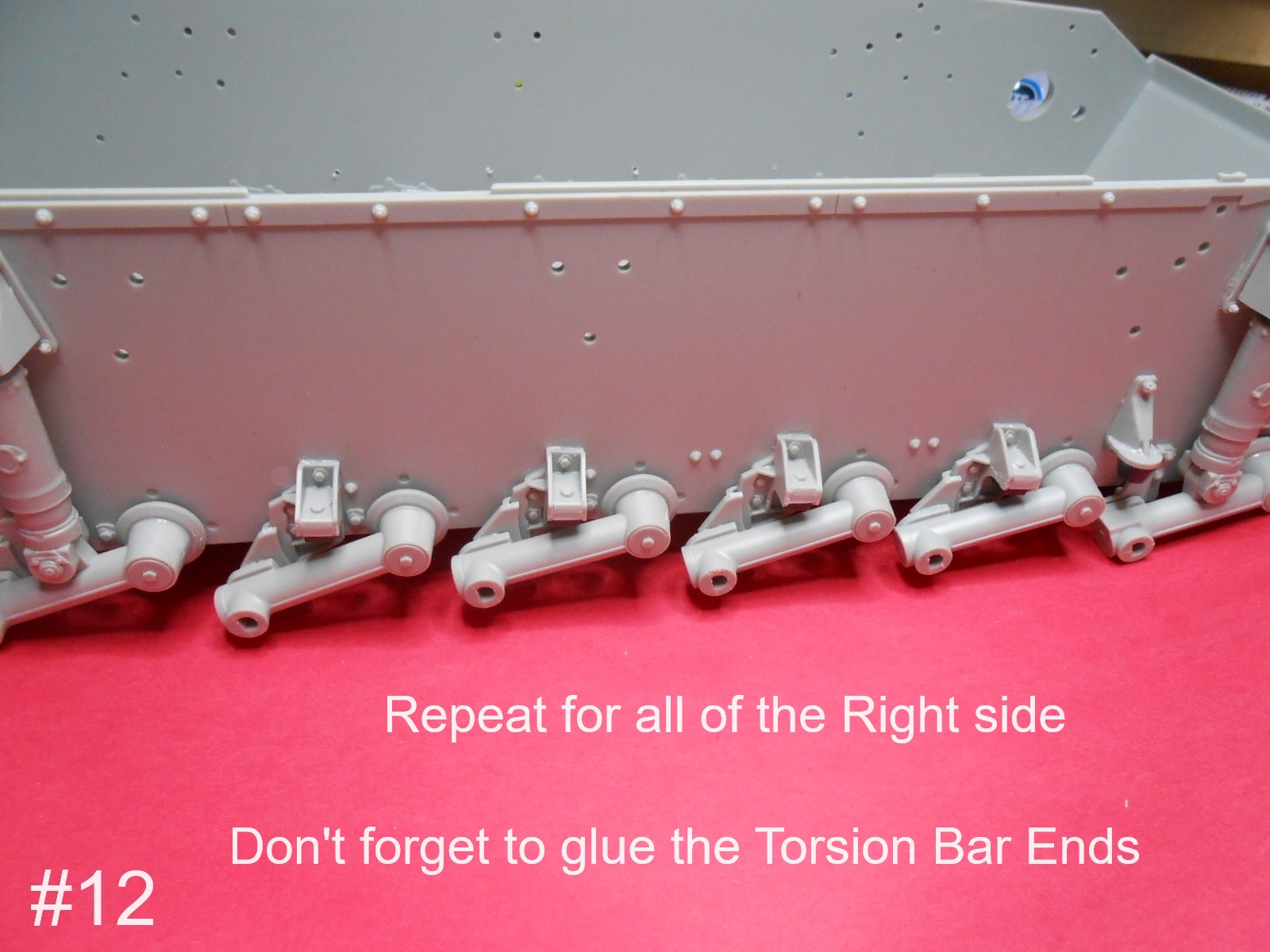

Late Stug. #12
Late Stug. #121600×1200 386 KB

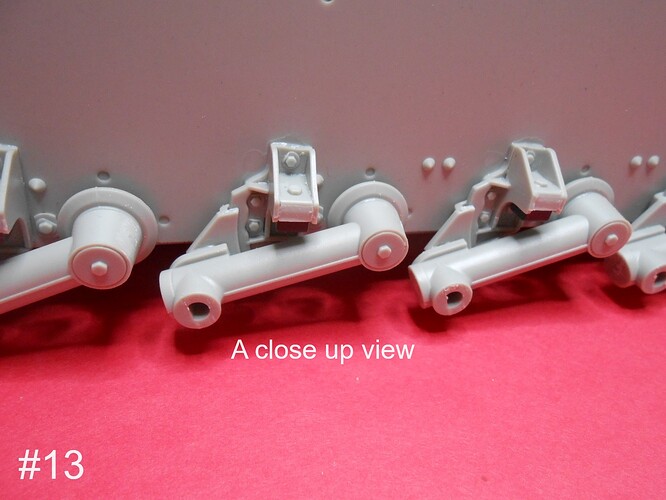

Late Stug. #13
Late Stug. #131600×1200 371 KB

Late Stug. #14
Late Stug. #141600×1200 388 KB

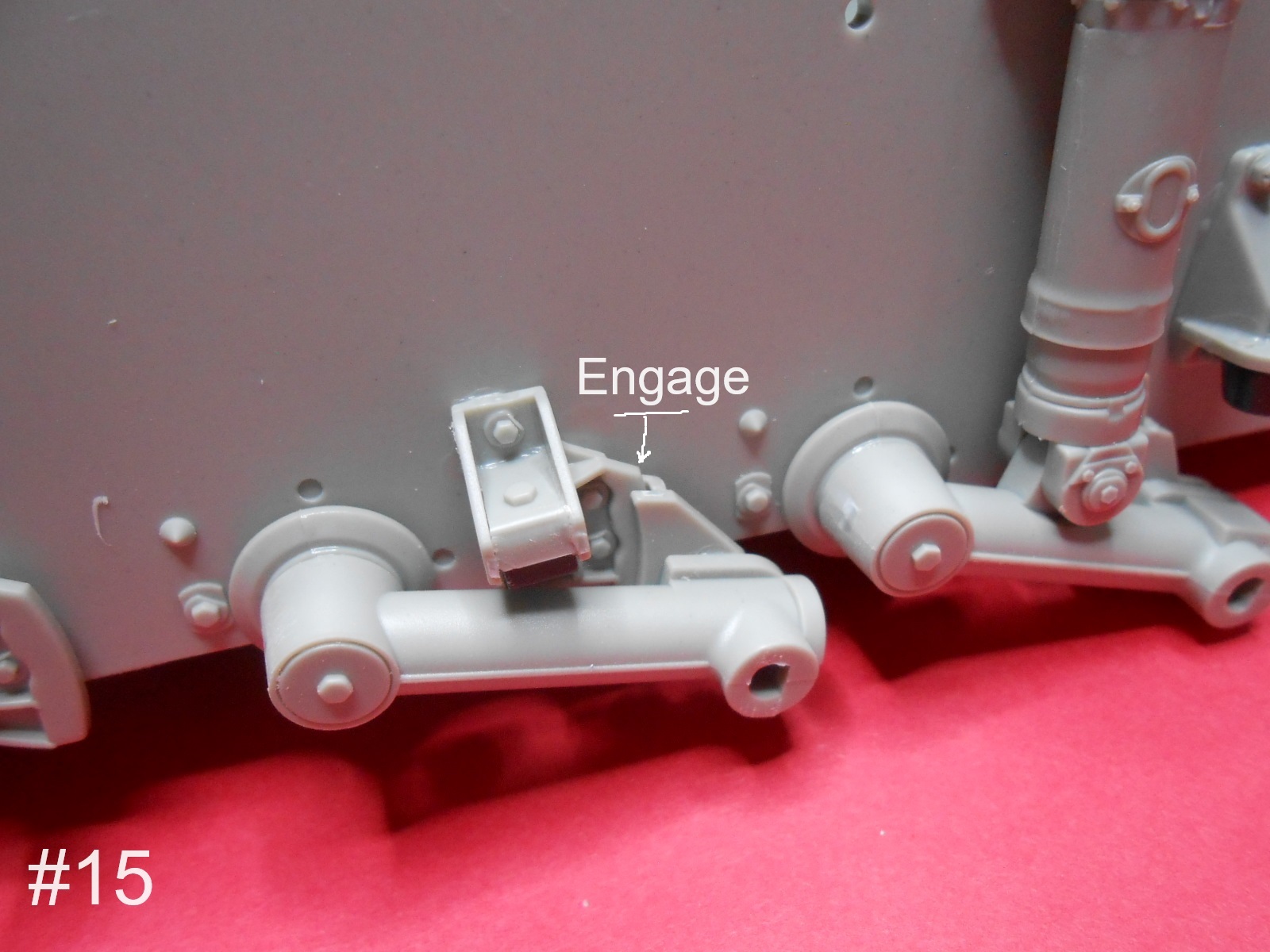

Late Stug. #15
Late Stug. #151600×1200 338 KB

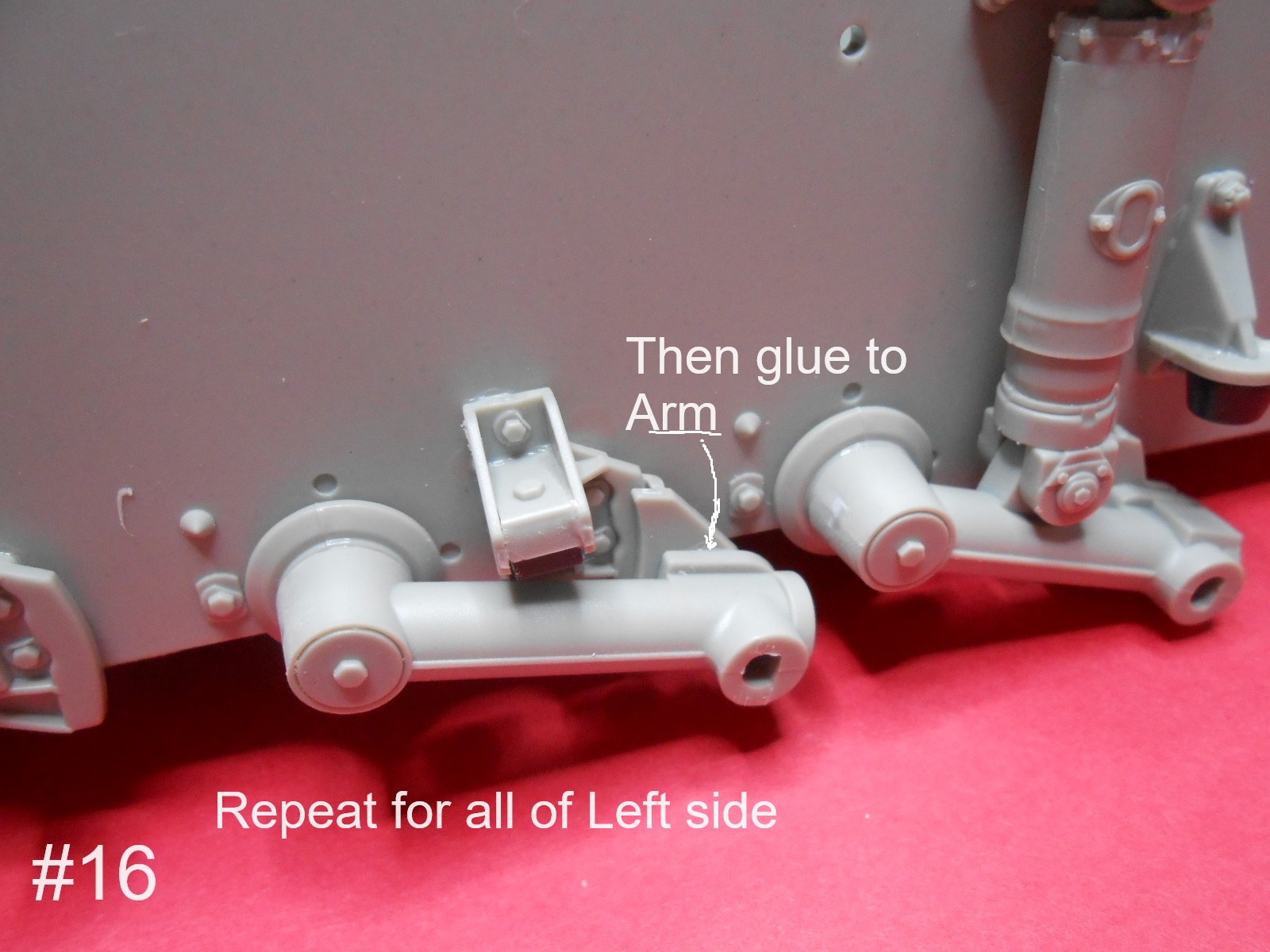

Late Stug. #16
Late Stug. #161600×1200 355 KB

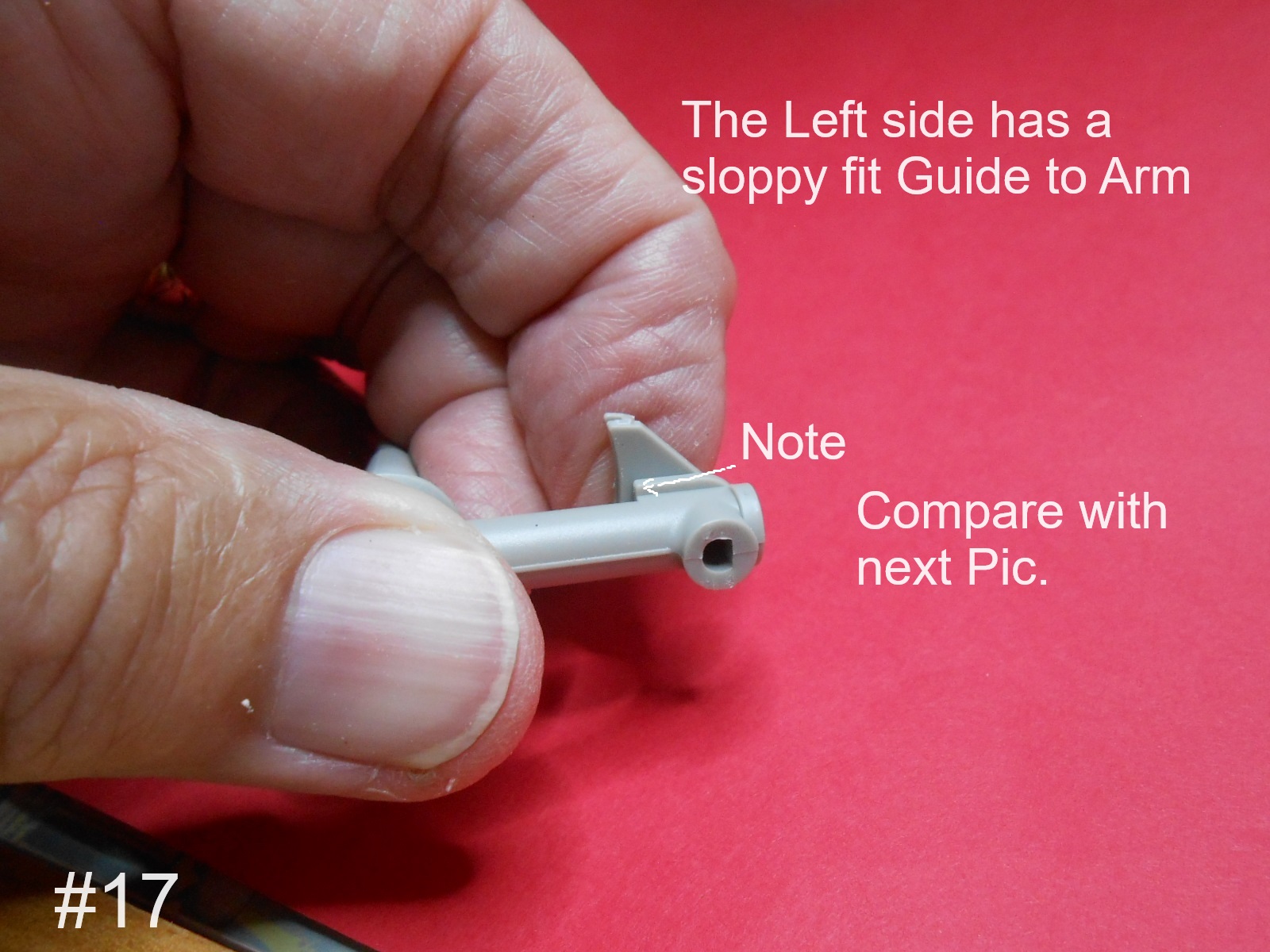

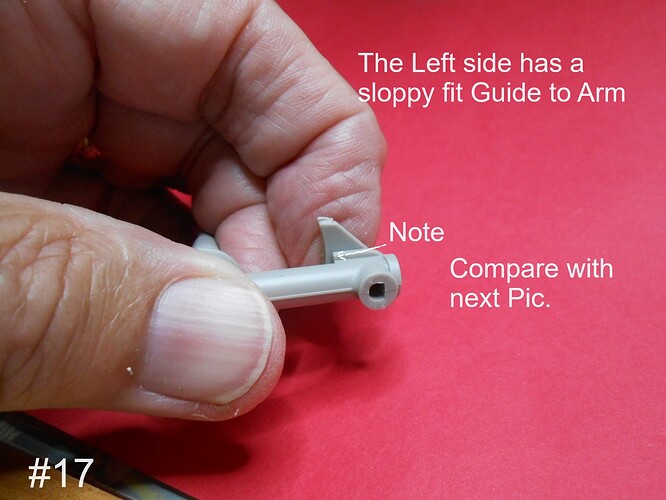

Late Stug. #17
Late Stug. #171600×1200 395 KB

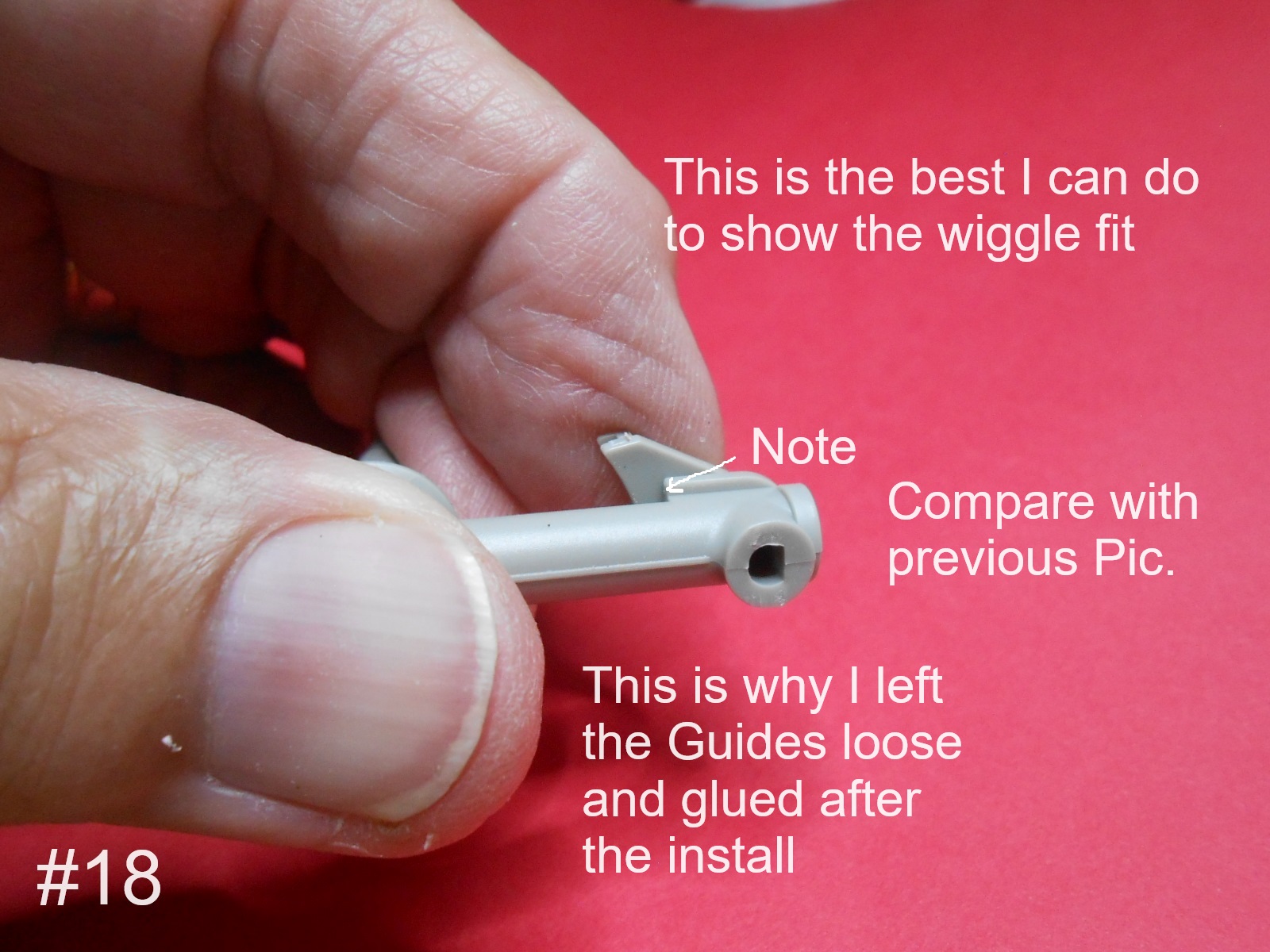

Late Stug. #18
Late Stug. #181600×1200 412 KB

Regards
Donald

6 Likes
5

Now for more of the running gear. All the info. is on the Pics. so if you save them you will have it all.

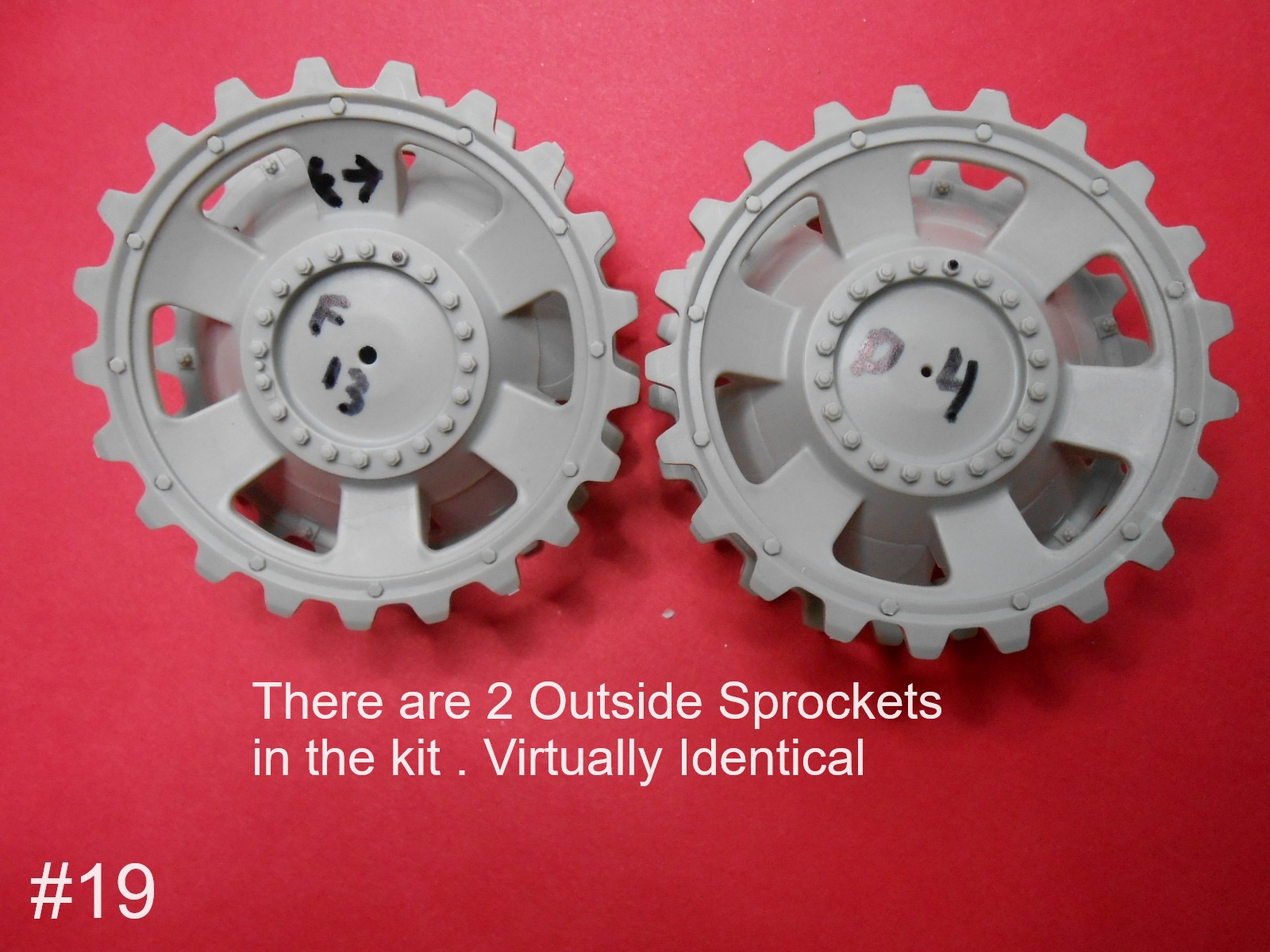

Late Stug. #19
Late Stug. #191600×1200 406 KB

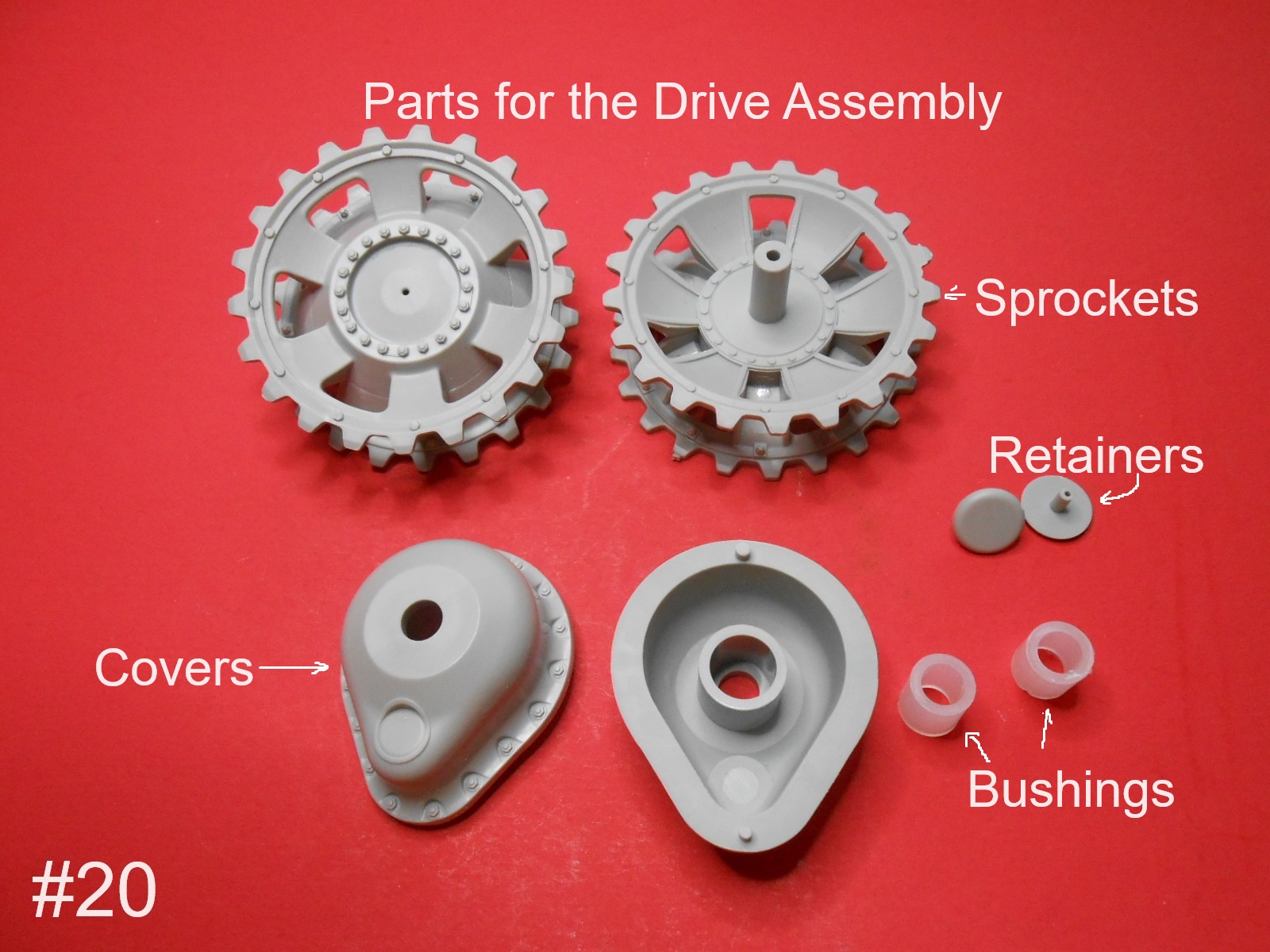

Late Stug. #20
Late Stug. #201600×1200 416 KB

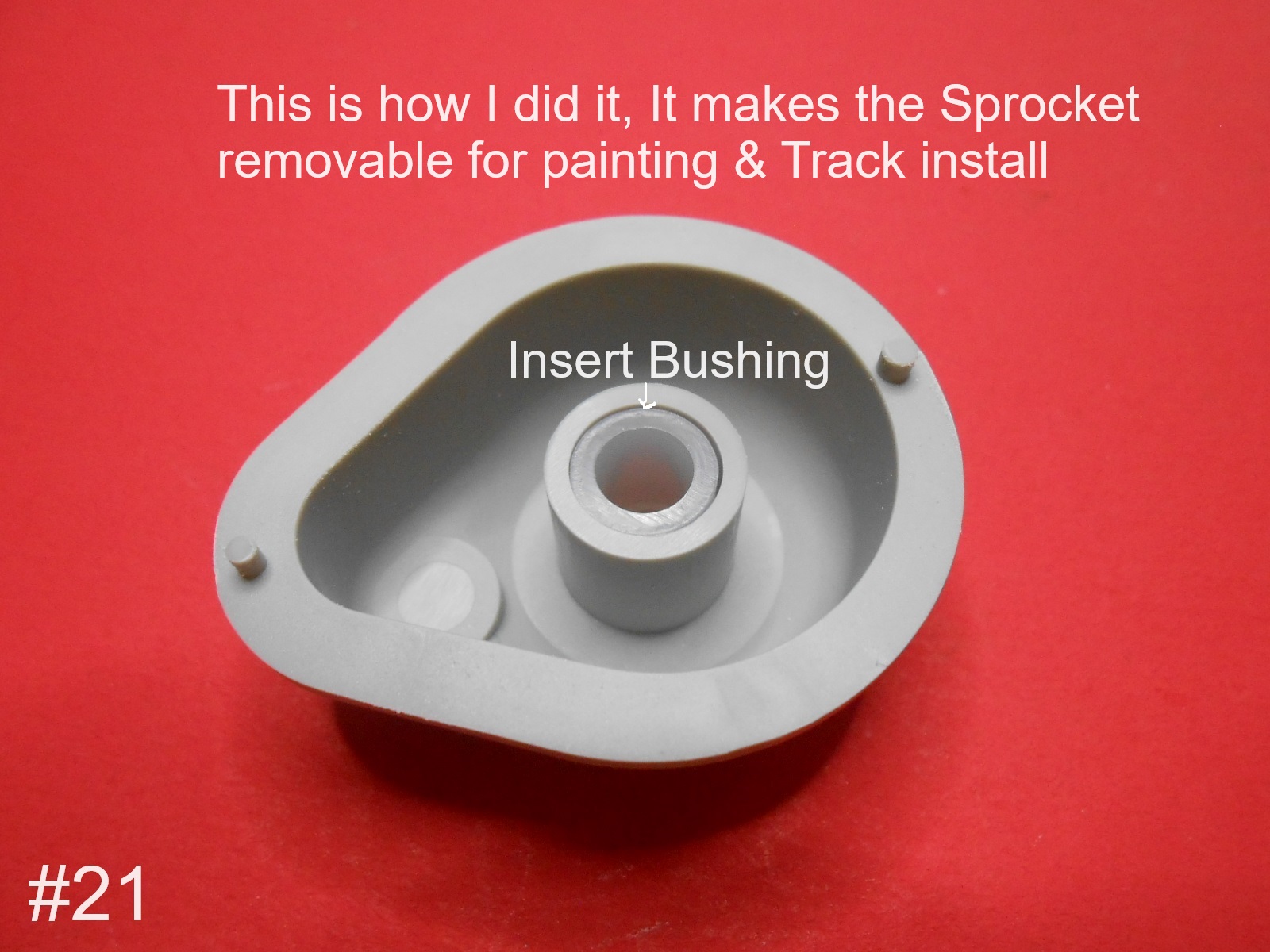

Late Stug. #21
Late Stug. #211600×1200 375 KB

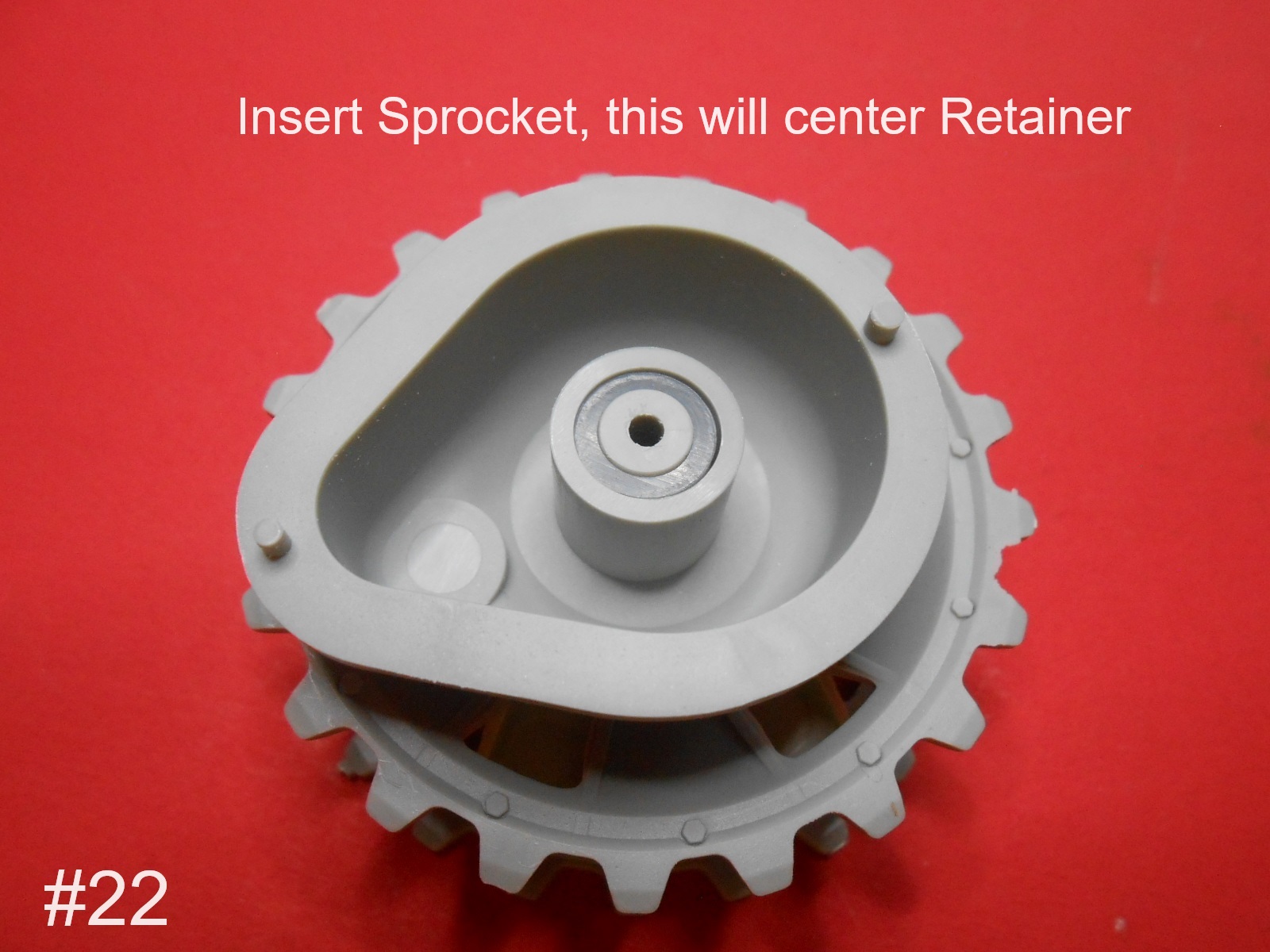

Late Stug. #22
Late Stug. #221600×1200 356 KB

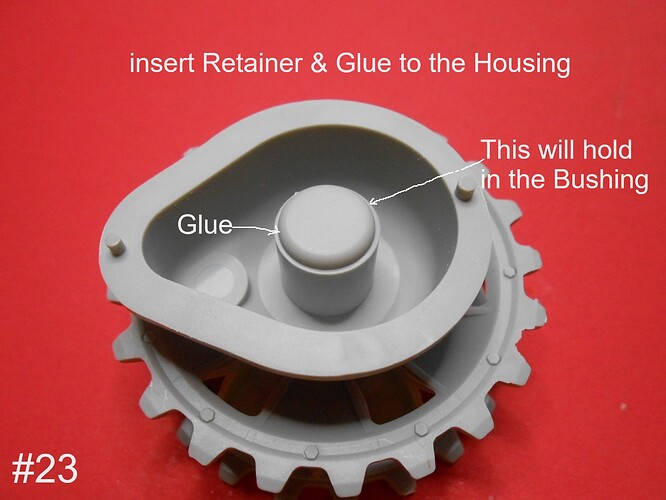

Late Stug. #23
Late Stug. #231600×1200 374 KB

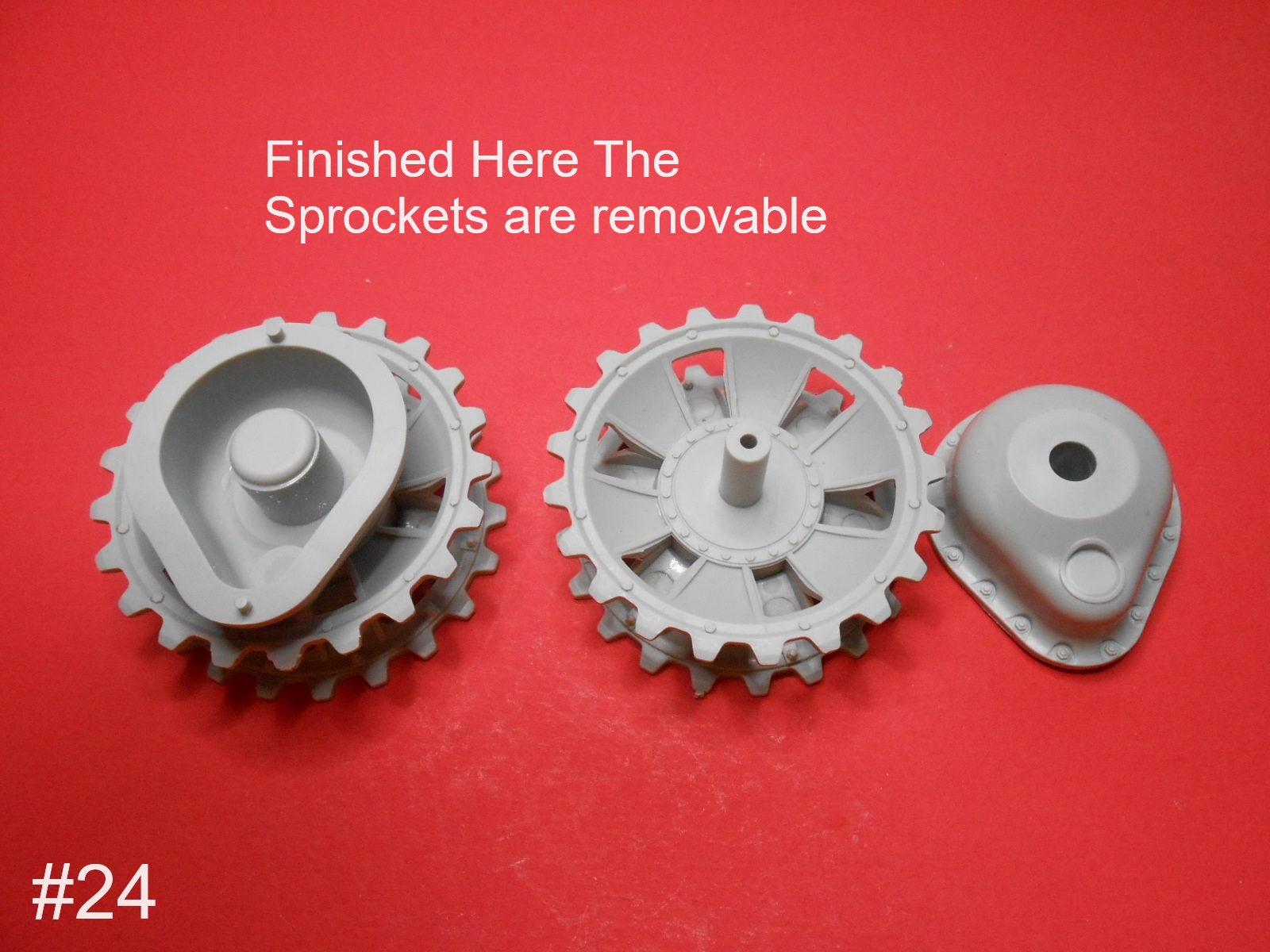

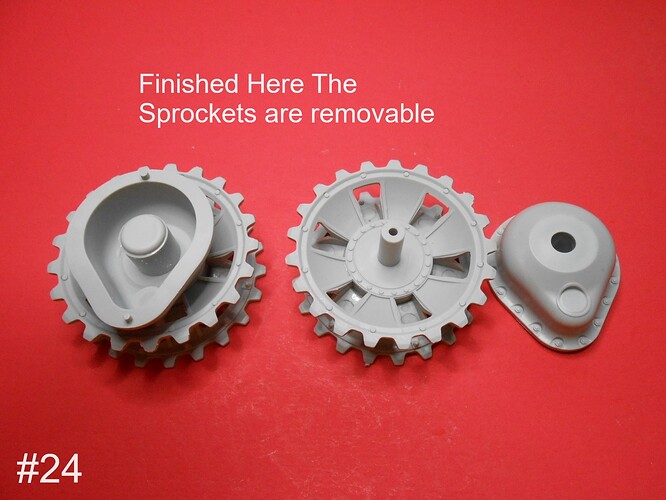

Late Stug. #24
Late Stug. #241600×1200 385 KB

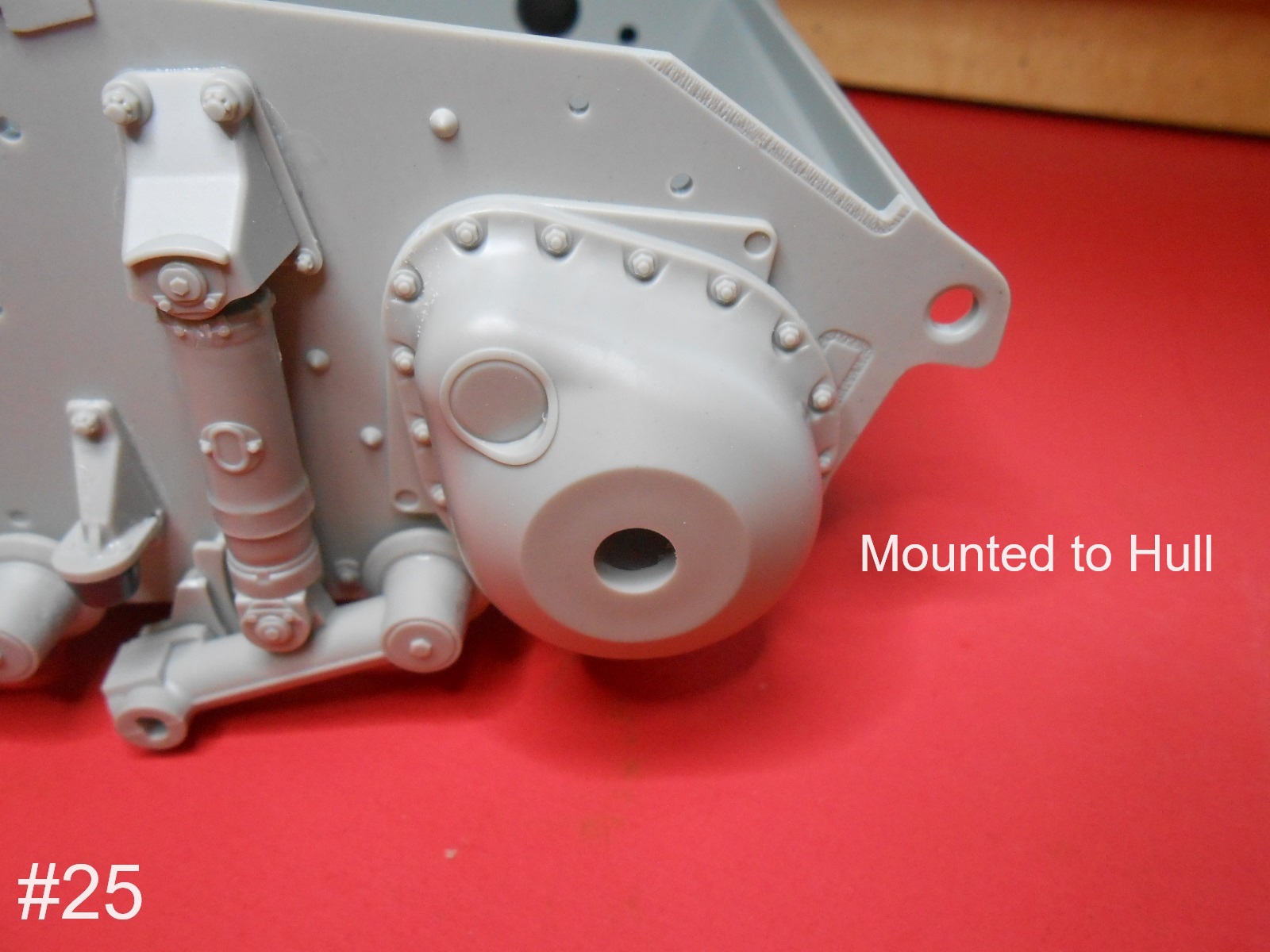

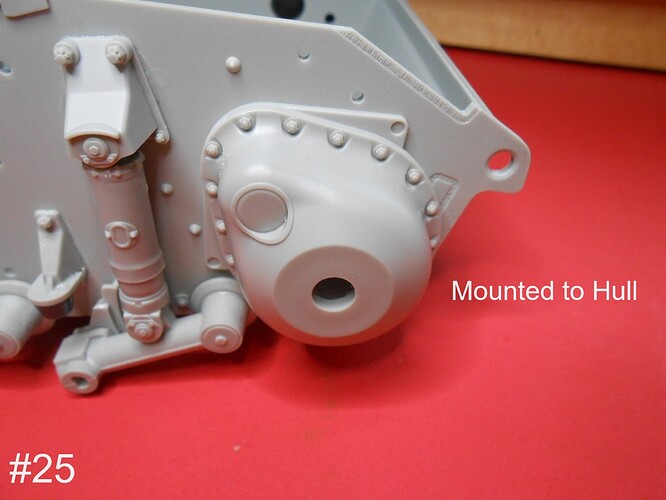

Late Stug. #25
Late Stug. #251600×1200 336 KB

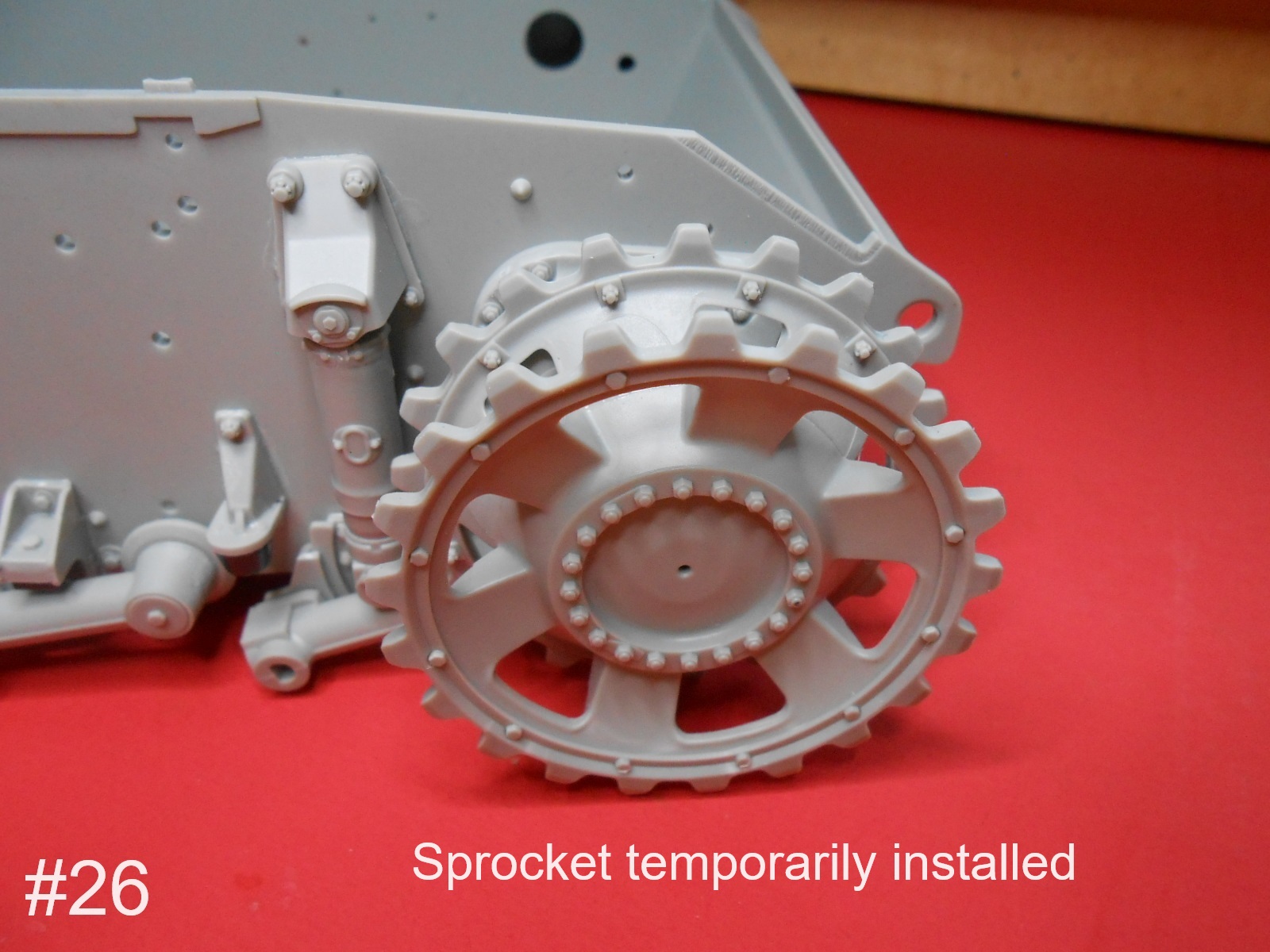

Late stug. #26
Late stug. #261600×1200 371 KB

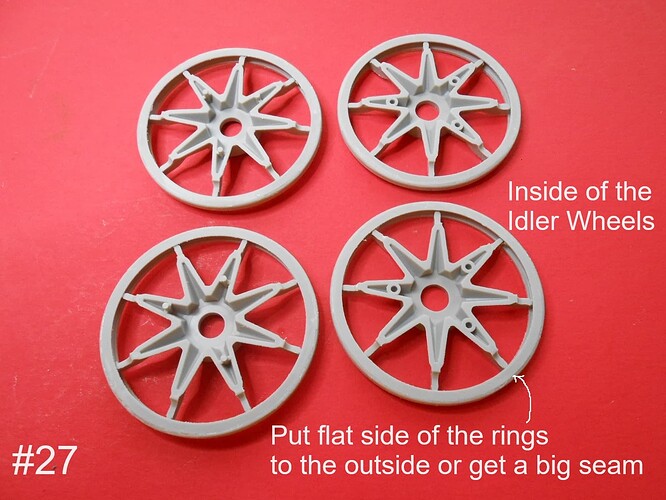

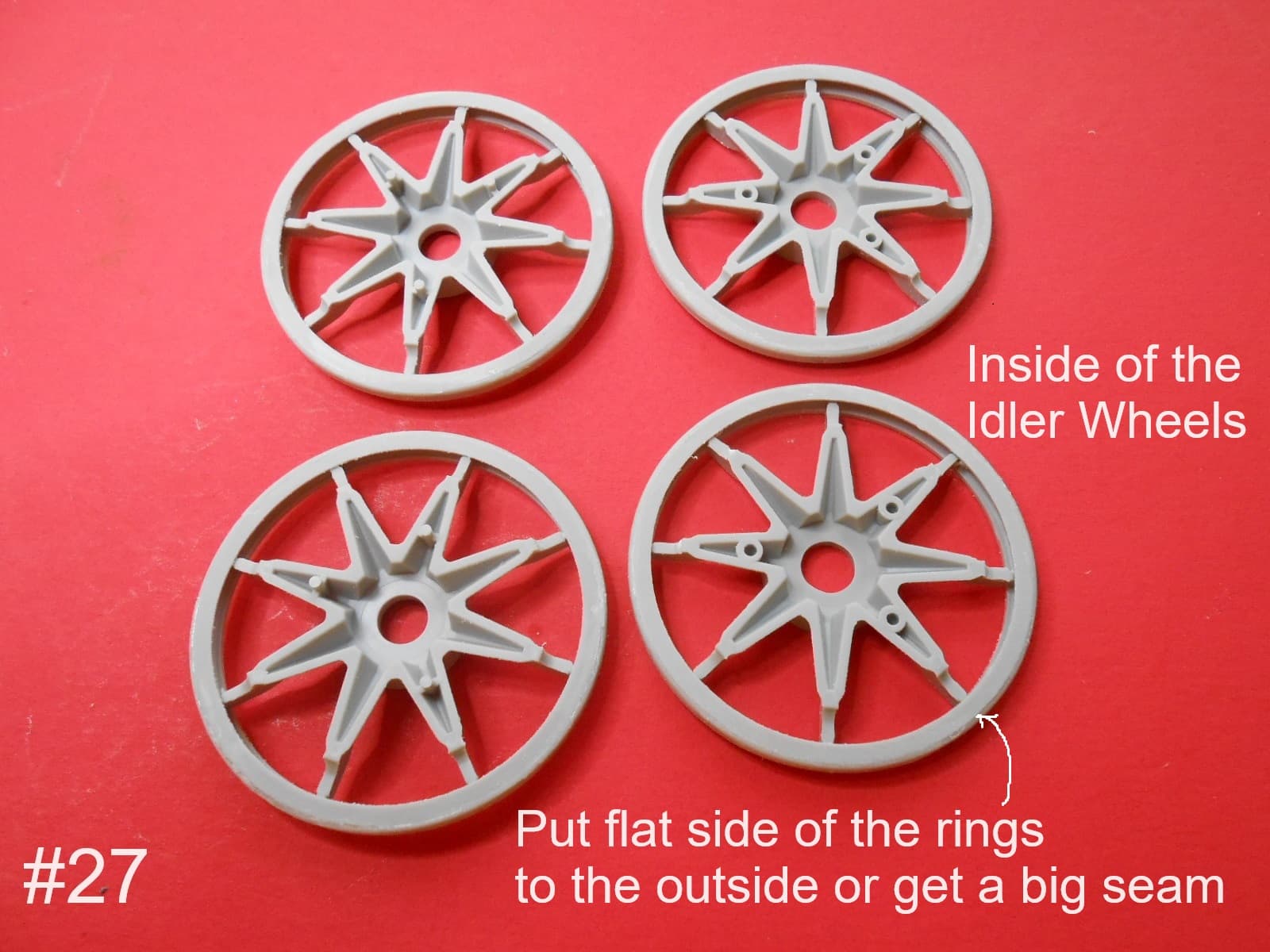

Late Stug. #27
Late Stug. #271600×1200 149 KB

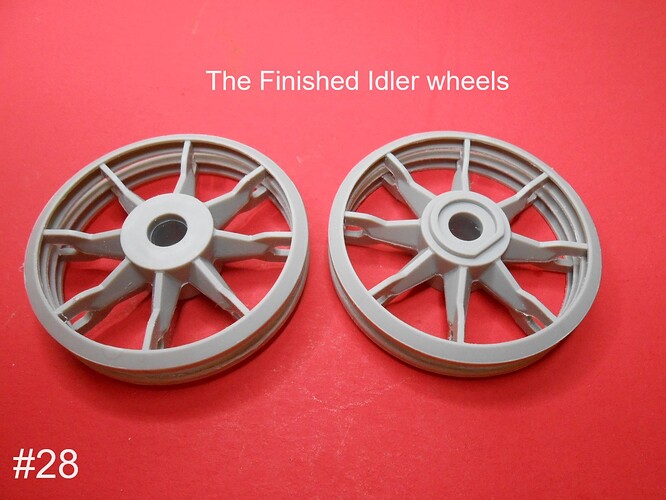

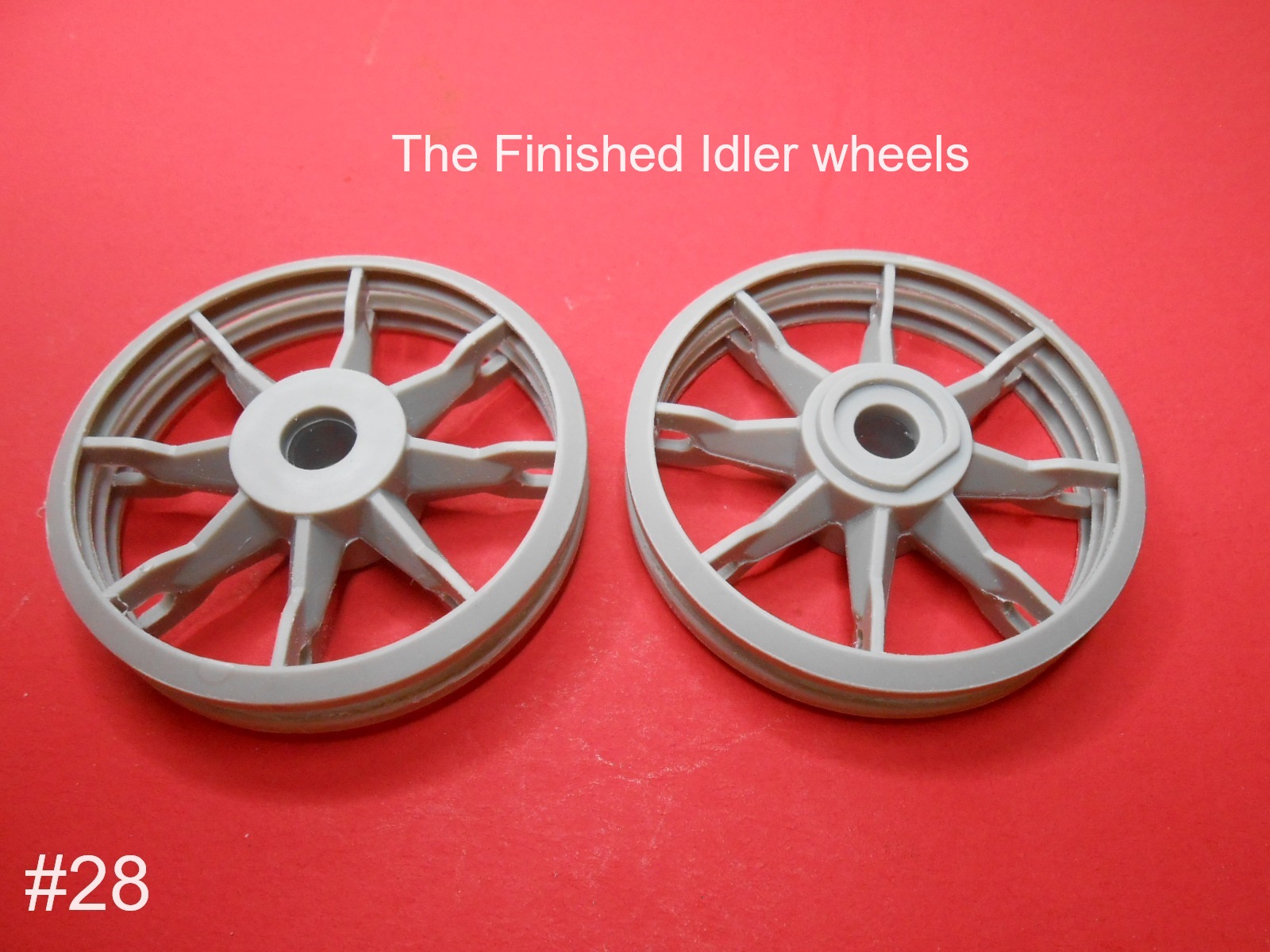

Late Stug. #28
Late Stug. #281600×1200 400 KB

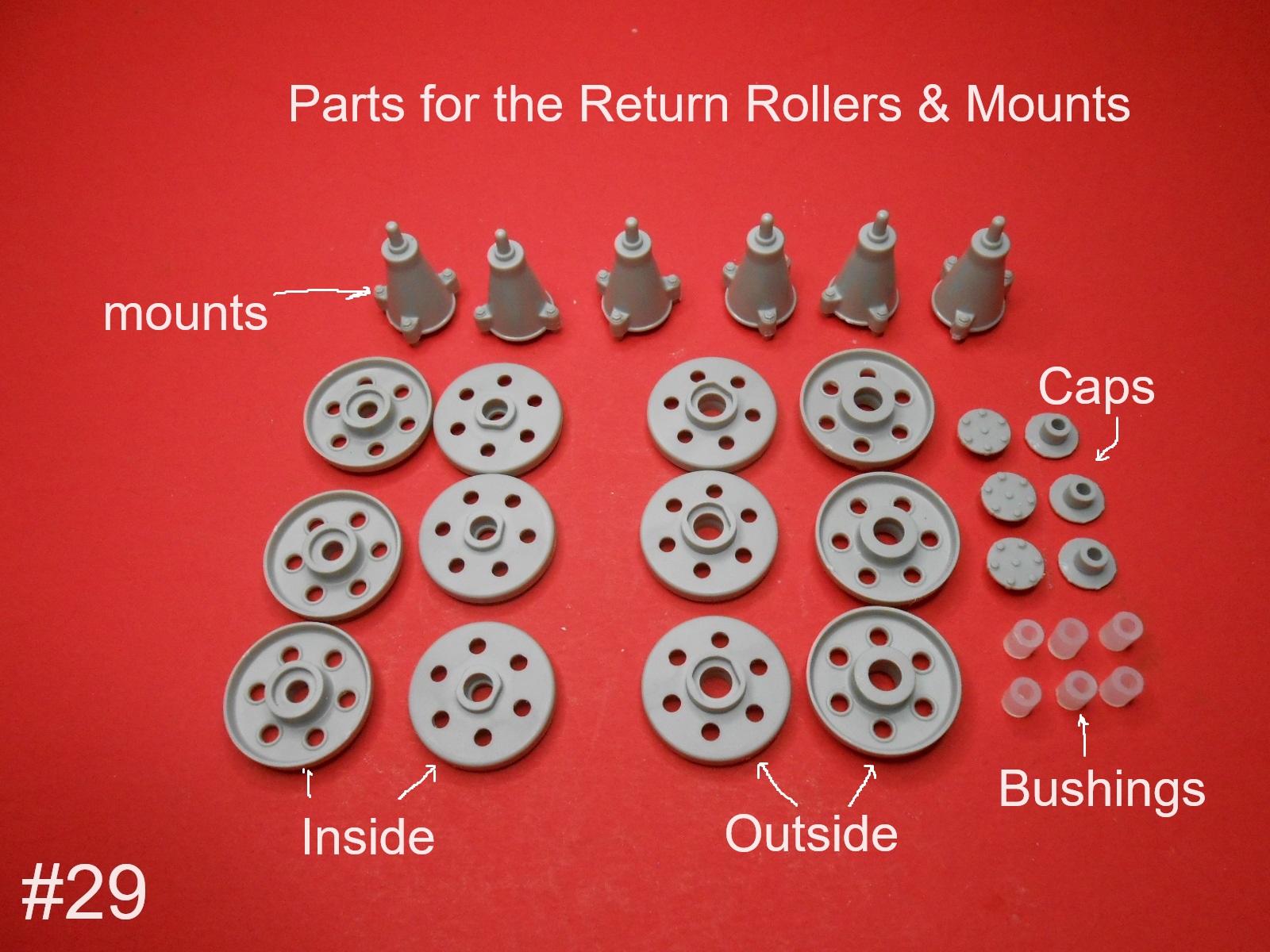

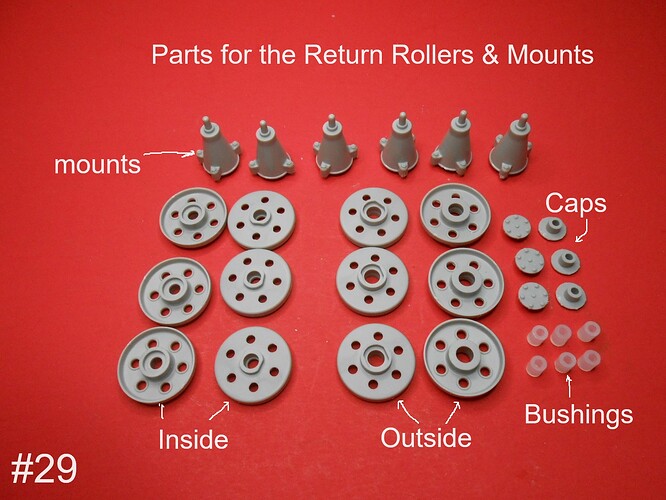

Late Stug. #29
Late Stug. #291600×1200 440 KB

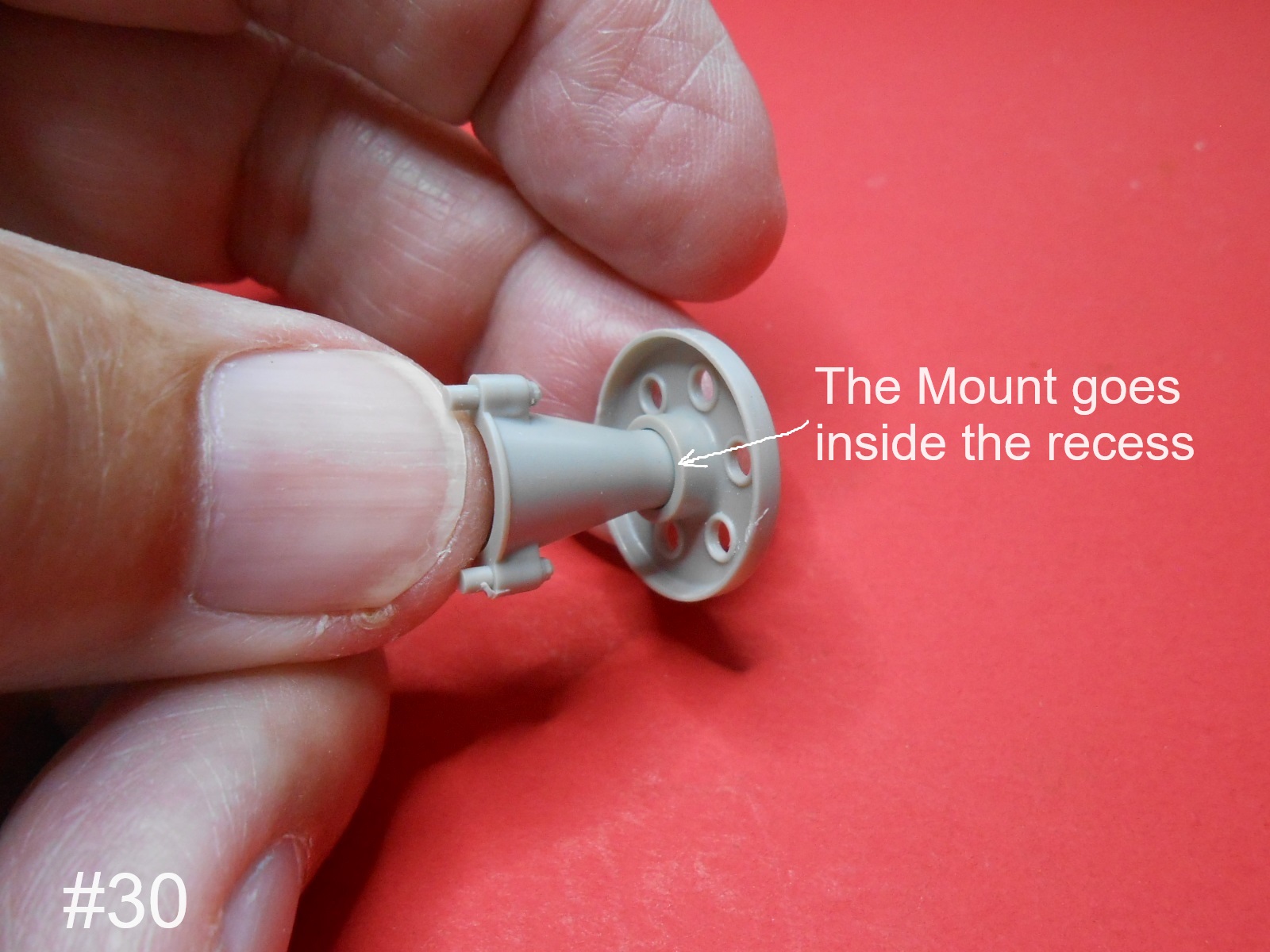

Late Stug. #30
Late Stug. #301600×1200 364 KB

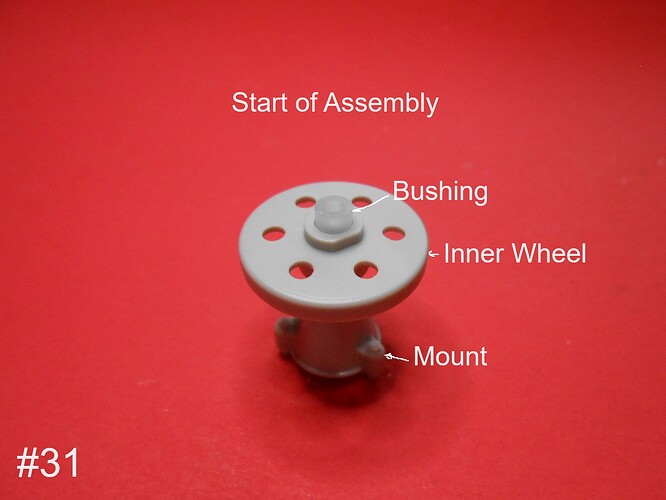

Late Stug. #31
Late Stug. #311600×1200 345 KB

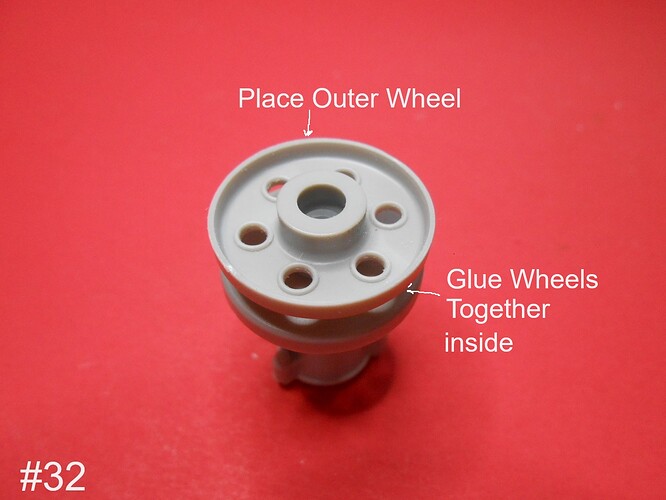

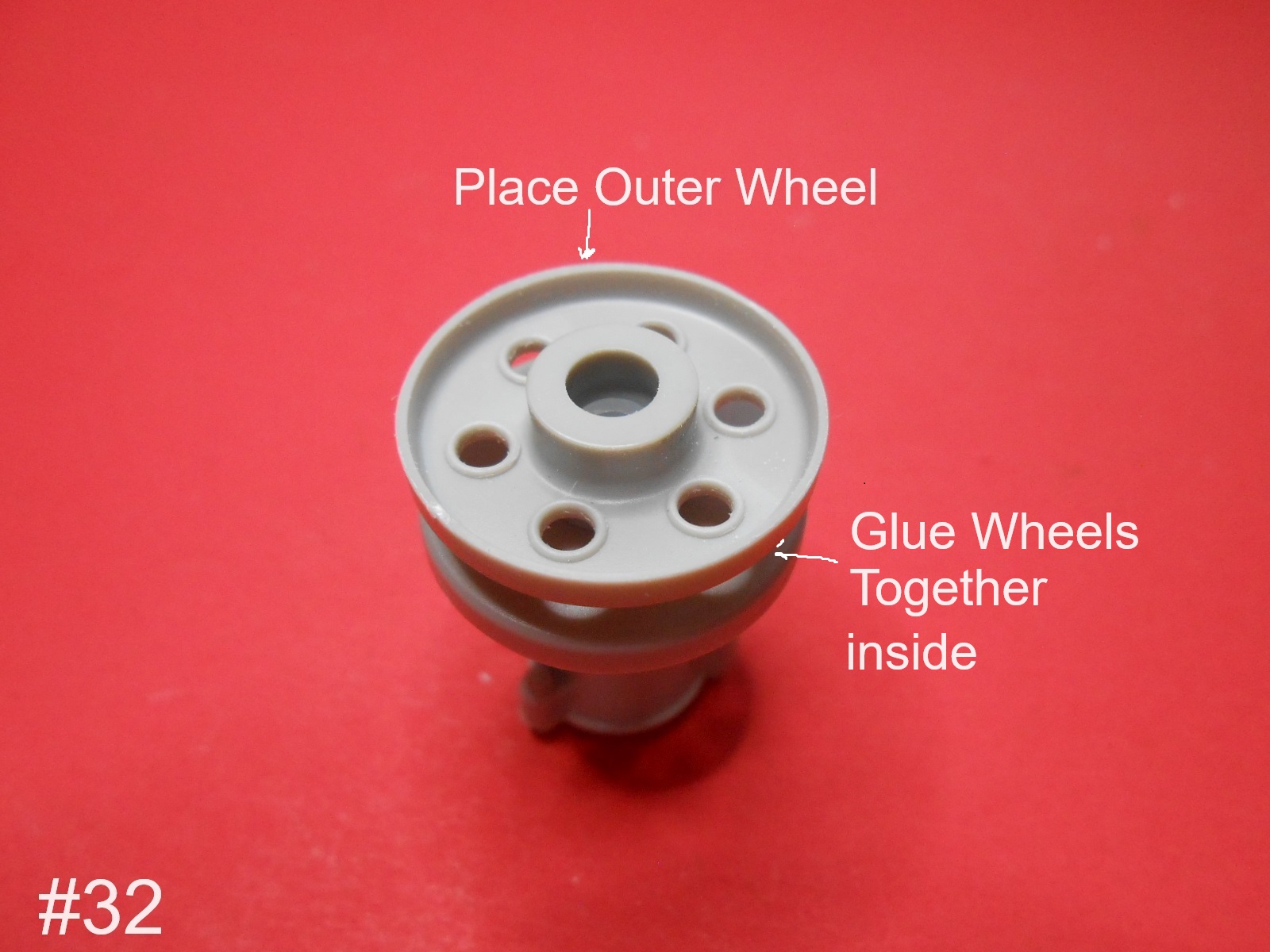

Late Stug. #32
Late Stug. #321600×1200 342 KB

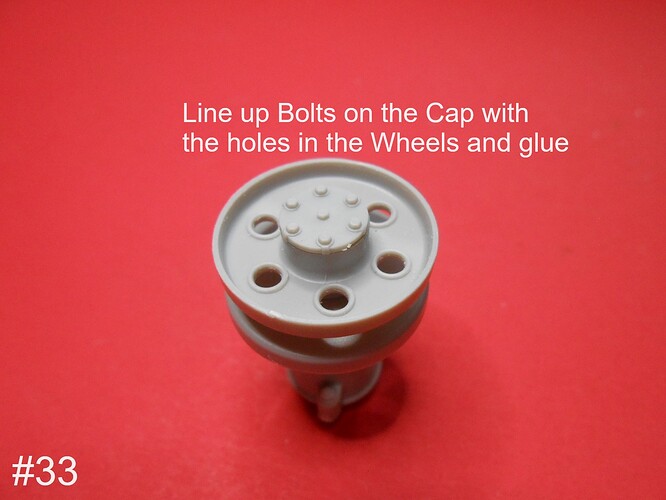

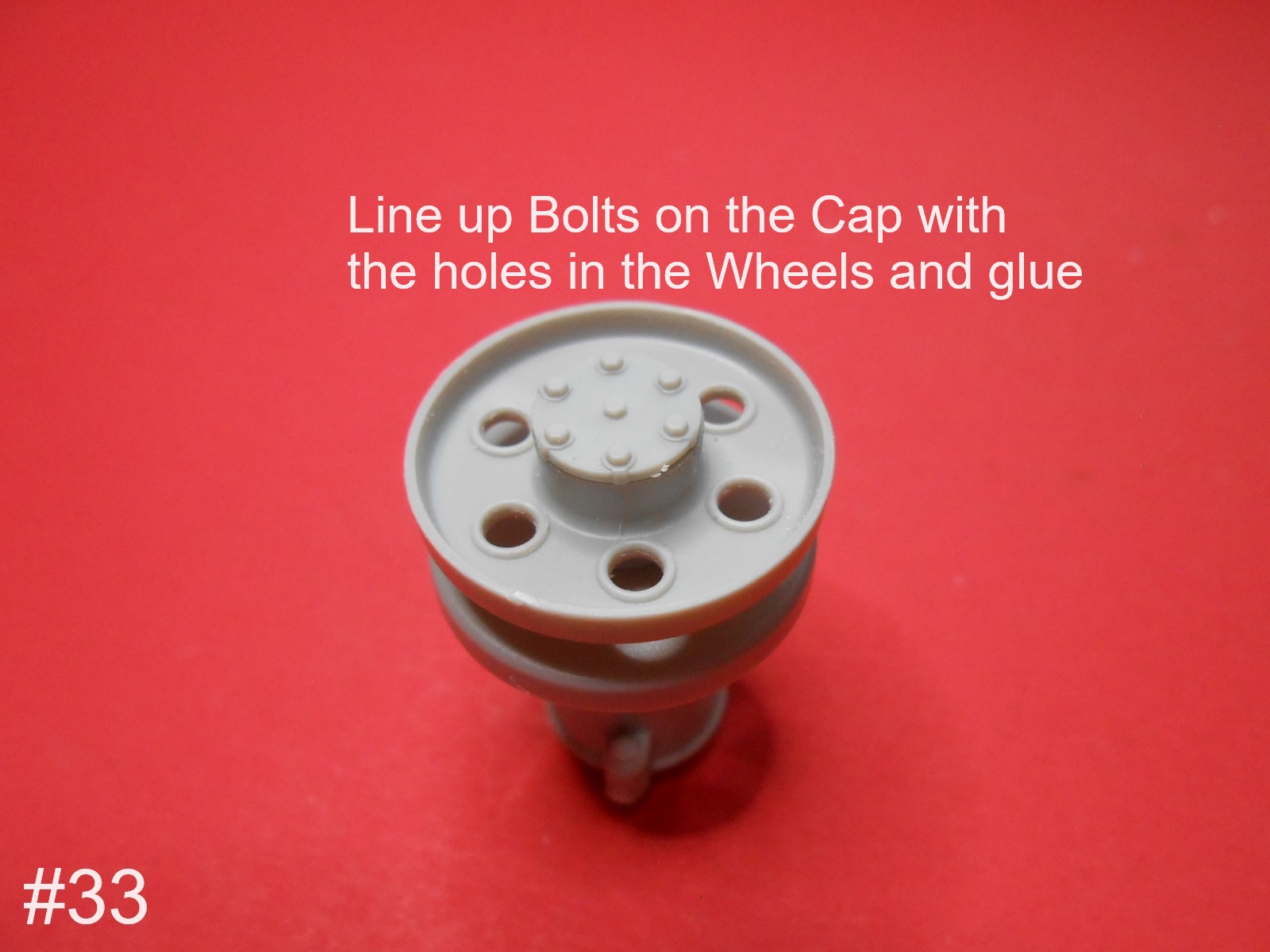

late Stug. #33
late Stug. #331600×1200 350 KB

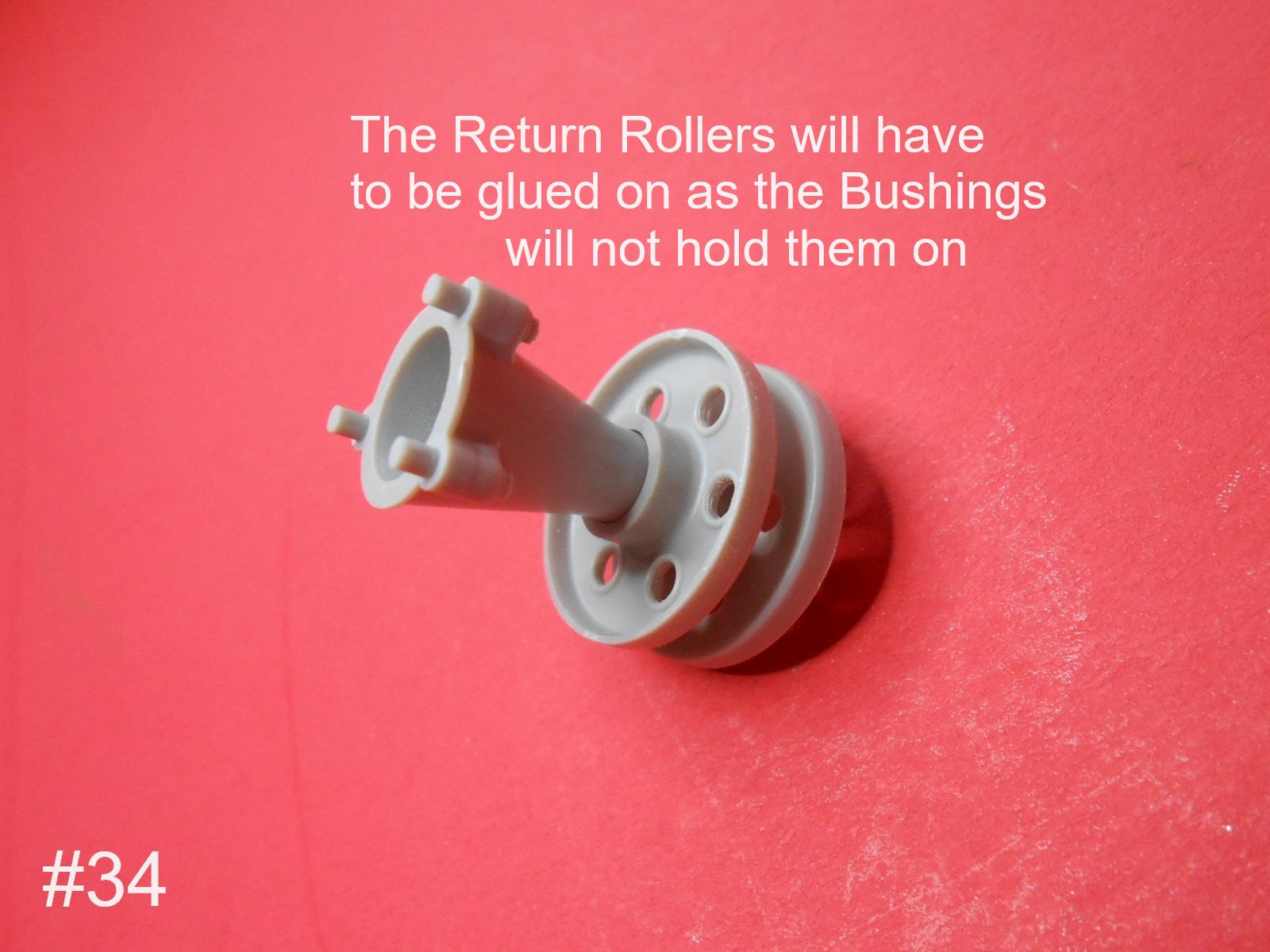

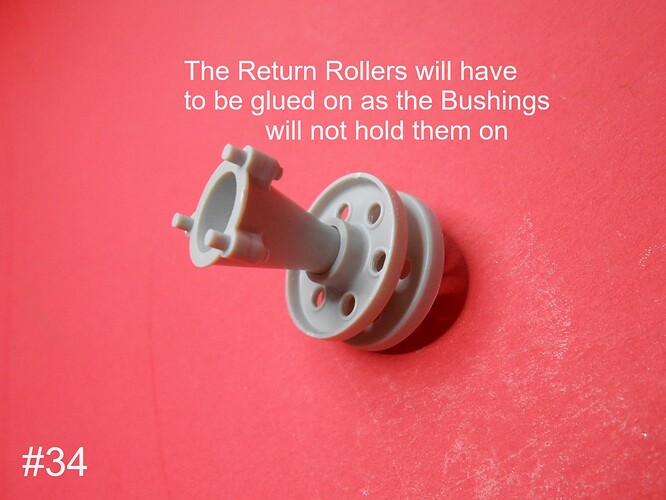

Late Stug. #34
Late Stug. #341600×1200 393 KB

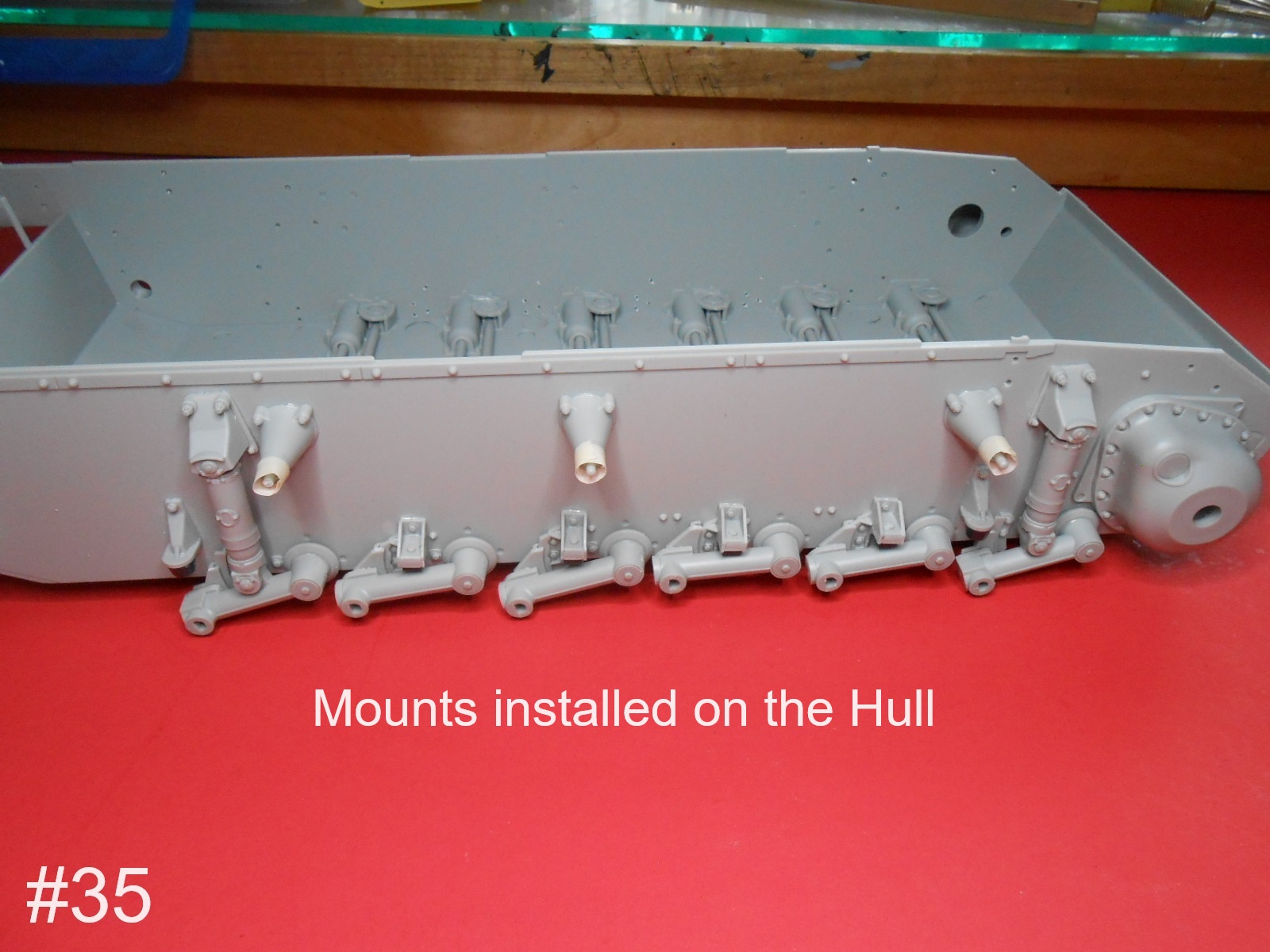

Late Stug. #35
Late Stug. #351600×1200 371 KB

Finished for a while.
Donald

6 Likes
6

A little interest maby.
I have ordered the Waffle pattern Zimmerit set from Atak Models.
Regards
Donald

2 Likes
7

While waiting for the Zimmerit to arrive I started work on the Track.
Here is how I did it.

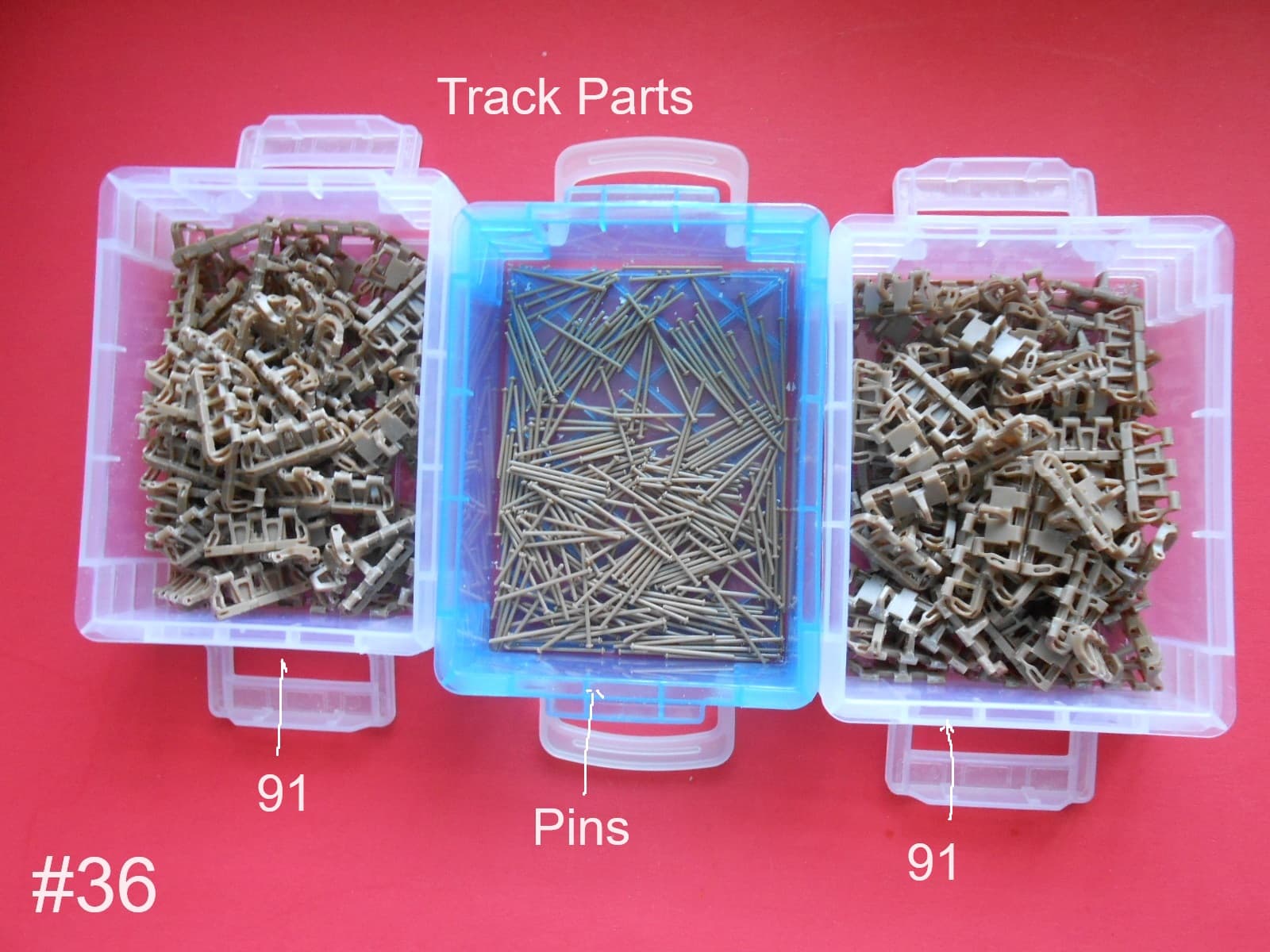

Late Stug. #36
Late Stug. #361600×1200 175 KB

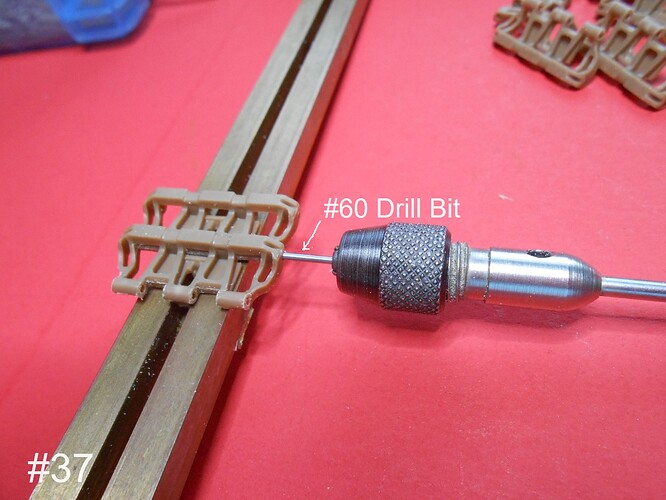

Late Stug. #37
Late Stug. #371600×1200 393 KB

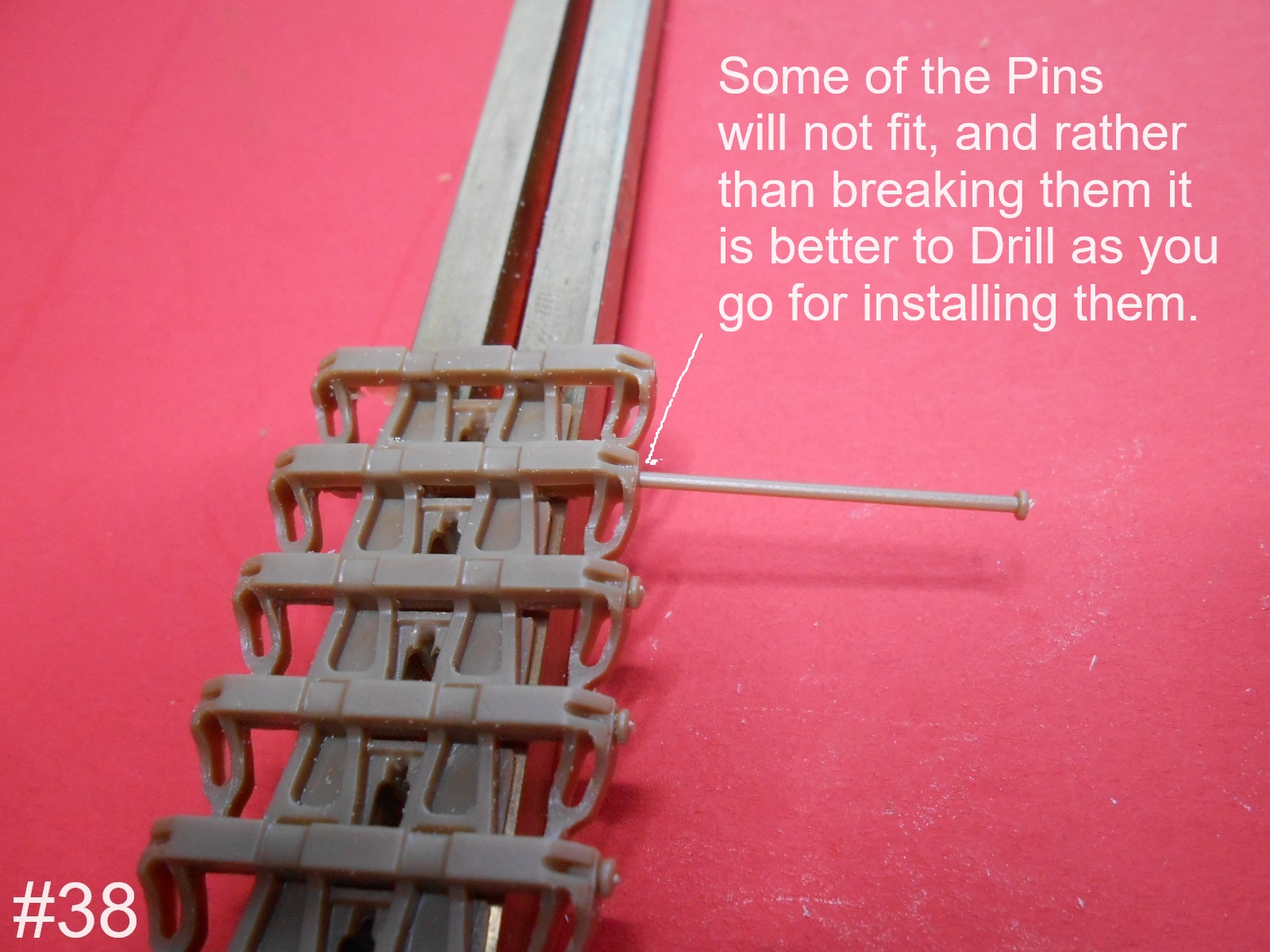

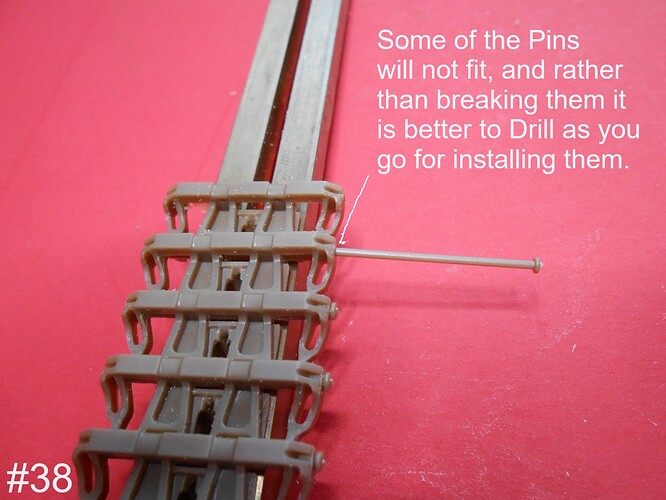

Late Stug. #38
Late Stug. #381600×1200 417 KB

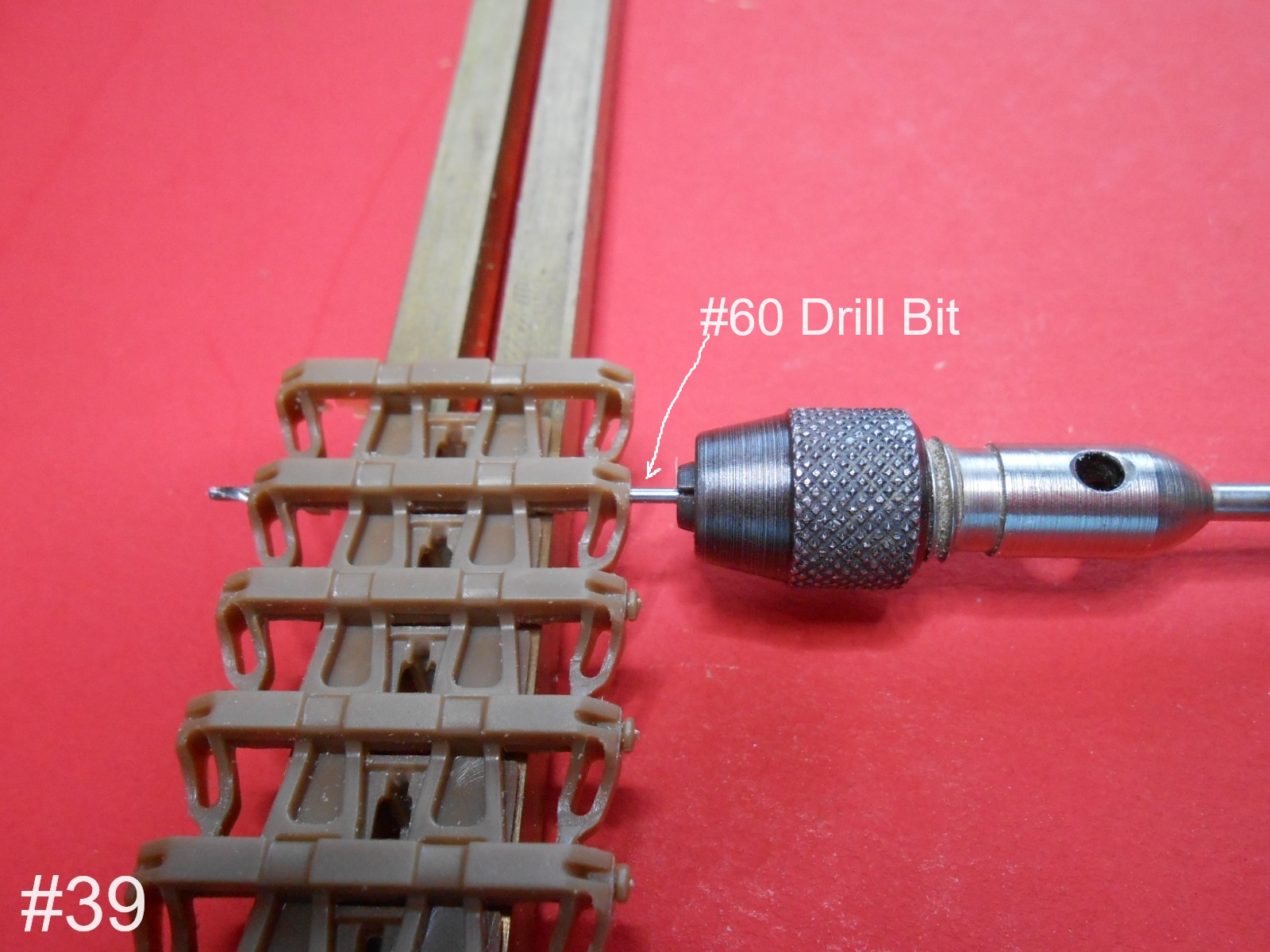

Late Stug. #39
Late Stug. #391600×1200 388 KB

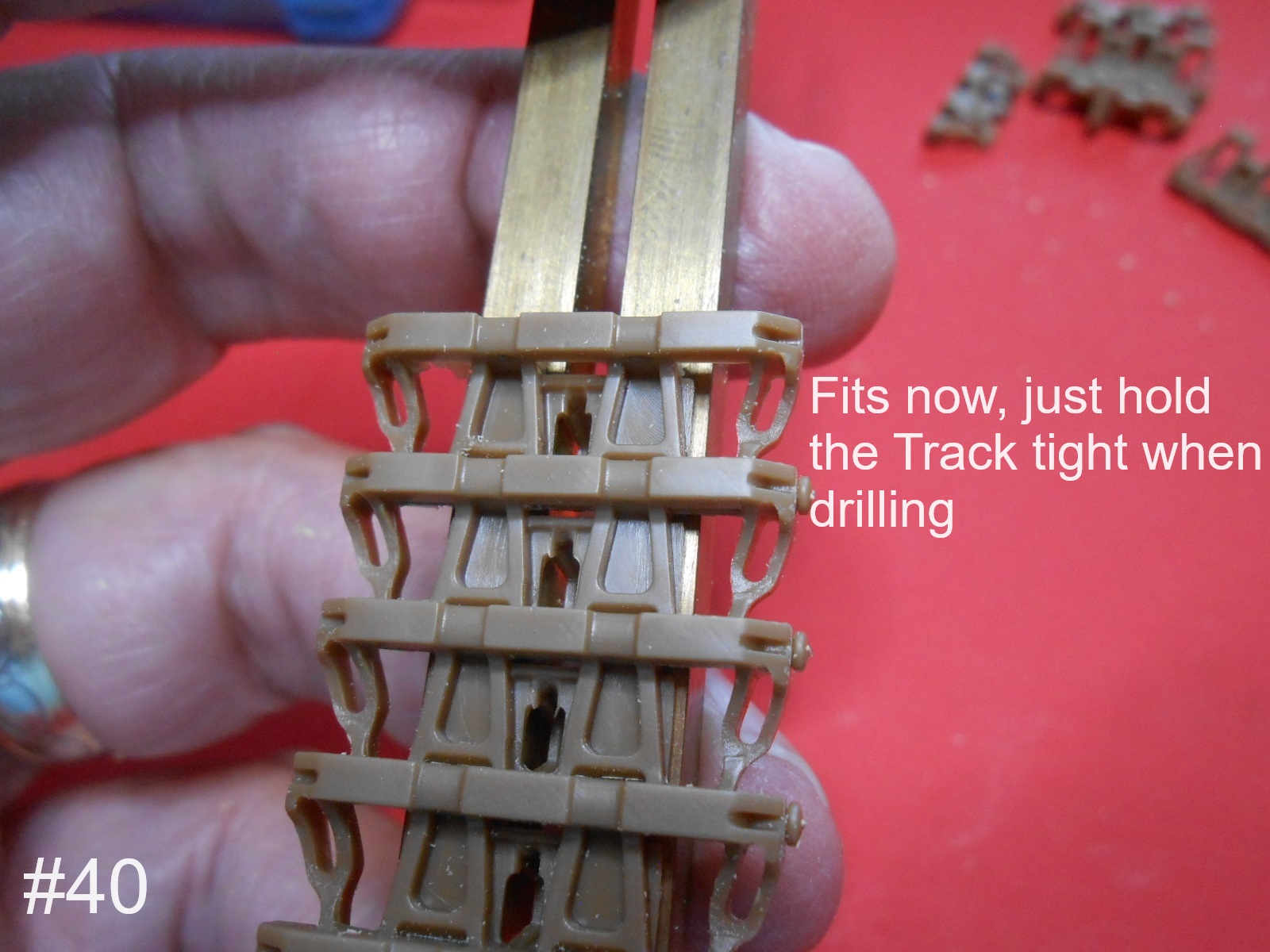

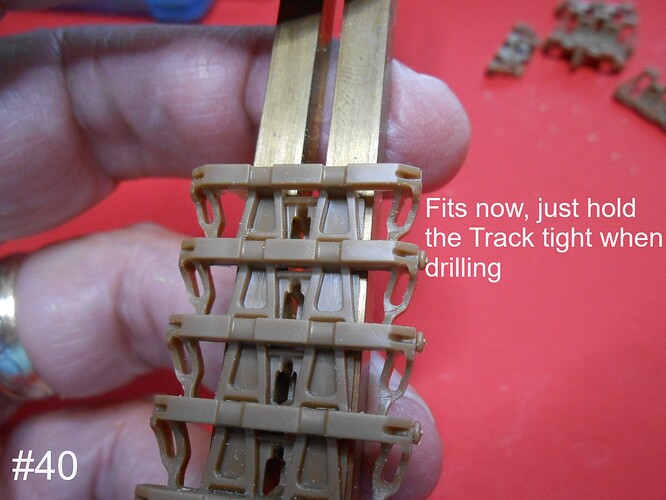

Late stug. #40
Late stug. #401600×1200 392 KB

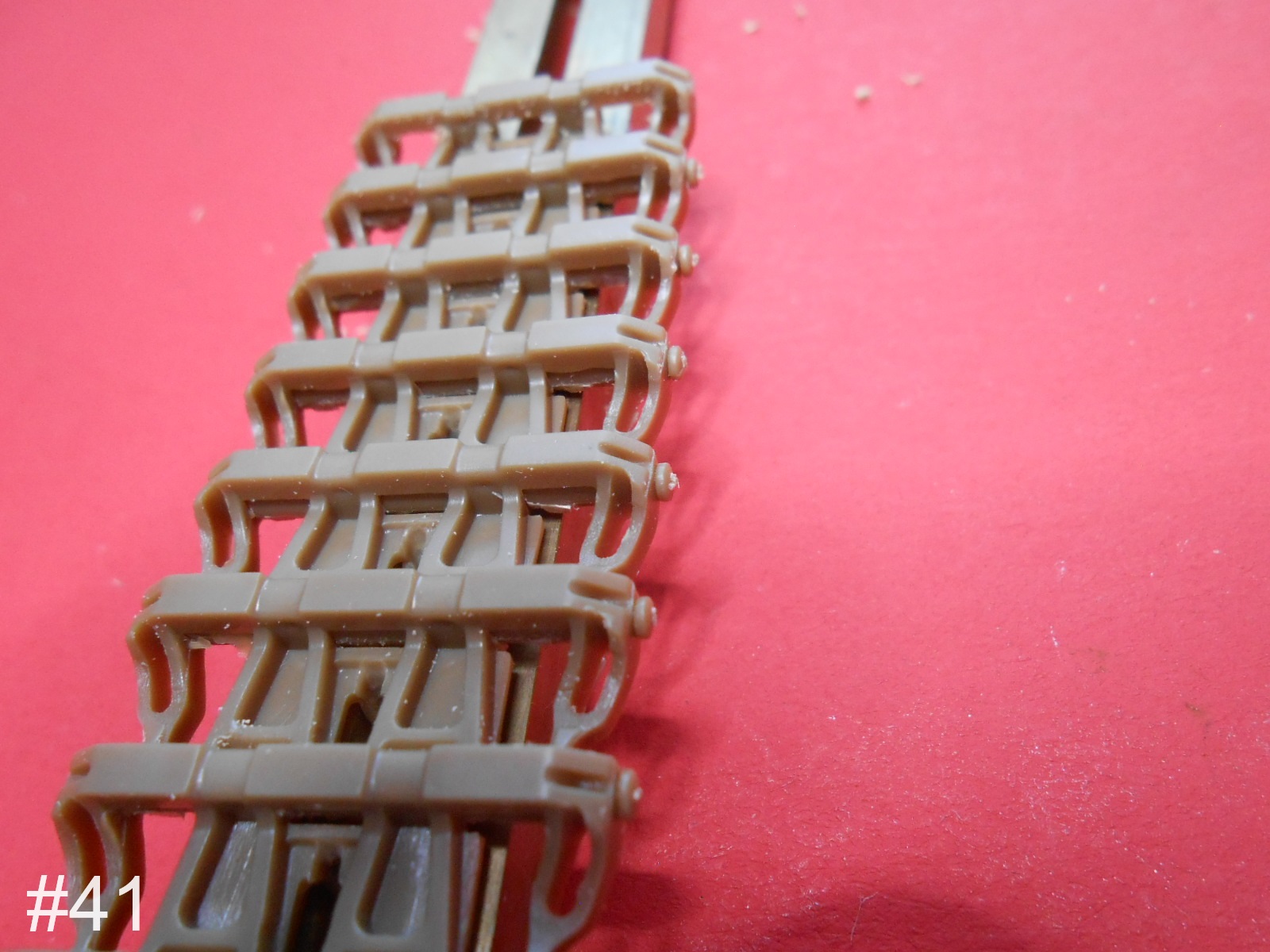

Late Stug. #41
Late Stug. #411600×1200 366 KB

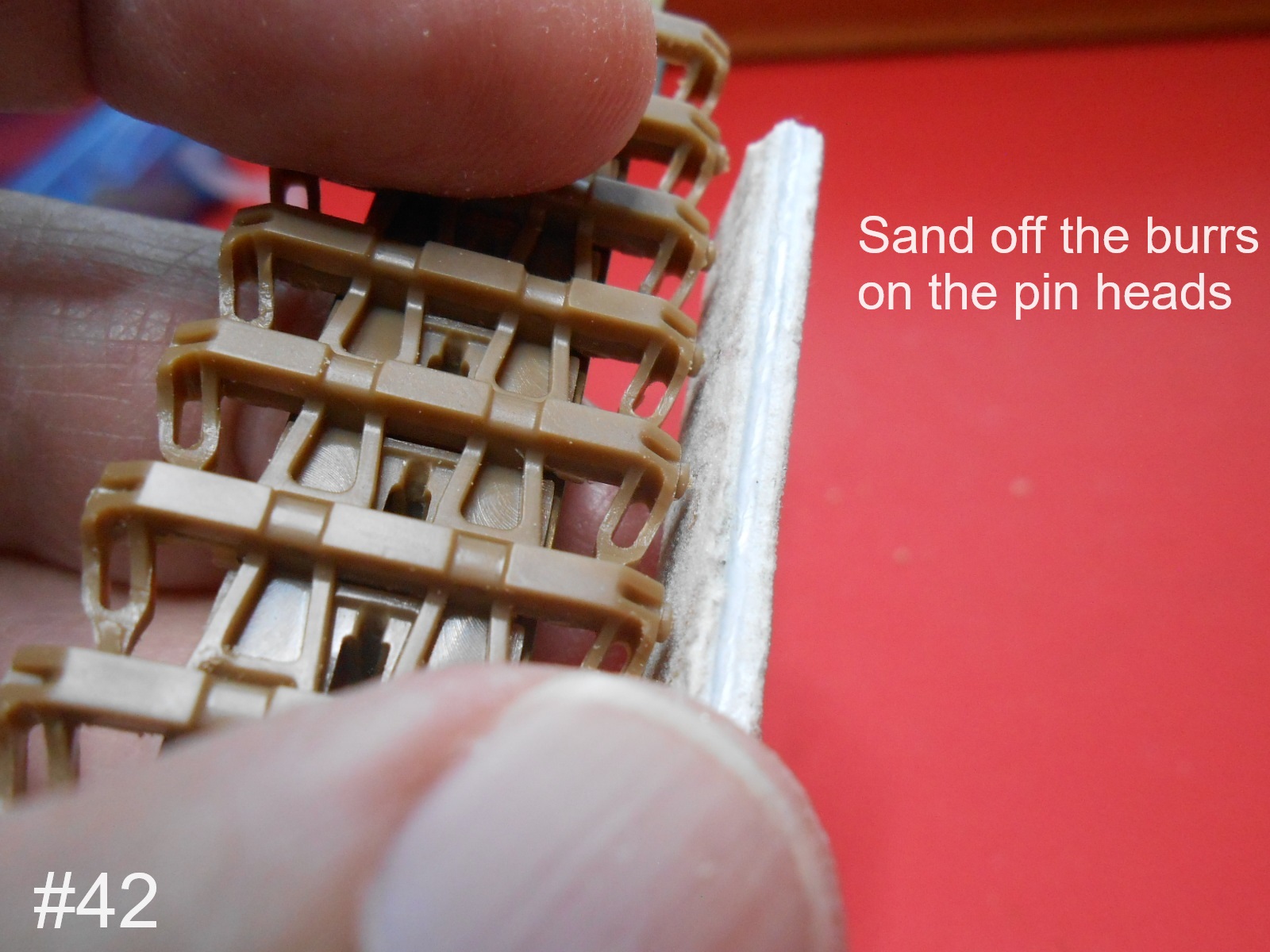

Late Stug. #42
Late Stug. #421600×1200 374 KB

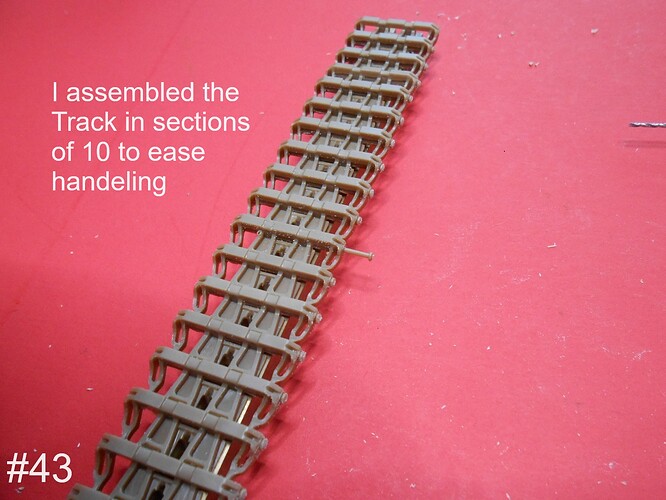

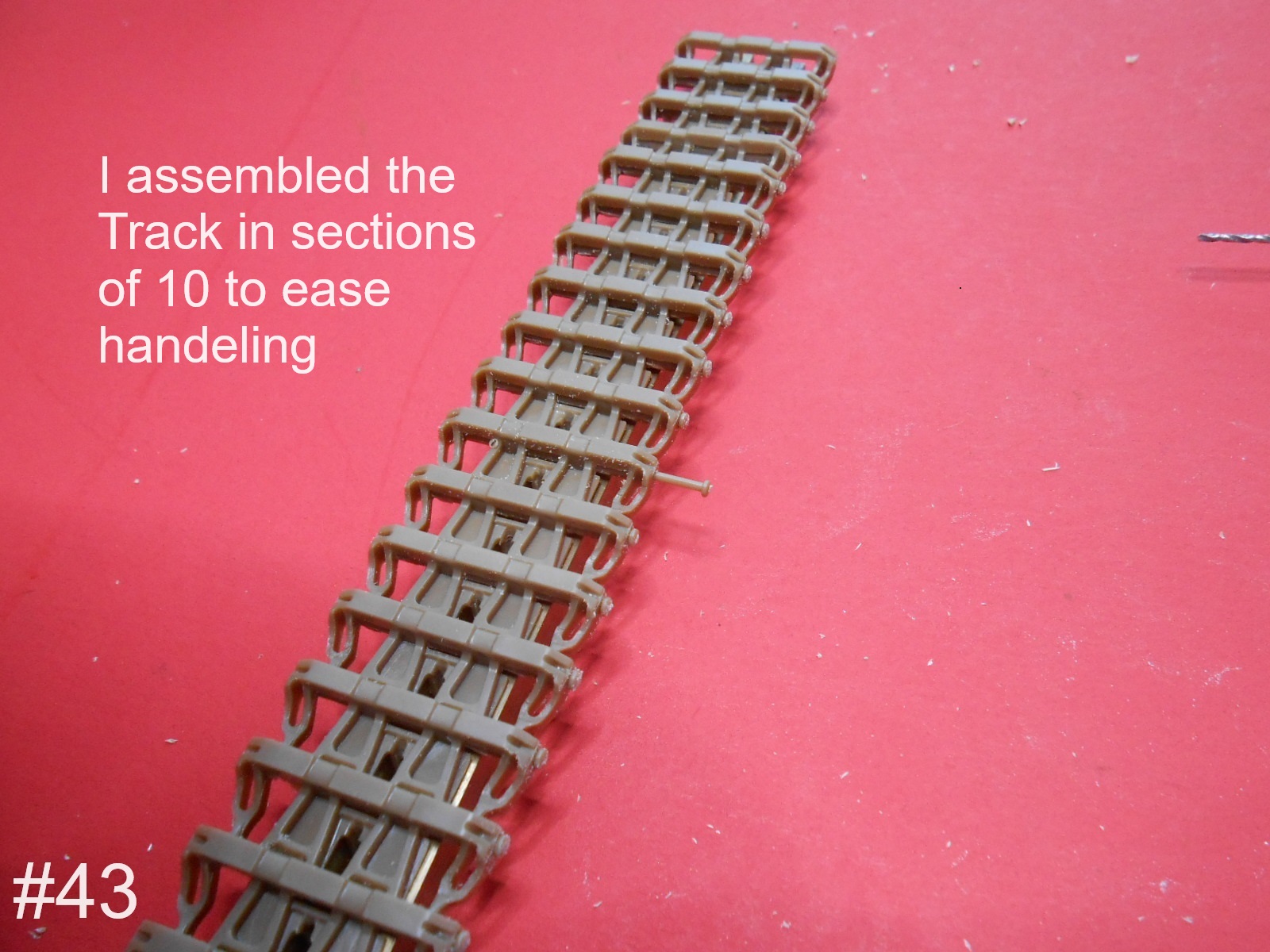

Late Stug. #43
Late Stug. #431600×1200 417 KB

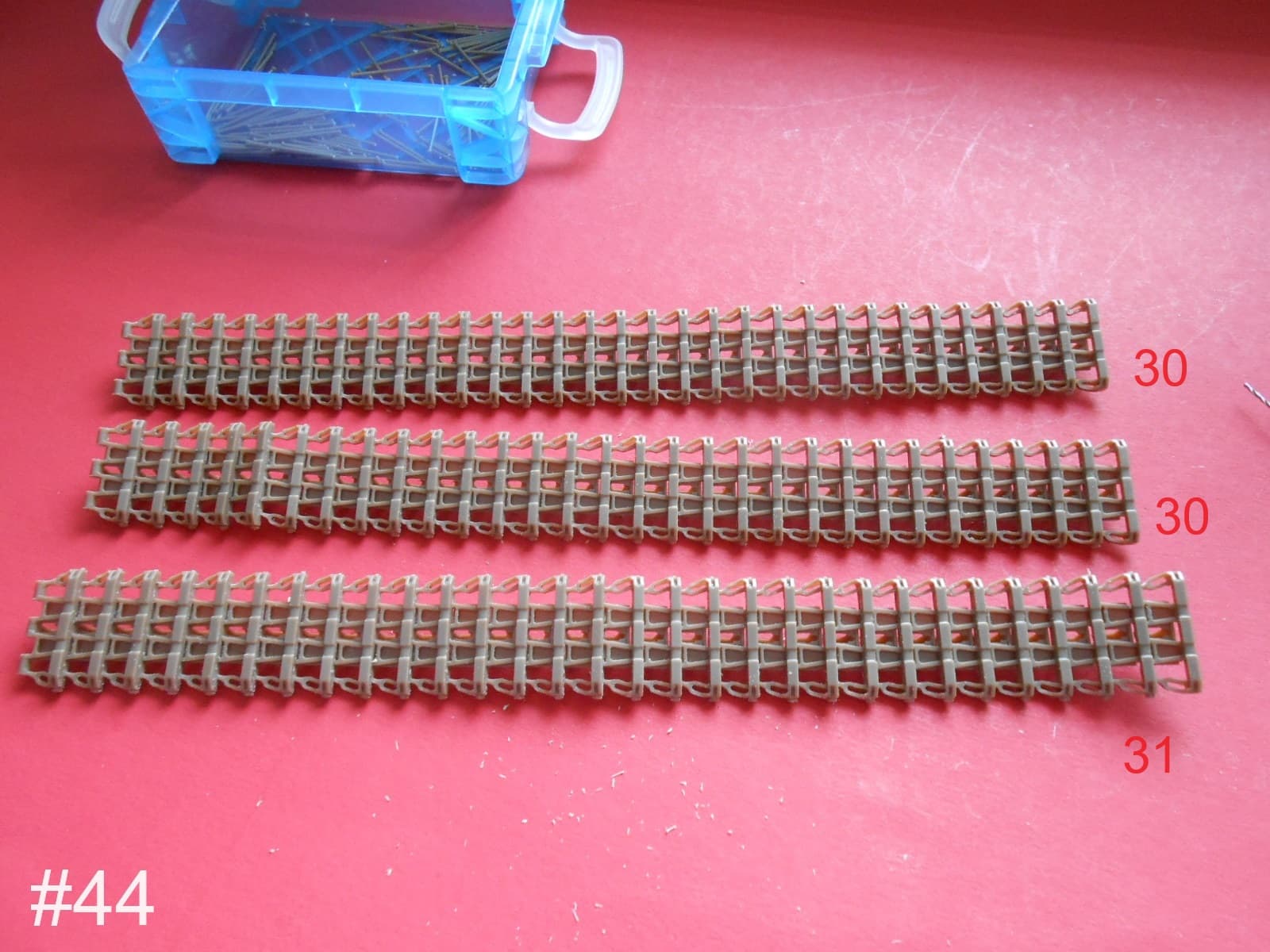

Late Stug. #44
Late Stug. #441600×1200 172 KB

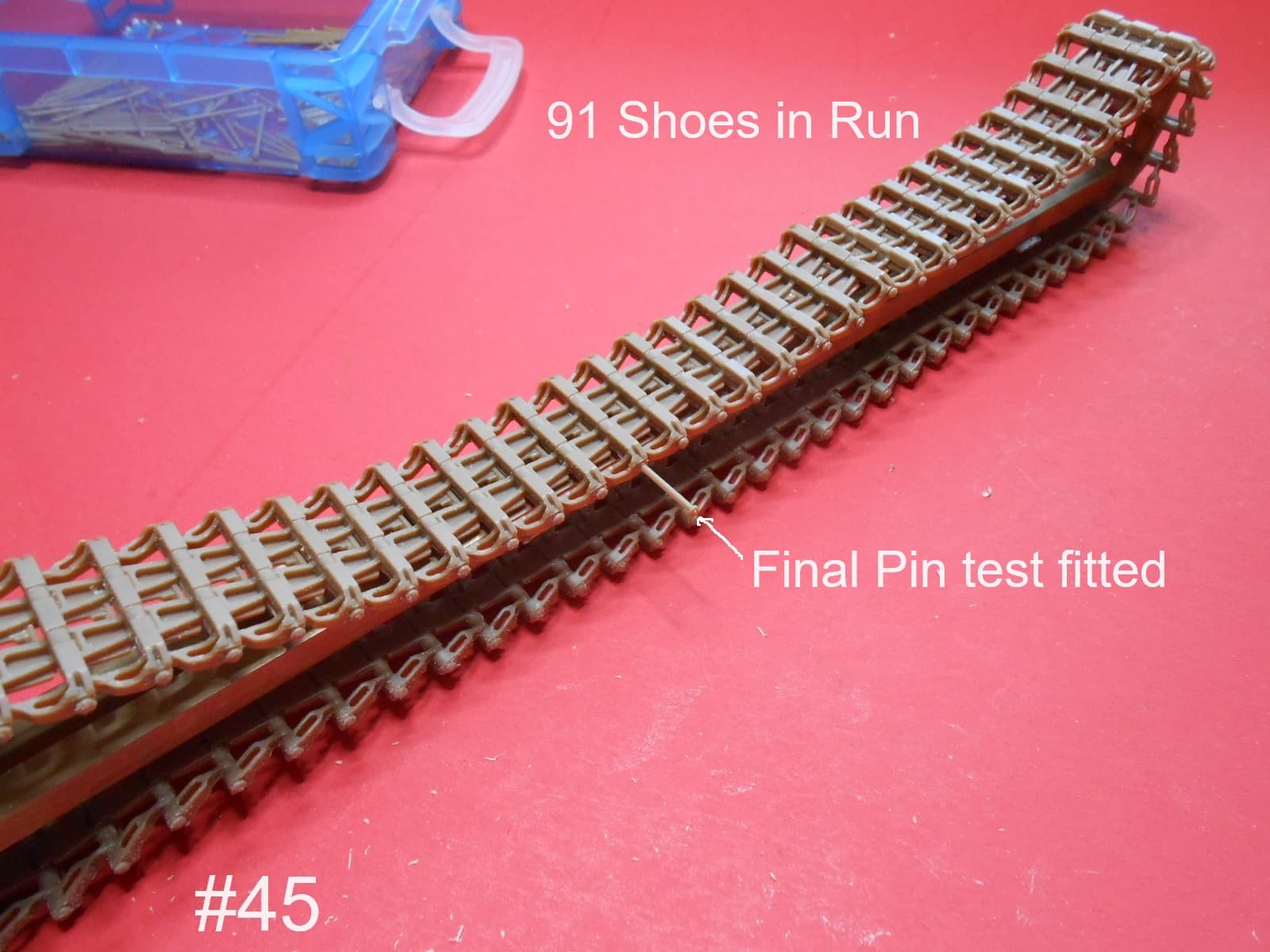

Late Stug. #45
Late Stug. #451600×1200 143 KB

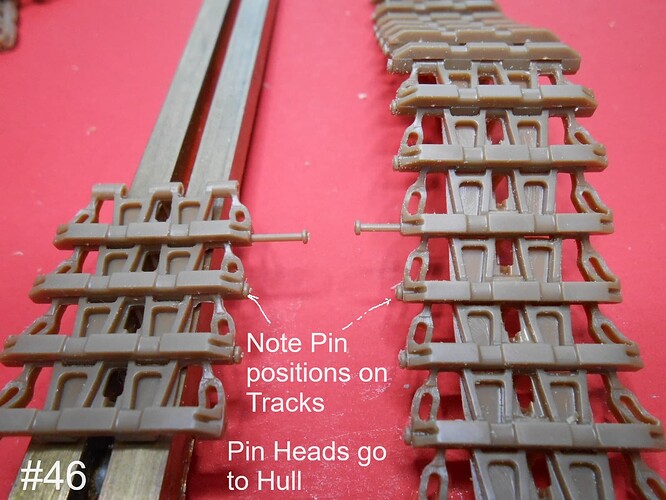

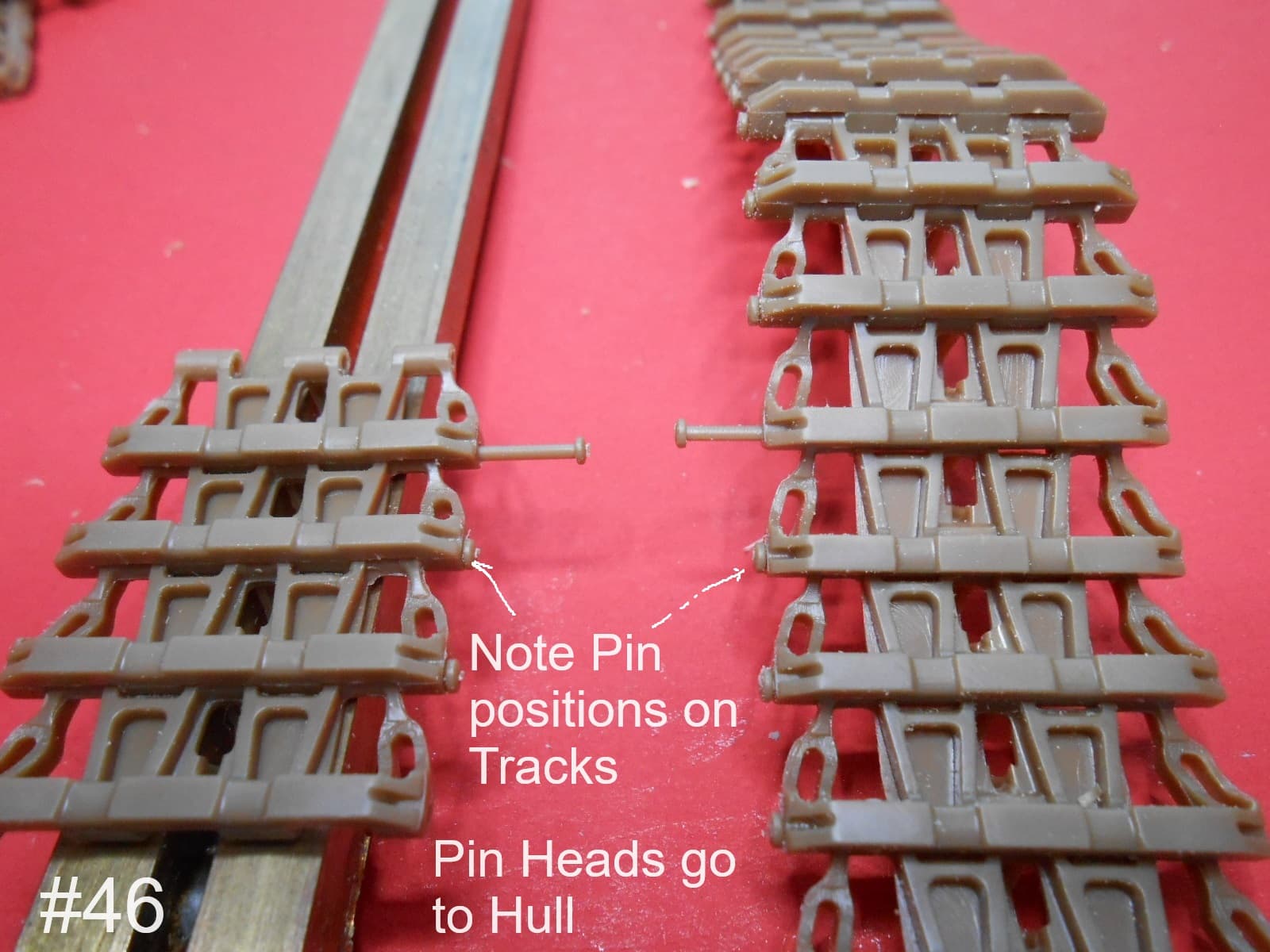

Late Stug. #46
Late Stug. #461600×1200 151 KB

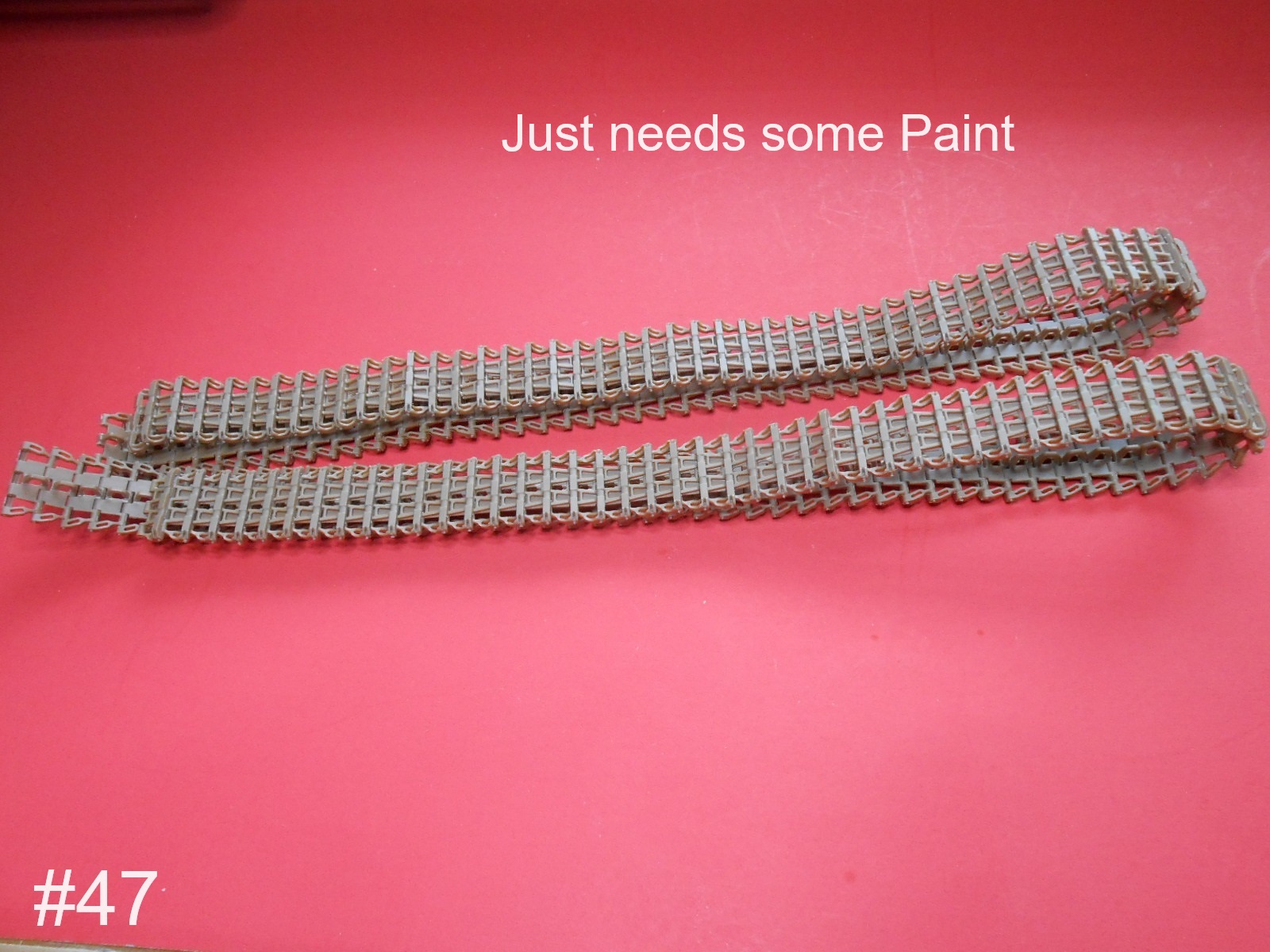

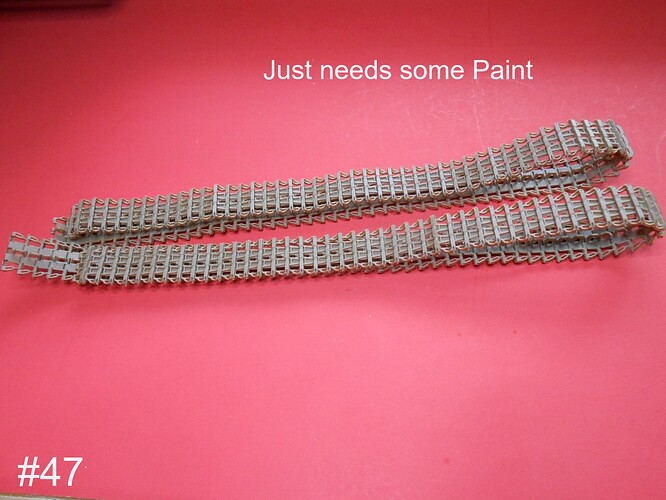

Late Stug. #47
Late Stug. #471600×1200 417 KB

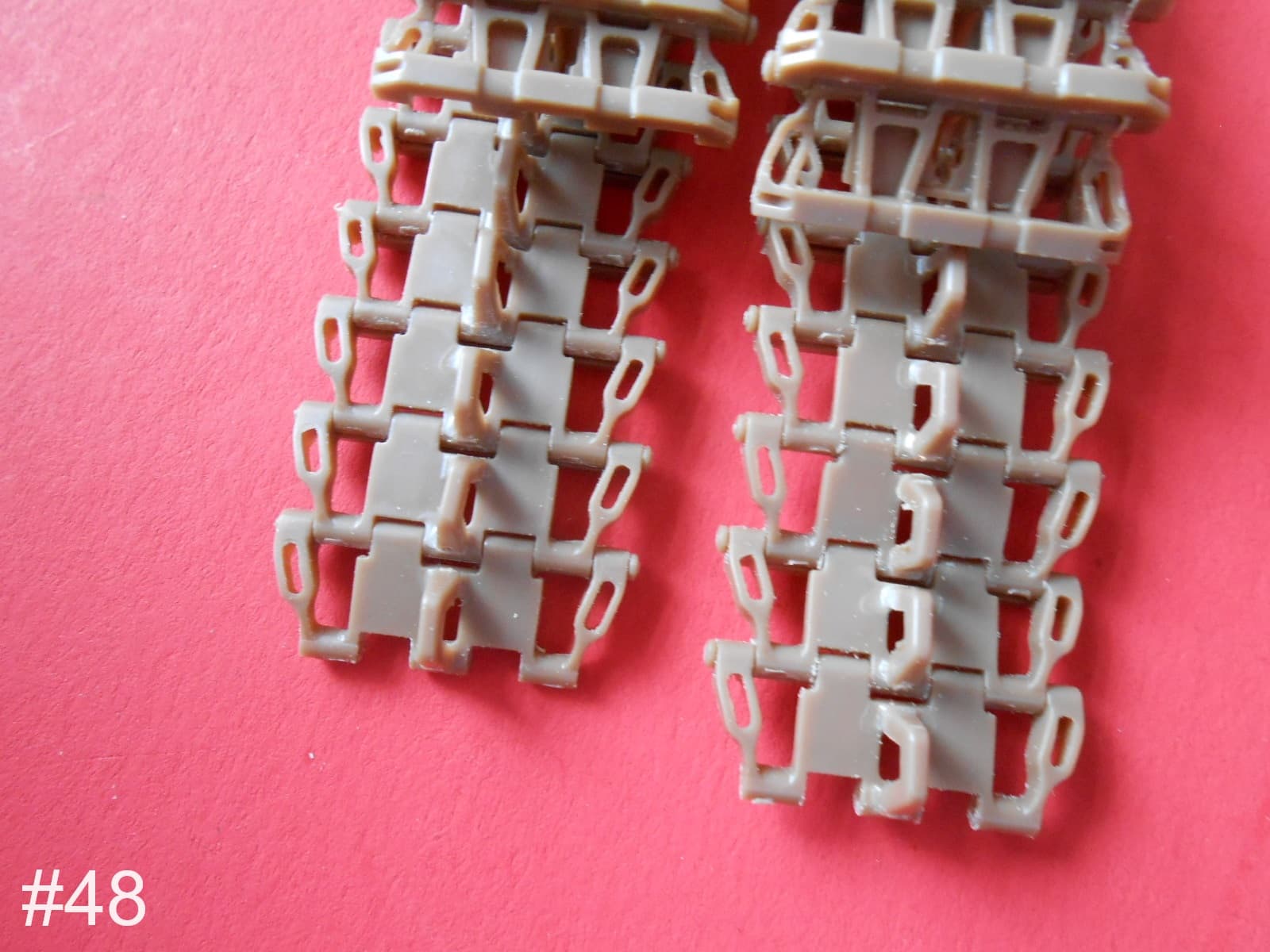

Late Stug. #48
Late Stug. #481600×1200 147 KB

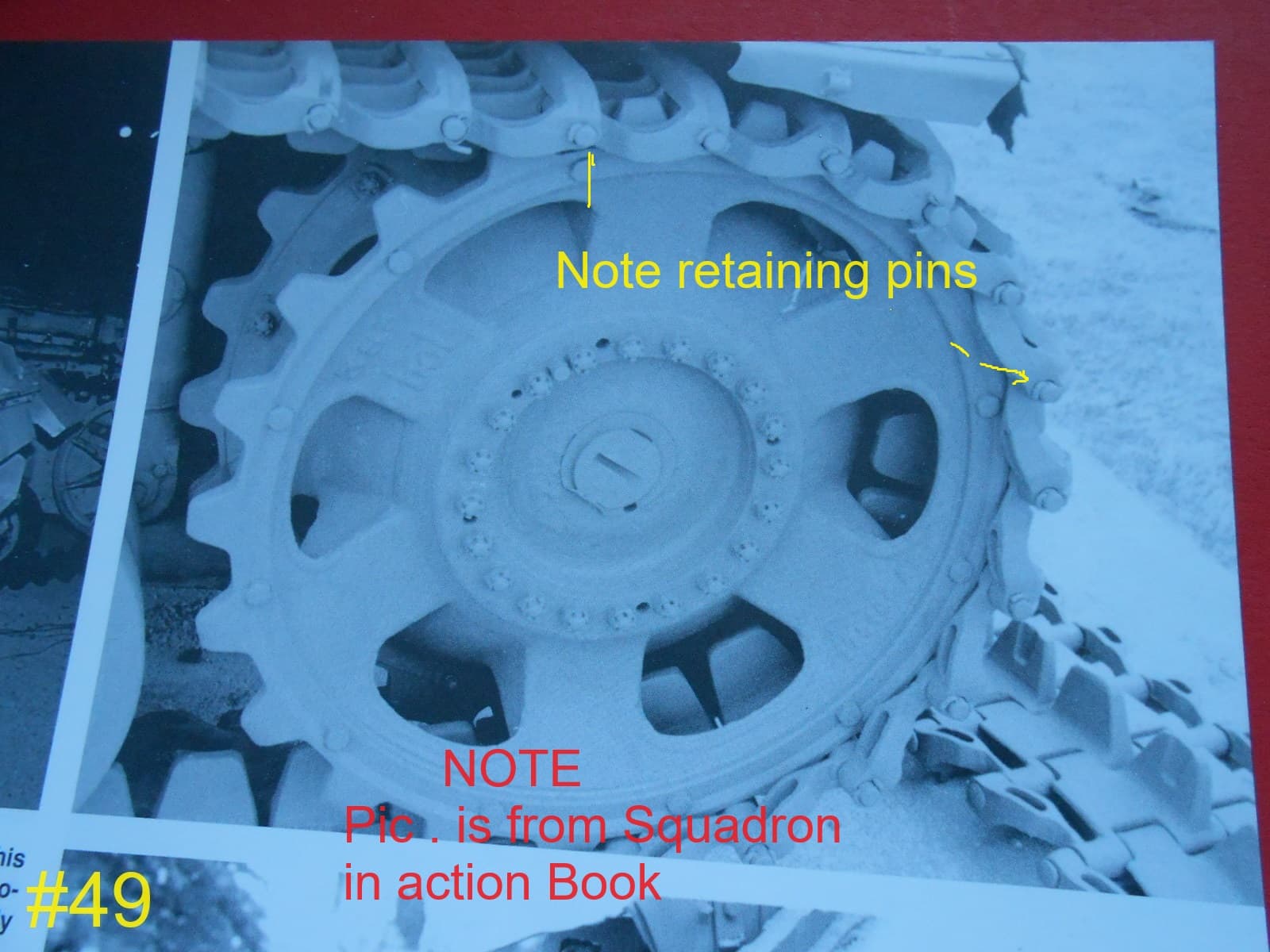

The next two pics. are from the Squadron Stug III in action book, they show the position of the Track Pin Heads.
Regards
Donald

8 Likes
8

OOps it looks loke they cant be used here.
Donald

Late Stug. #49
Late Stug. #491600×1200 135 KB

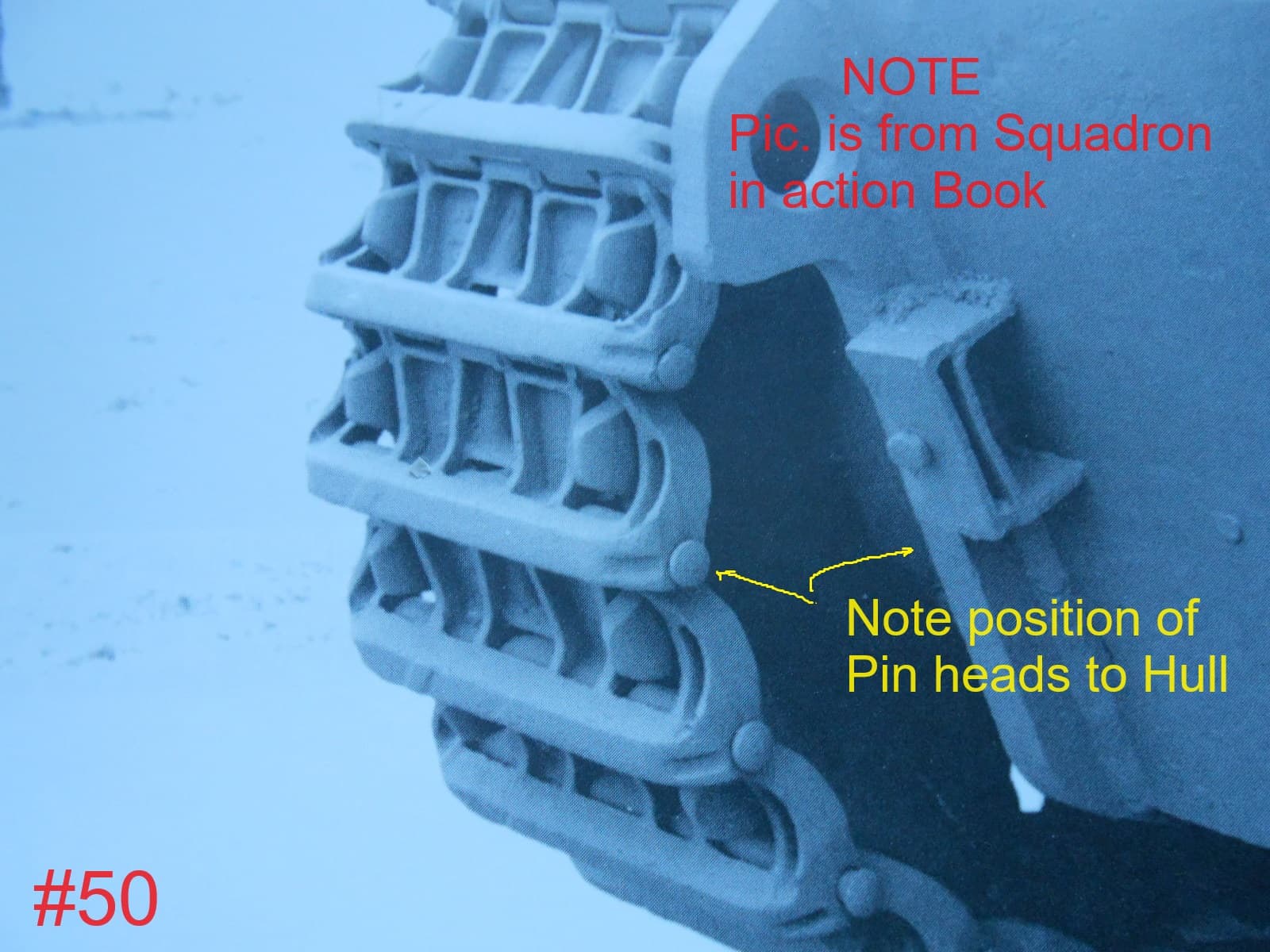

Late Stug. #50
Late Stug. #501600×1200 162 KB

Well maby they can
Donald

2 Likes
9

A little more done while waiting for the Zimmerit.

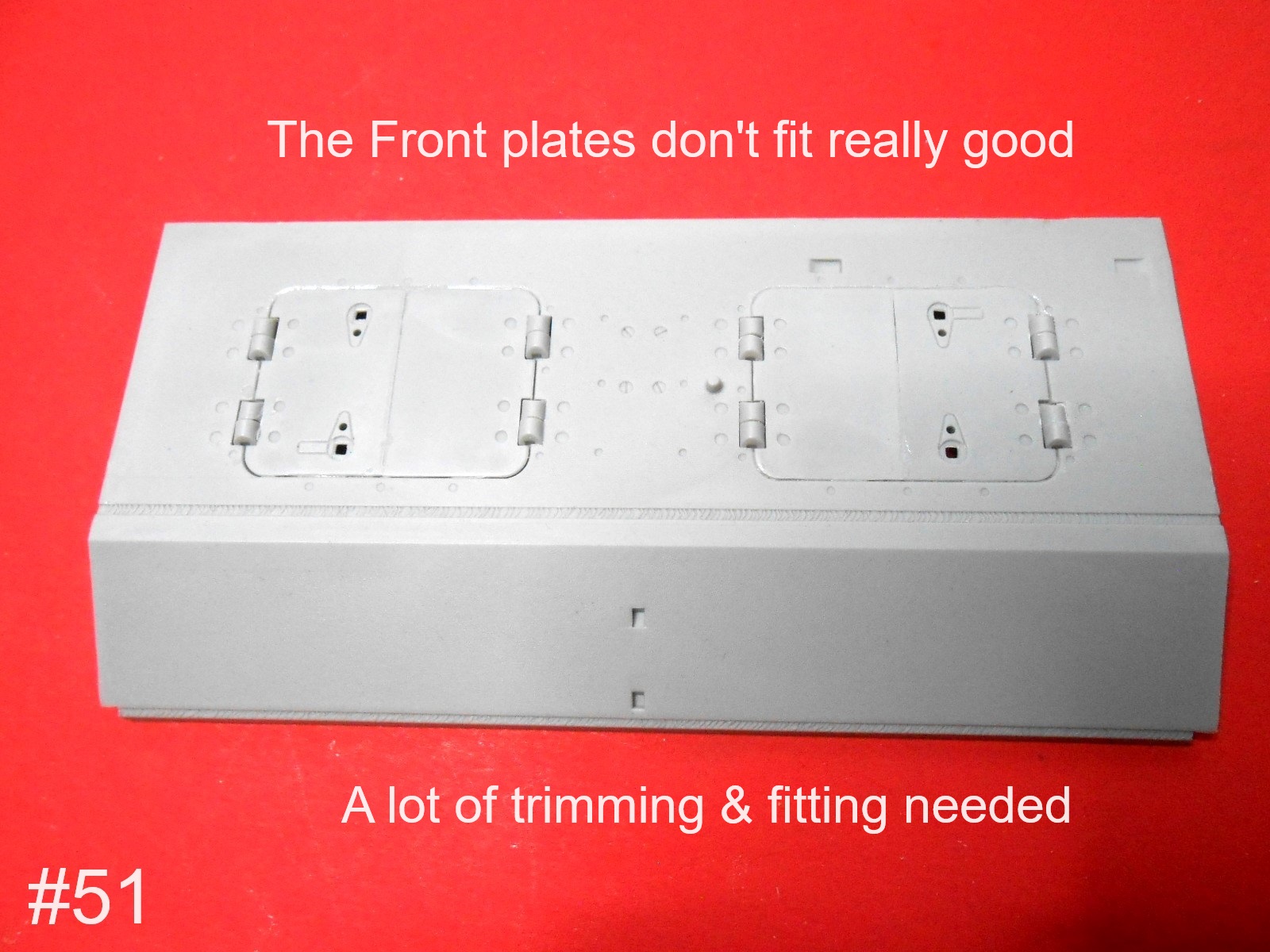

Late Stug. #51
Late Stug. #511600×1200 388 KB

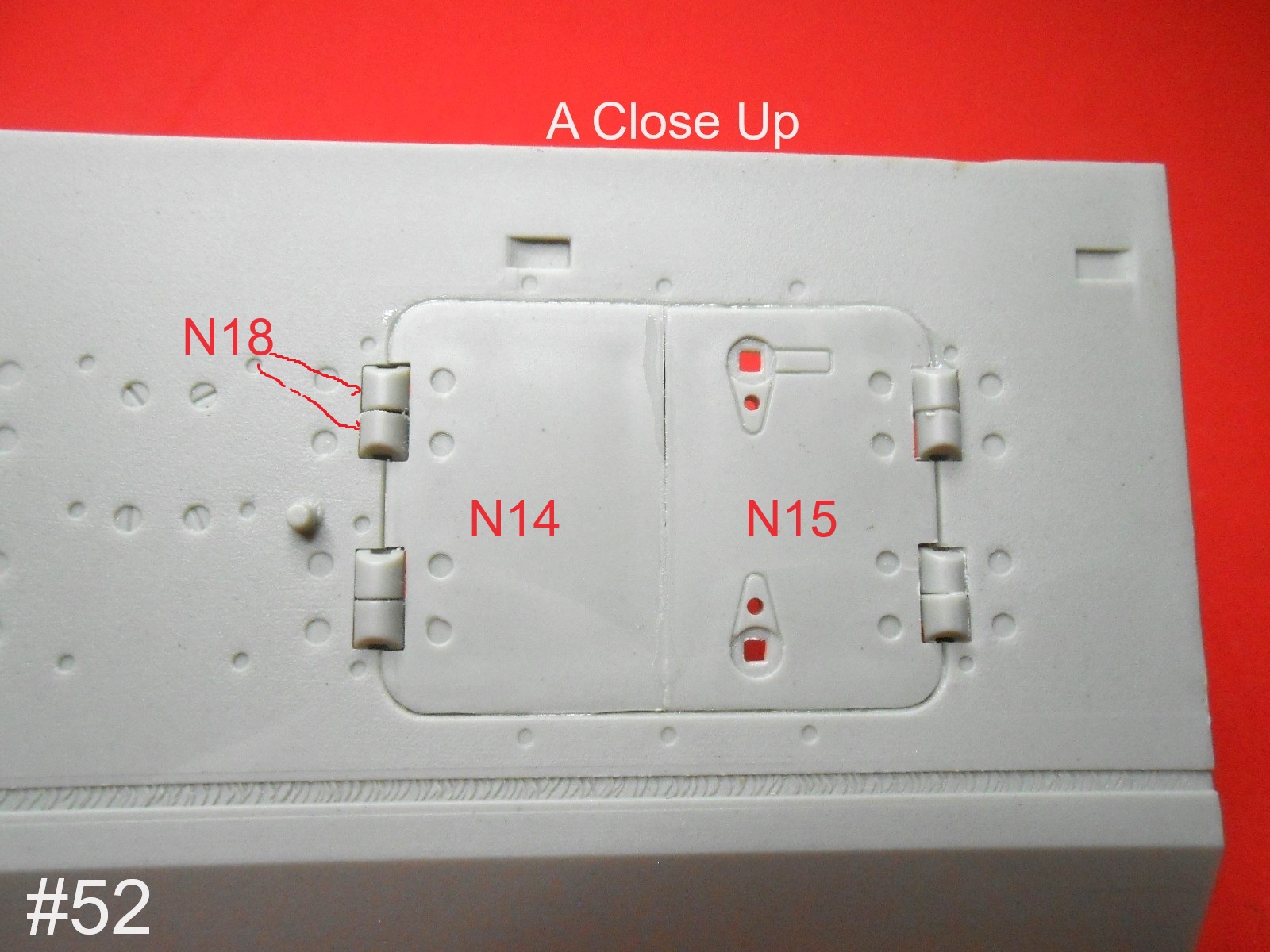

Late stug. #52
Late stug. #521600×1200 360 KB

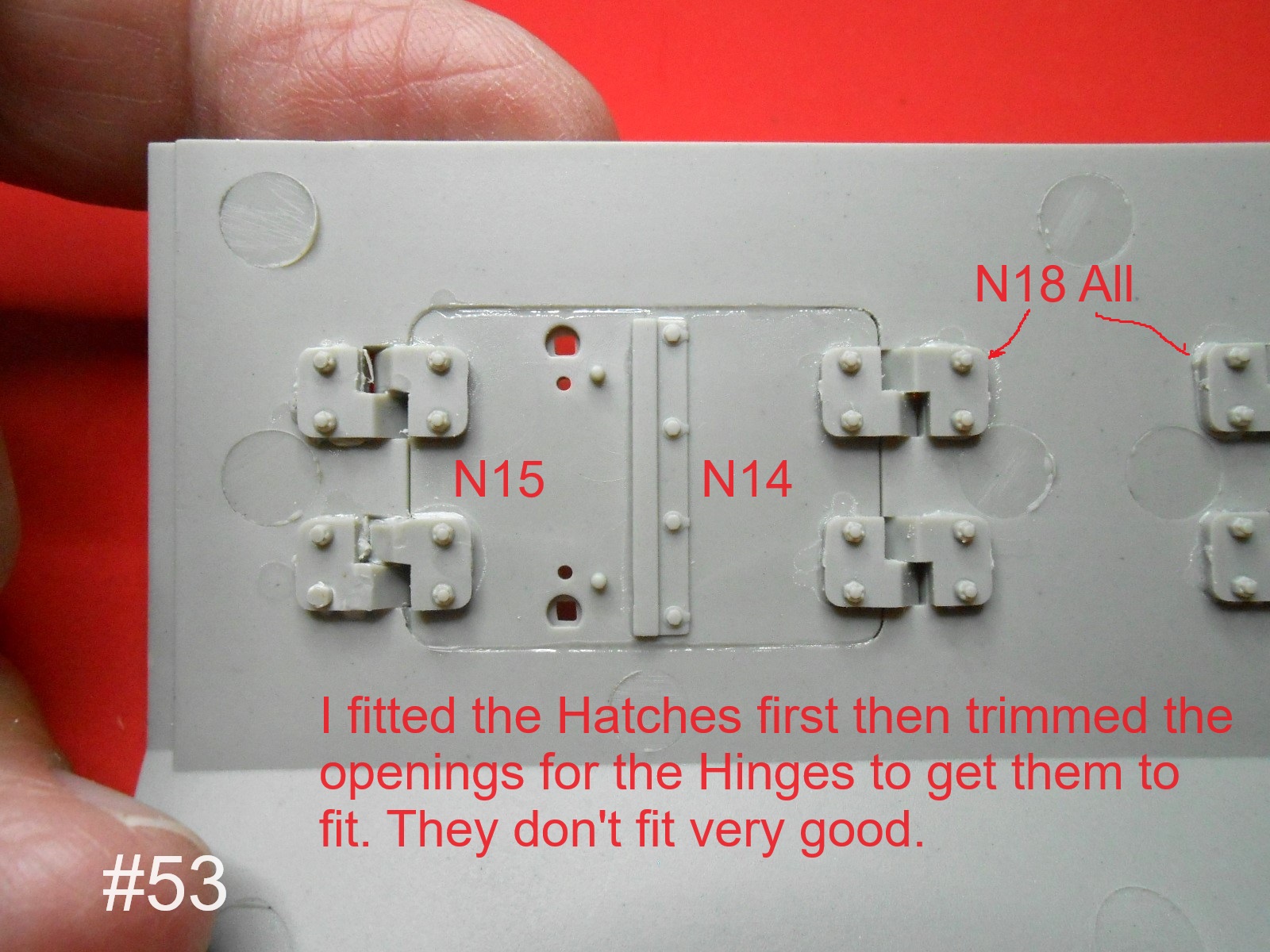

Late Stug. #53
Late Stug. #531600×1200 413 KB

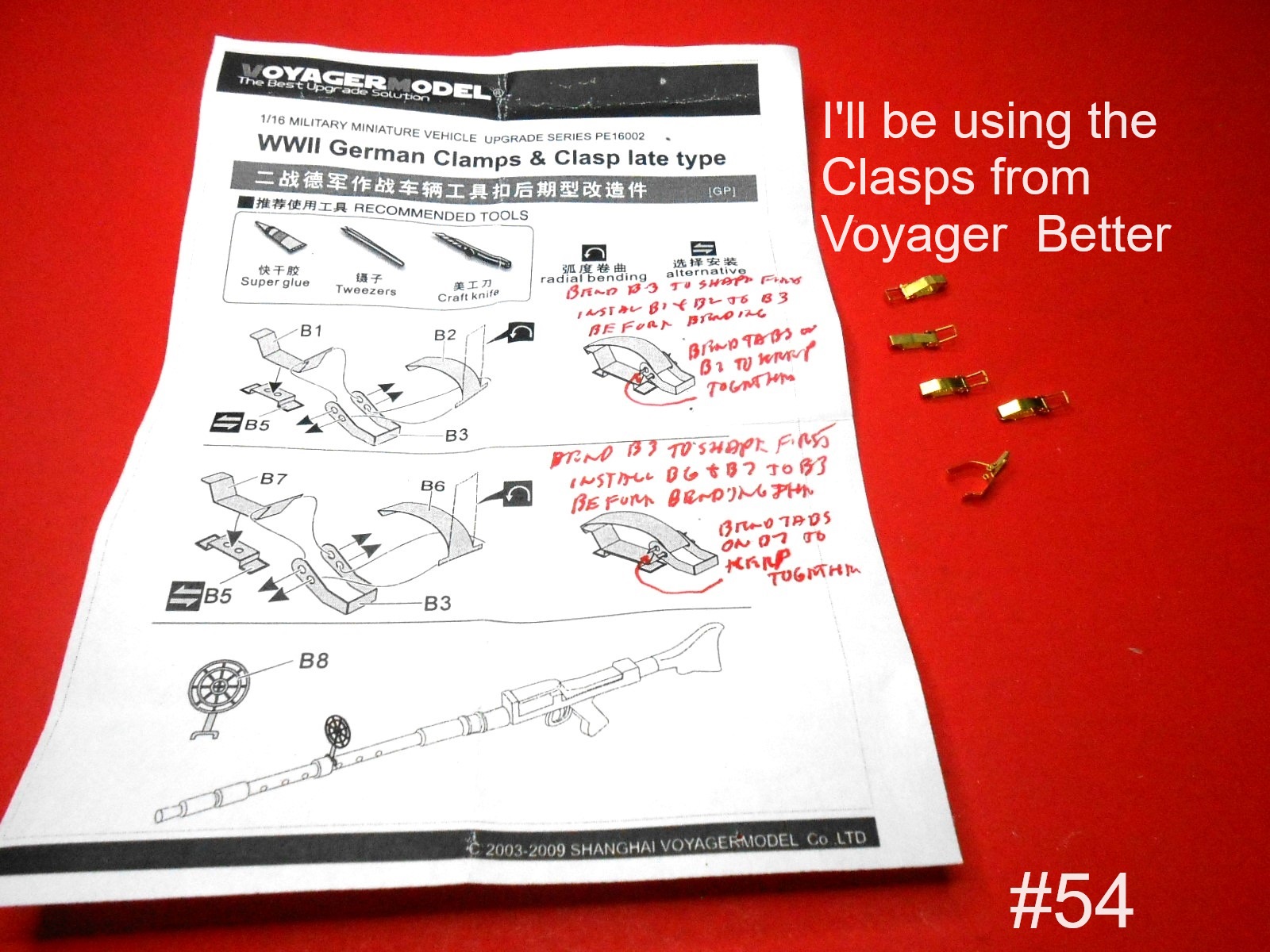

Late Stug. #54
Late Stug. #541600×1200 430 KB

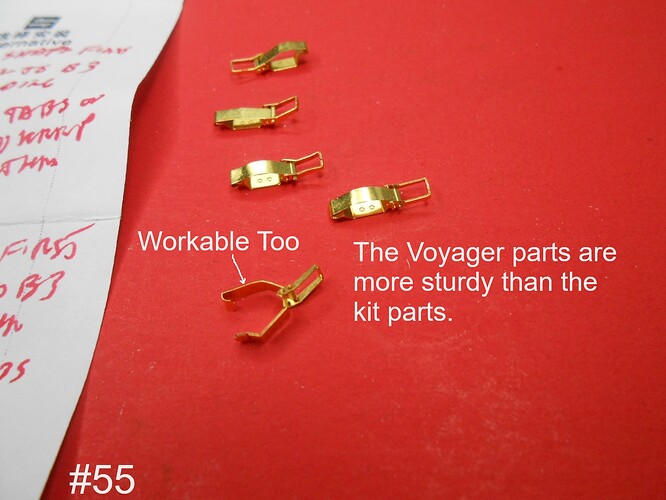

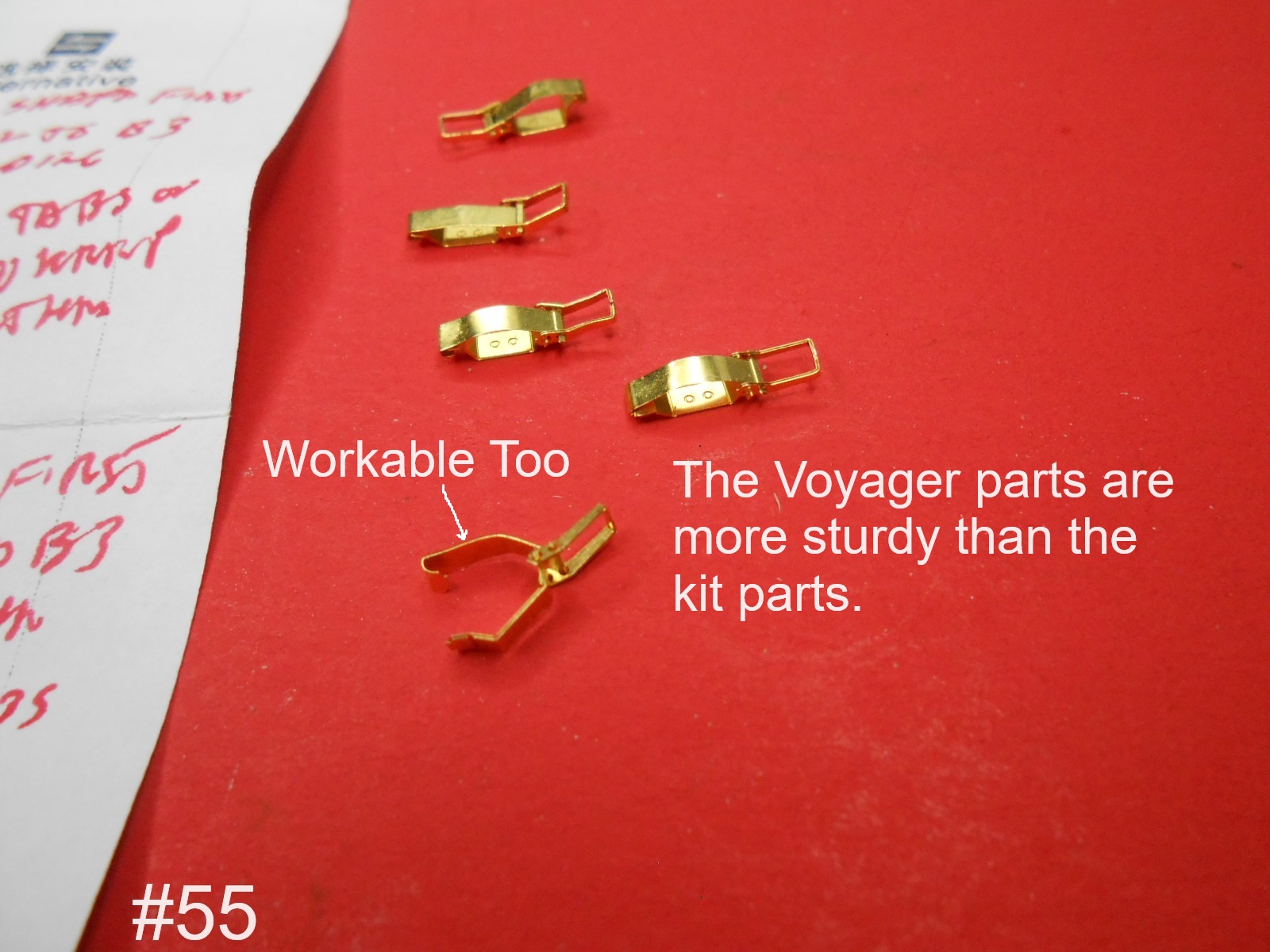

Late Stug. #55
Late Stug. #551600×1200 385 KB

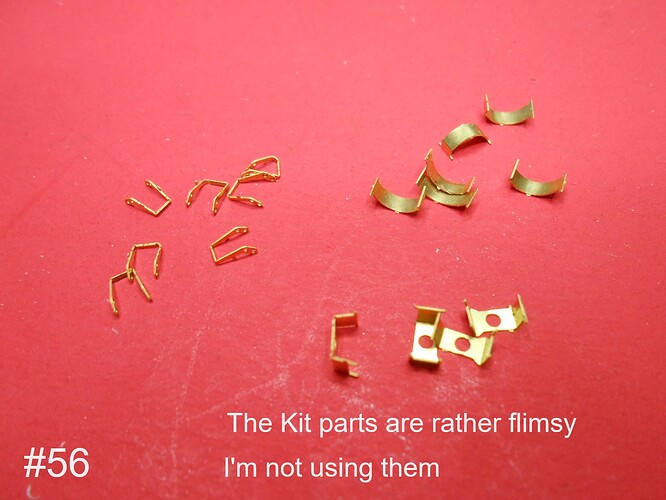

Late Stug. #56
Late Stug. #561600×1200 387 KB

That’s all for now.
Donald

6 Likes
10

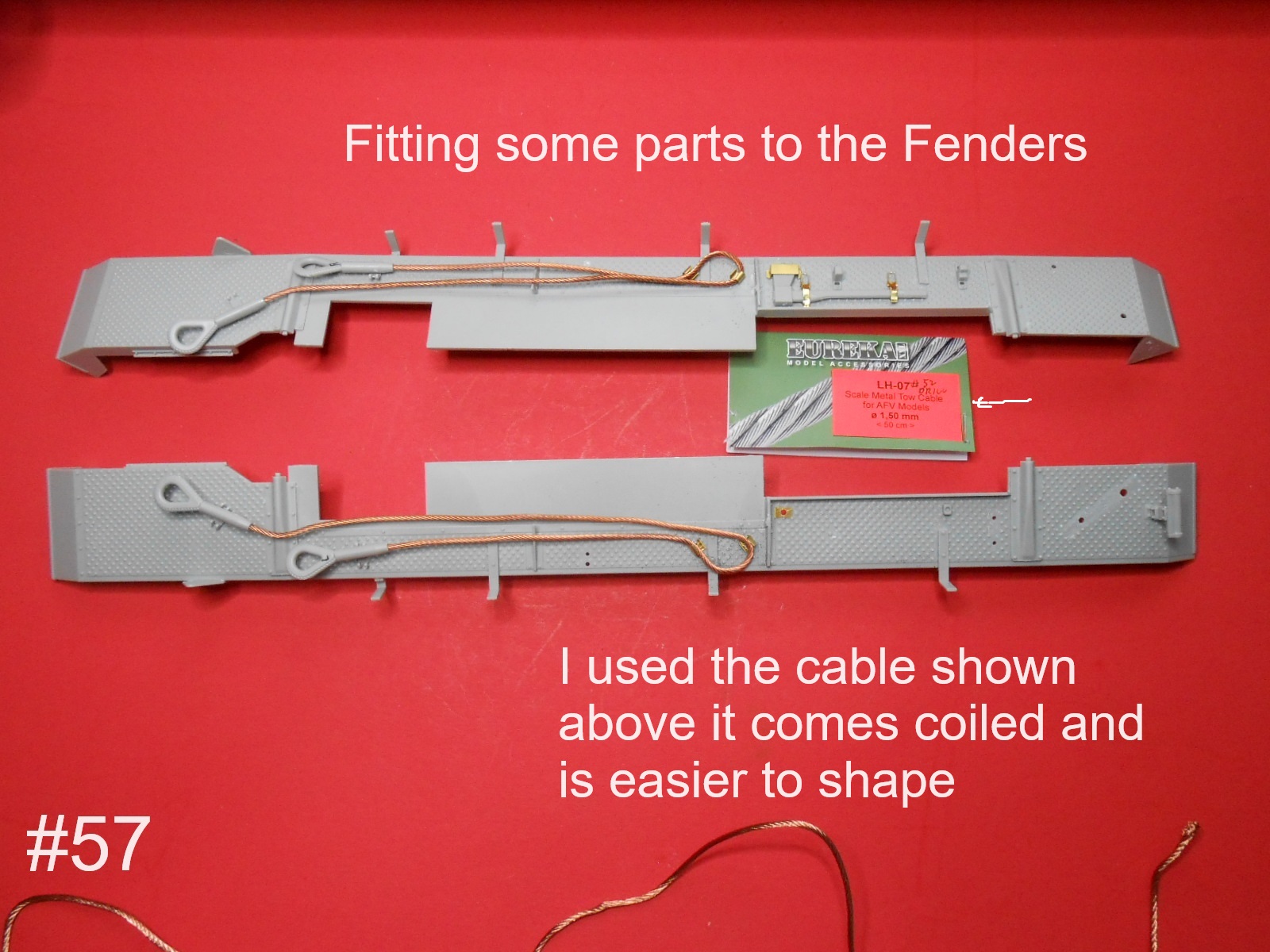

Just a little fender work while waiting for the Zimmerit.

Late Stug. #57
Late Stug. #571600×1200 431 KB

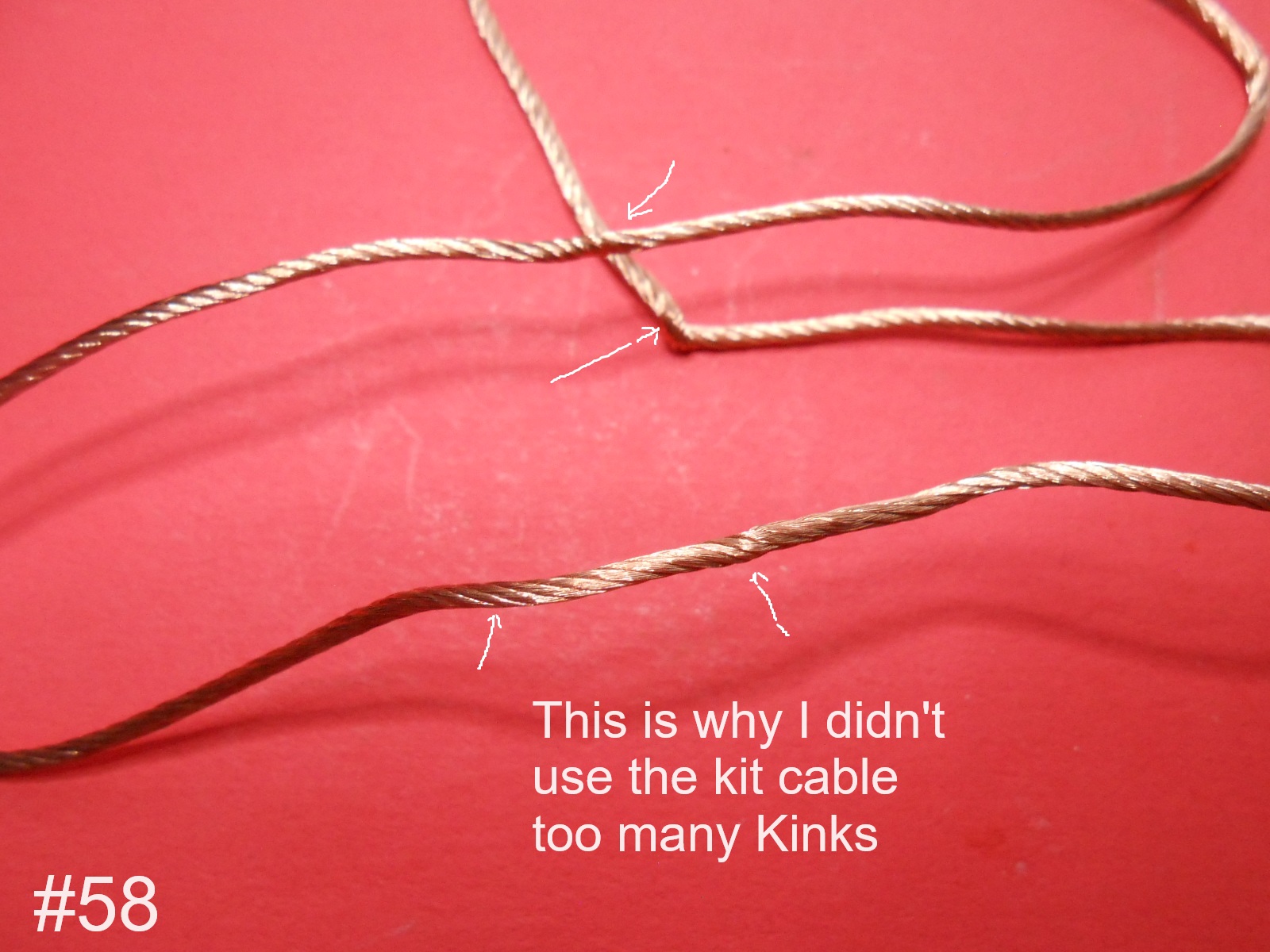

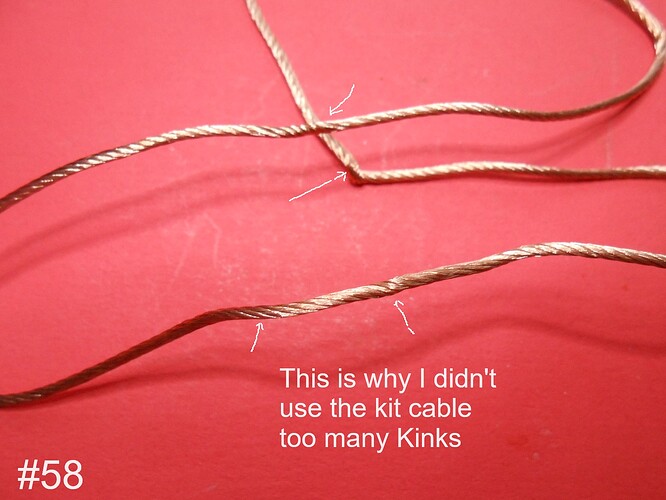

Late Stug. #58
Late Stug. #581600×1200 373 KB

Regards
Donald

4 Likes
11

I have the gun mounted to the Mantlet.
As usual all the Info is on the Pics.

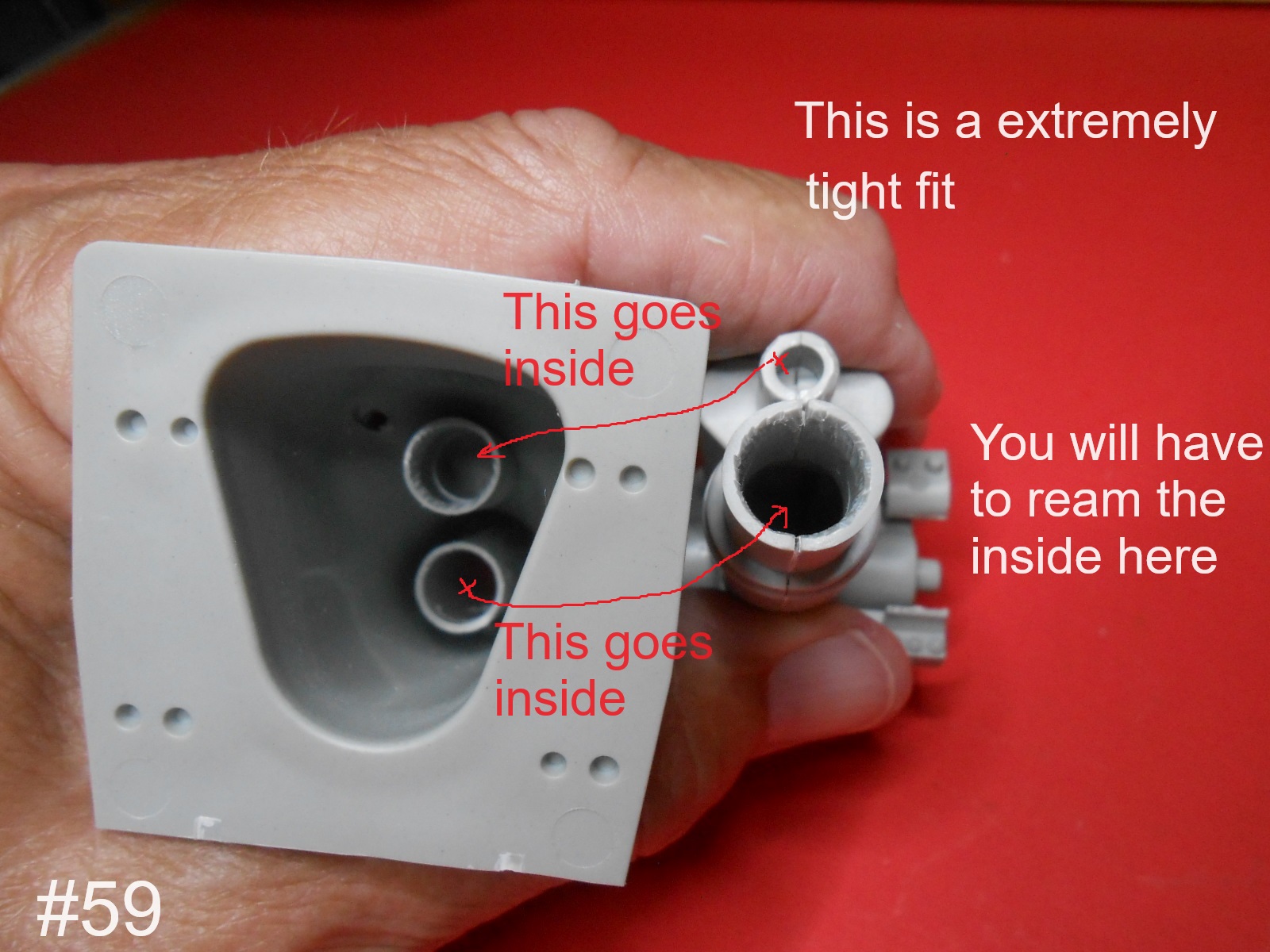

Late Stug. #59
Late Stug. #591600×1200 399 KB

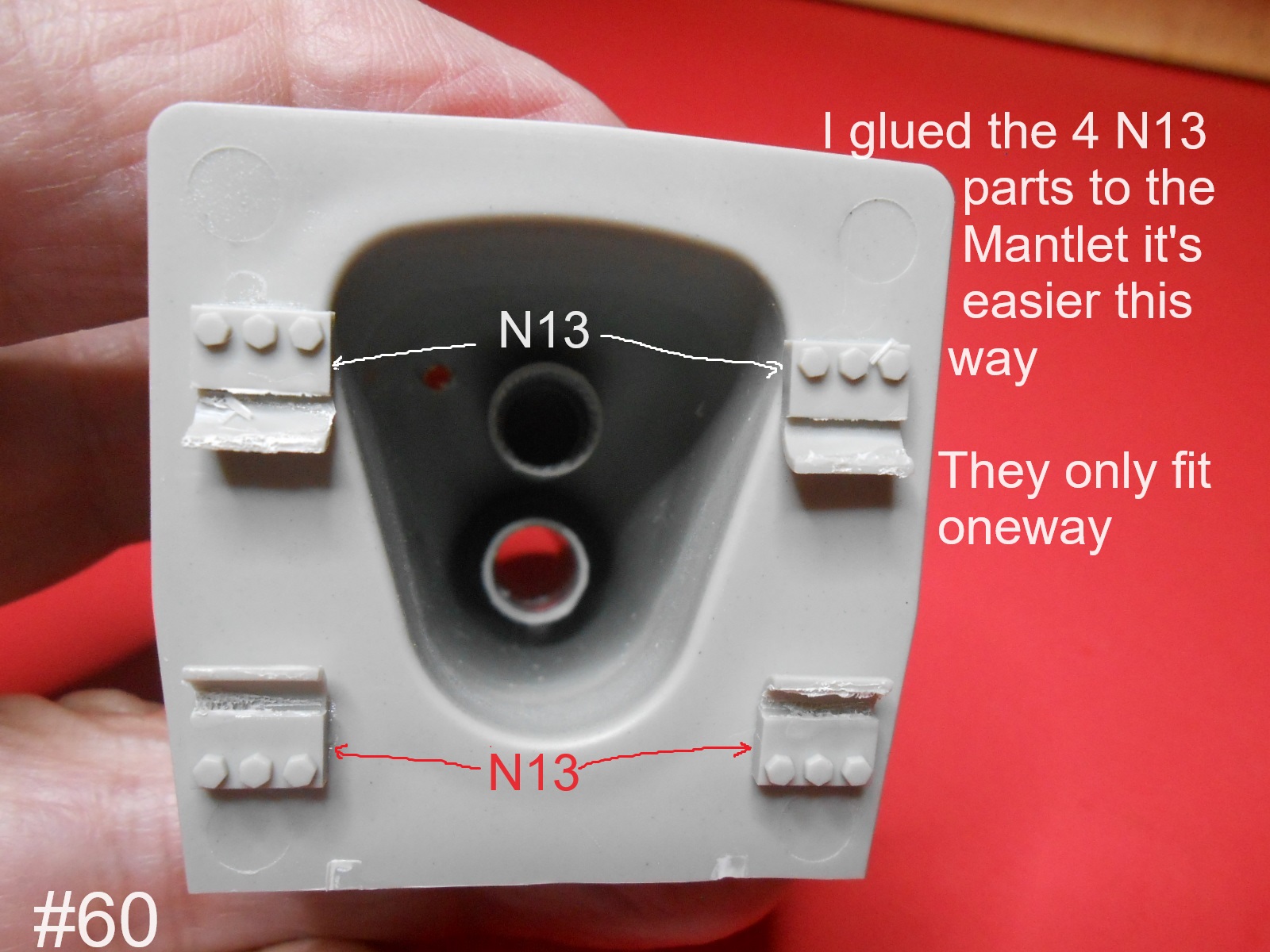

Late Stug. #60
Late Stug. #601600×1200 384 KB

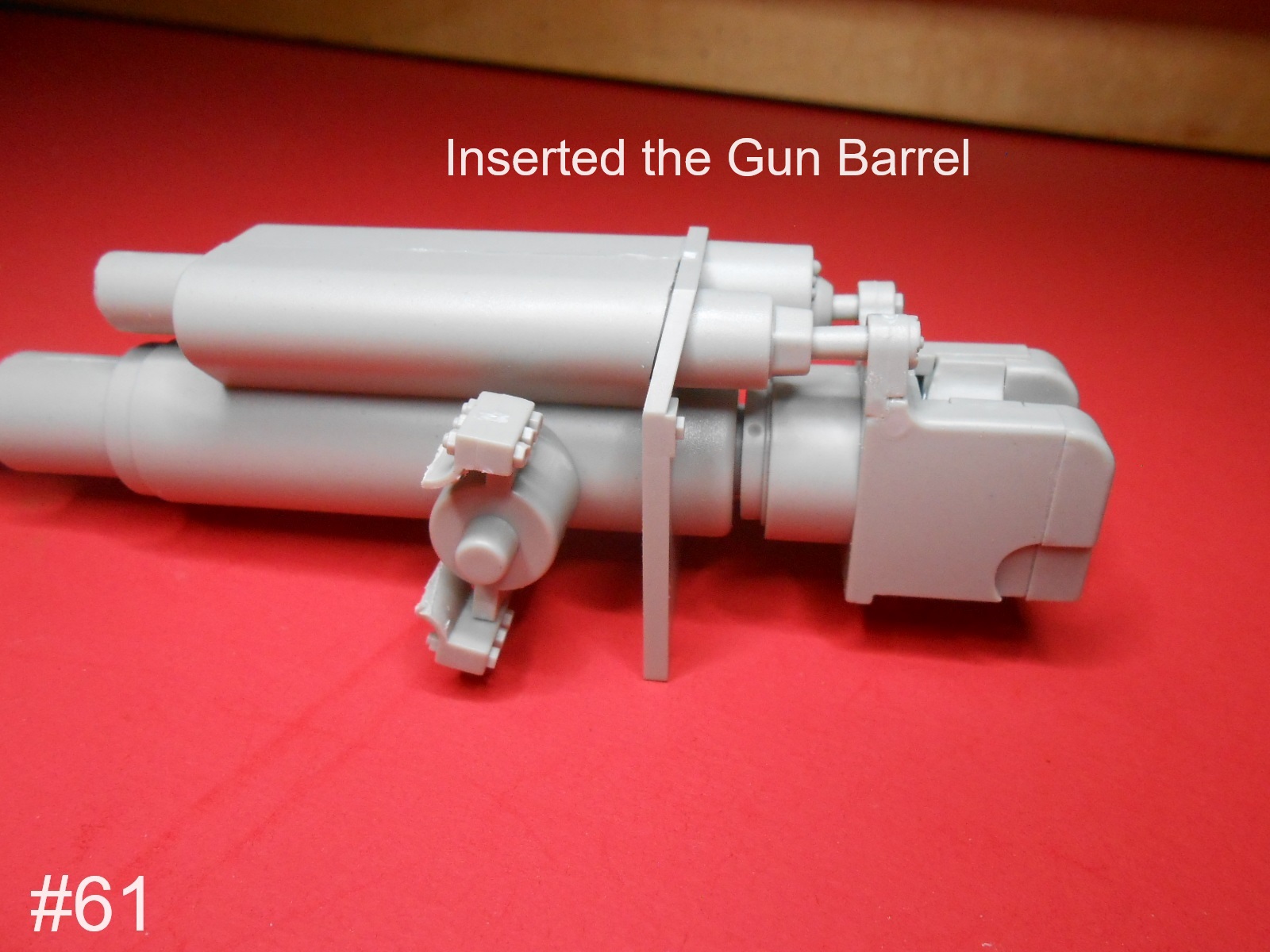

Late Stug. #61
Late Stug. #611600×1200 355 KB

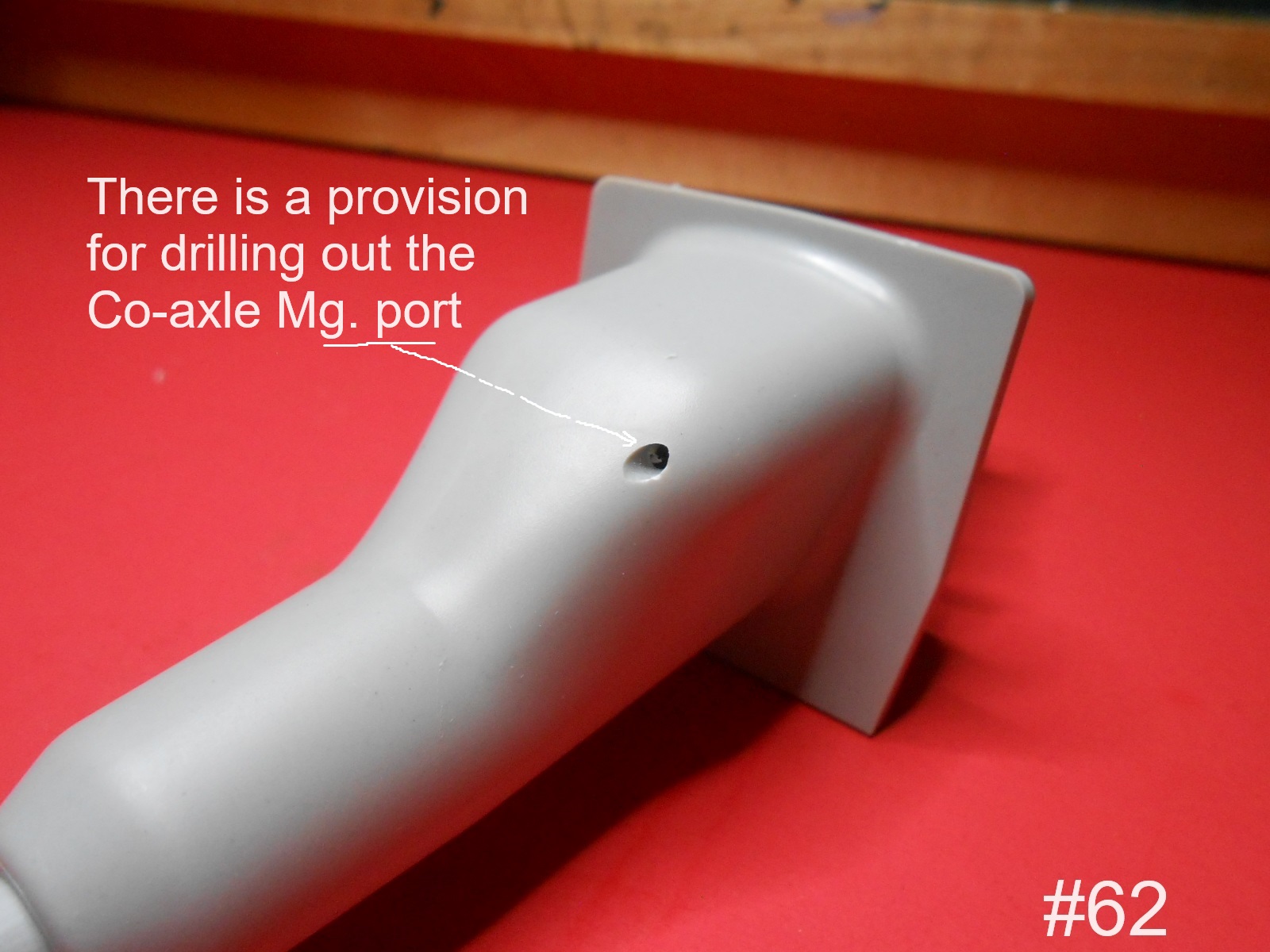

Late Stug. #62
Late Stug. #621600×1200 346 KB

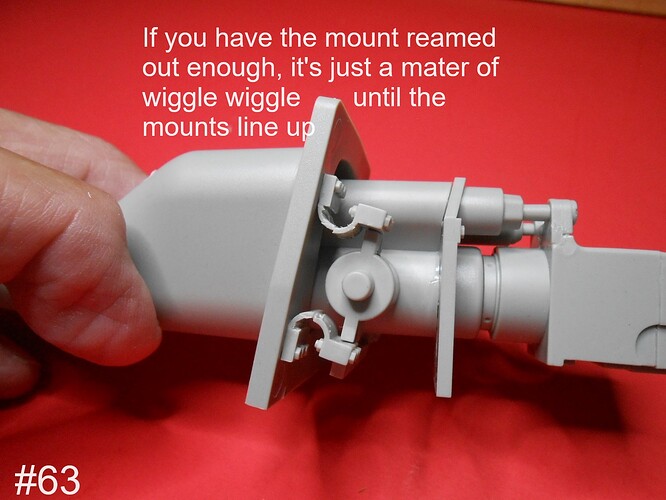

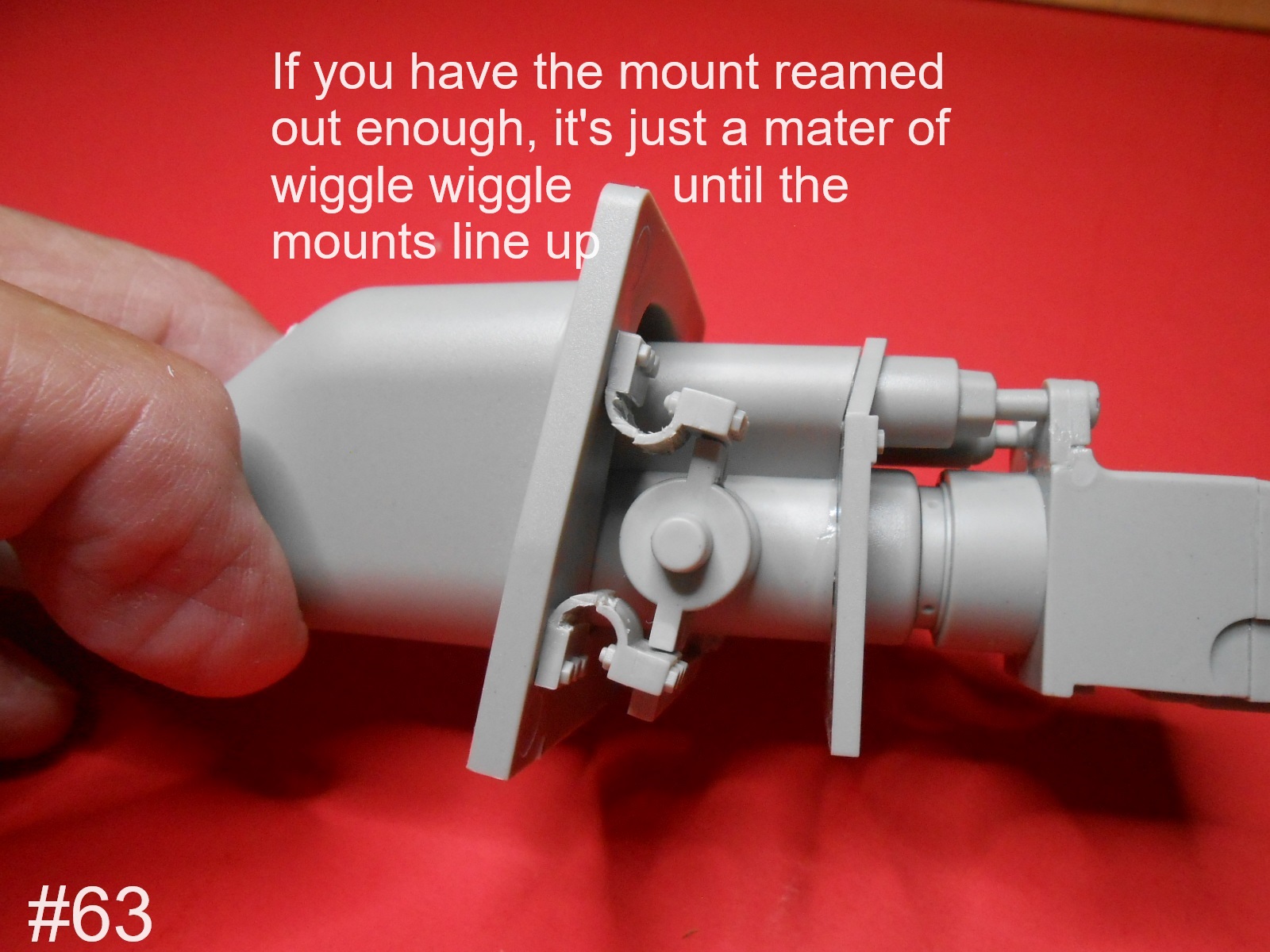

Late Stug. #63
Late Stug. #631600×1200 390 KB

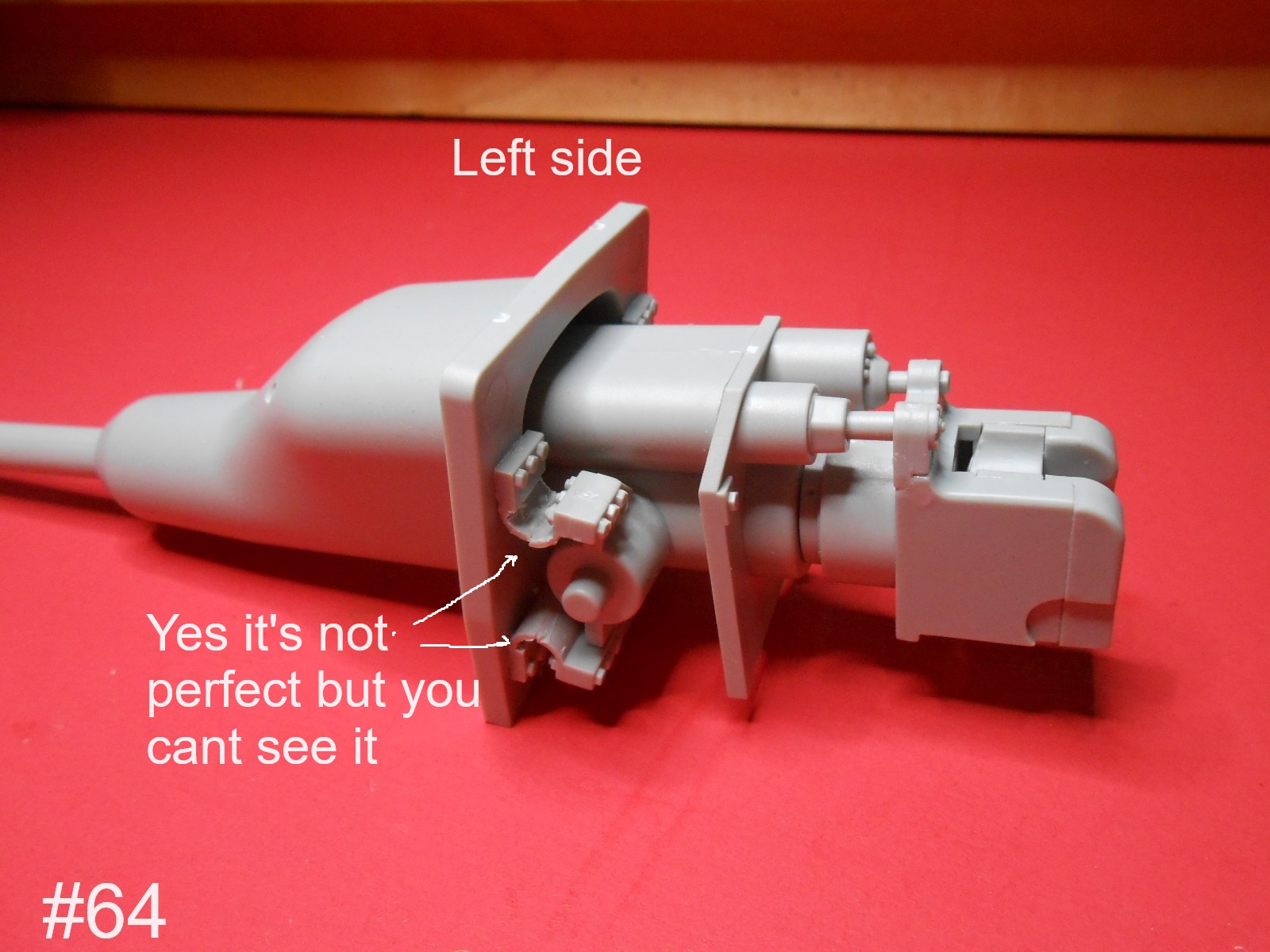

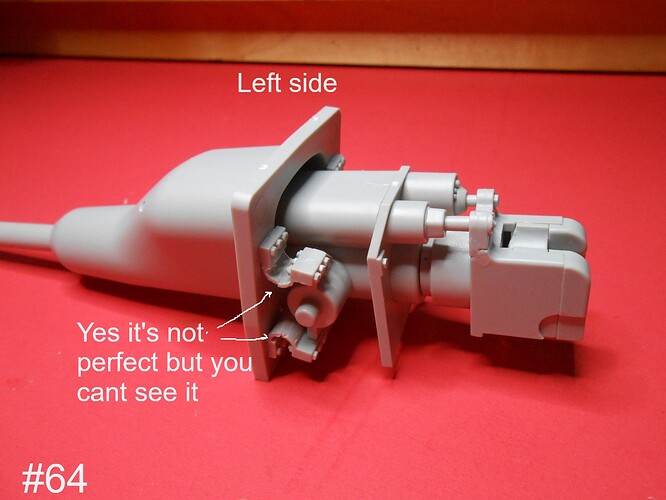

Late Stug. #64
Late Stug. #641600×1200 368 KB

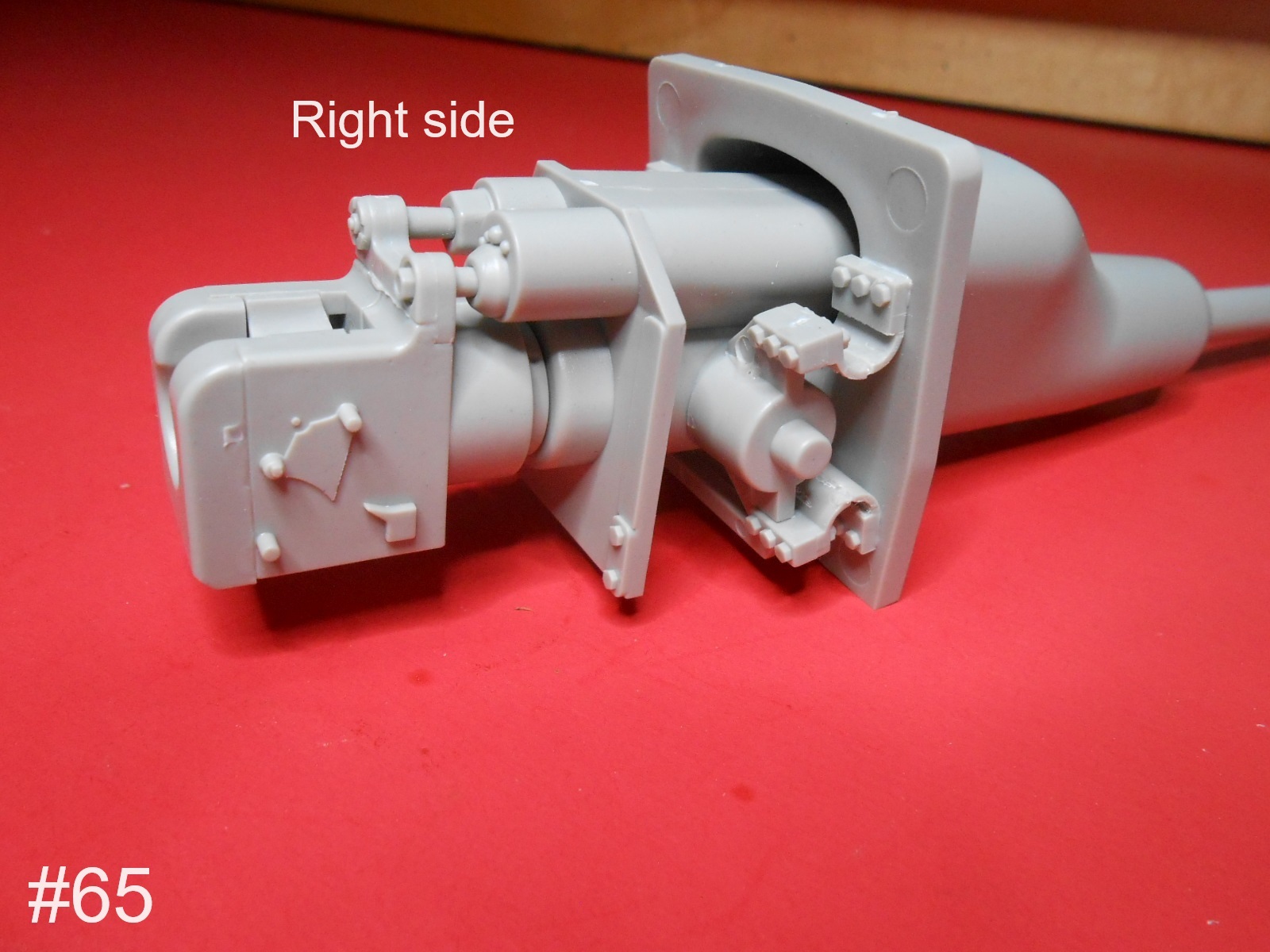

Late Stug. #65
Late Stug. #651600×1200 352 KB

Finished for now.
Donald

2 Likes
12

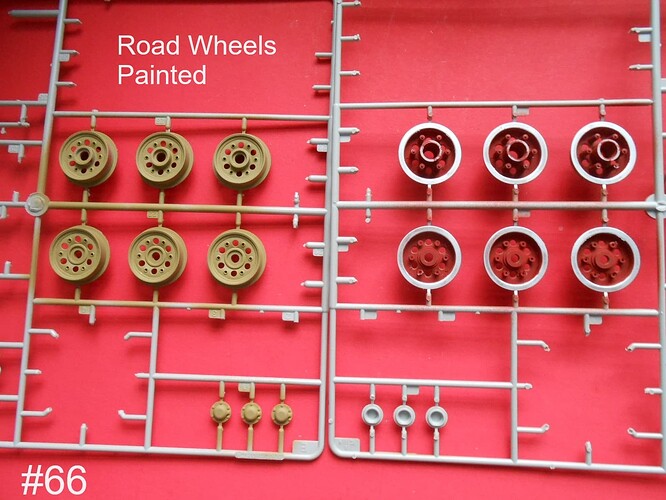

This is really slow going, I just got the Wheels painted and ready for assembly. I’m still waiting for the Zimmerit from Atak Models, once I get that most assembly can resume. Anyway here are the Wheels & Tires.

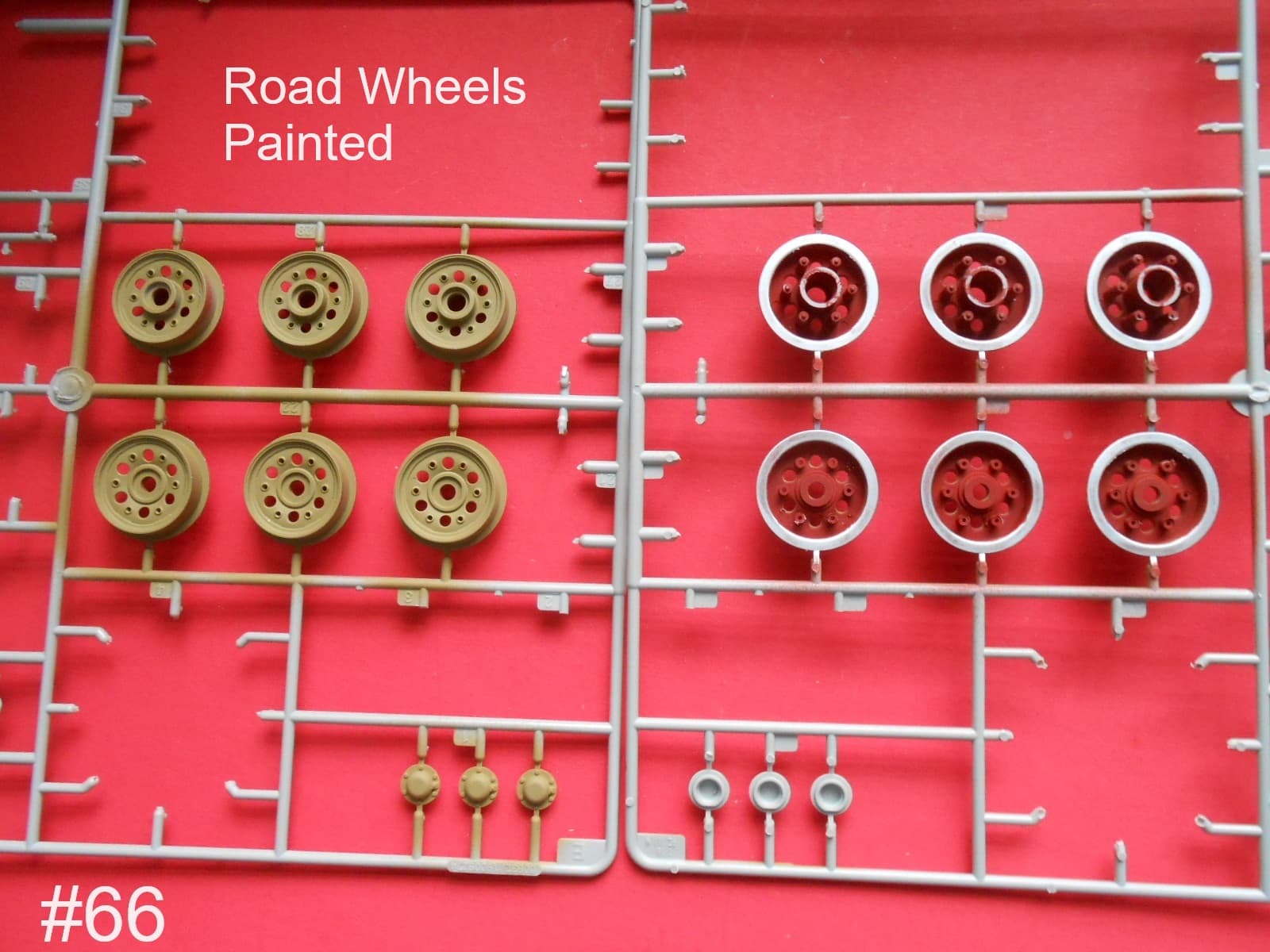

Late Stug. #66
Late Stug. #661600×1200 158 KB

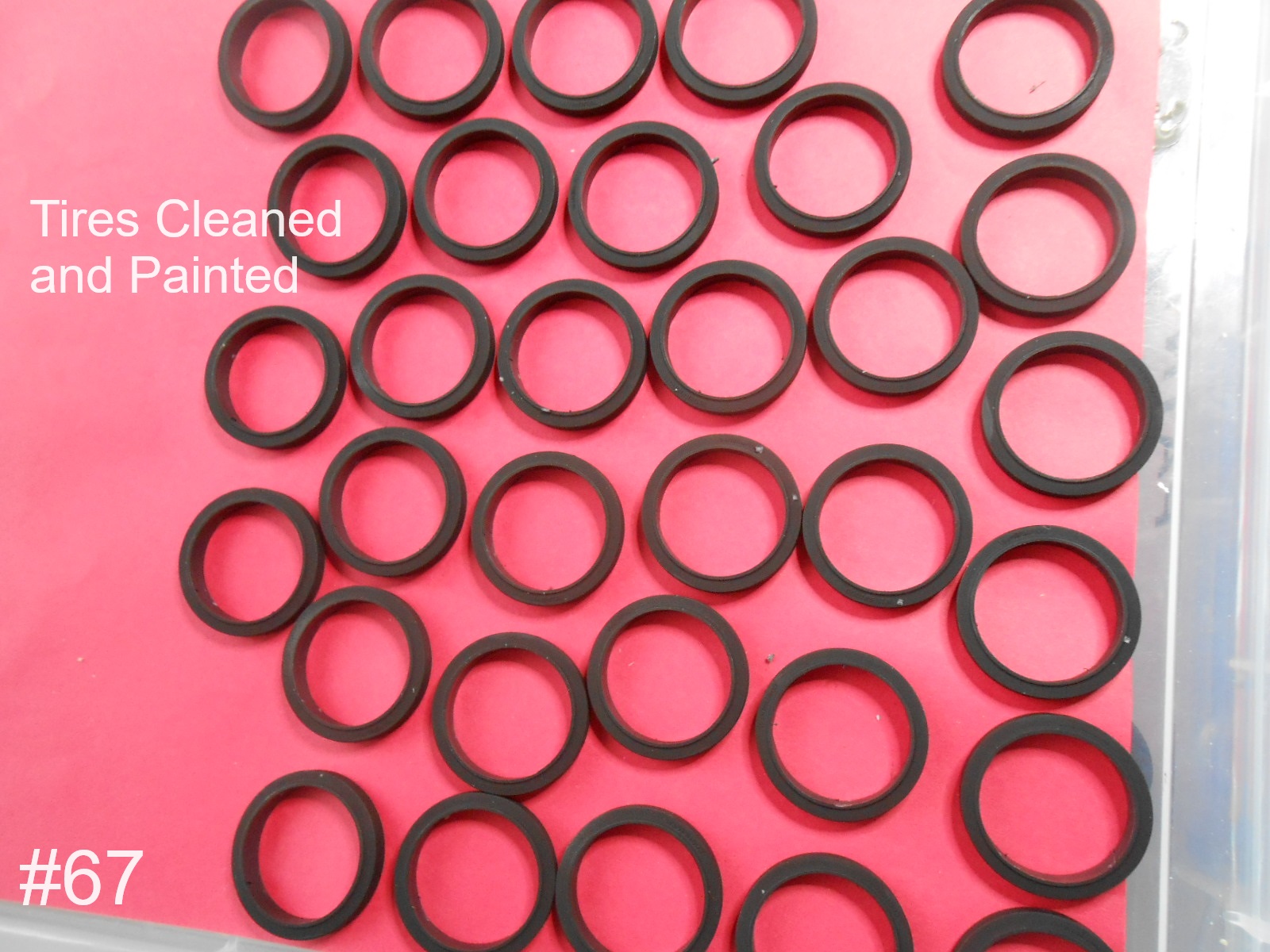

Late Stug. #67
Late Stug. #671600×1200 406 KB

Regards
Donald

2 Likes
13

I have a little more done while waiting for the Zimmerit to clear customs.

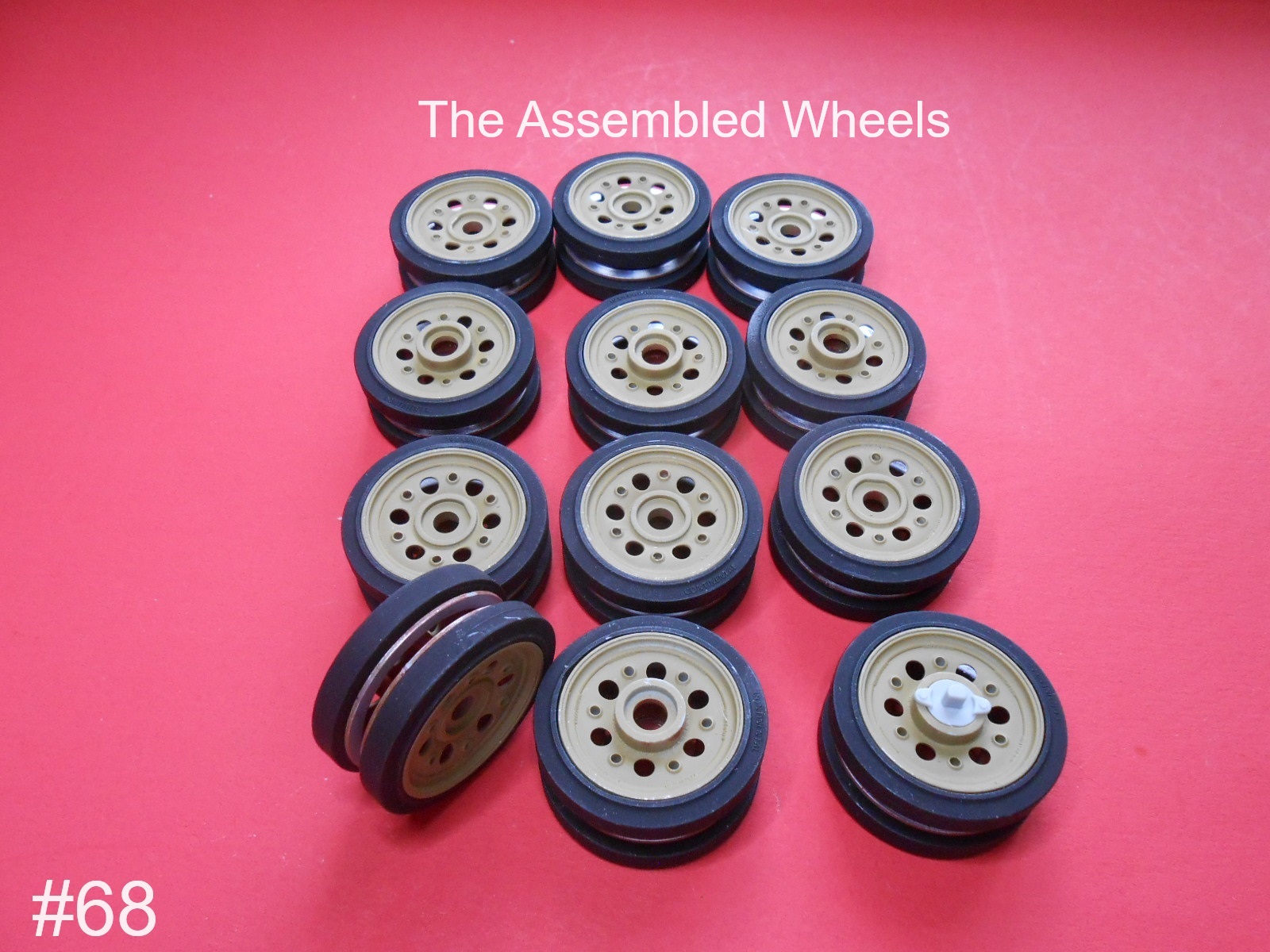

Late Stug. #68
Late Stug. #681600×1200 429 KB

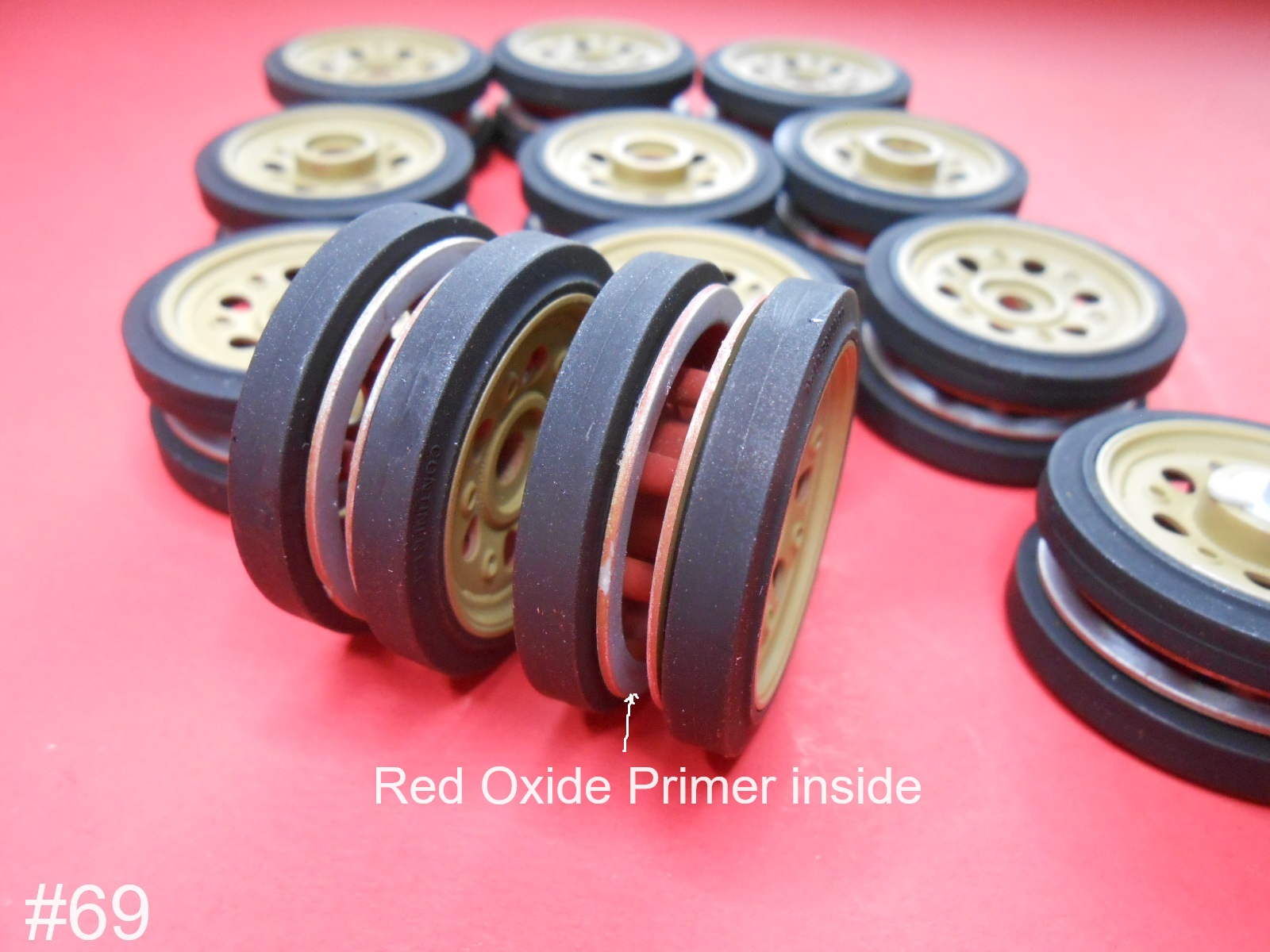

Late Stug. #69
Late Stug. #691600×1200 365 KB

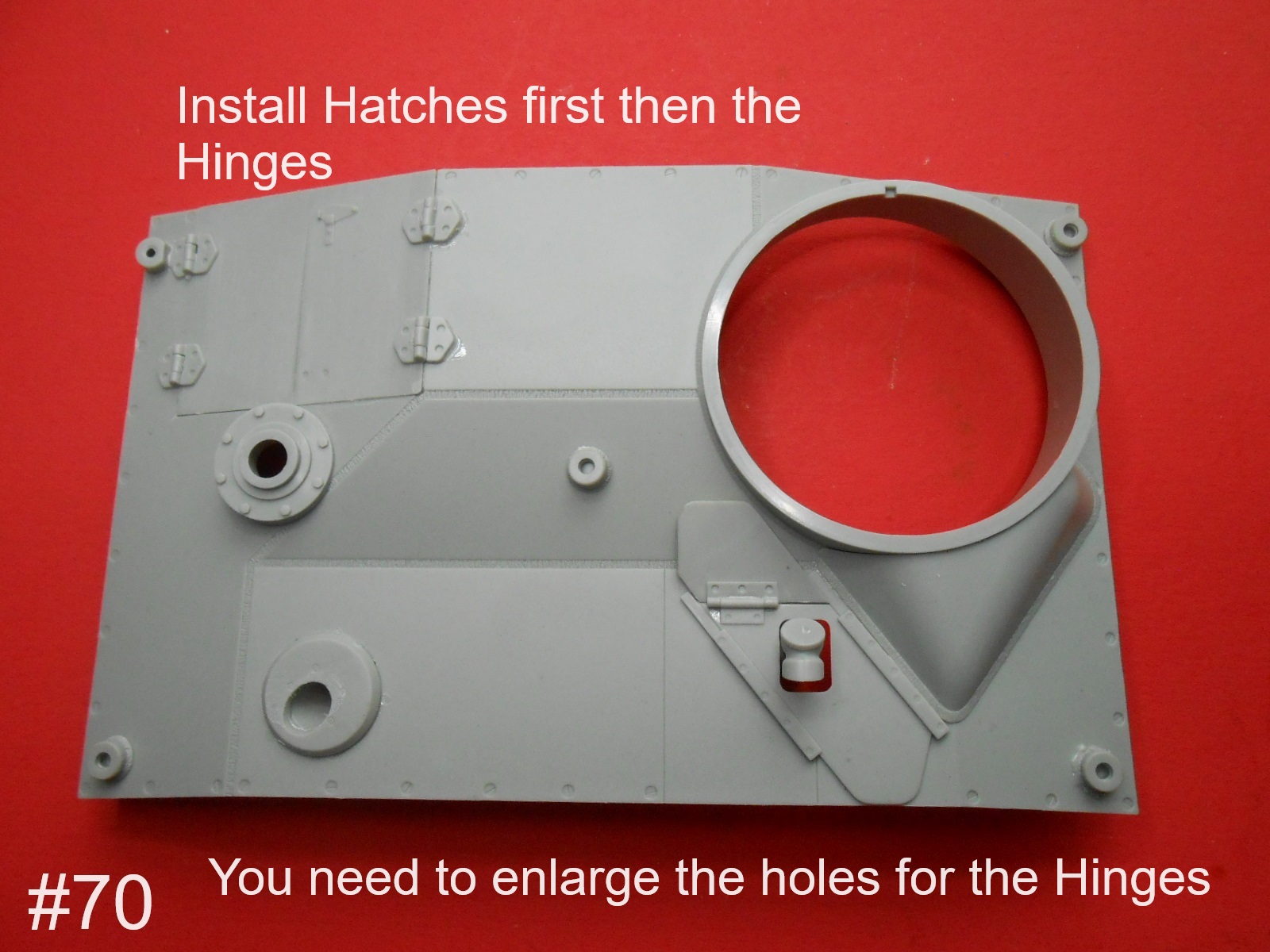

Late Stug. #70
Late Stug. #701600×1200 386 KB

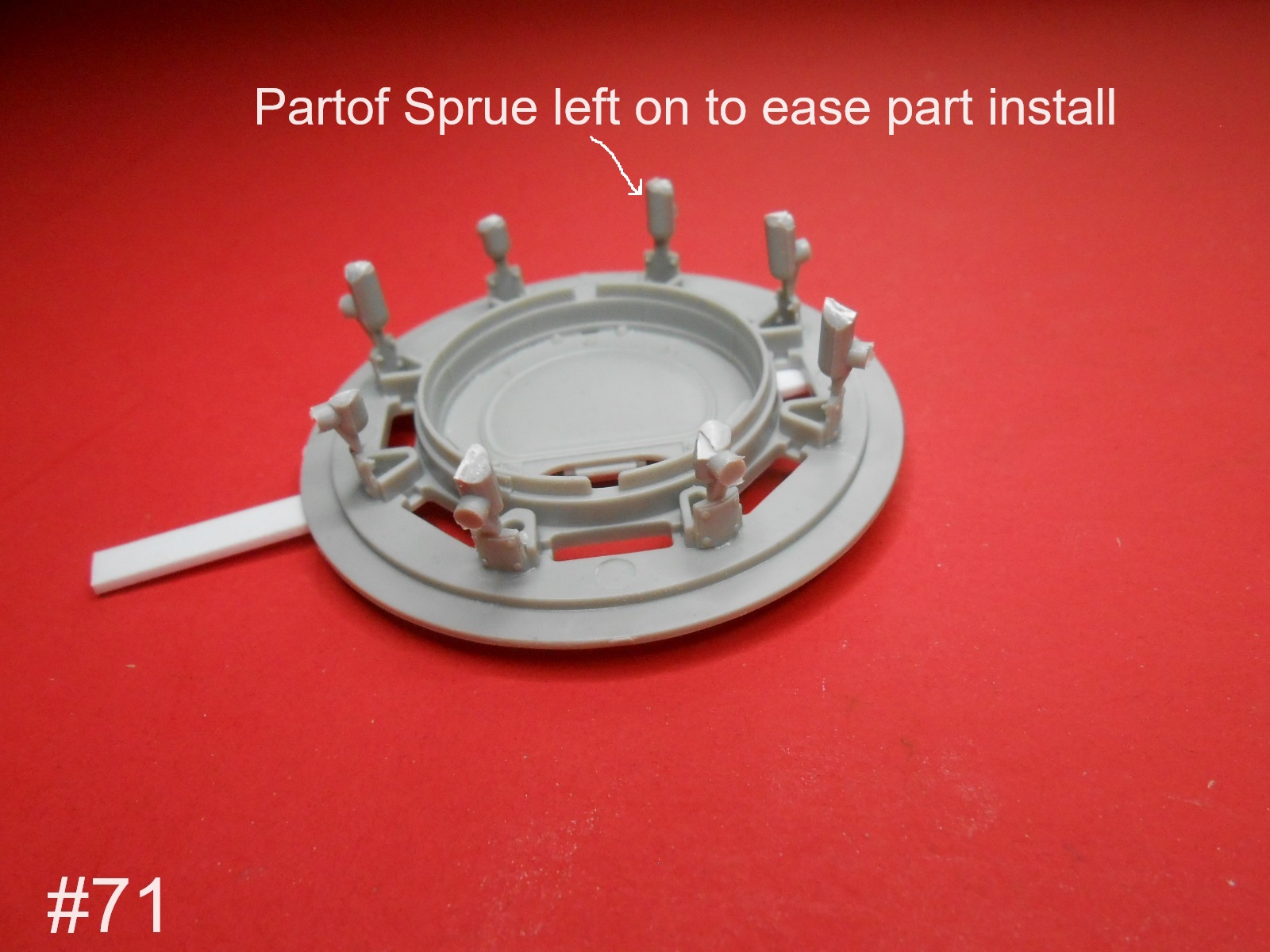

Late Stug. #71
Late Stug. #711600×1200 363 KB

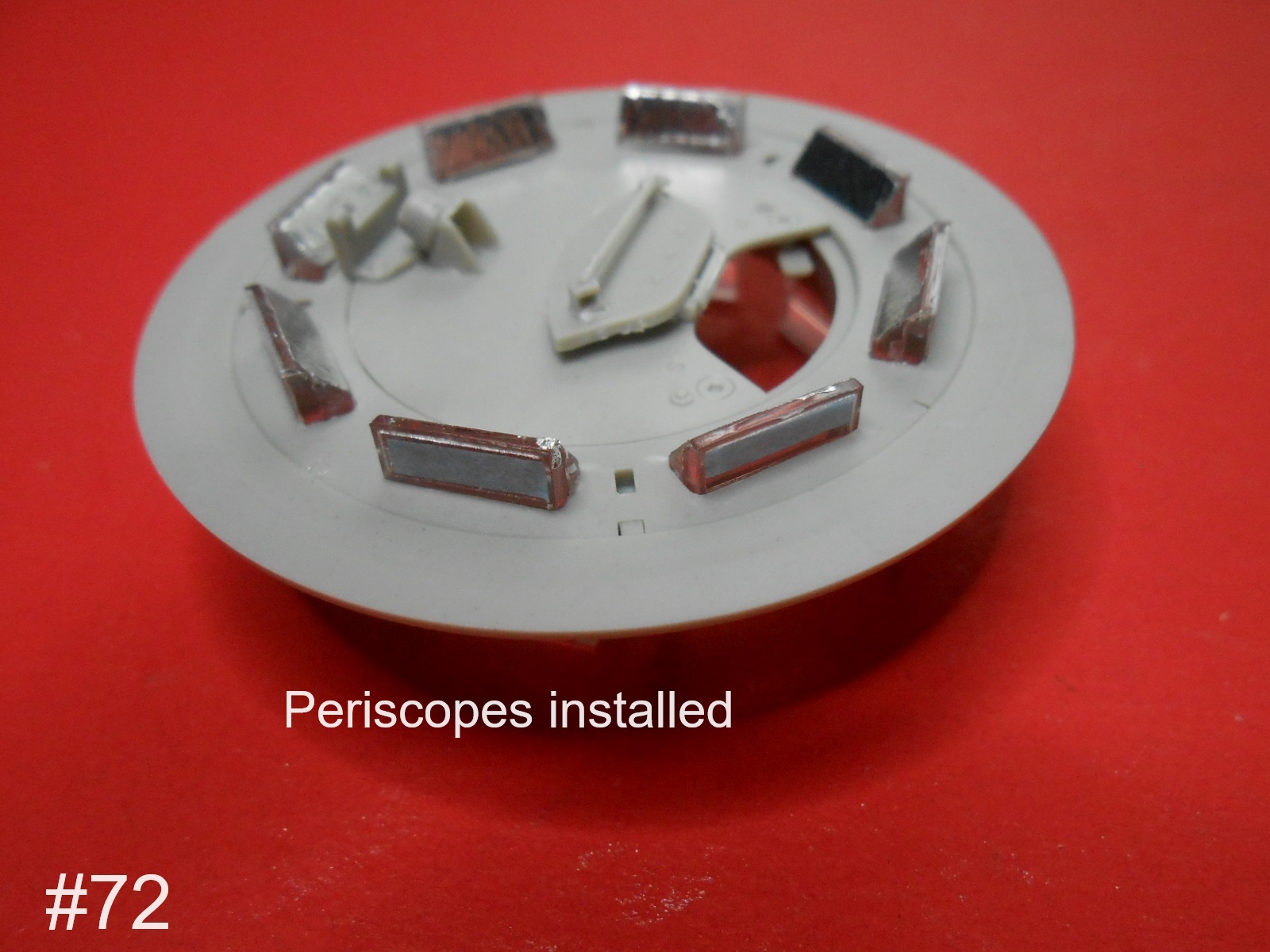

Late Stug. #72
Late Stug. #721600×1200 346 KB

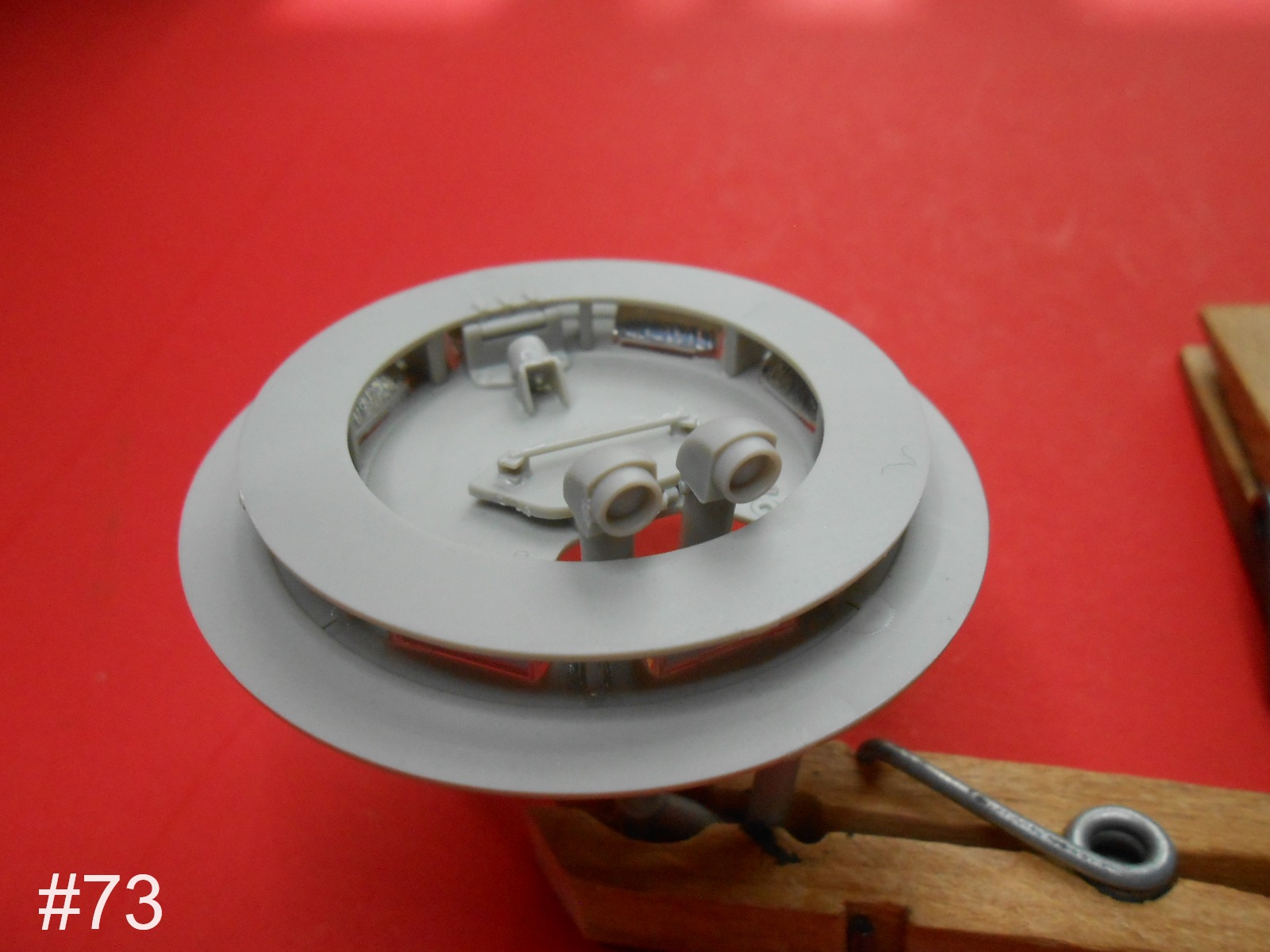

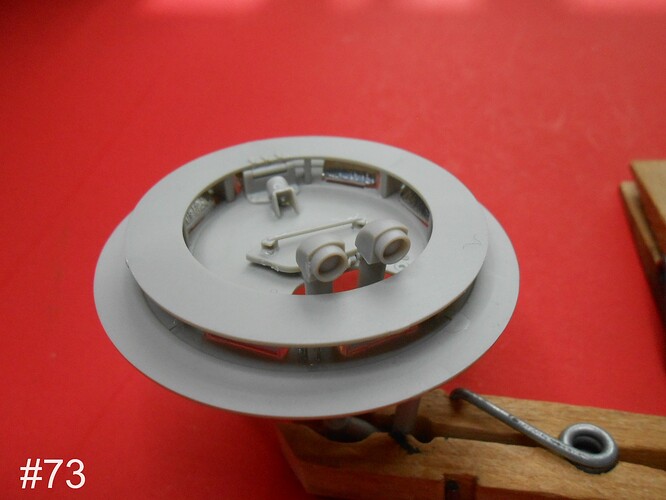

Late Stug. #73
Late Stug. #731600×1200 331 KB

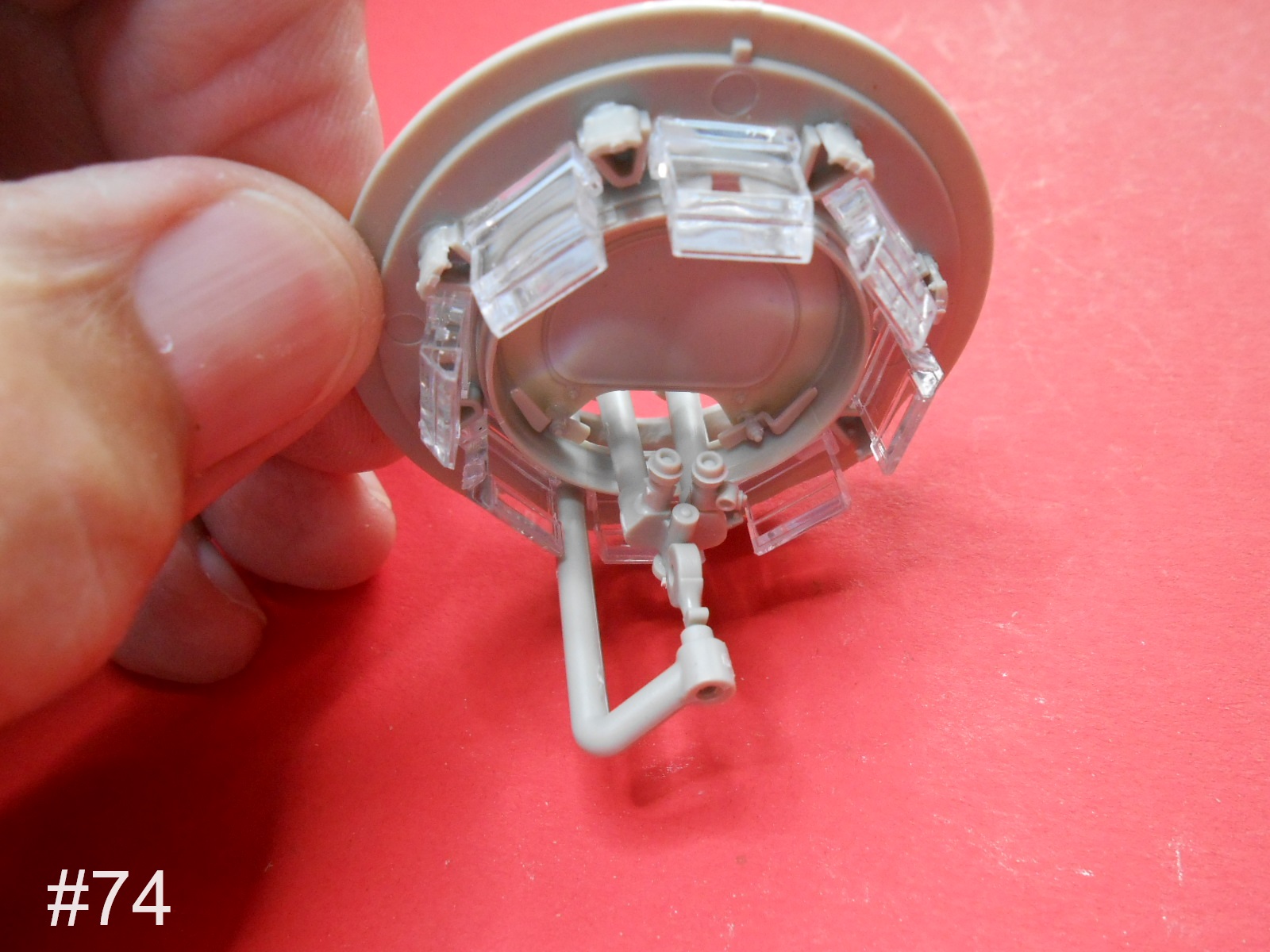

Late Stug. #74
Late Stug. #741600×1200 368 KB

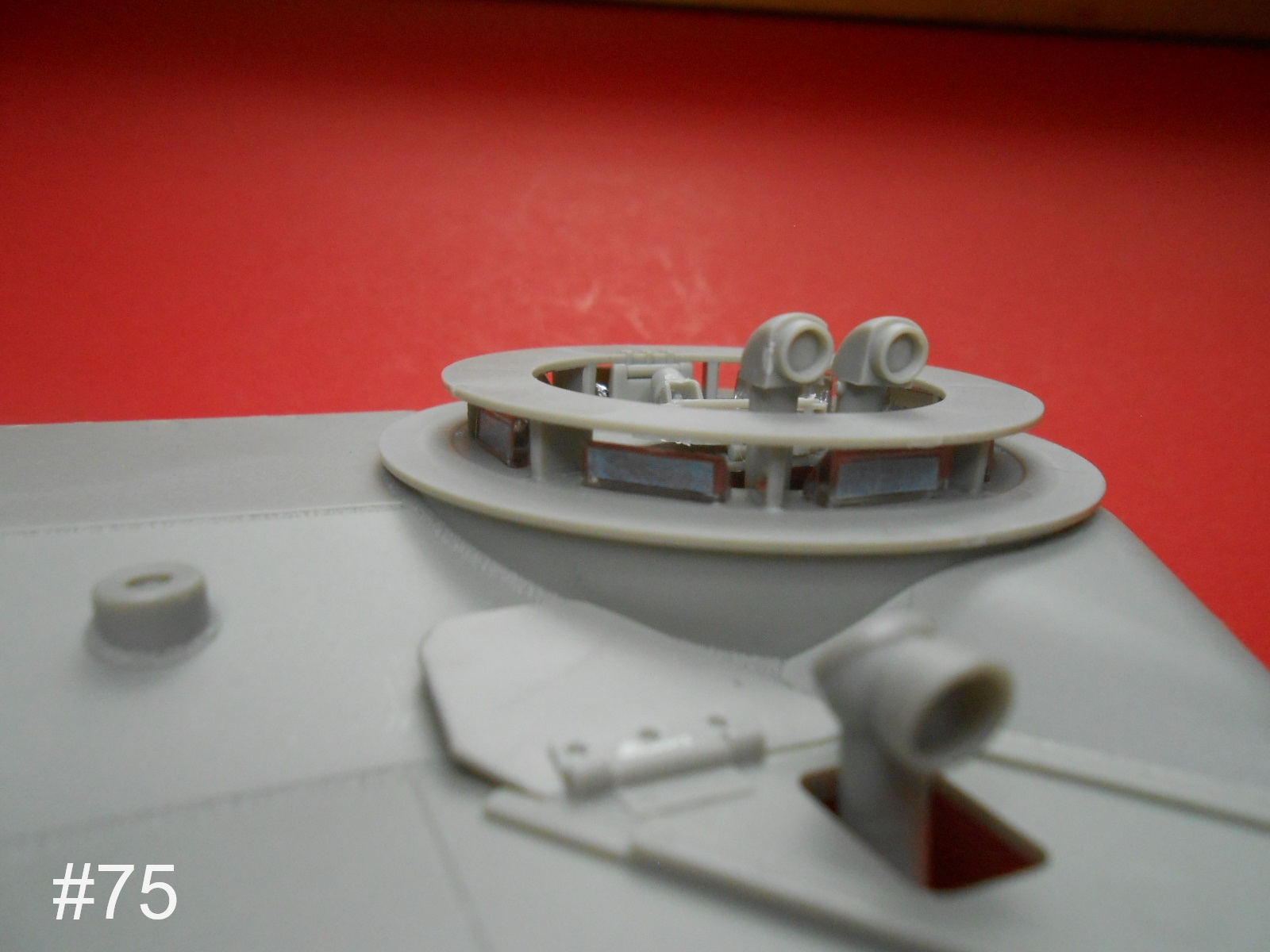

Late Stug. #75
Late Stug. #751600×1200 318 KB

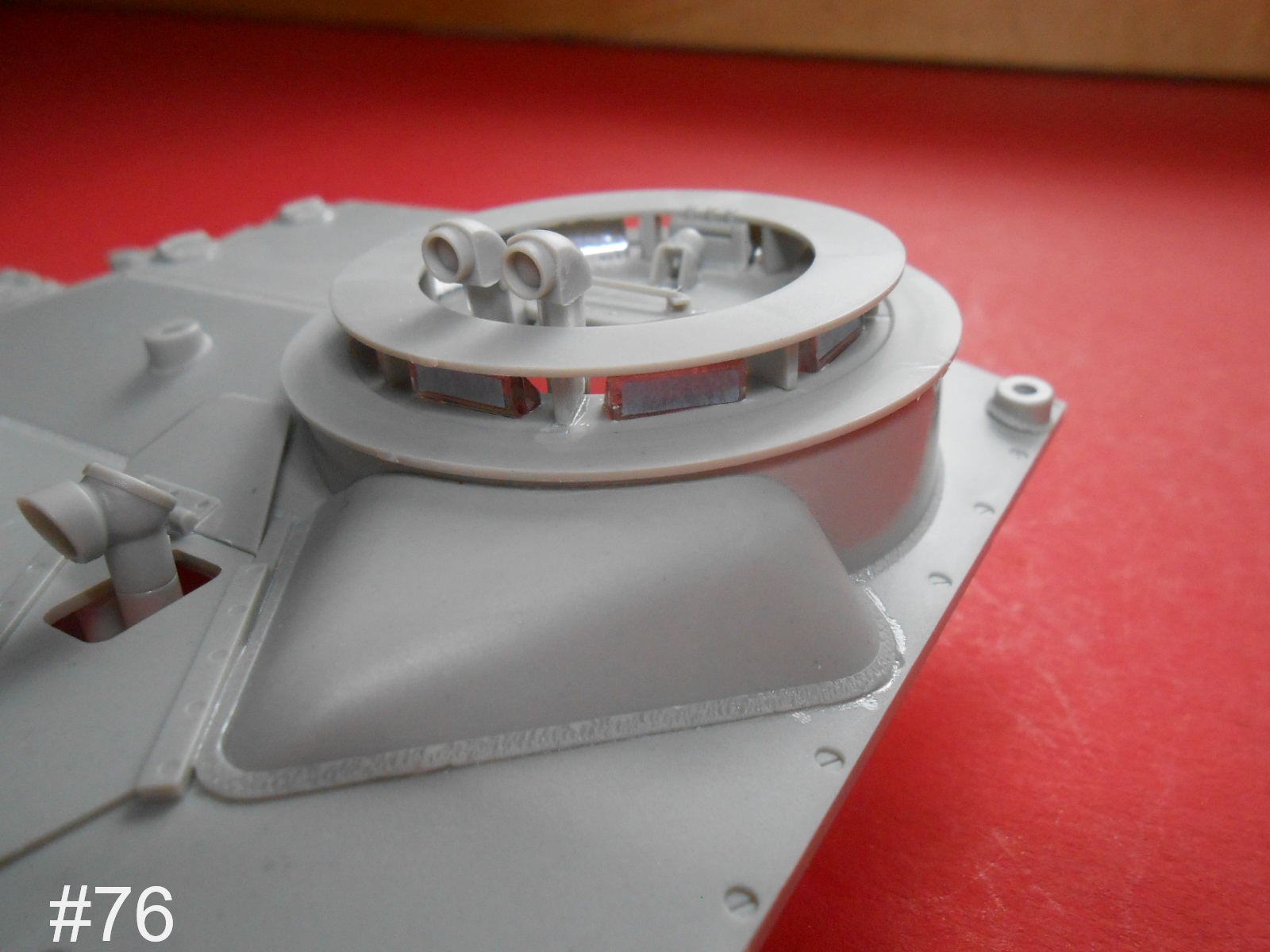

Late Stug. #76
Late Stug. #761600×1200 336 KB

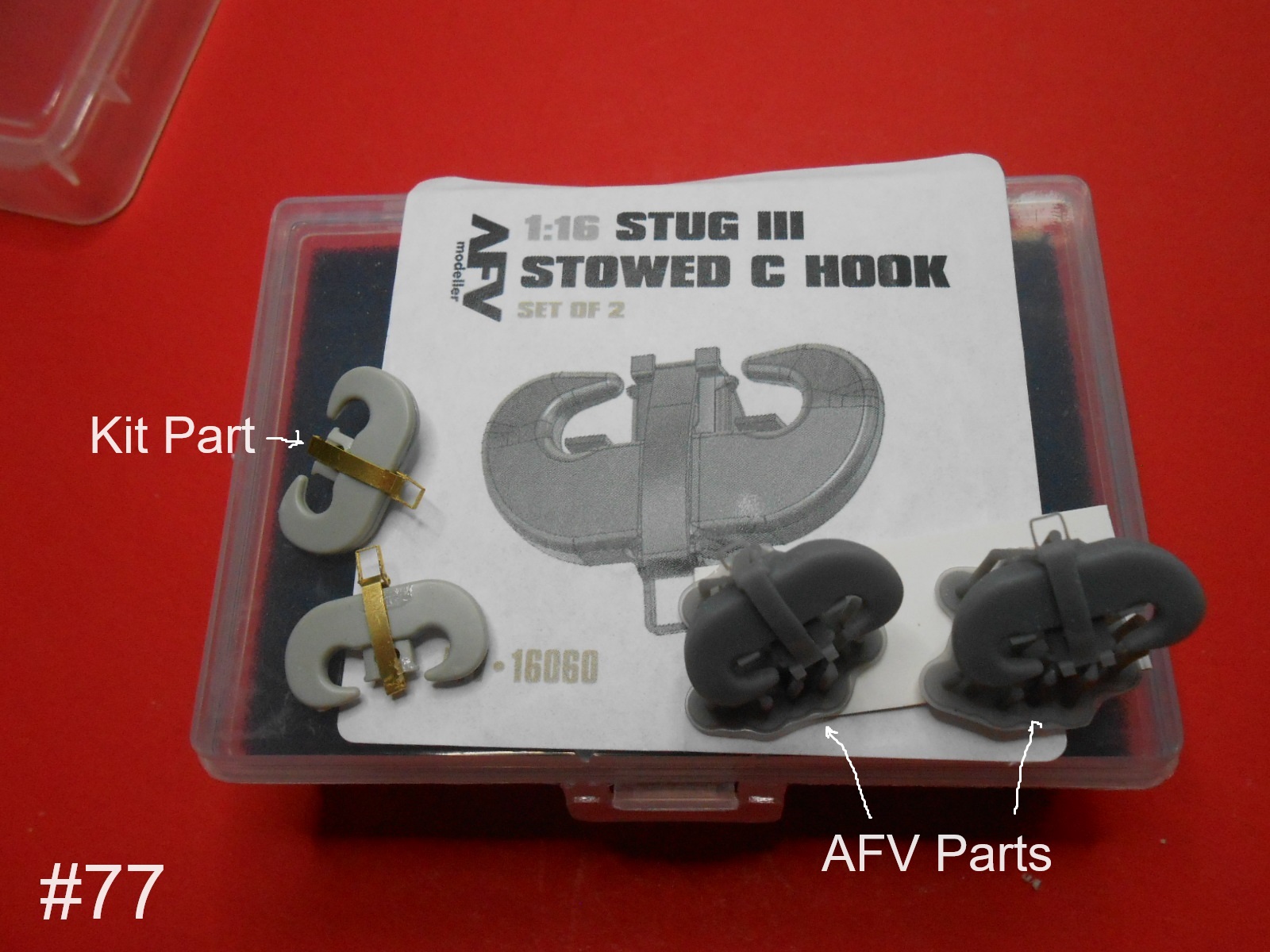

Late Stug. #77
Late Stug. #771600×1200 385 KB

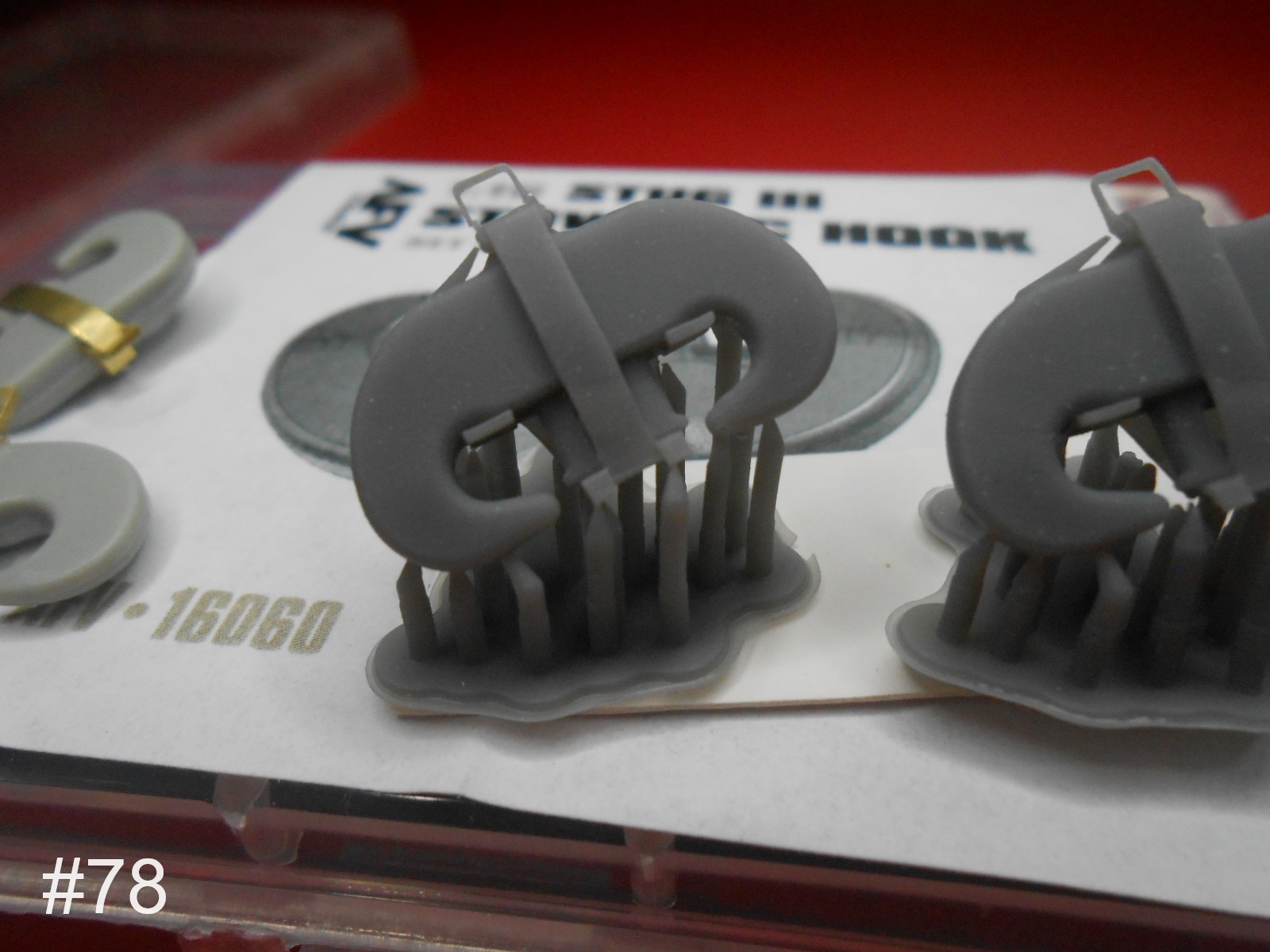

Late Stug. #78
Late Stug. #781600×1200 344 KB

Regards
Donald

3 Likes
14

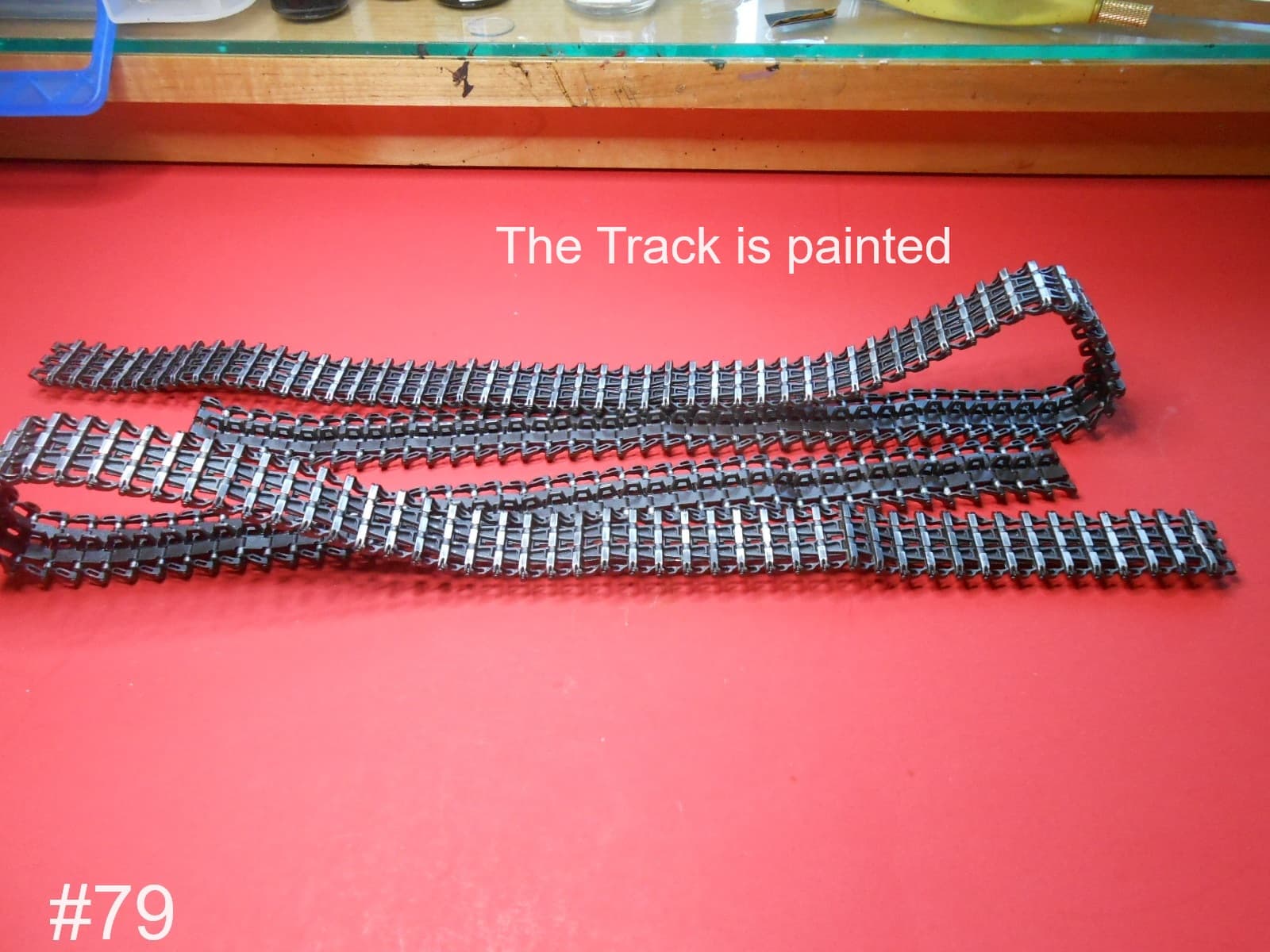

I got the Track painted finally , and the Top Mg. assembled.
Here are some Pics. of the Zimmerit if you are interested.

Late Stug. #79
Late Stug. #791600×1200 165 KB

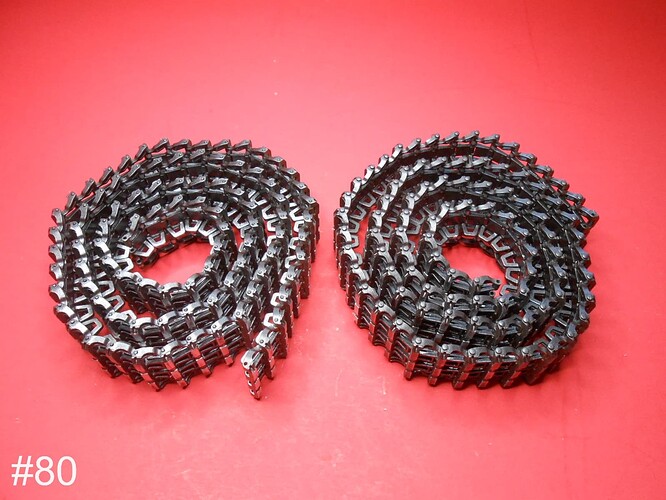

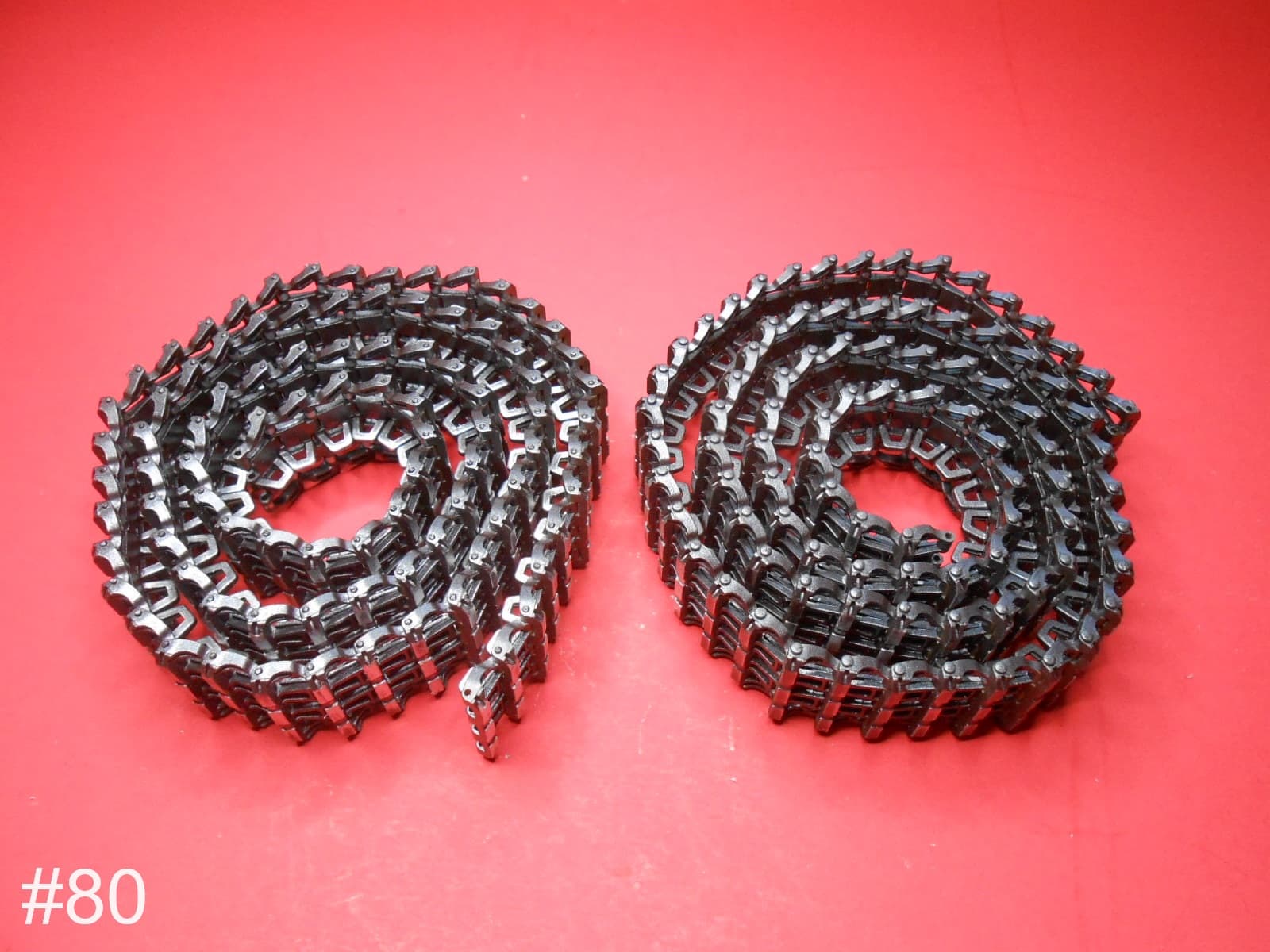

Late Stug. #80
Late Stug. #801600×1200 164 KB

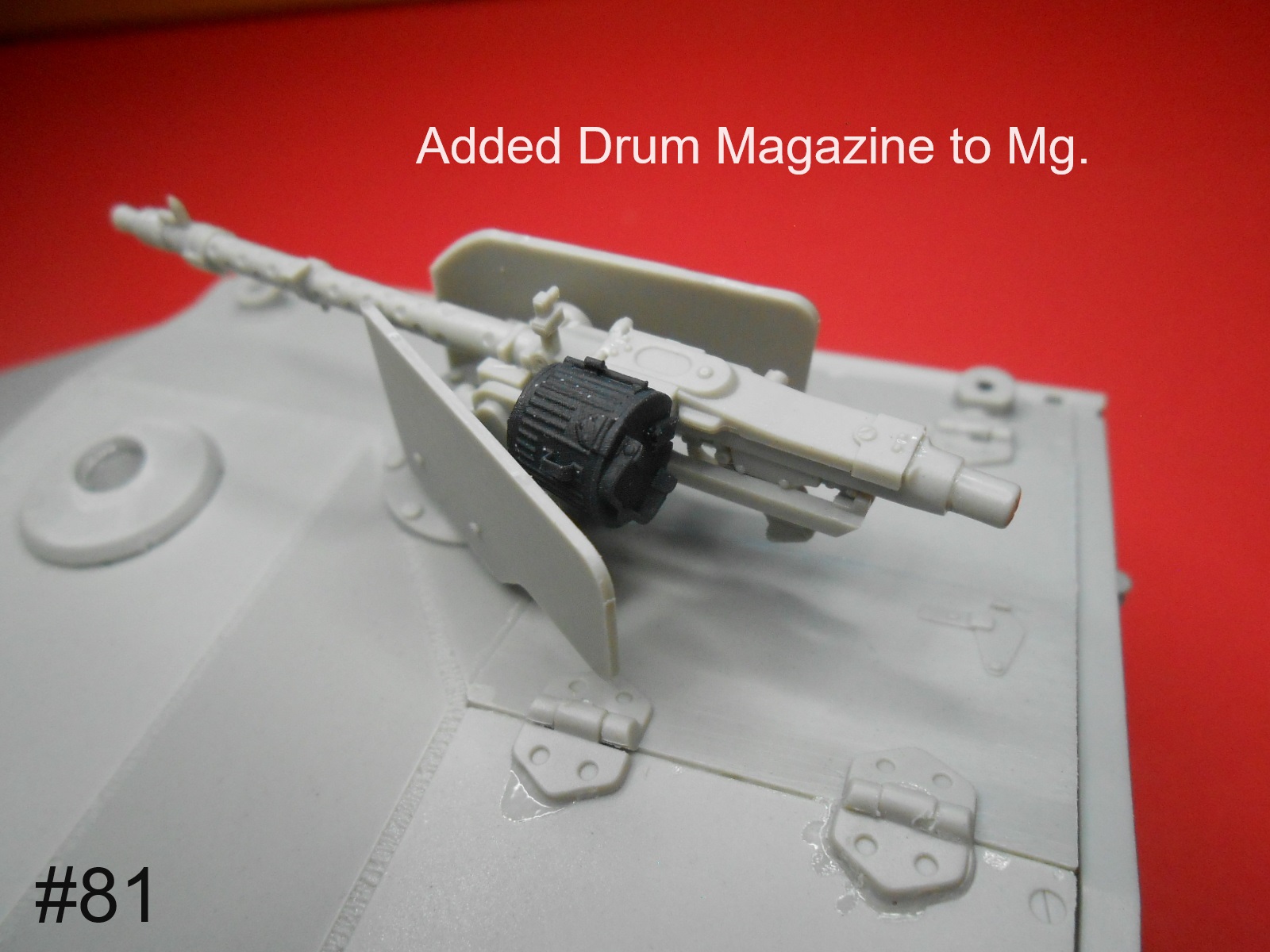

Late Stug. #81
Late Stug. #811600×1200 346 KB

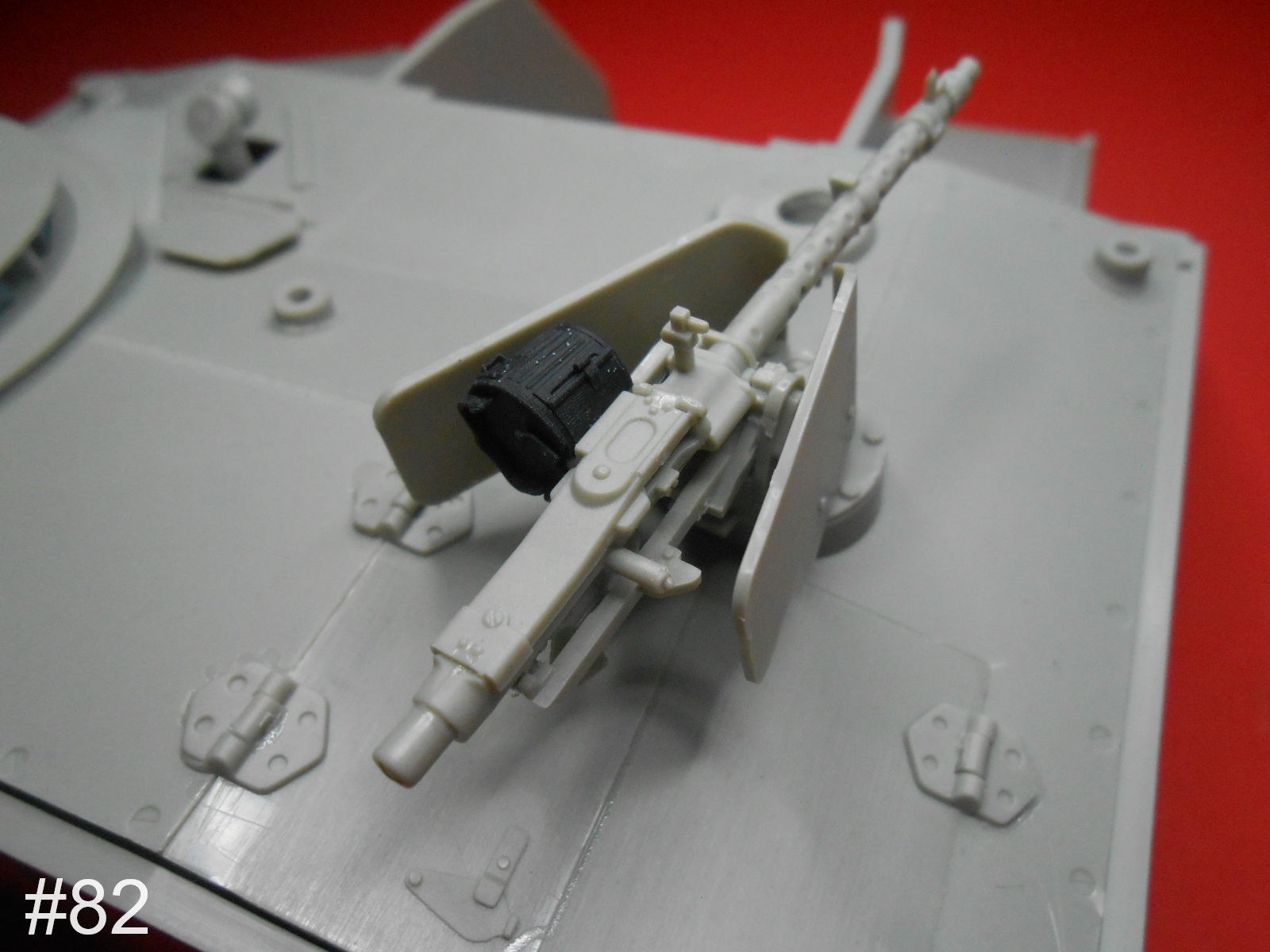

Late Stug. #82
Late Stug. #821600×1200 328 KB

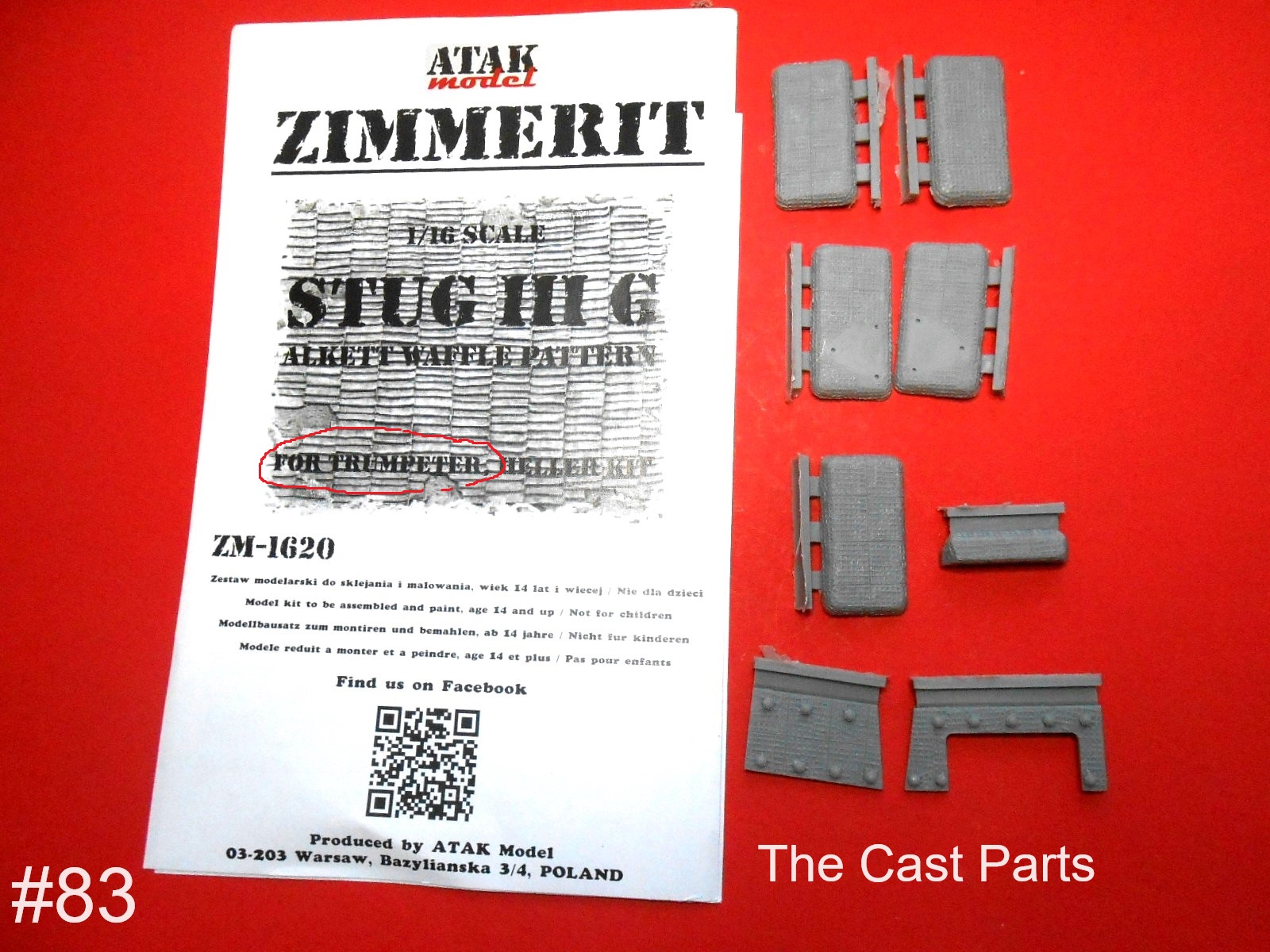

Late Stug. #83
Late Stug. #831600×1200 441 KB

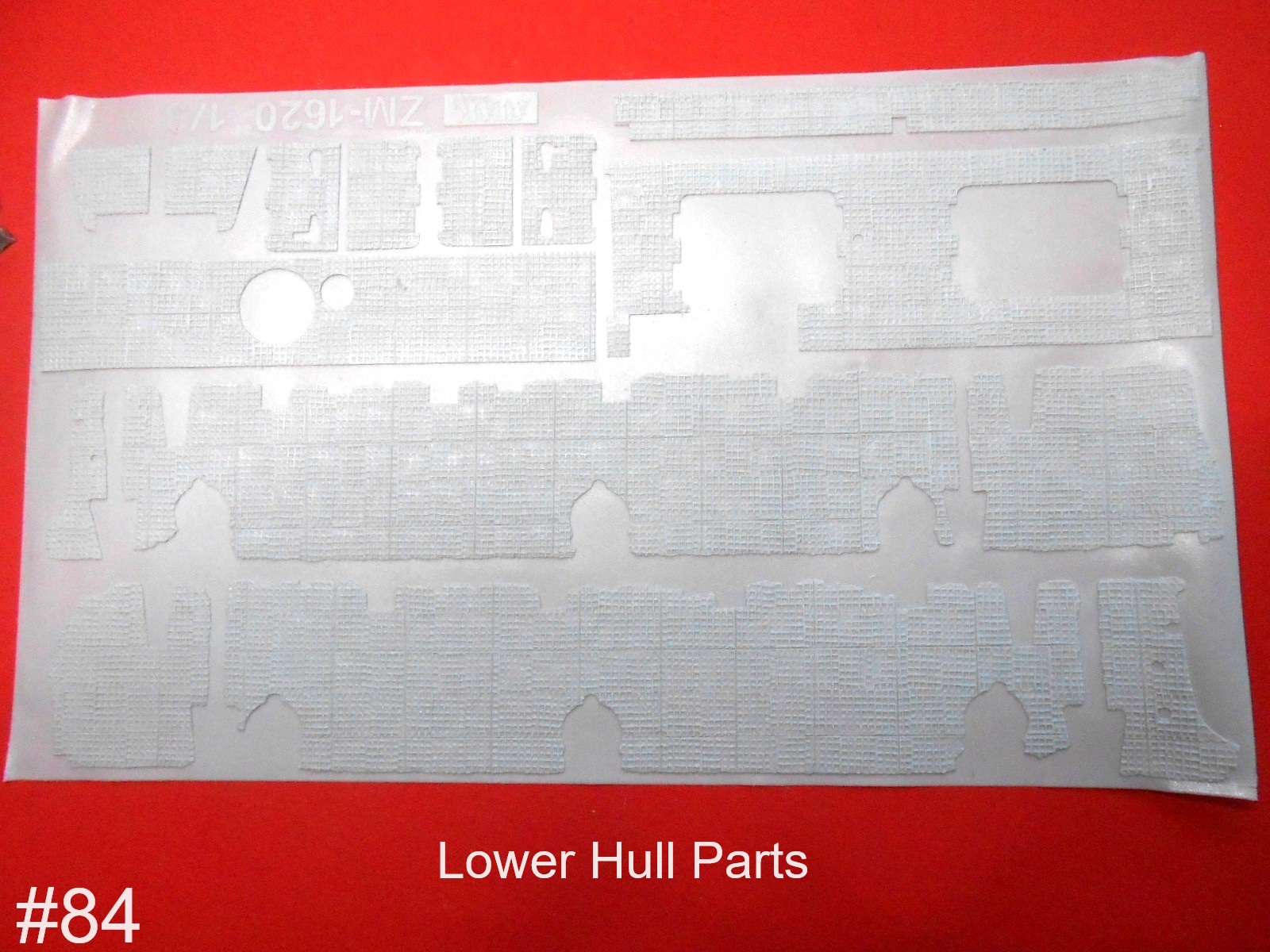

Late Stug. #84
Late Stug. #841600×1200 438 KB

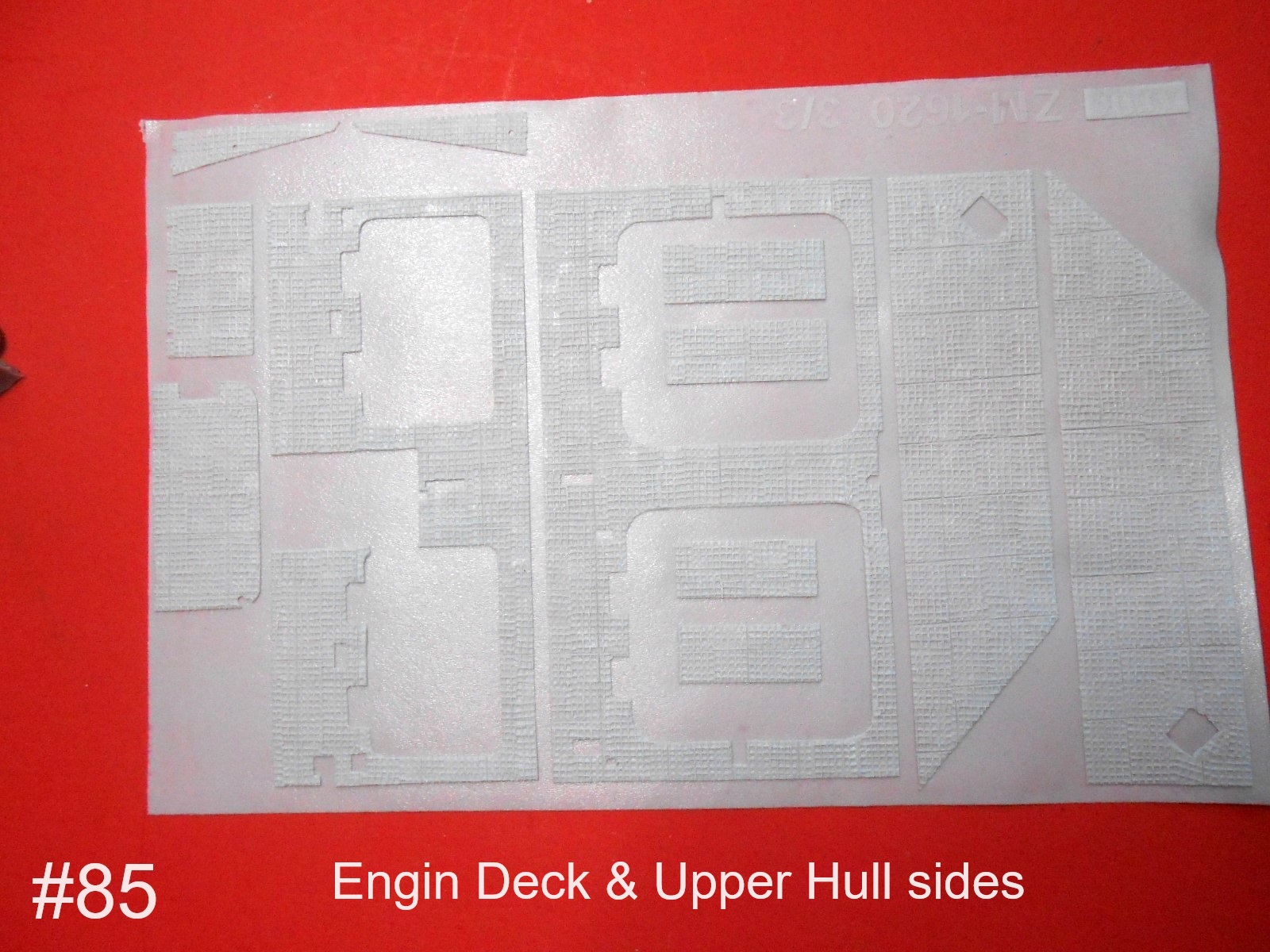

Late Stug. #85
Late Stug. #851600×1200 450 KB

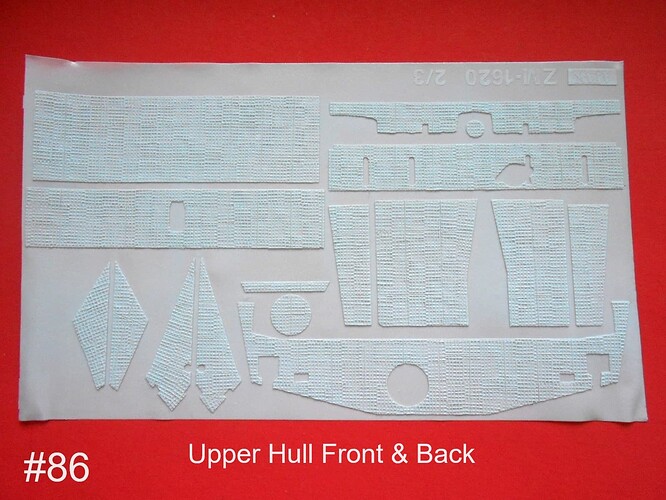

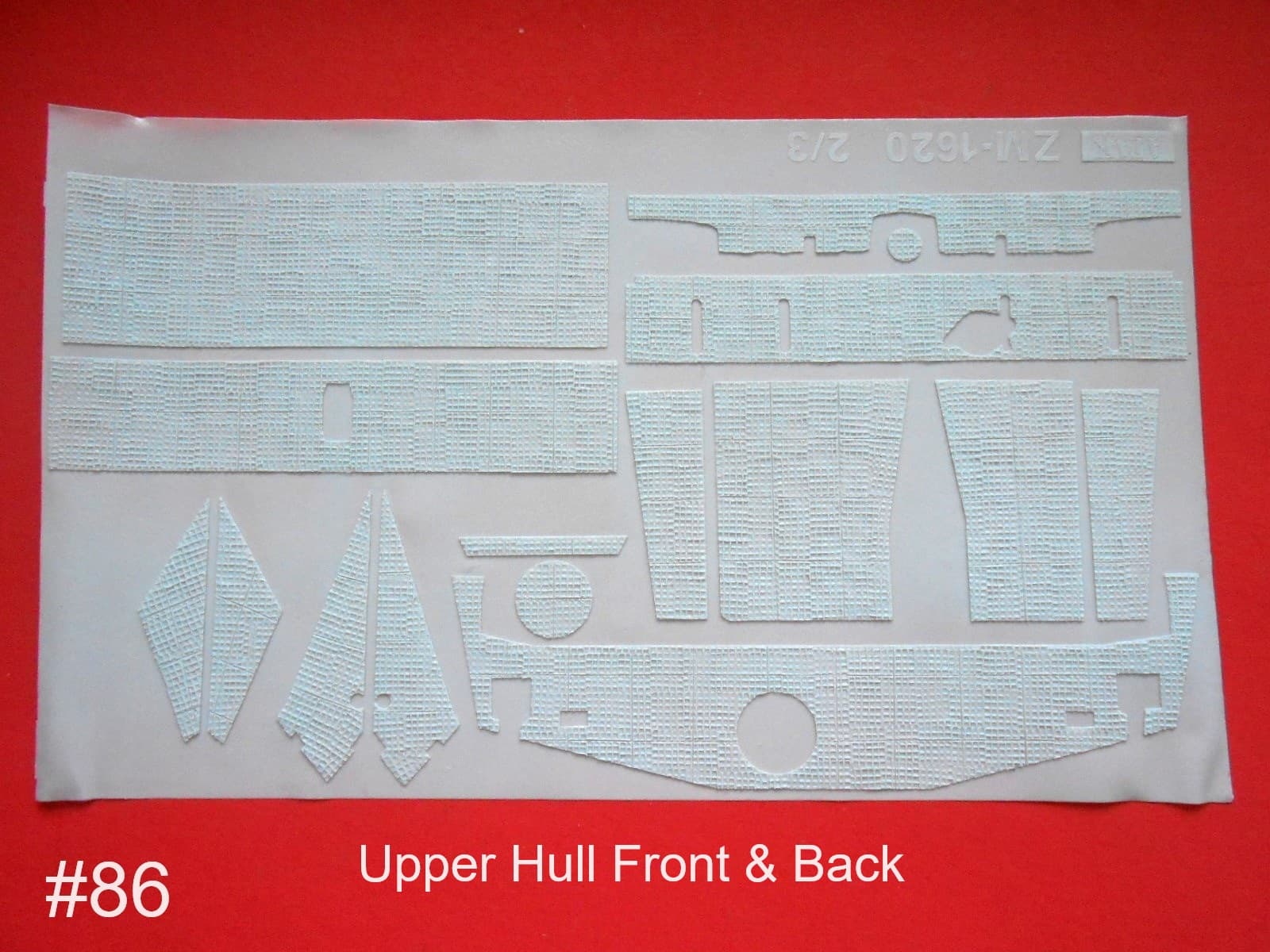

Late Stug. #86
Late Stug. #861600×1200 186 KB

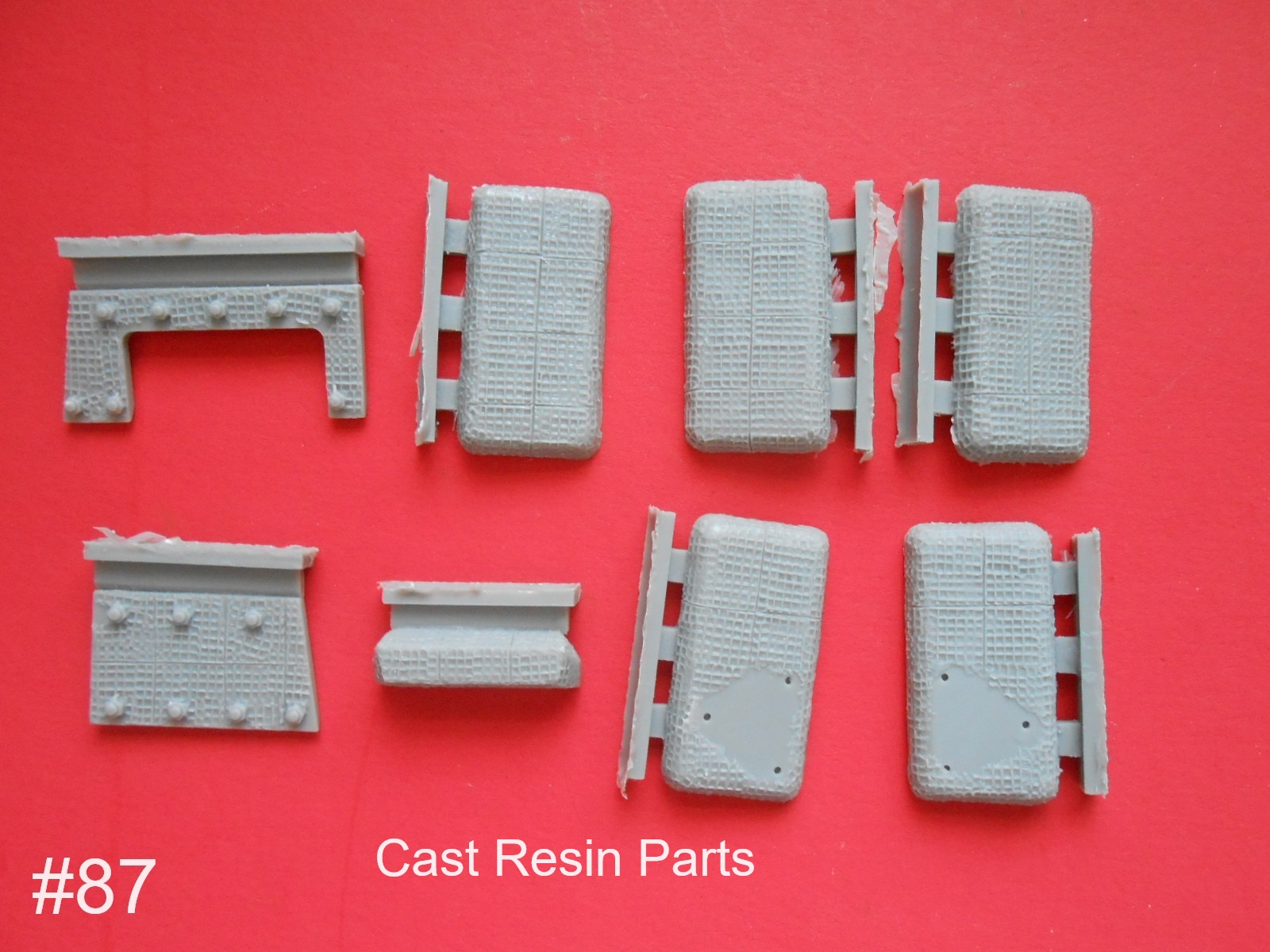

Late Stug. #87
Late Stug. #871600×1200 413 KB

I’ll be working on installing the Zimmerit next.
Regards
Donald

5 Likes
15

Wait, Heller makes one of these?
Ken

1 Like
16

I found Tamiya Extra thin cement good for applying that Donald. Let it leech under the zimm and capilliary action does the rest.

Keith

1 Like
17

Yes; came out about the same time as the one Andy released through Das Werk’s factory. I believe it is the Trumpeter kit (released in 2020?) with some new parts. Two companies, MonoChrome and Gallery Models also reboxed the Trumpeter with new parts/decals.

I believe the difference is Trumpeter is a late model while Das Werk is an early.

1 Like
18

I built both the Das Werk and Gallery kits , they are virtually the same basic kit with some extra parts.
It looks like you could use the Wading parts from the Panzer III if you wanted to.
Regards
donald

1 Like
19

The Zimmerit is in, I had to chase down the young girl that was working as mail carrier.
She drove past my mail box without leaving it for it needed to be signed for . I guess she didn’t want to walk up my driveway .
Anyway i have it as you can see above and will be starting it today.
Regards
Donald

4 Likes
20

The Zimmerit is applied to the lower Hull , a very good fit, just a little trimming here and there.

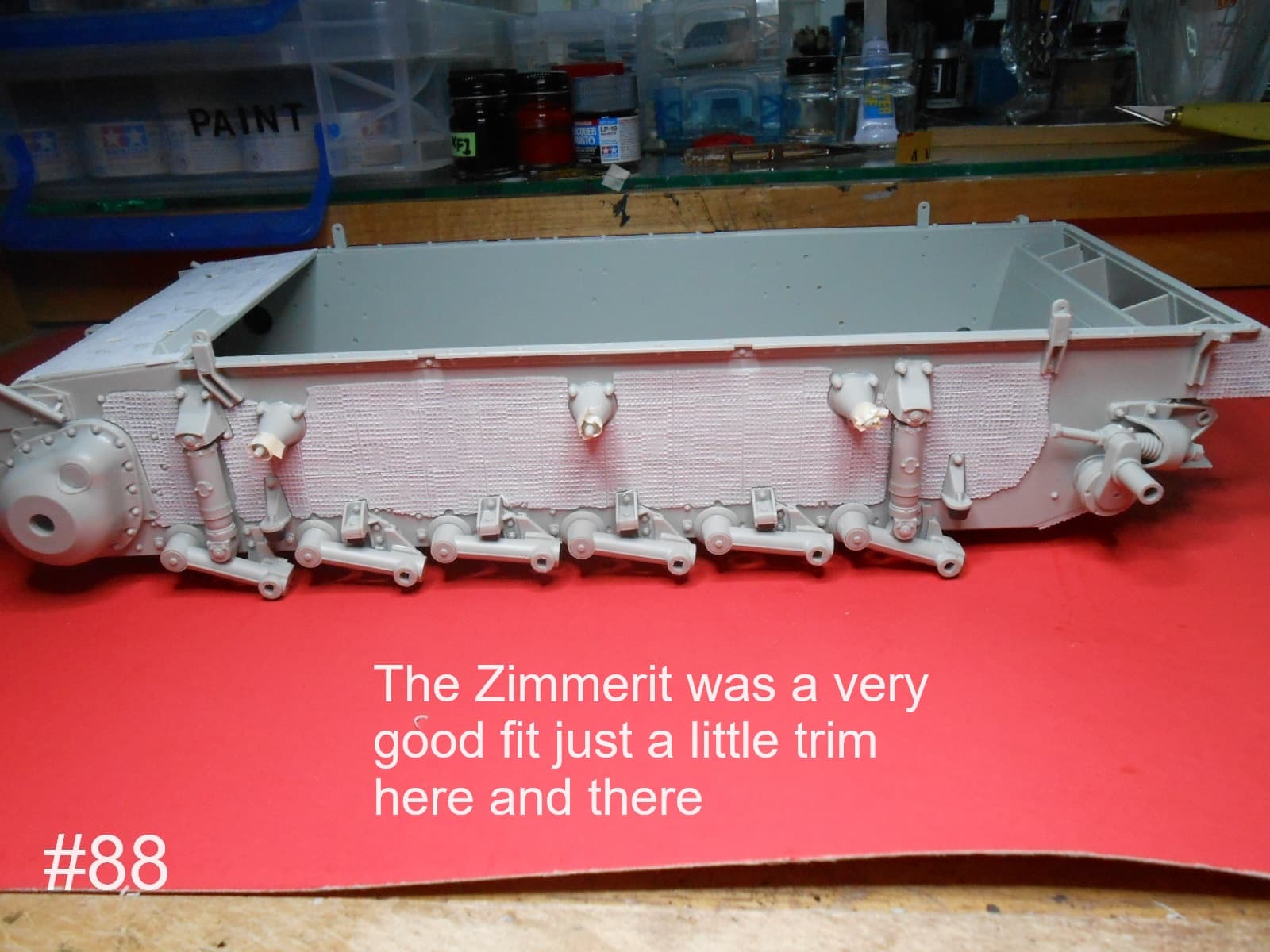

Late Stug. #88
Late Stug. #881600×1200 150 KB

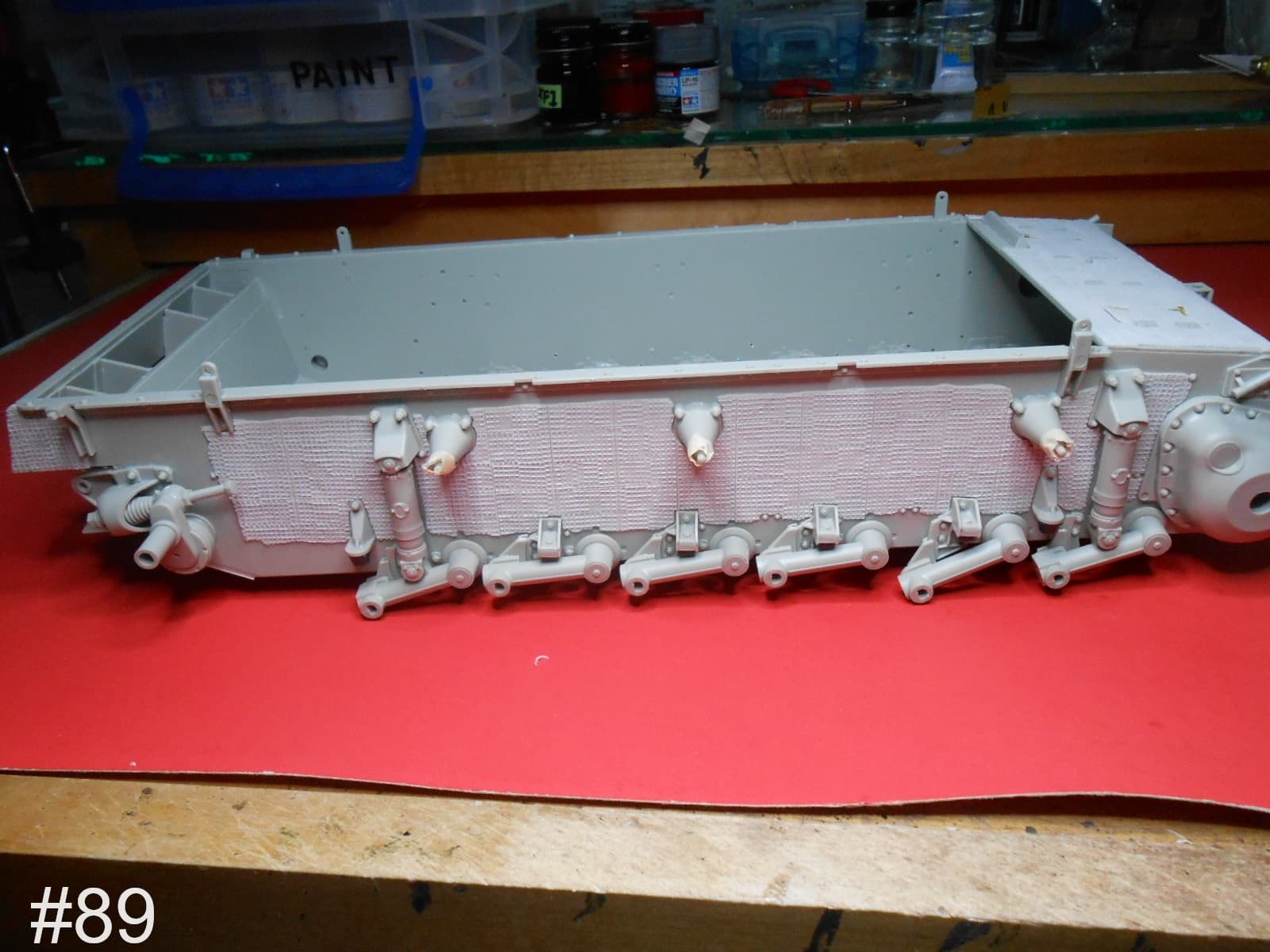

Late Stug. #89
Late Stug. #891600×1200 140 KB

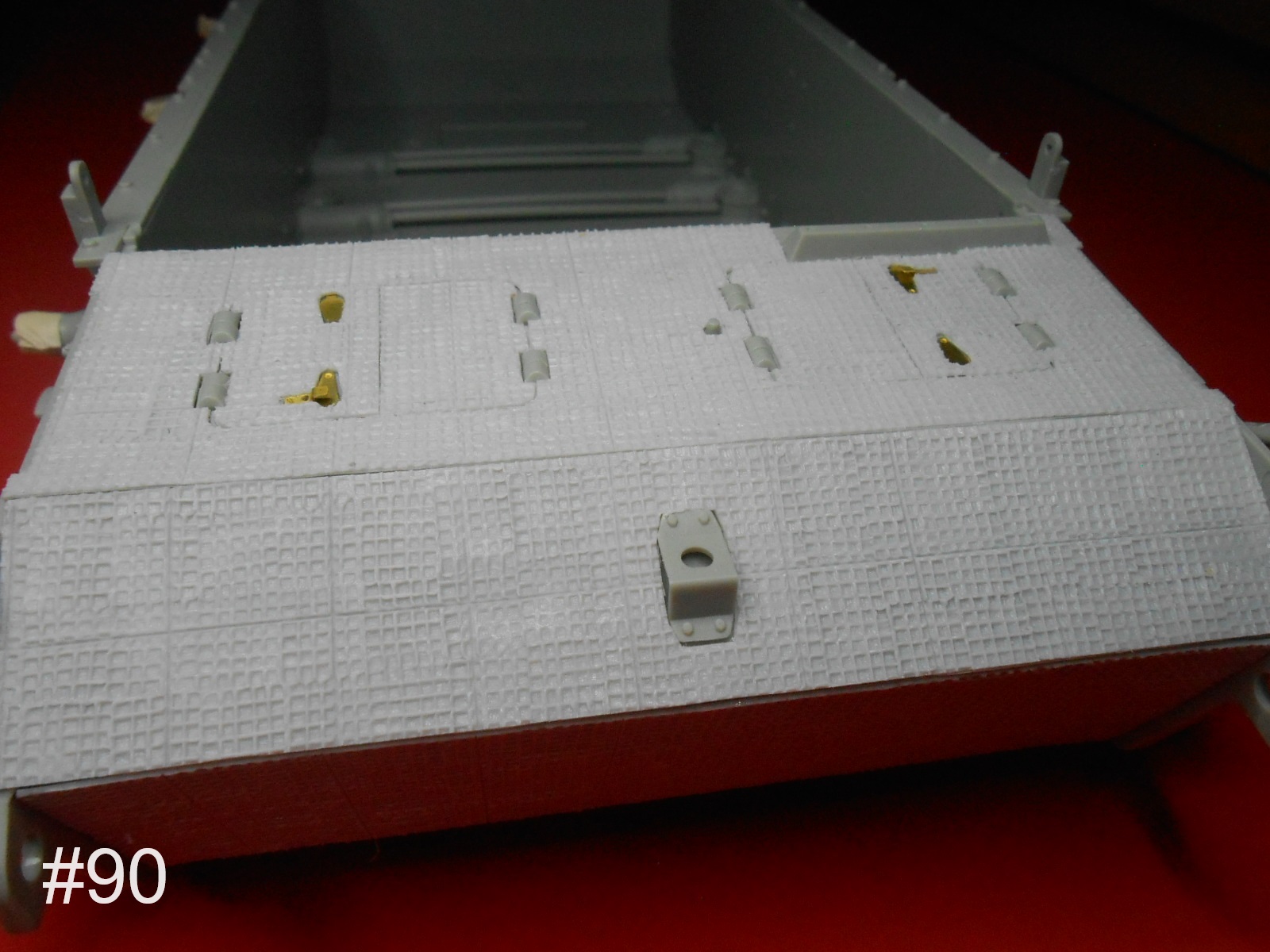

Late Stug. #90
Late Stug. #901600×1200 359 KB

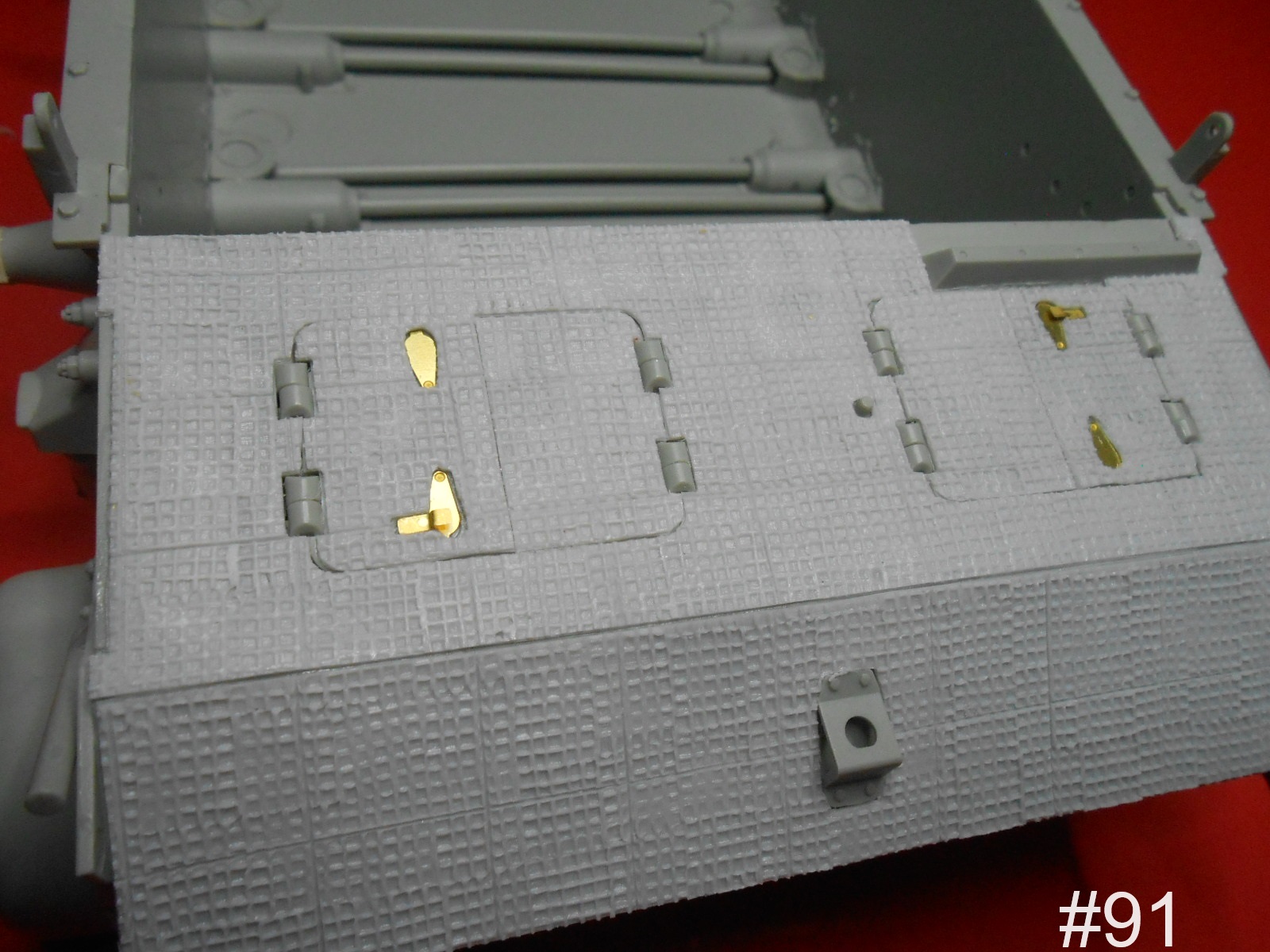

Late Stug. #91
Late Stug. #911600×1200 405 KB

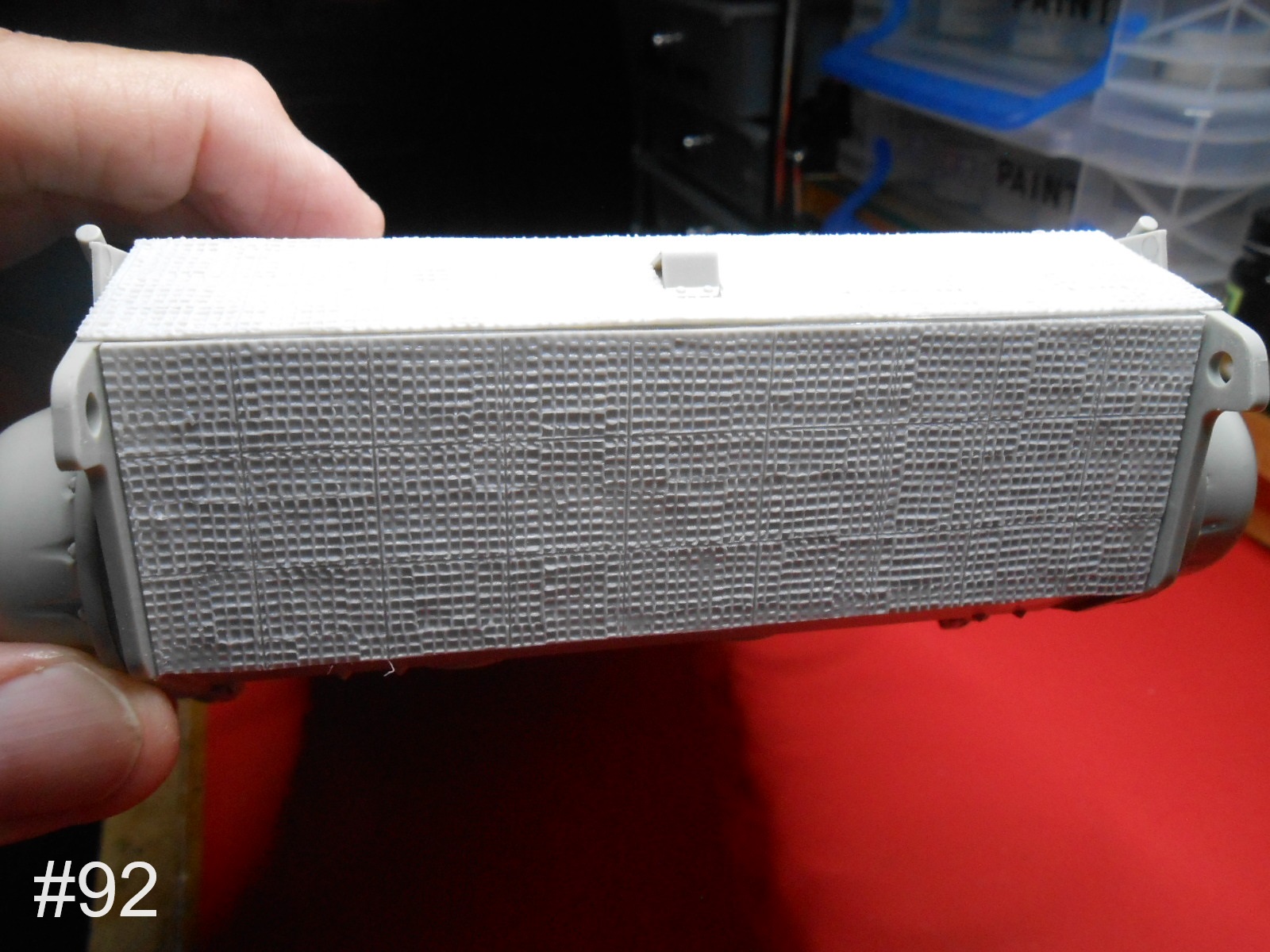

Late Stug. #92
Late Stug. #921600×1200 401 KB

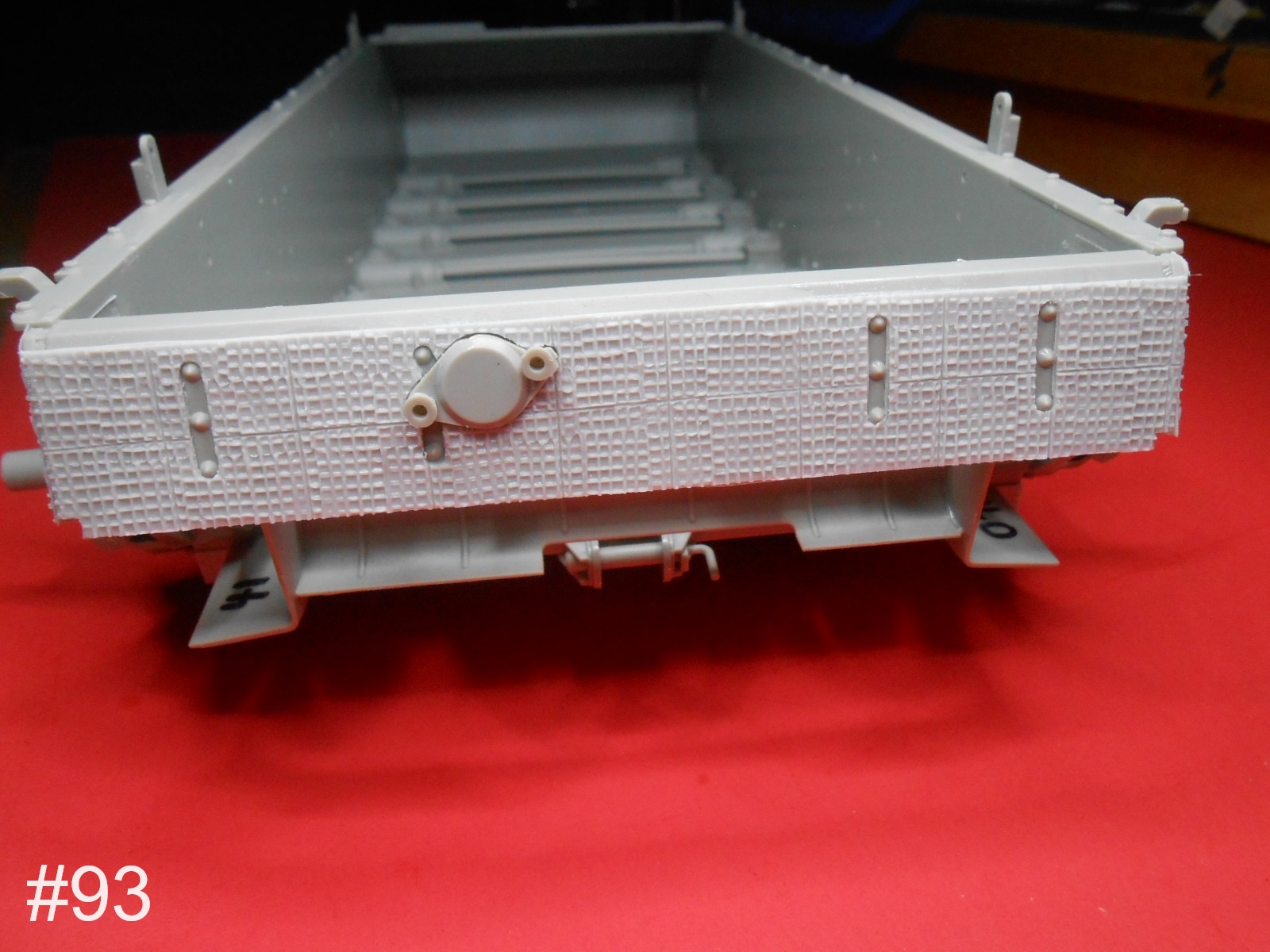

Late Stug. #93
Late Stug. #931600×1200 374 KB

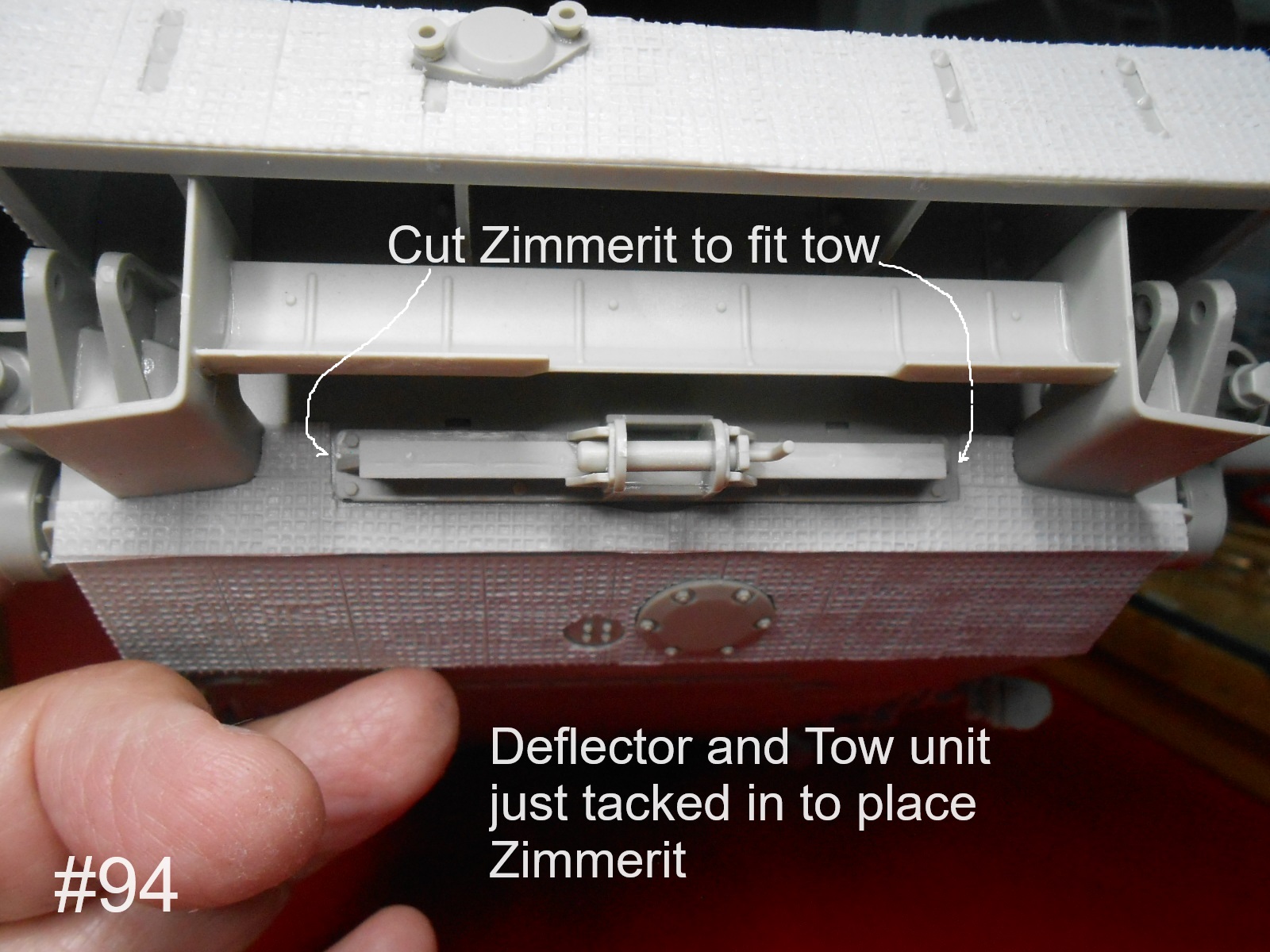

I had to do major trimming on the Zimmerit that goes where the Tow hook up is. I tac glued the deflector and Tow so I could fit the Zimmerit there.
Late Stug. #94
Late Stug. #941600×1200 403 KB

Finished for today
Donald
