How Plastic Model Kits are made

General Discussions
1

Saw this and thought our many members that are fond of Airfix would enjoy the video.

Respect! In house design, moulding & manufacture. Focus on quality control & passion for the business. A++

4 Likes
2

Interesting - I would have liked to see how the molds were actually cut .

1 Like
3

That was interesting

1 Like
4

That’s the part I’ve always wondered about. The actual injection molding part is no big mystery. I’d like to see how the tooling is done, but I guess that the proprietary part of the process.

:beer:

1 Like
5

There is a video on YouTube interviewing the head of FineMolds in Japan explaining the process to some degree - a component is produced in bronze IIRC - through some magic current is put through the piece and the steel of the mold is eroded through electrical discharge to create the basic shape , then the detail is machined or engraved by hand work - I’m sorry I can’t find it to post a link.

2 Likes
6

Fascinating.

England and America, two peoples separated by a common language.

1 Like
7

Copper, not bronze electrodes. Graphite as well . This process is called electrical discharge machining (EDM) and can be used , with multiple electrodes and progressively finer settings, to completely finish a mold .

3 Likes
8

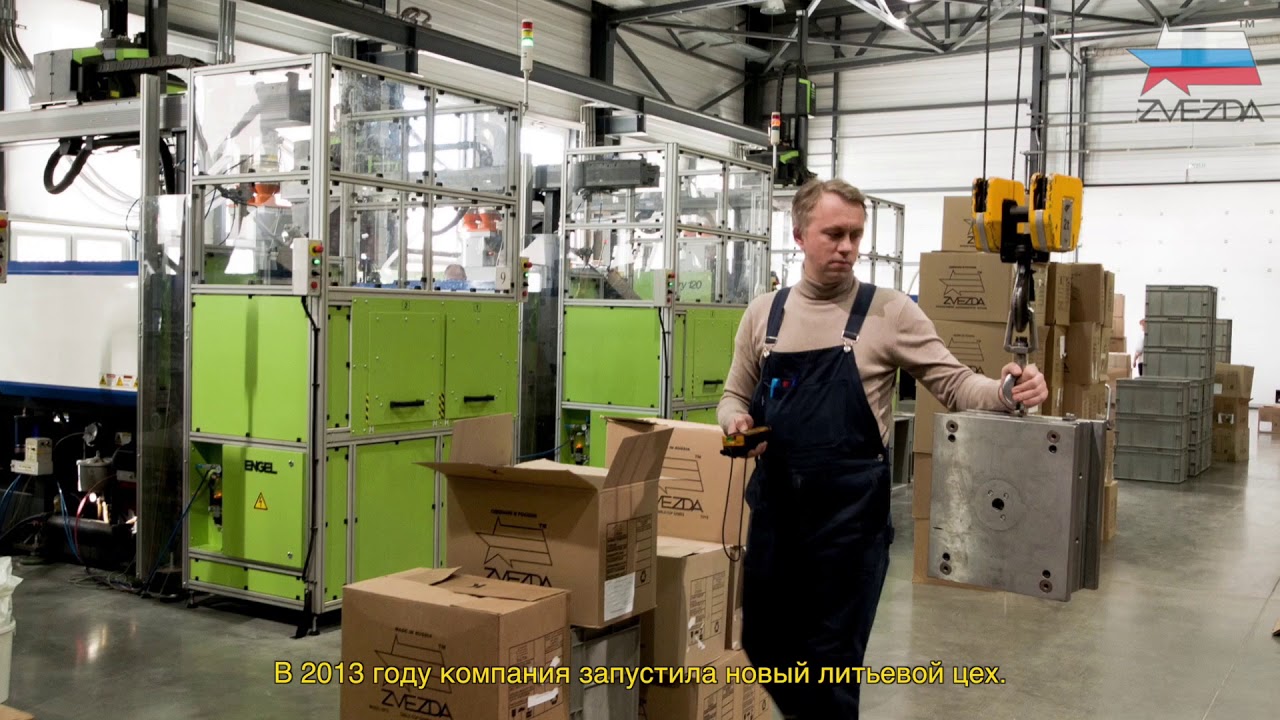

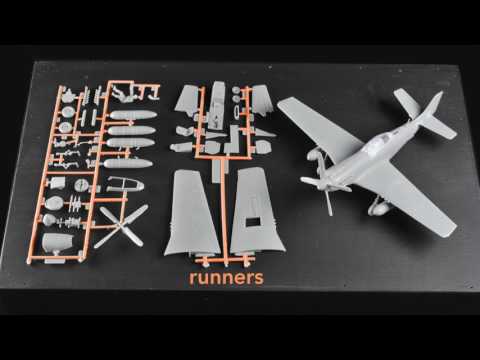

Here are the links to the videos mentioned, for those interested:

And another video about the manufacture of styrene fantasy miniatures:

Best regards,
CĂ©sar

2 Likes
9
1 Like
10
1 Like
11

Great video ! Thanks for sharing. Interesting comparison between Hasegawa’s packaging system and Airfix’s …

1 Like
12

In the first captioing they called them toys… :rage:

:beer:

1 Like
13
2 Likes
