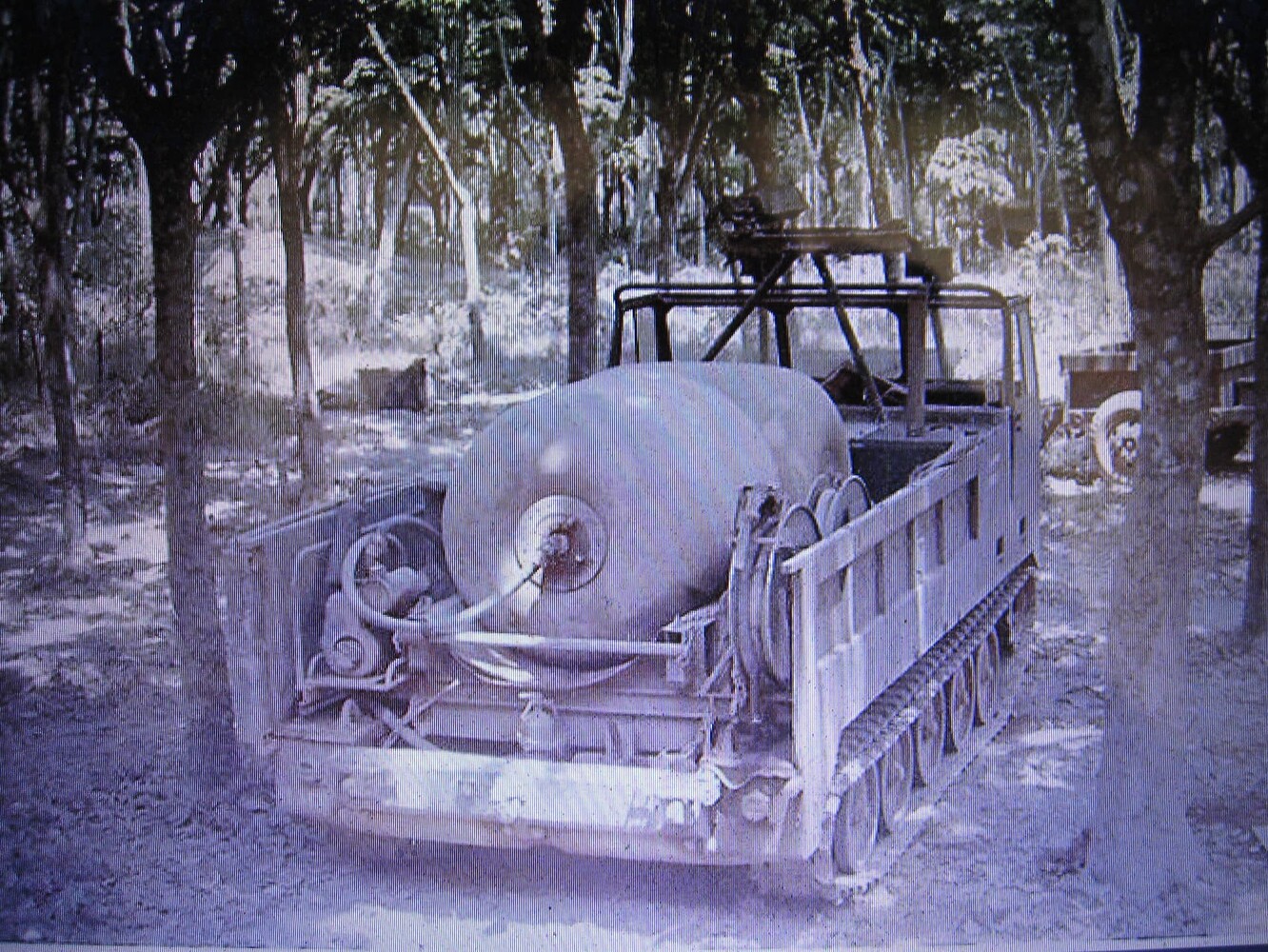

Refueling setup

Armor/AFV Cold War
61

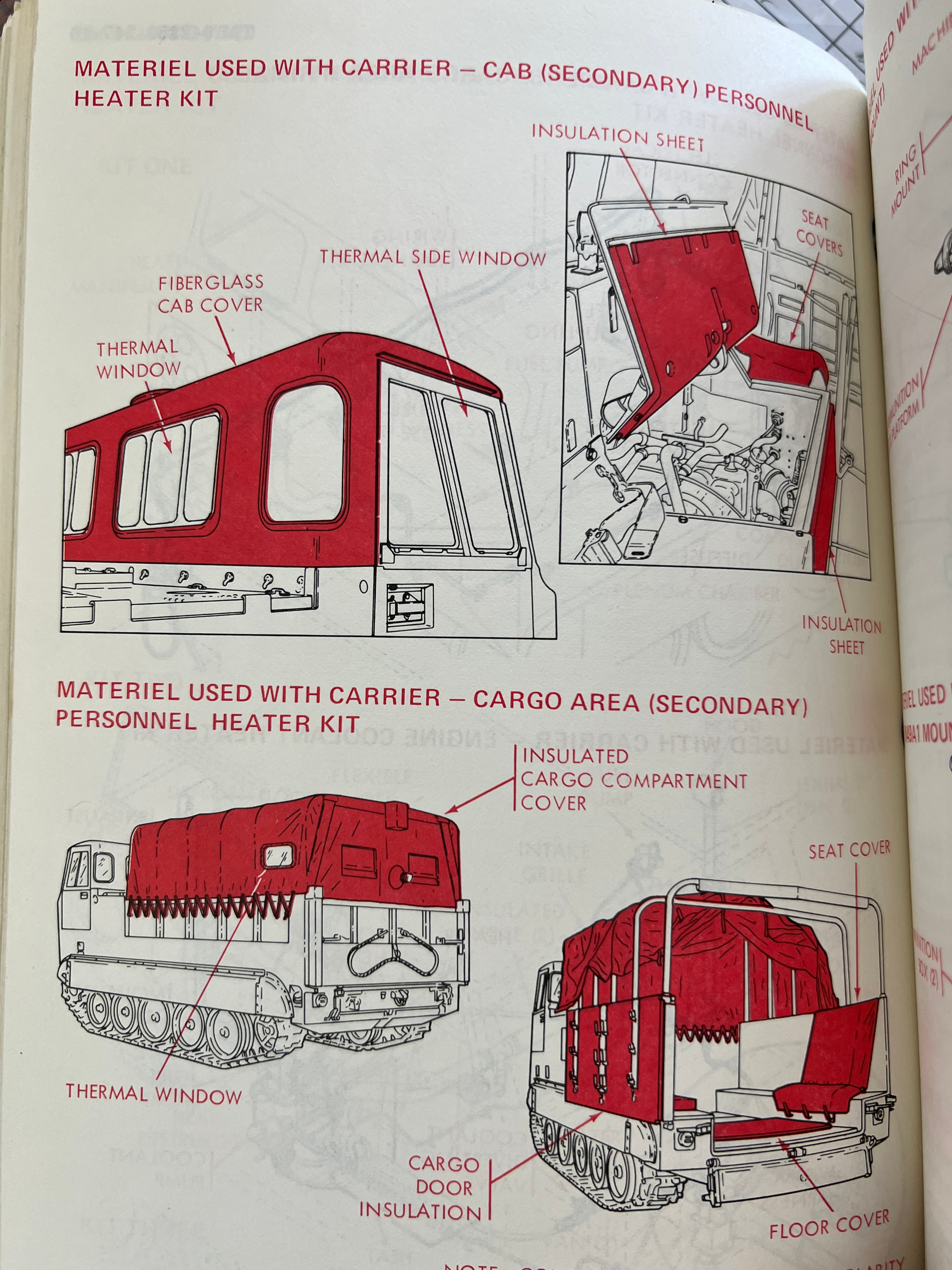

TM 9-2350-247-10 includes a 2-page list of additional “kits” that can be added to the M548 (pages 1-2 through 1-4). There is no mention of a steel roof. However, there is a Cab Secondary Personnel Heater kit for use when the temps dip below -25F which includes an insulated fiberglass cover to replace the canvas one. There is similar secondary heater kit for the cargo area which includes an insulated fabric cargo cover.

IMG_3993
IMG_39931920×2560 3.59 MB

I took my M110A2 battery and M548s out the field once when the temps hit -10F. No secondary heater kits on either vehicle. We froze our asses off. I’m lucky I didn’t get fragged…

5 Likes
62

Thanks Rick, that’s great news and I appreciate your insight.

Cheers bud.

PS Glad you’re still around to help!

1 Like
63

I wonder if 3d decals or a 3D printed set would be a way to add the bed detail, if worth the effort. Wayne

2 Likes
64

Hey Wayne, not sure which version you’re doing. How much of the bed would be exposed?

1 Like
65

My thoughts were similar to yours as far as the open bed, fuel hauler or maintenance type vehicles. That’s why all those hold downs and brackets in Rick’s pictures would stand out. Wayne

2 Likes
66

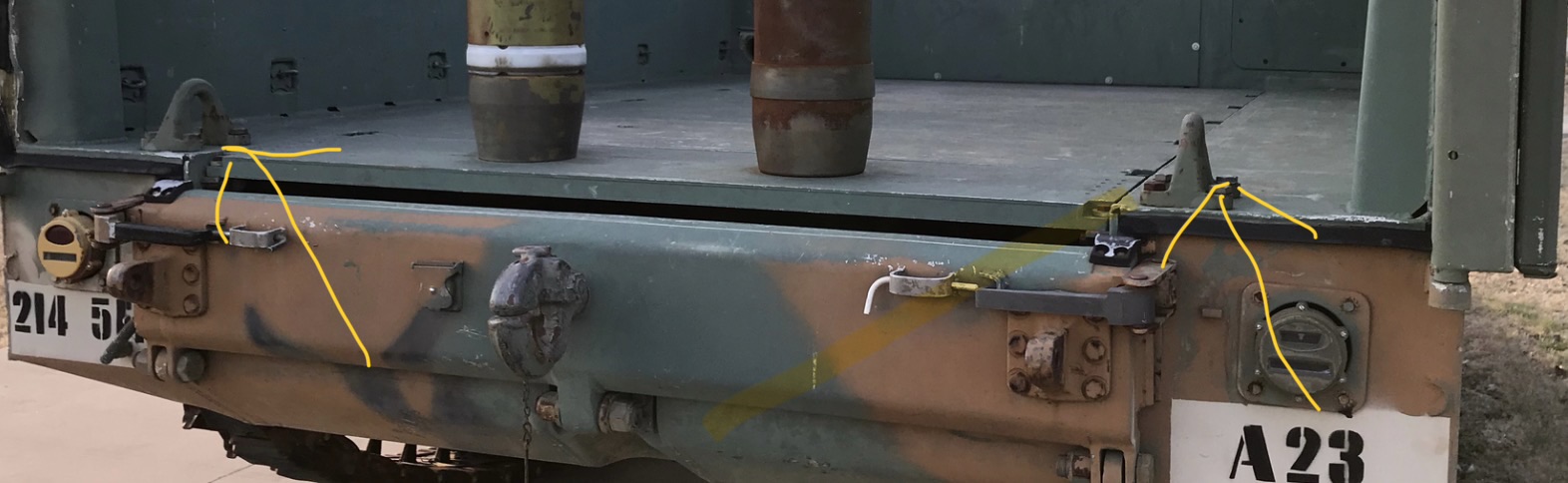

Gotcha. Those tie down brackets are in the AFV Club kit.

IMG03031572×484 150 KB

2 Likes
67

I meant all the ones on the sidewalls in taylorrl’s pictures. They just have the smooth sides and front wall in the kit. Wayne

1 Like
68

On the basis of knowing they’re there I get what you mean.

IMG28221332×1000 474 KB

TBH though I don’t think too much of that detail would be visible with the refueling gear in place, though if you’re going for a general cargo load or 100% accuracy maybe there’s a 3D decal set out there.

2 Likes
69

No was just making it known as some of these tie downs might have been needed for the ideas we were thinking. Trying to help. Wayne

1 Like
70

Ah, I get you. Didn’t see the connection at first, but you’re quite correct.
Thanks Wayne. I really appreciate your advice on this.

2 Likes
71

Am I the winner of the Lucky Dog, or does everyone get two engines in their HL refueler kit?

Now I can do my 548 'fueler, and finally proceed with my m35/quad.

BTW: does anyone know if it is a Briggs &Stratton, or another manufacturer (Frenchy?)

I believe the WWll version used B/S, but I’m not sure on the Vietnam version.

Be well, y’all

1 Like
72

I believe it’s a Wisconsin…

H.P.

1 Like
73

Yes! I couldn’t remember the name. I recall being on their site but couldn’t determine what model the military used.

Thanks again, Frenchy

1 Like
74

Hobby Link commonly includes extra parts in their kits. I have used some of the extra detail on other kits too. They can really come in handy.

1 Like
75

As I recall, they used a few different small engines, briggs &stratton, tacumsa and others. Wayne

1 Like
76

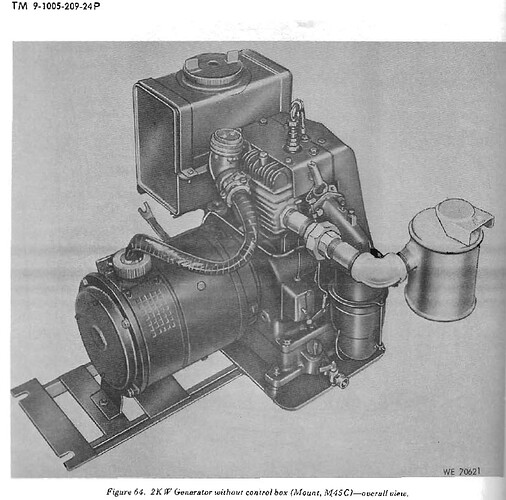

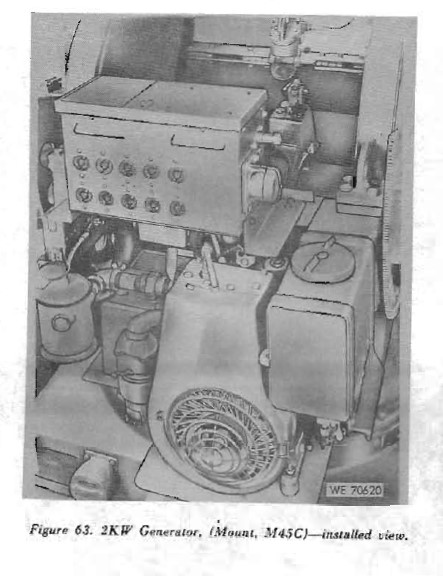

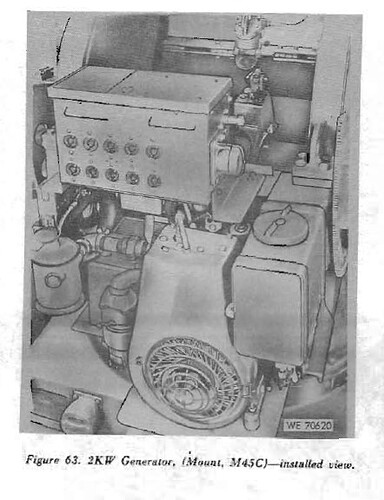

Here are some TM views of the 2KW generator on the Quad mount. No manufacturer mentioned…

Capture d’écran 2026-06-25 123829
Capture d’écran 2026-06-25 123829443×576 59 KB

Capture d’écran 2026-06-25 123906
Capture d’écran 2026-06-25 123906780×770 128 KB

H.P.

4 Likes
77

Wow. My thanks to each and everyone of you. You are all so knowledgeable, and generous. But, Frenchy, my goodness. You are like the man with the magic wand.

You are so lucky that we are not neighbors.

But, again, thank you, one and all,for all your help.

2 Likes
78

This is not the first time that Frenchy has come through with great photos of whatever subject or question a poster has!!!

2 Likes
79

Yes. I know. I’ve marveled at Frenchy’s finds for many years

2 Likes
80

Thanks for the kind words guys :blush: ! You’re most welcome .

H.P.

3 Likes
