after spending 4 years doing a conversion of the LAVIII kit into the NZLAVIII i can tell you there is a lot wrong with the Trumpeter Kit (even for the Canadian version) mainly because the bottom half of the hull started as a Stryker kit and they carried over parts that are different on the LAV but also some of their details were so wrong also. the steering arms for instance are too long and pivot in the wrong place.
AFV Club Stryker underneath is well detailed.


compared to the Trumpeter kit. because the arms are the wrong length and pivot in the wrong place if you try to realign them to have the wheels turned it all just looks wrong. you can see the pivot points are to far in to the center but everything just lacks detail.

the front plates on the glacis has 2plates left and 4 plates right as on a Stryker but a LAV only had 4 plates total. you can see where i had removed the bolt points and started filling the seam between the plates.


can see the differences here. also the lashing points at the side are a different orientation and on the kit they have it how they are on the Stryker

another big problem is the top rear of the hull is the wrong shape on the angled parts you can see on this markup how much needs removing

i bolstered inside and carved the sides out then replated to make it more correct. i should have added some flat plates inside before the rods to help with it

i started by scoring some lines into it where the inner part should angle to then carved into the sides allowing for the thickness of the plating i would add back in

you can see i just started going all the way through

then added plating back on to tidy it up

wasn’t till later i remembered to get a pic of how i trimmed the back plate

were lots of other problems and minor errors also.
if anyone wants a read of my guide i can post a link to my google drive. over 13,300 words and 400 odd pictures.
still got a few small bits to do on it to finish it off. sitting on my old tank helmet cover at a model display. most mods were made from scrap plastic packaging and some spare kits parts.

8 Likes

Some more images of the M-SHORAD from Eurosatory. The vehicles bow got a complete make-over.




4 Likes

That’s part of the DVH-A1 package.

1 Like

I know.

1 Like

Thanks for sharing these pictures.

1 Like

You´re welcome.

1 Like

Anyone knows what goes in these baskets at the rear?

1 Like

Shopping :joy:

Sorry I couldn’t resist :woozy_face::face_with_hand_over_mouth:

1 Like

A Stryker can never have too much storage. The vehicle has just recently been fielded. So give them some time to explore its capabilities and stowage options?

1 Like

The baskets, not ready yet.


1 Like

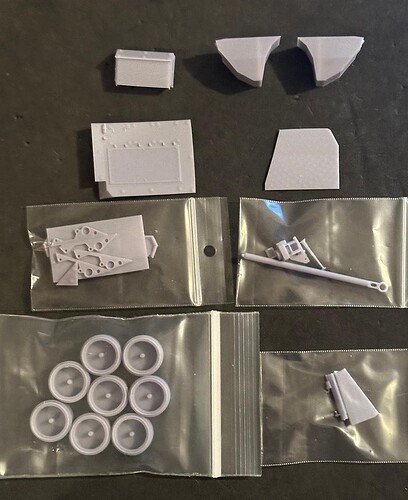

I’ve received the DVH-A1 Hull conversion parts from Ettore Galasso. They’re exquisitely done, and should be pretty doggone accurate. They’re for the AFV Clib hulls, which are more accurate, but a few of the pieces (fuel tanks and a few other bits) will work on the Trumpeter kits. Now I just have to purchase another AFV Club kit and put eveyrthing together. These, along with parts the Magic Factory M-SHORAD Bradley kit (and my references) ought to build up nicely.

4 Likes

I decided to show as much as I can of Ettore’s efforts. I’ve already butchered this AFV Club Stryker, and cemented parts onto it that would be in the way, but here’s a glimpse:

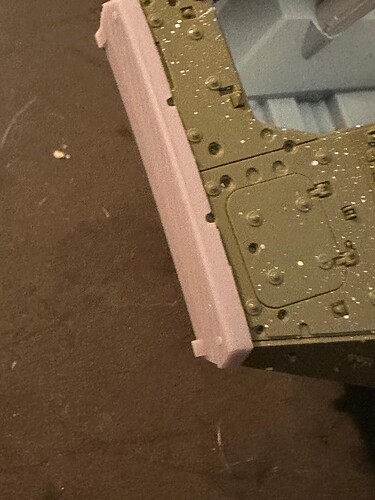

Engine access hatch. Bar in mind it’s just floating there as there’s nothing much holding it underneath:

New front nose piece. Perfect fit, but just being held on by gravity:

Frontal armor underneath. I had already cemented the kit armor in place, but it’s a perfect fit:

And finally, the modified fuel tanks. Again, kit parts already in place. They’re exactly the same width, so they will fit perfectly.

Ettore also includes some other pieces such as the hinge, and the altered side armor panels forward of the front wheels.

3 Likes

I think it’s better to paint your resin parts first.
Looking at the pictures as they are now it gives the impression there are a lot of details missing.


Like this.

4 Likes

Next week, I’m going to start building the Stryker M-SHORAD:




Don’t know if I’m going with the HellFire setup or not…

4 Likes
