Just a thought. An untapped market and if you were able to post on a site like BritModeller, you might be surprised…
anyway, keep up the great work.
1 Like
Some 3D prints over the weekend - all in 1/35.
Flash suppressor of 37mm Flak 37:
WWII British jerry cans:
Metal folding chairs:
Kind regards,
James
6 Likes
A quick break from 1/35 armor CAD work…

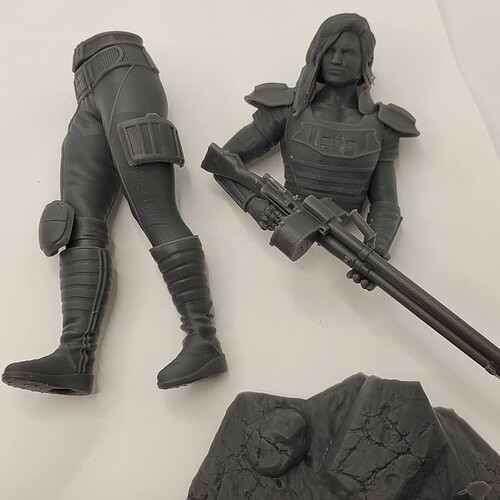

Cara Dune 3D printed. Purchased with royalty free license: Cara Dune the Mandalorian Season 2 | 3D Print Model
Assembly is not 100% complete.
OK, back to 1/35.
6 Likes
Noice figure.
2 Likes
Modern US glad hands and air brake connector CAD. Not sure if this is done?
Feedback?
Realized that I did not have a bent version of US modern antenna base so CADded it based on a reference photo:

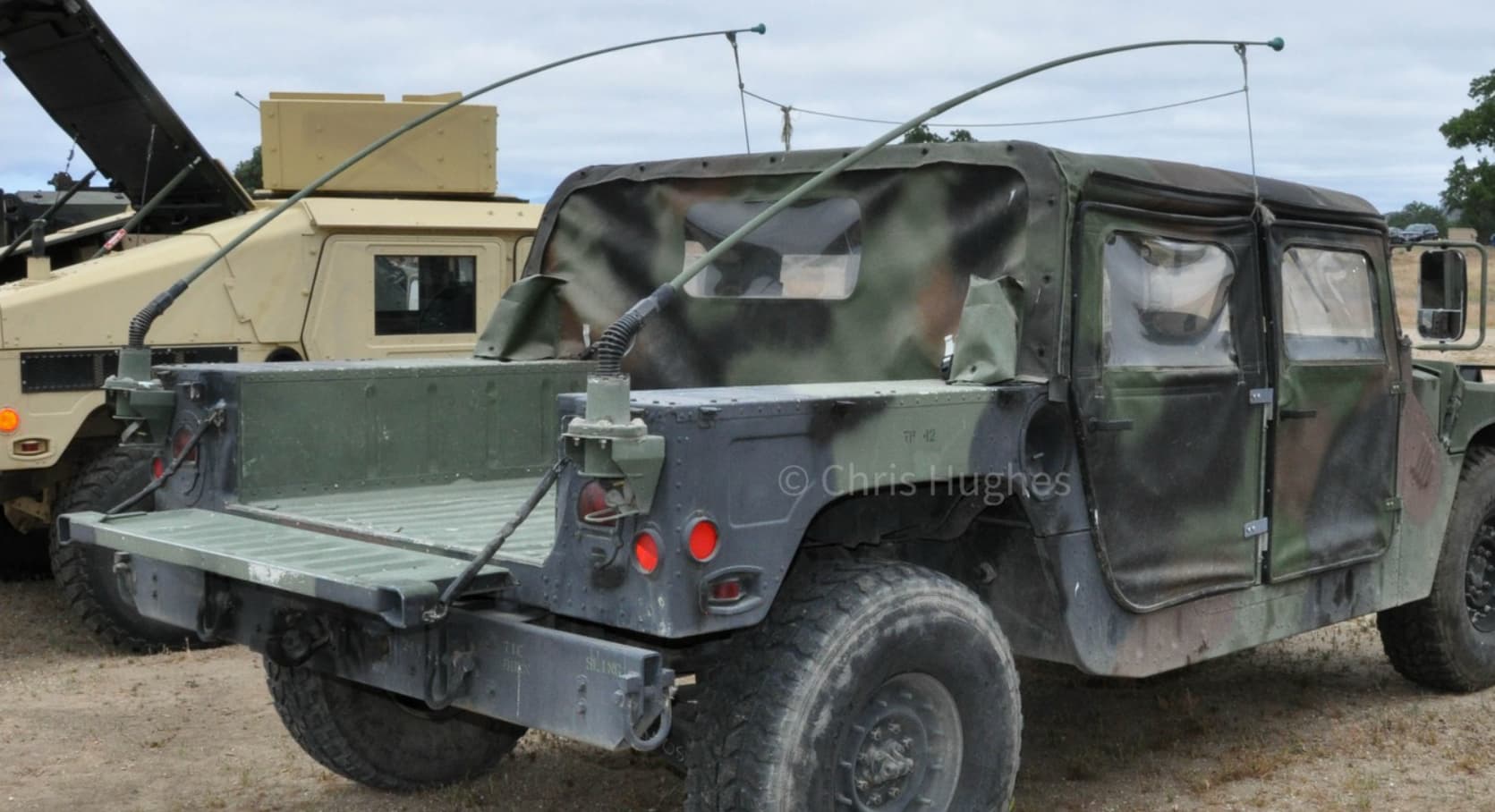

Reference photo used (photo courtesy of Chris Hughes, Toadman’s photos)
Happy modeling, everyone!
6 Likes
The gladhands look right to me. Very nice. Let me know when you are ready to print some.
2 Likes
Hi all,
Someone asked me if I could 3D print antenna matching units separately. Please excuse my ignorance but is the matching unit the round parts below the spring? Can someone educate me?
Kind regards,
James
The whole thing is called a Matching Unit Base. The spring is part of it and it goes below the ring w/the bolts to attach it.
3 Likes
So here’s a version of the “connected” modern glad hands:
$3 per pair as a set (a truck would need at least 2).
A choice of WWII - a) separate glad hands or b) connected glad hands
or
the modern US - a) separate glad hands or b) connected glad hands
Thank you for looking!
2 Likes
OK, so you can mix and match these antenna matching unit bases:
$1 per pair of either straight or bent or 50 cents each unit.
Kind regards,
James
3 Likes
Hi James
Just wondering whether you pursued this? Think it’s a Gentex DH132 CVC.
I got a set of 3 of these in 1/16th from Jason Studio net, the problem being I want to attach them to crew figures, but the Jason helmet is modelled as empty with earphones sagging inward - effectively precluding fitting them to a head. If you were to do a set, I’d suggest having the goggles separate & perhaps a selection of different goggles - ski goggles - as was often seen utilised in the 80’s & 90’s.
Mal
OK, CAD and resizing to 1/35 done for the modern Glad Hands!
Separate:
Connected:
How they’ll be printed in the Chitu Box slicer software:
2 Likes
Hi Mal,
I do have a DH132 CVC CAD in my STL file stash - in addition to collecting kits, now I collect 3D files… So I do have editing that file as one of my “future” projects and plan to make it into more accurate replica, 3D printable, and sellable:
Certainly not able to get to it this month - maybe in April of 2023…
I’ll keep that in mind.
Kind regards,
James
1 Like
Thanks James

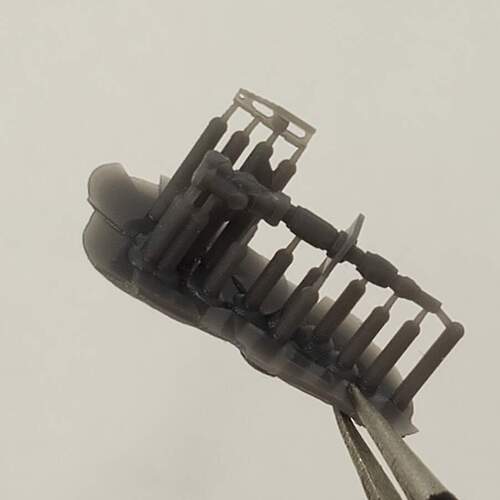

Antenna matching units and Glad Hands/air brake connectors printed:

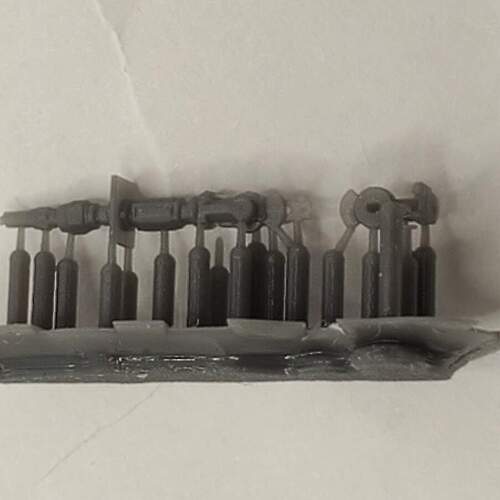

Glad hands
Connected version:
Thanks for looking.
5 Likes
Great stuff!
1 Like
James,
I’ve kept pretty close tabs on your 3d printed projects so don’t think I’ve missed them, have you considered .50 cal. casings and links? I could use some to scatter around the base of my Abrams CWS.
1 Like
Hi Sean,
Thanks for looking. You’re the second person asking me about those. The casings may be doable but probably not the links themselves. Anything less than 0.12 mm in thickness is at risk of not printing. Some things are better suited for metal PE.
The casings’ diameter is around 14mm so 0.4mm in 1/35. So they could be done theoratically. Due to size, I would need to sell a whole bunch to get ROI.
So the bottom line is probably not unless there are more compelling reasons and more practical ways to make the links.
Kind regards,
James
1 Like
Received an interesting CAD/3D print request for some clear resin parts. So here’s WIP (juxtaposed with a reference photo in CAD software).
Modern vehicle blue beacon light:

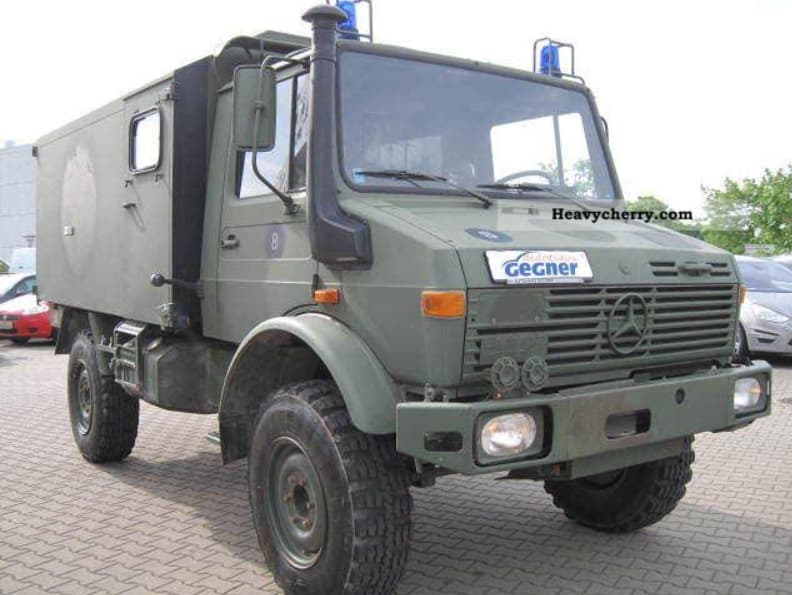

Some more reference photos:
Plan to print these with @amoz02t’s clear resin 3D print orders.
