3D prints and CADs Part 2 - by petition2God

That is really bad practice. As mentioned previously, their loss. Nice work on the braces.

Since you are working on the Chrysler cupola you might want to add the machinge gun resting mount as seen on M48 (the front left side of the turret)

Hi Nikos,
Already in the CAD package from Mike K. @HDSC2D :slight_smile: He got your back, friend.


If I feel adventurous, I may CAD the funky-shaped driver’s hatch, too as a part of backdate package. We shall see if I remain sane after making the MG mount:


4 Likes

447301093_10229602648949084_8034439285166220392_n

3 Likes

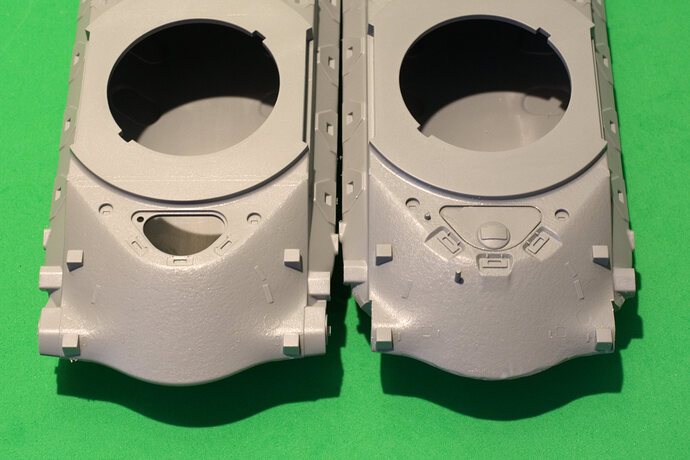

The horrible Dragon T54E1 kit has a nice early M48 upper hull with flush periscopes and small drivers hatch.

6 Likes

Camp Douglas, Wisconsin has a flat deck '48 that has this cupola.
https://www.tripadvisor.com/Attraction_Review-g59754-d10237063-Reviews-Wisconsin_National_Guard_Museum-Camp_Douglas_Wisconsin.html

Does this help? Same 'A5-

1 Like

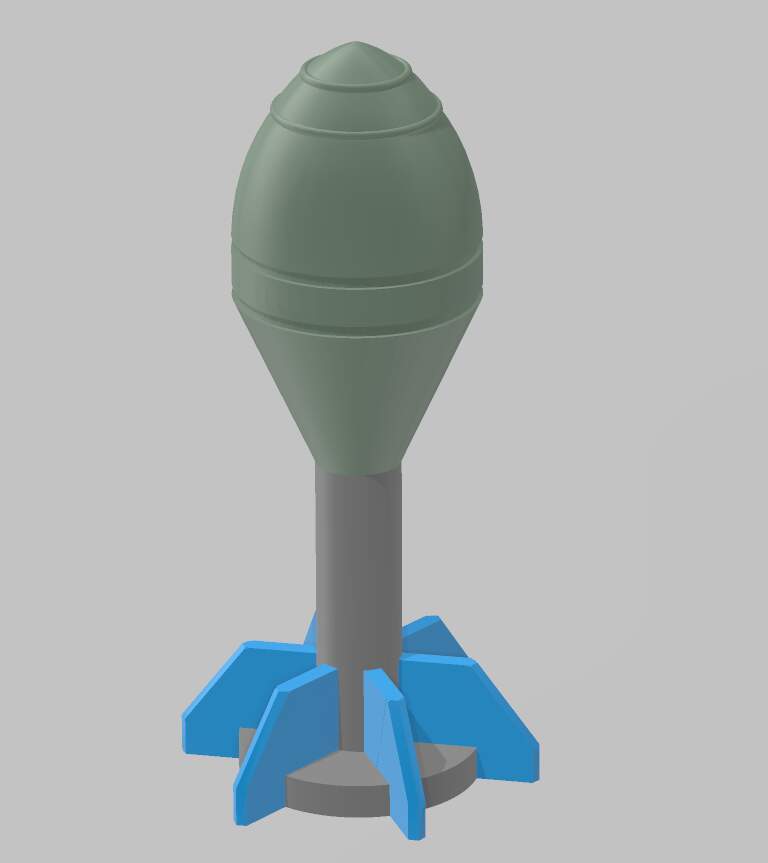

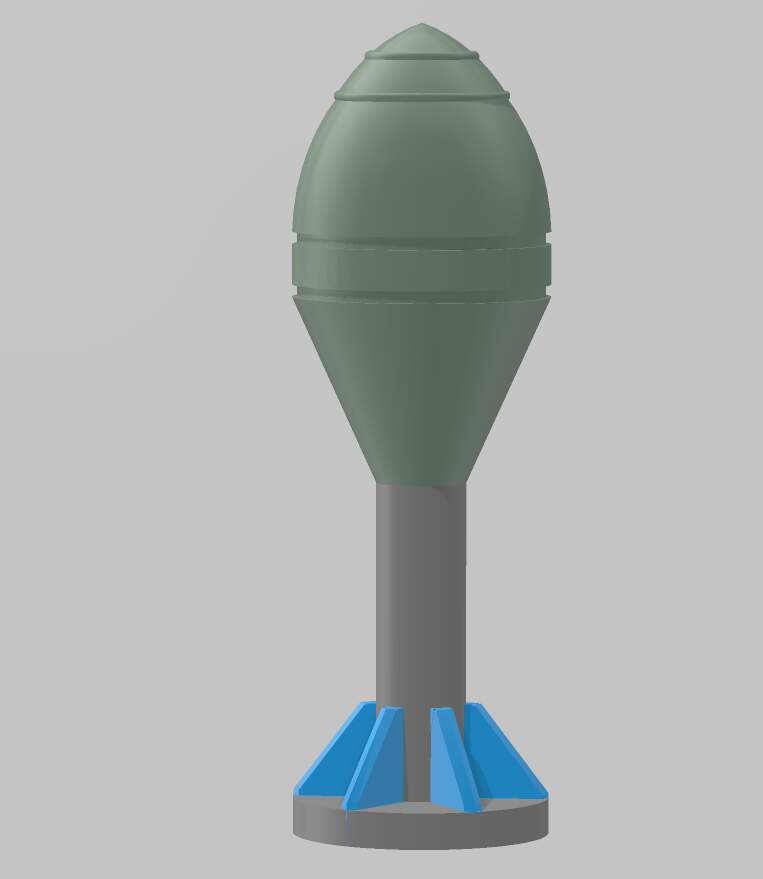

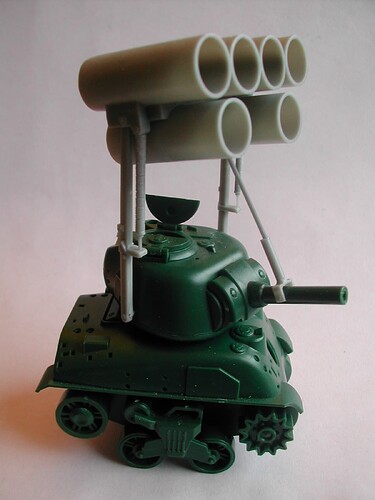

Something not so accurate. :smiley: M8 Rockets for Meng Toon T34 Calliope. Only CADded the rockets.

For

Unlaunched and launched versions


Unlaunched

Launched

5 Likes

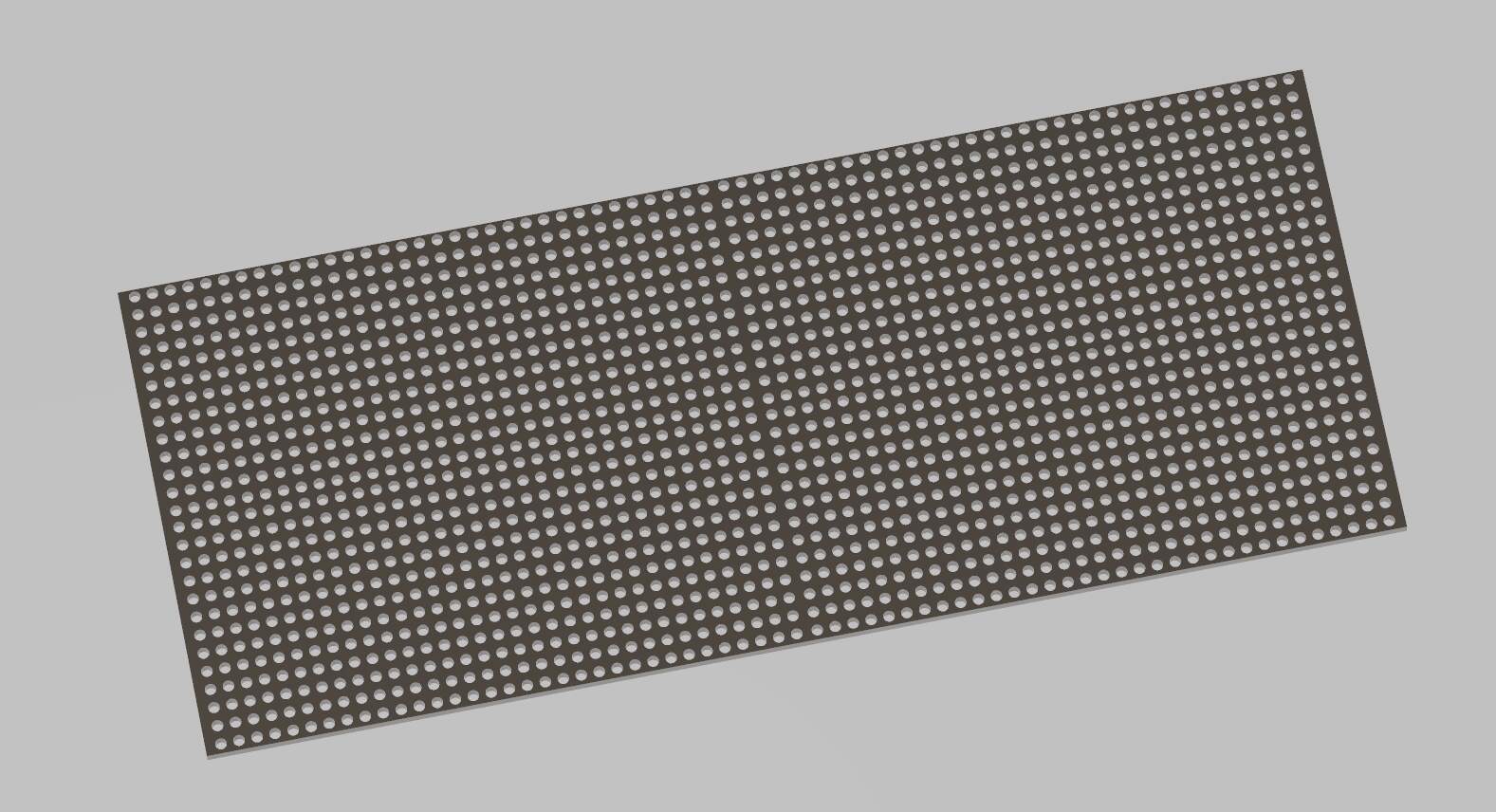

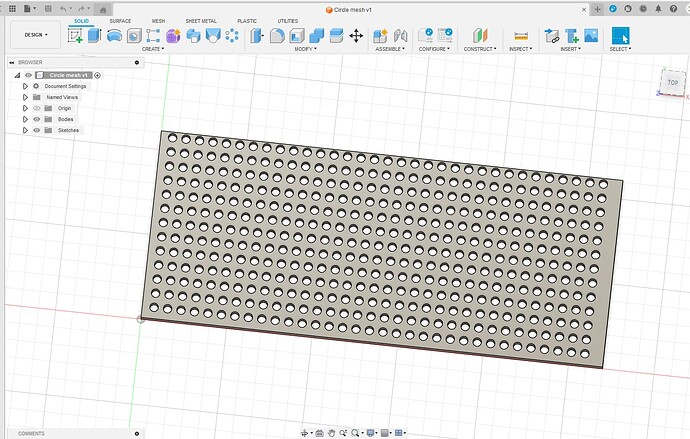

Been practicing making repeated patterns on Fusion 360:


Getting the hang of it:

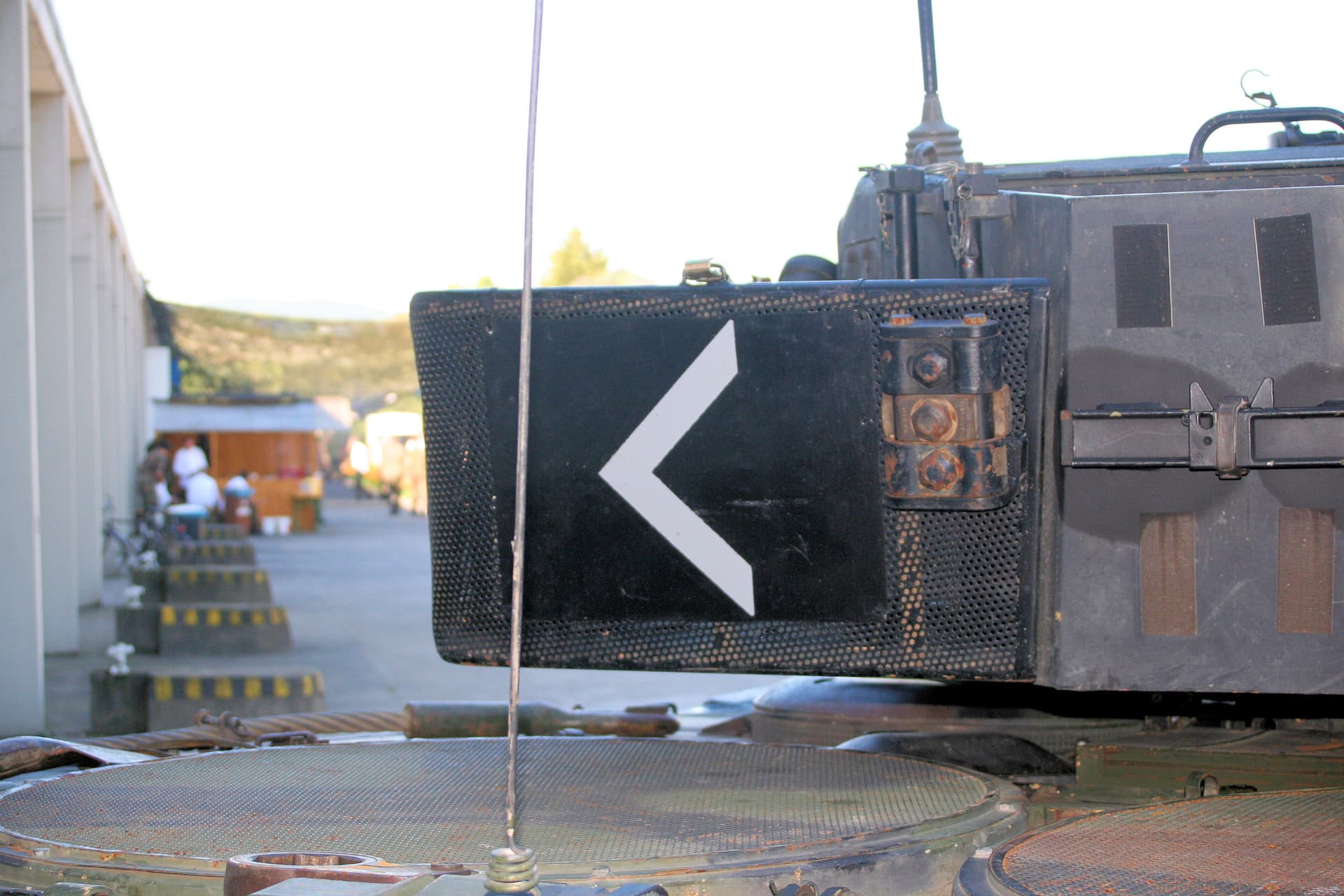

Planning to use it to make this on Leopard 2A5 or 6:



4 Likes

Not too fancy but may be useful for dioramas.

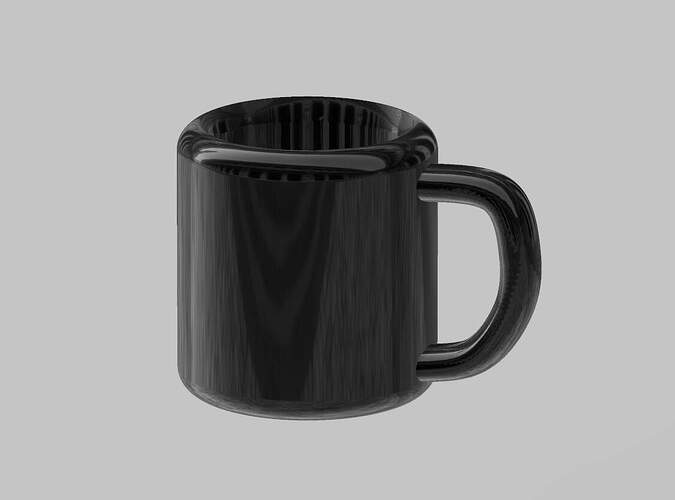

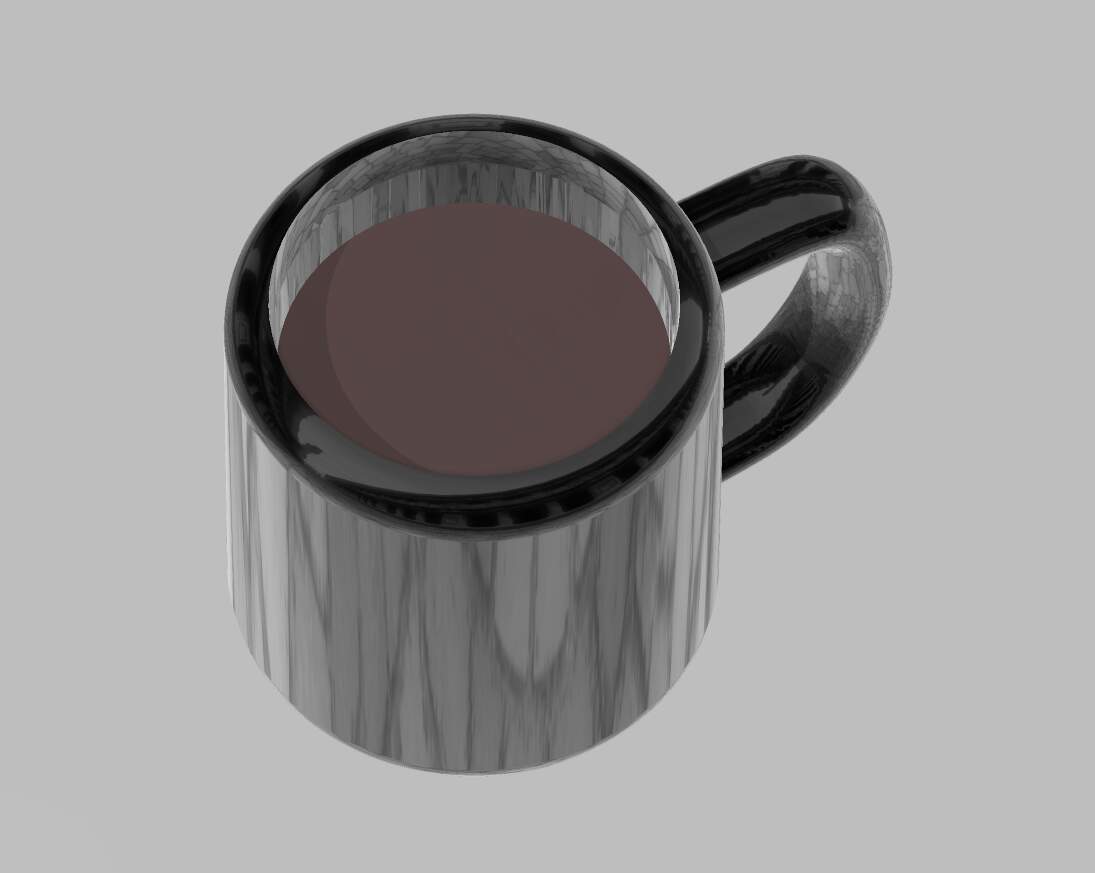

Coffee mug in 1/16 and 1/35 scales.
Reference photo used - my actual coffee mug:

4 versions made - empty x2 and with beverage x2 (2 in each scale)

Empty:

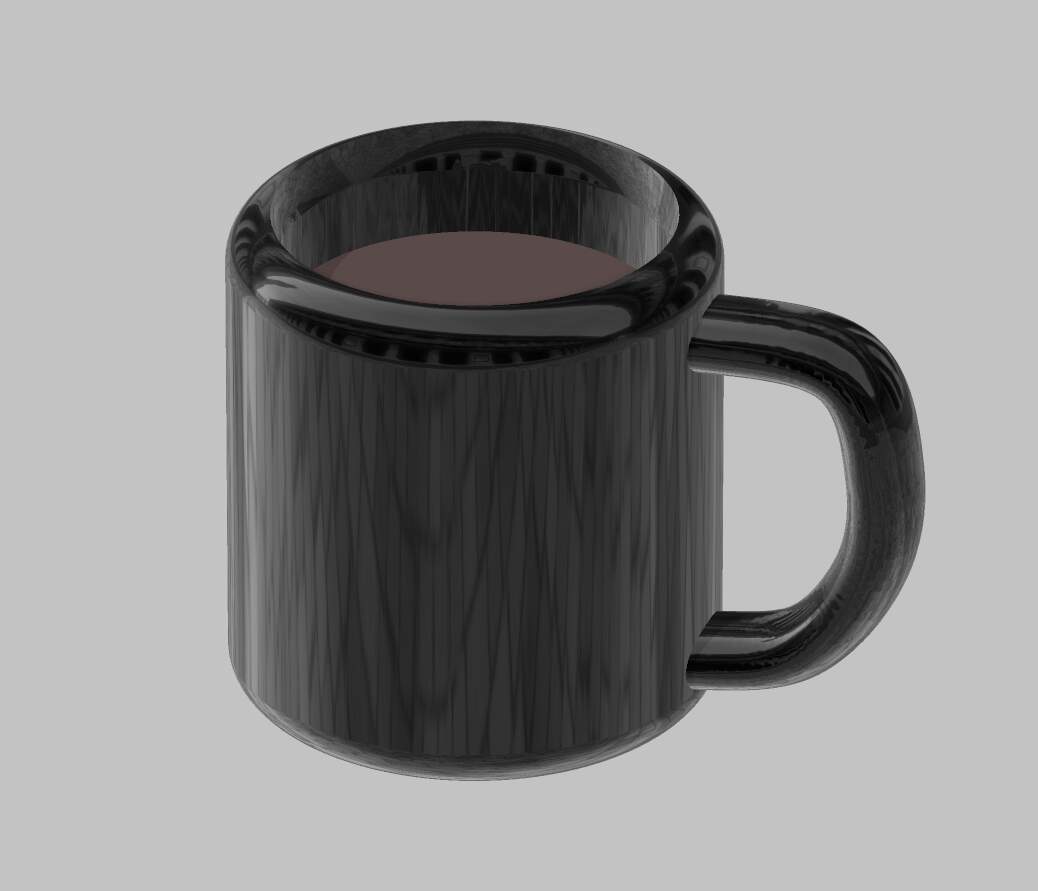

With beverage:

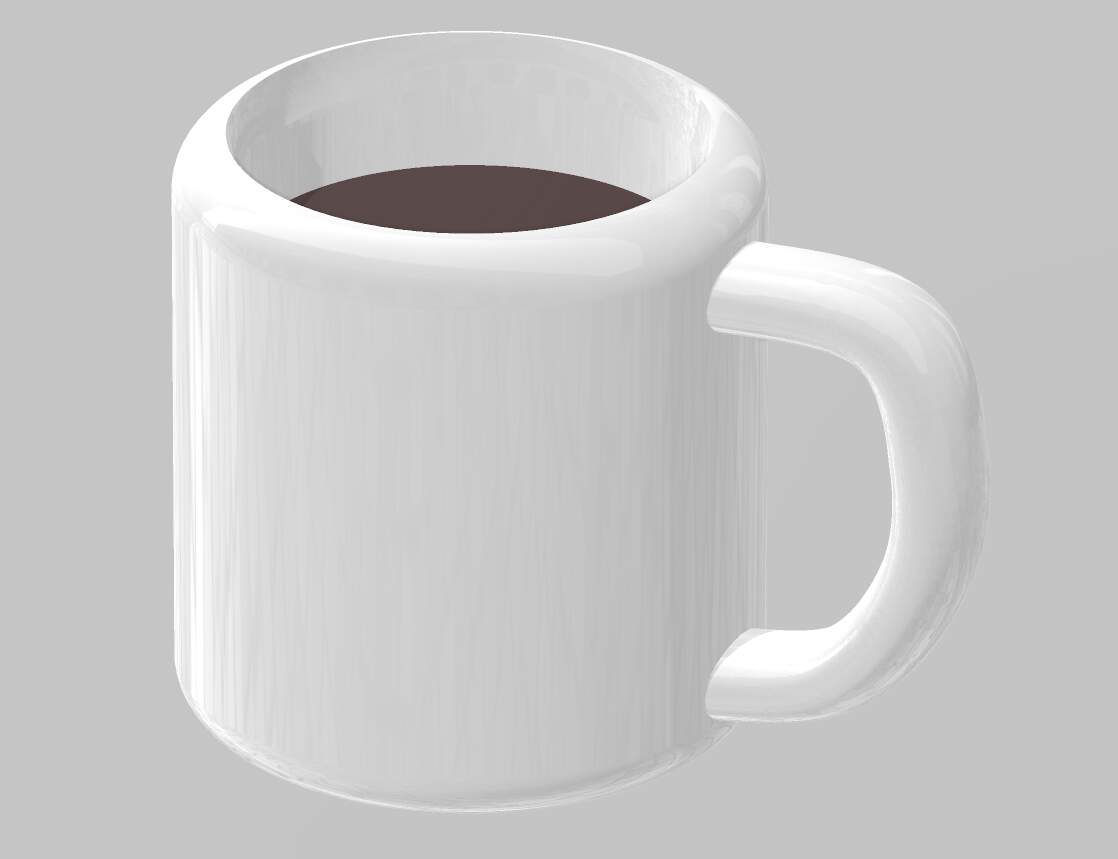

If I render in glossy white, looks like this:

Uploading the STLs to my cults3d page.

5 Likes

Looking at these British soldiers, I am guessing they’re drinking a tea rather than coffee though?

2 Likes

You might want to offset the holes so that they are at an angle rather than rows and columns.
It looks like the holes are angled at 30º (or 60º depending on which way you look at it).

2 Likes

If you don’t like drawing out all those holes you can cheat like I do and download either a 2D drawing or 3D model from McMaster-Carr. Almost all their products have CAD drawings!
I needed large scale realistic fasteners and instead of trying to draw a thread I simply downloaded 3D bolts and import them into my CAD program as solid models. My Punch ViaCAD seamed to prefer IGES but they have a variety of export options.

2 Likes

This is a great catch, Michael! Completely missed it. I’ll redo.

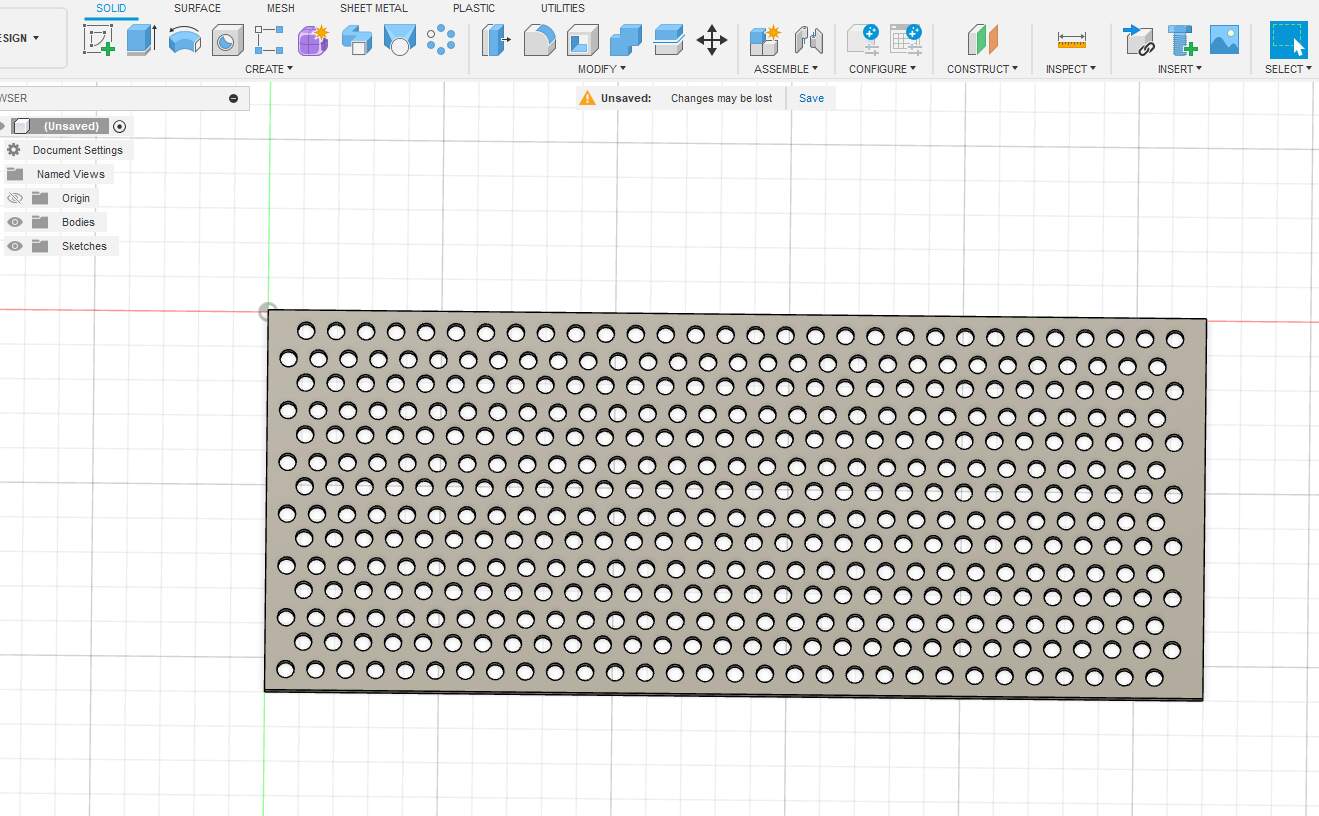

OK, redid it in Fusion 360:


Learned a powerful new tool. :smiley:

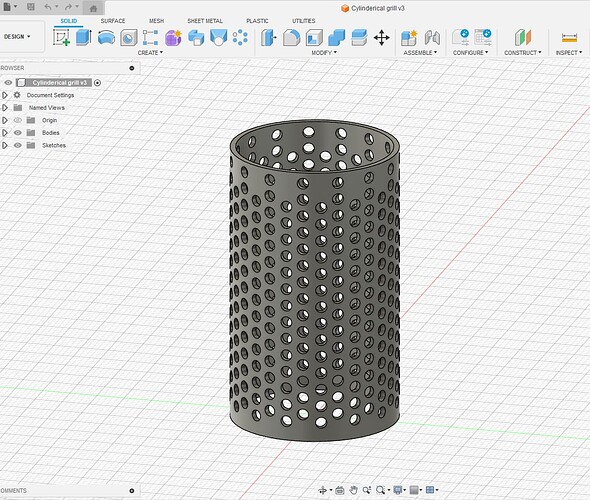

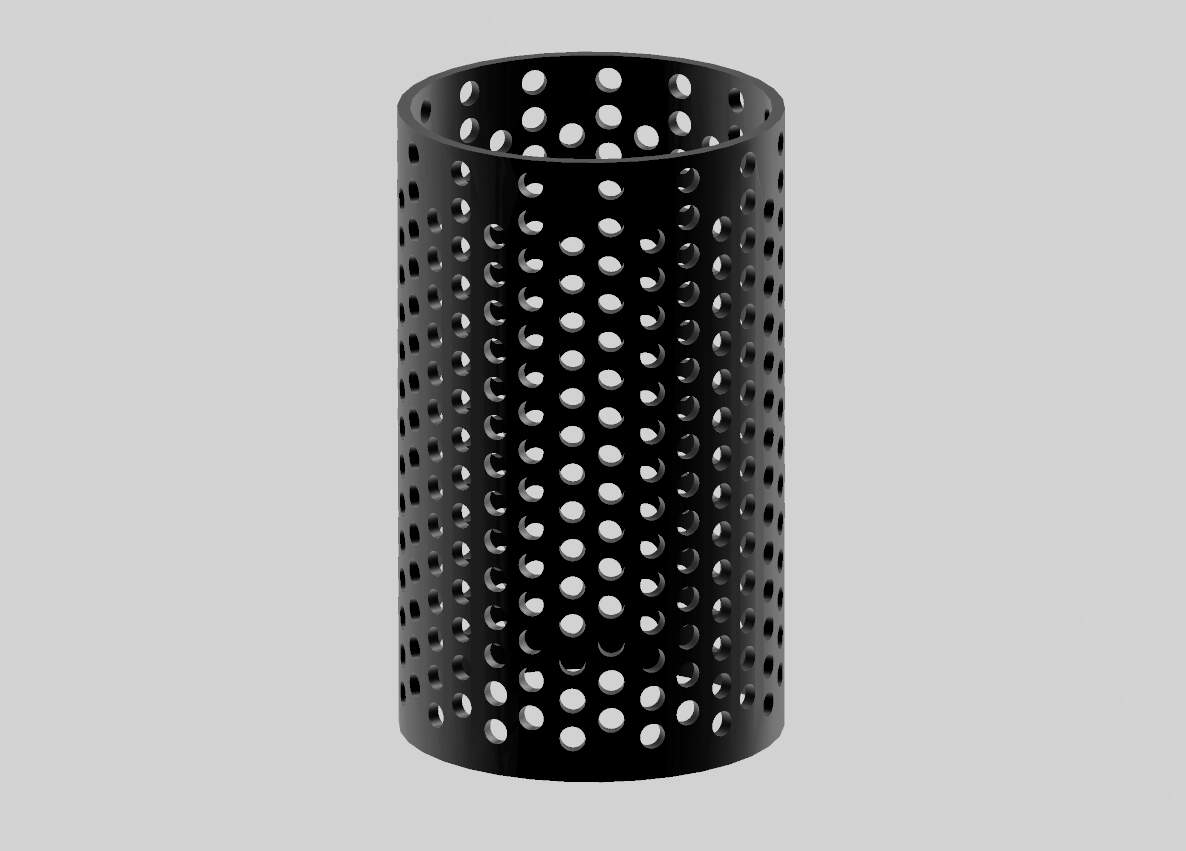

Using the same trick on a cylindrical surface!

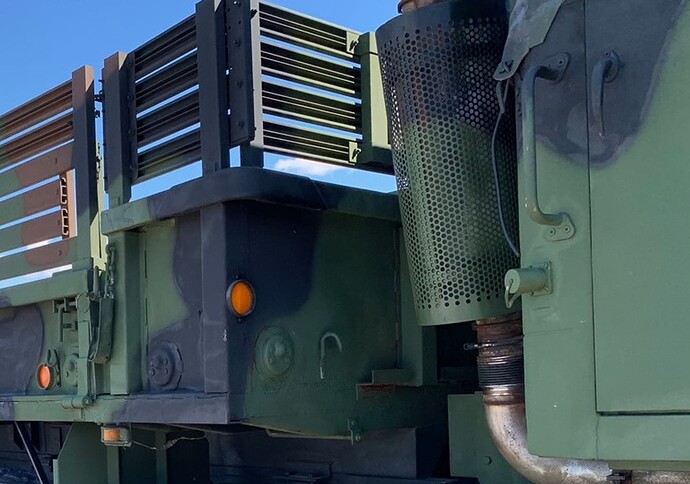

This enables me to render something like an M900 series truck muffler guard.

I have been manually cutting these holes using individual cylinders and kept freezing the software. :smiley: Novice attempt no more.

3 Likes

That looks noice.

1 Like

Do you know where one can go to get a file printed if they do not possess the required printer?

Hi Mike,
I actually do not know if there’s a ‘public’ place or an outsourcer near the Springs where 3D printing can be done. I may 3D print some files from the Denver area if that’s considered near enough to you. I thought we talked about this before, and didn’t you say you’re in the process of acquiring a 3D printer? PM me if you want to discuss separately.

Kind regards,
James

1 Like

Putting my new CAD skill to use!

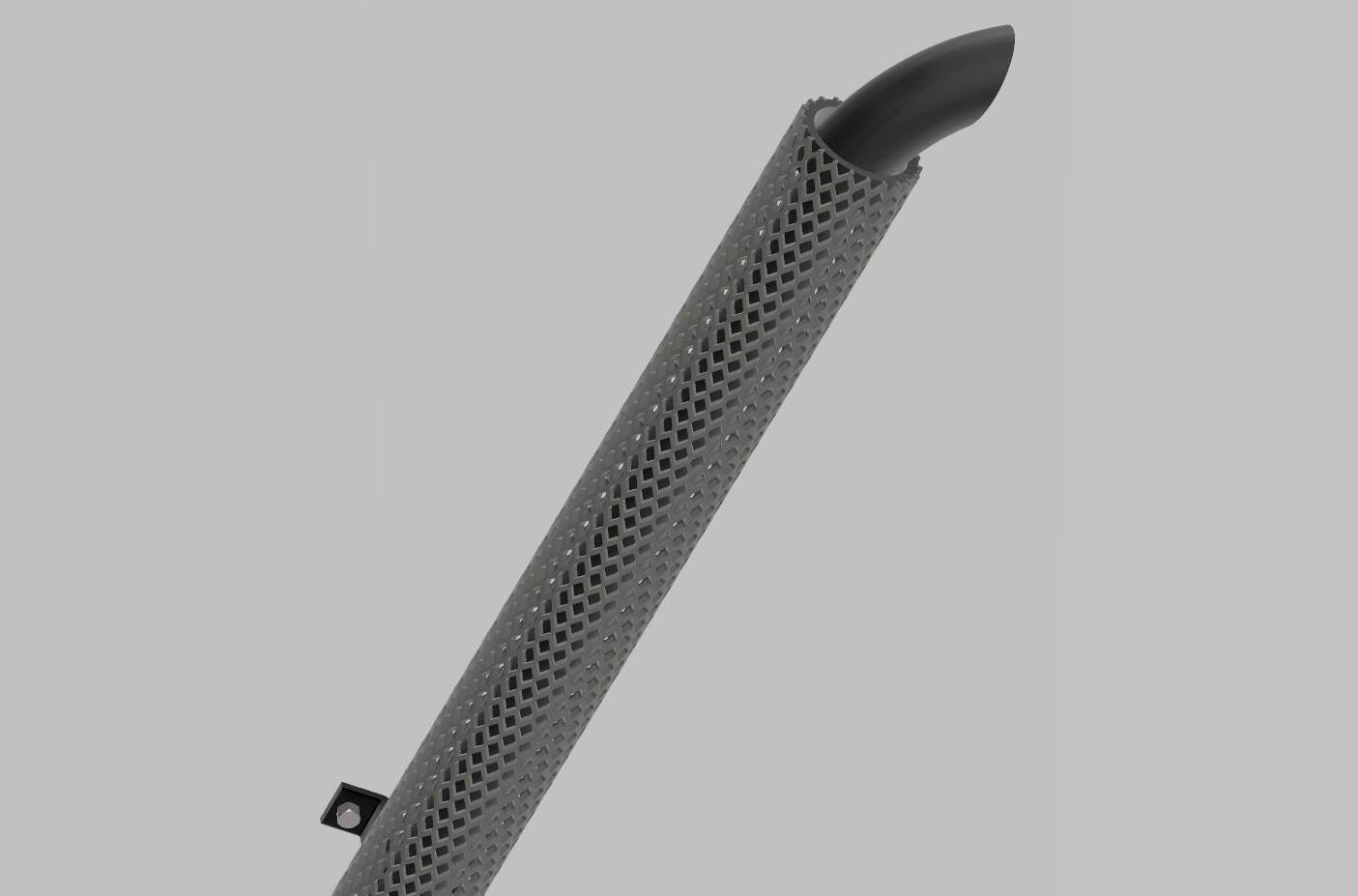

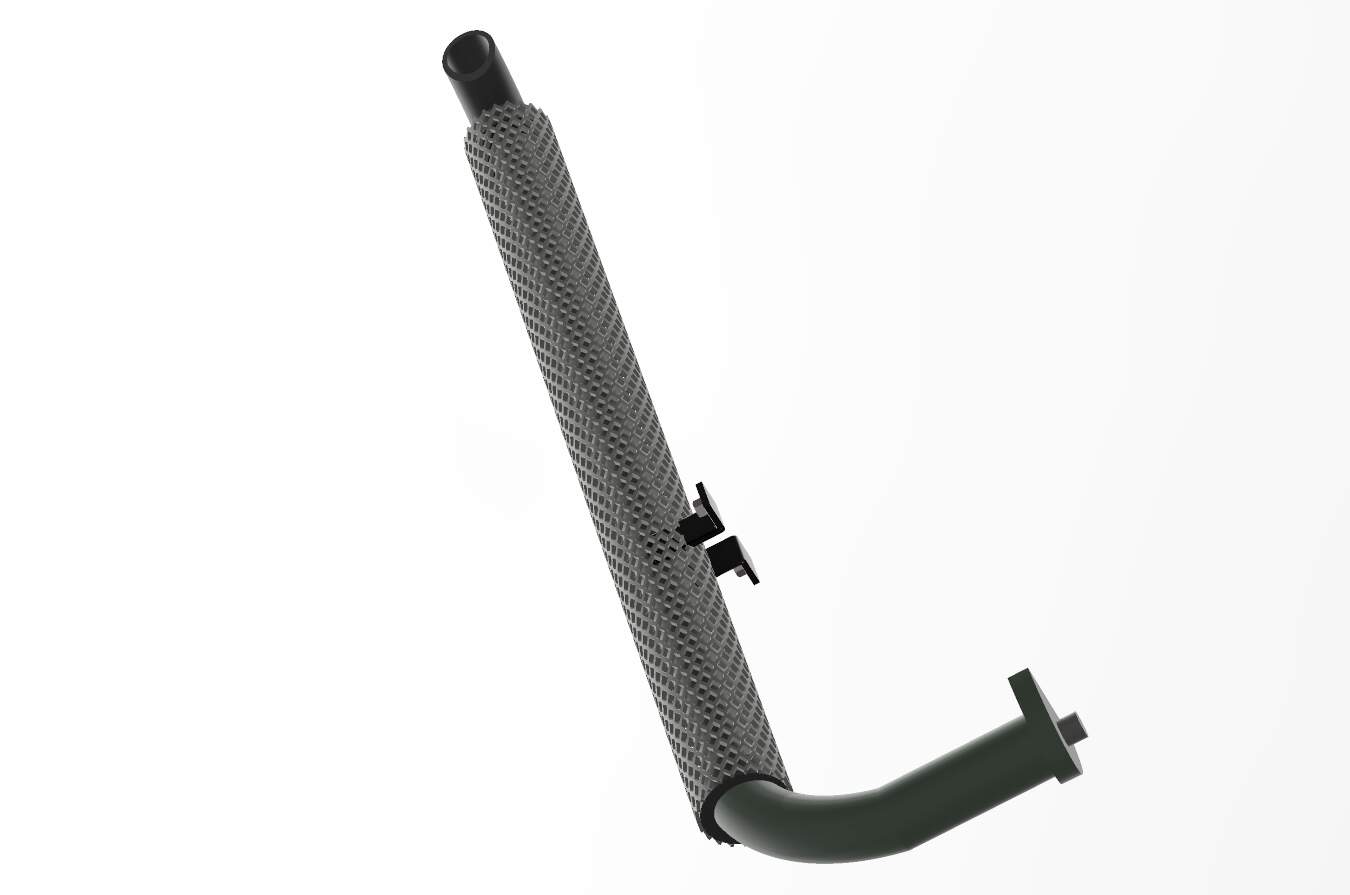

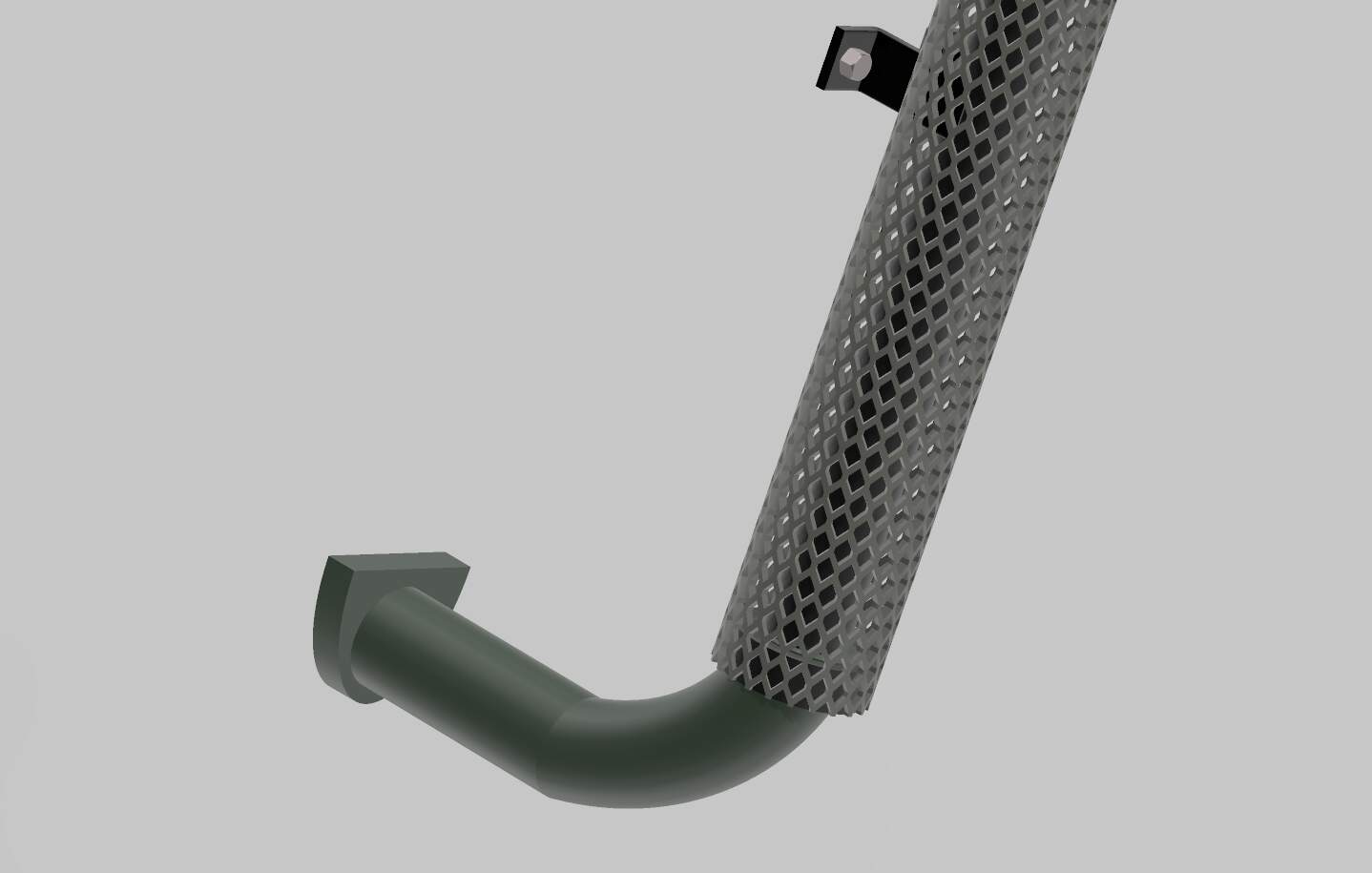

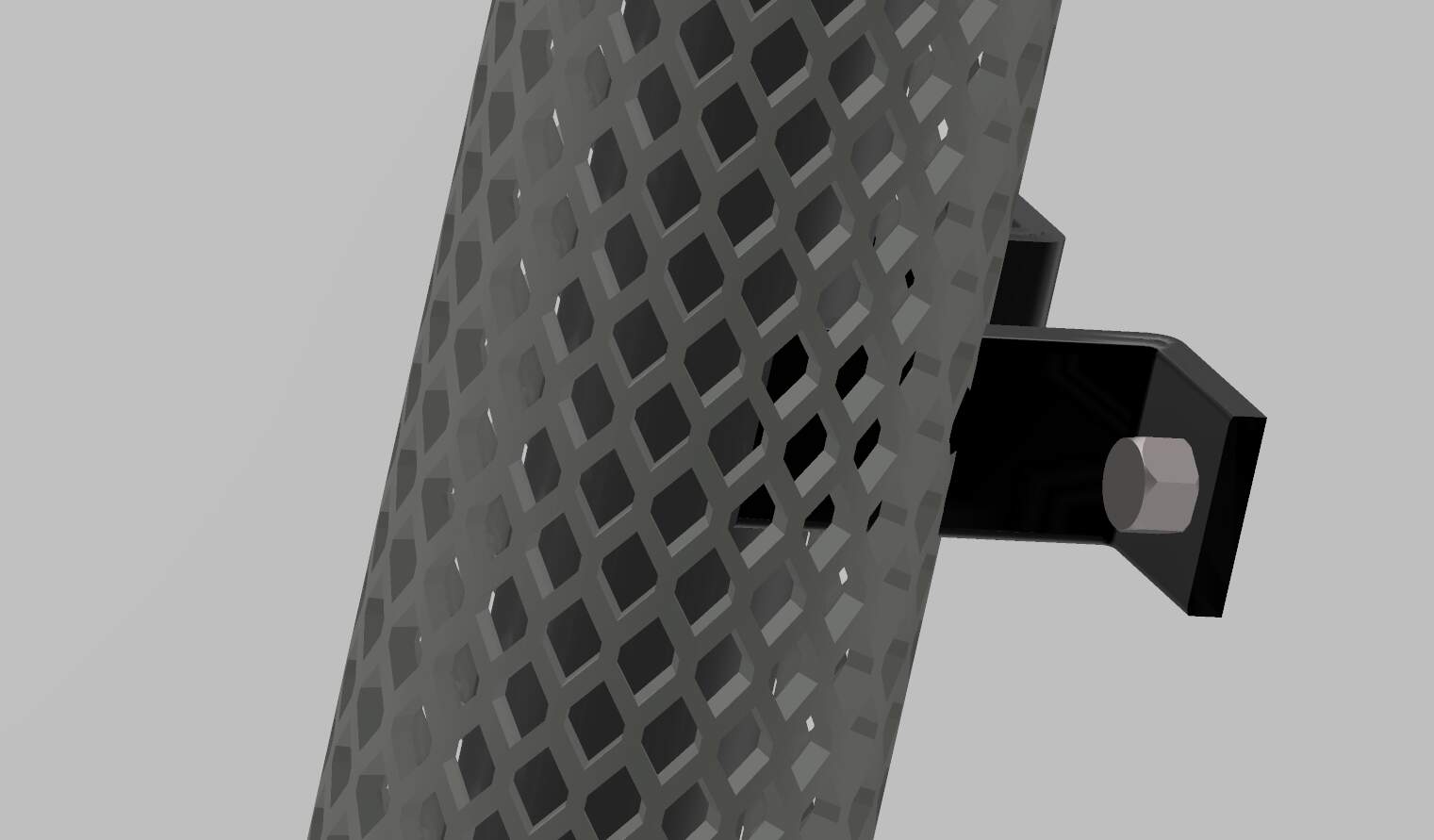

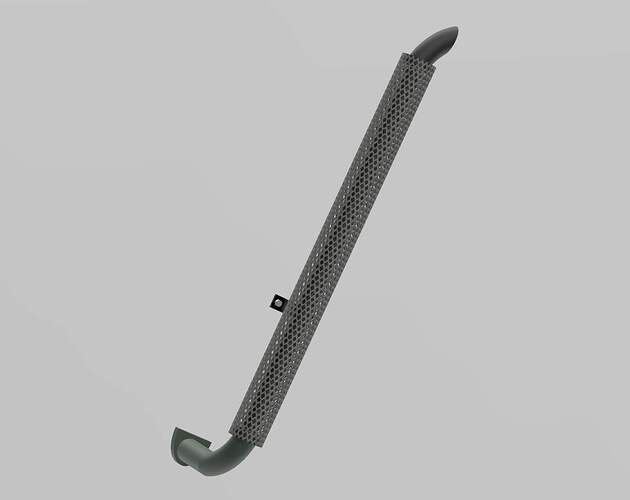

USMC Humvee muffler with mesh guard in 1/35. Used the Tamiya 35263 kit measurements.
I wanted to eliminate messing with the PE for this.









Reference photos used:


Uploading it to my Cults3D page soon.

8 Likes

:smiling_face_with_three_hearts: as soon as I saw you doing the exhaust guard, I was like I wonder about a Humvee exhaust.

1 Like

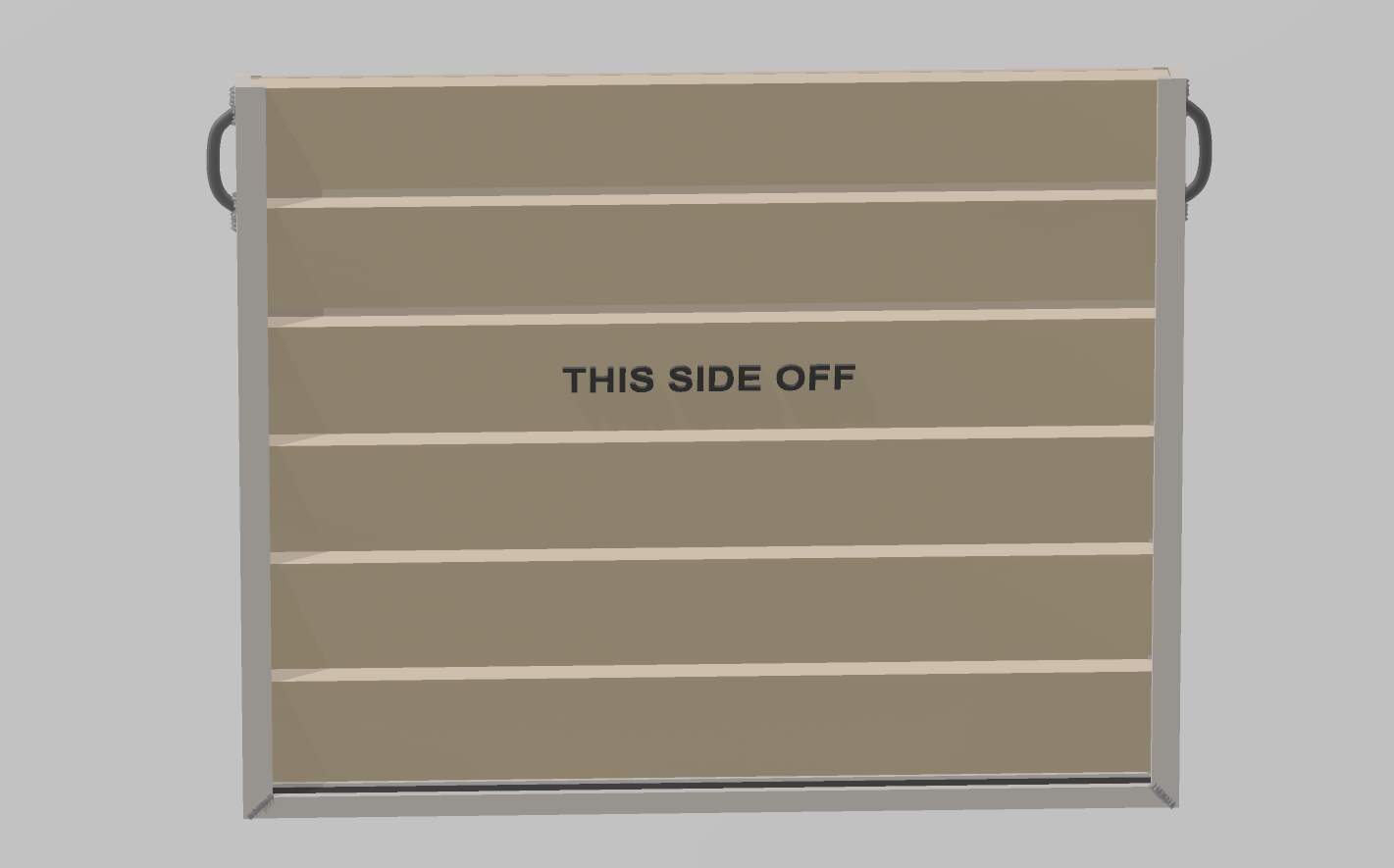

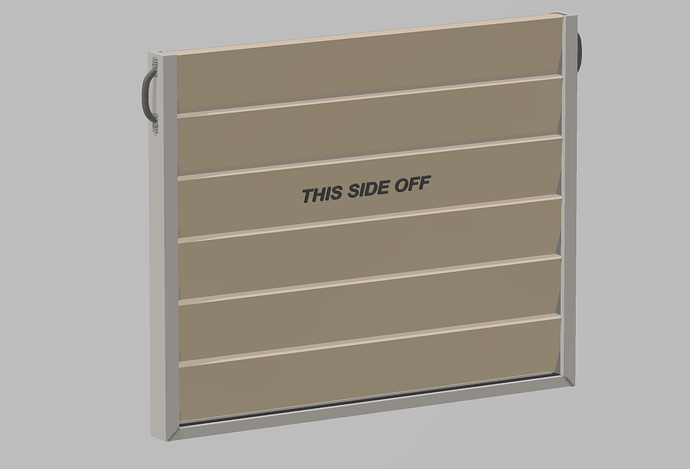

Tried my best to CAD the most detailed CIP (Combat Identification Panel) for M1A1/A2 Abrams kits in 1/35.

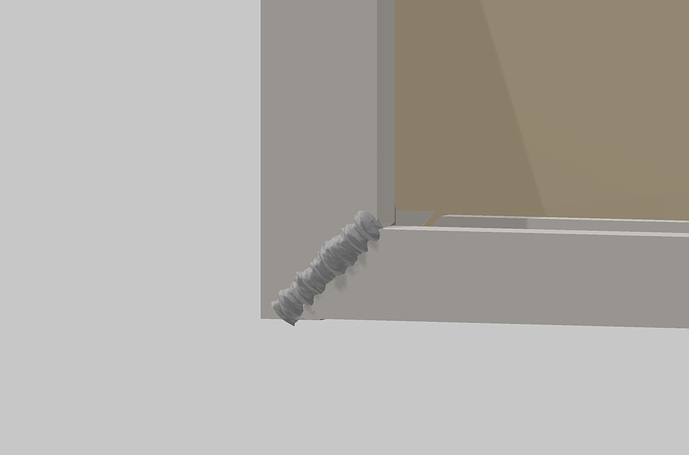

Not sure if these weld details will show up in 1/35 3D print but I added them:

At the bottom edges:

Back side:

Another angle:

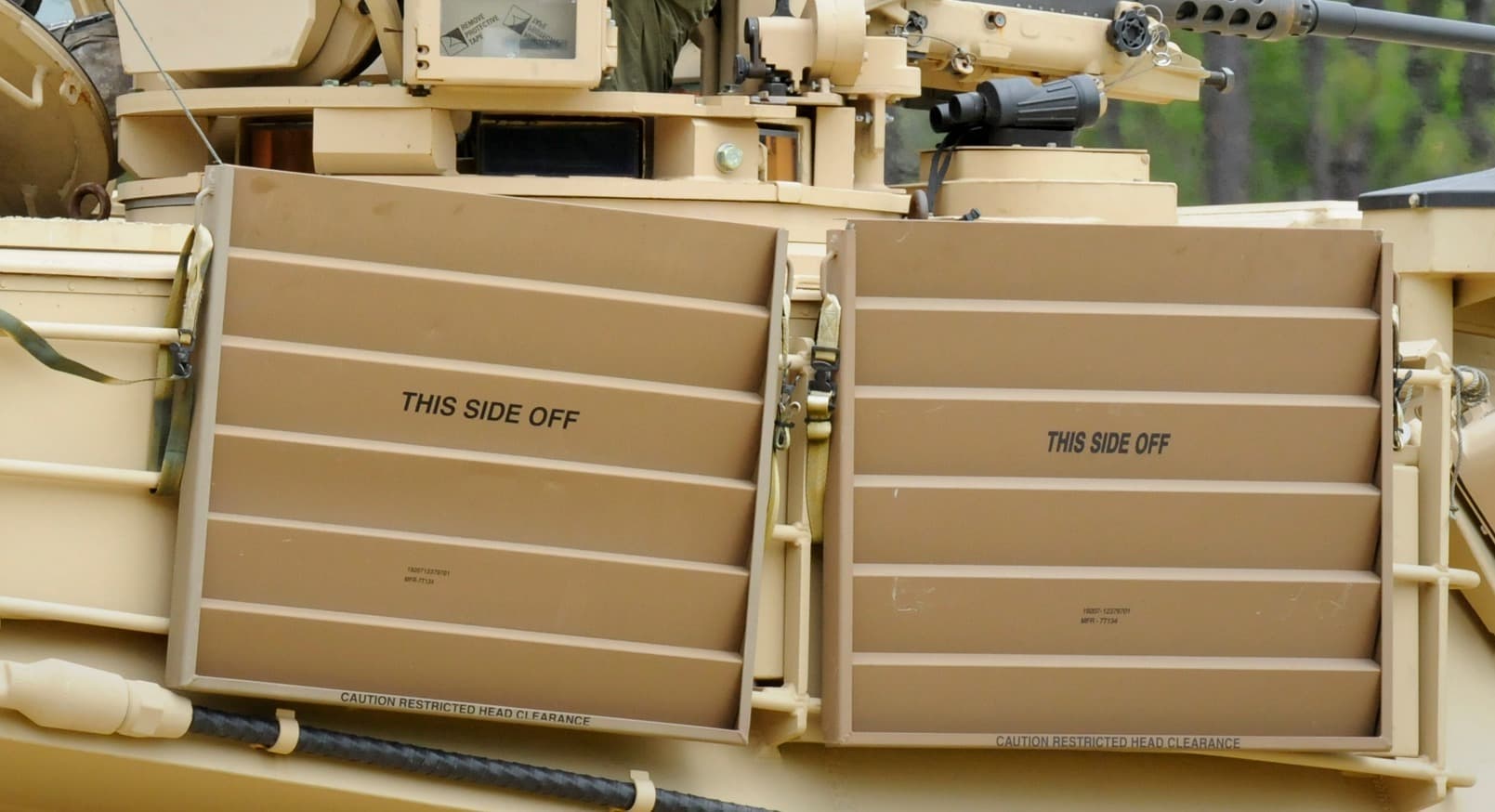

Reference photos used:


Available on my cults3d page.

3 Likes
