The M3A1 had the new hatch with periscopes integrated into it. The opening and top deck was rectangular, just like earlier models and on the M2A1. A couple TM pics and some TM info on it from further up.


The early aluminum roadwheels had the rivets around the inside. Later steel ones had no rivets.

From all I can tell, the M3A4 interior is the same as the M3A3 interior. The Meng interior(s) should work fine for an A4.

M2A4 interior, identical to an M2A3 interior.

More A4 info: M2/M3 Bradley Reference - #185 by HeavyArty

4 Likes

Thank you for the detailed reply. I have a schematic representation of the hatch. I was hoping that someone had the photos in the archive. I bought an M3a3 from Kinetic as a donor, but there is a hatch in a late configuration, with additional armor and, it seems to me, a slightly different shape. by roadwheels - now there is an understanding. thank you.

1 Like

Unfortunately, the Kinetic M3A3 TOW loader’s hatch has the armor molded in place.

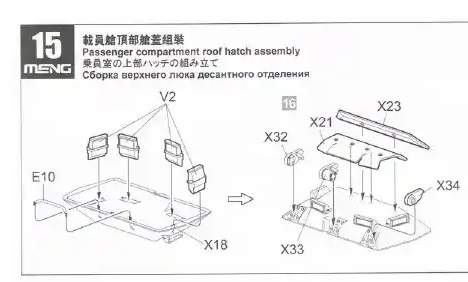

The Meng M3A3 TOW loader’s hatch has the armor separate and can be used as an earlier hatch by leaving these pieces (X21 and X23) off.

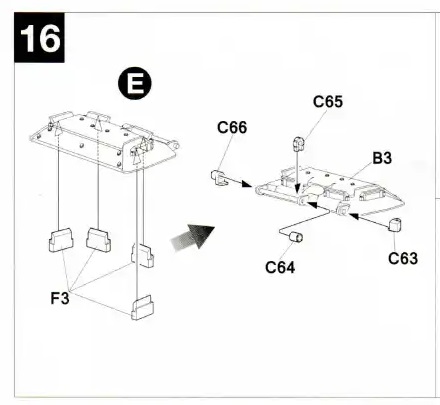

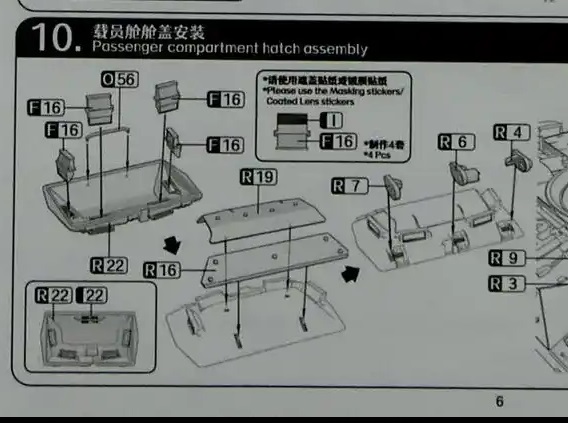

The Magic Factory M3A3 Tow loader’s hatch on their M7A3 kit, which is an M3A3 converted to an M7 BFIST, also has separate armor. It actually looks like a copy of Meng’s hatch assembly.

3 Likes

Yes. I hurried to glue an additional armor when assembling the hatch on the Mang :)). but I can always cut it off.

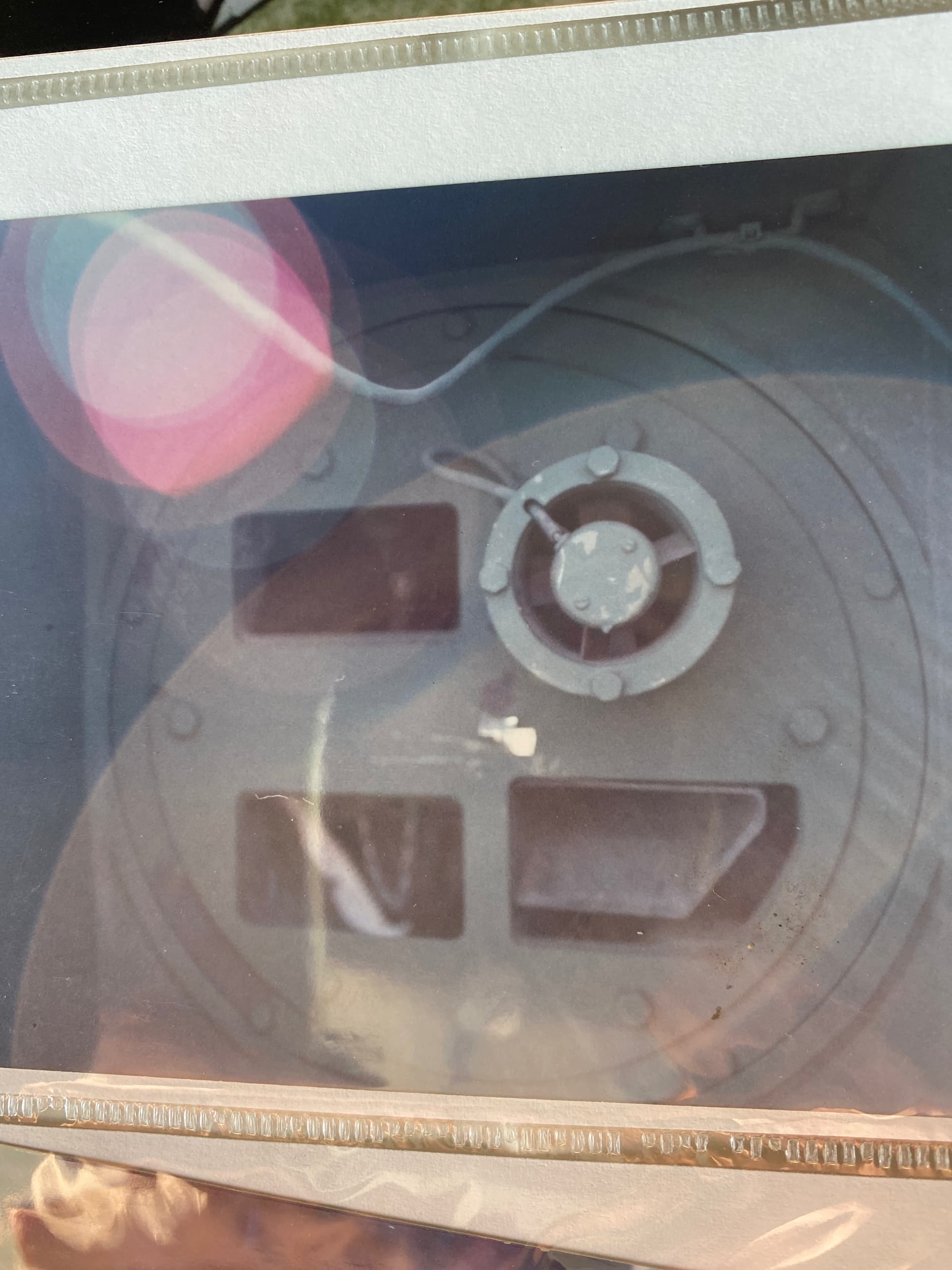

I’m more confused by the interior geometry of the hatch - it differs from the photo you showed above - especially the side and back walls.

1 Like

Excellent info .Thanks you all.

1 Like

Hi all,

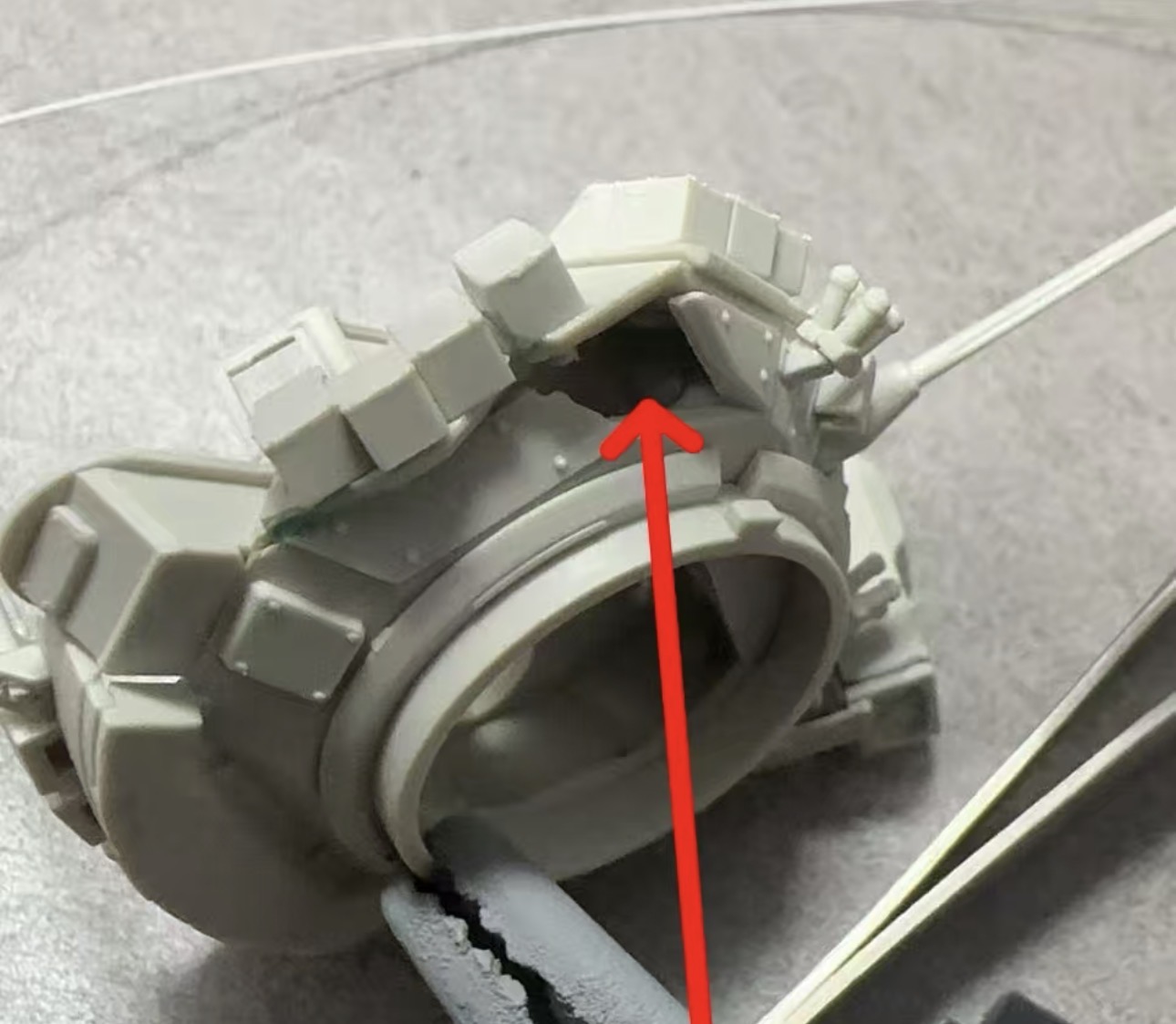

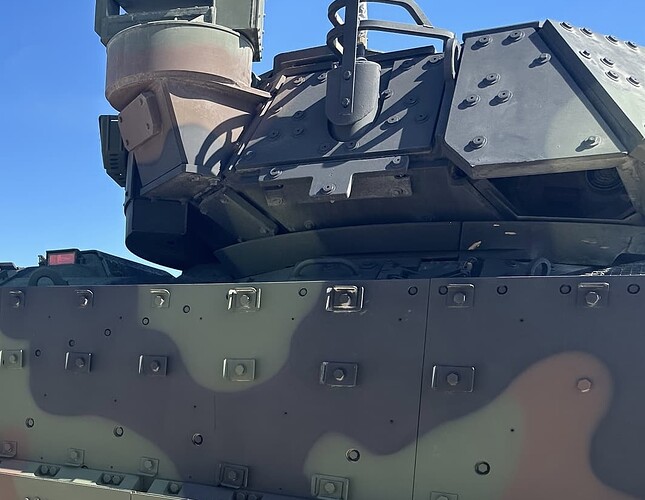

Recently I have looked into 1/72 Meng M2 kit and what surprised me was a large gapping hole in the right side turret armor. At first I thought it was a mould defect, but checked with photos and other kits and it’s there for real. Anyone has an idea what it’s for?


2 Likes

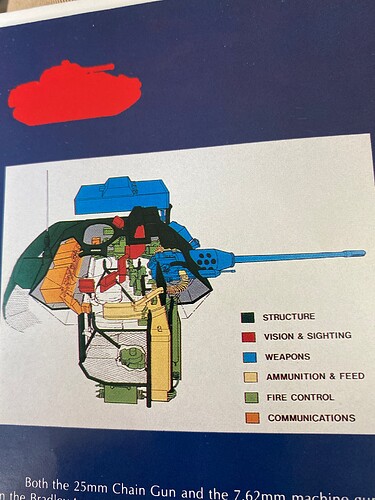

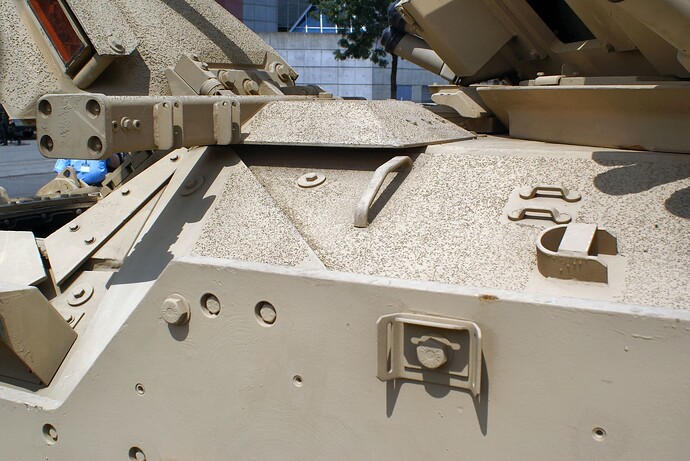

Ejection ports for the guns . The coax ejects shells and links through here while the main gun ejects links ( 1 port for each feed, AP and HE) here and shells through a recess in the mantlet, this being a characteristic of the chain gun and the need to eject duds.


This is a LAV-25 but same setup.

3 Likes

Thank you.

But is it something visible from the inside of the vehicle? i mean that there is a hole in the turret?

1 Like

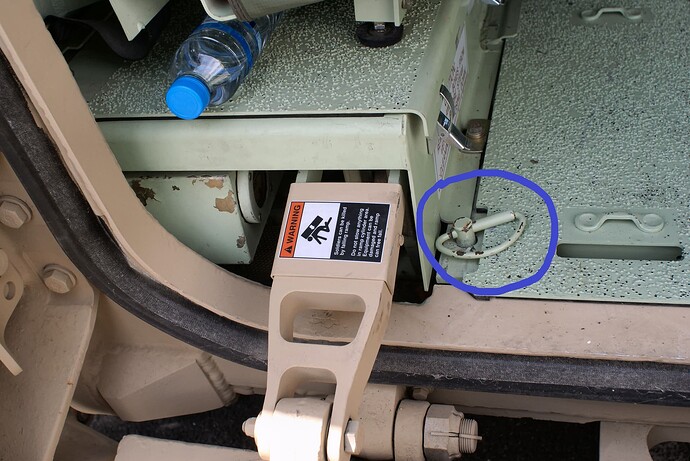

No. It’s just a recess where the ejection ports are.

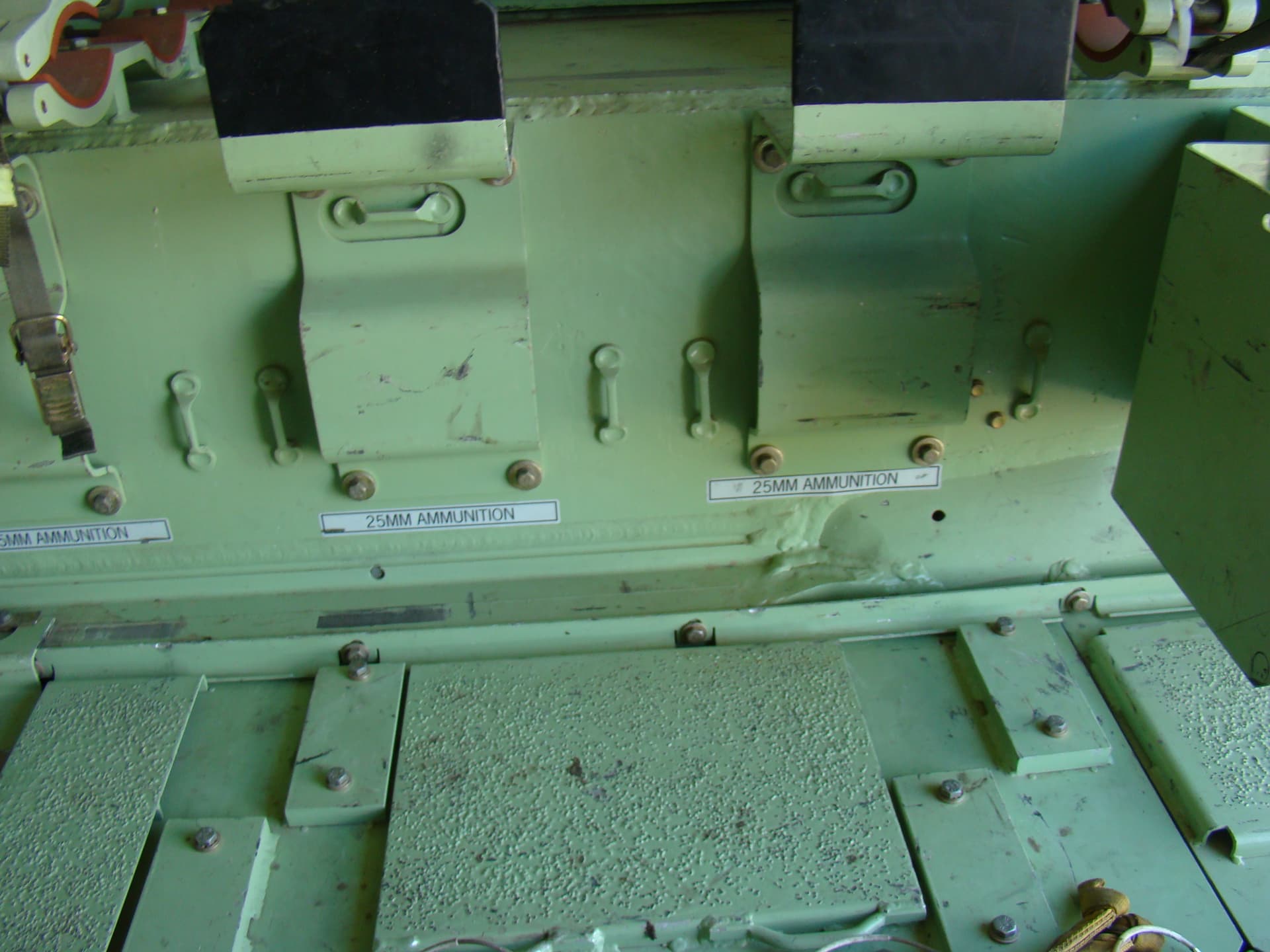

If you mean could rat climb out through the hole from the gunner’s station, then no. The turret is sealed, not hermetically, but well enough for the overpressurized NBC system to work.
:thinking:
I thought that photo looked familiar…

2 Likes

4 Likes

Thank you

1 Like
