Is this Trumpeter-specific, or is it compatible with AFV Club also?
1 Like
Trumpeter specific. Ettore is working on AFV Club Specific items. The two are not compatible as there are dimensional differences between the two companies.
2 Likes
Good. I’ll wait until Ettore gets the A1 Upgrade done.
1 Like
i have spent 4 year doing a conversion of the Canadian LAVIII into the New Zealand NZLAVIII. there is lots wrong with the Trumpeter LAV kit even for the Canadian version with the hull the wrong shape in places and because the lower part of the hull started as a Stryker kit it also has errors that are different on the LAVIII. most of my conversion i hand made for bits of plastic packaging etc and a few spare parts from the kit and even some of the sprues for the A Frame Towing Bars (NZ version). i have even written a guide that at present is 147 pages, over 400 odd pictures and over 13,300 words.
still a few small bits to finish on it once i get my mojo back. even made the wipers for the gunners sights which are 2.5mm long
this shows the main difference between the Candian and NZ LAV’s the upper engine deck layout. the NZ version is closer to the Stryker but there are still differences there.
i was not lucky enough to have clear shots like this when i did the conversion and finally got some good shots a year ago today on Cambrai Day (Armoured Corps Birthday) as i was on base for the parade and celebrations.
this is the NZLAV-R Recovery version with the ground anchor and a bigger winch inside
if you want a read of my guide where i show things like how i did the anti slip etc i can post a link for the download.
based my kit on the Afghan deployed up-armoured version
14 Likes
That’s a helluva nice build.
1 Like

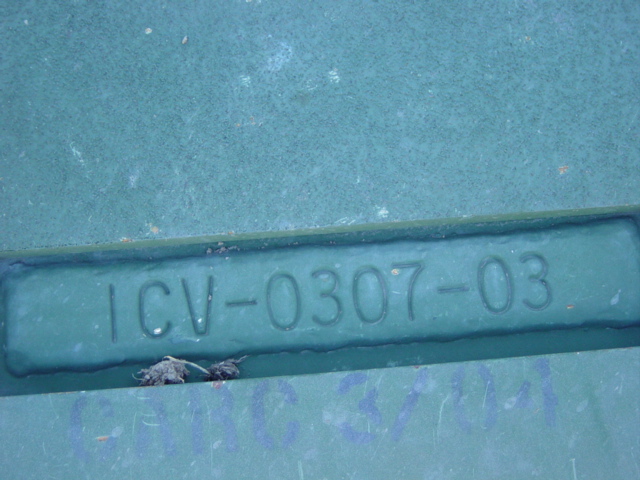

another simple thing most of the kits miss is the ID plate on the front right side. something so simple but would have been easy to include (i have seen it on the Academy kits)
it is the Type - Number built - Year built
3 Likes
There’s a kit of a different vehicle coming out soon that may have different ID plates, in case you build more than one,
3 Likes
Trumpeter specific.
But I can check if it fits AFV also.
2 Likes
Good to know, thanks for the information.
1 Like
Wow, nice work.
Very hectic vehicle, lots of details.
1 Like
After Shapeways bankruptcy I now have a new place where I sell my Priamide Models products, look here: Seller Profile – 3Dp Train.
It’s a marketplace and printing service based in the US, but I’m also finalizing an agreement with a similar service in Europe.
Also use my website to browse my product catalog and models: 3D Printed Parts for Scale Models - by Priamide Models
5 Likes
3D-Wild.com is going to sell the Stryker A1 set for the Trumpeter 1/35 vehicles.
2 Likes
And done, fits perfectly on the Trumpeter Stryker kits:
One Stryker A1 and a Stryker improved aftermarket set.
9 Likes

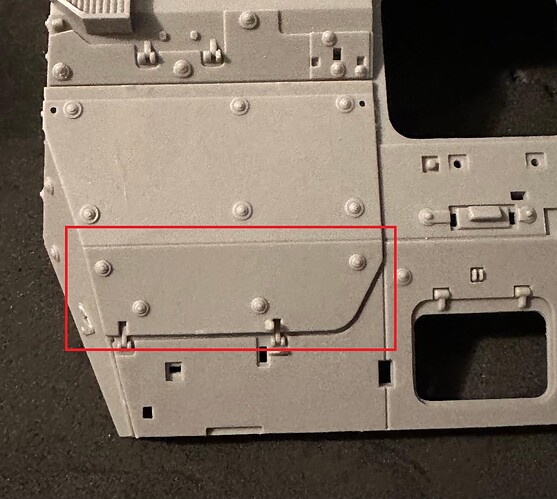

What you’ve done is superb, However, quite a few things still need to be done - some much more difficult because of how Trumpeter did their applique armor. For starters, this needs to be done:
2 Likes
Ok, no problem.
Thanks for the picture.
I can’t design what I don’t know or what I can’t see.
So if I can’t find it online…
But I guess you don’t have these from the internet. Lol
Haven’t seen a HEMTT, LVSR, Abrams or Stryker in real life yet. I hope I do one day, but not in a war environment.
2 Likes
That’s where I come in.
No problem. You can leave out the foot.
You may want to design the whole portion of the engine hatch in front of the line, and let the modeler cut it off and replace it on the kit part. Because of the new bolt arrangement I think this would be the easiest solution.
4 Likes
is that a torsion bar hinge added to help open it easier with the extra plating on?
you can carefully shave those bolt points off with a sharp knife by using just the very tip going around it taking tiny slices until they come off then can be transplanted to a different spot. you can see here i removed 2 rows on the right side ready to fill the gap as the LAV only has 4 plates on the front not the 2 bigger and 4 smaller ones like on the Stryker (another error carried over on the Trumpeter kit)
3 Likes
Progress so far, still have to design the engine torsion bar thing 18bravo pointed out.
If any of you still know things that need adjustment, feel free to let me know.
And it turns out the Trumpeter kit is the easier road to convert to a Stryker A1, all other brands have the Exhaust and air intake on top molded in.
6 Likes
You can, and I’ve done so, but it’s tedious. In this thread I used a punch set to create new ones:
Mine actually look better than the ones on the kit, There’s also the Voyager set that includes them along with the tie downs that are seen on many of them.
Ah, just scrolled down and saw this:
Nicely done so far! But your statement about the Trumpeter kit being the easier one to convert is debatable. Here’s why:
The lifting lugs on the FB versions are behind the armor joint. The armor is notched to allow for it. On the DVH A1, the lifting lug is in front of the joint - the front piece of armor is notched to accommodate it. This is any easy fix for the AFV Club kits as the armor comes in separate pieces. Since Trumpeter’s armor is cast on it’s a little trickier.
