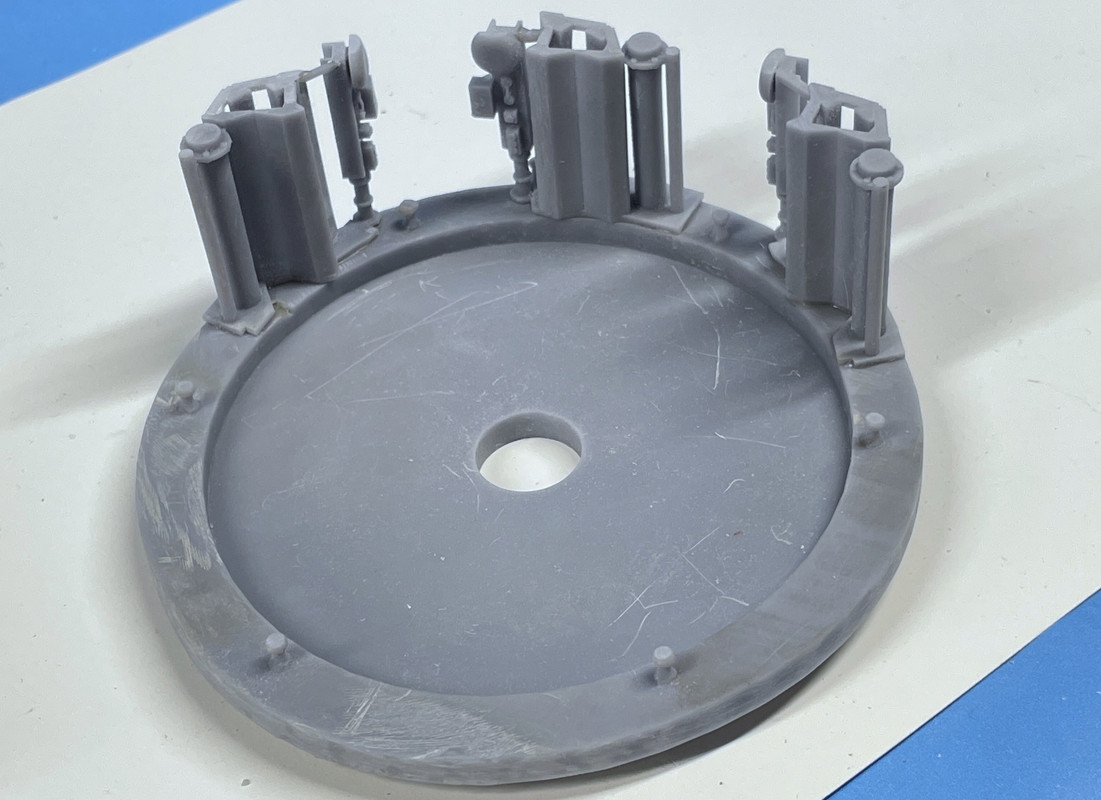

Started the print for the interior cylinder of one of the two projectile decks. This is a complex five-hour print that will determine the process going forward. It will be done before 8 p.m. tonight. While that was printing I cleaned up the projectile hoist prints and installed them on the previously printed rotating middle projectile ring.
I’m not certain about the placement of the hoist control stand. In the one detailed image I have of one of these appliances, it was facing perpendicular to the ring’s circumference.
Now let me give you some details of how I did this part. There were no marking on the finished ring to show the precise location of each hoist. The entry point of each hoist must be facing forward towards the outer ring’s walls (I think… I could be completely wrong in this assumption. Like I said, I have no good reference information of the full arrangement of all the hoists and may not be able to visit this deck in June.
I made a paper pattern of the ring’s face and scaled it correctly. I then marked the center of each hoist chase to give the hoist frame locations.

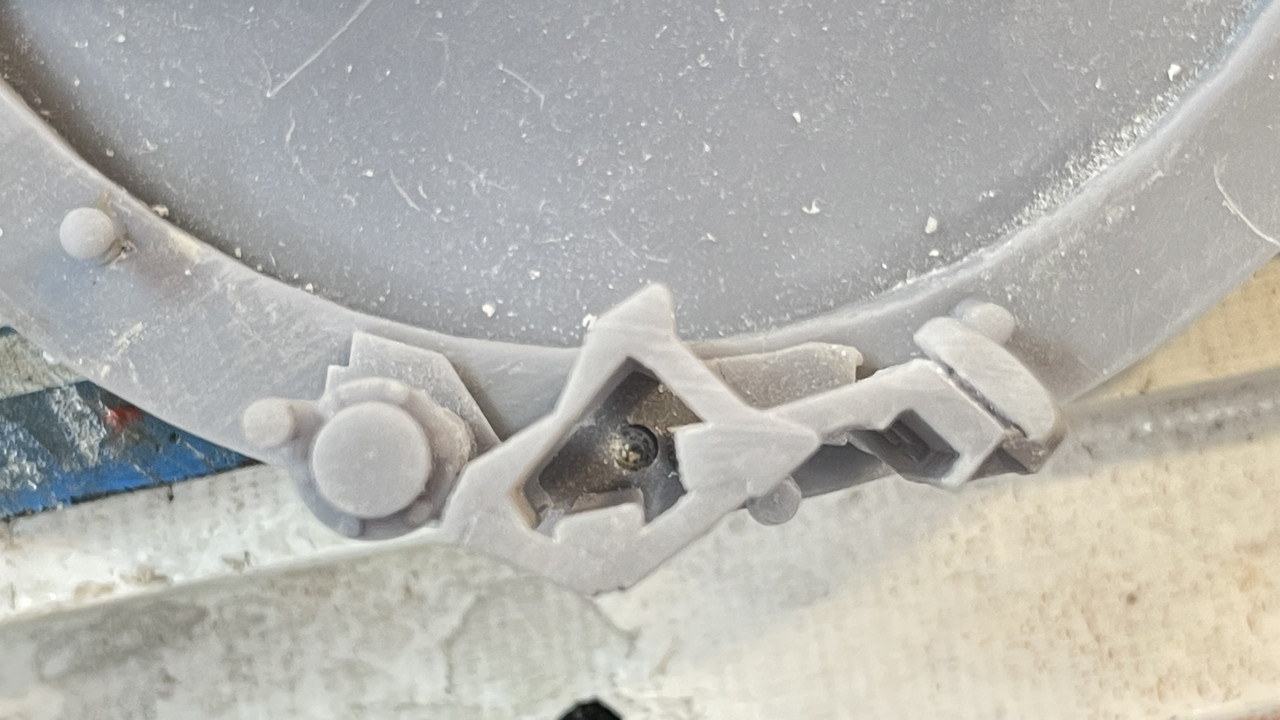

I drilled some shallow depressions to locate each hoist and drilled the same kind of holes in the center of the hoist channel. I applied Bondic the bases of each hoist and fastened them down centering the two holes. Here’s the alignment looking straight down the hoist frame.
I had to make sure that the hoist didn’t extend too far inward since it would make fitting the internal cylinder very difficut. As it is, there is overlap on the outside and I will have figure out what to do with the outer ring’s fitting.

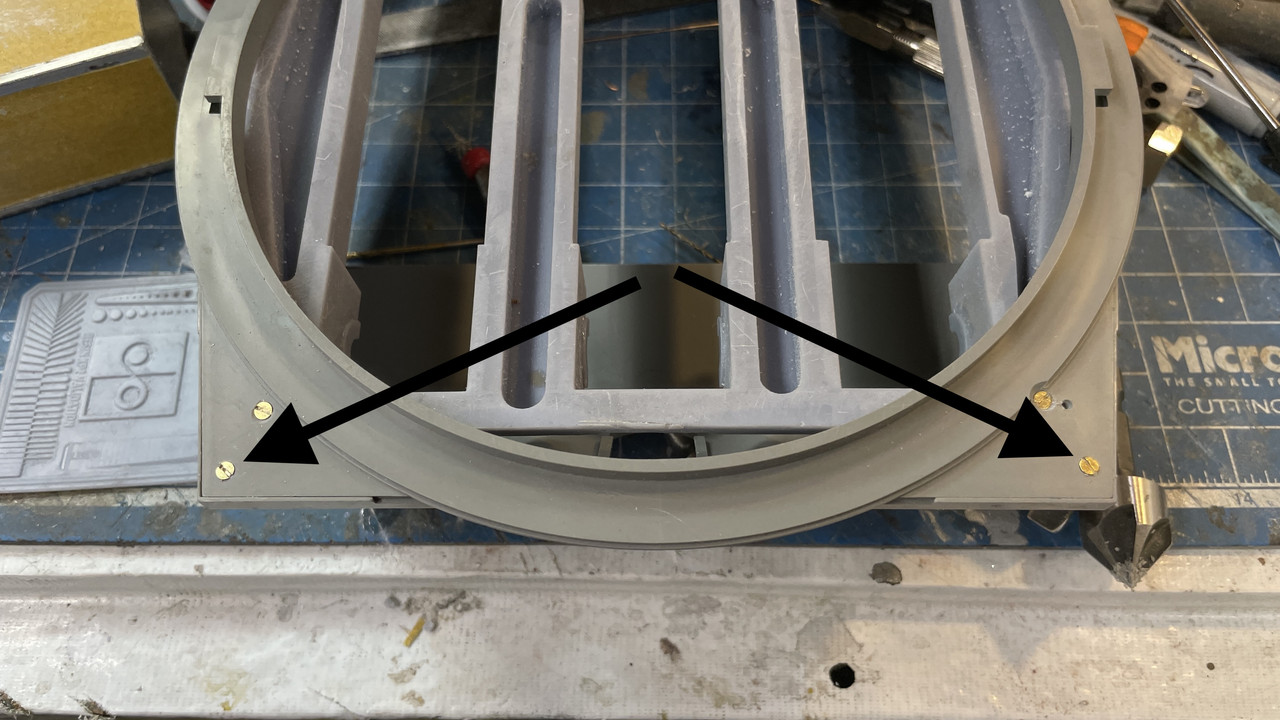

I also fit the screws that are holding the gun house together. I’m using some nice brass wood screws. After doing all the drilling and fitting the four screws, I took it apart and applied some thin CA to each now-threaded hole to harden the threads so the screws can be taken out and applied multiple times without stripping the threads.
![]
After the projectile flat center cylinder print I will print the machinery that lies within plust the ring of projectiles themselves, and that will equal one deck. There is another of the same design, although I am led to believe that some aspect of it might be of a smaller diameter since the barbette stack narrows at the bottom corresponding the the reduced ship’s width as it nears the keel.
